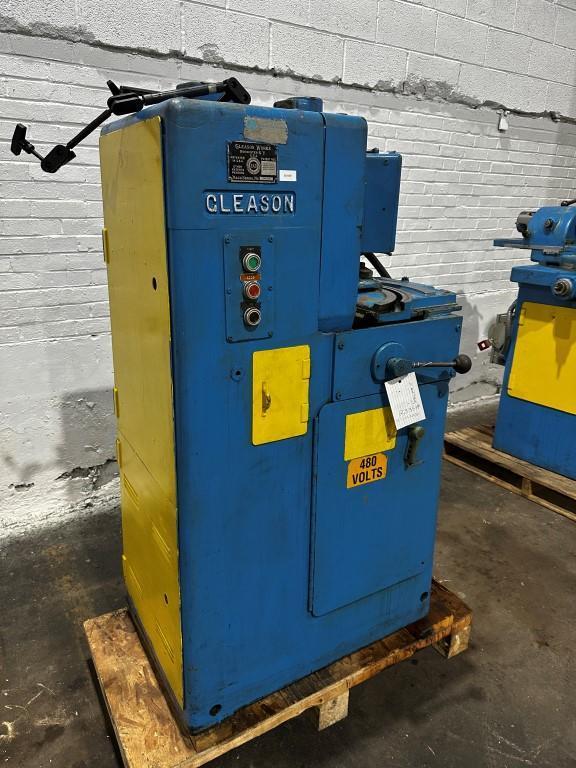

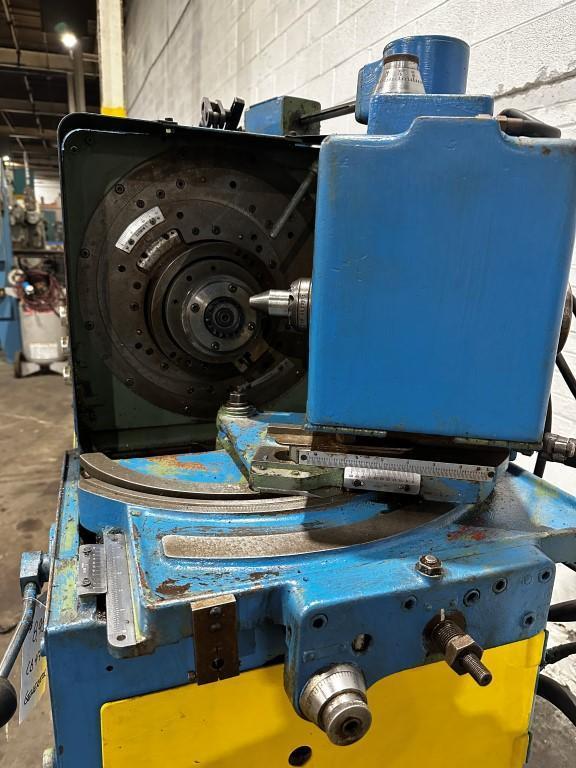

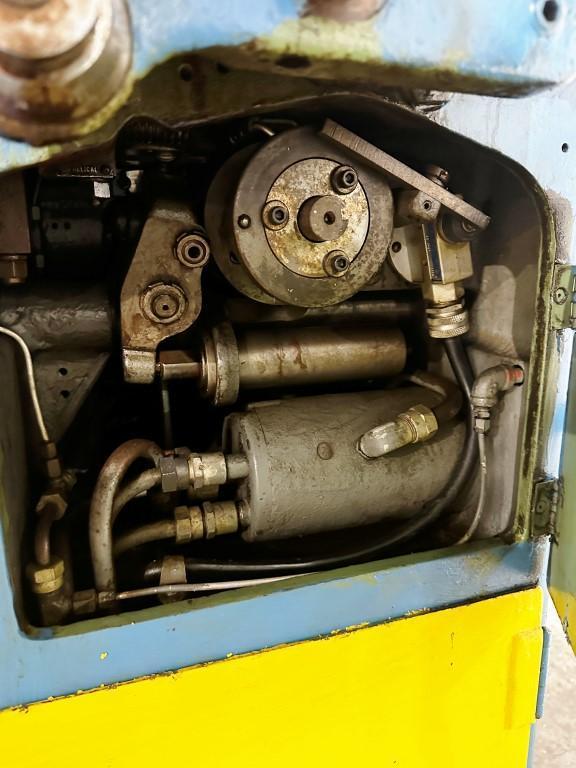

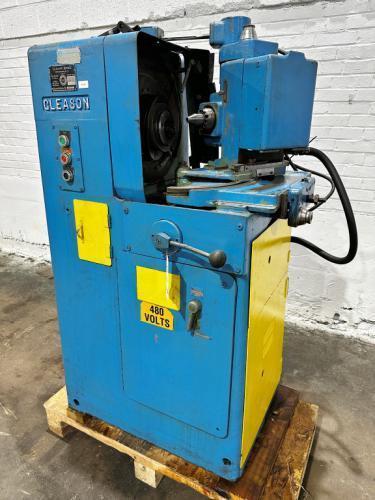

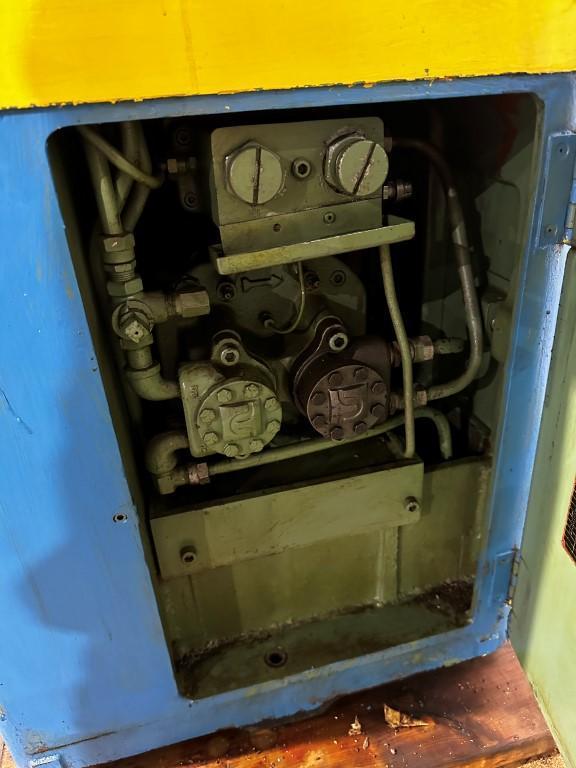

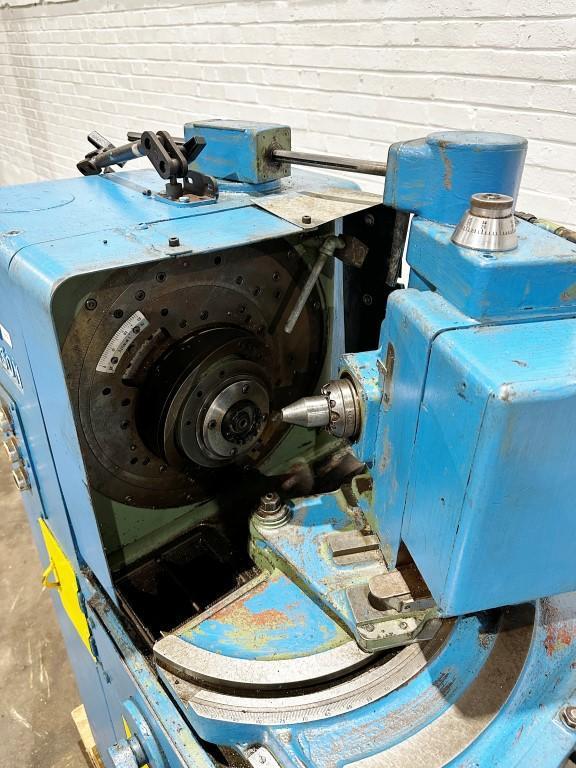

Gleason No. 2 Fine Pitch Hypoid Gear Generator

Stock

mcb4711

Model

2

Dealer Location

Illinois

Spec Sheet




Diametral Pitch (max) 16"
Diametral Pitch (min) limited only by the smallest
practical cutter point width
Cone Distance 0 to 2-1/8"

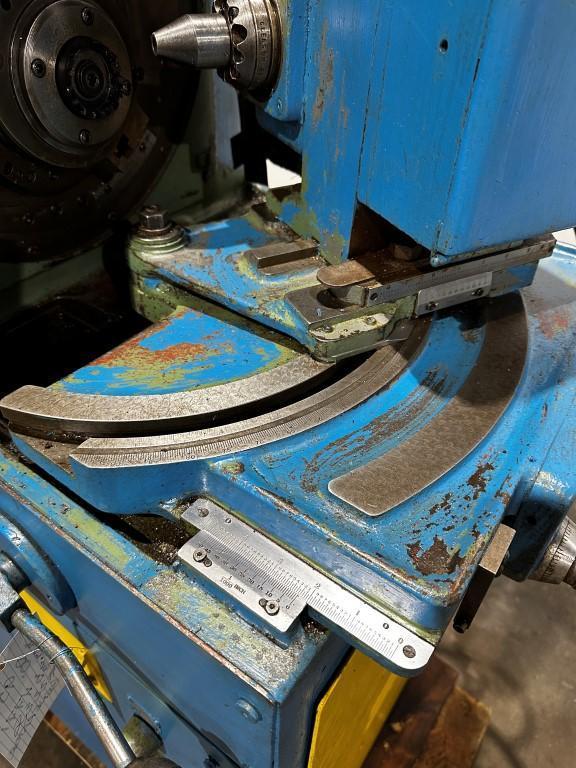

Work Head Angle -12� to 90�
Extreme Ratio any practical ratio
Minimum Ratio for Format cutting 2-1/2 to 1
PITCH DIAMETER (max. shafts at 90�)
10-1 Ratio (Formate) 4-1/4"
2-1/2-1 Ratio (Formate) 3-7/8"
2-1 Ratio (Generated) 3-3/4"
1-1 Ratio (Generated) 3"
Face length (max.) 7/16"
No. of Teeth 2 to 120
WORK SPINDLE
Diameter of taper bore, large end 1-17/32"
Taper per foot 1/2"
Depth of taper 3"
Diameter of hole through spindle 3/4"
Spindle nose to machine center 1-1/4" to 5"
Offset, above and below center 3/4"

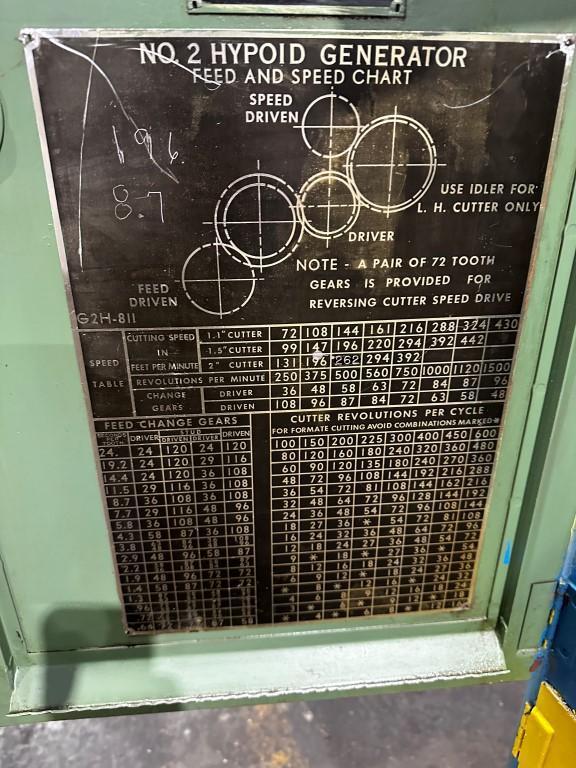

SPEEDS AND FEEDS
Cutter speeds 72 to 430 FPM
Feeds, time per tooth .64 to 24 sec.
Cutter diameters 1.1, 1-1/2, 2
Cutter radial setting 0 to 2-1/4"

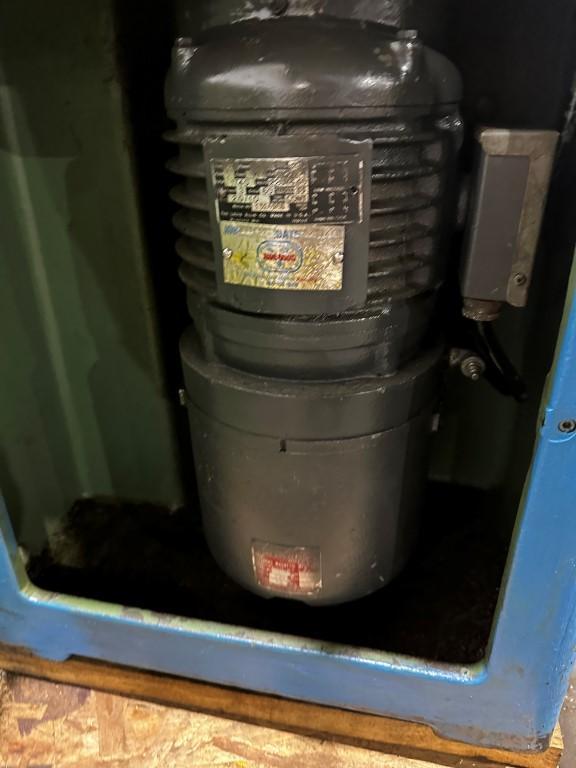

Motor 3/4 HP, 1800 RPM
Floor Space 34-1/2" x 24-1/2"
Net Weight 1600 lbs
Shipping Weight for export 2,525 lbs
