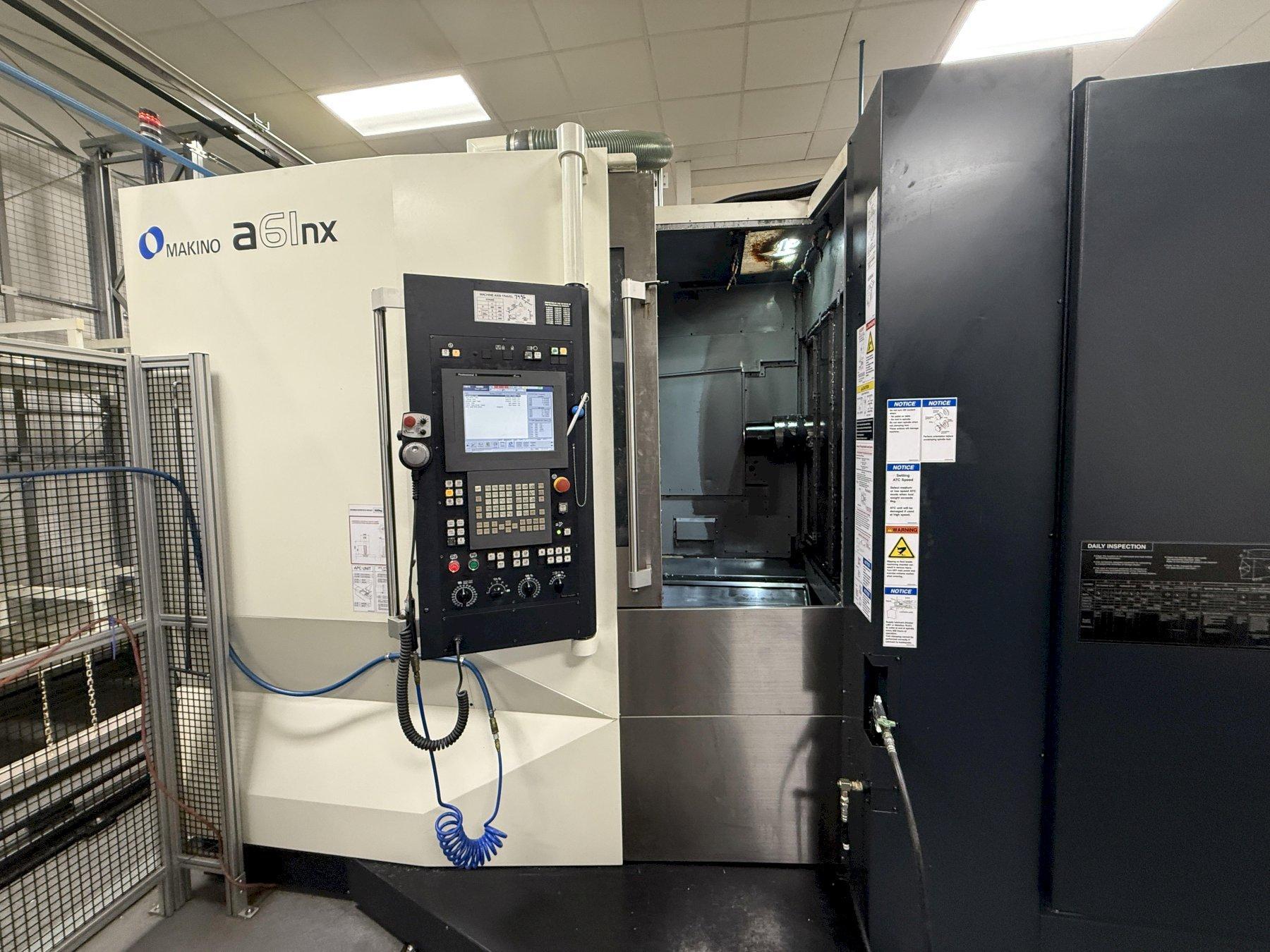

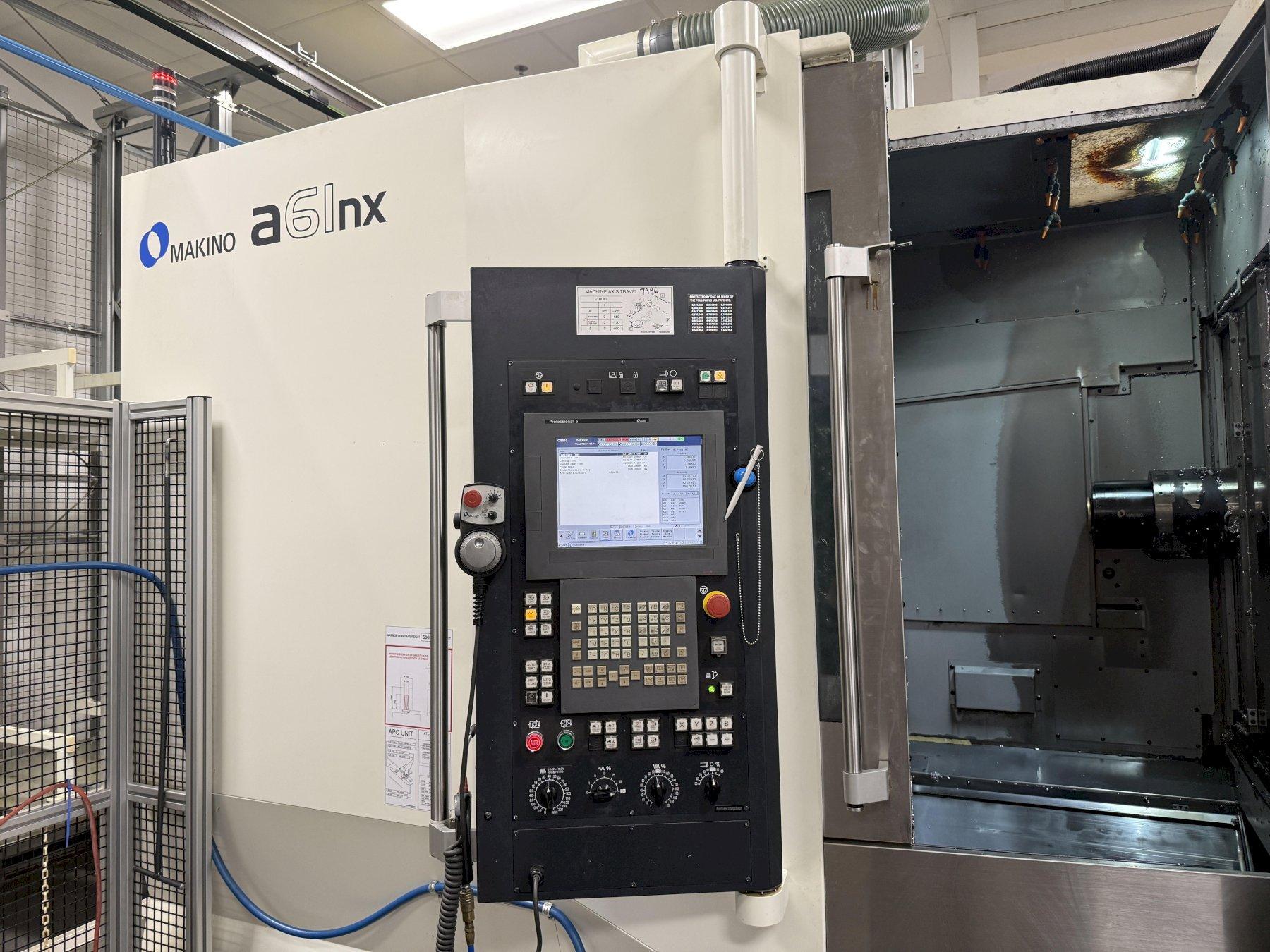

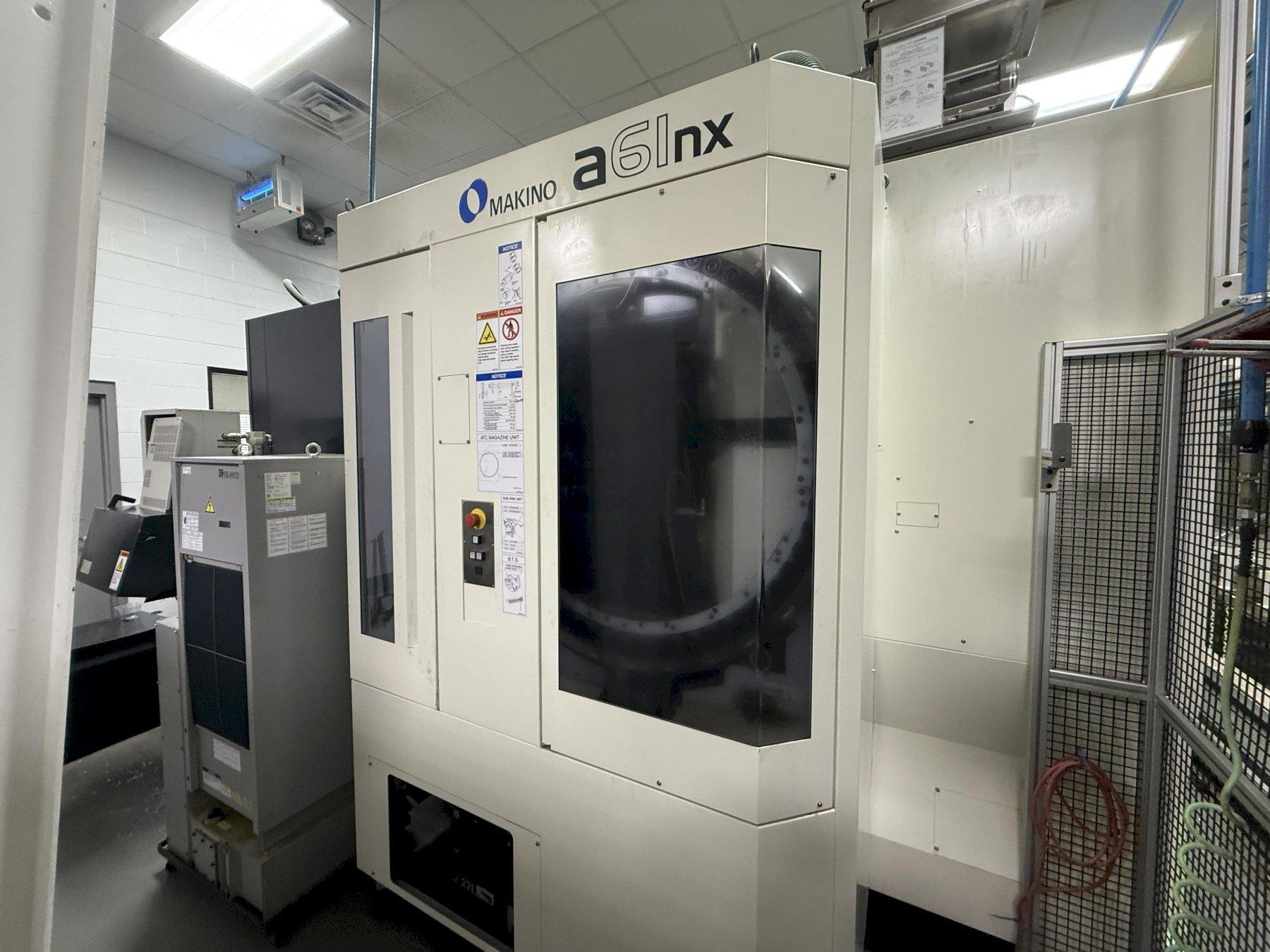

2014 Makino a61nx CNC Horizontal Machining Center For Sale

Manufacturer

MAKINO

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, PORTABLE

Stock

15160

Model

A61NX

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

CNC Control - yes
Type of CNC Control - Professional 5
# Axis - 4
Pallet Length - 19.7 inches
Pallet Width - 19.7 inches
Pallet Load Capacity - 1102 pounds
X-Axis Travel - 28.7 inches
Y-Axis Travel - 28.7 inches
Z-Axis Travel - 31.5 inches

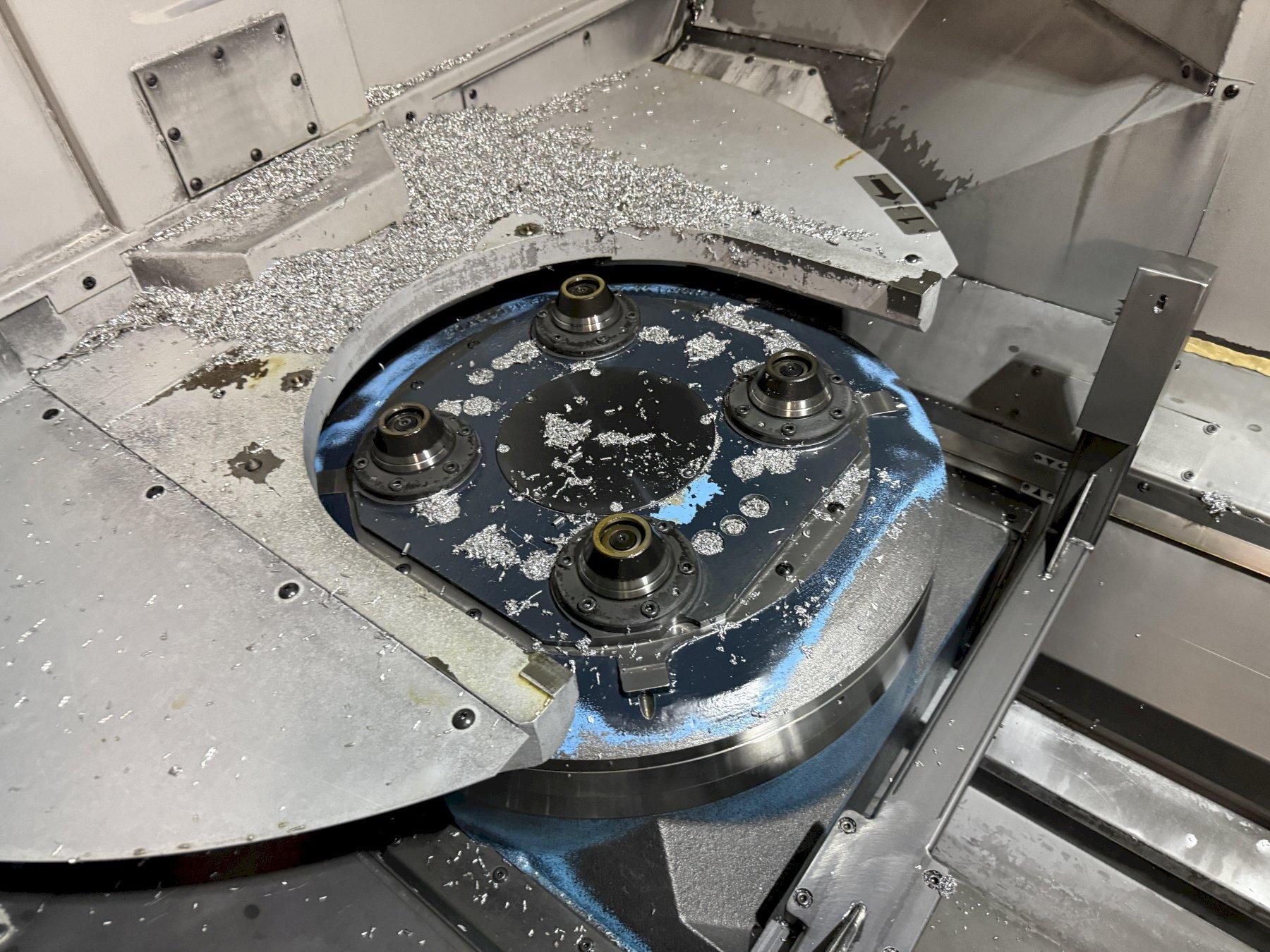

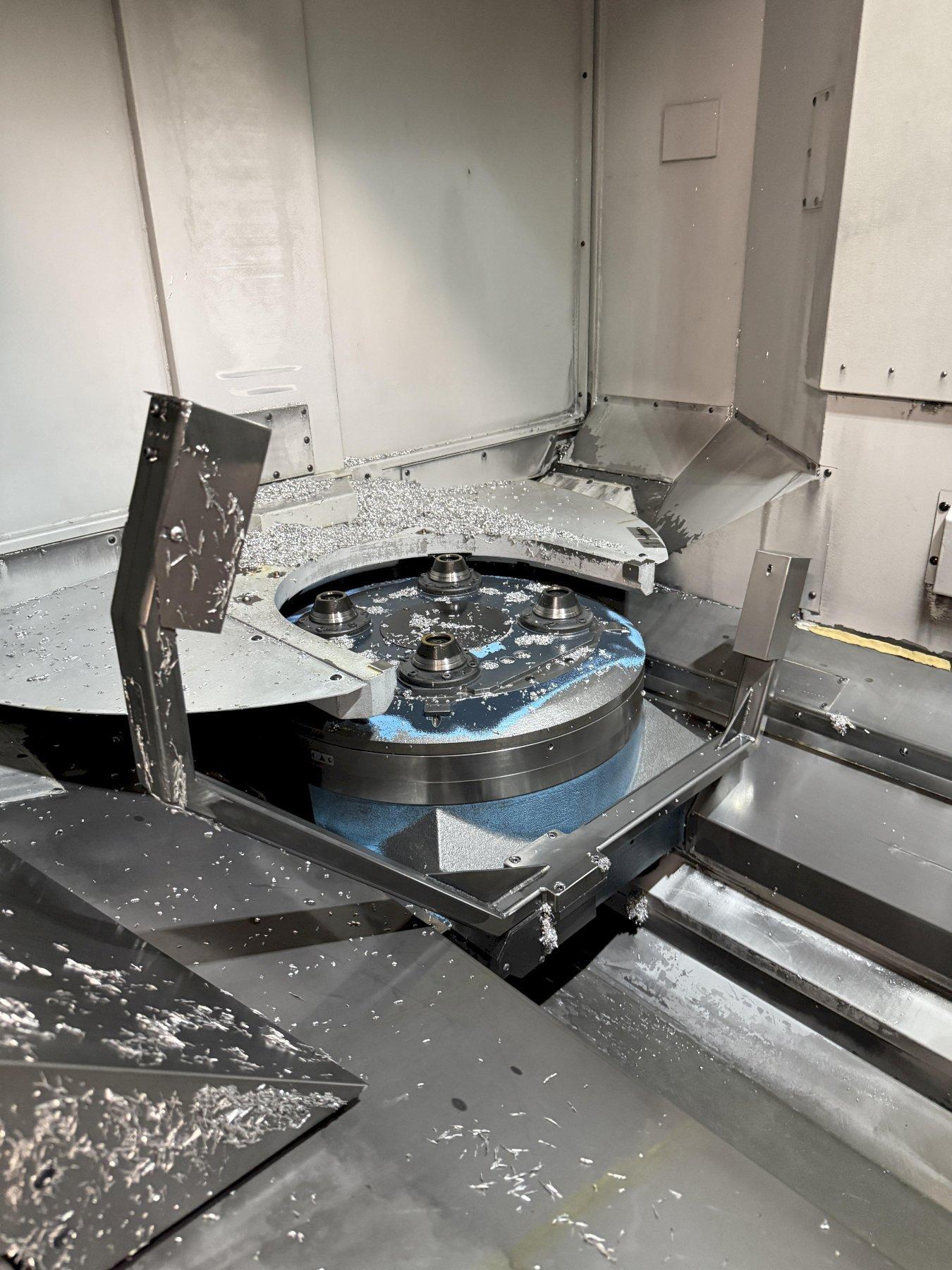

Pallet Indexing (B-Axis) - 0.0001° Full 4th
Rapid Traverse Rate (X/Y/Z) - 2360 ipm
Spindle Taper - HSK-A63
Spindle Speed - 20,000 rpm
Spindle Motor (HP) - 25 hp

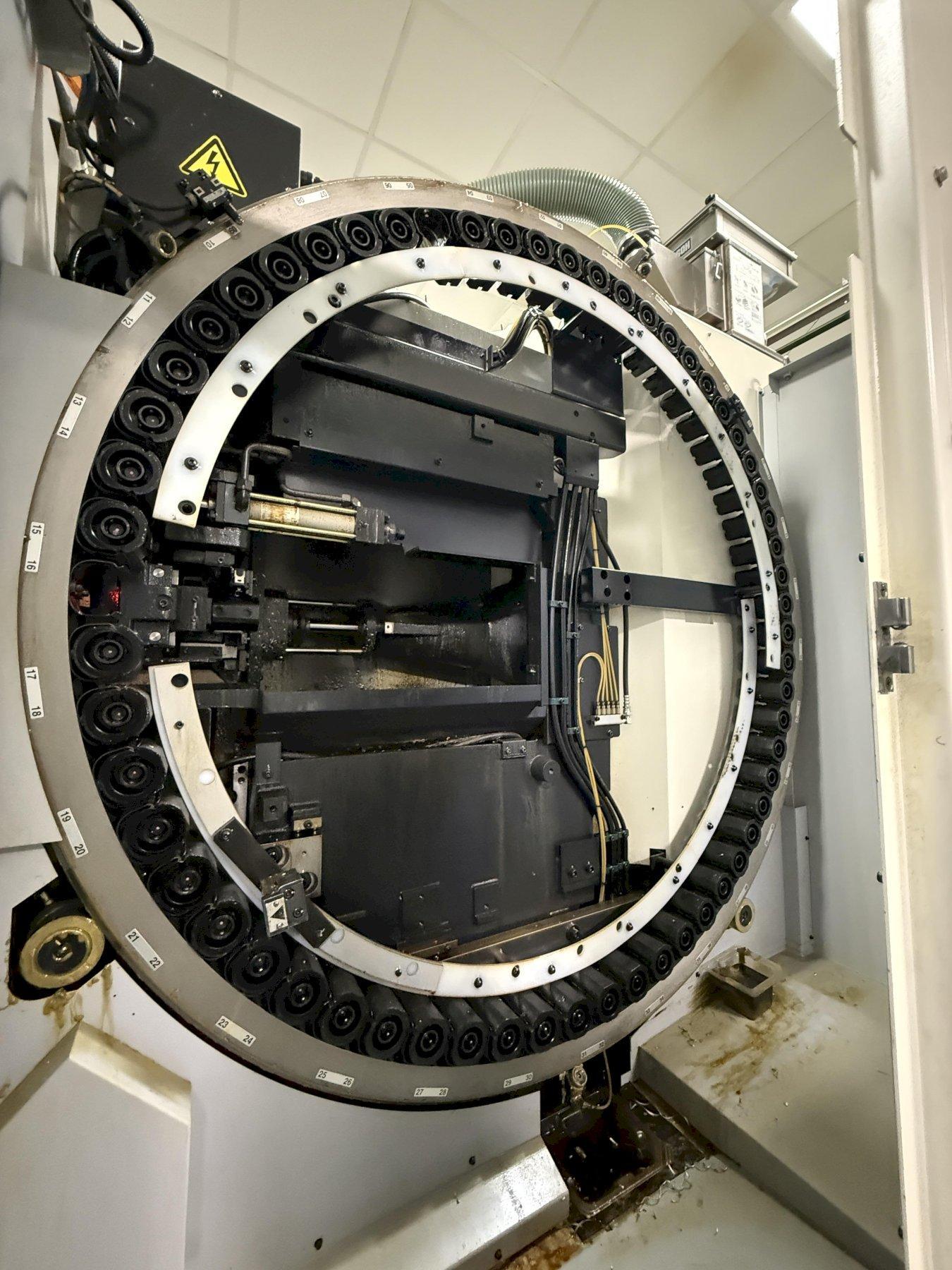

Tool Changer Capacity - 60
Coolant Through Spindle - yes
Machine Dimensions - 112" x 198" x 114"
Machine Weight - 26900 pounds

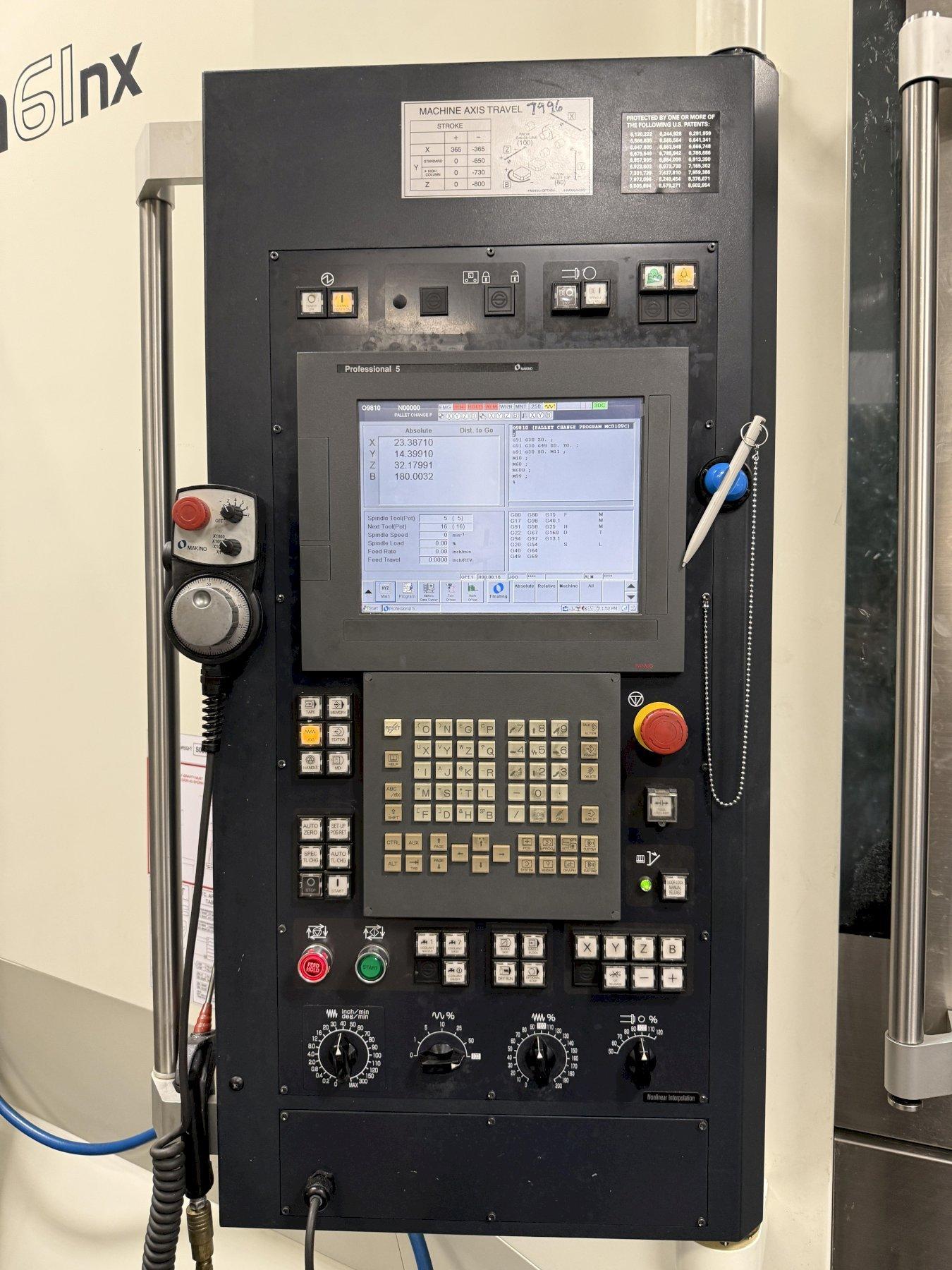

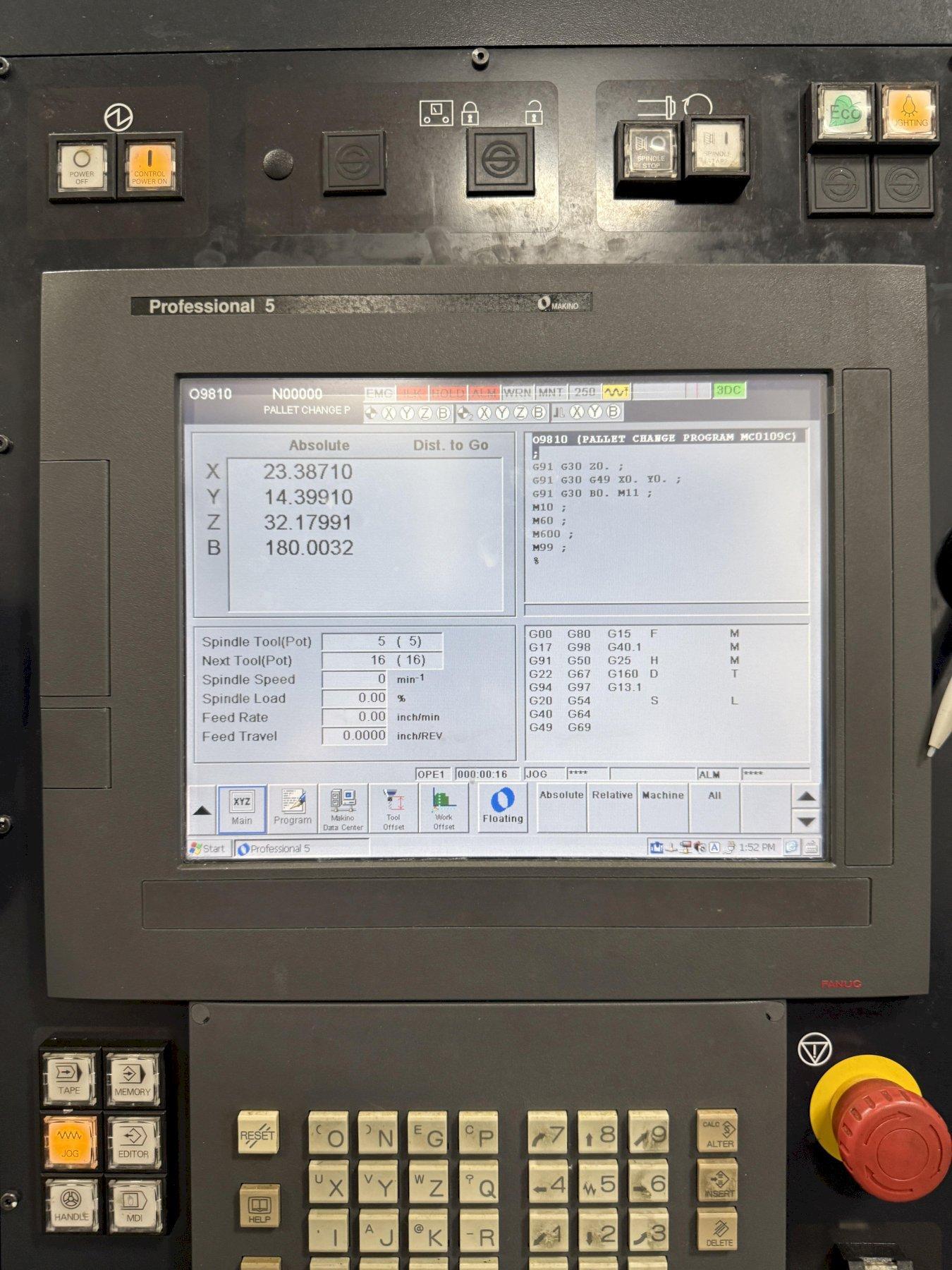

- Professional 5 CNC Control (Fanuc)
- Full 4th B-Axis 0.0001° Indexing

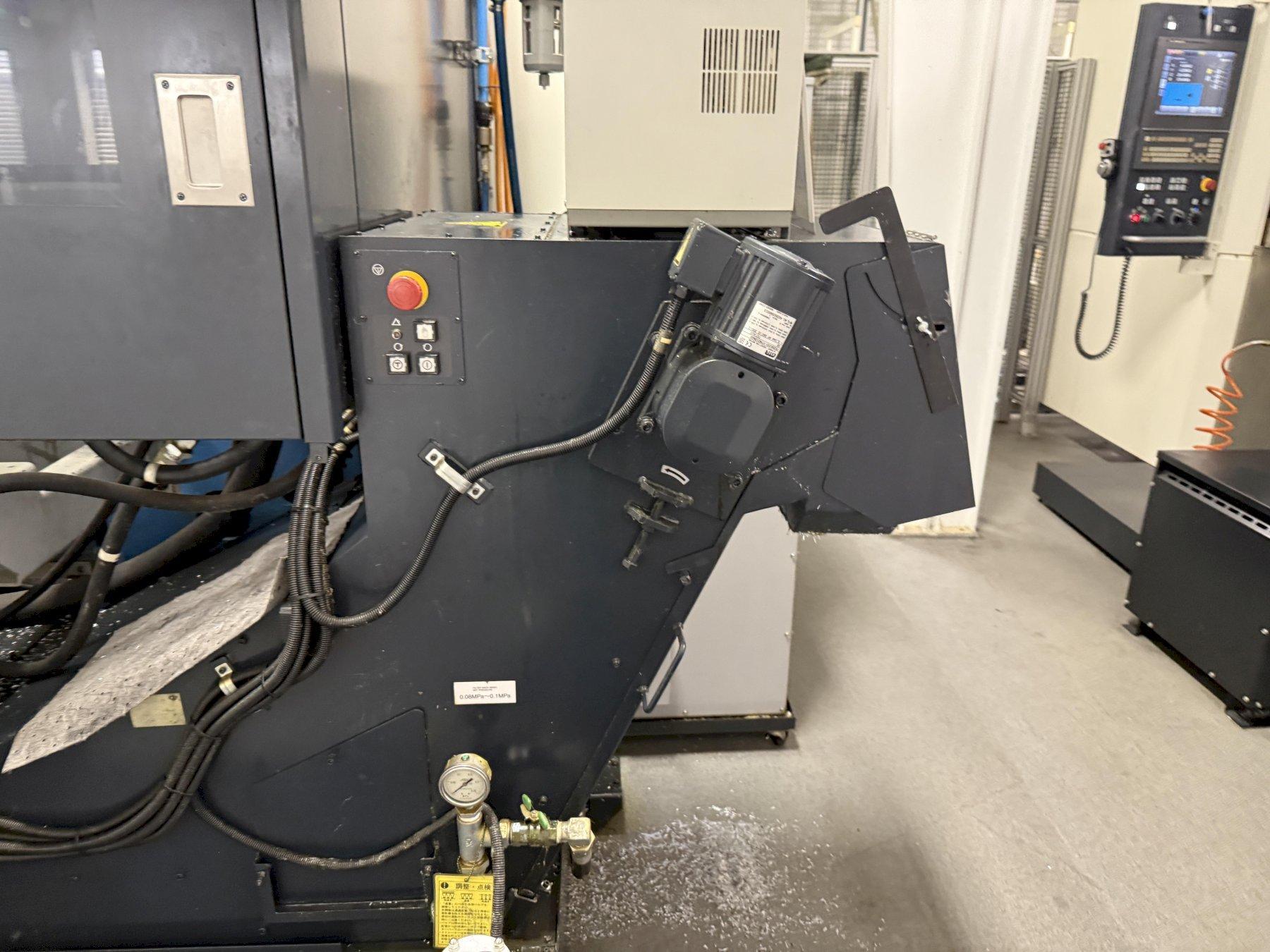

- Chip Covneyor

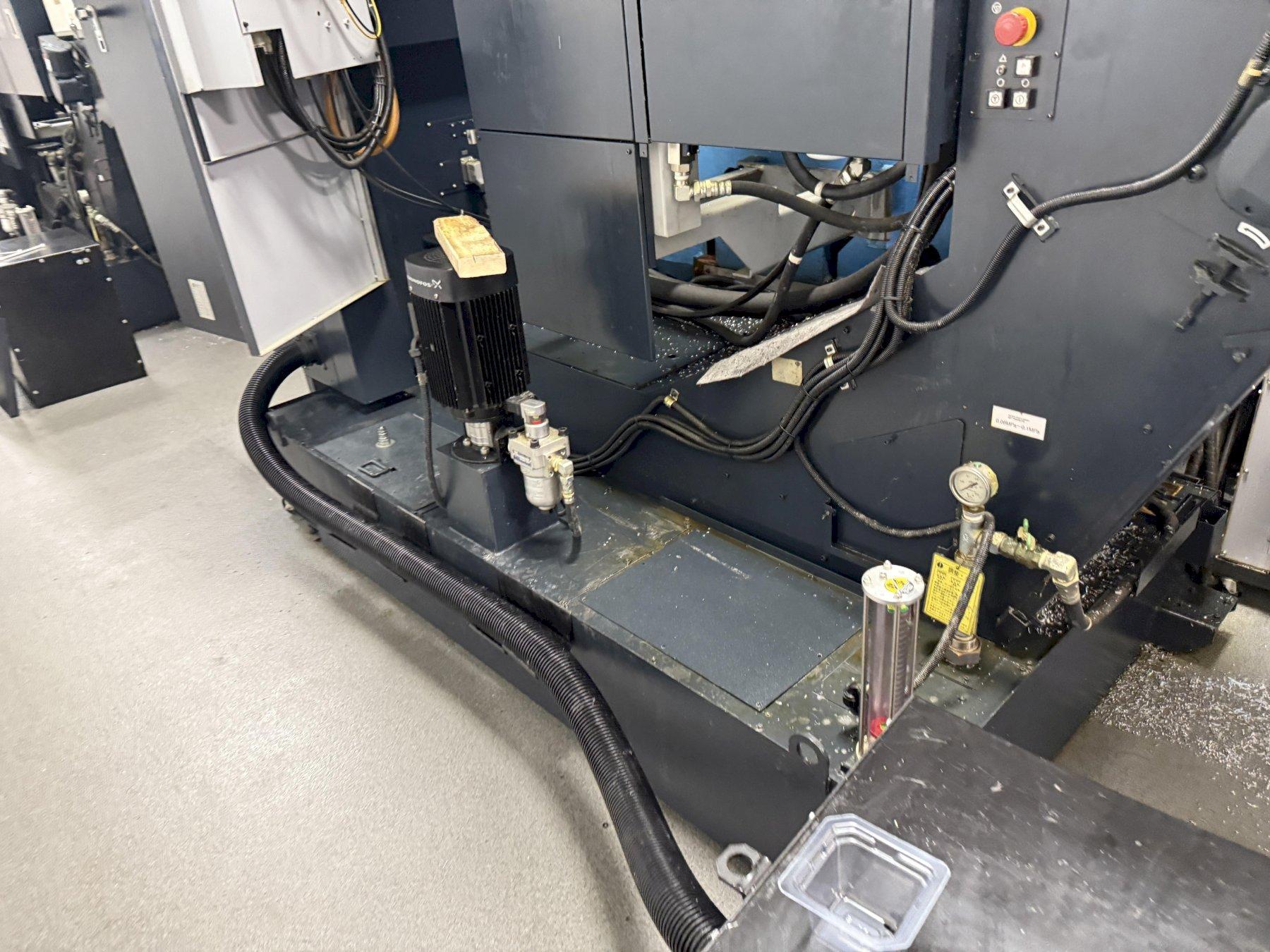

- Coolant Tank & Pump
- Y-axis Extended Stroke +3.1" (High Column - Option)
- Blum Micro Single NT ATLM (Option)
- Data Center 4MB
- HSK-A63 Spindle (Option)
- 20,000 rpm High Speed, High Accuracy Spindle (Option)
- Super GI .4 Control (Option)
- Enhanced Super GI.4 Capability
- 600 Macro Common Variables
- 250 Registered Work Programs
- 48 Additional Work Offsets
- High Speed Skip Function
- 300 psi Coolant Thru Spindle
- Through Spindle Air
- Overhead Shower Coolant System
- 8 Nozzle Coolant
- Portable Manual Pulse Generator
