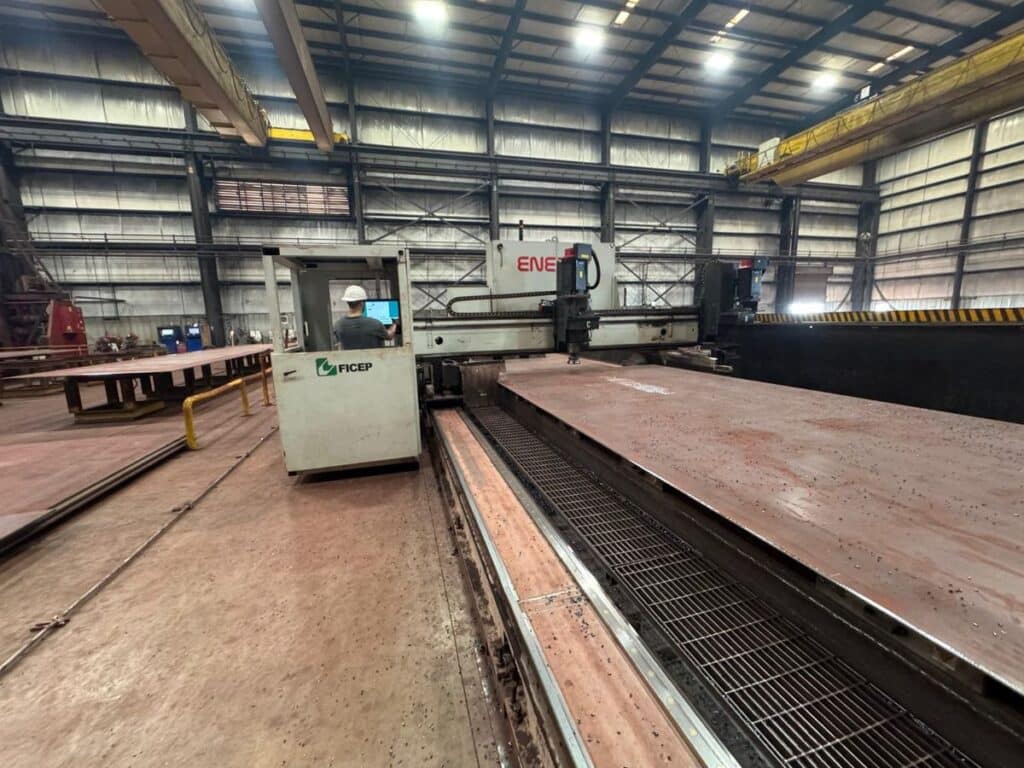

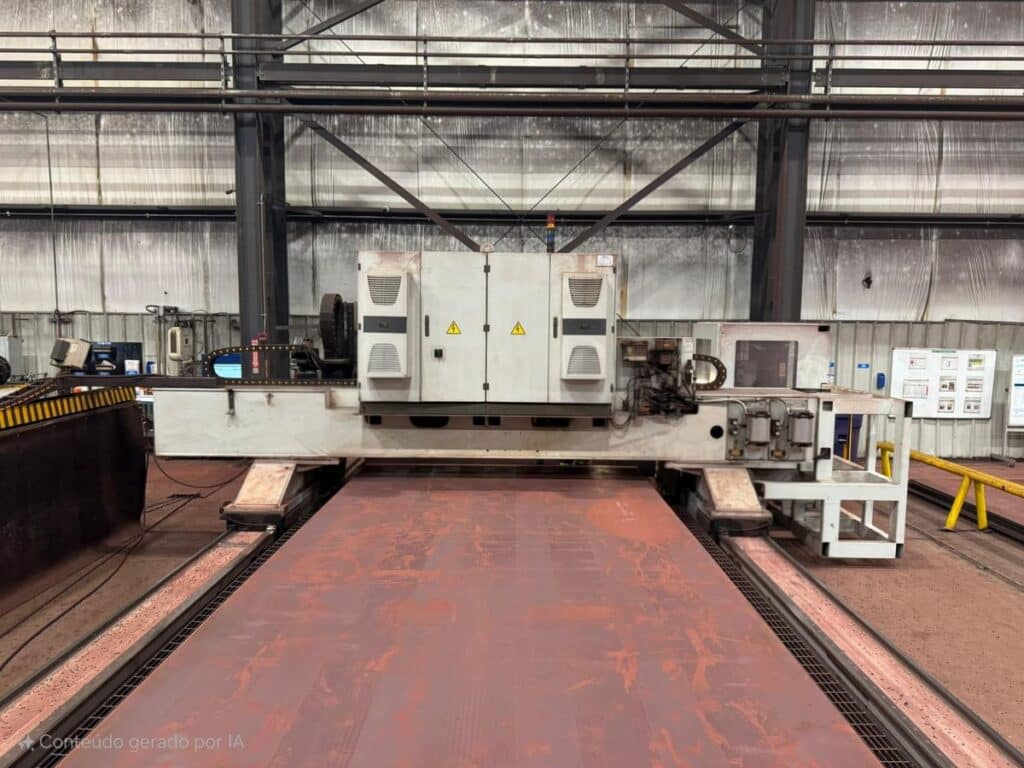

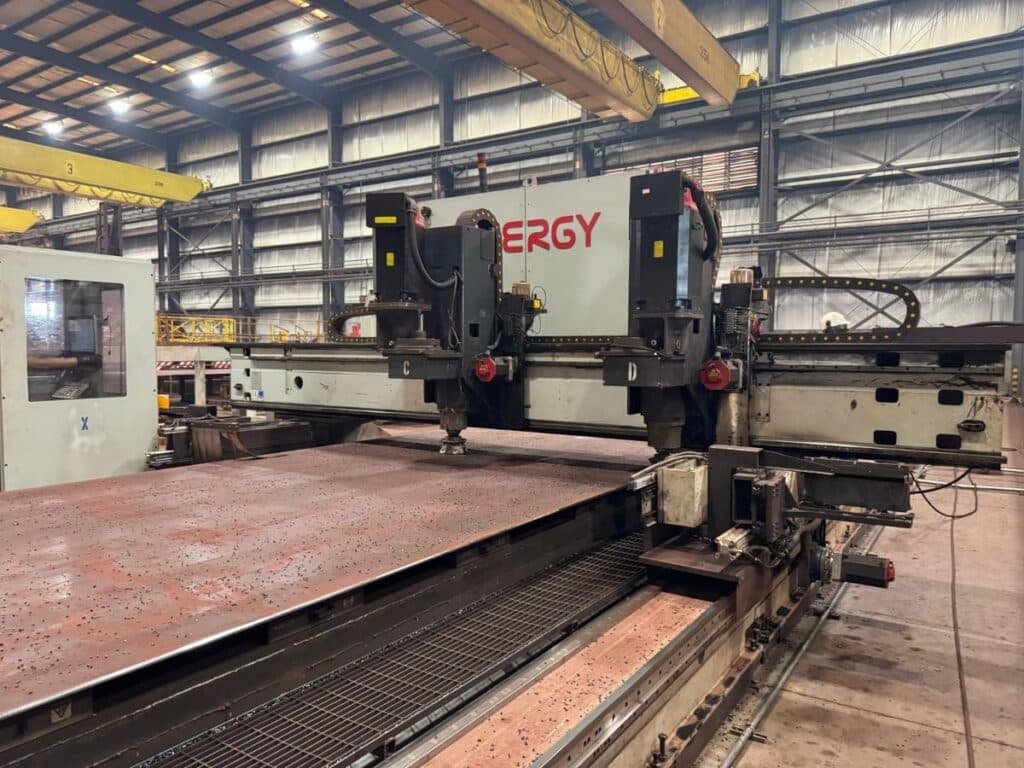

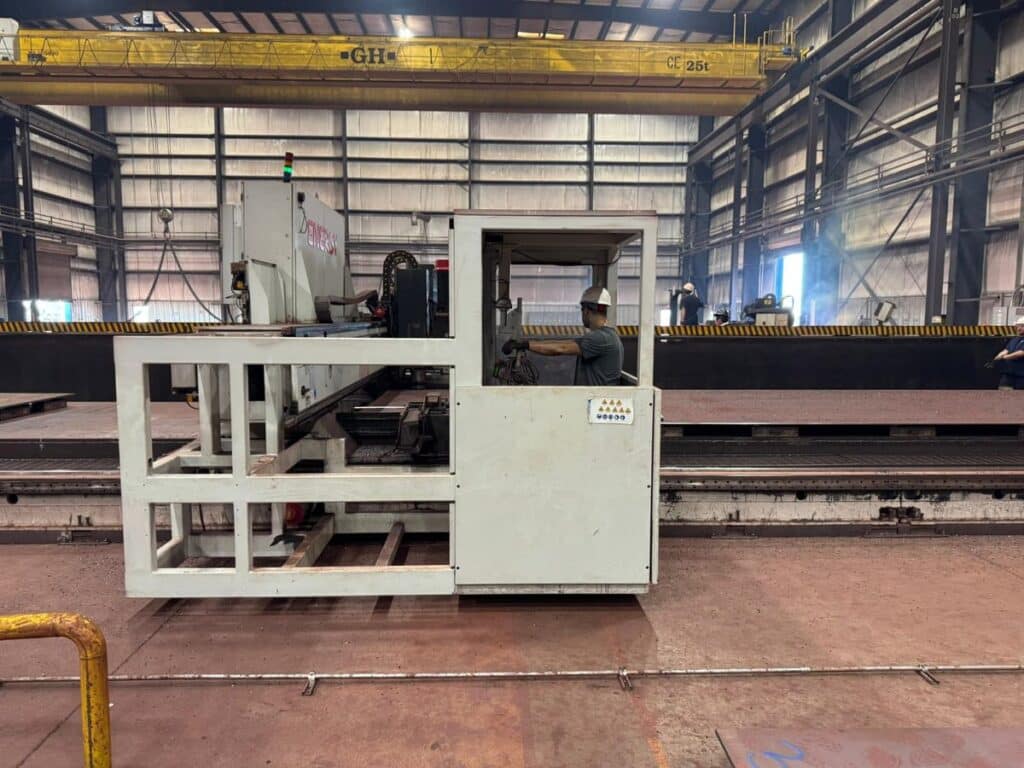

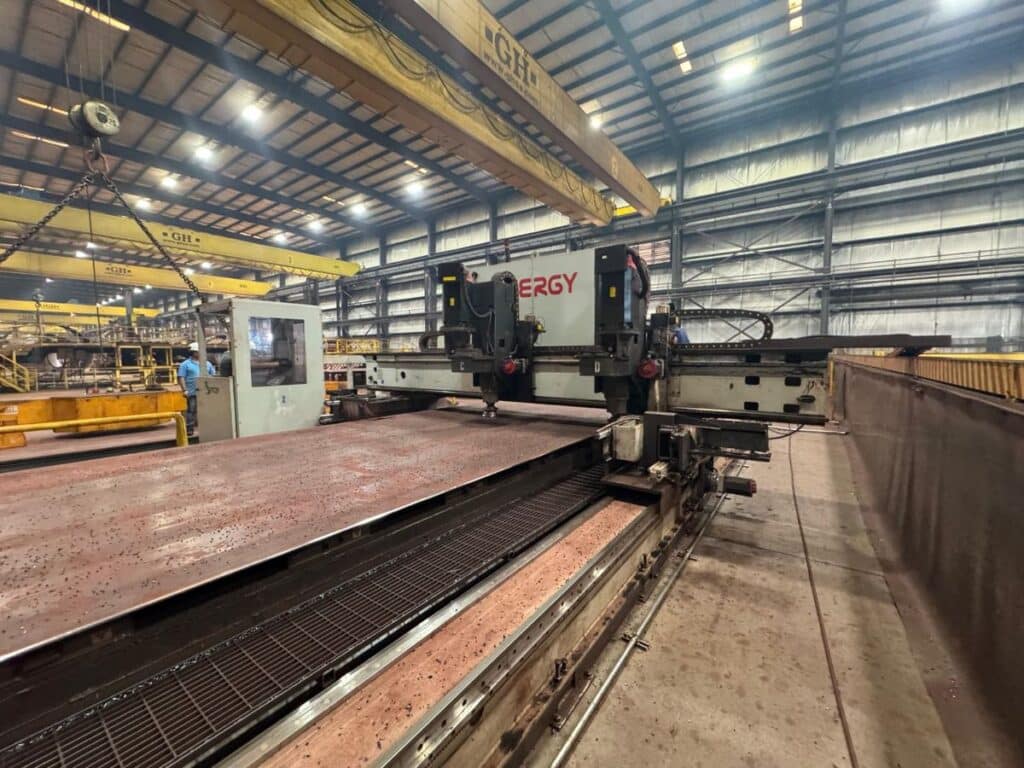

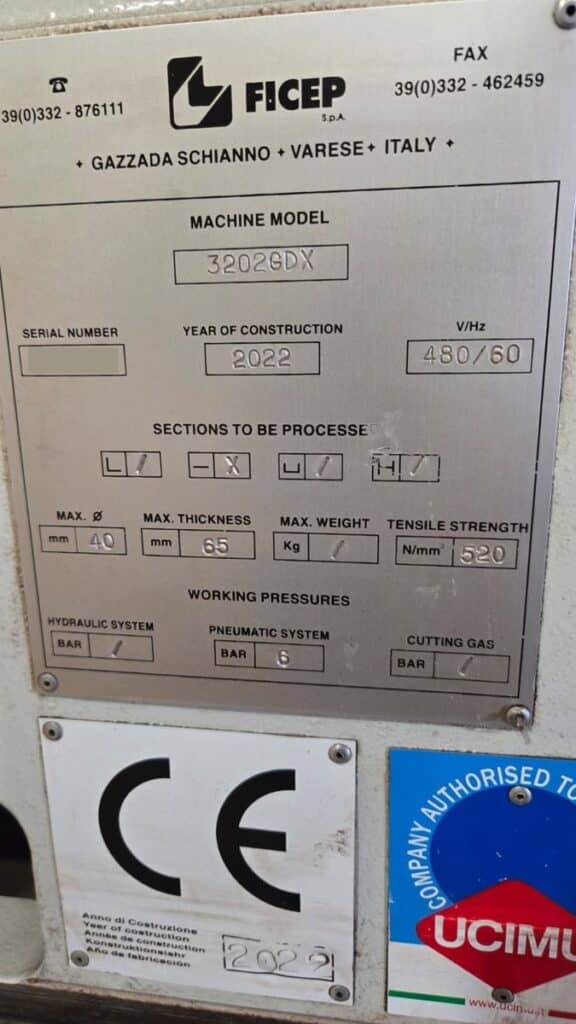

Ficep Energy 3202 GDX CNC Gantry Working Center For Plate Edge Milling & Drilling (2022)

Manufacturer

Ficep

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

173250007

Model

Energy 3202 GDX

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 173250007
  • Location: TX
  • Brand: Ficep
  • Model: Energy 3202 GDX
  • Year: 2022
  • Approx. Shipping Weight: 25,000 KG
  • Loading Fee: Rigging Required

Specifications

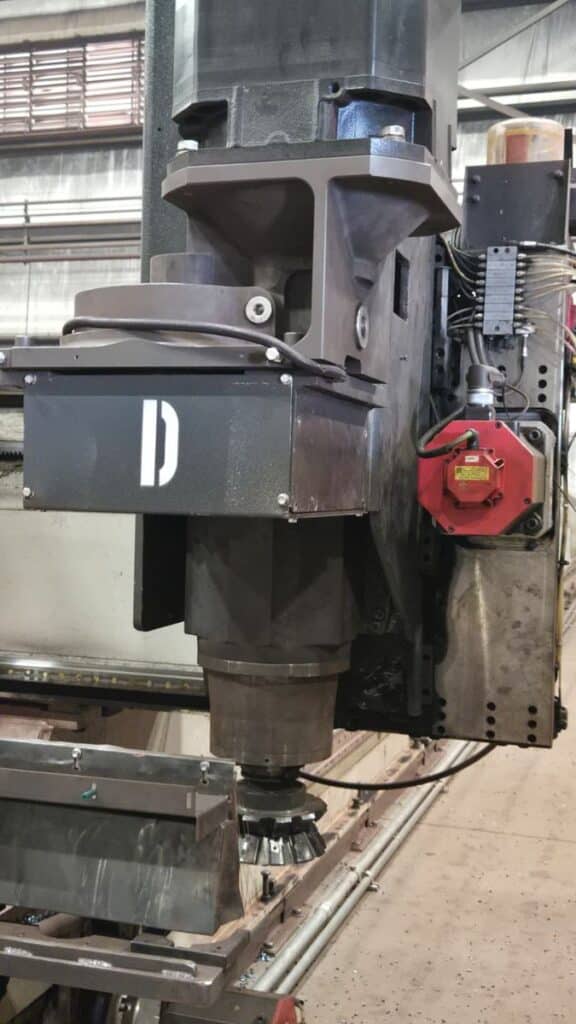

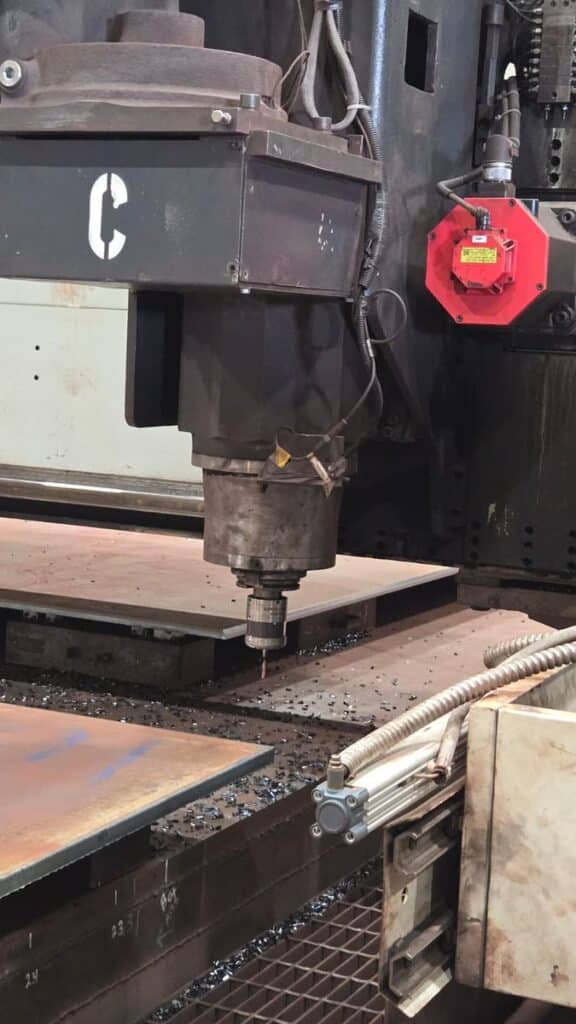

  • Number of Vertical Milling/Drilling Heads: 2
  • Plate Thickness: 10 – 140 mm
  • Plate Width: 100 – 3,200 mm
  • Plate Max Length: 28,000 mm

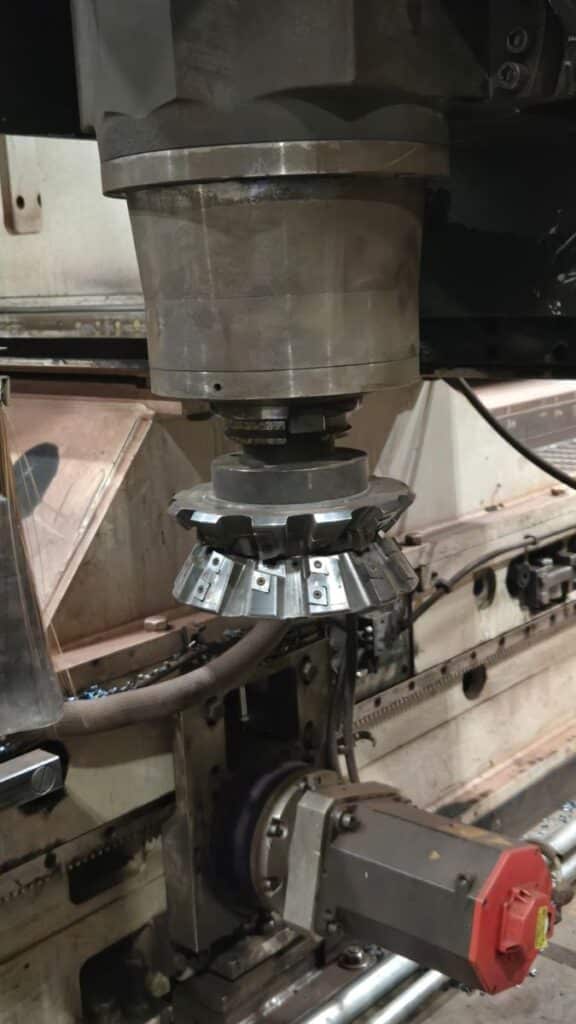

  • Max Diameter of Milling Tools: 300 mm
  • Max Drilling Thickness: 140 mm
  • Spindle Drive Performance (S1): 40 kW
  • Spindle Speed: 5,000 RPM
  • Spindle Drill Feed Rate: 40 – 1,000 mm/min
  • Spindle Fast Approach/Return Speed: 20 mt/min
  • C-Frame Max Longitudinal Speed: 30 m/min
  • Mill Heads Cross Positioning Speed: 30 m/min
  • Power Required: 400V / 50Hz / 3 Phase

Equipped With

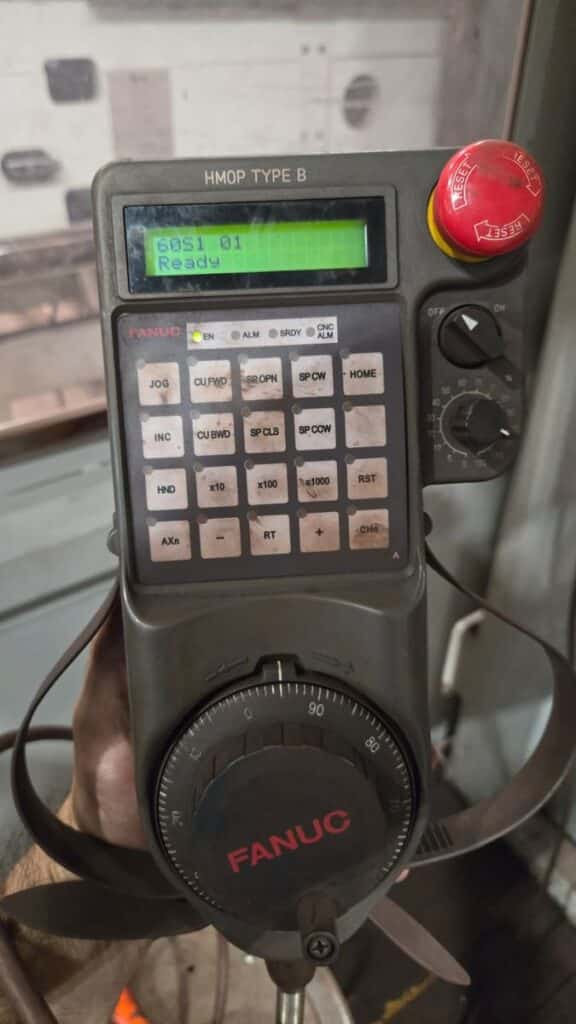

Ficep Pegaso Control, 3D Graphics, 1 Spindle Per Vertical Drill Head, 2 Vertical Milling/Drilling Heads w/ 3 Positions, ISO 50 Big Plus Toolholder, On Board Distribution System, Automatic Device to Detect Piece Plate Orientation, Drilling Programming, Windows 10 Operating System

Additional Info

System is under power and available to demo.
