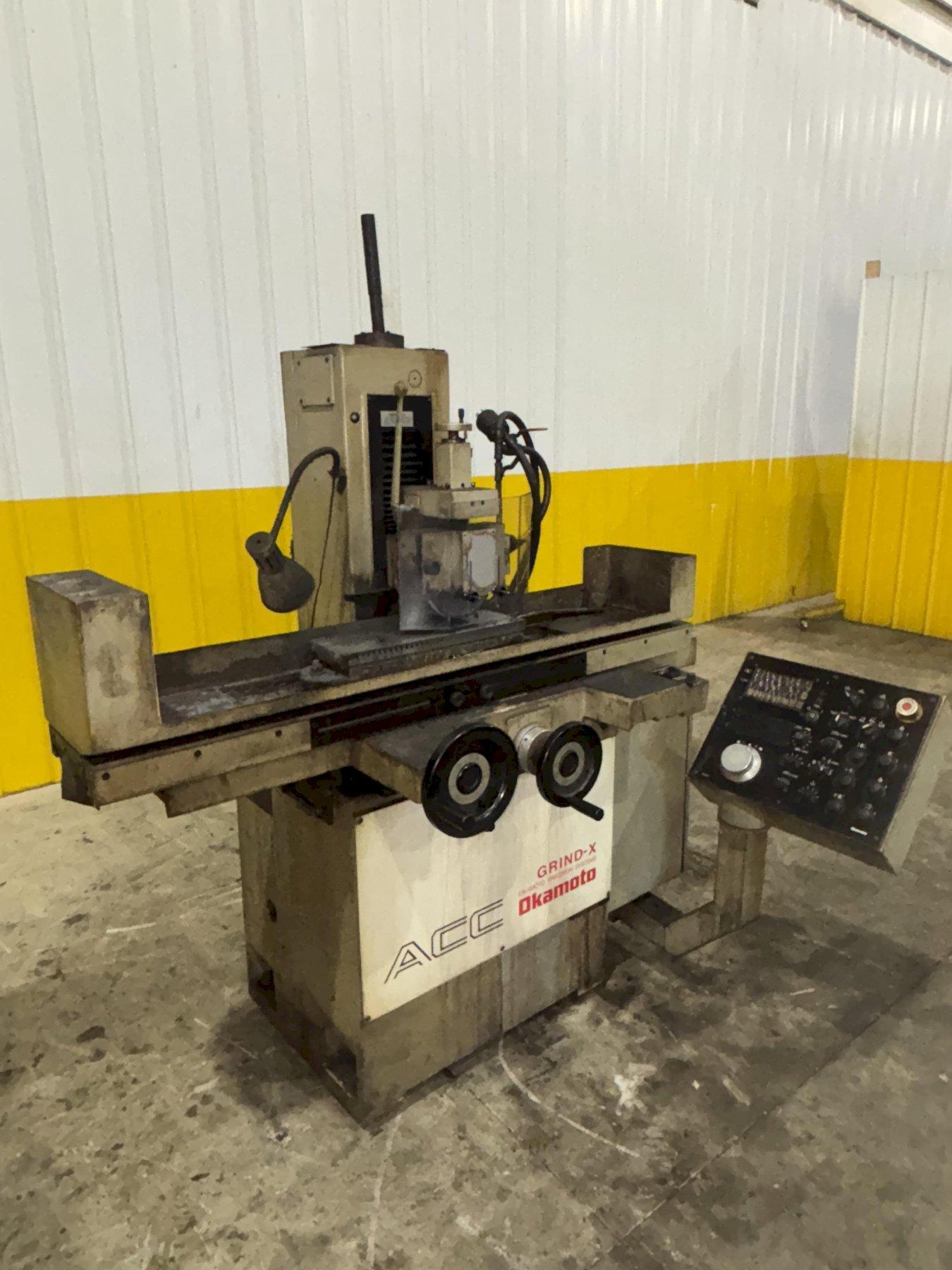

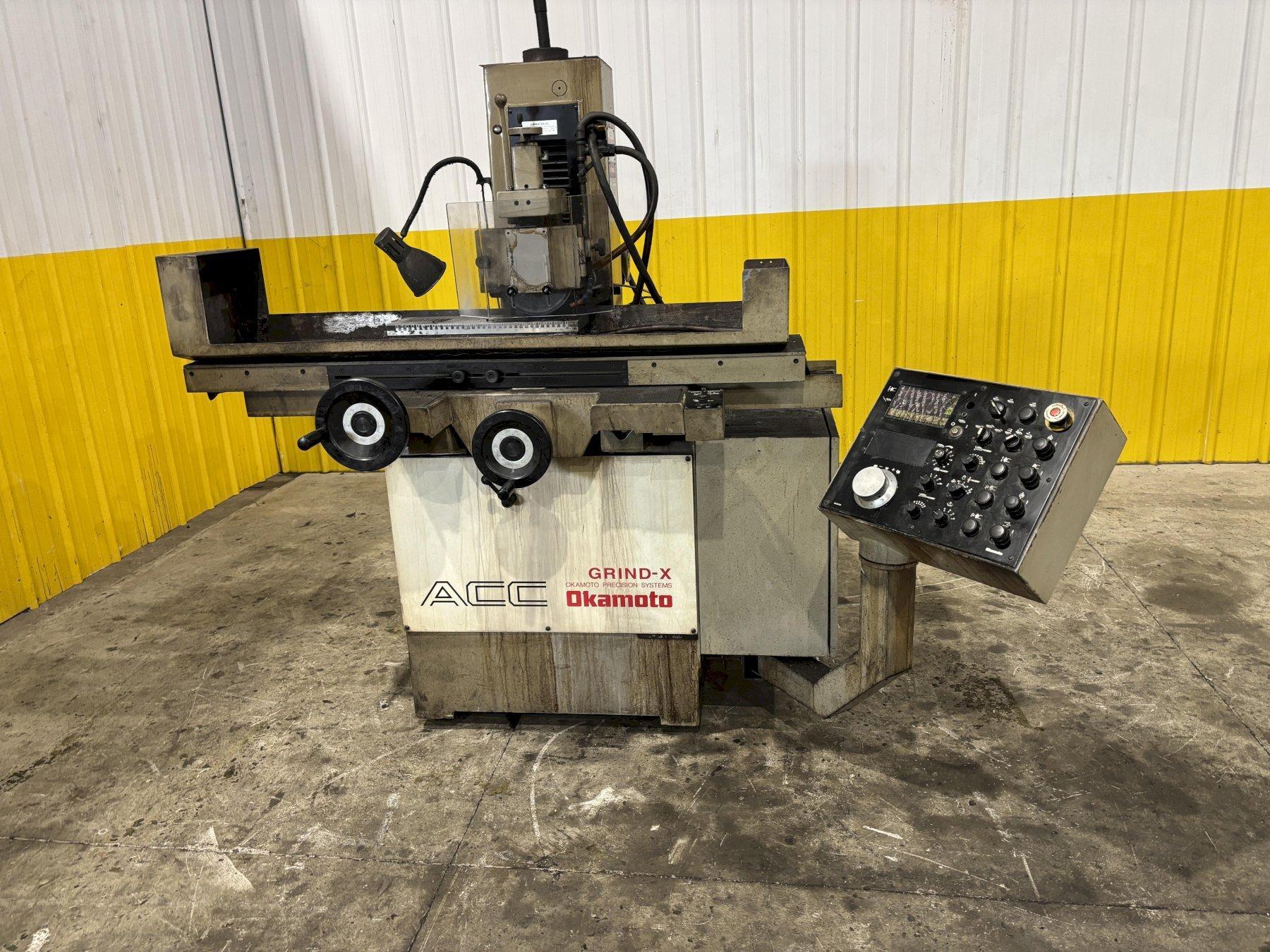

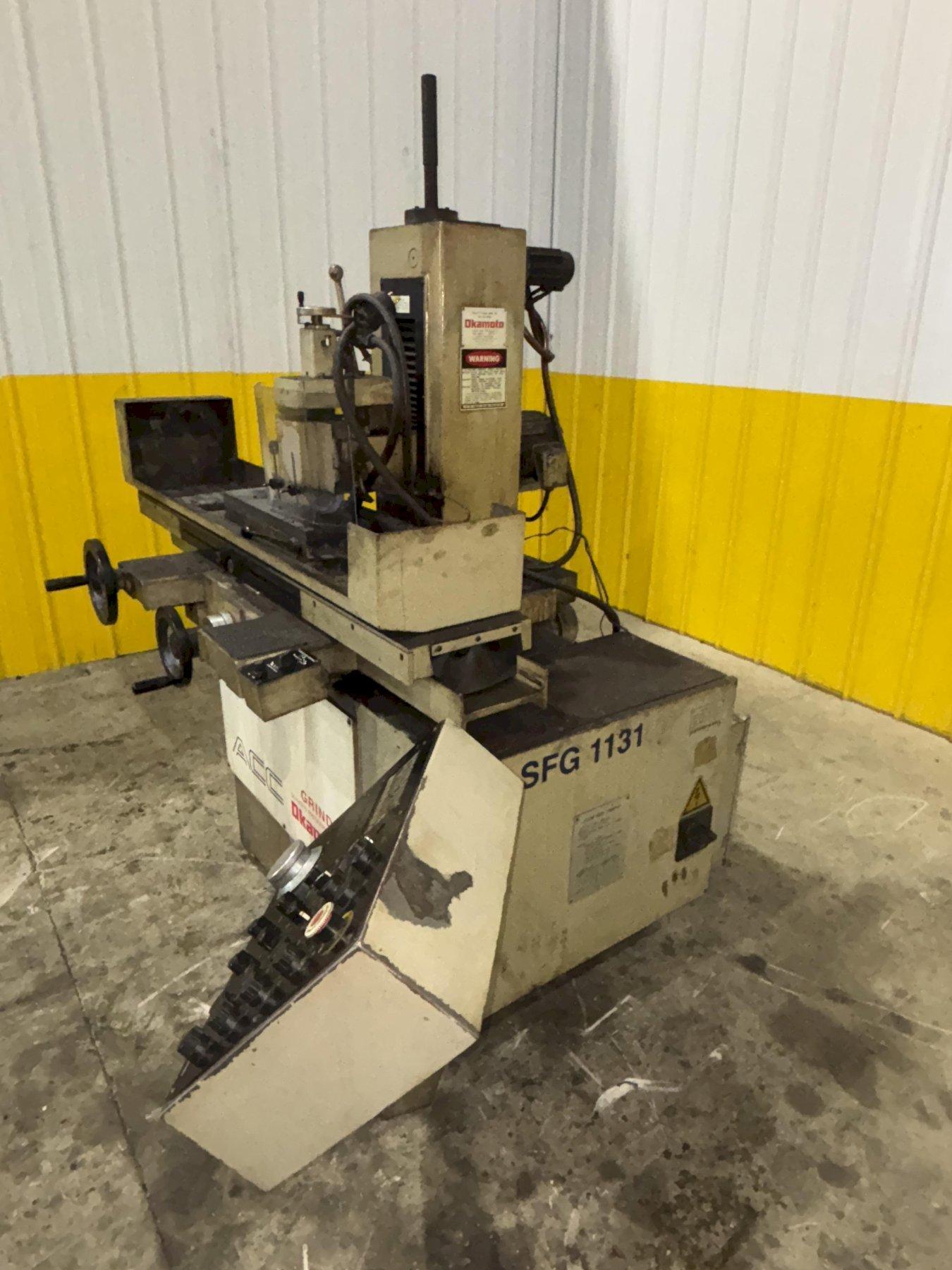

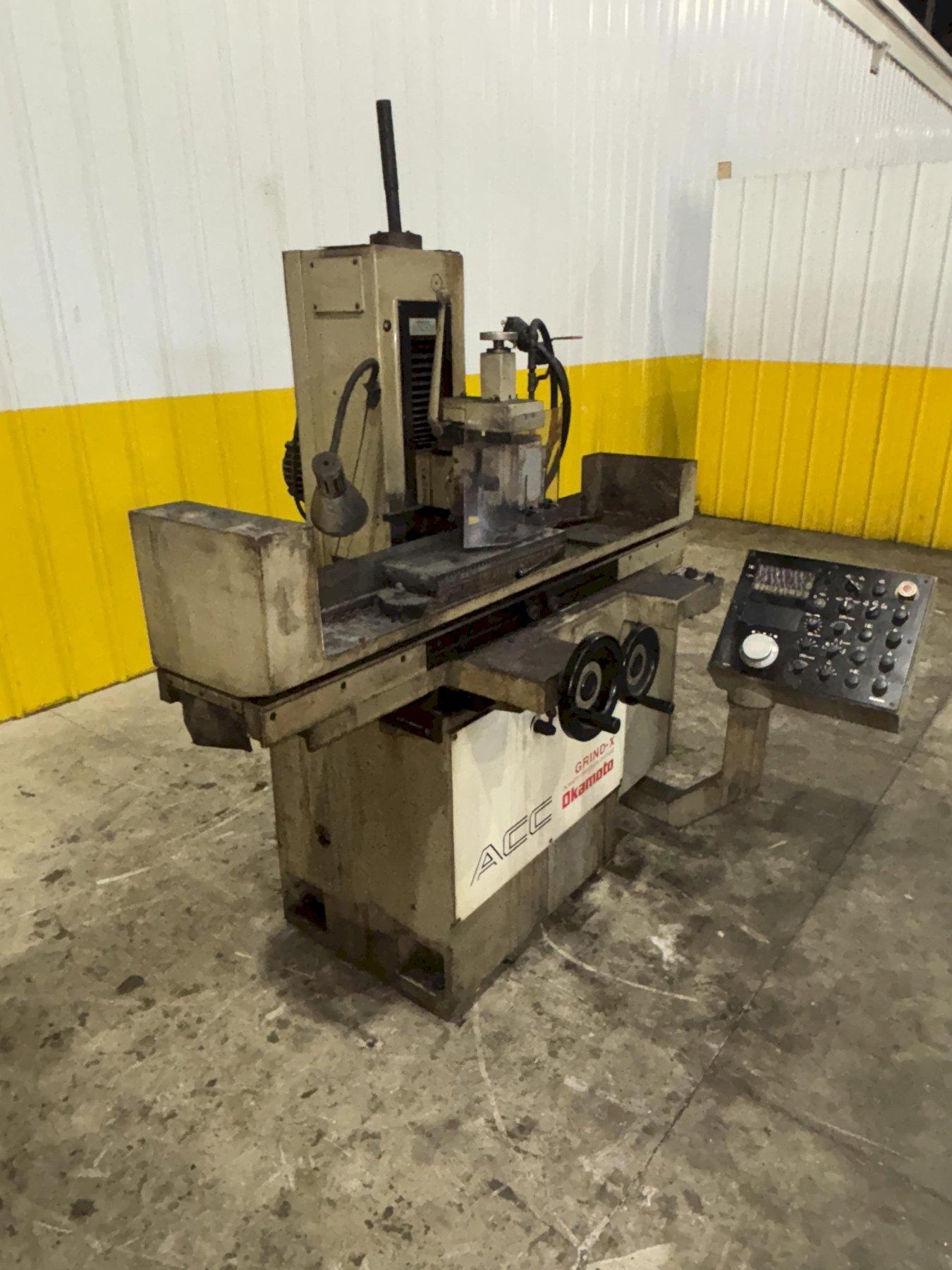

6" X 18" OKAMOTO MODEL # 6.18DX3 AUTOMATIC 3 AXIS HYDRAULIC HORIZONTAL SURFACE GRINDER: YOBRO #2

Manufacturer

OKAMOTO

Category

Grinding Machines

Type

GRINDERS, SURFACE, CNC

Stock

23848

Model

6-18 DX3

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Weight TOTAL - 2420

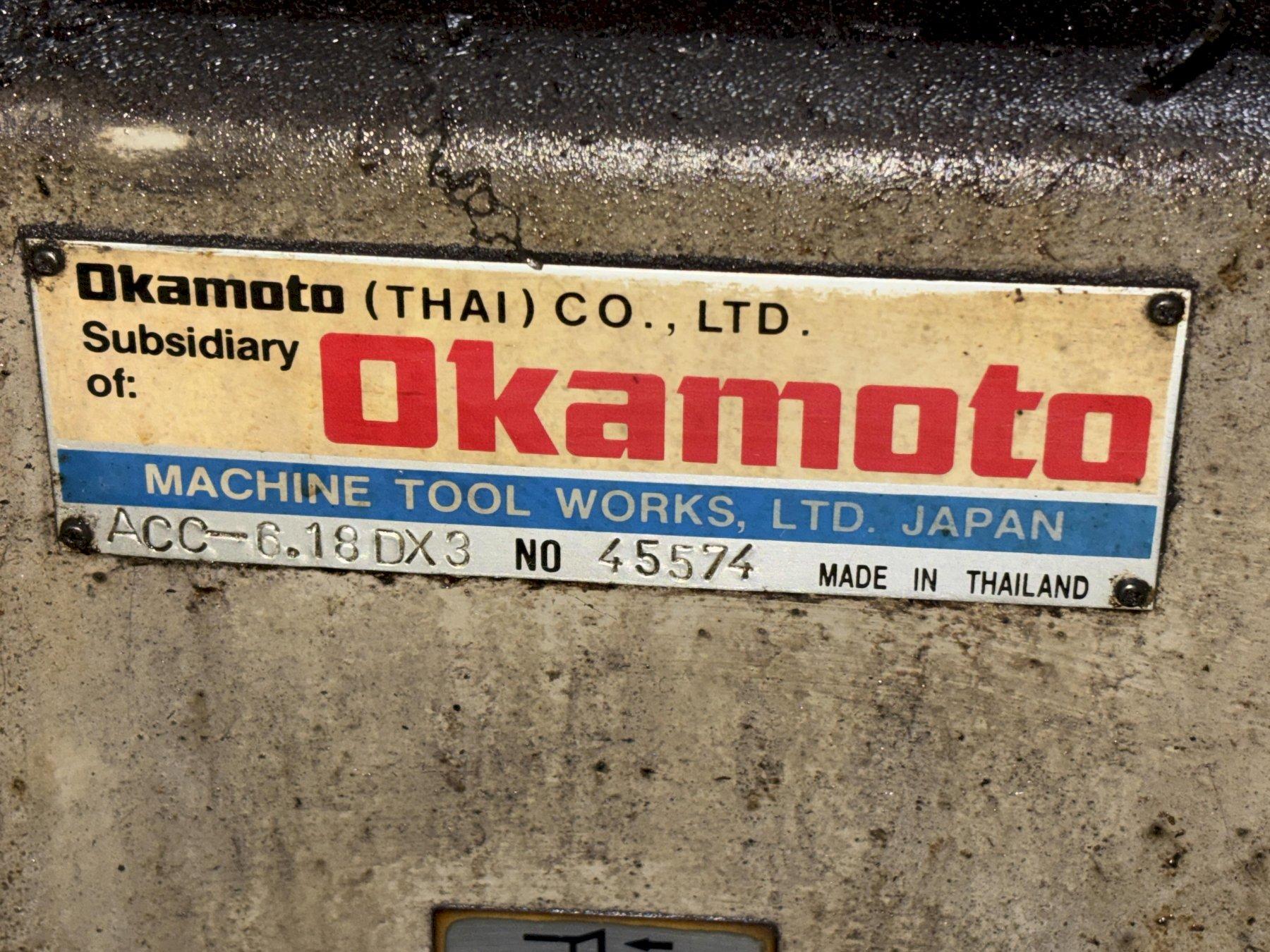

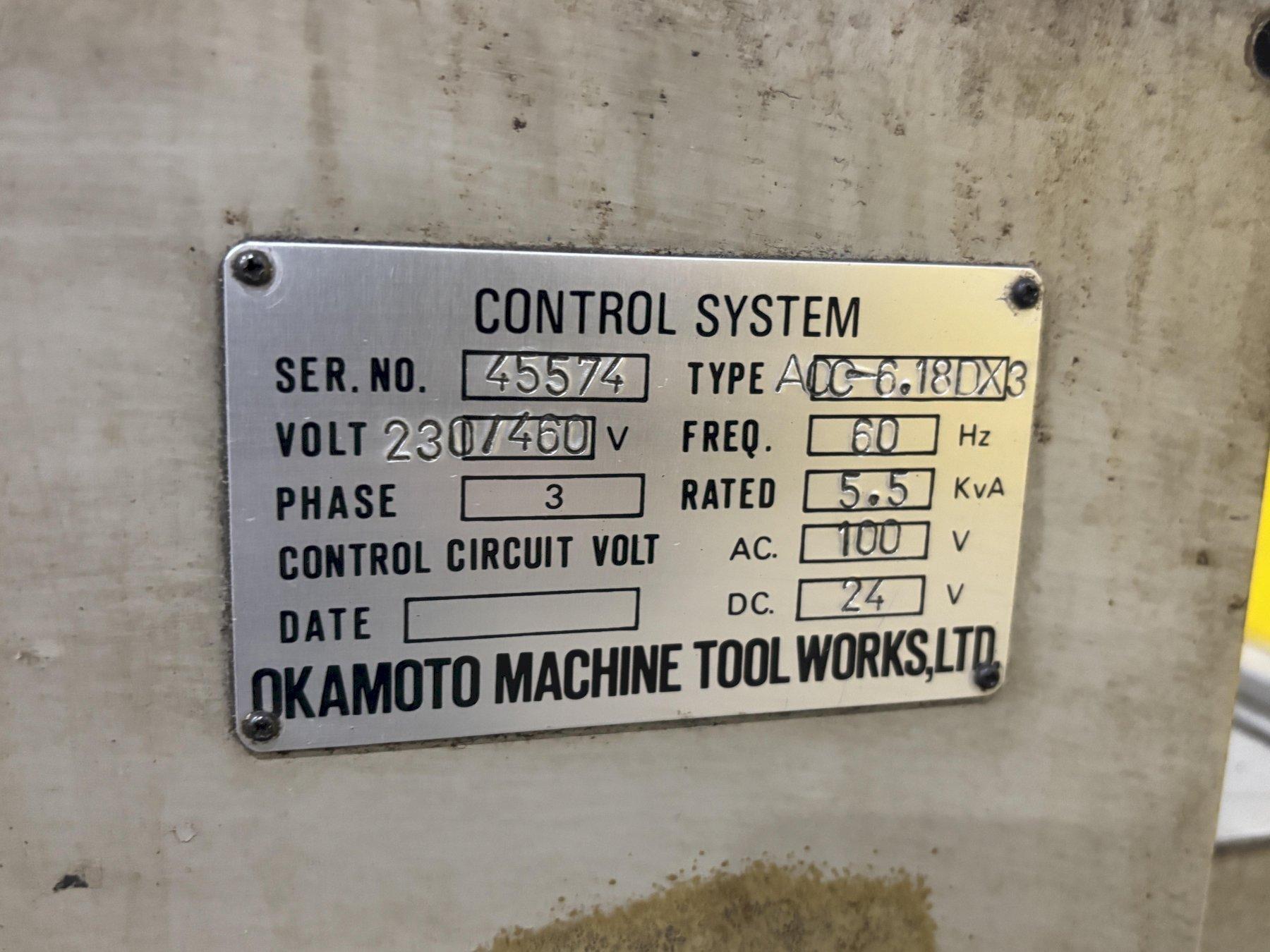

SERIAL ........................................... 45574
MODEL ............................................ ACC-6.18DX3
NEW .............................................. 1997


3 AXIS FULLY AUTOMATIC:
ROUGH/FINE GRINDING .............................. YES
SPARK OUT IN AUTOMATIC SURFACE ................... YES

MAX LONGITUDINAL TRAVEL .......................... 20.8"
MAX CROSS TRAVEL ................................. 6.9"
MAX DISTANCE UNDER WHEEL (8" TO TABLE SURFACE) ... 11.7"

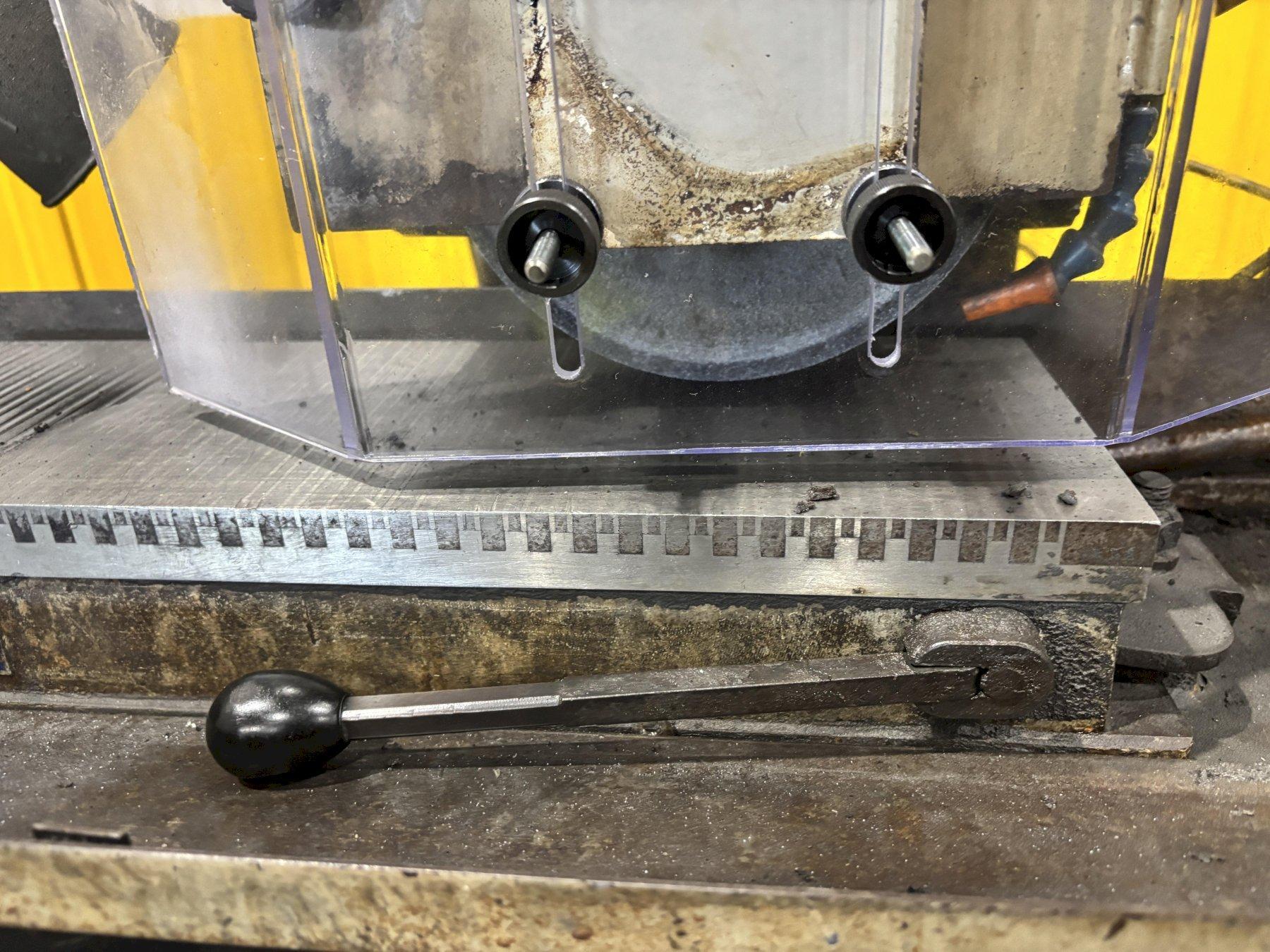

MAGNETIC CHUCK ................................... 6"W x 18"L
TABLE LOAD CAPACITY (INCLUDES CHUCK WEIGHT) ...... 264 LBS

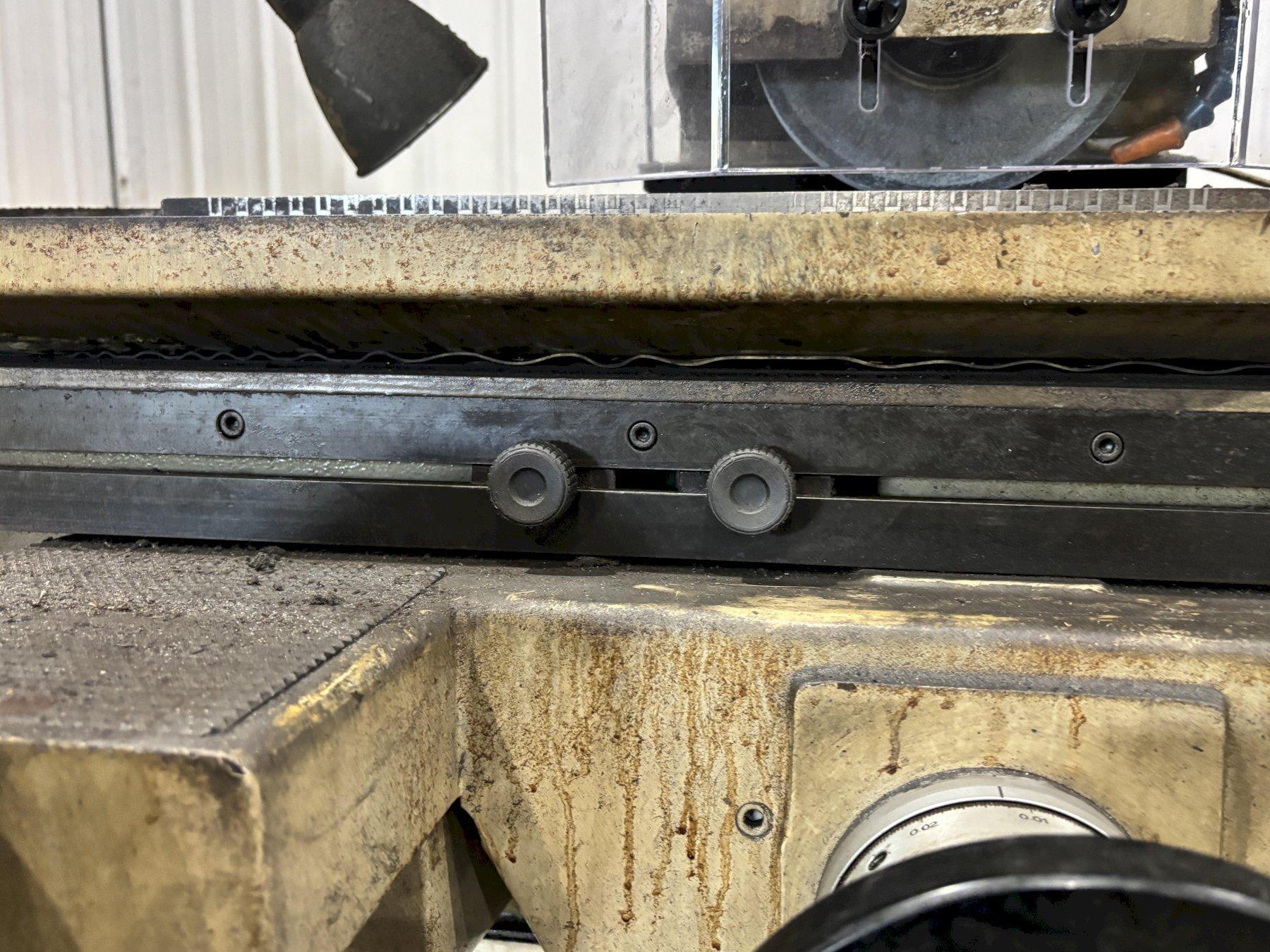

TABLE:
T-SLOTS .......................................... 1" X 0.67"
MIN HYDRAULIC FEED RATE .......................... 0.33 - 66'
HAND FEED PER REVOLUTION ......................... 4.0"

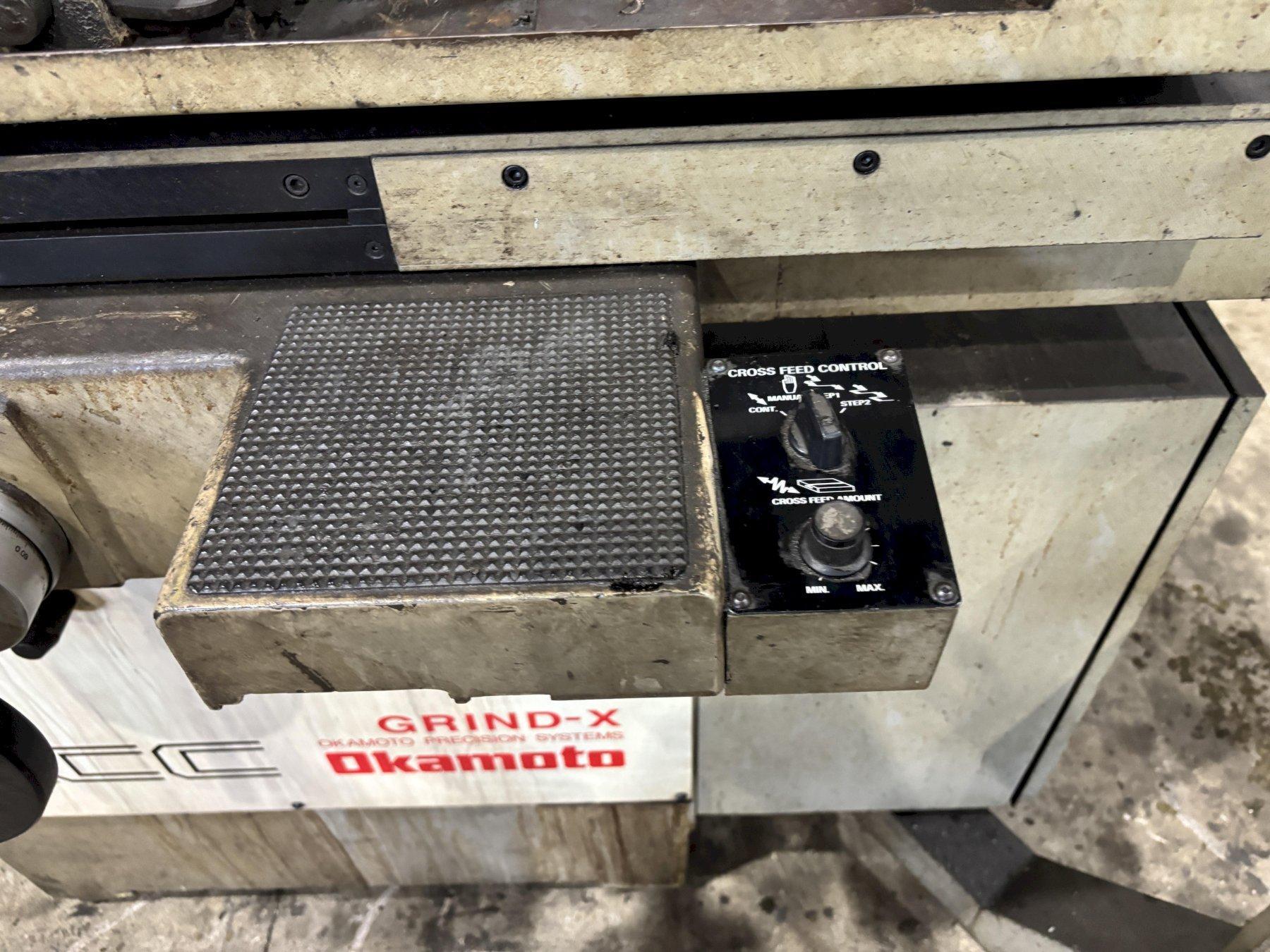

CROSSFEED:
HYDRAULIC INTERMITTENT CROSSFEED ................. 0.004 – 0.2"
MIN HYDRAULIC CONTINUOUS CROSSFEED ............... 0.5 – 13 .1'
CROSSFEED PER REVOLUTION ......................... 0.100"

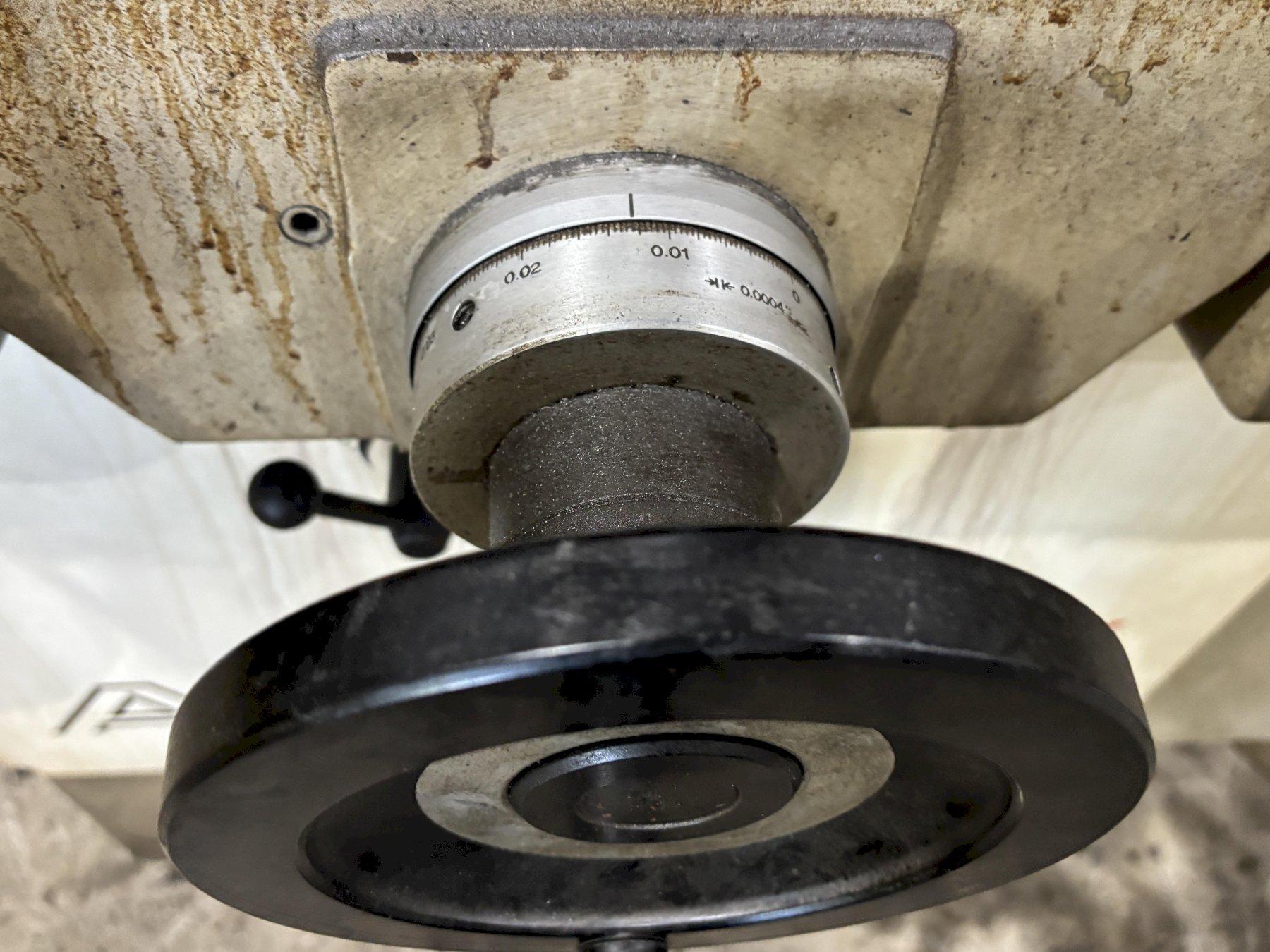

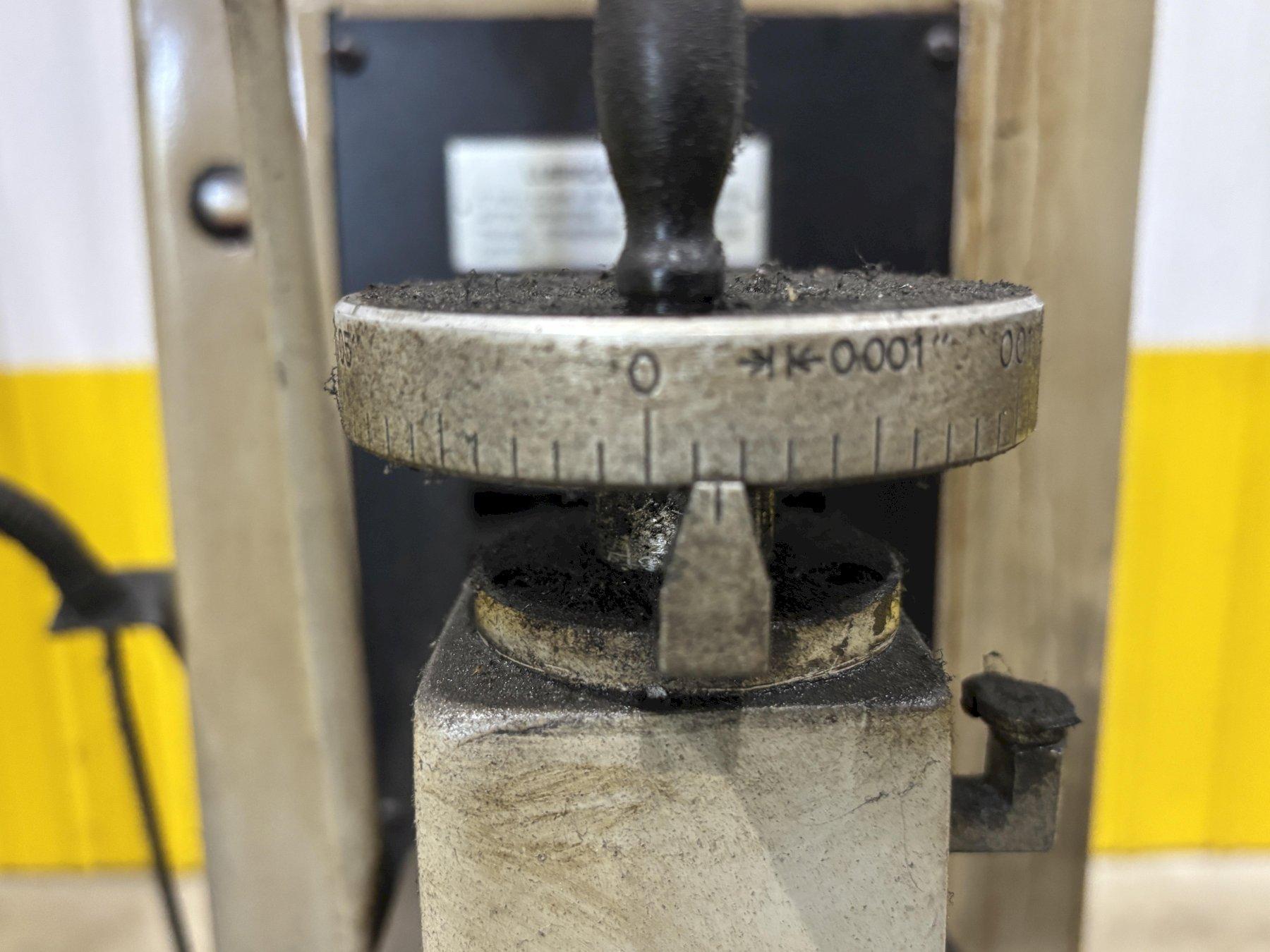

HANDFEED DIAL GRADUATION ......................... 0.0004"

WHEELHEAD:
AUTOMATIC VERTICAL FEED PER TABLE STROKE ......... 0.00005 – 0.0015"
MIN RAPID FEED RATE .............................. 15.7"
DOWNFEED PER REVOLUTION .......................... 0.00 1,0.0 I 0,0.05"
DOWNFEED PER GRADUATION .......................... 0.00001, 0.0001,0.0005"
GRINDING WHEEL SIZE .............................. 8.0"D x 1.0"W x 1.25"B
SPEED ............................................ 3,420 RPM

MOTORS:

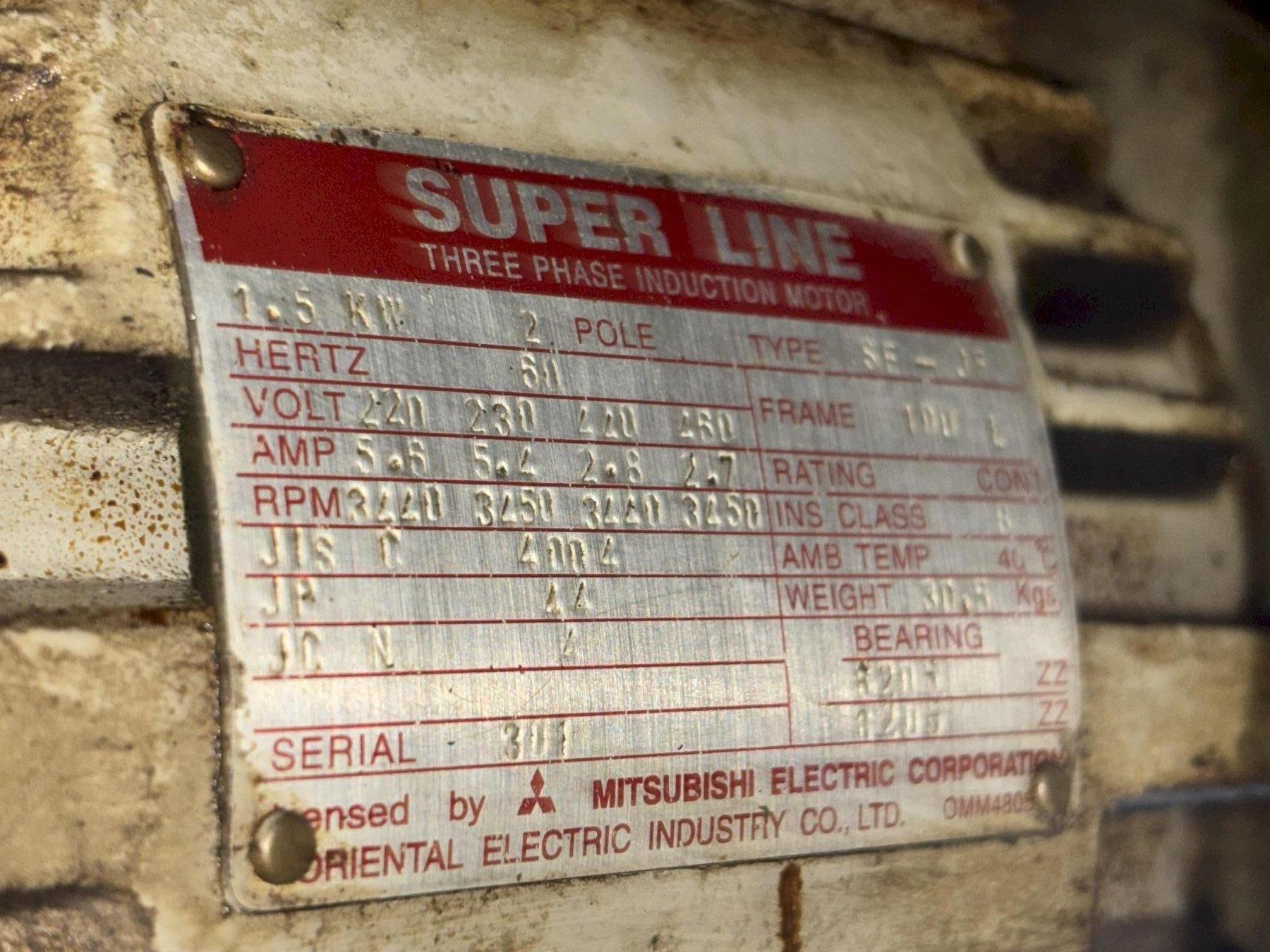

GRINDING WHEEL SPINDLE ........................... 2HP
HYDRAULIC PUMP ................................... 1HP
CROSSFEED ........................................ 1HP

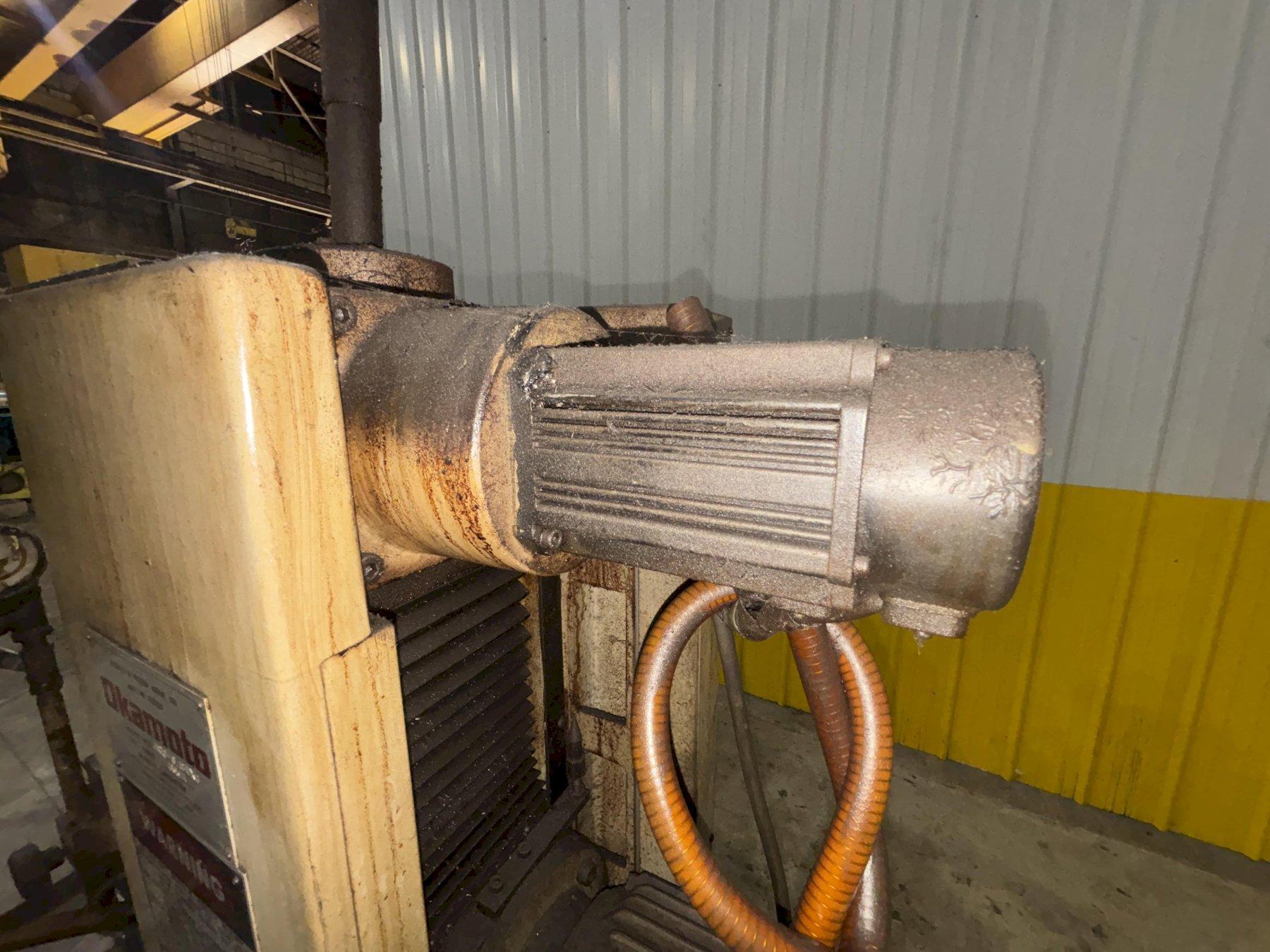

VERTICAL RAPID FEED & DOWNFEED ................... 0.5HP AC SERVO

FLOOR SPACE REQUIRED (CATALOG) ................... 77″(L-R) x 51″(F-B) x 79″(H)

EQUIPPED WITH:

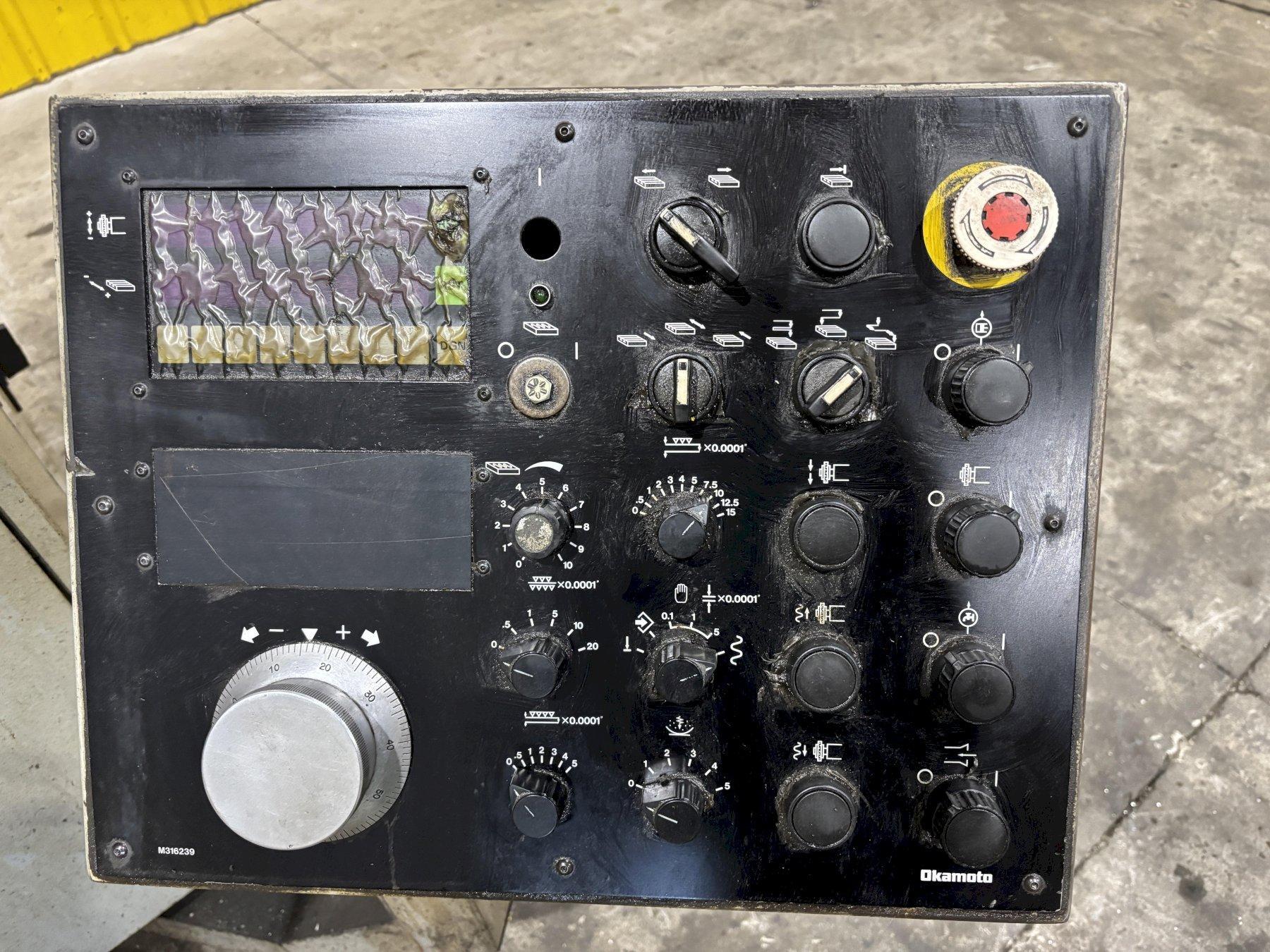

OKAMOTO MDI CONTROLLER
MANUAL OVER THE WHEEL DRESSER

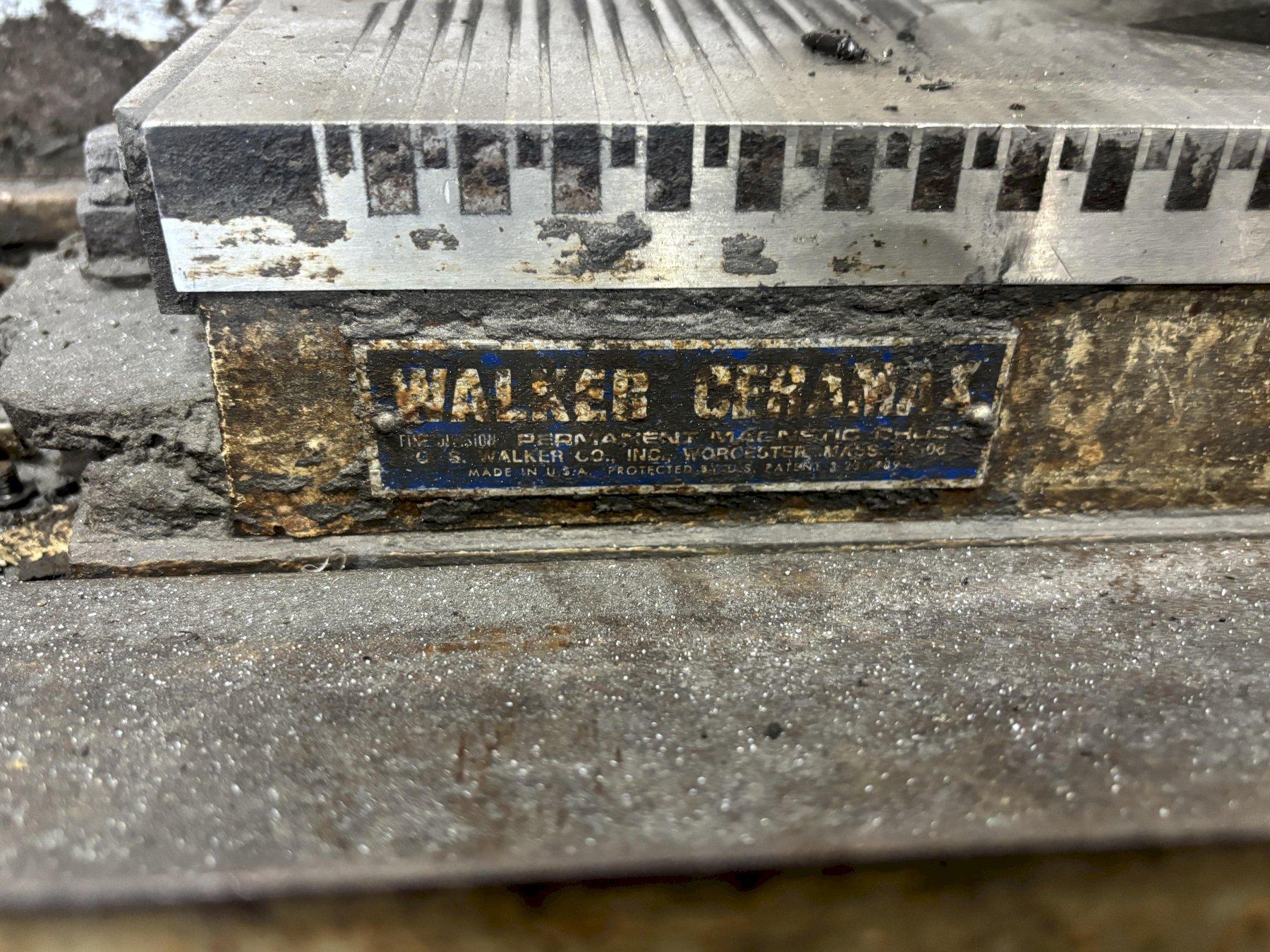

MAGNETIC CHUCK
17 GALLON COOLANT SYSTEM
BUILT-IN CHUCK CONTROLLER
VERTICAL POSITIONING DISPLAY
VERTICAL MAUAL PULSE GENERATOR
INCREMENTAL DOWNFEED
