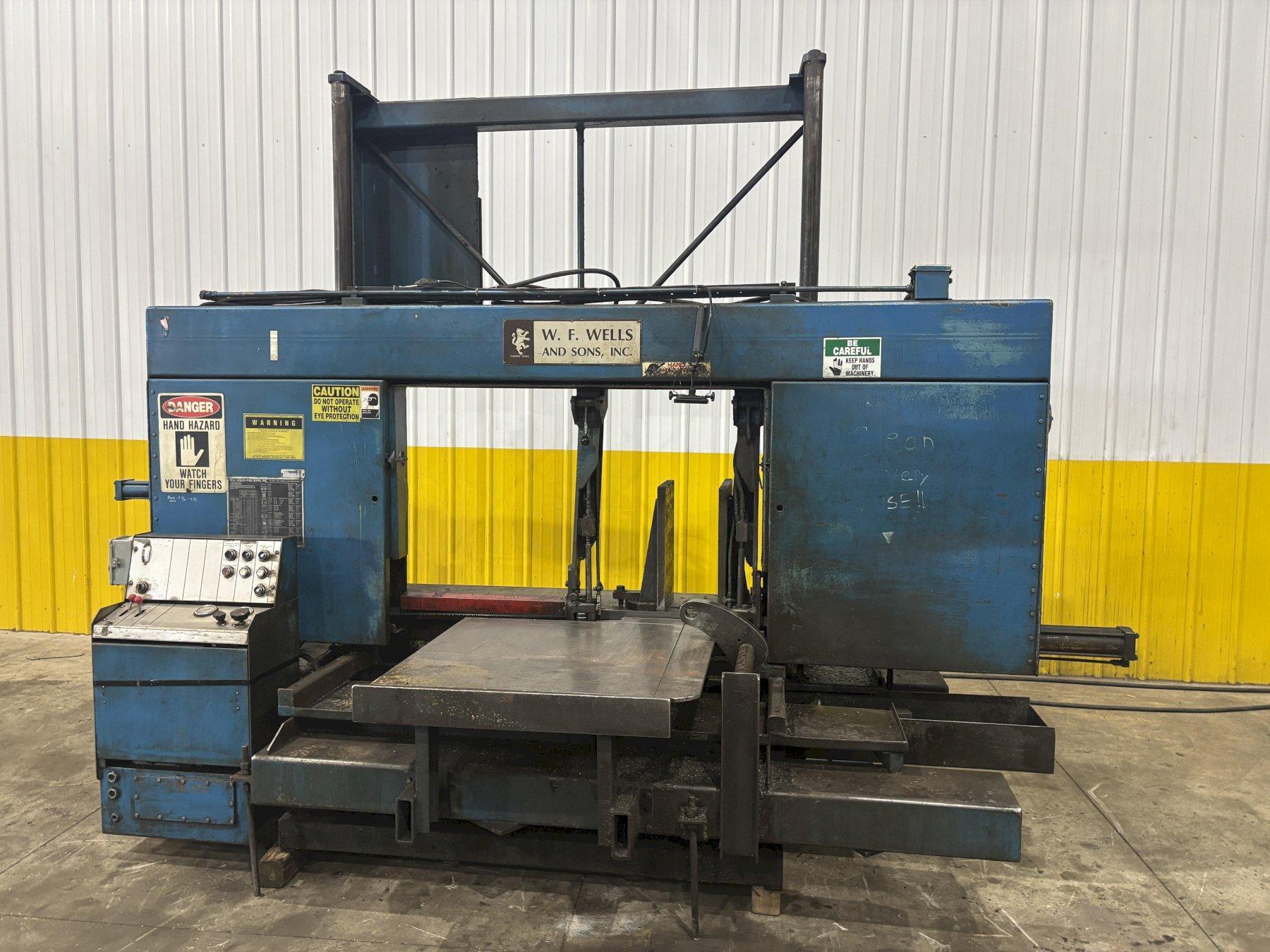

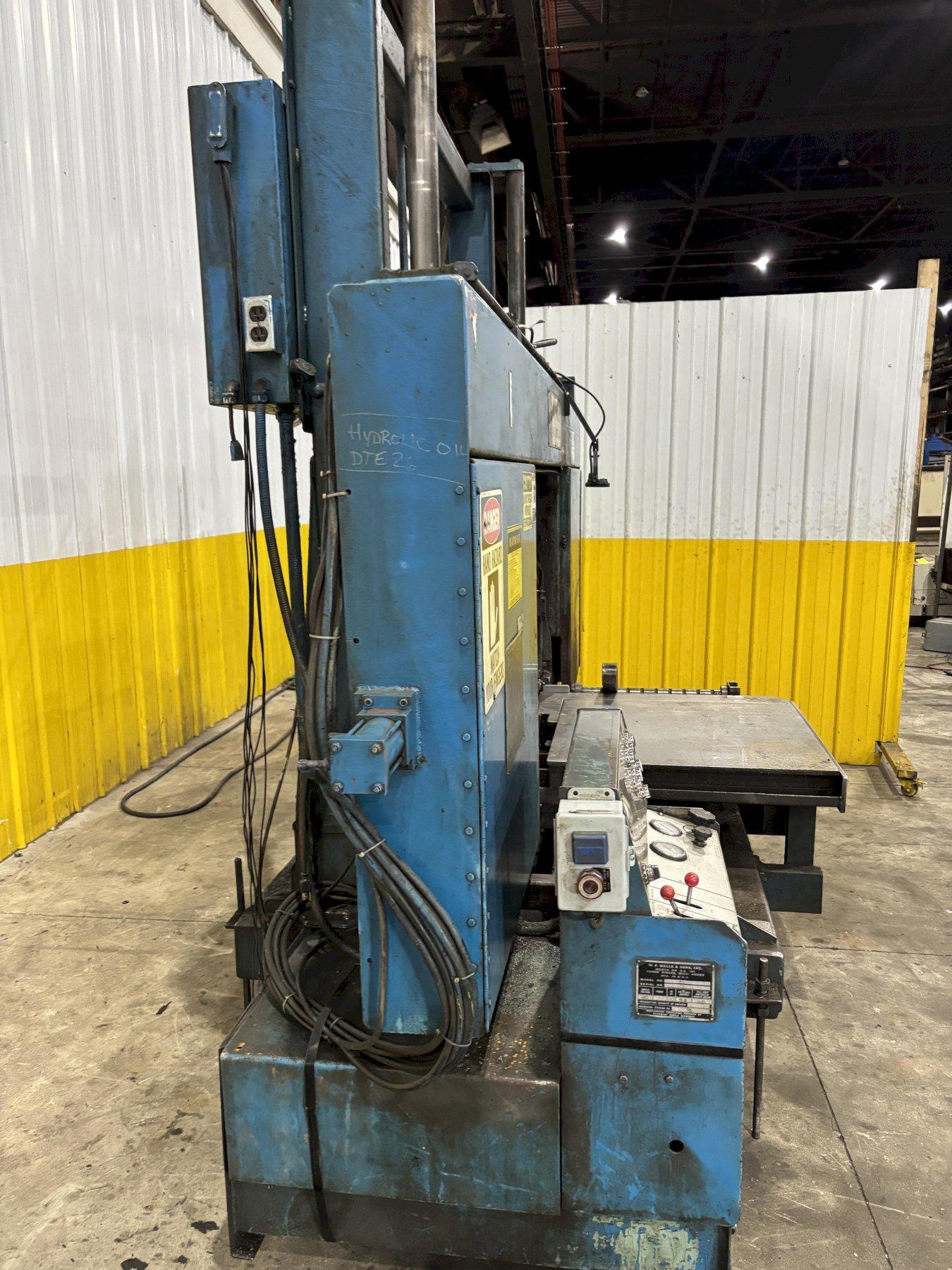

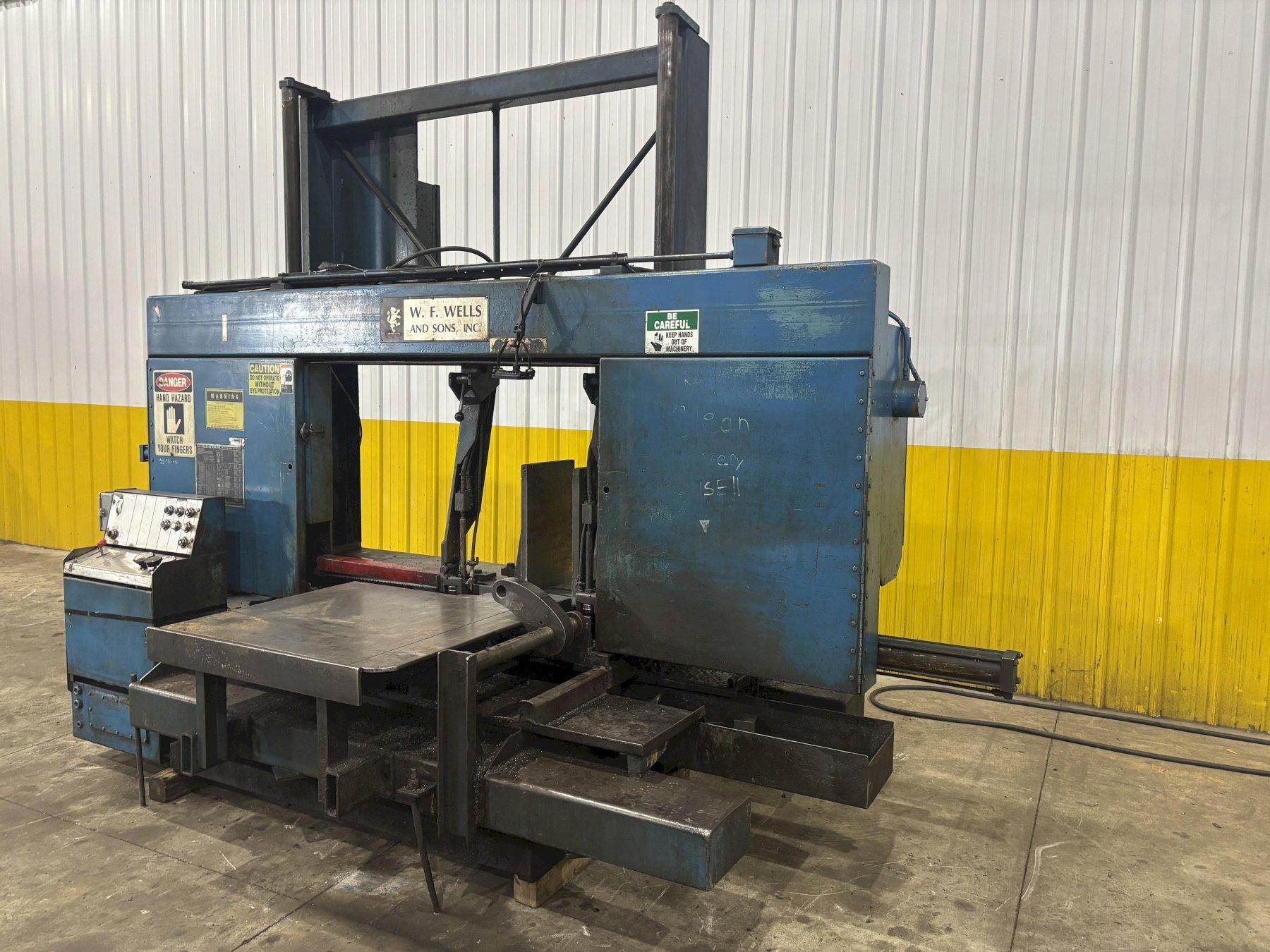

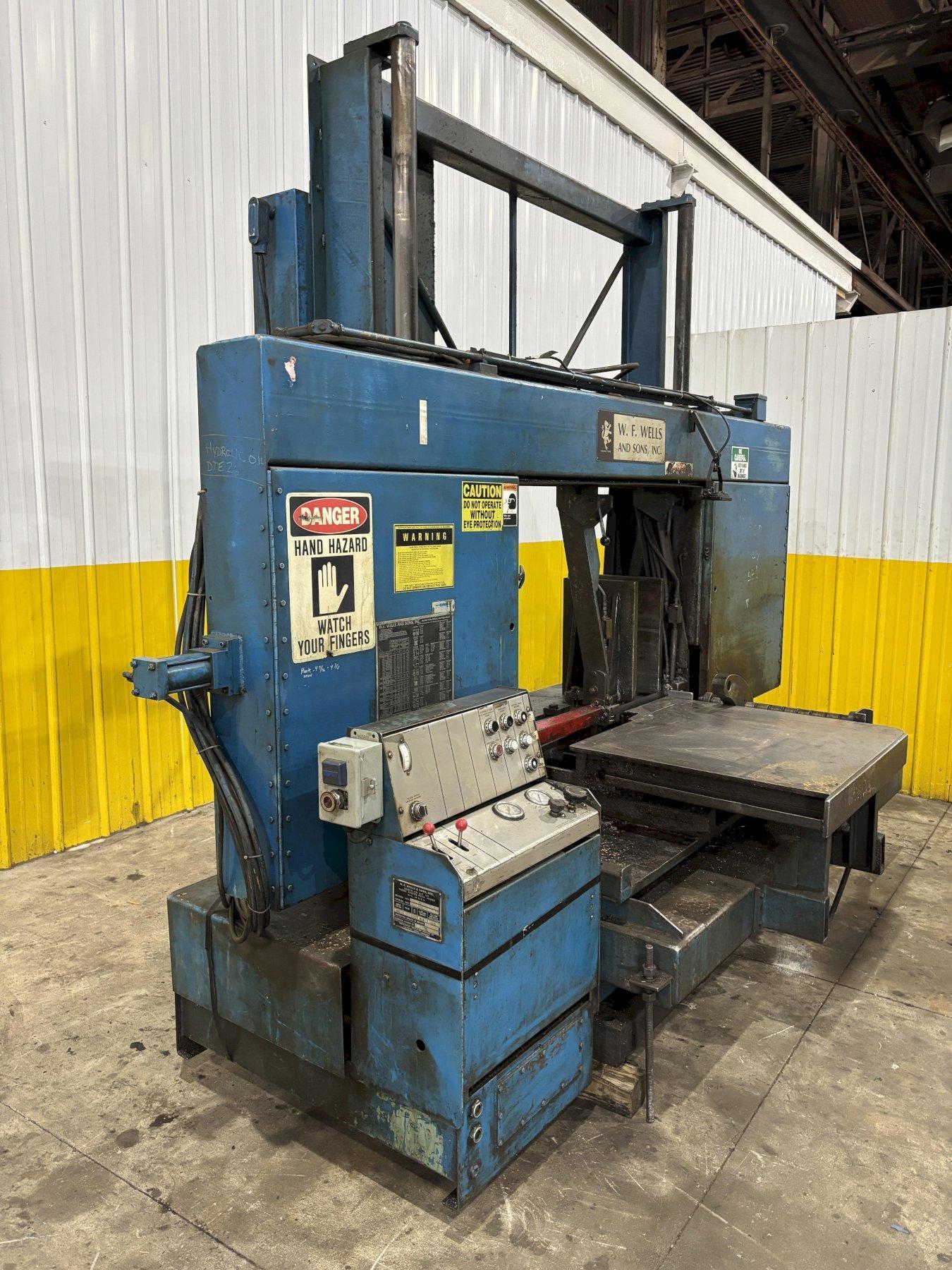

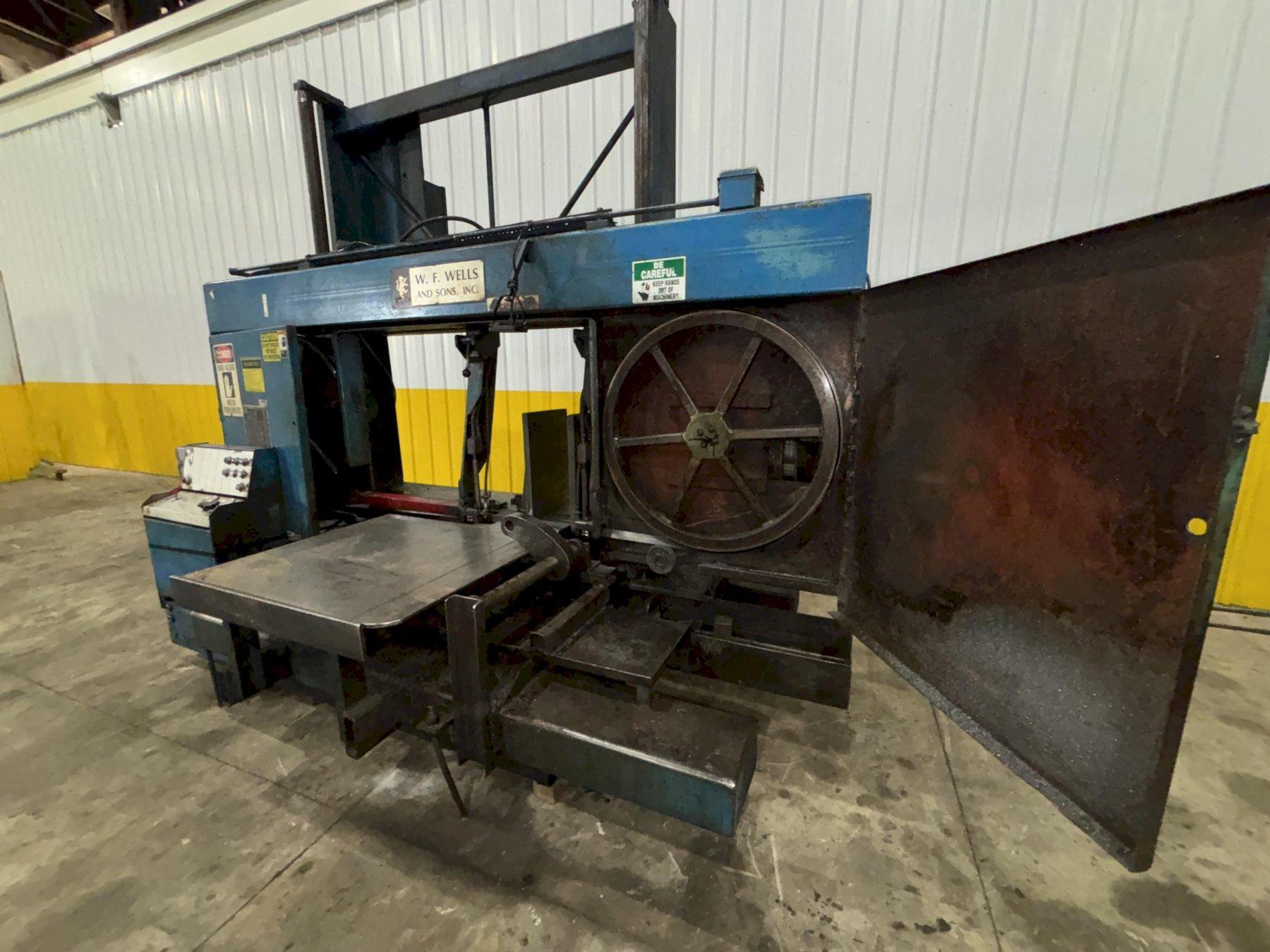

30" X 36" W.F. WELLS MODEL G-30-II HORIZONTAL BANDSAW: STOCK #23678

Manufacturer

W.F. WELLS

Category

Saws

Type

SAWS, BAND, HORIZONTAL

Stock

23678

Model

G-30-D

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Dimensions - 145 X 44 X 104" H
Weight - 5800 pounds
Max Table Load - 15000 pounds

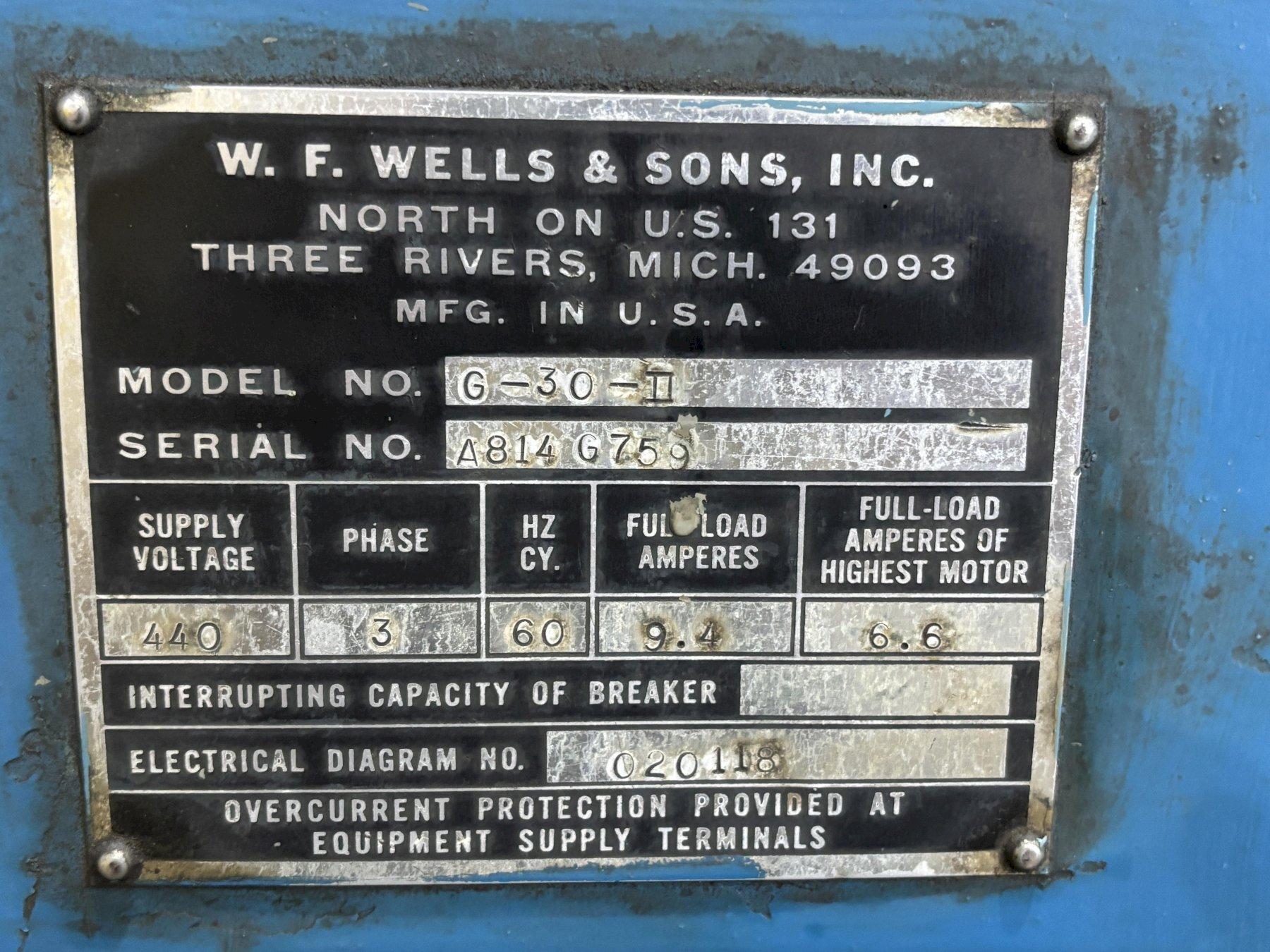

SERIAL .......................... A814G759
MODEL ........................... G-30-II
CAPACITY (RECTANGULAR)........... 30" H X 36" W
CAPACITY (ROUND) ................ 30"
CAPACITY (AT 45 DEGREES) ........ 30" H X 24" W
SAW BLADE ....................... 22'6" X 1.25" X .042"

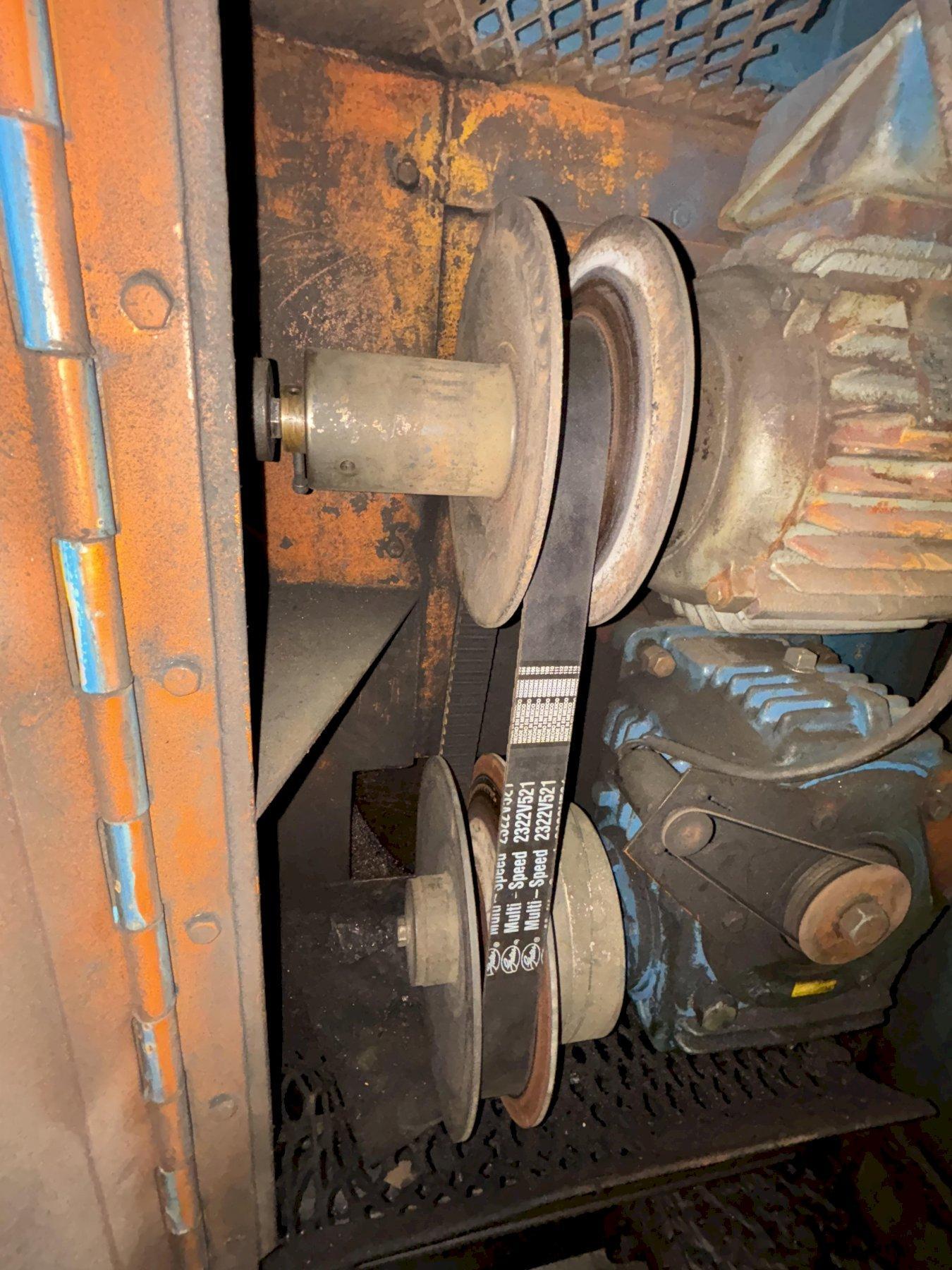

SAW SPEED ....................... 75 TO 500 FPM
BLADE TENSIONING ................ HYDRAULIC
CLEARANCE UNDER BLADE ........... 32"
SAWING FORCE .................... 0 TO 300 LBS, VARIABLE
HEAD CYCLE TIME, LOWER .......... 32" IN 12 SECONDS
HEAD CYCLE TIME, RAISE .......... 32" IN 6 SECONDS
HYDRAULIC DOWNFEED .............. VARIABLE
WEIGHT CAPACITY ................. 15,000 LBS

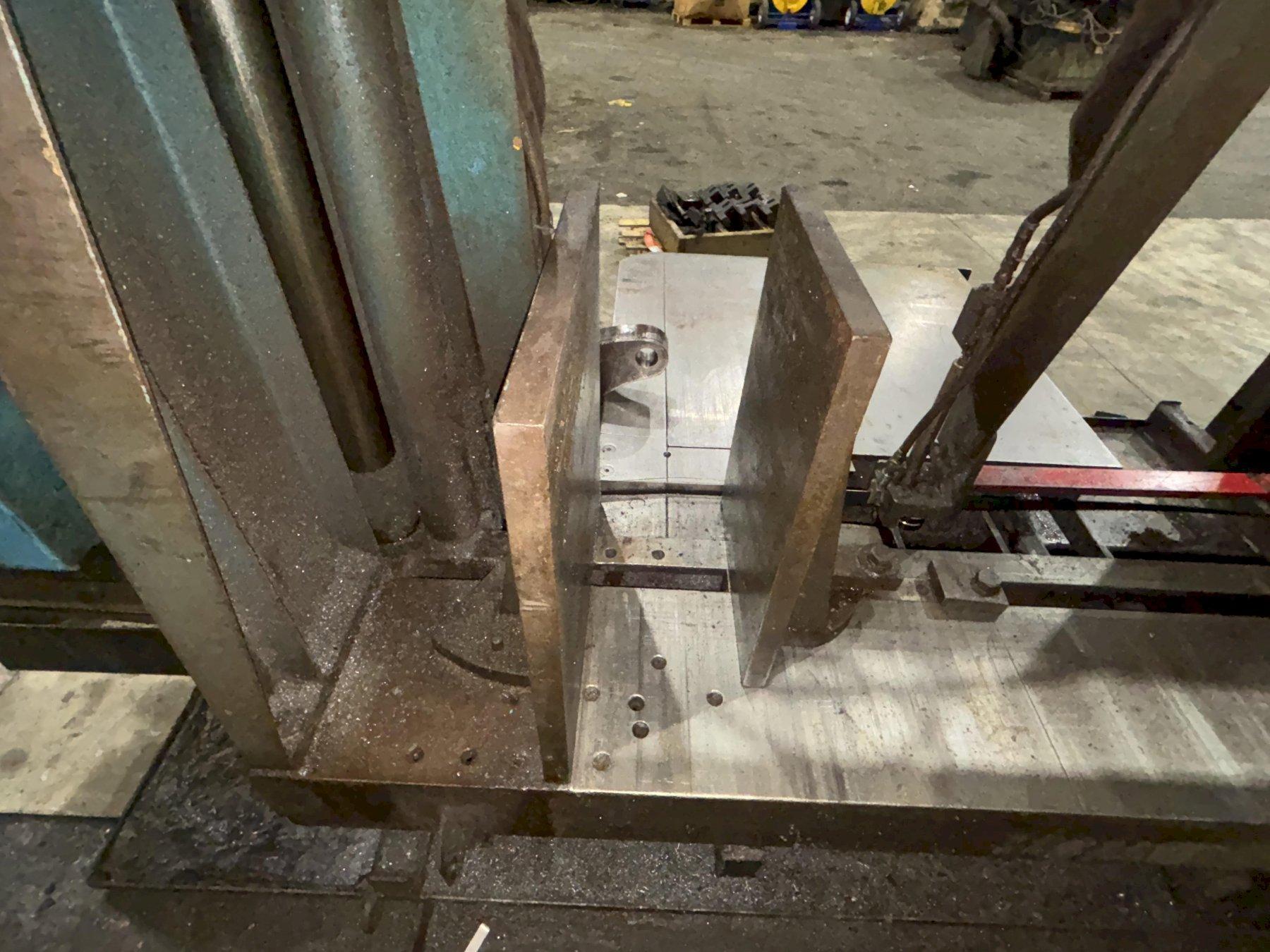

HYDRAULIC VISE PRESSURE ......... 750 TO 4,500 LBS, VARIABLE
WORK TABLE HEIGHT ............... 27"

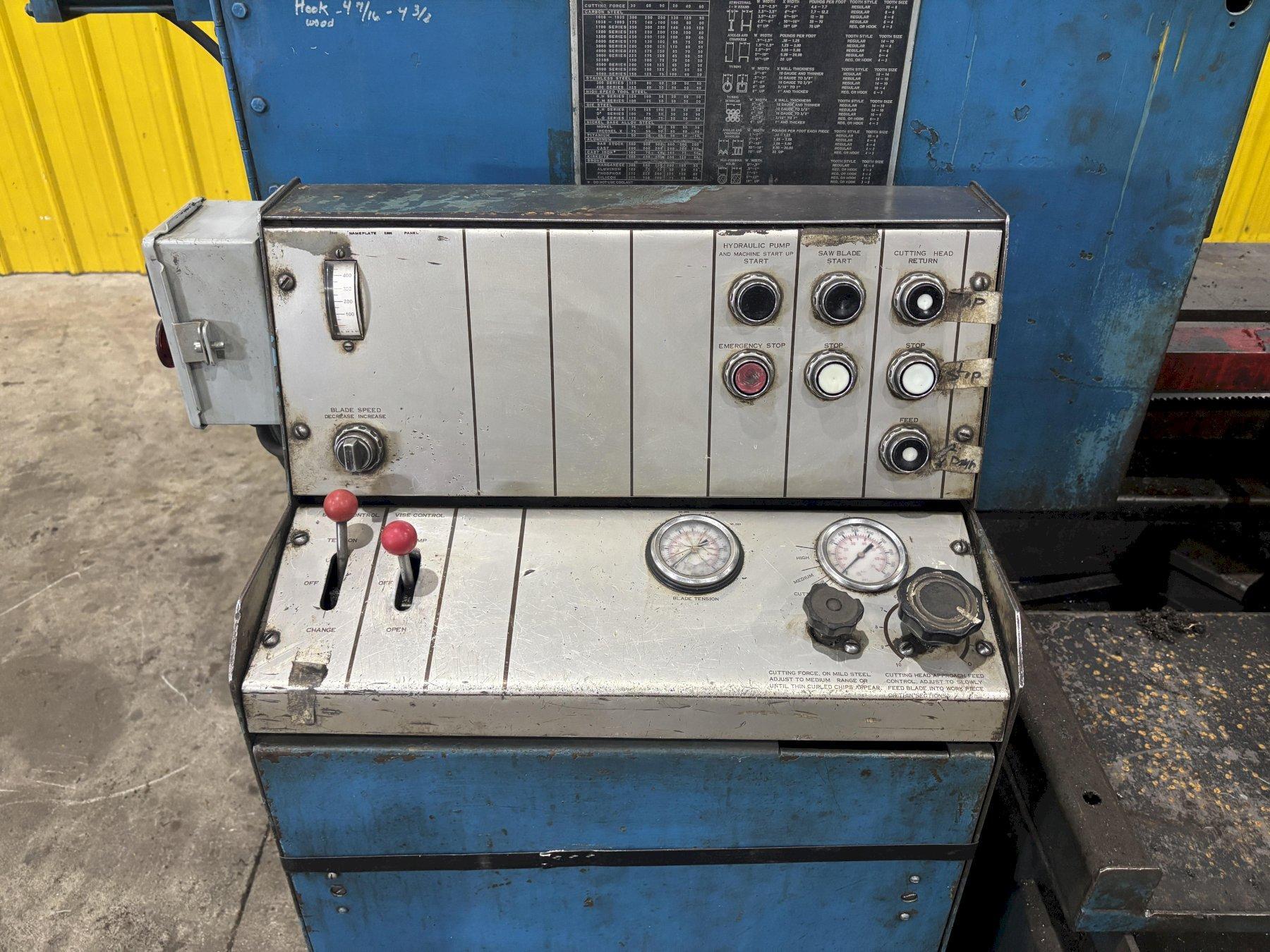

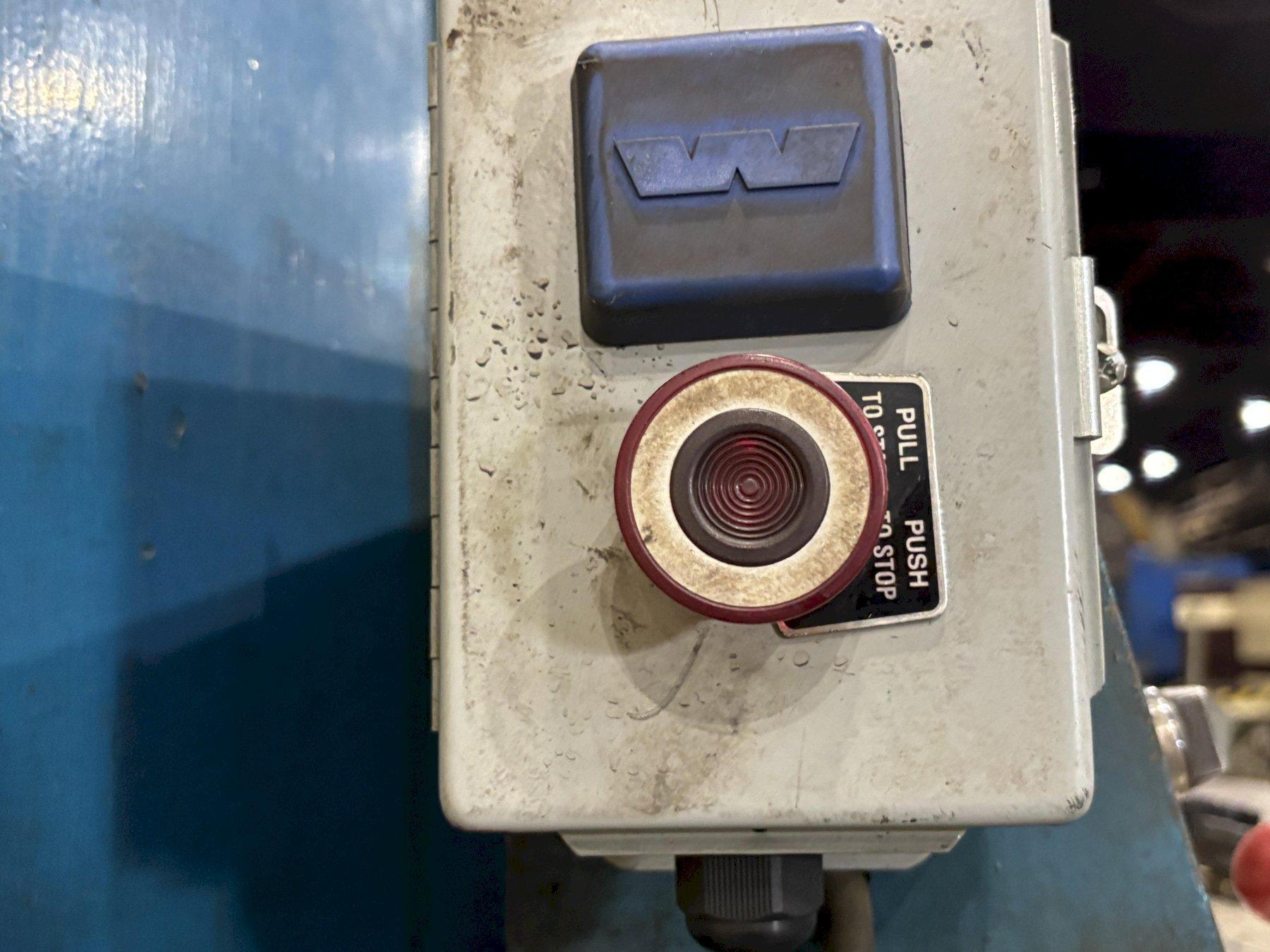

OPERATOR CONSOLE ................ YES
COOLANT ......................... YES

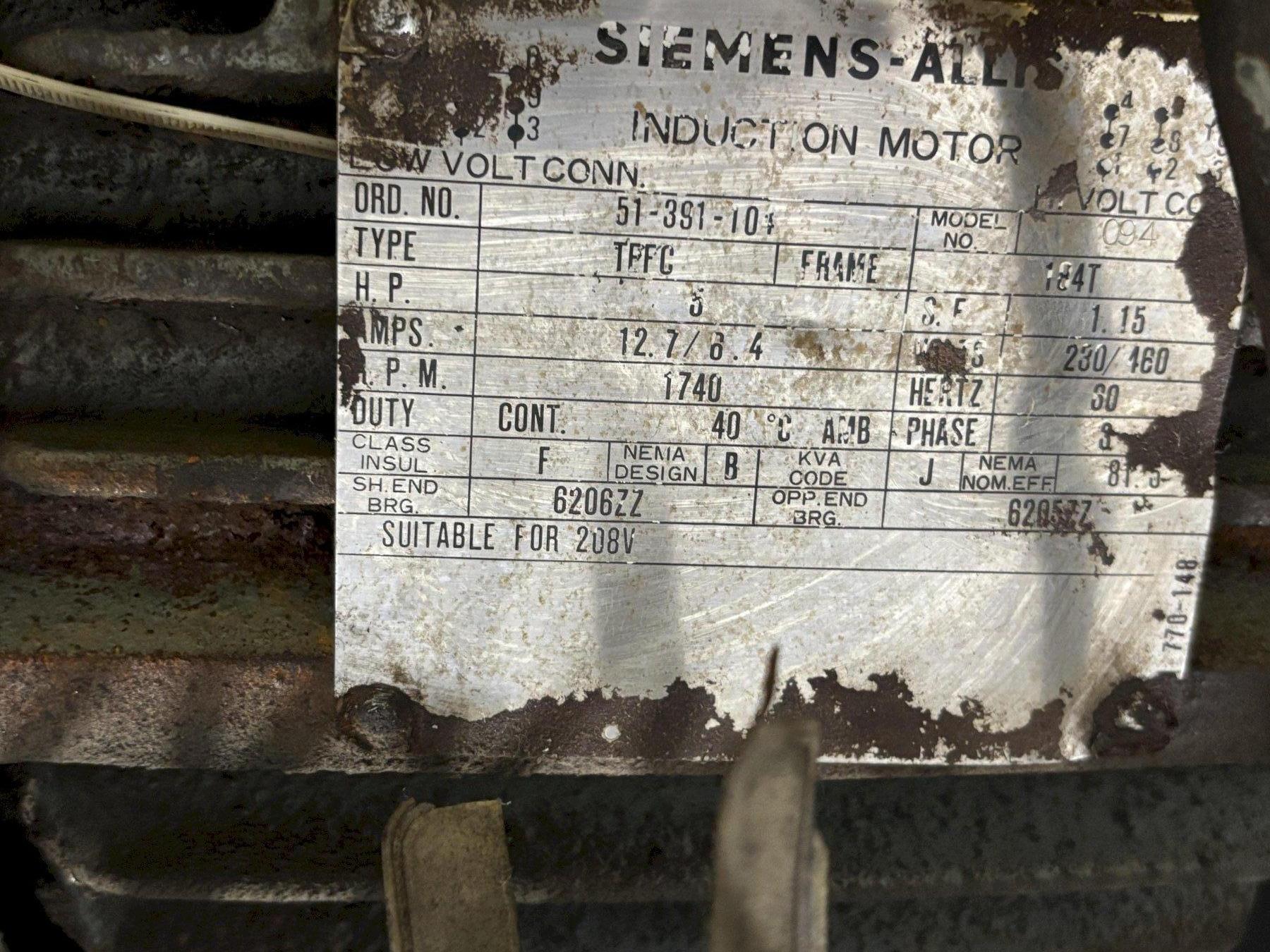

HYDRAULIC MOTOR ................. 2 HORSEPOWER

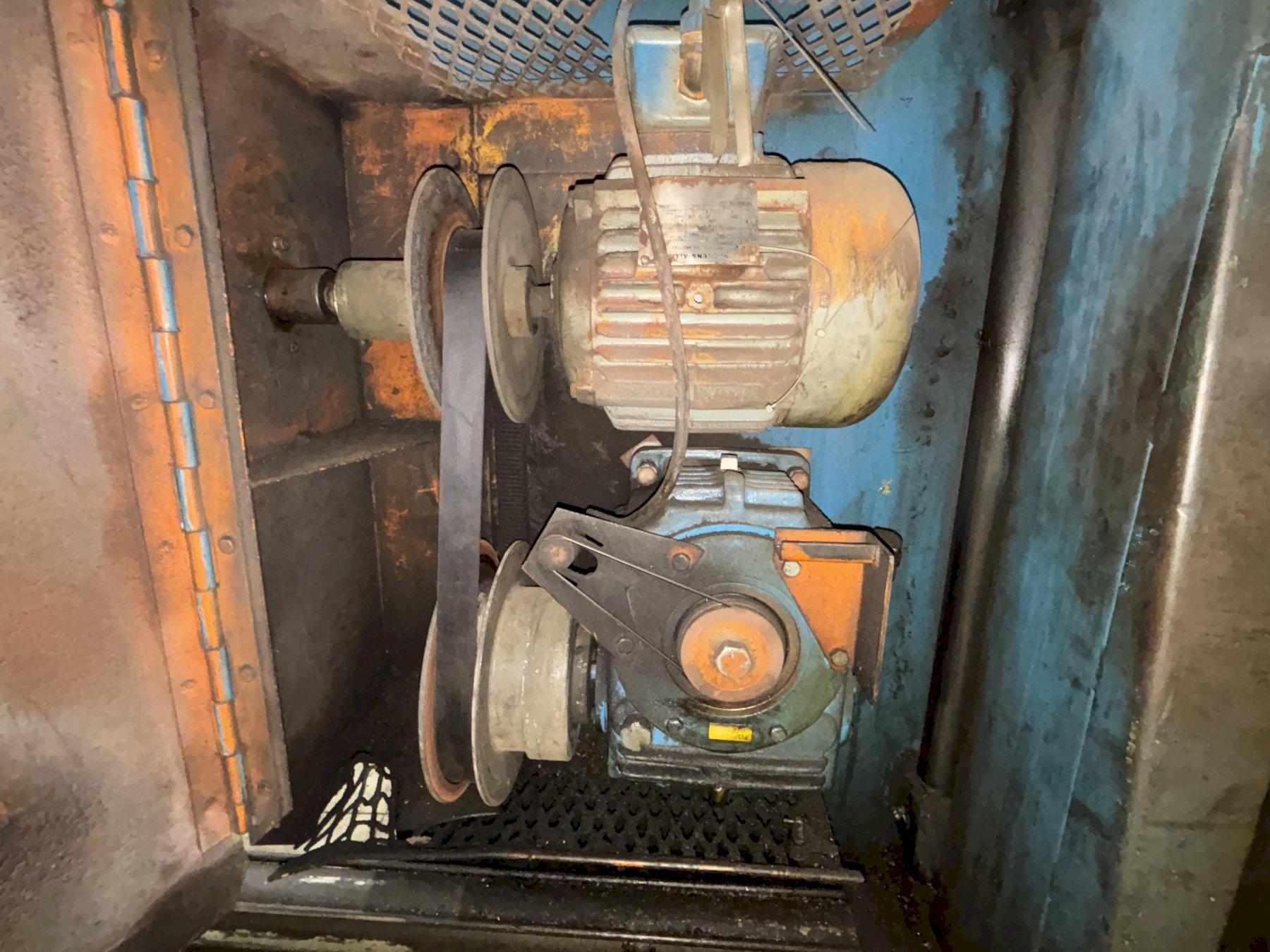

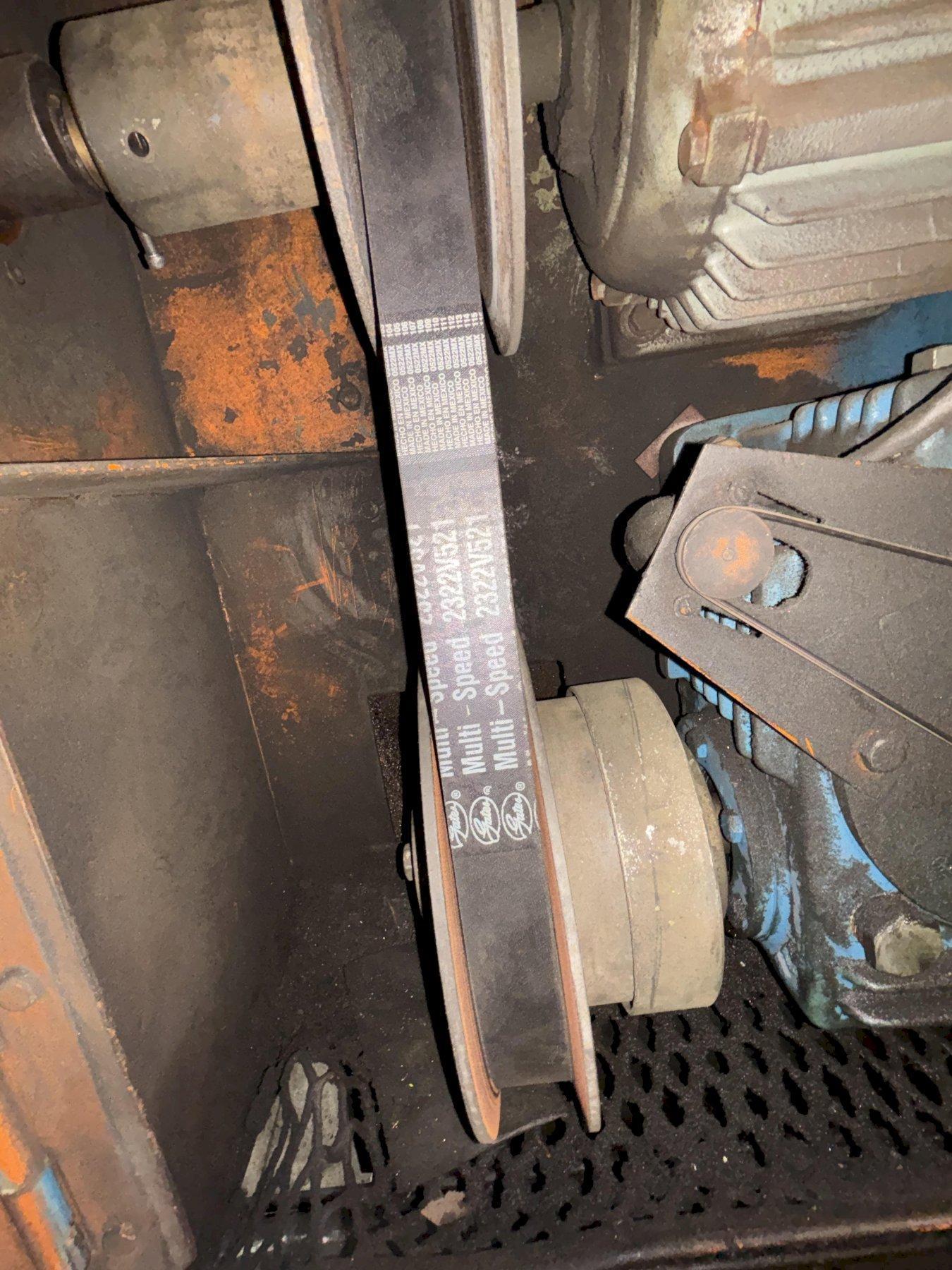

BLADE MOTOR ..................... 5 HORSEPOWER
