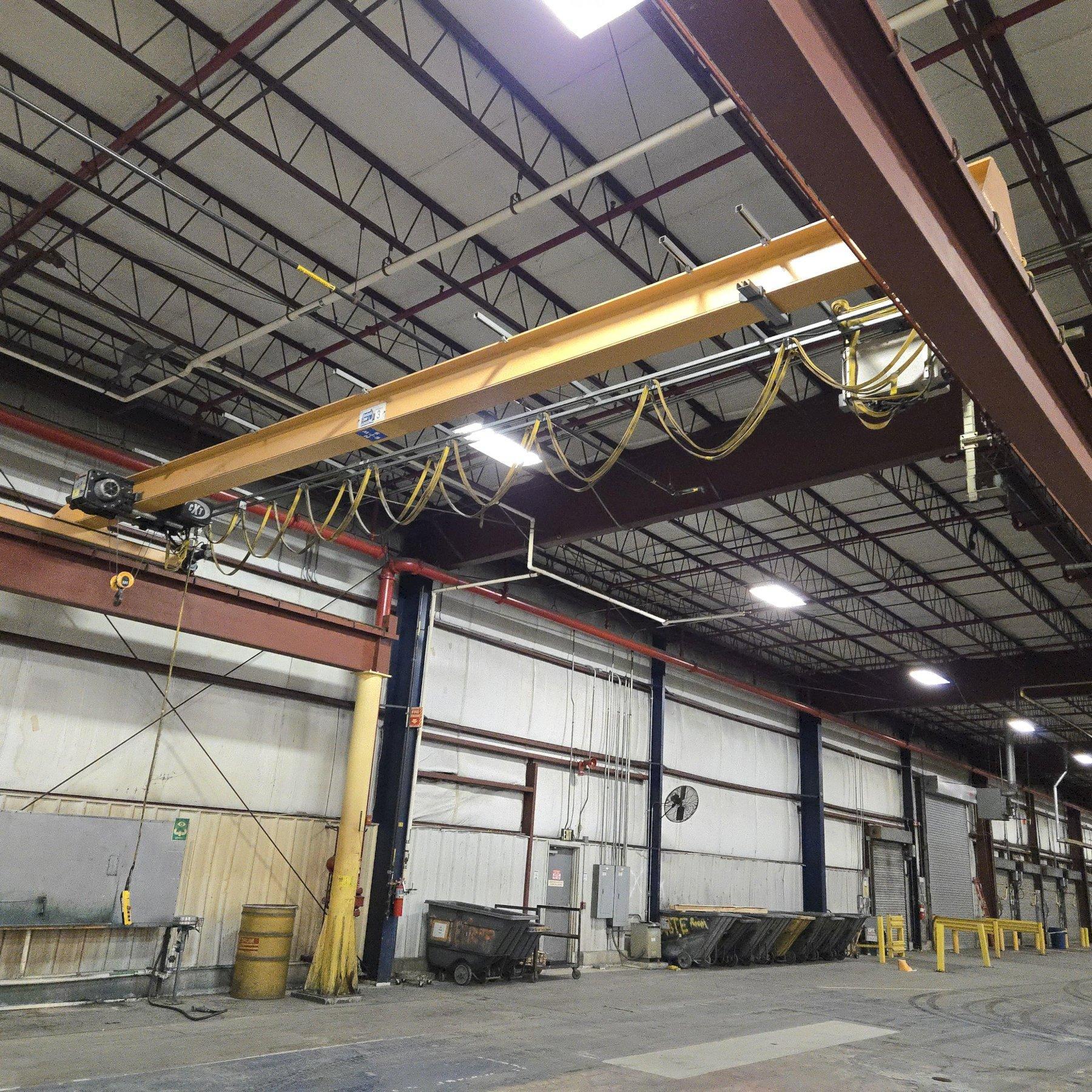

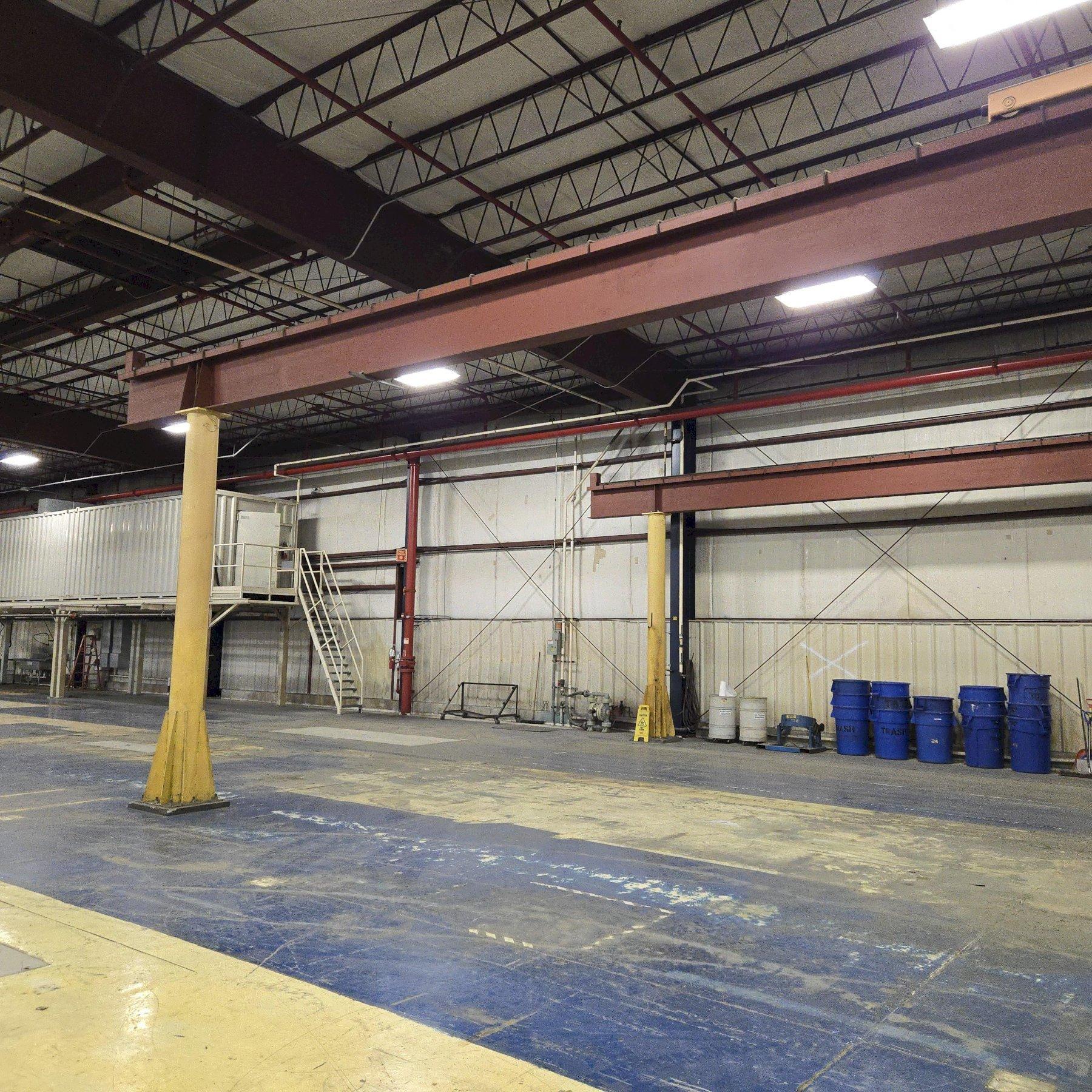

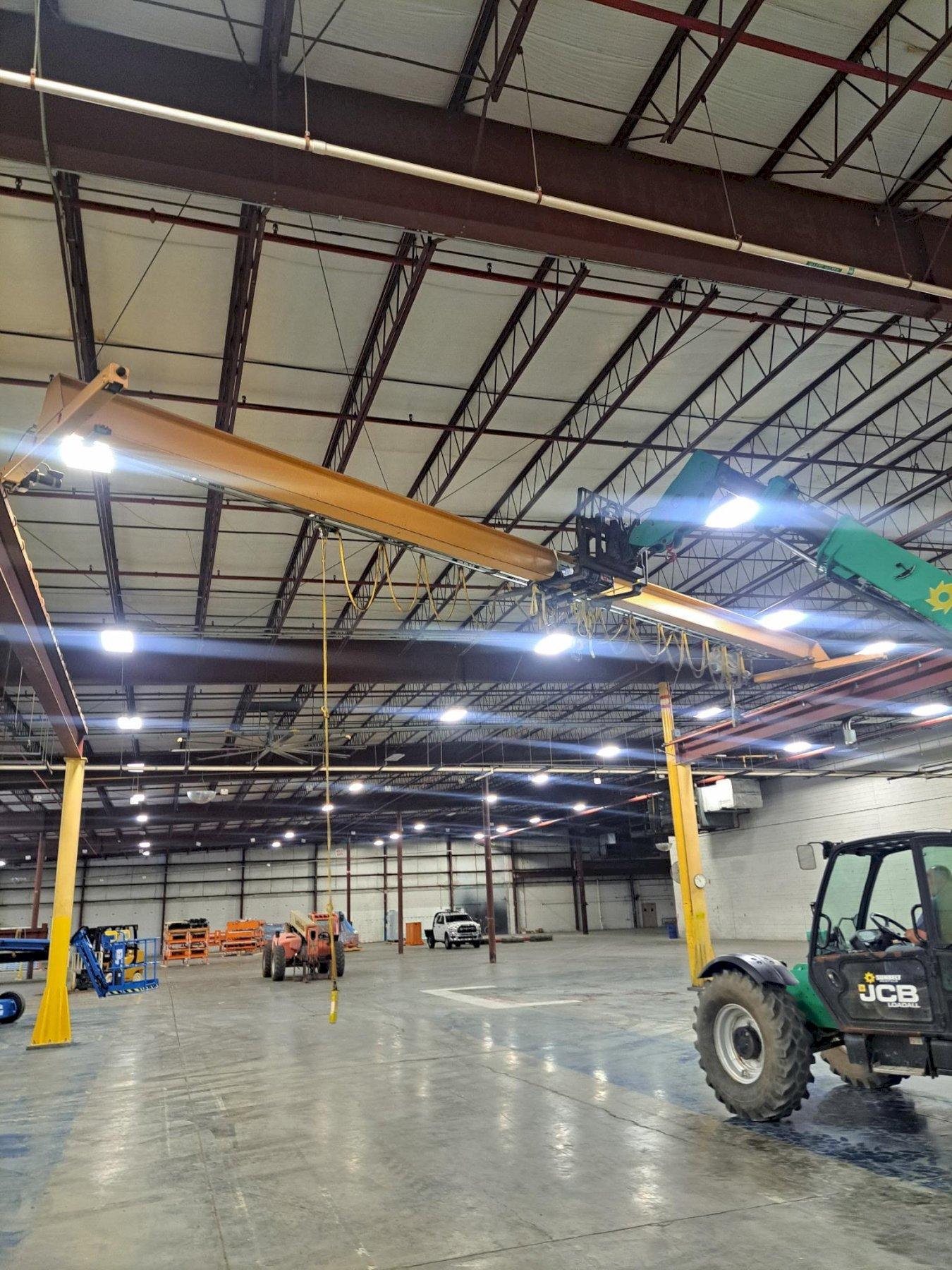

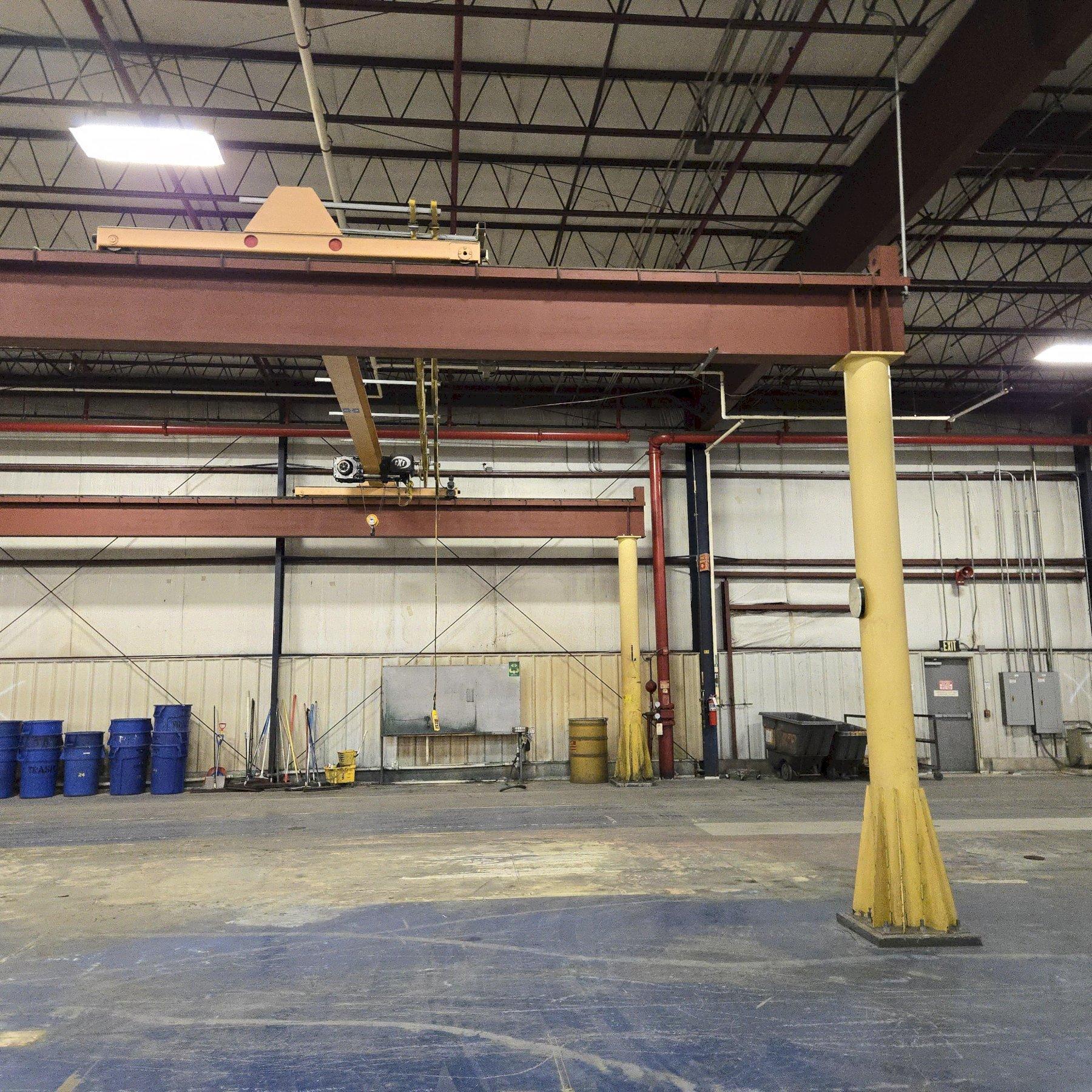

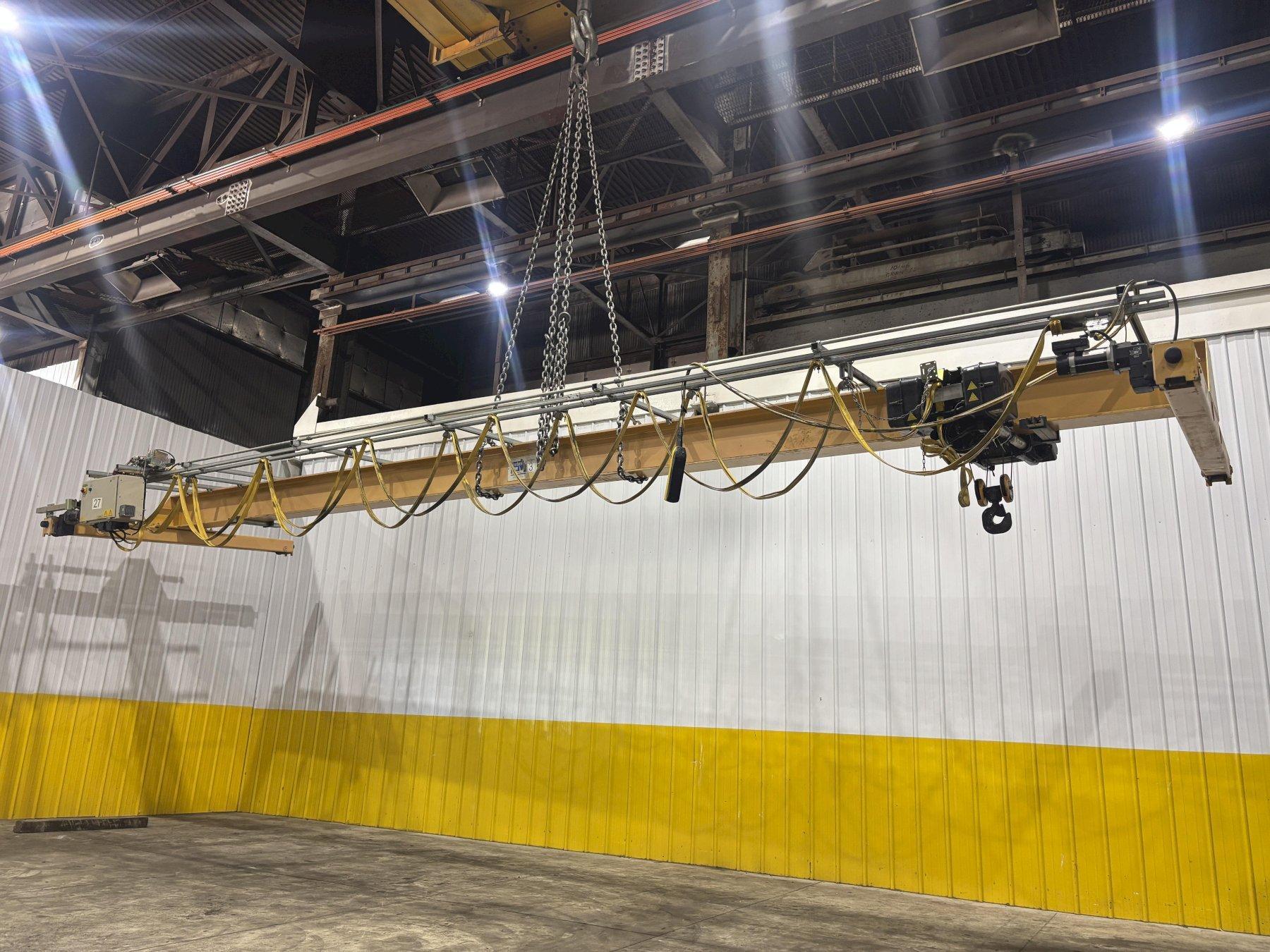

3 TON X 31'2"' SPAN x 51' DEARBORN FREE STANDING OVERHEAD BRIDGE CRANE SYSTEM: STOCK #23301

Manufacturer

DEARBORN

Category

Cranes & Hoists

Type

CRANES, BRIDGE & OVERHEAD

Stock

23301

Model

None listed

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

Weight - 5100 pounds


SERIAL ........................... 21750-1

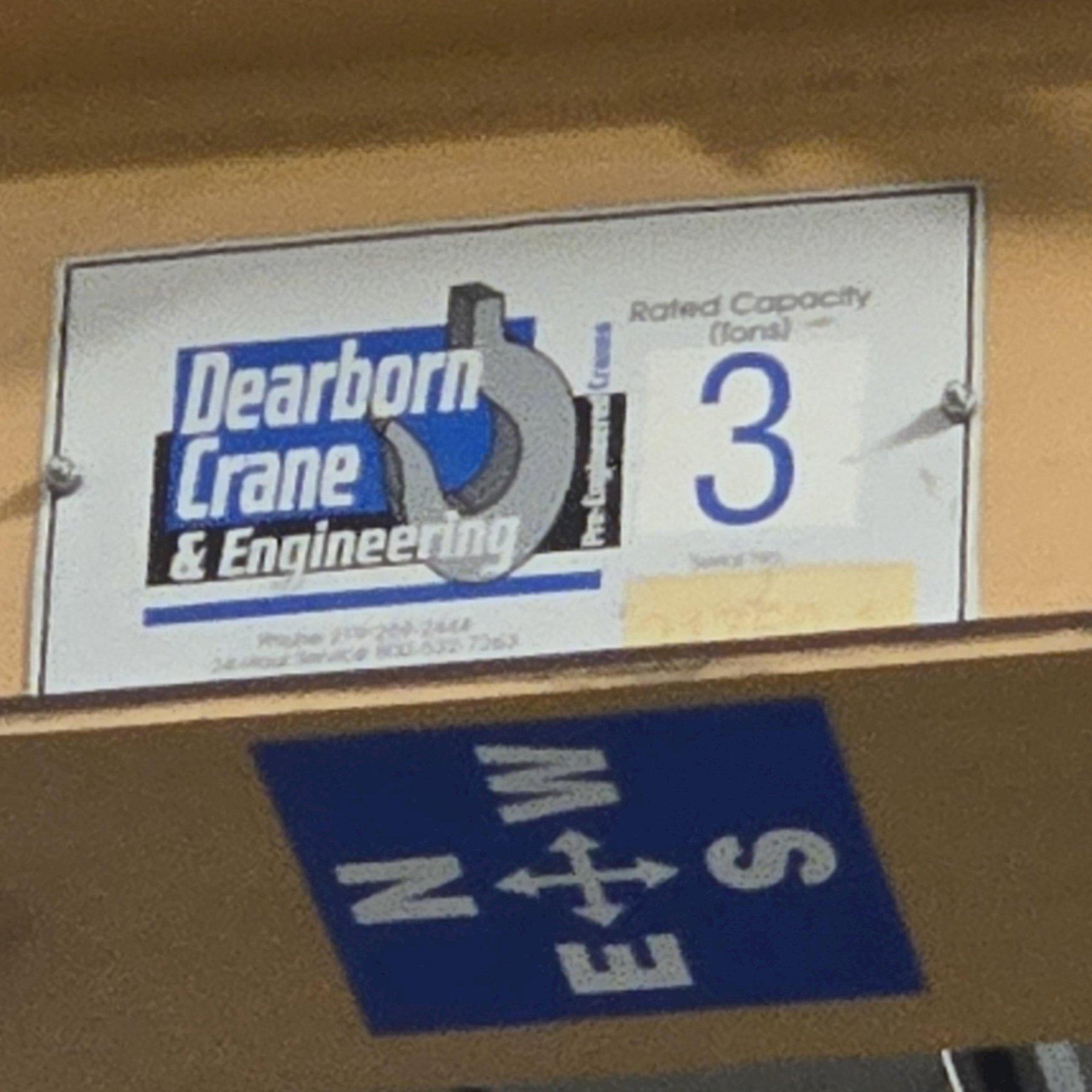

CAPACITY ......................... 3 TONS
CMAA ............................. CLASS C
SPAN ............................. 31'2"
LIFTING HEIGHT ................... 19'8-1/8"
SINGLE GIRDER .................... YES
TOP RUNNING BRIDGE ............... YES
UNDERSLUNG HOIST ................. YES

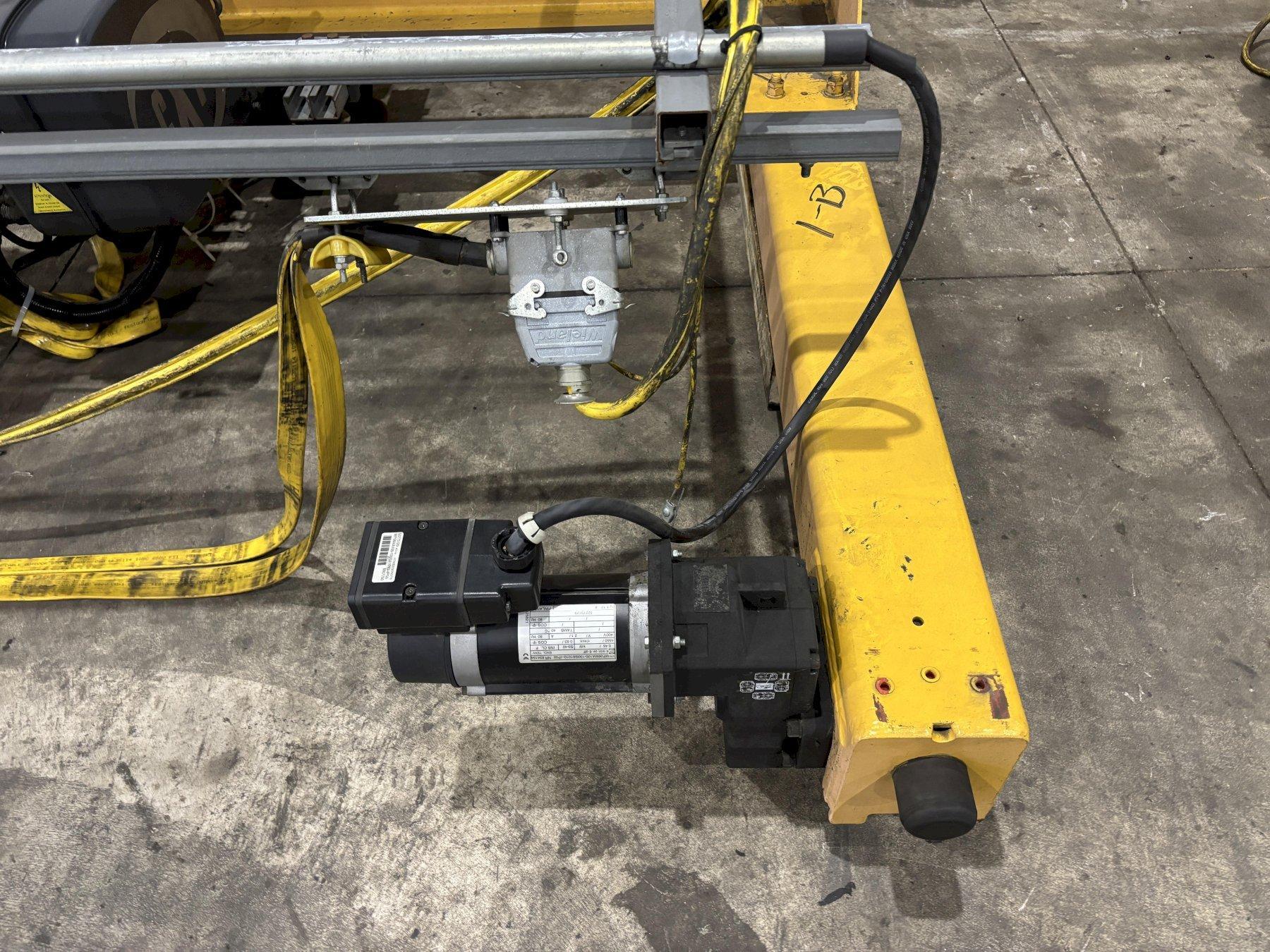

END TRUCK DRIVE .................. YES

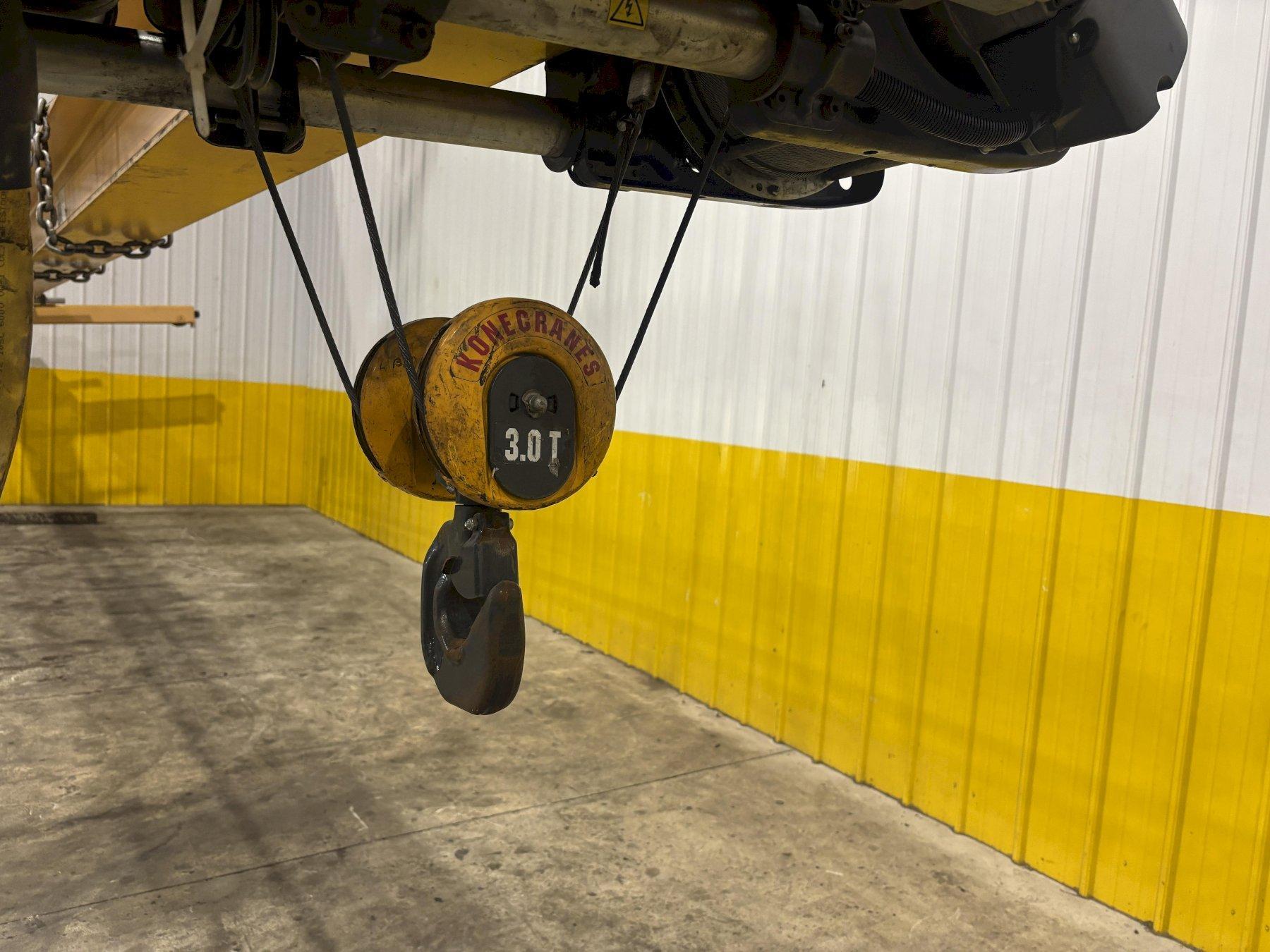

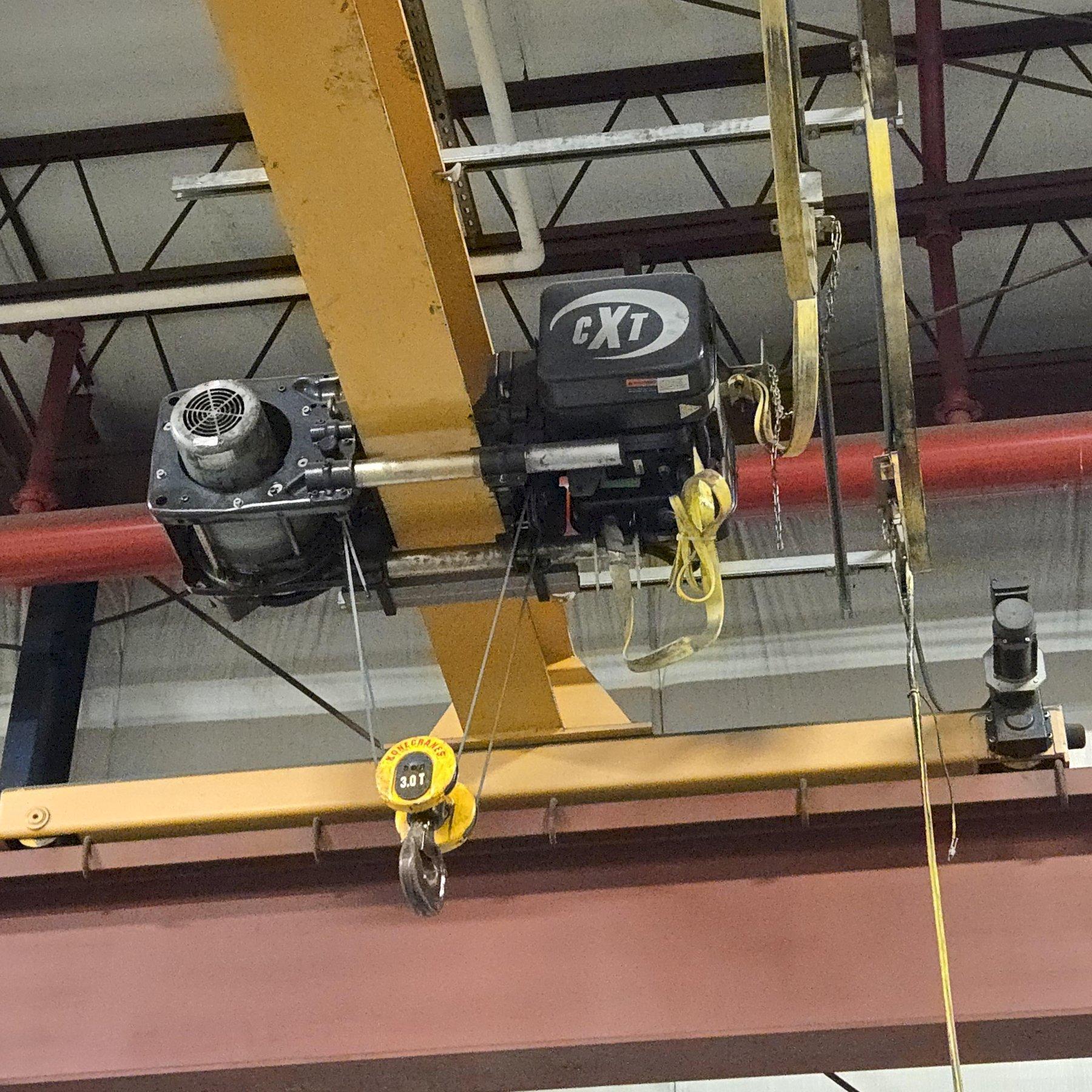

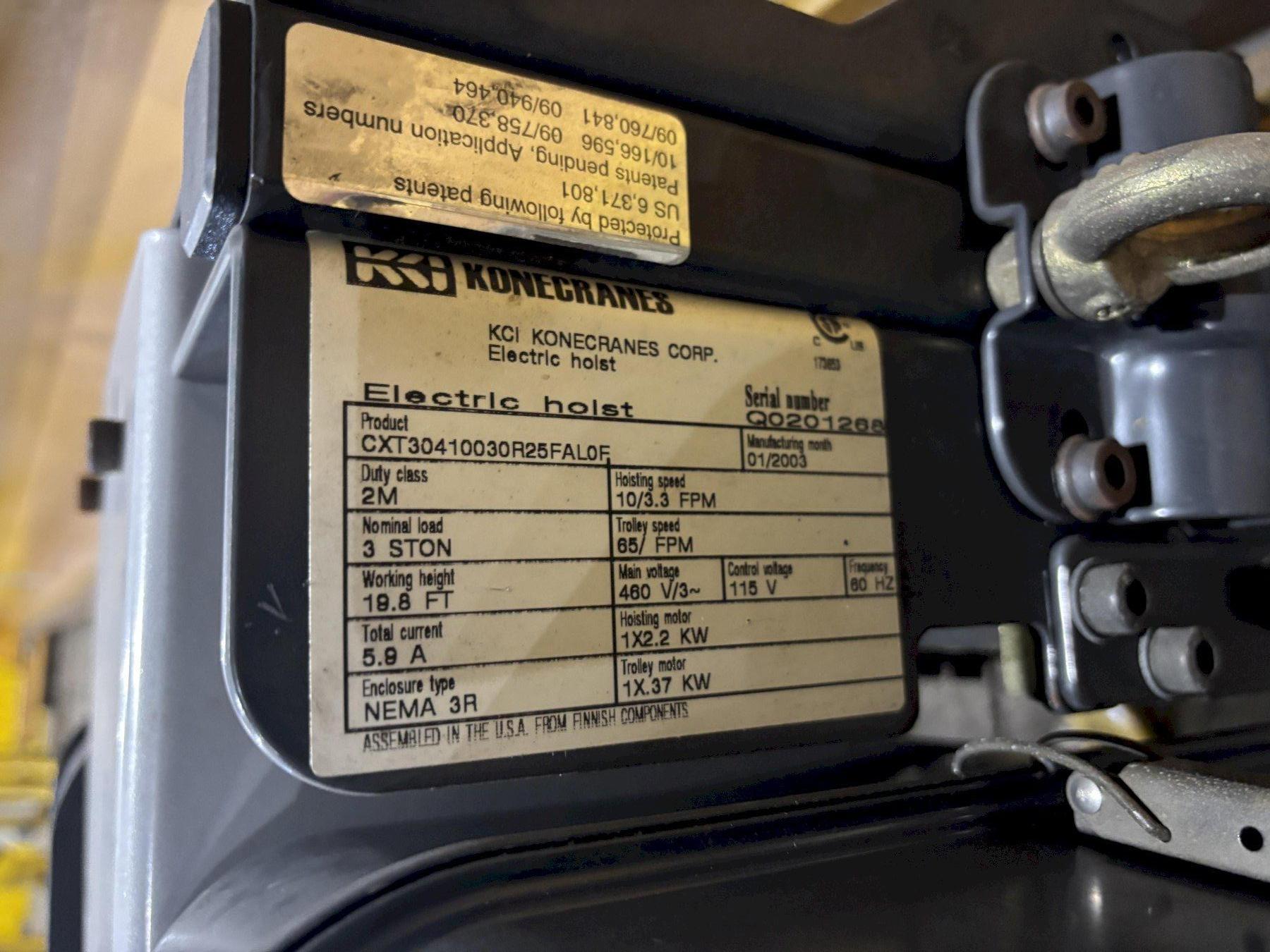

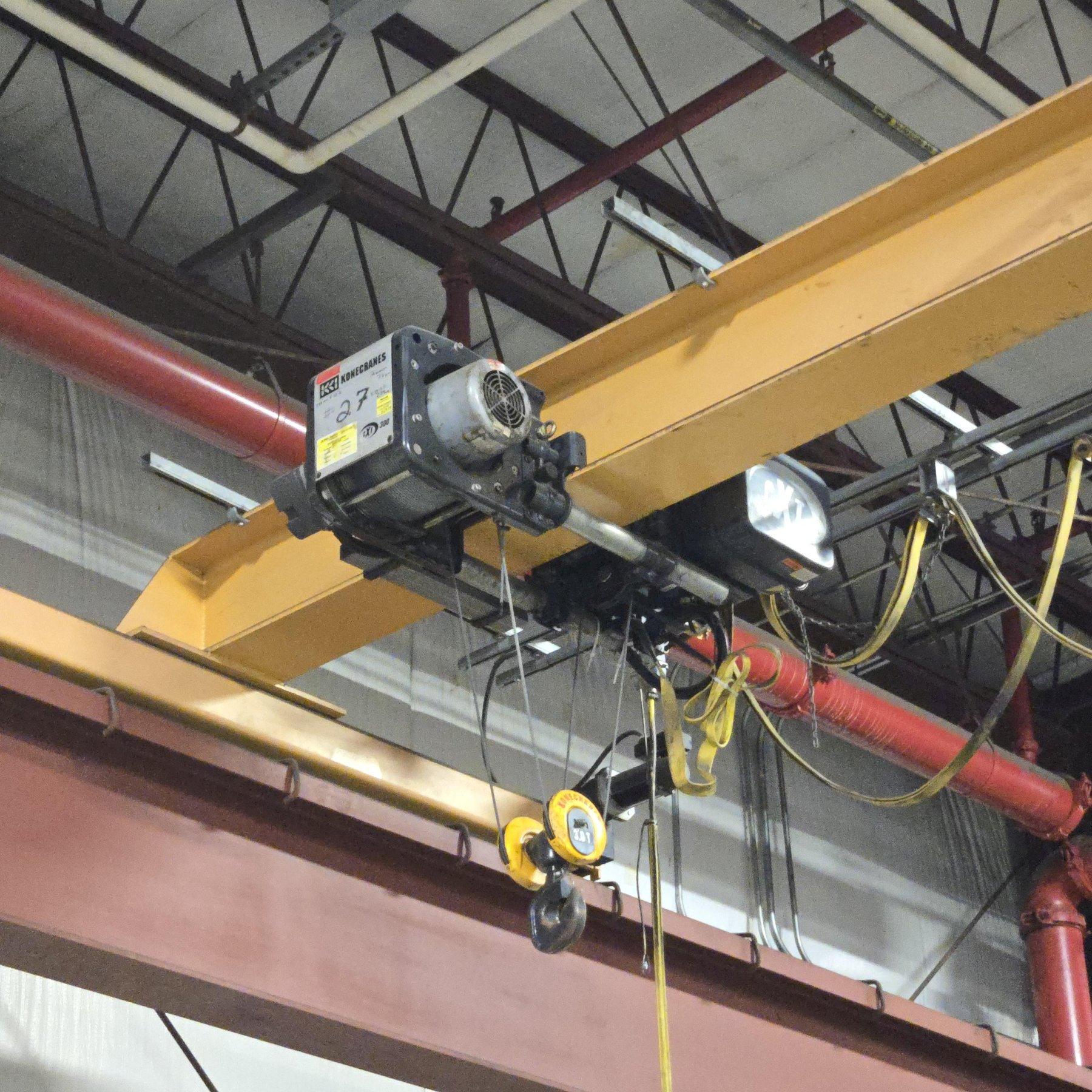

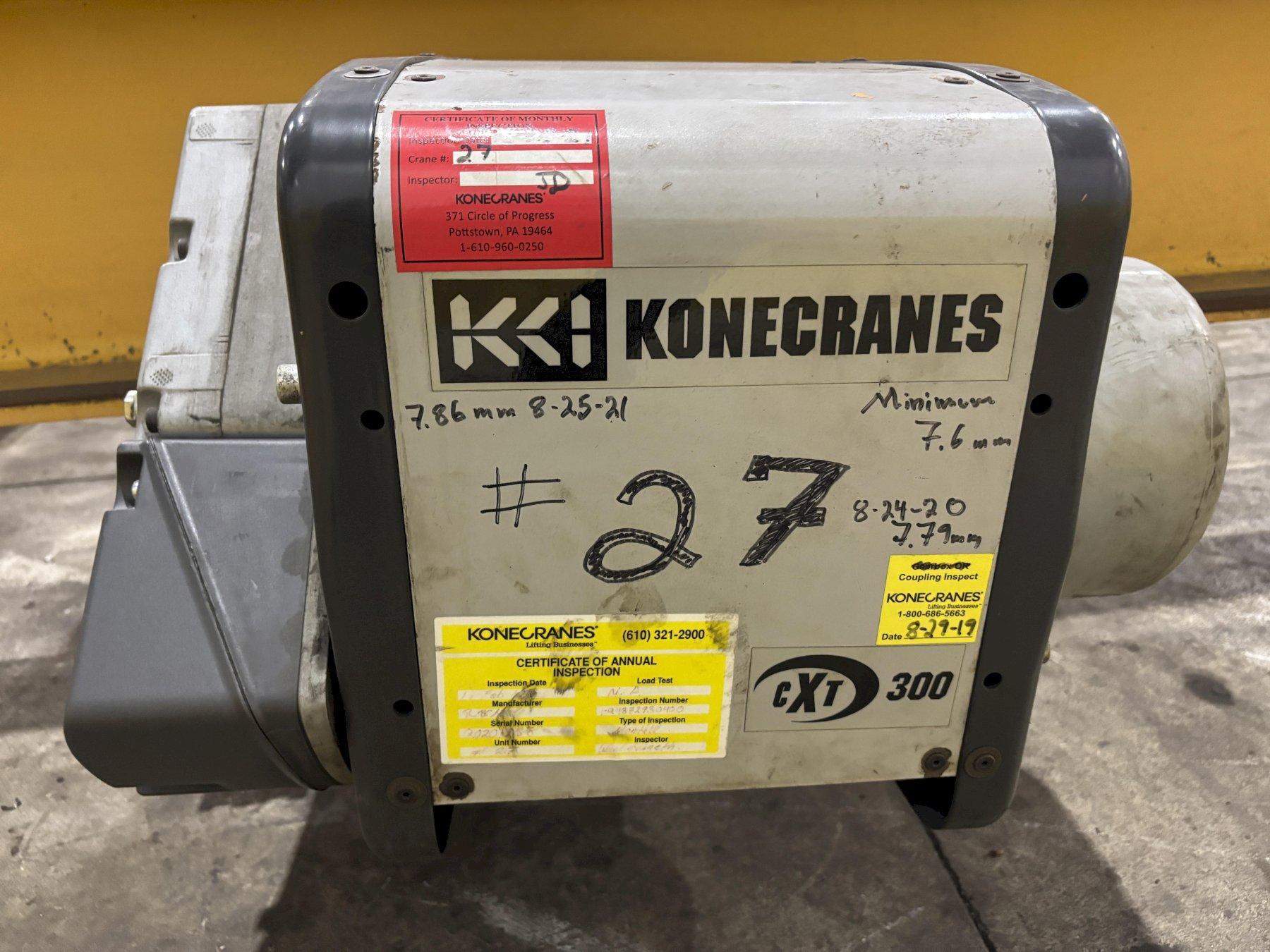

KONE HOIST:
SERIAL ........................... Q0201269
MODEL ............................ CXT30410030R225FALOF
LIFTING SPEED .................... 10/3.3 FPM
TROLLEY SPEED .................... 65 FPM
BRIDGE SPEED ..................... 100 FPM
GIRDER ........................... W16 X 77#
END TRUCK LENGTH ................. 9' 3-1/4"

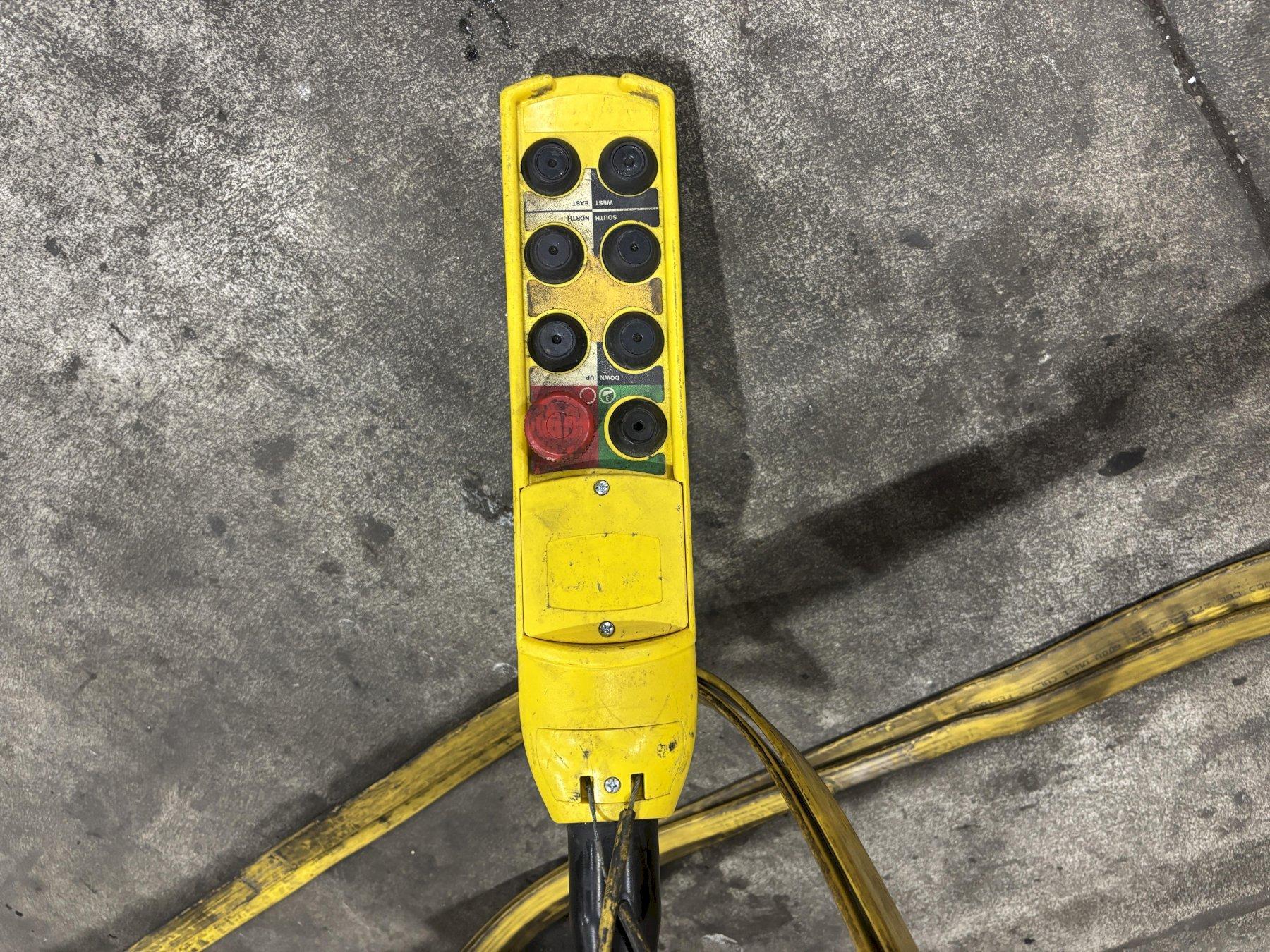

PENDANT CONTROL .................. YES

CRANE LENGTH ..................... 31'2"
CRANE HEIGHT (RAIL TO TOP) .......  2' 2-1/4"
SYSTEM HEIGHT .................... 19' 2-3/4"

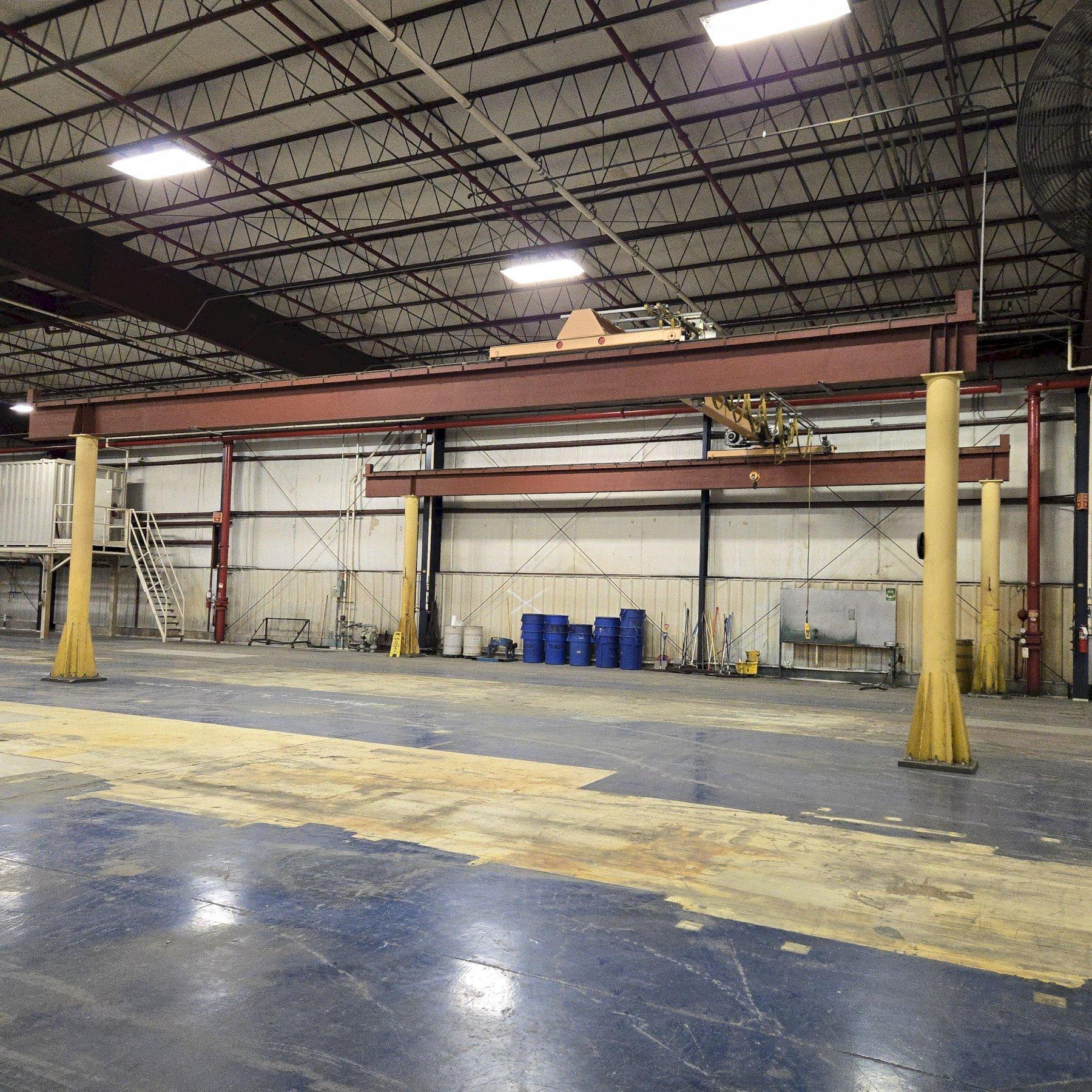

RUNWAY LENGTH .................... 51'

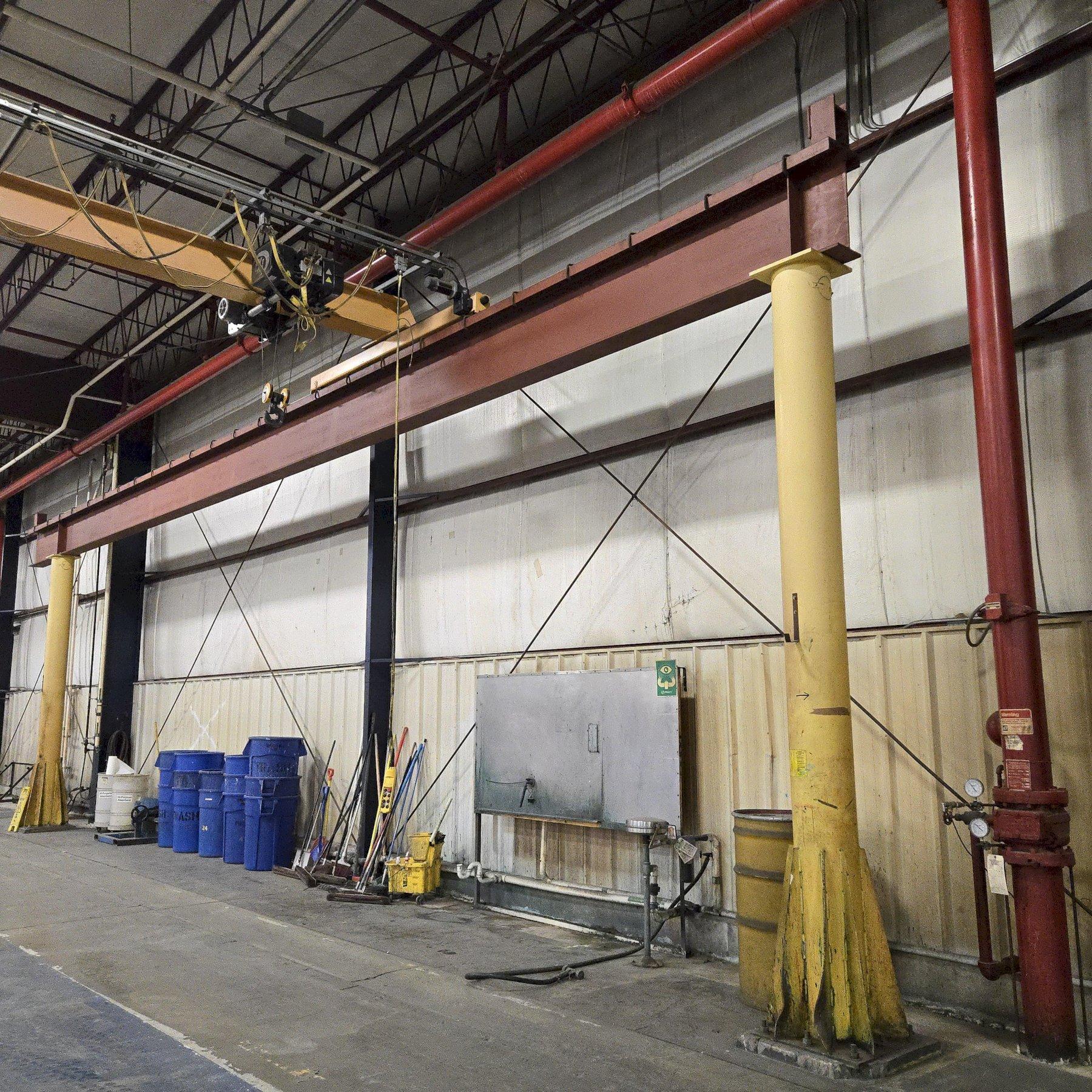

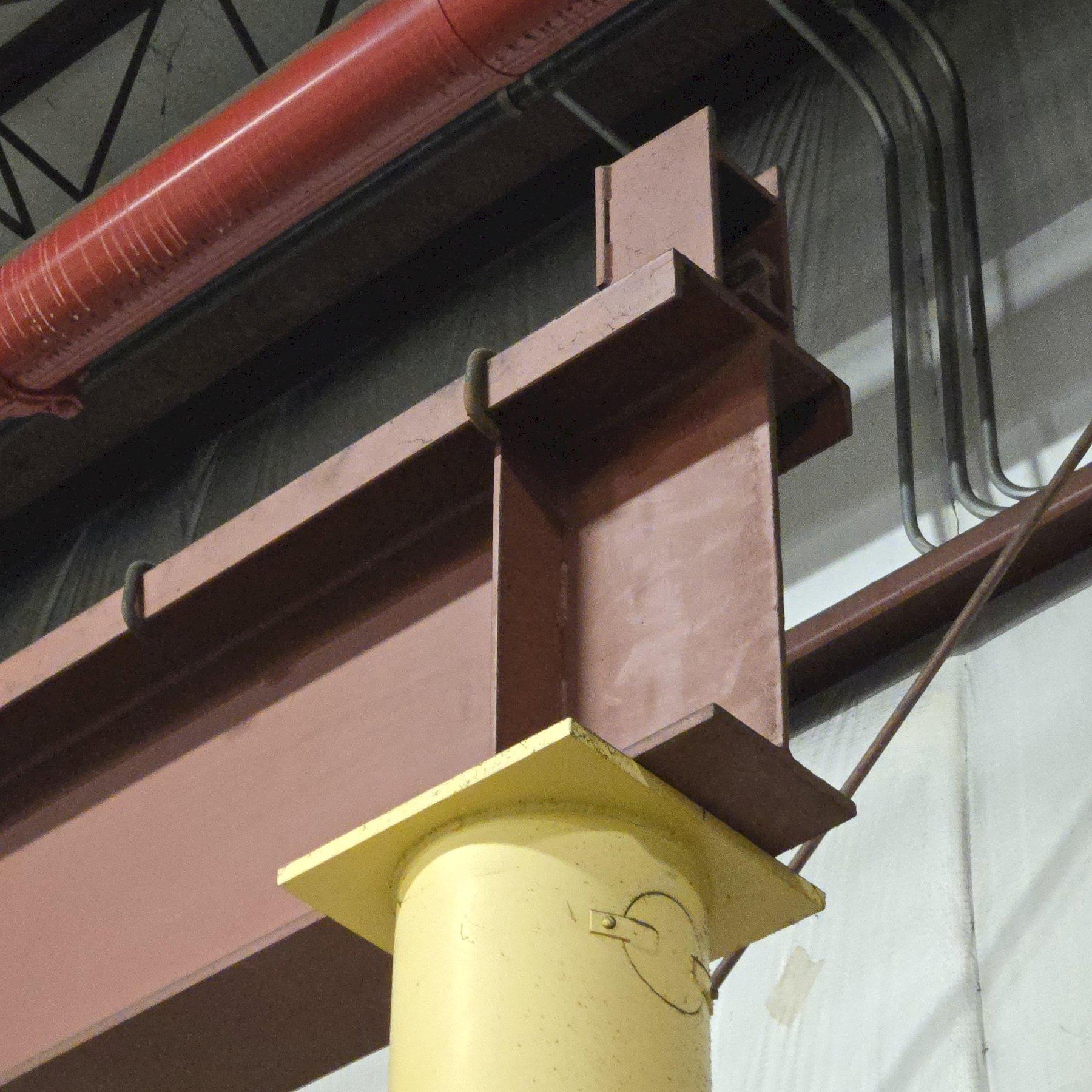

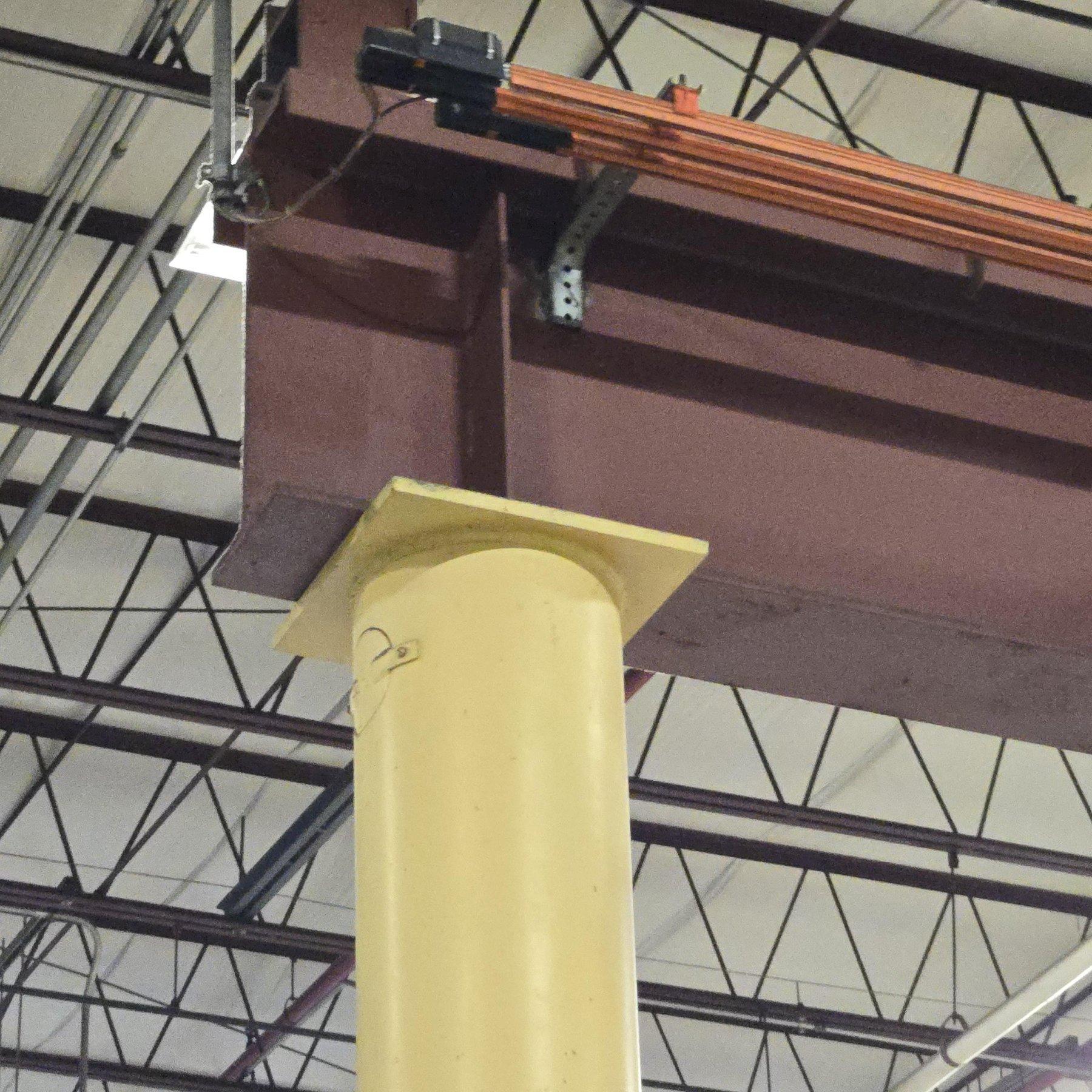

DISTANCE BETWEEN UPRIGHT POSTS ... 45'

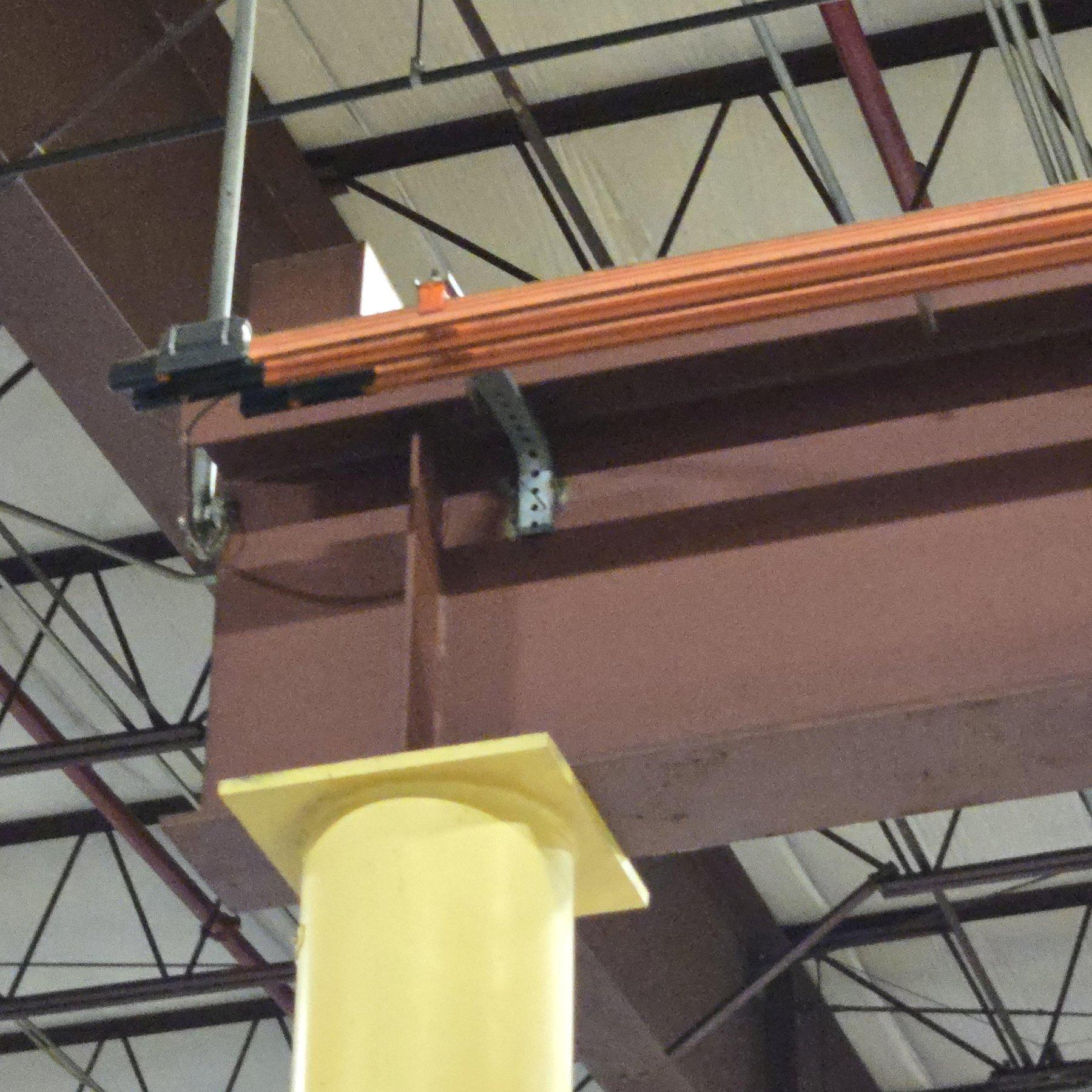

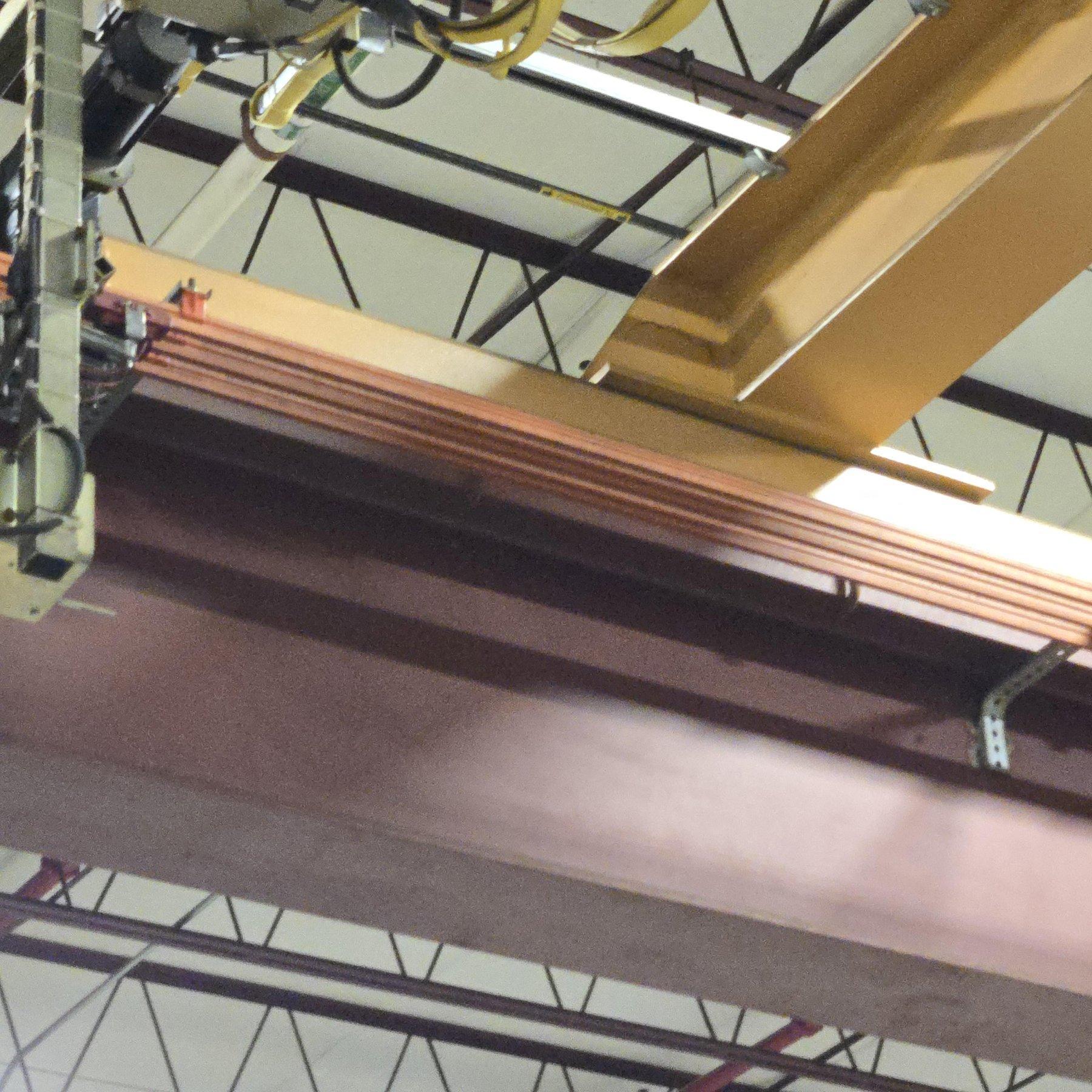

RUNWAY BEAM ...................... W24 X 76
TOP C CAPACITY ................... C12 X 20.7
ASCE30 RAIL ...................... YES
UPRIGHT BASE ..................... 2' X 2'
