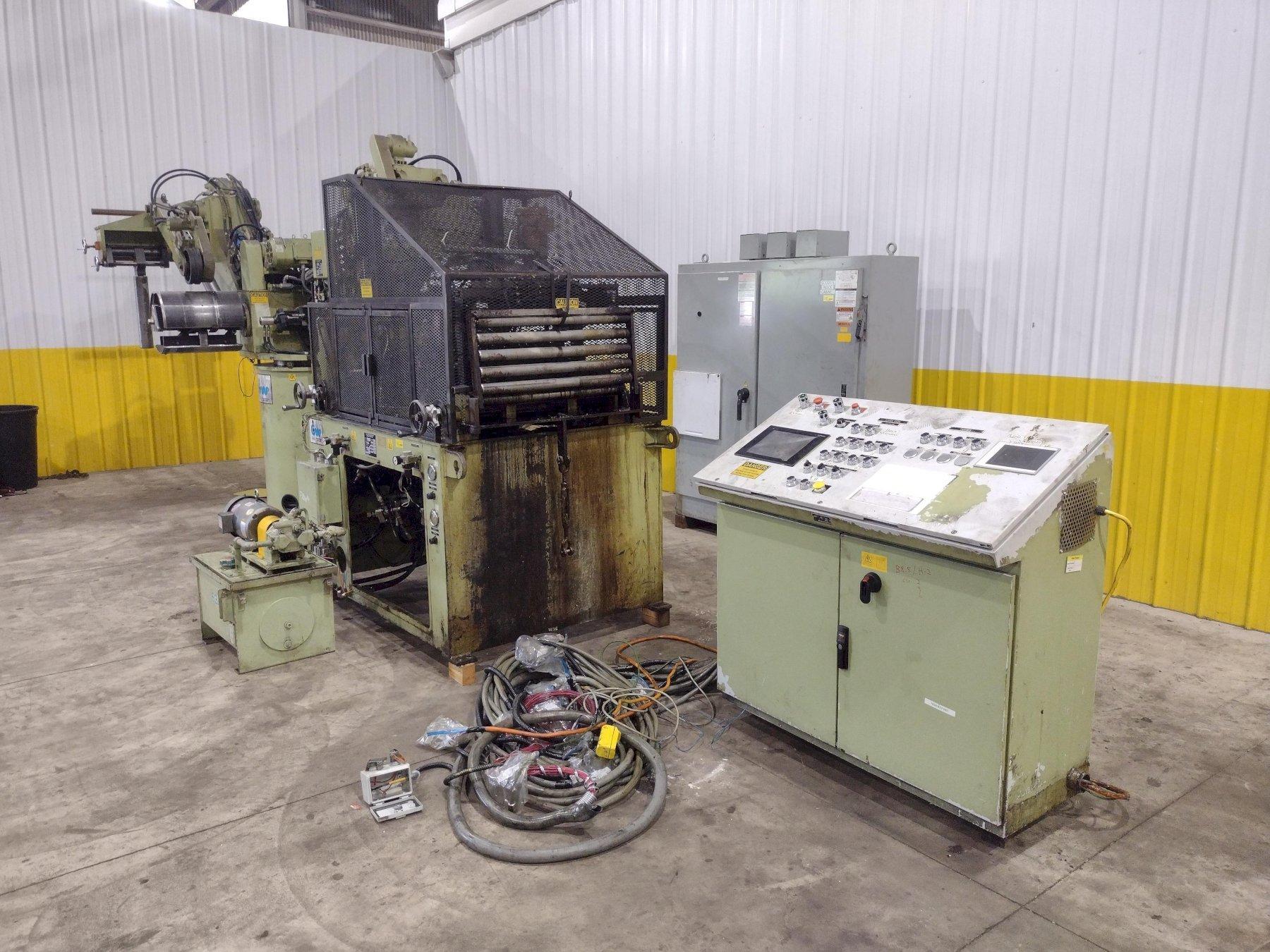

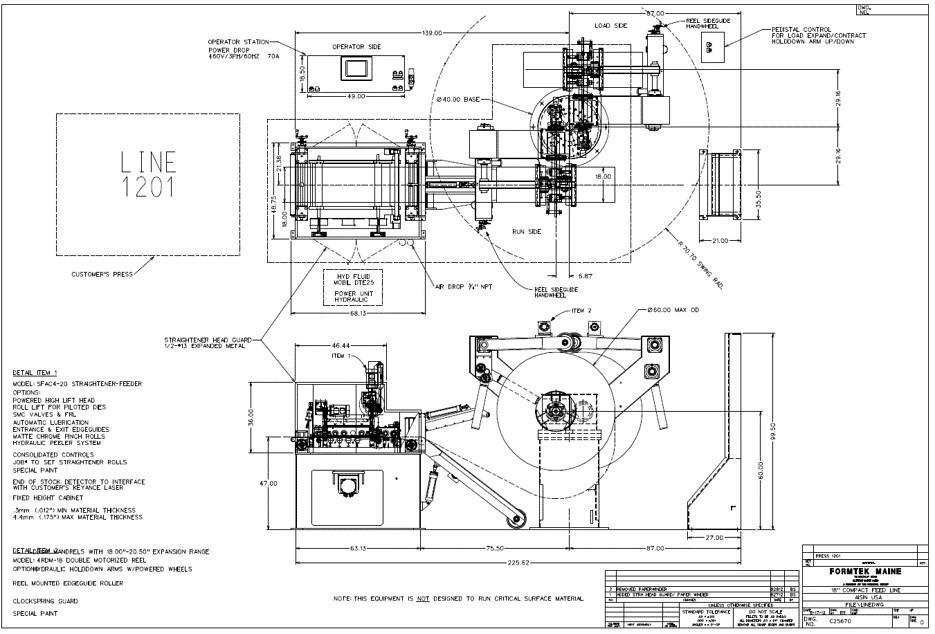

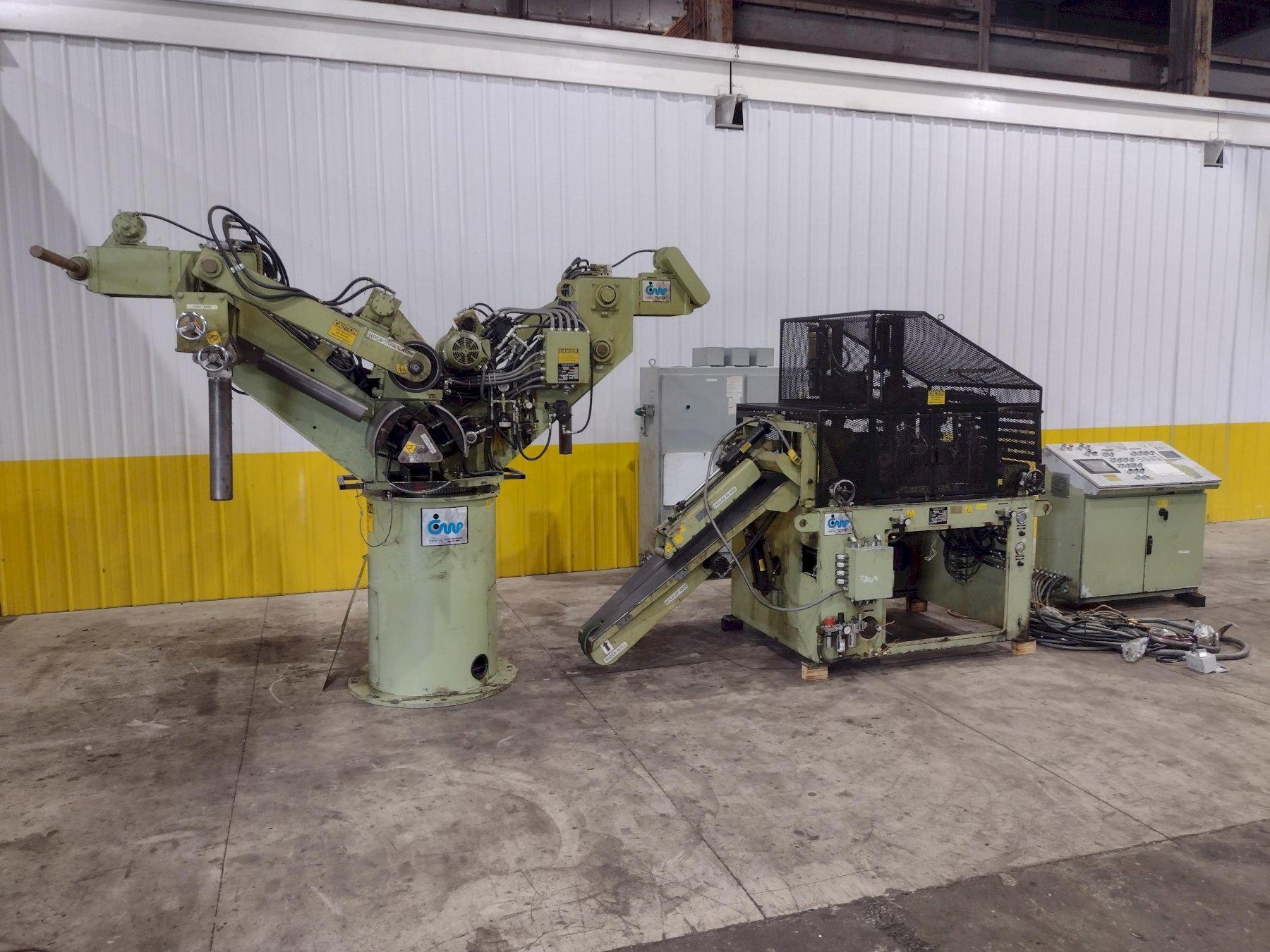

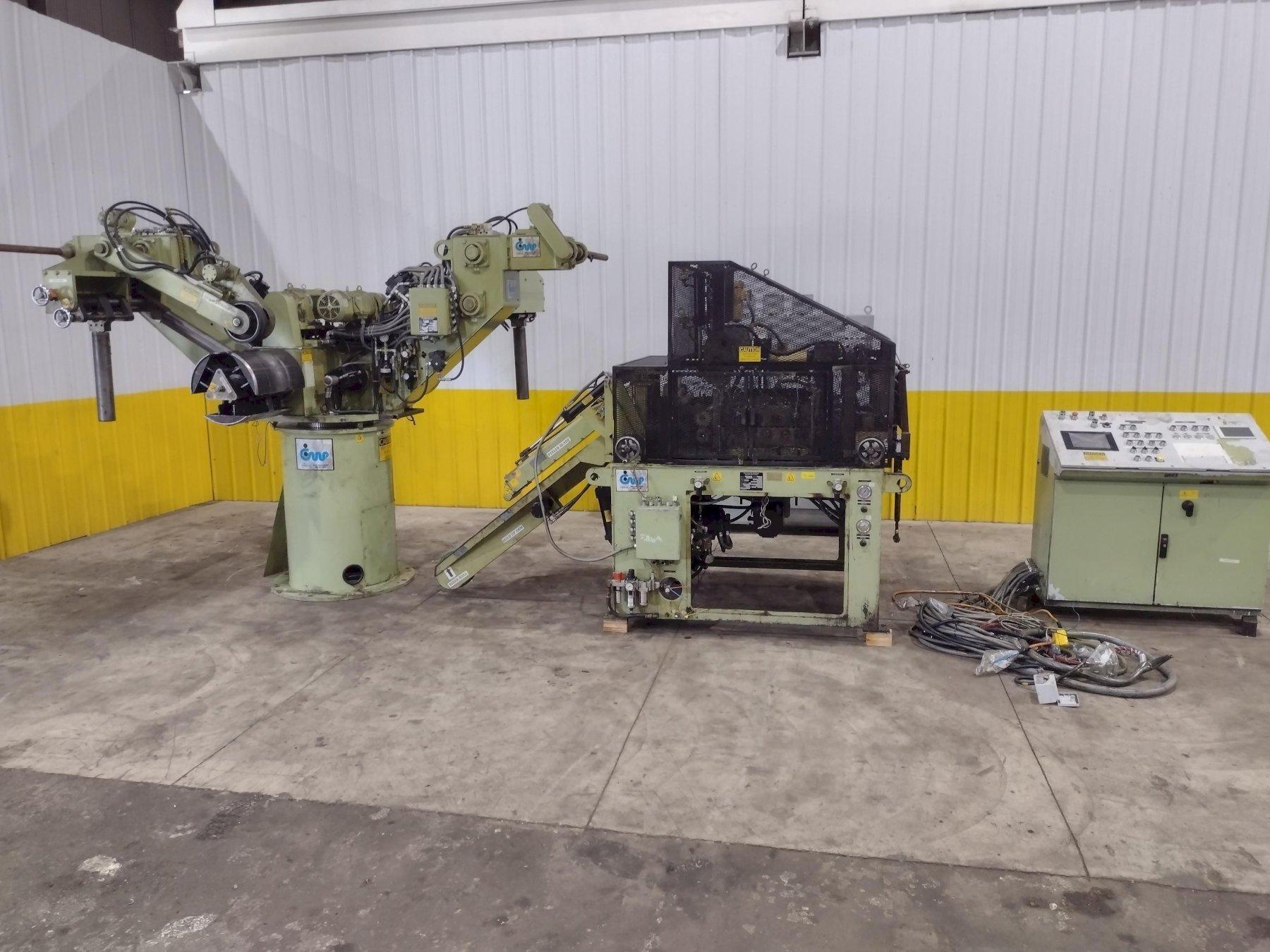

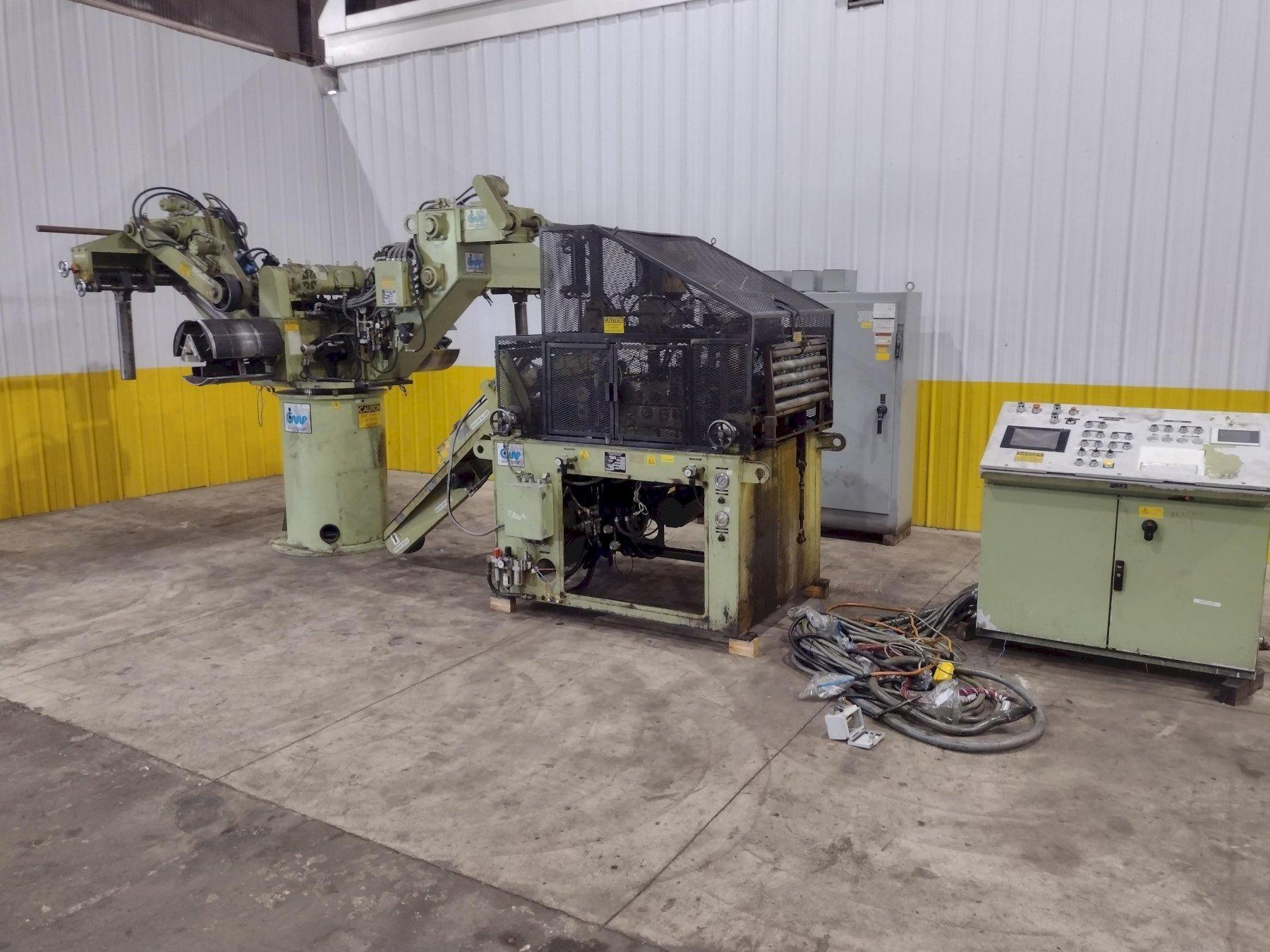

18” X .175” X 8,000 LBS CWP MODEL #SFAC4-20 SPACE-SAVER AUTOMATIC COIL FEED LINE: STOCK #22215

Manufacturer

CWP

Category

Coil Processing Equipment

Type

COIL FEED LINES

Stock

22215

Model

SFAC4-20

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet

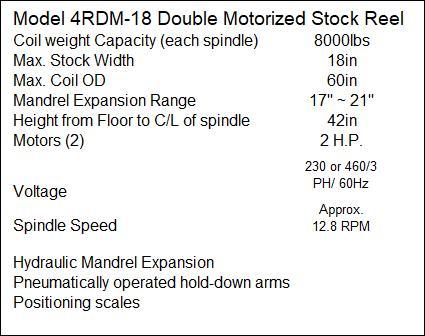

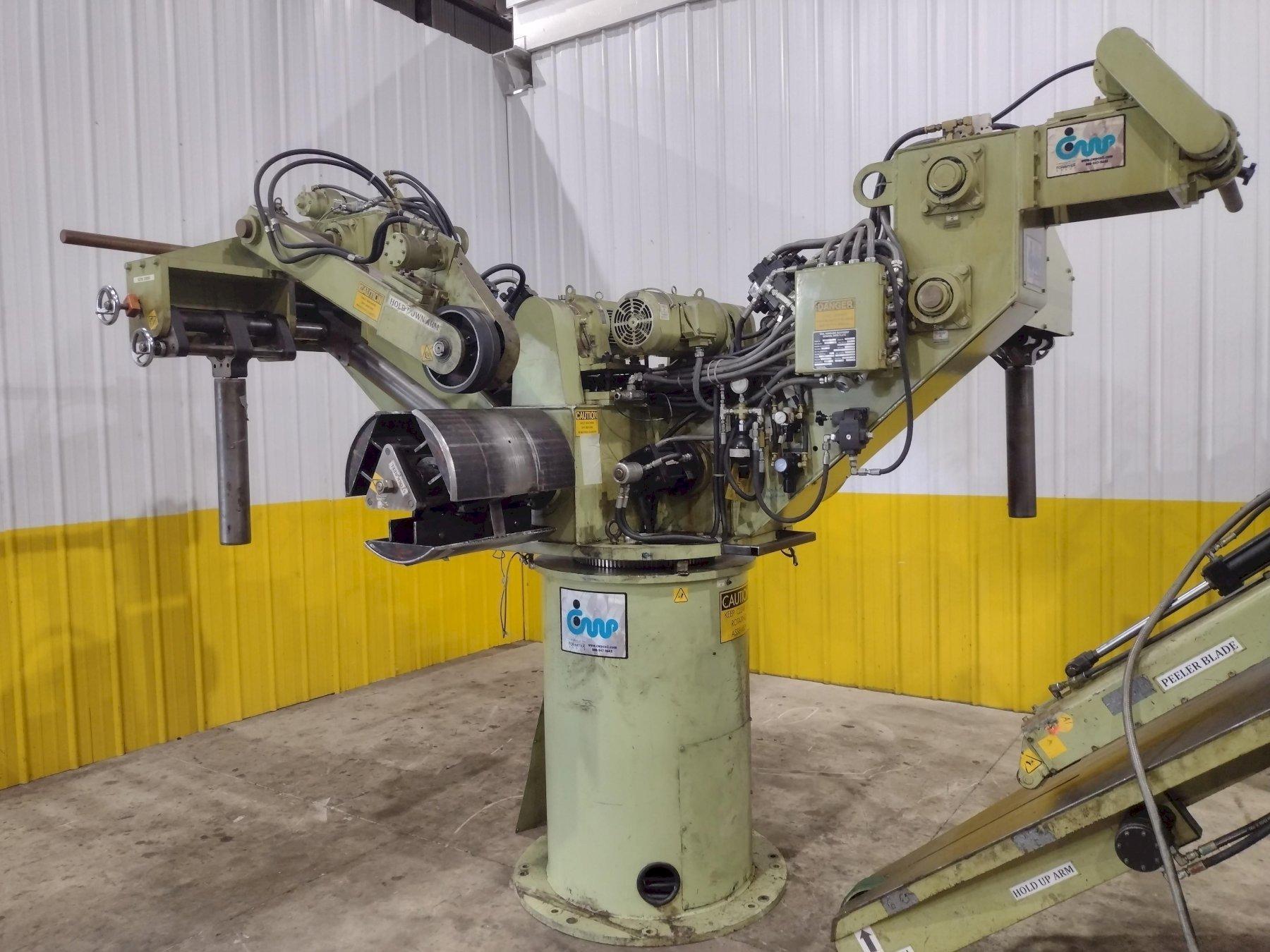

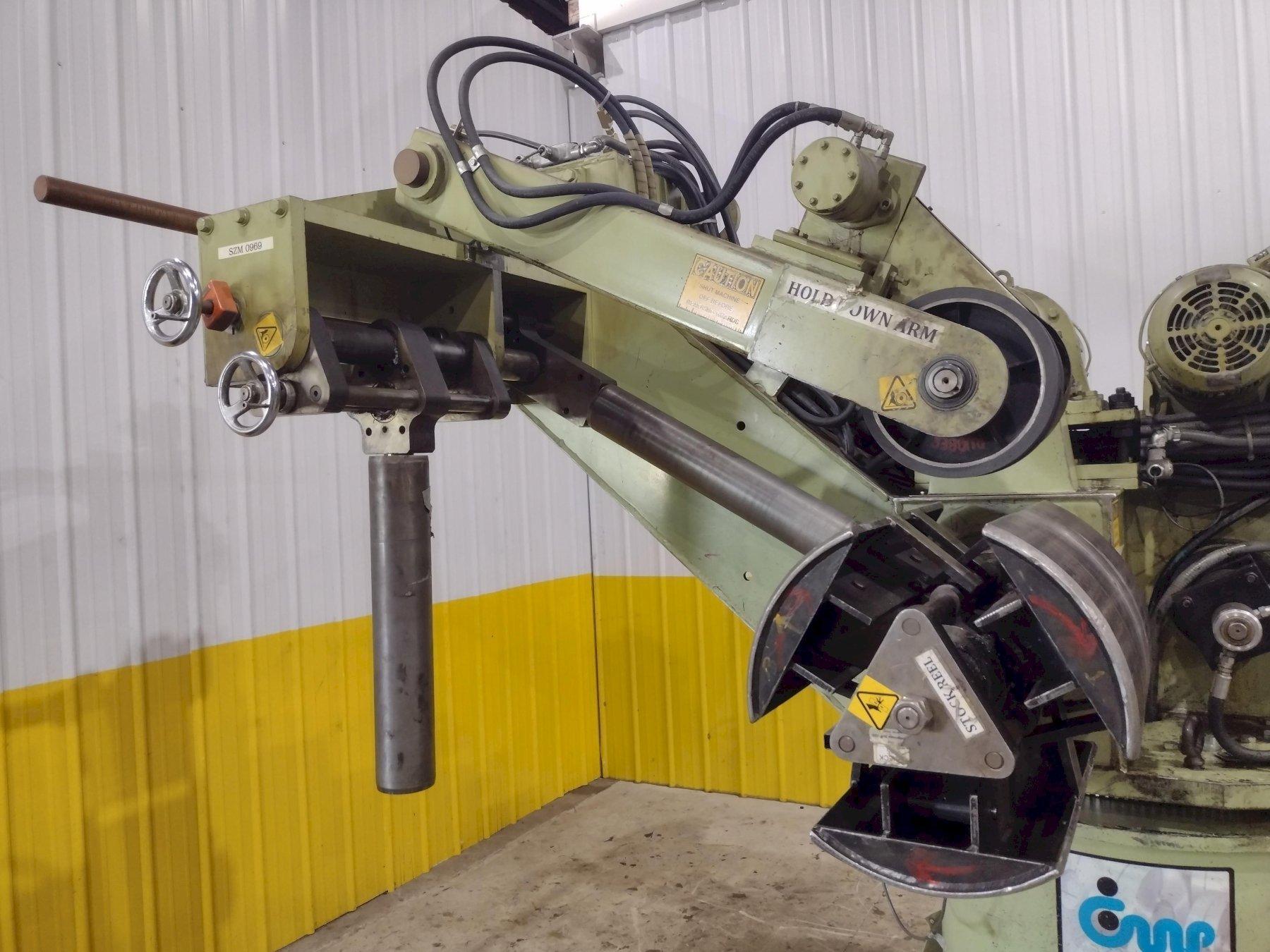

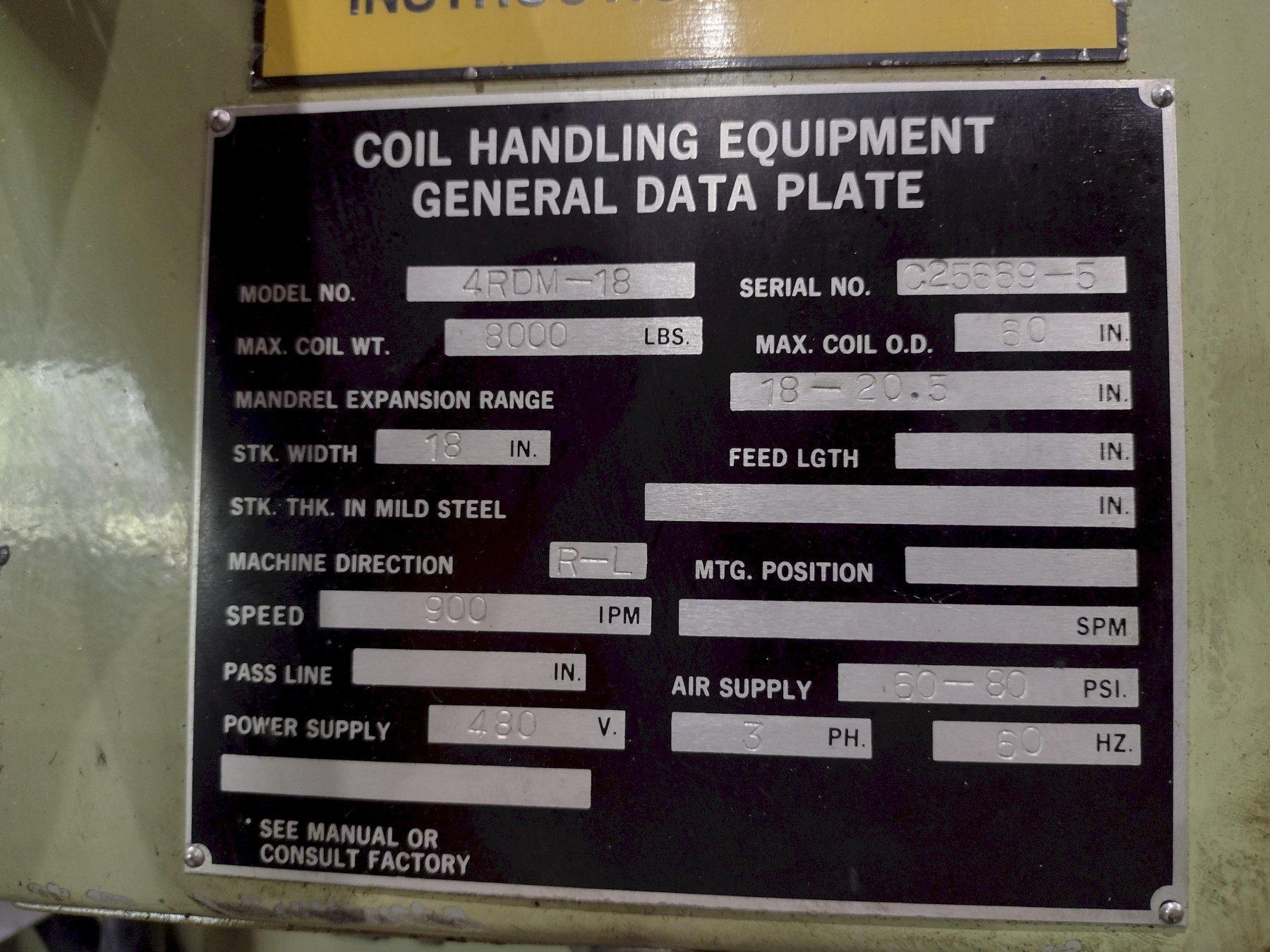

CWP UNCOILER - COIL REEL

SERIAL ...................... C25669-5
NEW ......................... 2012
MODEL ....................... 4RDN-18
COIL WEIGHT CAPACITY ........ 8,000 LBS PER SIDE
COIL WIDTH .................. 18"
COIL OD ..................... 60"
COIL ID EXPANSION RANGE ..... 18" TO 20.5"
EXPANSION ................... HYDRAULIC
FLOOR TO SPINDLE CENTER ..... 42"
SPEED ....................... 900 IPM
DIRECTION ................... RIGHT TO LEFT
PEELER ARM .................. YES
HOLD DOWN ARMS .............. YES, PNEUMATIC
MOTORS ...................... 2 @ 2 HP

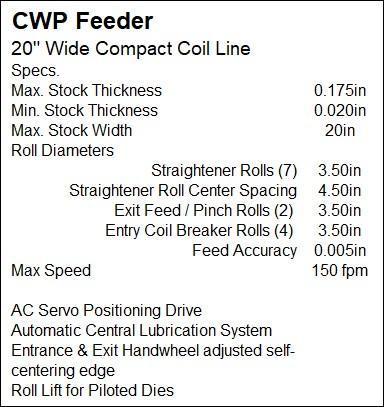

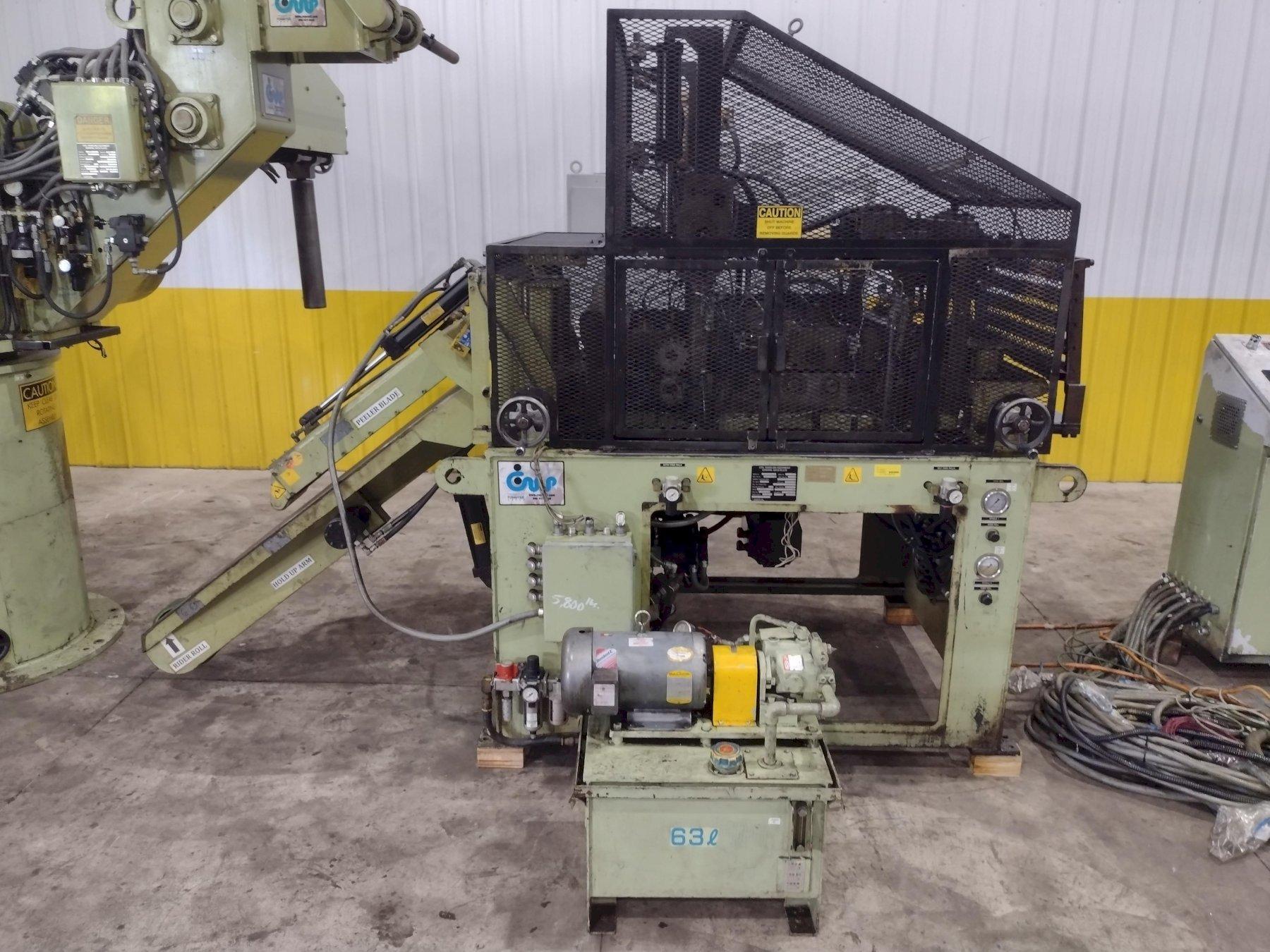

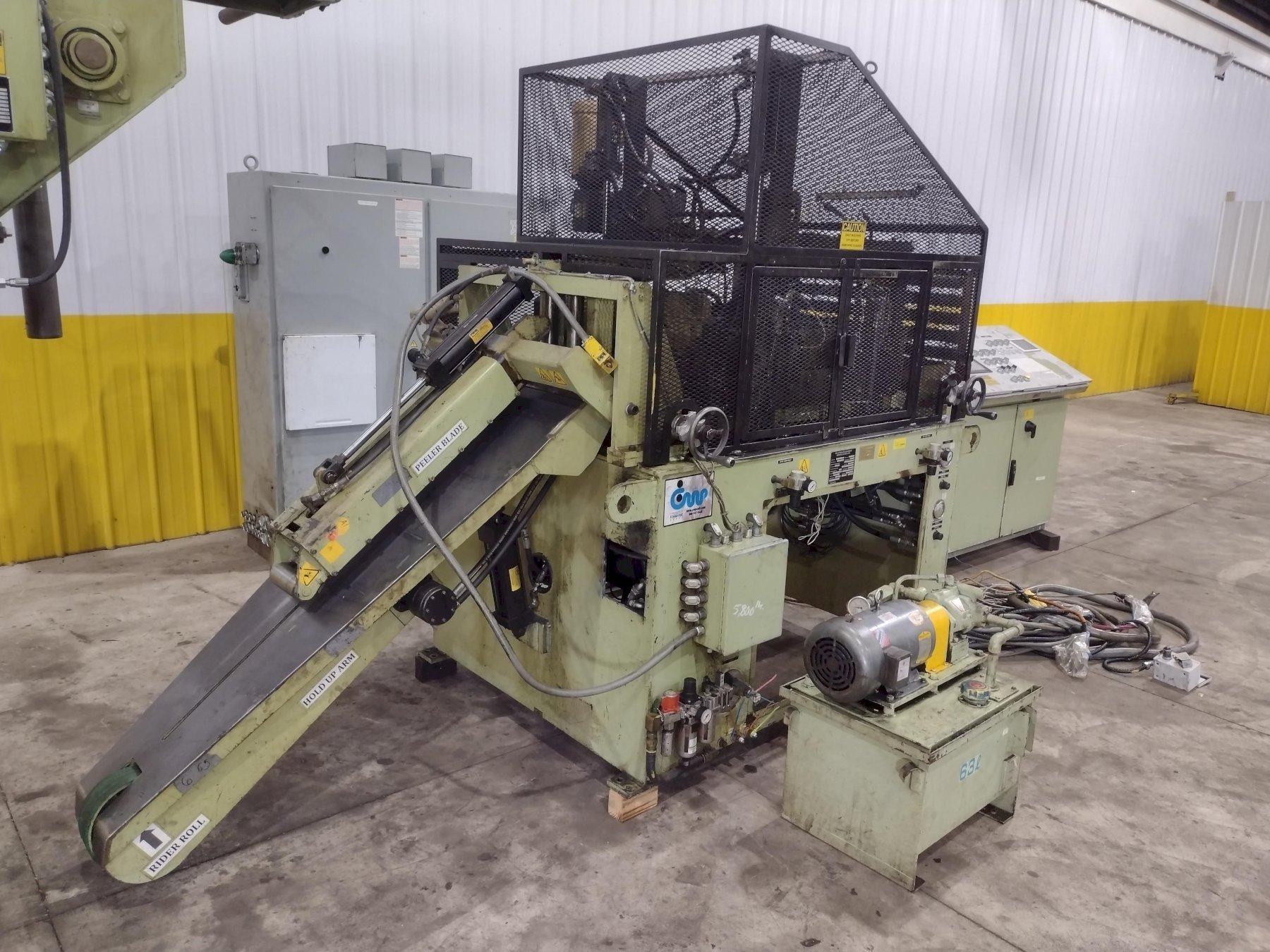

CWP FEEDER / STRAIGHTENER

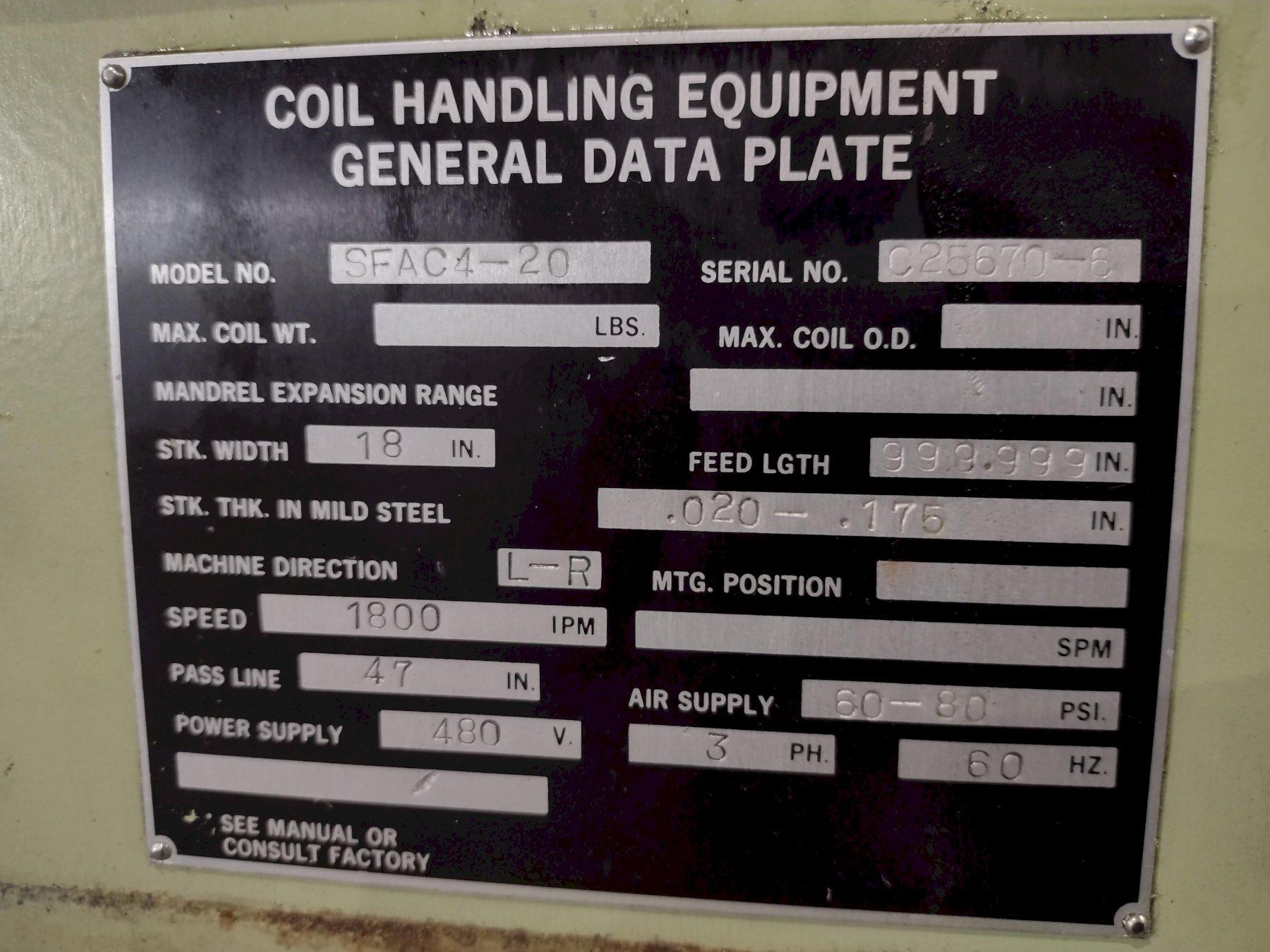

SERIAL ...................... C25670-S
NEW ......................... 2012
MODEL ....................... DFAC1-20
STOCK WIDTH ................. 20"
STOCK THICKNESS ............. .020" TO .175"
STRAIGHTENING ROLLS ......... 7 (4 OVER 3)
DIAMETER OF ROLLS ........... 3.5"
ROLL CENTERS ................ 4.5"
ENTRY & EXIT GUIDES ......... SELF CENTERING
ENTRY BREAKER ROLLS ......... 4 X 3.5"
EXIT FEED / PINCH ROLLS ..... 2 X 3.5"
FEED ACCURACY ............... .005"
SPEED ....................... 150 FPM MAX
PASS LINE ................... 47"
PEELER ARM .................. YES
THREADING TABLE ............. YES
POSITIONING DRIVE AC SERVO .. YES
CENTRAL LUBE AUTOMATIC ...... YES

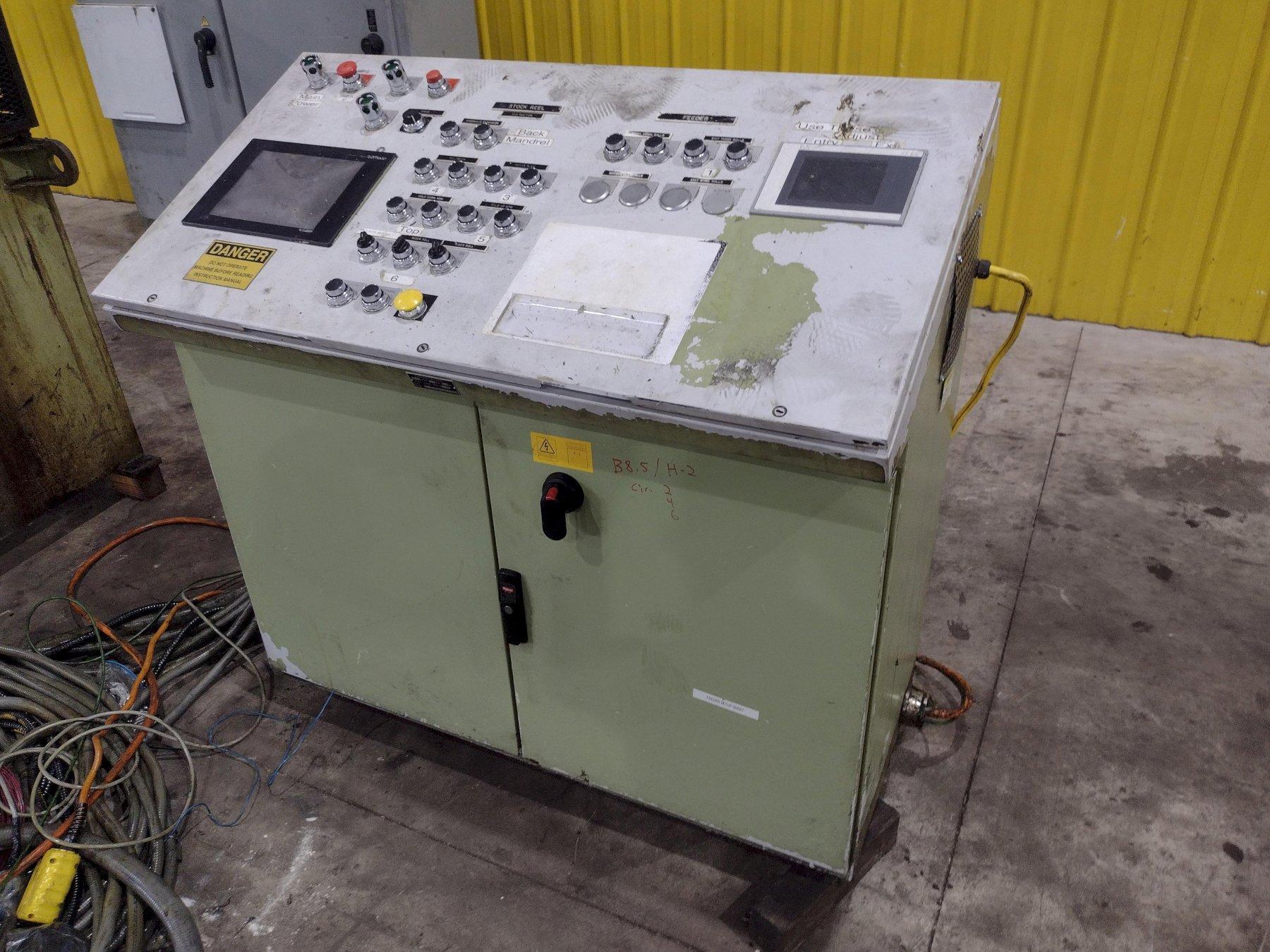

TOUCH SCREEN OPERATOR CONTROL STATION
