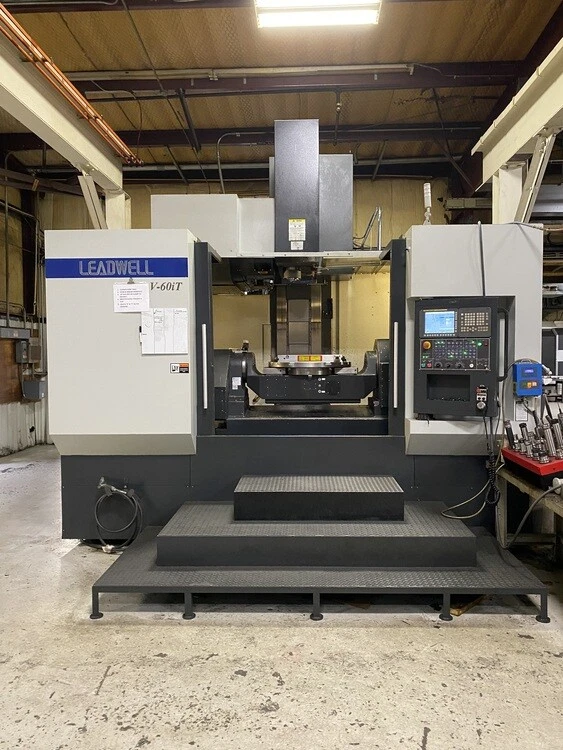

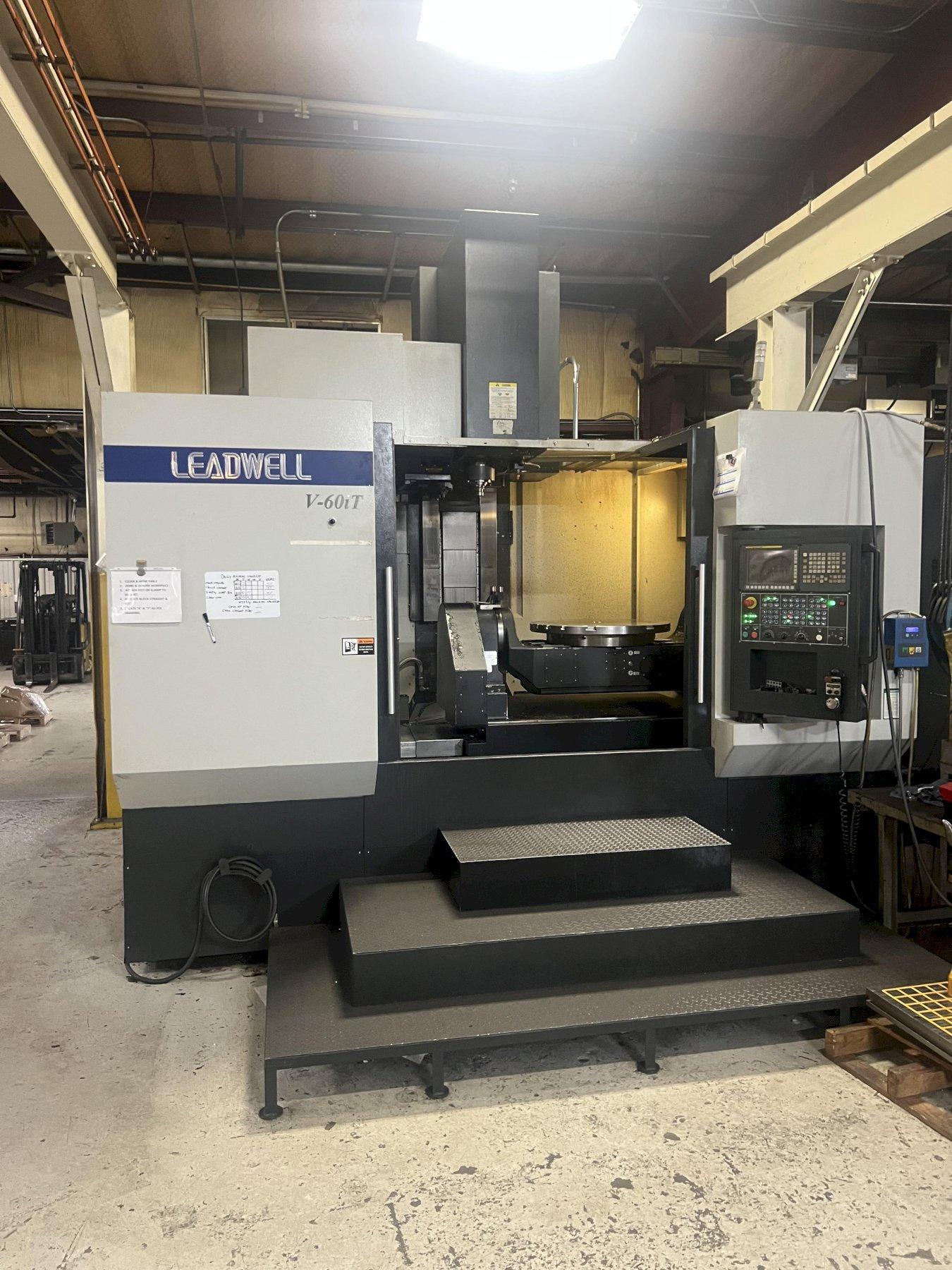

2016 Leadwell V-60iT 5-Axis CNC Machining Center For Sale

Manufacturer

LEADWELL

Category

Machining Centers

Type

MACHINING CENTERS, CNC, 5-AXIS or MORE

Stock

15181

Model

V-60iT

Dealer Location

Michigan

Request a Quote
View Contact Information

Spec Sheet

CNC Control - yes
Type of CNC Control - Fanuc 0iMF
# Axis - 5
Table Size - 24.8" Diameter
Max Table Load - 1102 pounds
X-Axis Travel - 50 inches
Y-Axis Travel - 40 inches
Z-Axis Travel - 30.8 inches
B Axis Rotary - 360°
A Axis Rotation - +120° to -30° (150° Total)
Rapid Traverse Rate (X/Y/Z) - (1181 ipm X & Y) (787 ipm Z) (16.7 rpm B) (8.3 rpm A)
Spindle Taper - CAT 40
Spindle Speed - 15,000 rpm
Main Motor - 35 hp
ATC Capacity - 40
Coolant Thru Spindle - yes
Machine Dimensions - 151" x 160" x 147"
Machine Weight - 33100 pounds

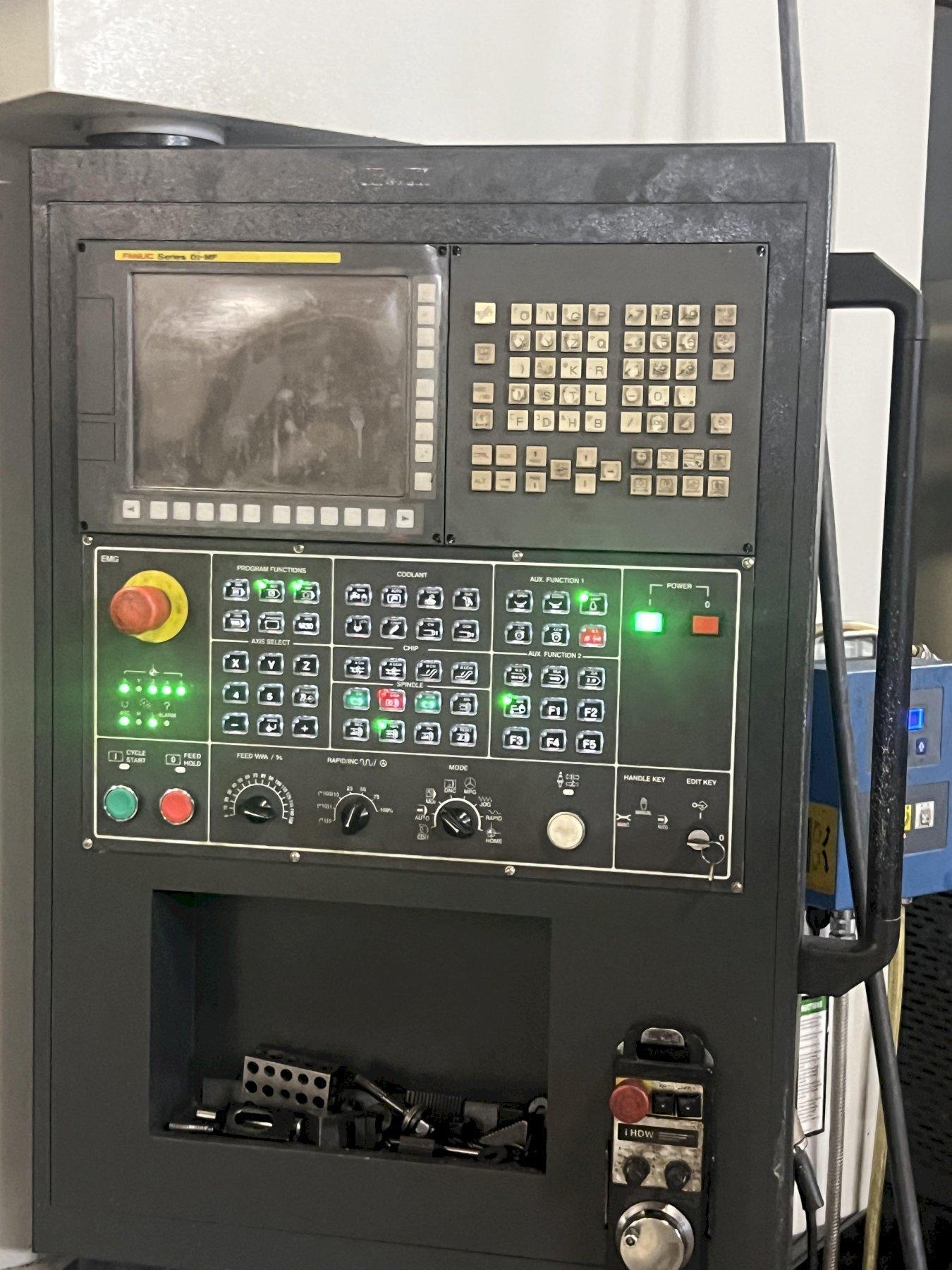

- Fanuc 0iMF CNC Control
- 5 Axis Machining (4+1 Simultaneous)
- Chip Conveyor
- Coolant Tank & Pumps
- Coolant Thru Spindle 290 psi
- Spindle Chiller
- Fanuc Tilted Working Plane
- Tool Length Measurement
- Rigid Tapping
- Custom Macro B
- AIAPC 20 Block Look Ahead
- High Speed Skip
- Manual Guide i (Conversational Programming)
