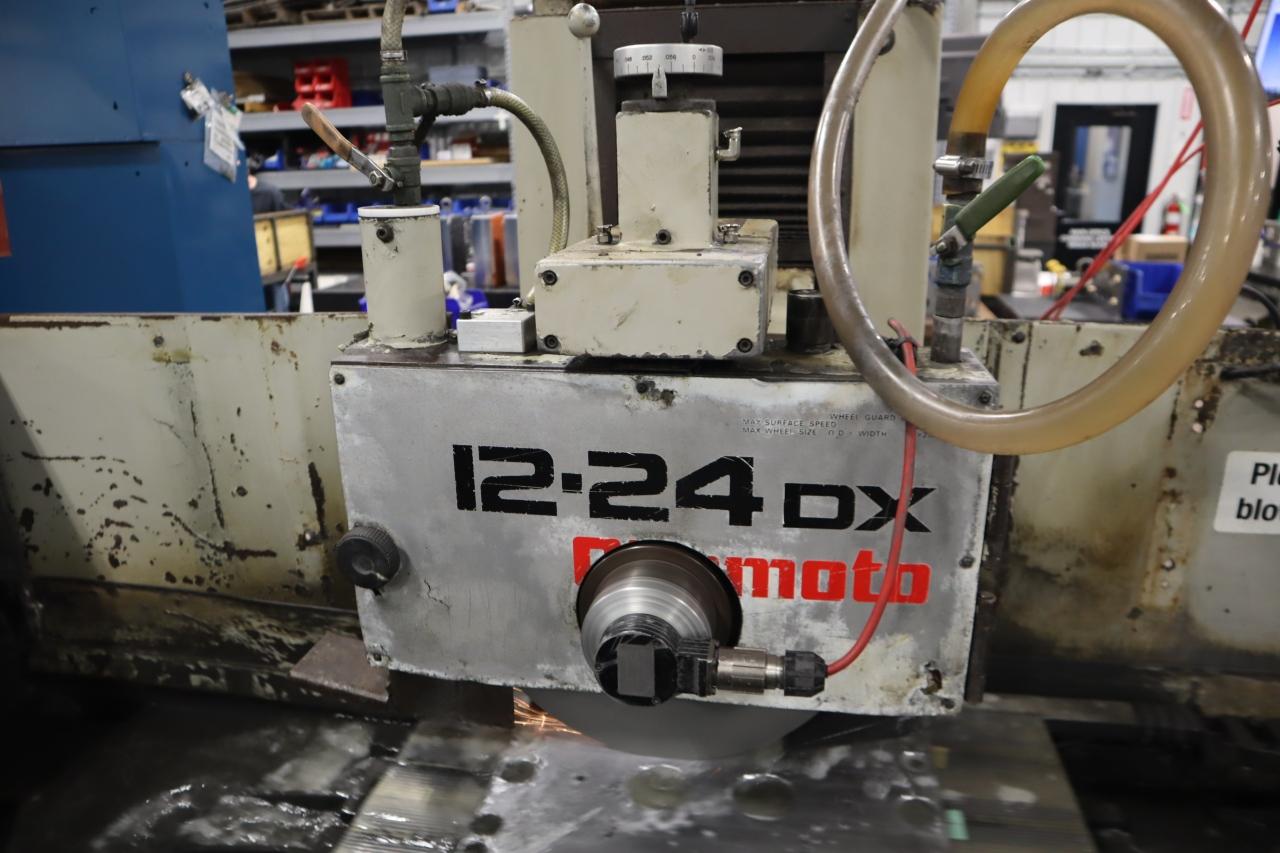

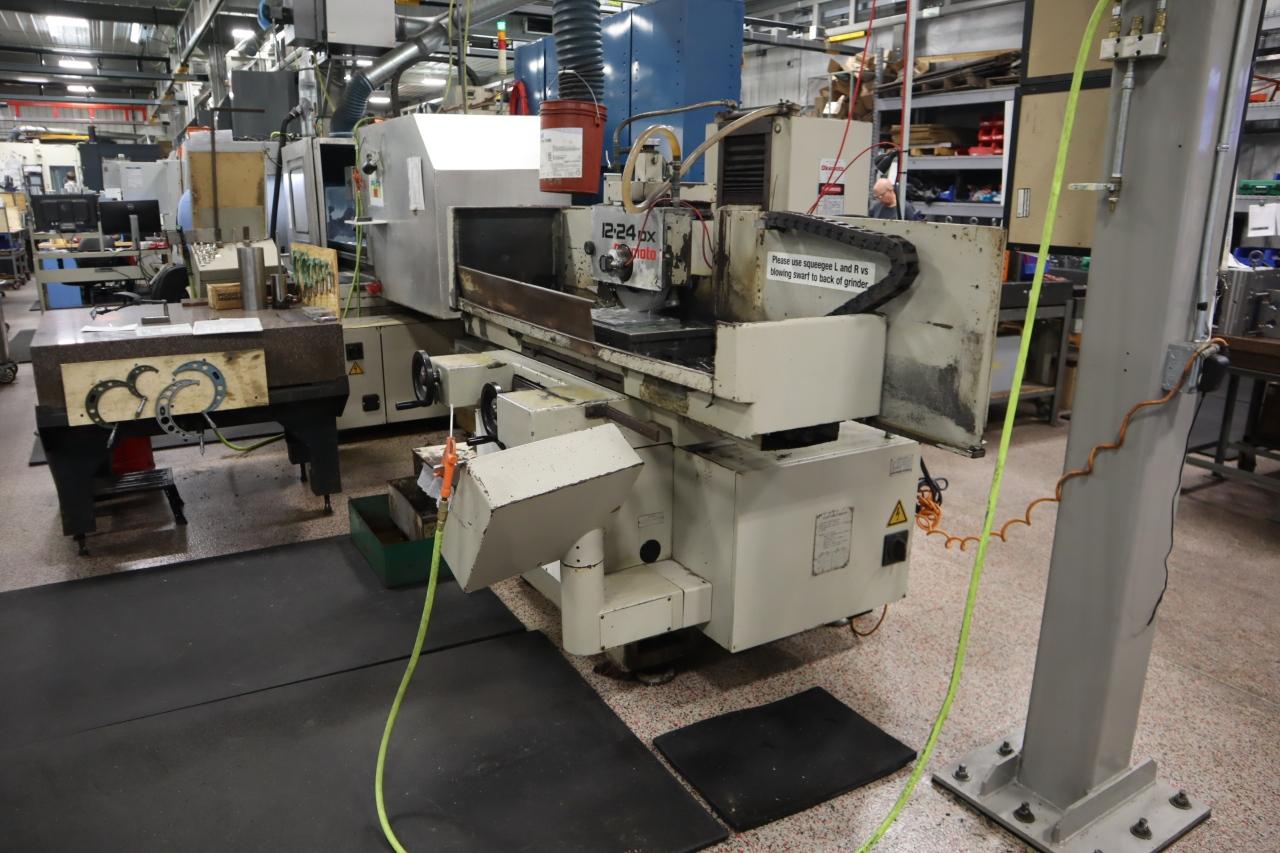

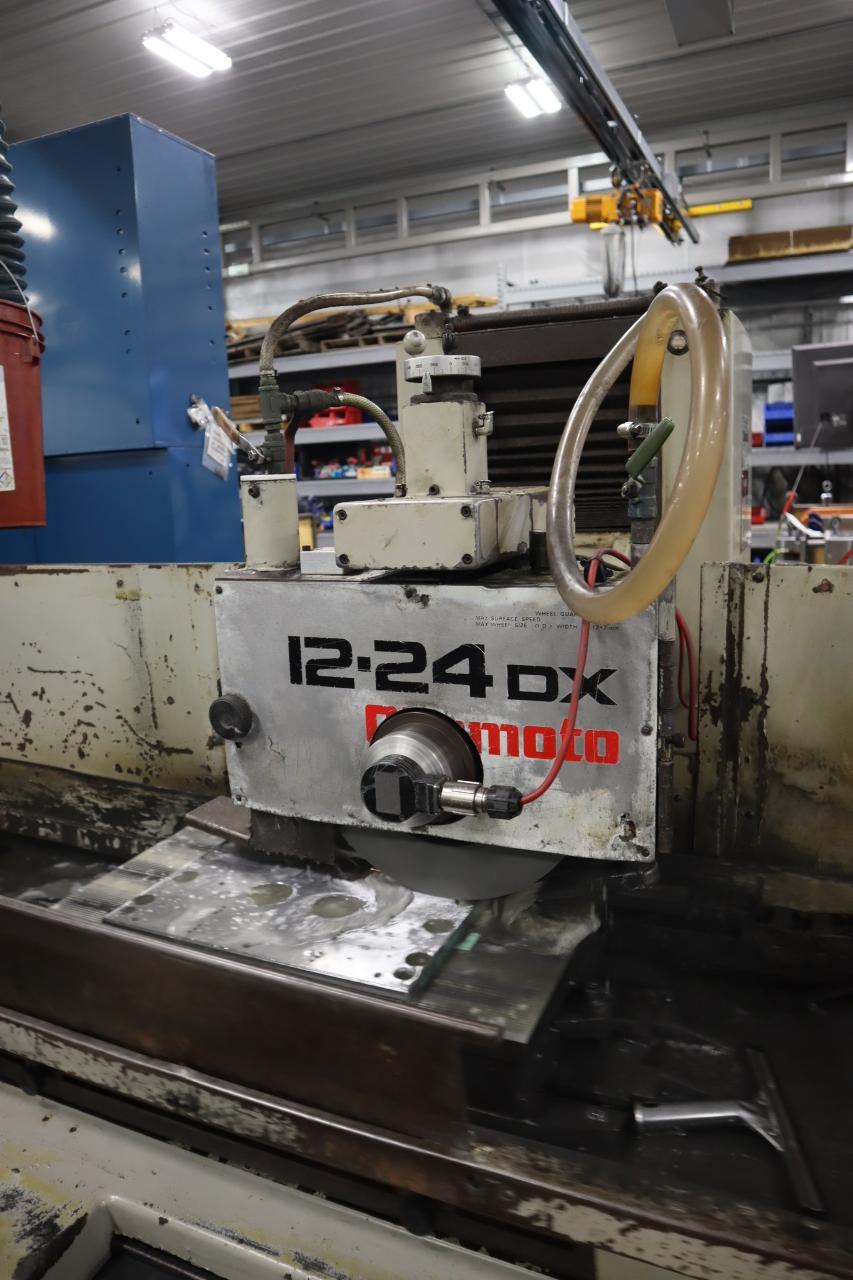

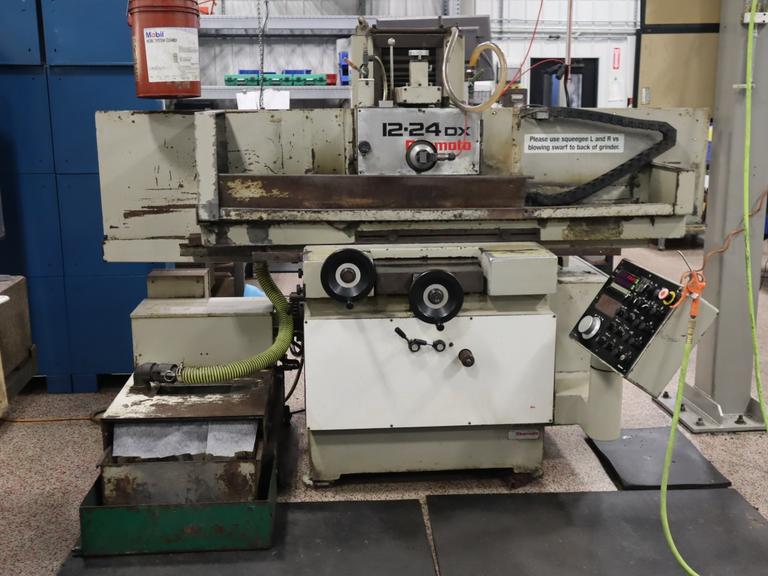

Okamoto ACC12.24 DX Automatic Surface Grinder, 12"x 24", Incremental Downfeed, Over Wheel Dresser, Auto Balance, Coolant

Manufacturer

Okamoto

Category

Grinding Machines

Type

GRINDERS, SURFACE, ROTARY TYPE, (Horizontal Spindle)

Stock

7293

Model

ACC 12.24DX

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

Table Working Surface: 12" x 24"

Max Chuck Size: 12" X 24"

Max Table Movement (Manual): 29.5"

Max Distance Spindle / Wheel to Table: 13.6"

Max Table Load (Including Chuck): 925 Lbs.

Wheel Speed: 1,800 RPM

Auto Longitudinal Feed Rate: 3 - 82 FPM

Max Wheel Size : 14" Diameter (12" x 1.5" x 1" STD)

Rapid Wheelhead Feed Rate: 40 IPM

Hydraulic Motor: .010 - 40 Feet Per Minute

Auto Wheelhead Downfeed Increments: .0005" - .0015"

Spindle Drive: 5 HP

Equipped With:

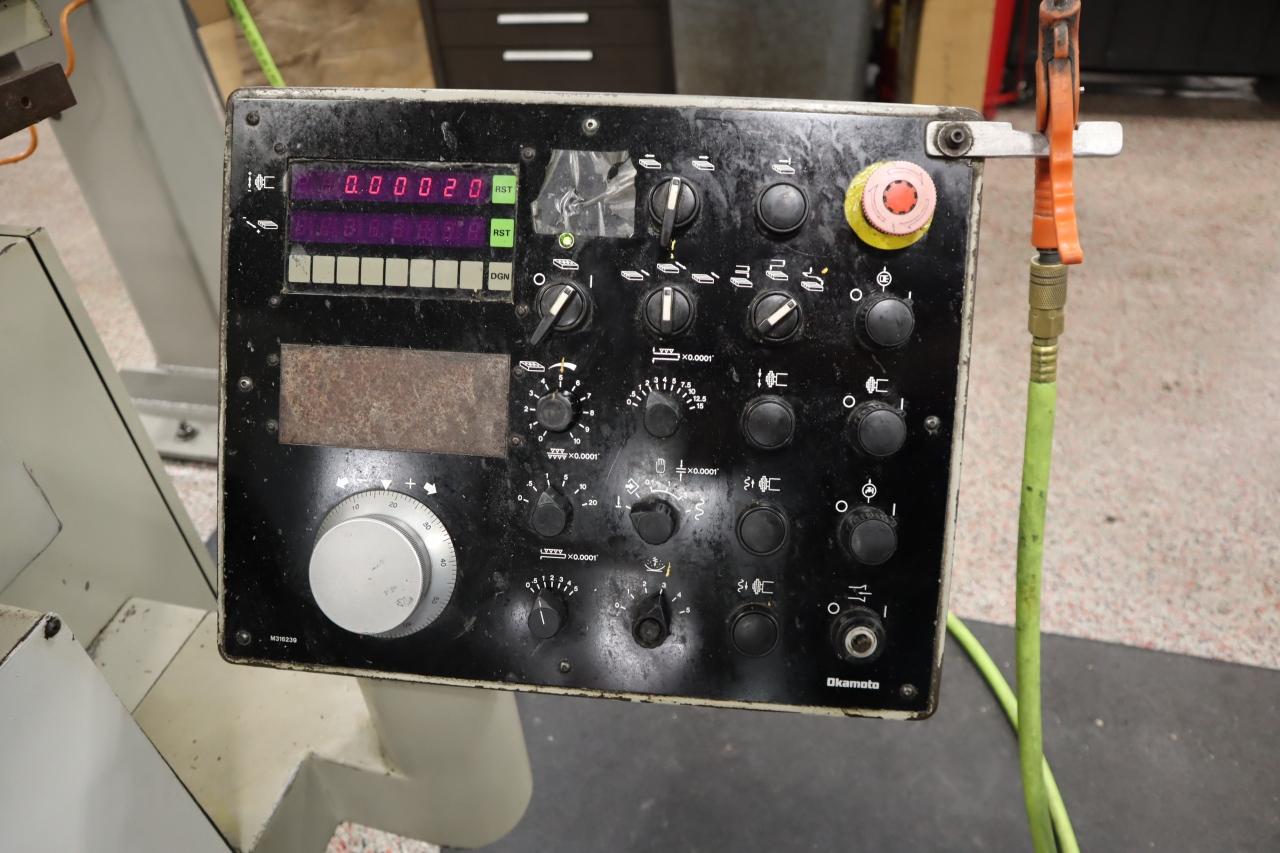

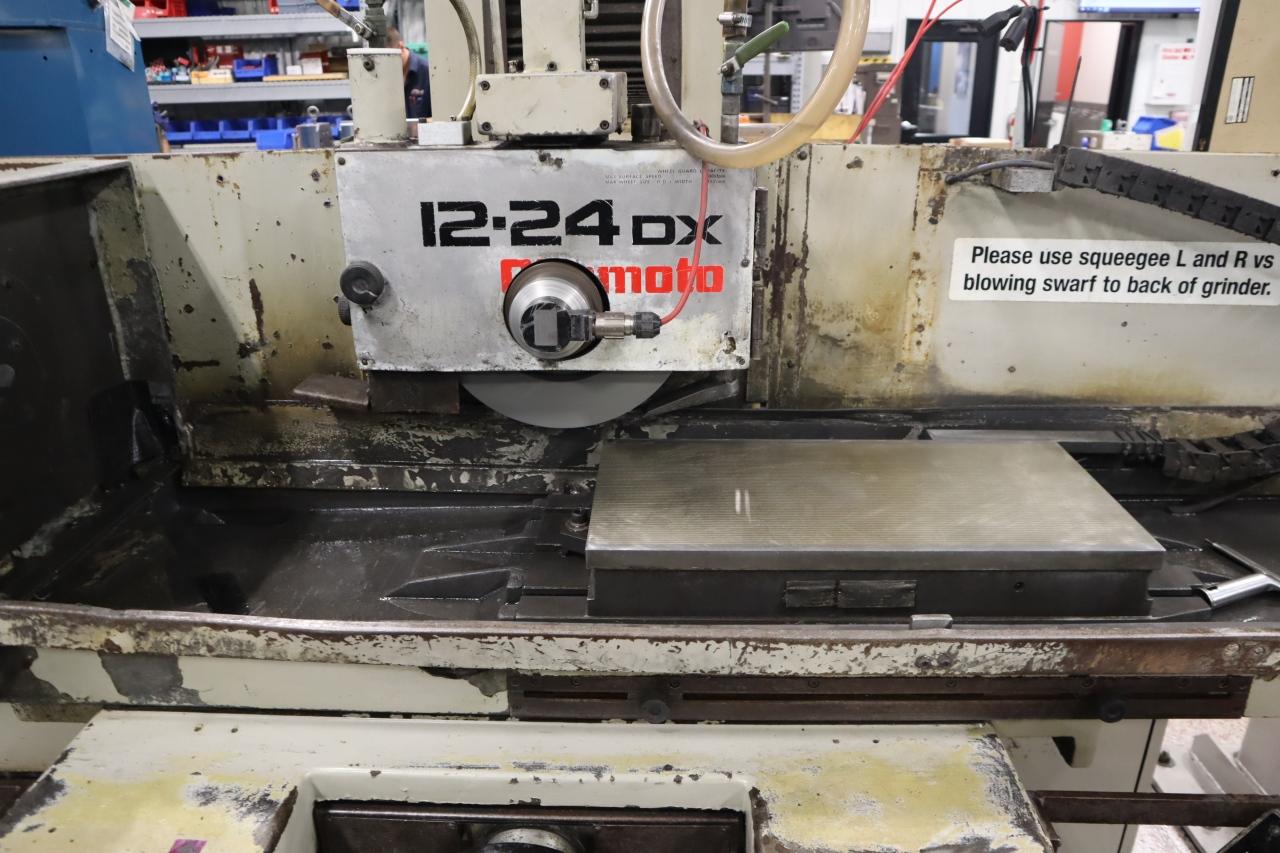

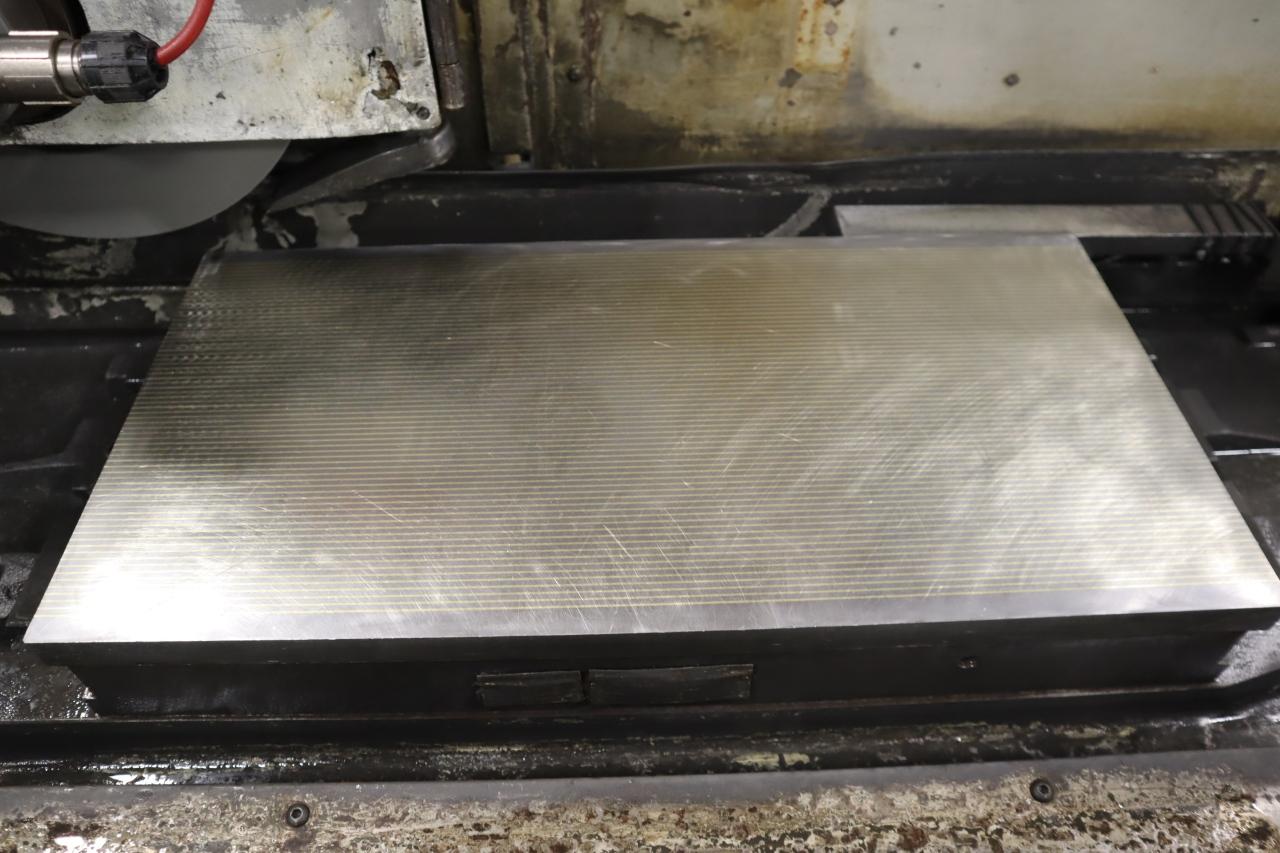

3-Axis Automatic with Servo Incremental Downfeed, 12" x 24" Fine-Pole Long-Pole Electromagnetic Chuck, LED Readout for Vertical Feed, Automatic Wheel Balancer, Manual Over-the-Wheel Dresser, Wheel Hub and Nut, Coolant System with Paper Filtration

Electrics:

220 Volt, 3 Phase
