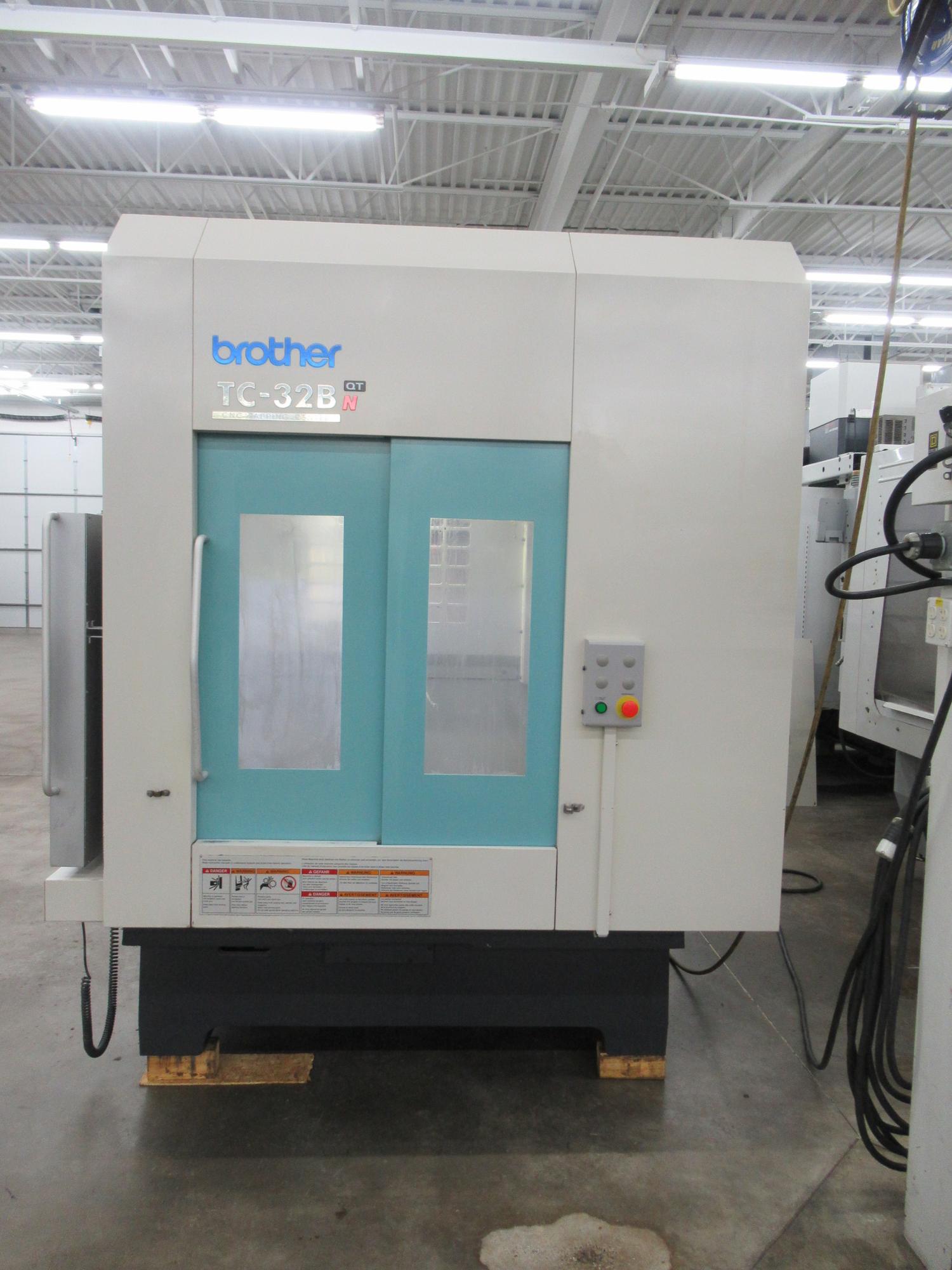

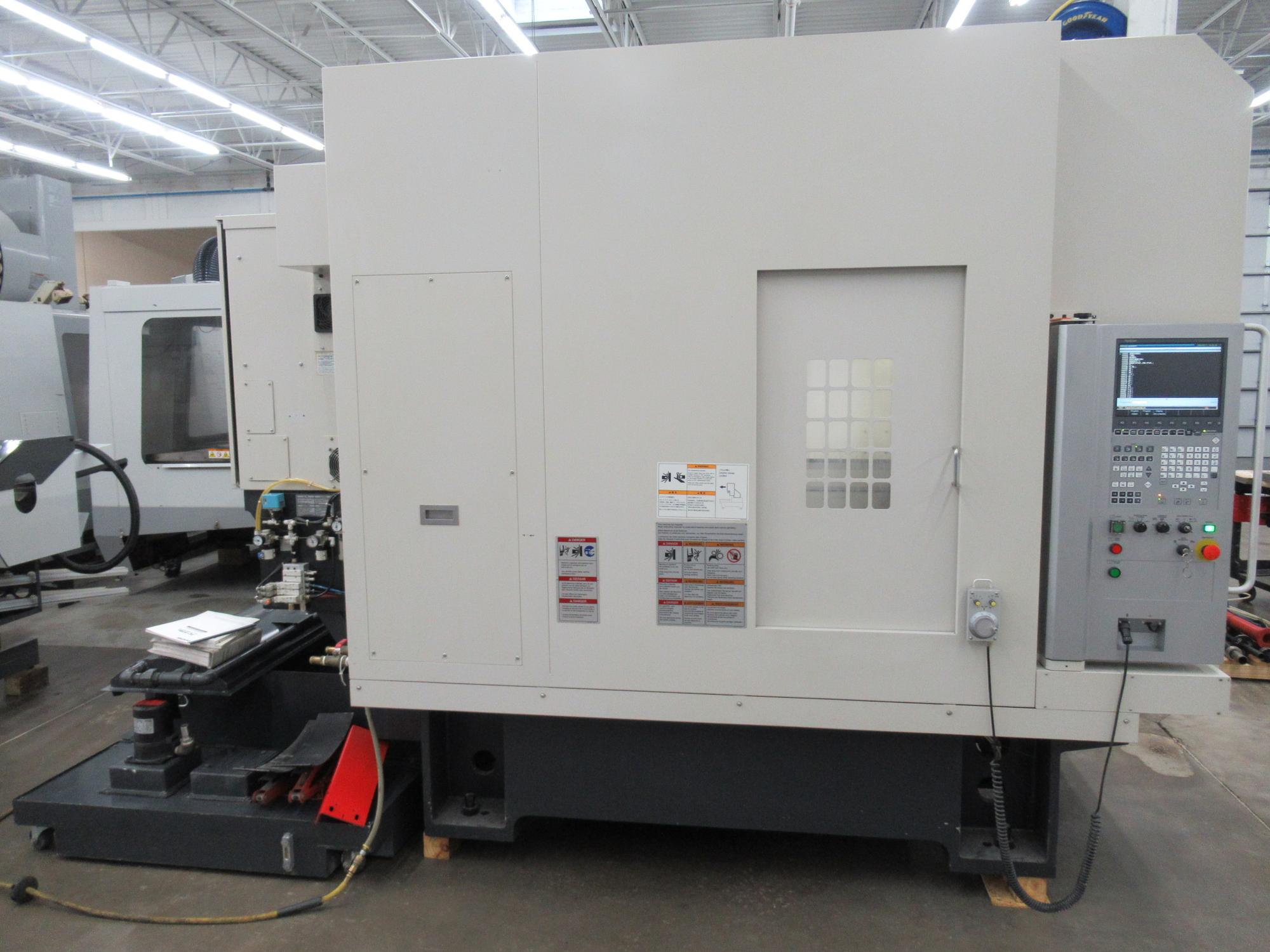

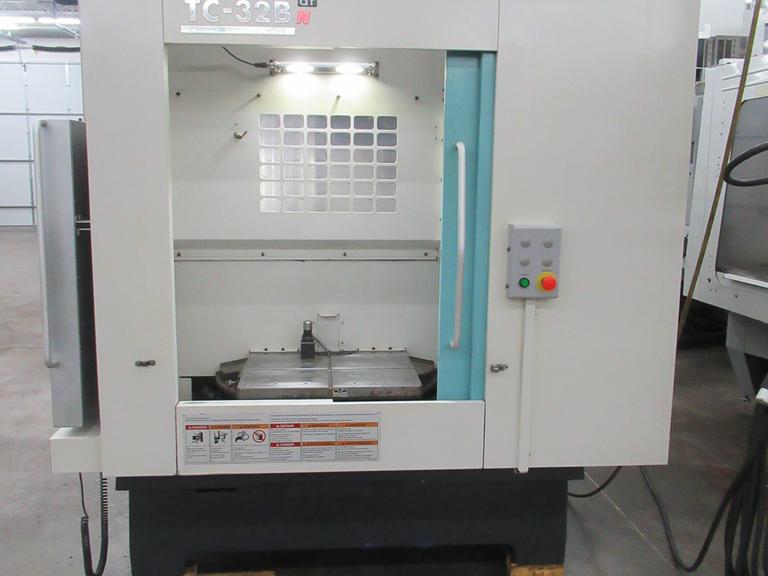

Brother TC-32B QT CNC Vertical Machining Center with Pallet Changer and 16,000 RPM Spindle

Manufacturer

Brother

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC (Incl. Pallet Changers)

Stock

C1002

Model

TC-32B QT

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

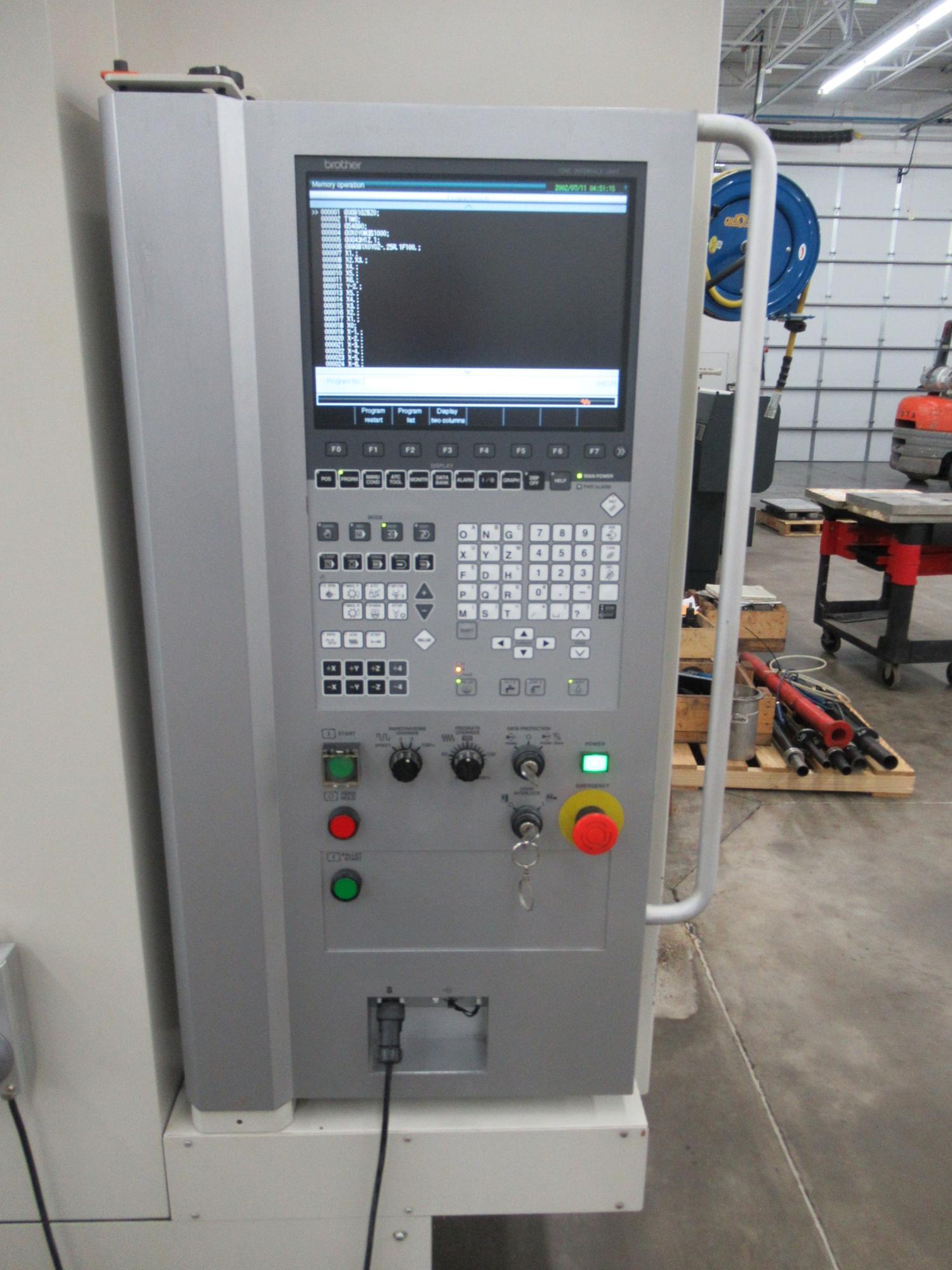

Control: Brother CNCB00 CNC Control

Machine Travels (X/Y/Z): 21.7" x 15.7" x 16.3"

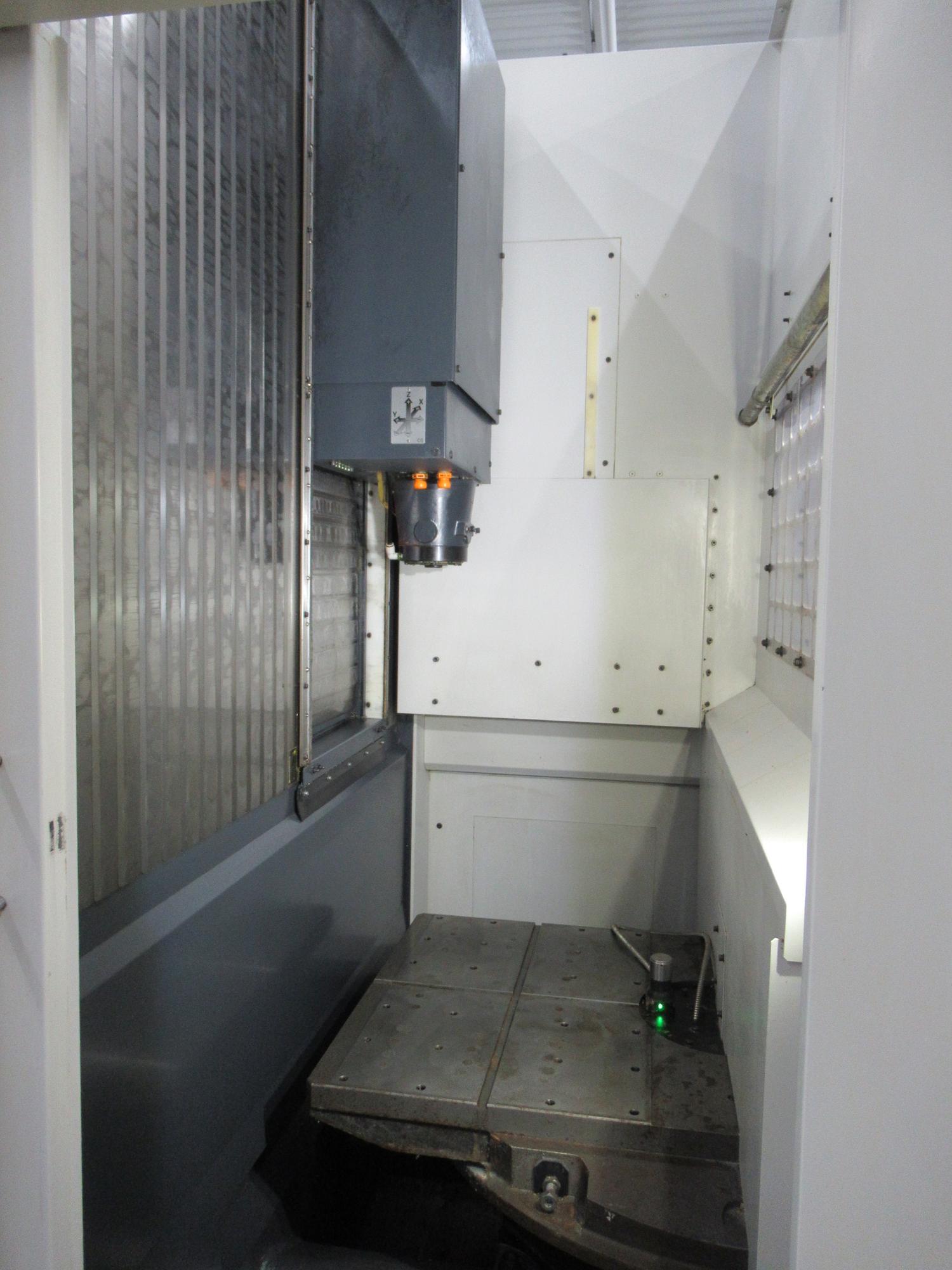

Number of Pallets: (2)

Pallet Change Style: 180 Degree Rotational Index Style

Pallet Size: (2) 23.5" x 16.7"

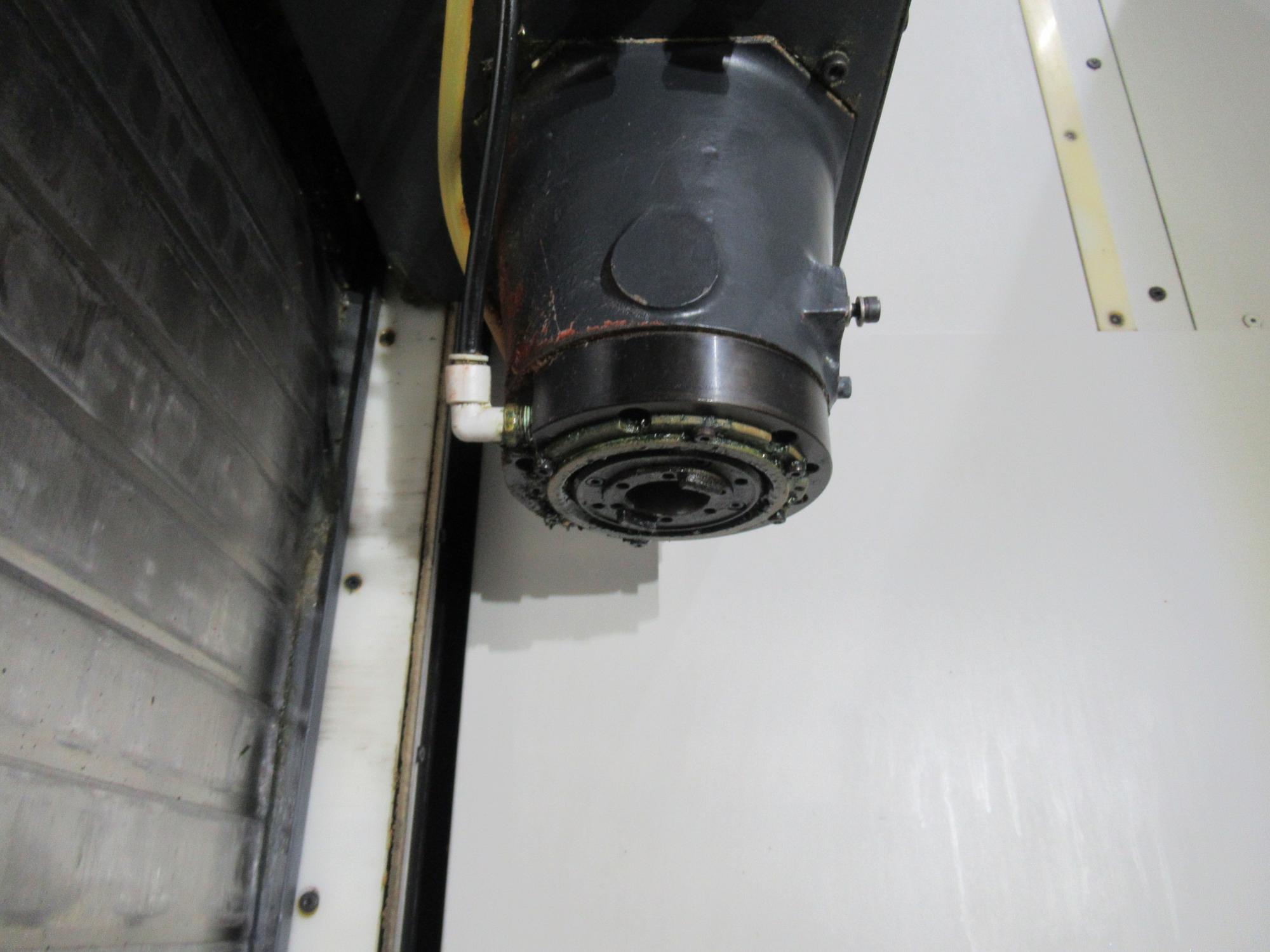

Spindle Taper: BT-30

Spindle Speeds: 16-16,000 RPM

Spindle Drive: 10 HP (Continuous)

Rapid Traverse (X/Y/Z): 2,756 IPM

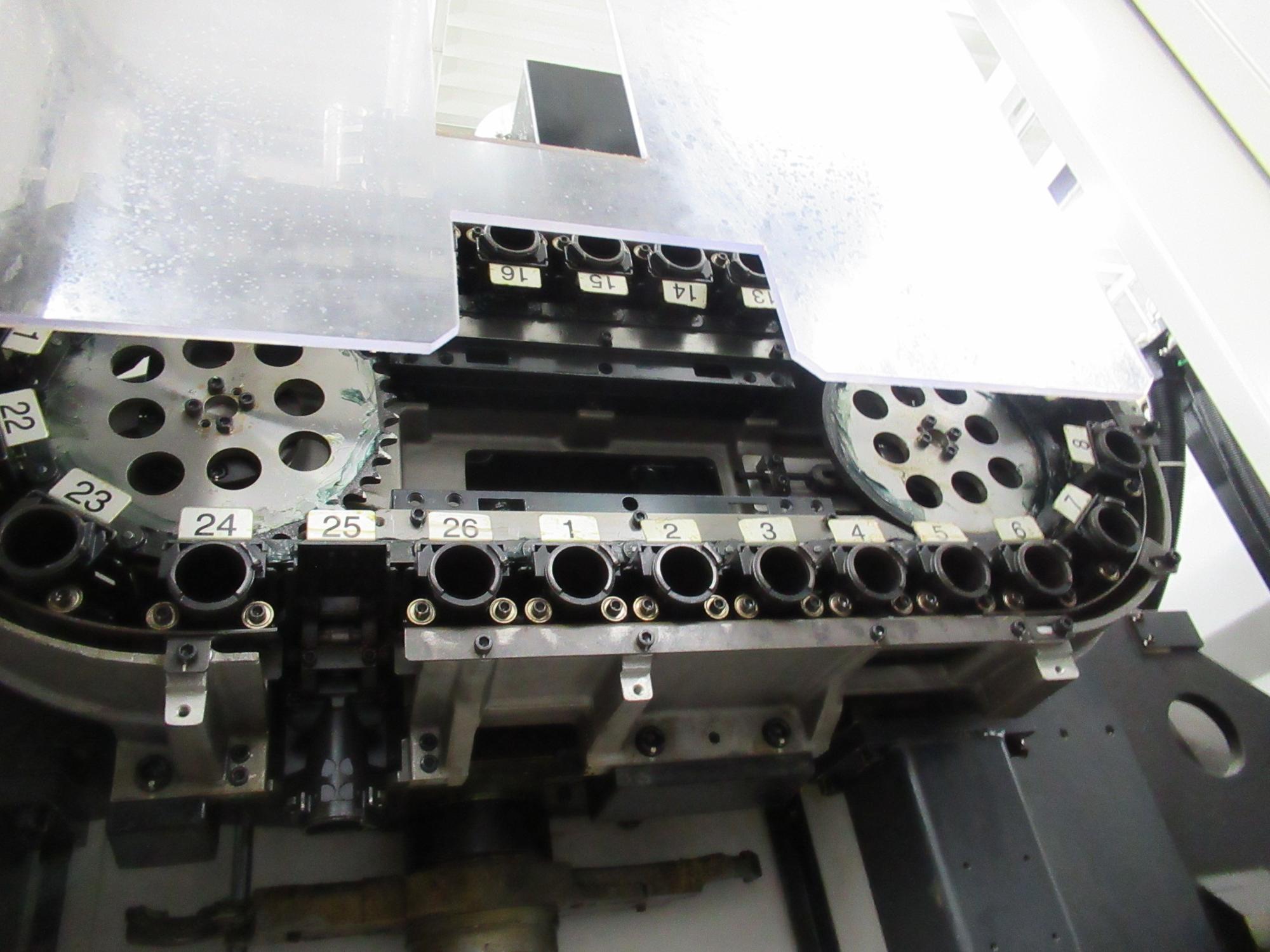

Toolchanger Style: Twin Arm

Toolchanger Capcity: 26 Tool Stations

Max Pallet Load: 441 Lbs Per Pallet

Rigid Tapping Speed: Max 8,000 RPM

Cutting Feed Rates: .04 - 787.4 IPM

Equipped With:

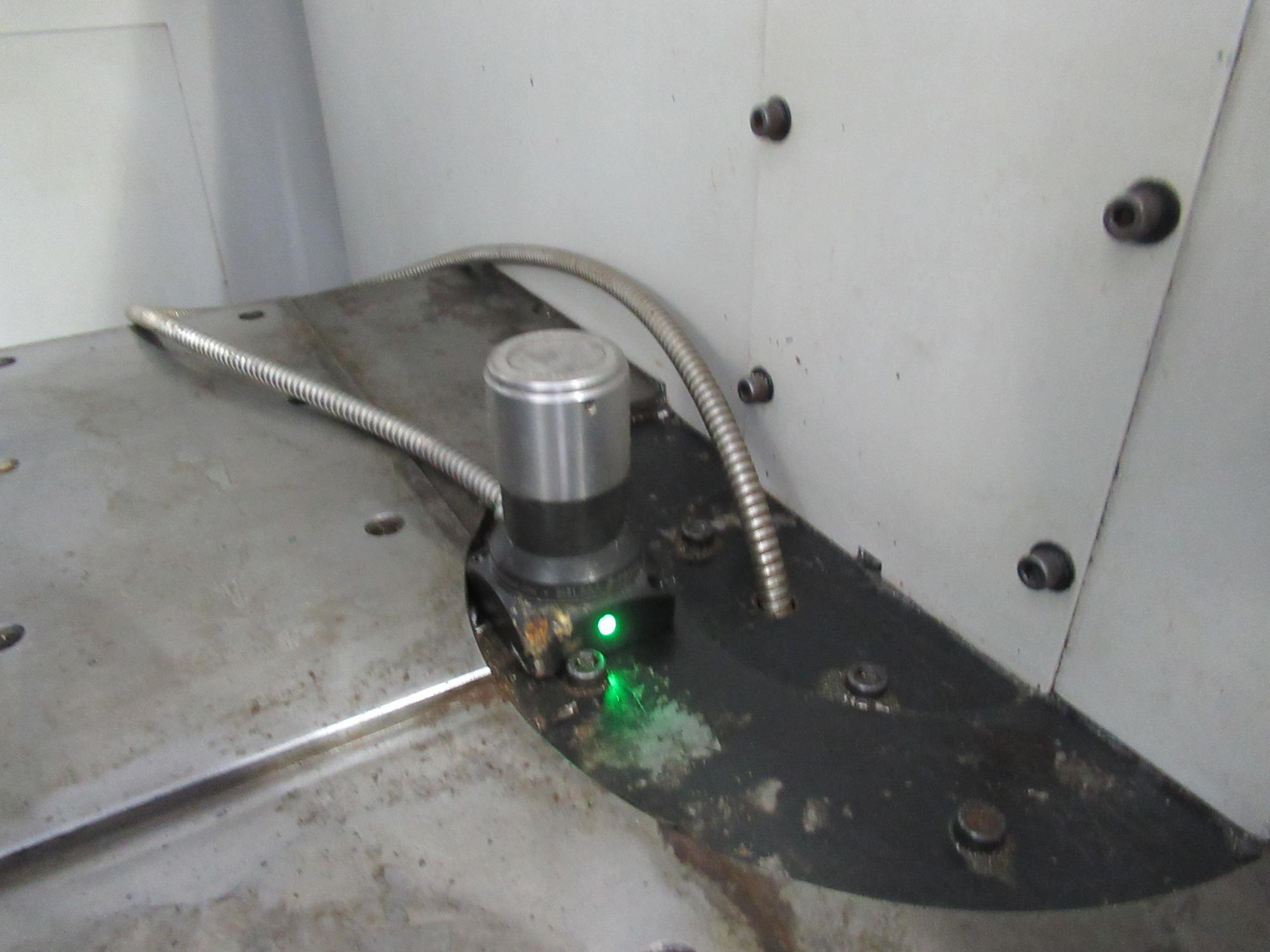

Brother CNCB00 Control, Automatic (2) Station Rotary Pallet Changer, 16,000 Max RPM, 8,000 Max RPM Tapping, 26 Station Twin-Arm Automatic Tool Changer, BT-30 Spindle Taper, Blohm Broken Tool Detection, Leveling Pads (4), Operation, Conversational Programmaing, NC Programming & Maintenance Manuals

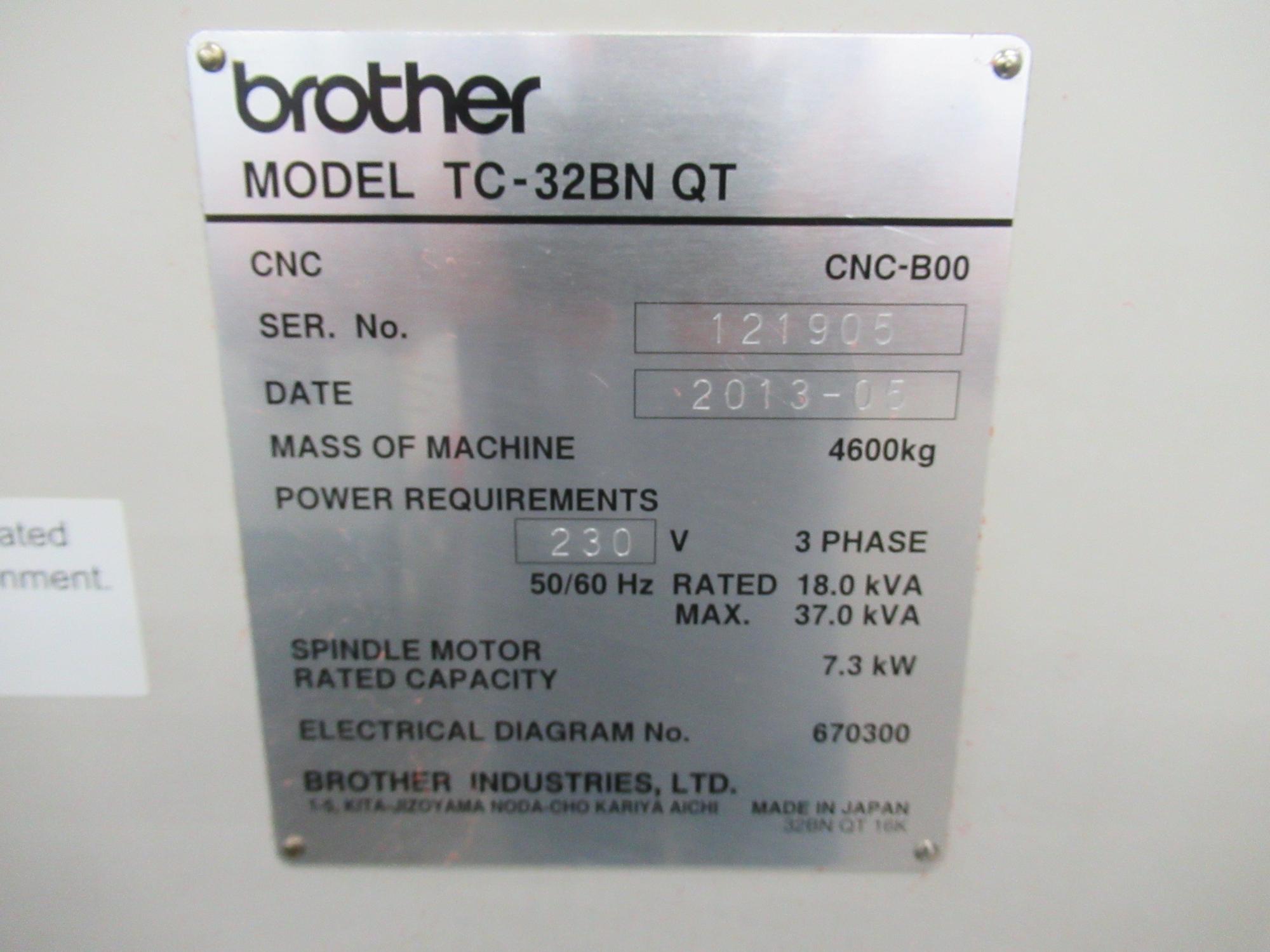

Electrics:

230 Volt, 3 Phase
