Miyano MTV-T310 CNC Vertical 4.5 Axis Machining Center w 2-Axis Rotary - Auction Item

Manufacturer

Miyano

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

Lot No.: 20

Model

MTV-T310

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

View Auction Item:https://www.machinesused.com/lots/46842

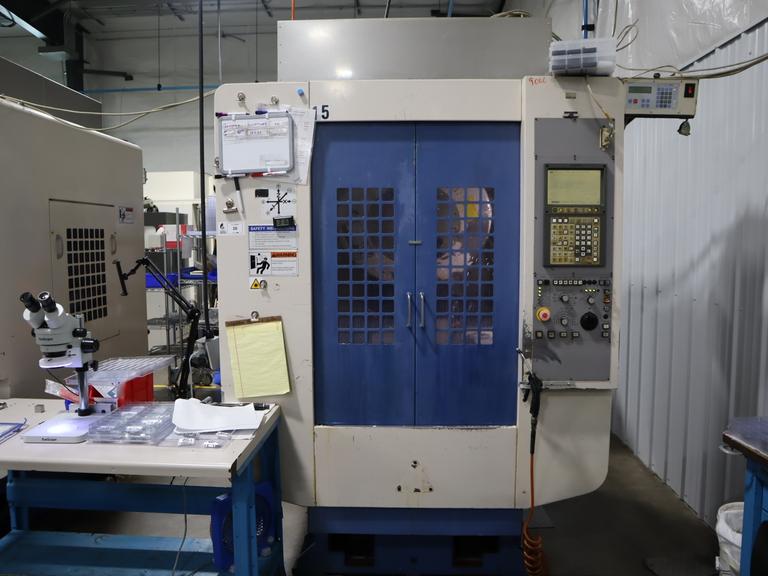

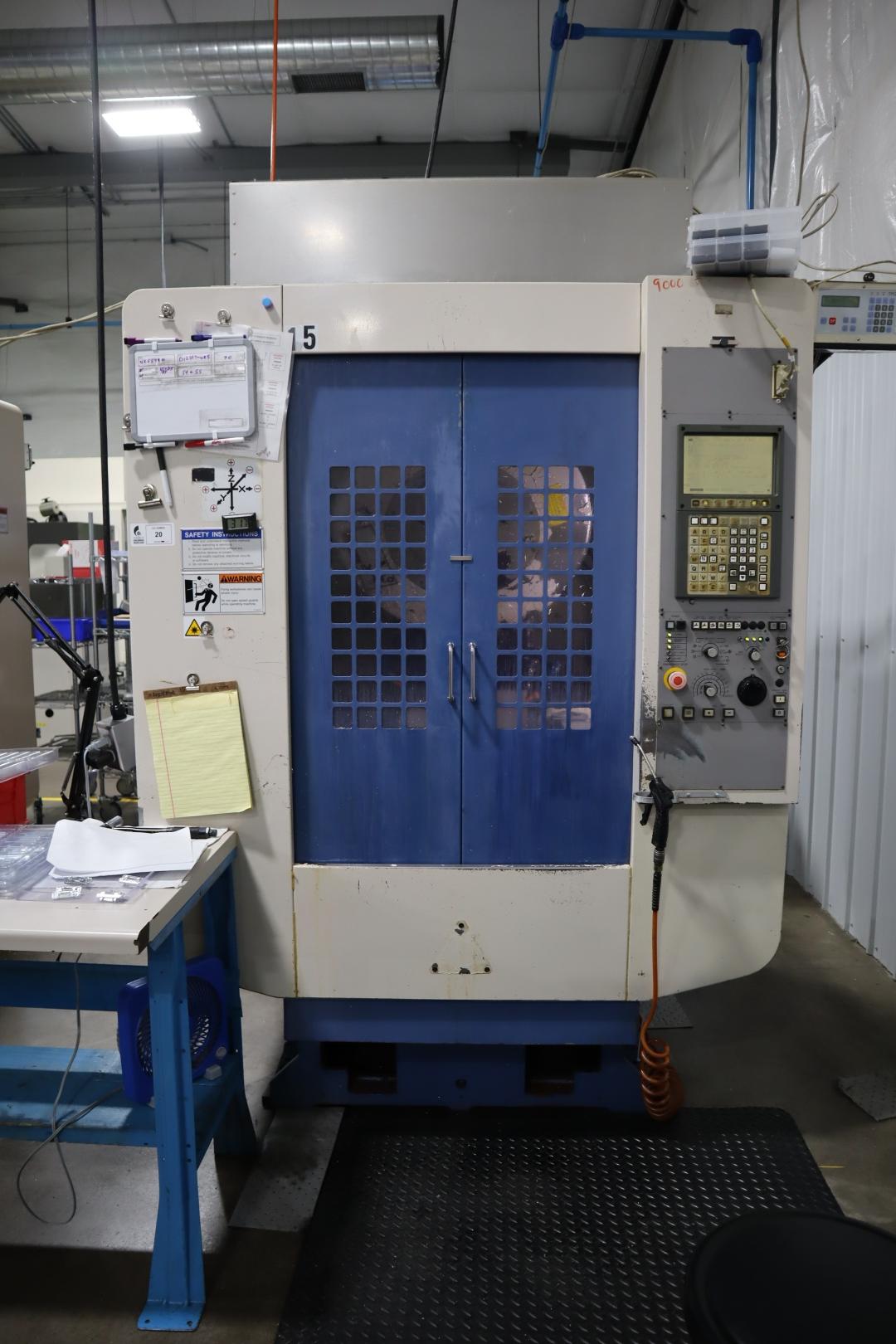

Lot 20: Miyano MTV-T310 CNC Vertical 4.5 Axis Machining Center w 2-Axis Rotary
Equipped With:

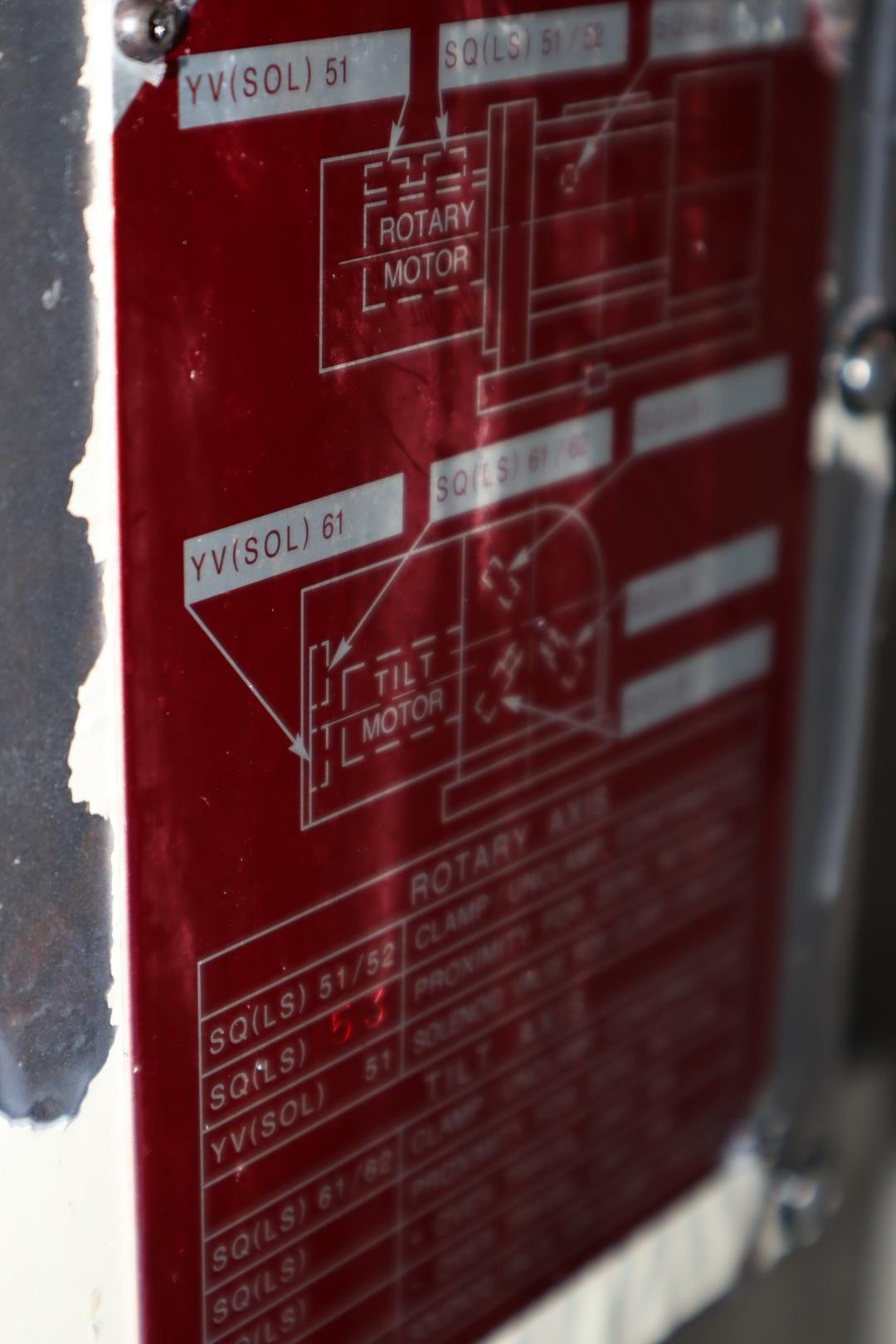

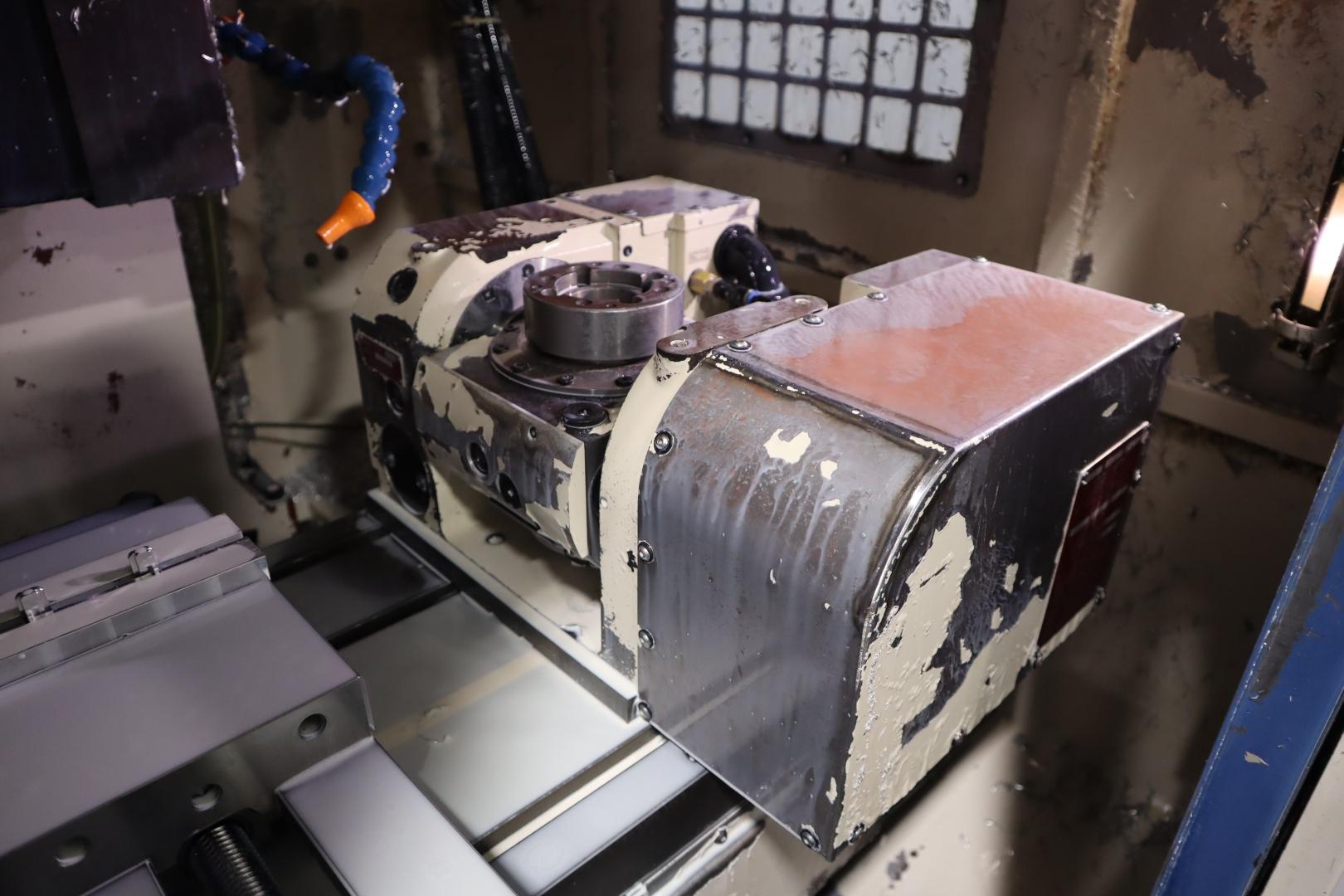

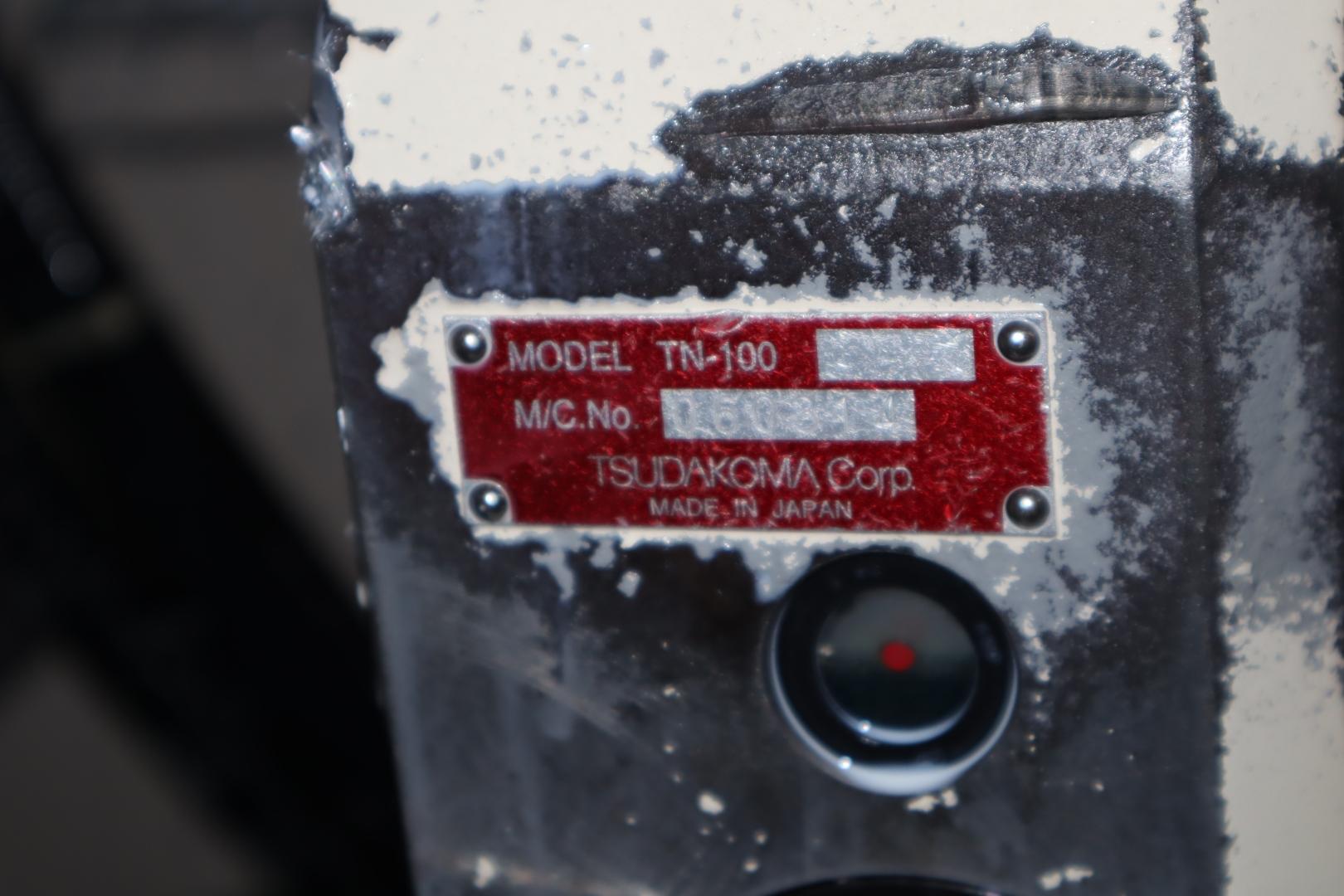

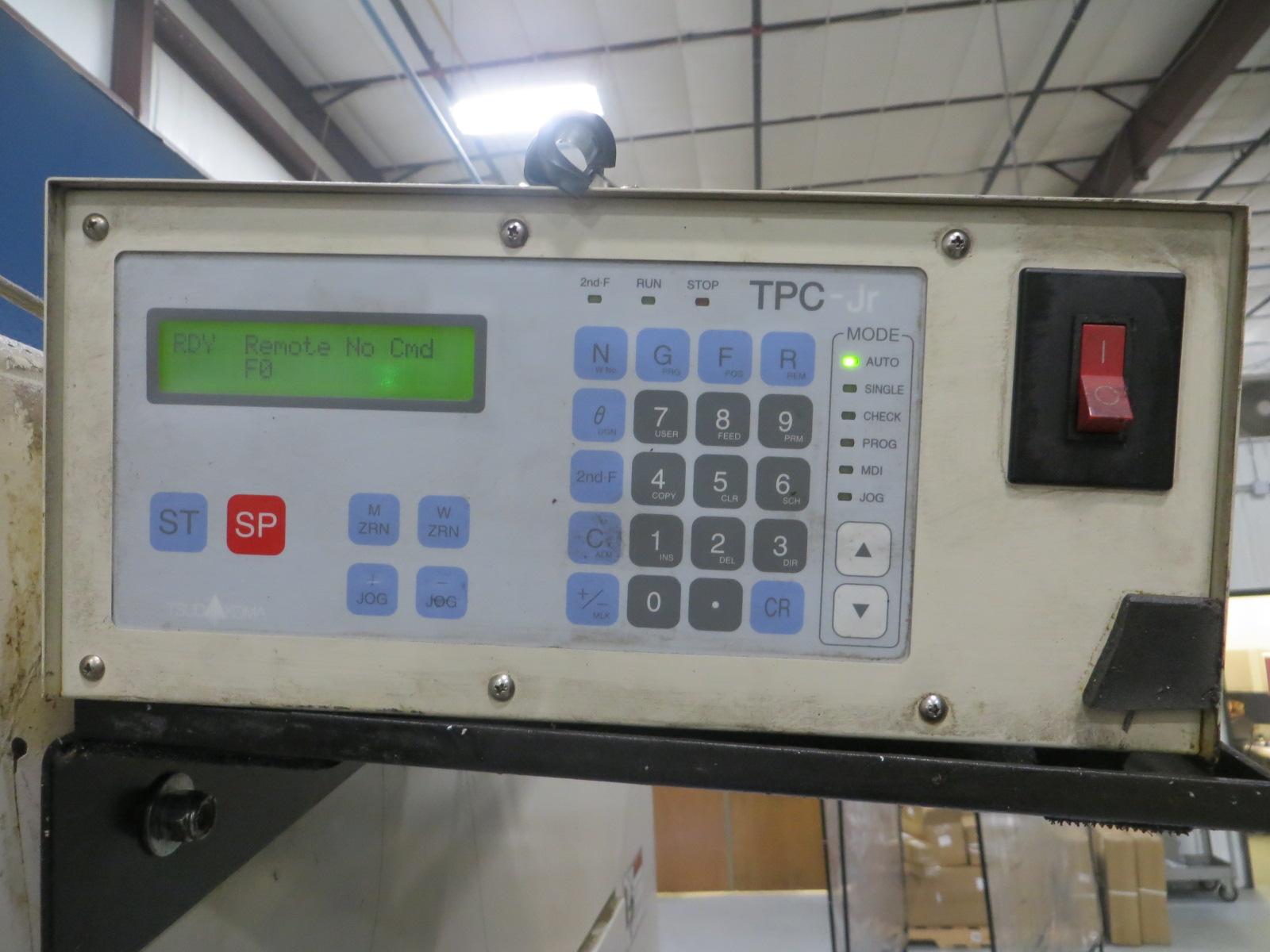

Yasnac J-100 4-Axis CNC Control, 15 Station Tool Turret, 16,0000 Max Spindle RPM, Tsudakoma TN-100 2- Axis Tilting Rotary Table with 5C Collet Closer, 5.5" Center Height, Tsudakoma TPC-Jr Control Box for Tilt Axis, RS232 Port, Coolant System, Available Manuals. **NO TOOLING, VISES, OR MIST COLLECTOR**

Description:

Yasnac J-100 4-Axis CNC Control, 15 Station Tool Turret, 16,0000 Max Spindle RPM, Tsudakoma TN-100 2- Axis Tilting Rotary Table with 5C Collet Closer, 5.5" Center Height, Tsudakoma TPC-Jr Control Box for Tilt Axis, RS232 Port, Coolant System, Available Manuals. **NO TOOLING, VISES, OR MIST COLLECTOR**

Electrics:

220 Volt, 3 Phase

Manufacturer: Miyano Model: MTV-T310 Year: 2003 Serial Number: MTVT3100223
Main Unit Approx Weight: 4400.00 lbs
Main Unit Dimensions (in inches): Length: 60.00"  Width: 76.00"  Height: 94.00"
Components:
Coolant Tank: Length: 53.00"  Width: 20.00"  Height: 24.00"
Specs:

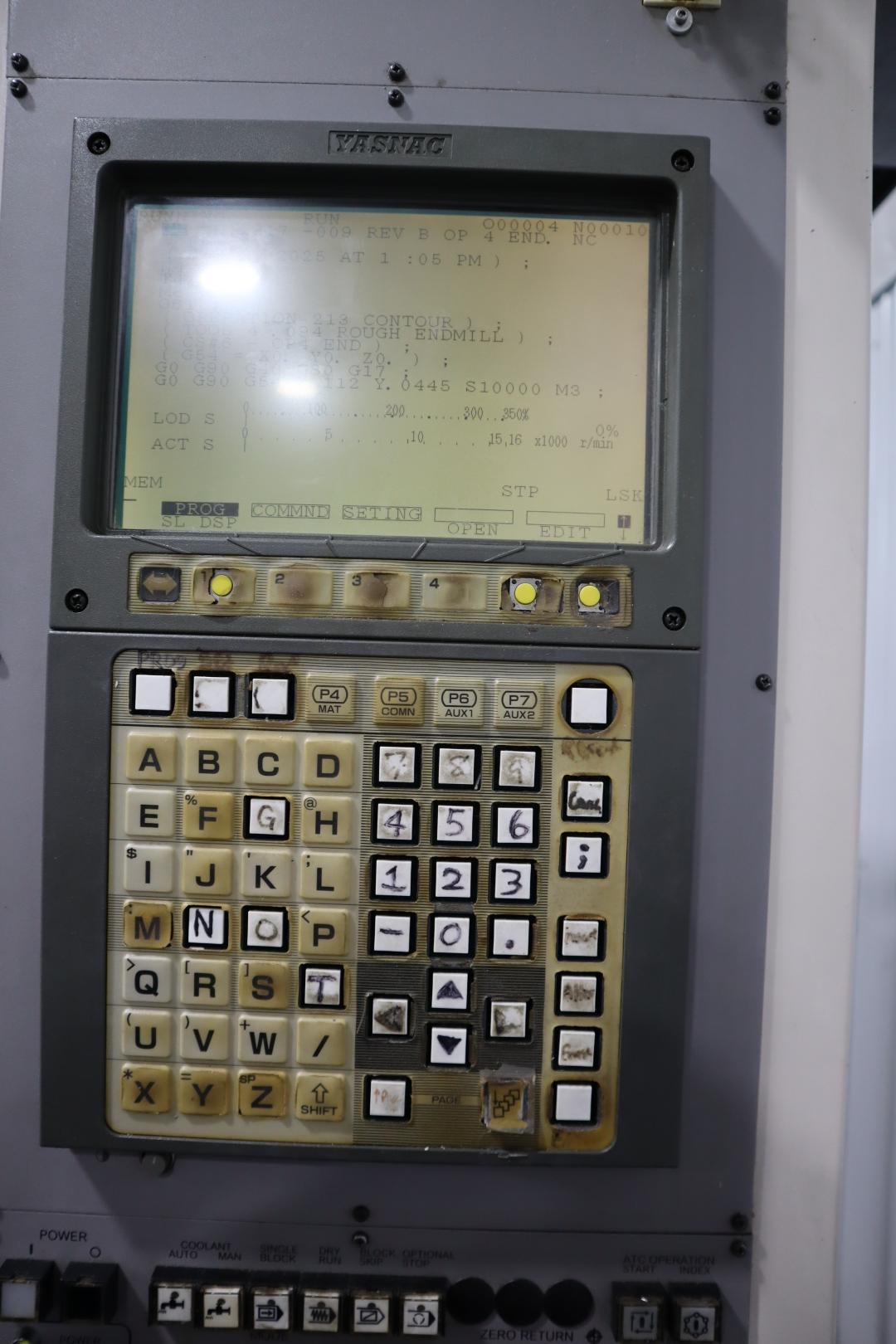

Machine Control: Yasnac J100 CNC Control
Table Size: 19.7" x 15"
Machine Travels (X/Y/Z): 19.7" x 15" x 9.84"
Spindle To Table Distance: 9.84" - 19.7"
Table Capacity: 264 Lbs.
Rigid Tapping Speed: 7,000 Max RPM
Spindle Taper: BT 30
Spindle Speeds: 16,000 Max RPM
Rapid Traverse Rate (X/Y/Z): 1,890 / 1,890 / 1,417 IPM
Maximum Cutting Feed Rate: 1,417 IPM

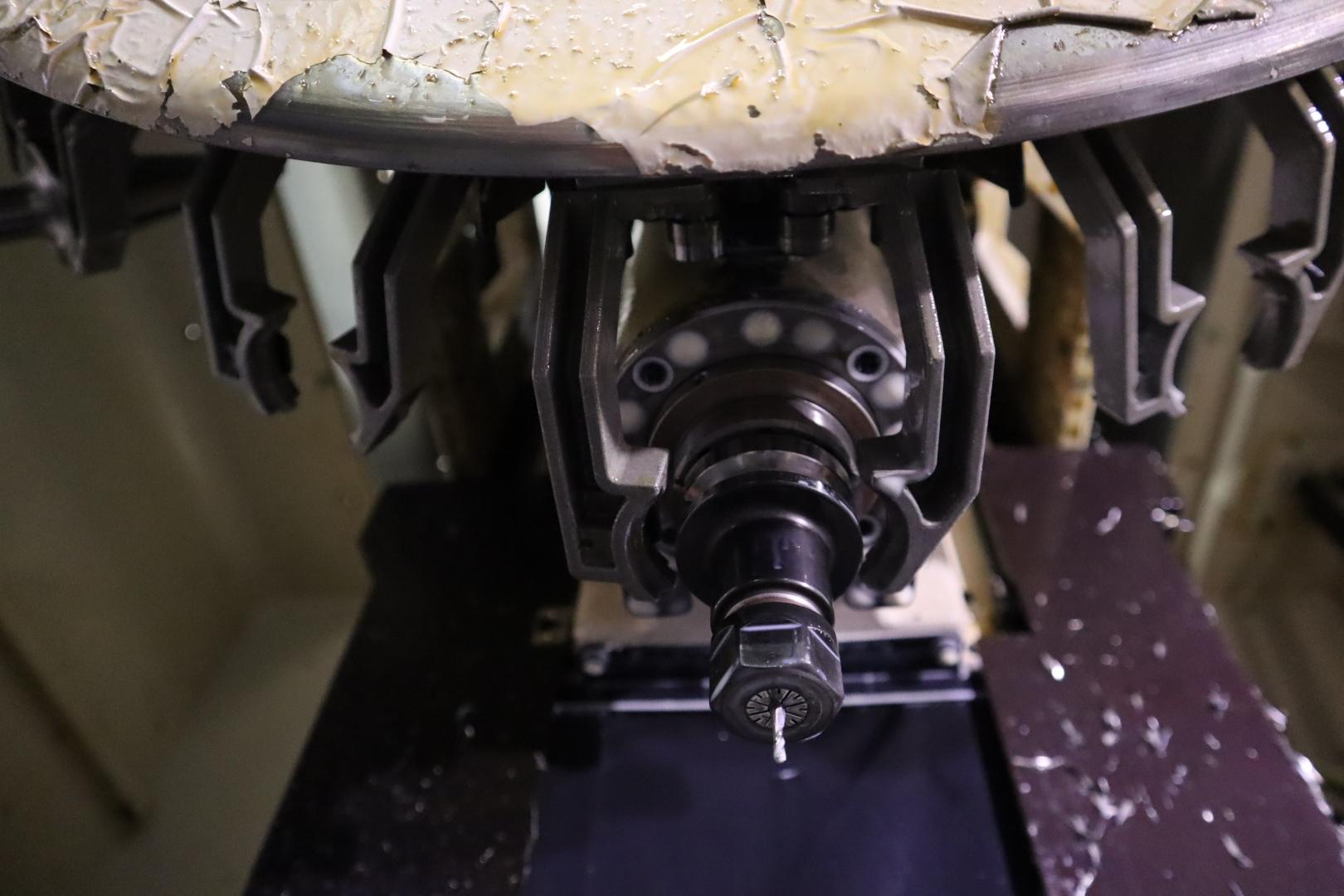

Tool Changer Style: Turret
Tool Changer Capacity: 15 Station Automatic Tool Changer
Tool Change Time: .9 Seconds Tool to Tool / 2 Sec Chip to Chip
Max Tool Length: 7.87"
Max Tool weight: 4.4 Lbs.
Spindle Drive: 7.3 HP
