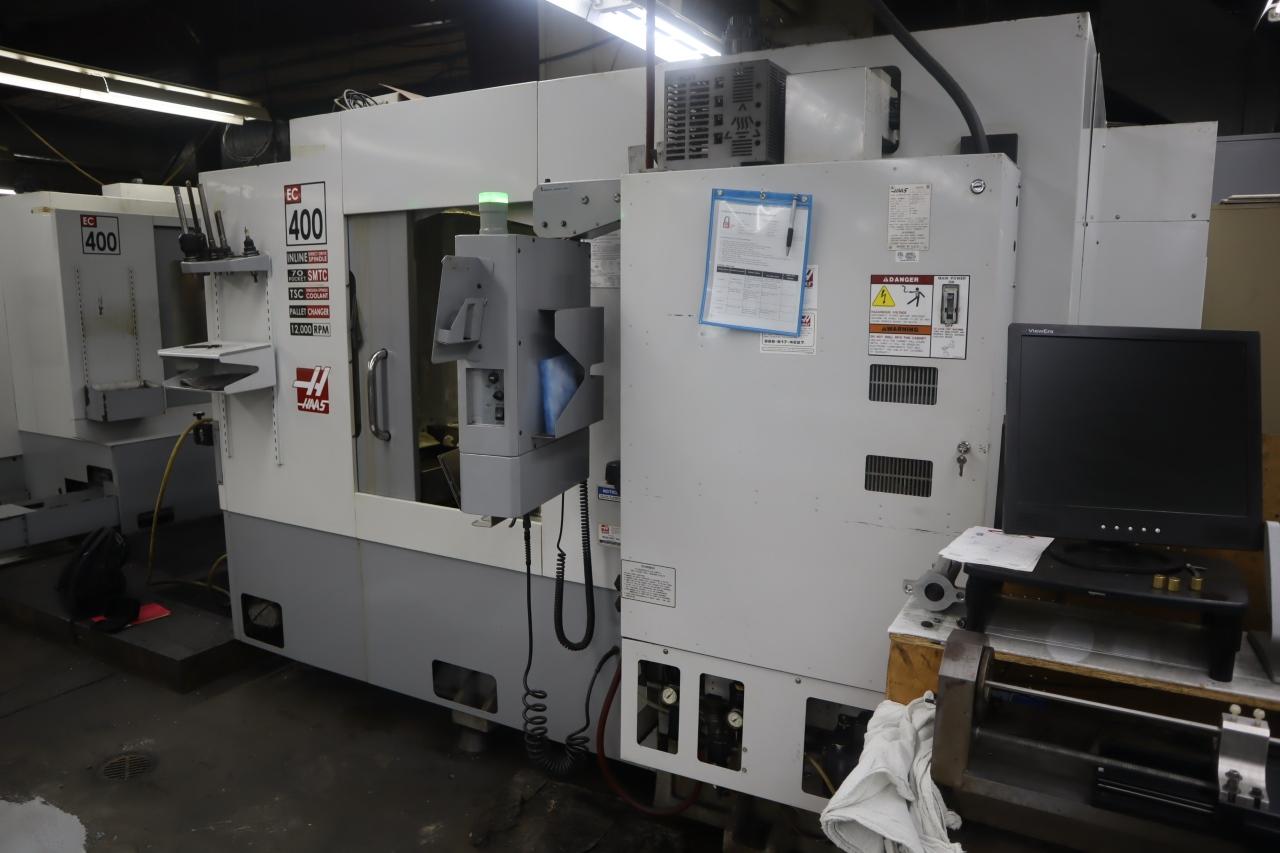

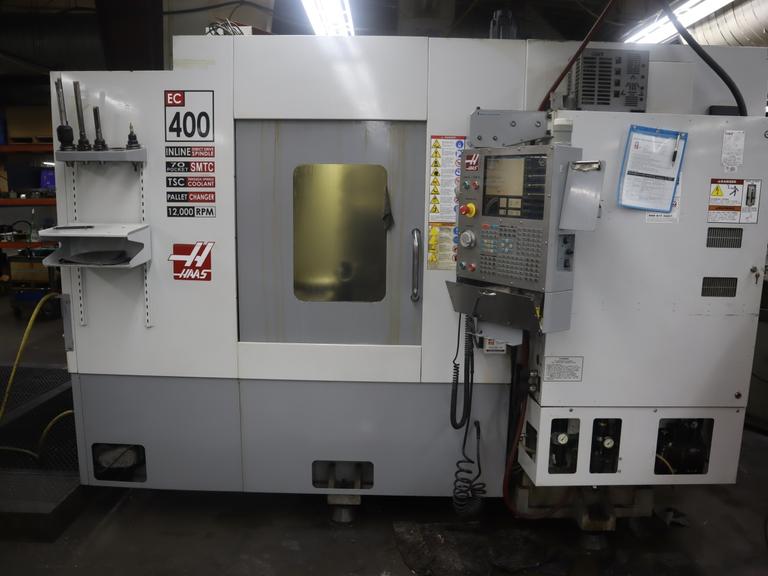

Haas EC-400-4AX Horizontal Machining Center, 70 Station ATC, 12K Spindle, Probing System, Tool Presetter, Pallet Changer, Chip Conveyor, TSC- Auction Item

Manufacturer

Haas

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, CNC (Incl. Pallet Changers)

Stock

Lot No.: 40

Model

EC-400

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

View Auction Item:https://www.machinesused.com/lots/46823

Lot 40: Haas EC-400-4AX Horizontal Machining Center, 70 Station ATC, 12K Spindle, Probing System, Tool Presetter, Pallet Changer, Chip Conveyor, TSC
Equipped With:

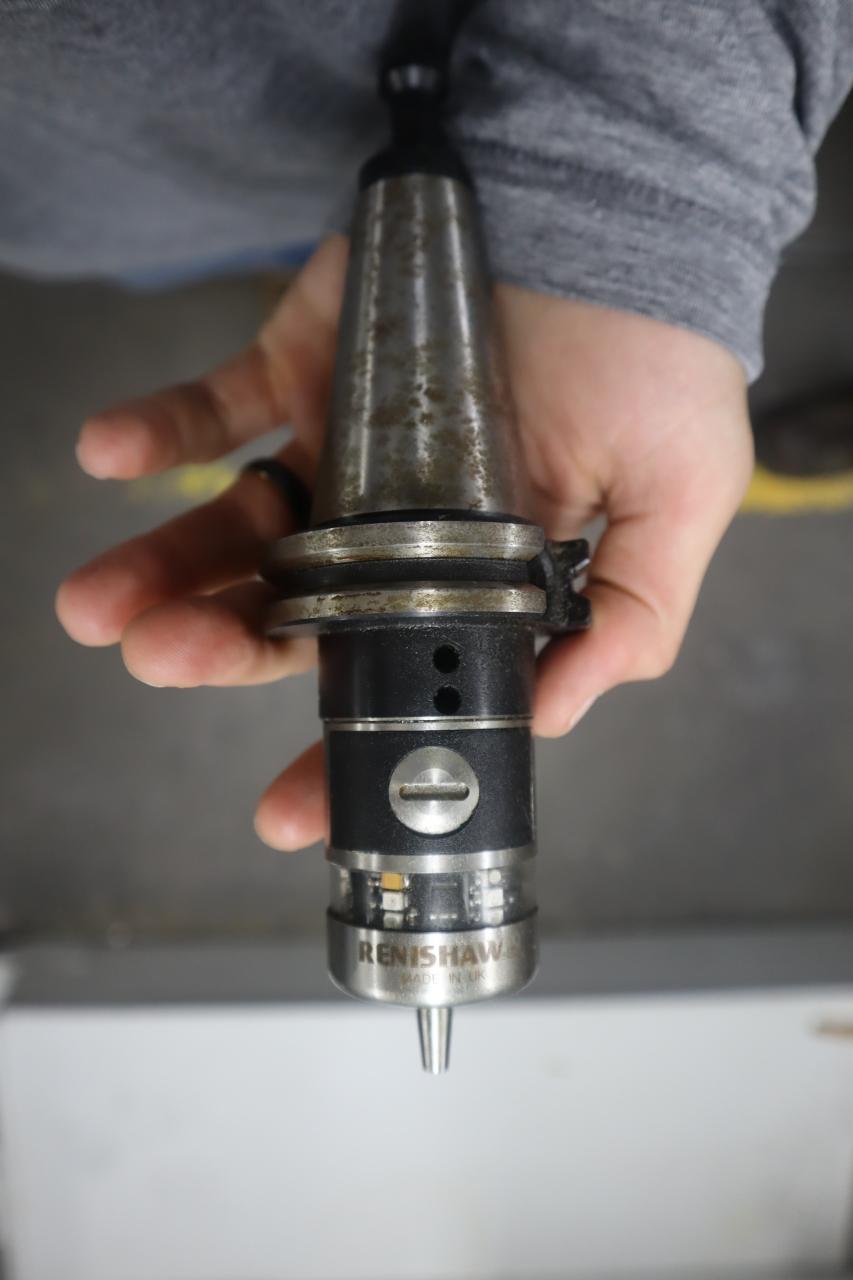

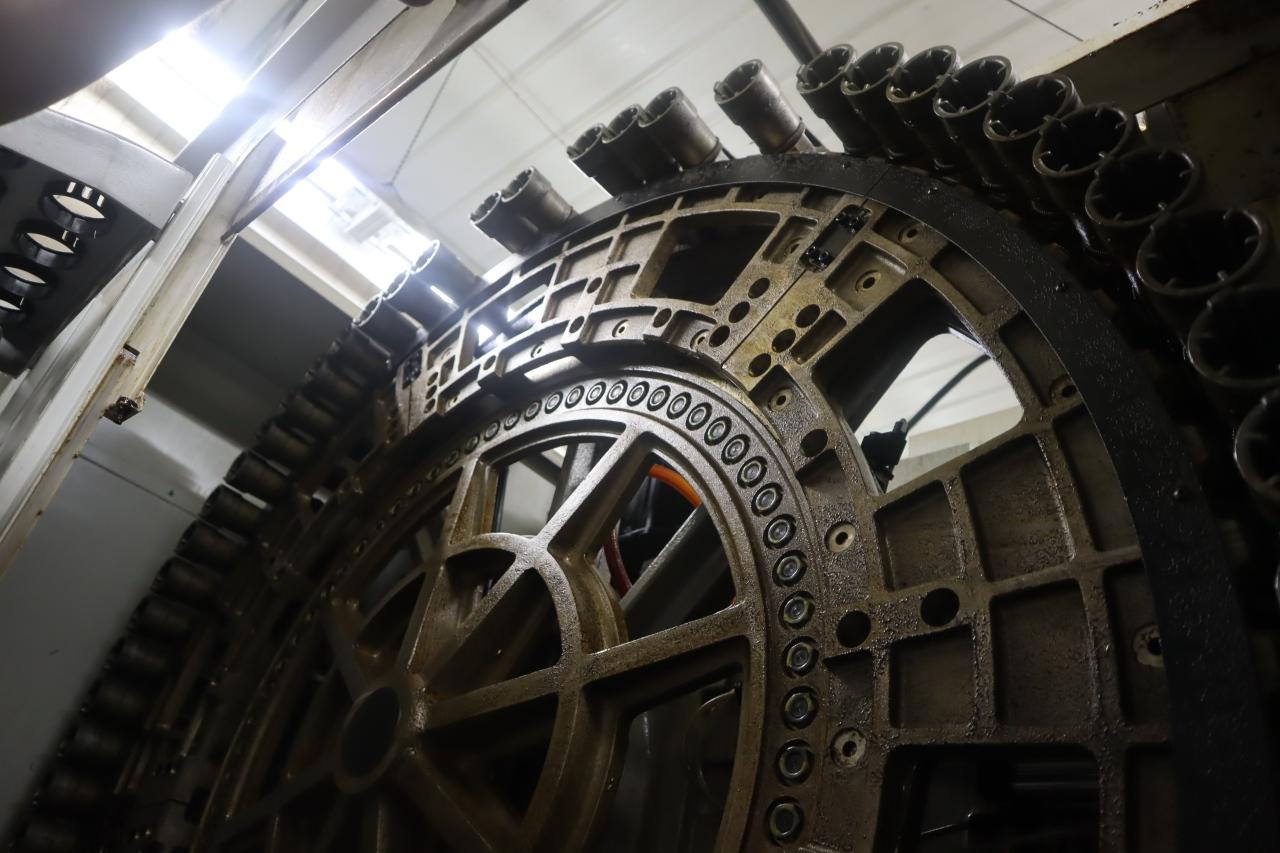

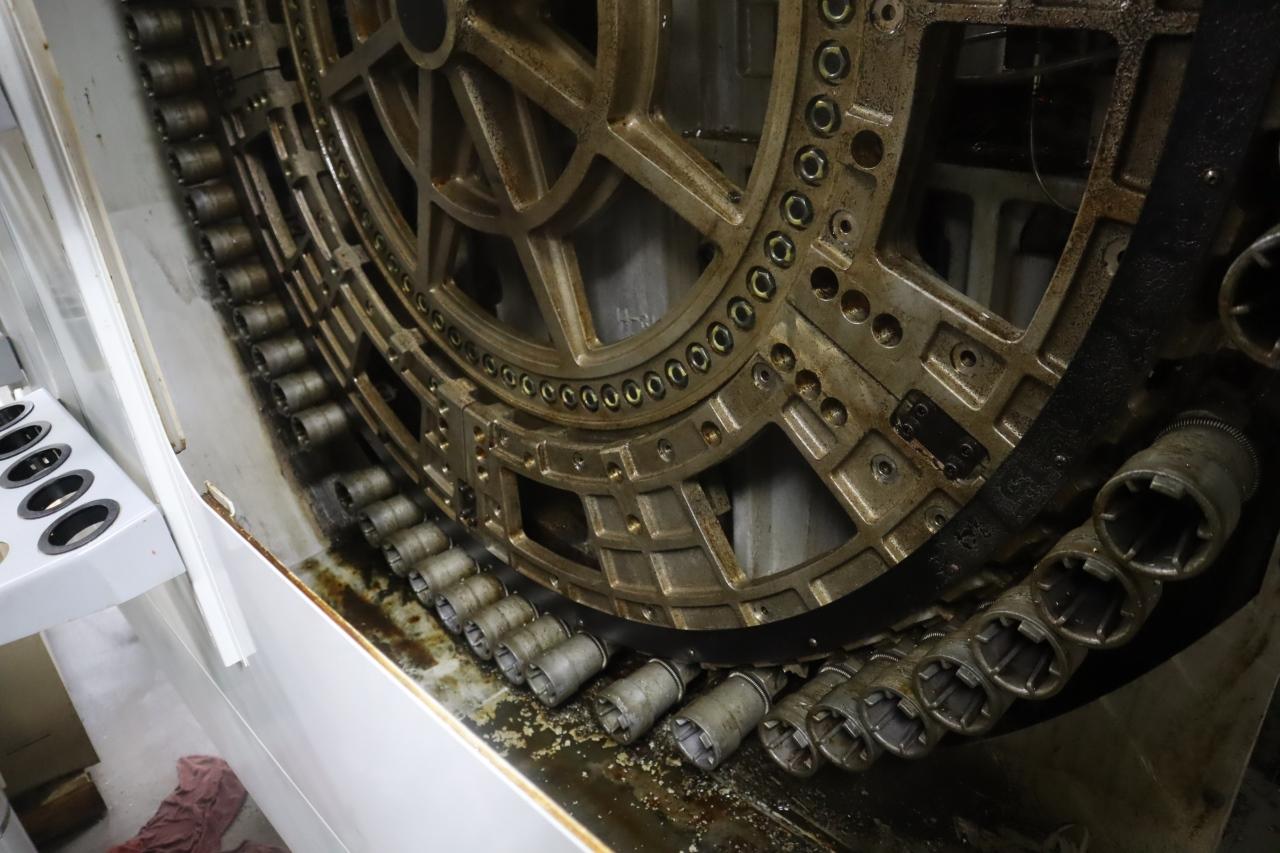

Haas CNC Control with Coldfire Processor, 12,000 RPM Spindle, 70 (9 Missing Pockets) Station Side Mount Twin Arm Tool Changer, Chip Auger, Thru-Spindle Coolant System and Tank, Chip Conveyor, High Speed Machining, 4th and 5th Axis Drives, 2 Station Pallet Changer with pallets, USB Port, High Speed Machining, Rigid Tapping, Renishaw Tool and Parts Probing System (Broken Stylus), Shipping Brackets

Description:

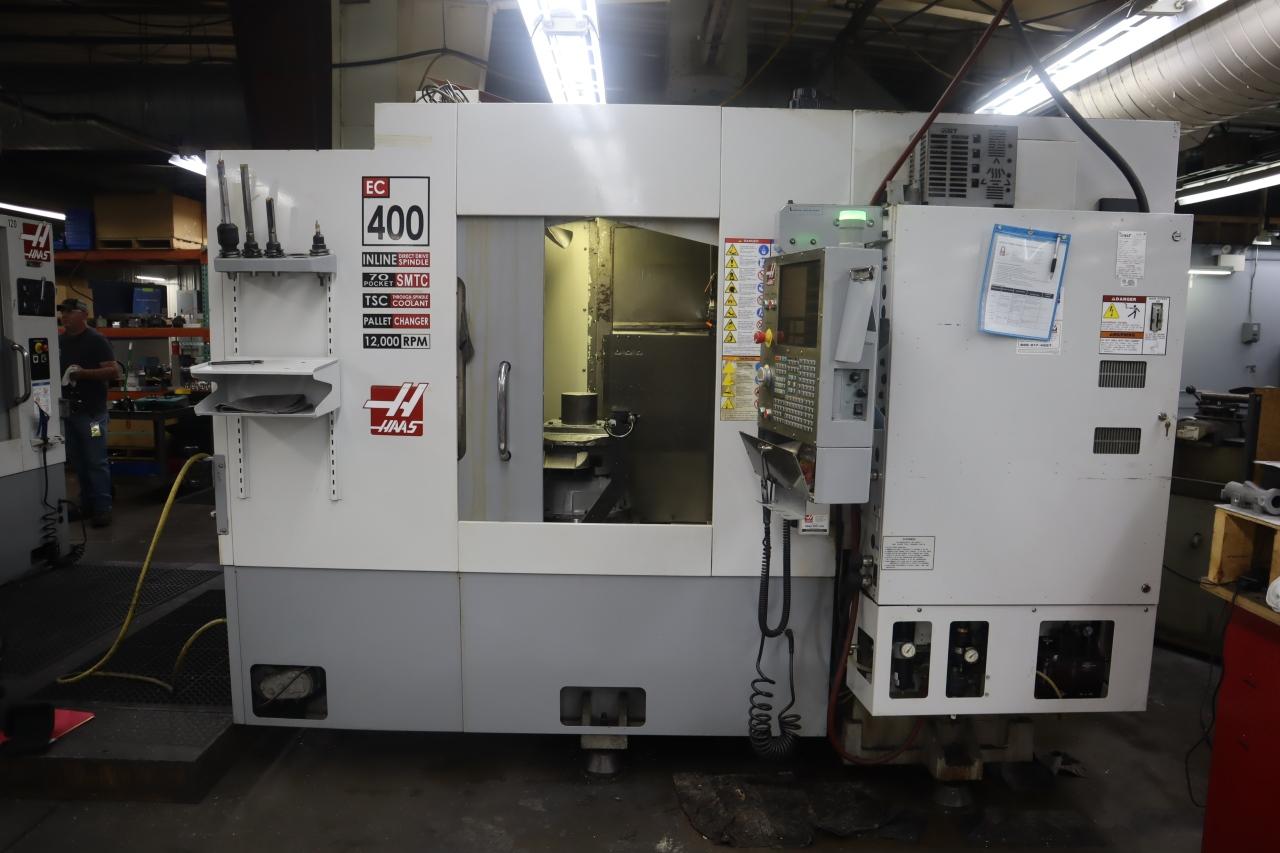

The Haas EC-400 is a horizontal machining center manufactured by Haas Automation, a well-known American company specializing in machine tools and CNC (Computer Numerical Control) equipment. The EC-400 is designed for precision machining of a wide range of materials, and it offers several features and capabilities.The EC-400 is a horizontal machining center, which means that it performs machining operations with the workpiece positioned horizontally. This configuration is ideal for applications where chips and coolant can be efficiently evacuated. This machine features a large work envelope, providing ample space for workpieces and fixtures. Like many machining centers, this EC-400 includes an automatic tool changer (ATC). This allows for the efficient and automatic swapping of cutting tools during the machining process, reducing downtime.

Electrics:

208/230 Volt, 3 Phase

Manufacturer: Haas Model: EC-400 Year: 2007 Serial Number: 2052223
Main Unit Approx Weight: 21000.00 lbs
Main Unit Dimensions (in inches): Length: 145.00"  Width: 100.00"  Height: 102.00"
Components:
80 Gallon Coolant System: Length: 74.00"  Width: 42.00"  Height: 24.00"
High Pressure Coolsnt System: Length: 34.00"  Width: 24.00"  Height: 40.00"
Specs:

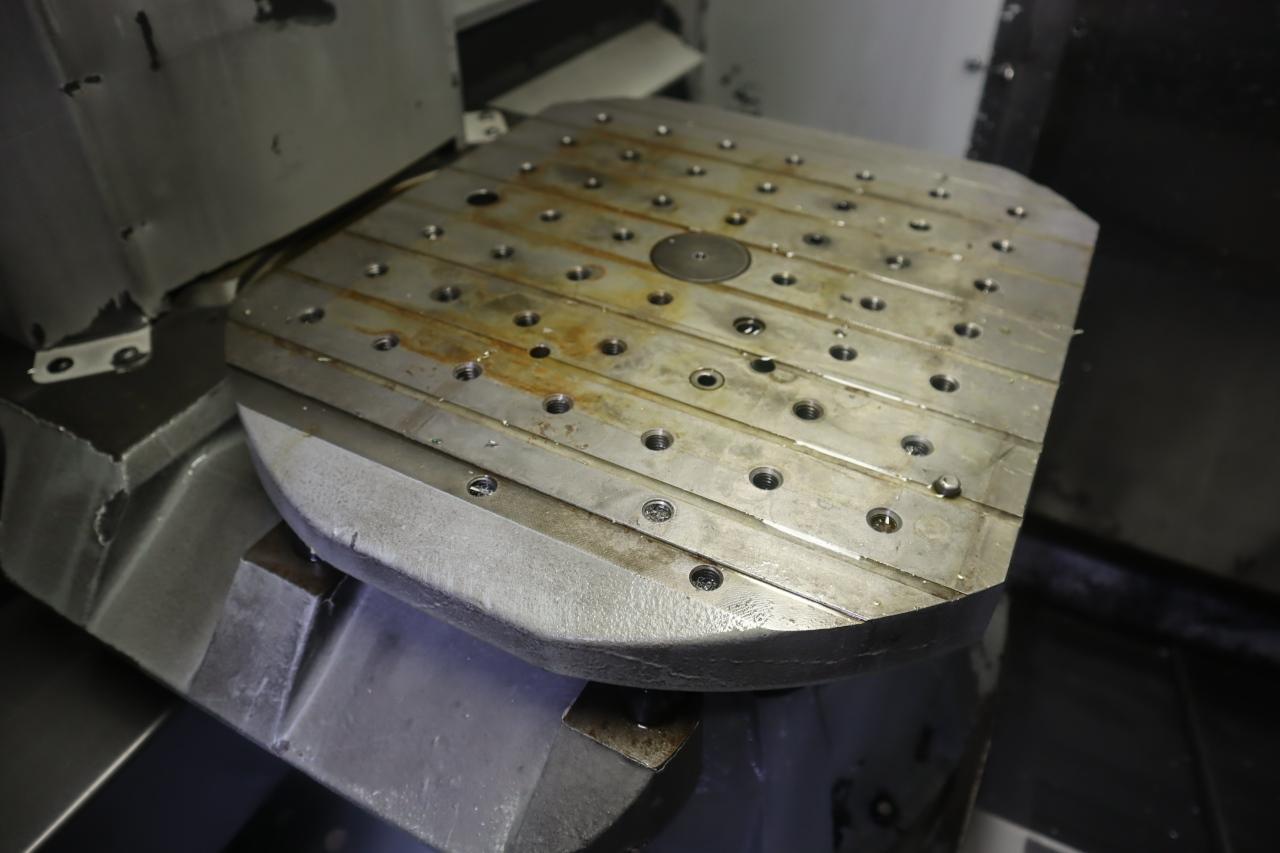

Pallet Size: 15.75" x 15.75"

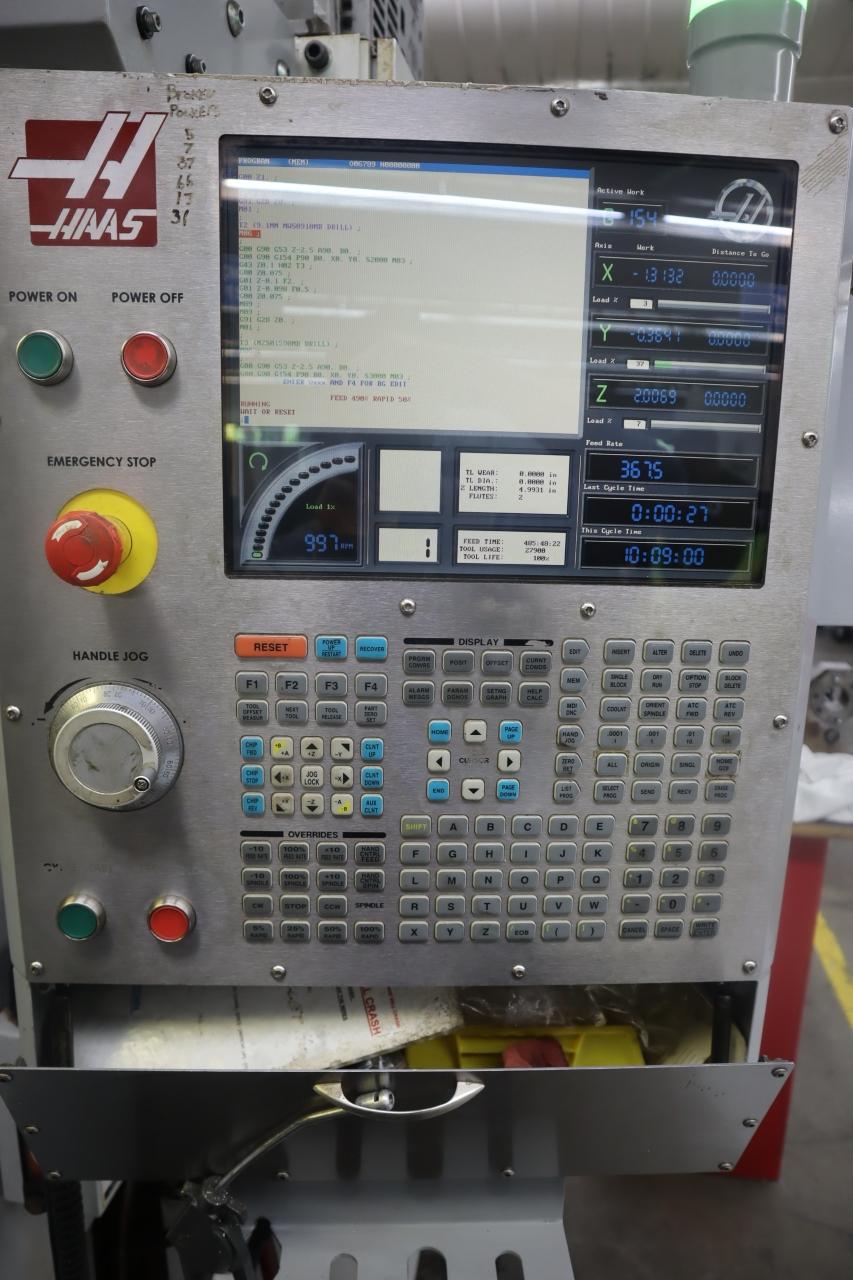

CNC Control: Haas CNC with Coldfire
Machine Travels (X/Y/Z): 20" x 20" x 20"

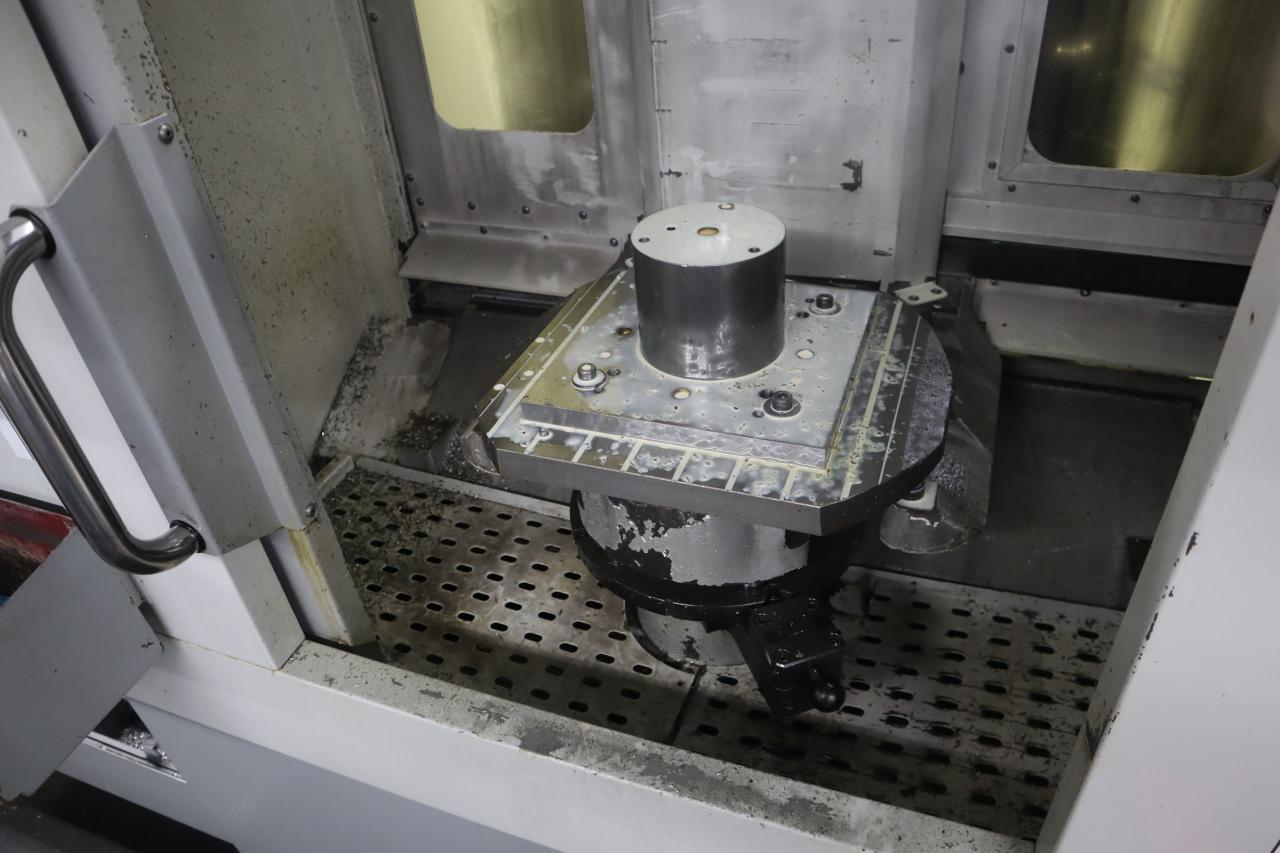

Pallet Indexing: Full 4th Axis
Max Pallet Load: 660 lb
Pallet Change Time: 8 Sec.
Rapid Traverse Rate (X/Y/Z): 1,000 IPM
Max Cutting Feed Rate: 500 IPM
Spindle Taper: Cat 40

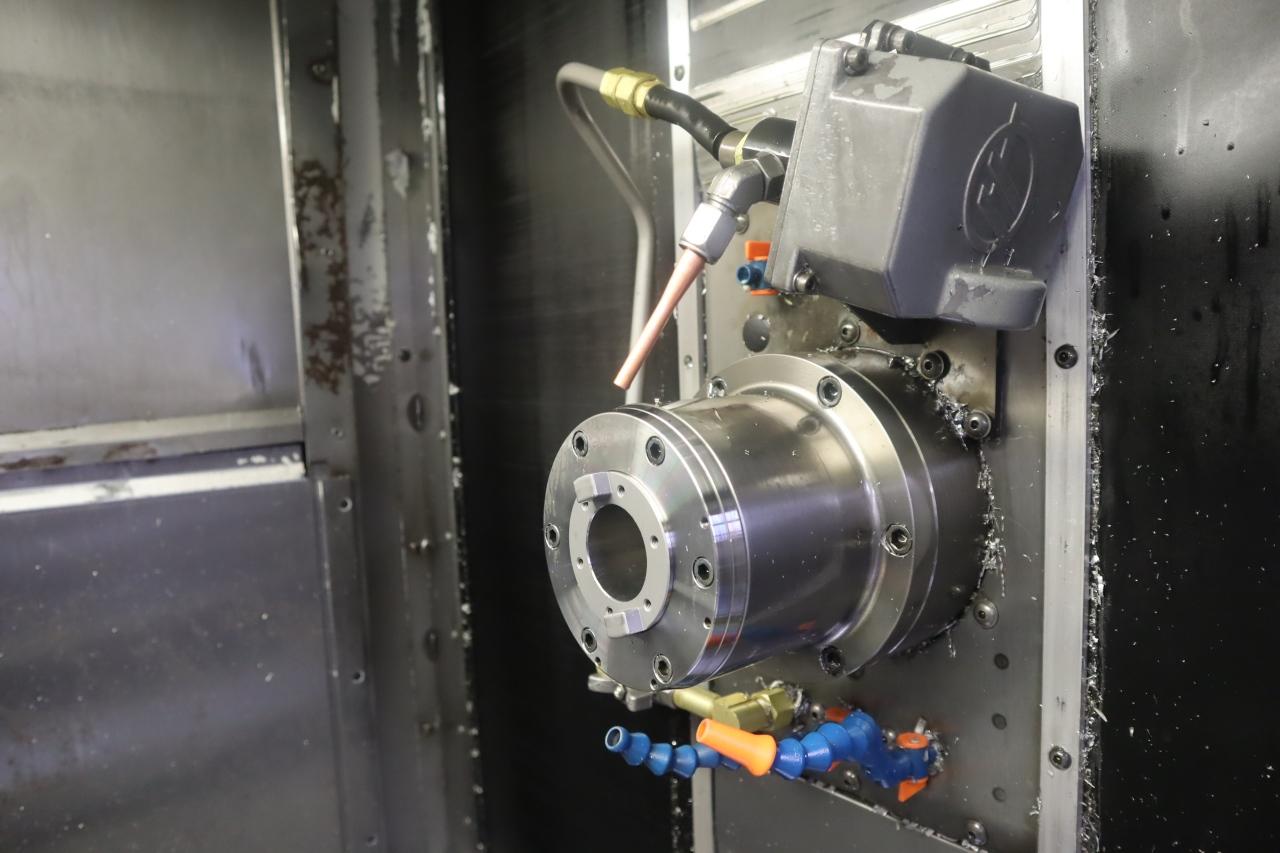

Spindle Speeds: 0 - 12,000 RPM
Toolchanger Capacity: 70 Side Mount
Max Tool Weight: 12 lb.
Max Tool Length/Diameter: 12" / 6"
Tool to Tool Time: 2.8 Sec
Spindle Drive: 30 HP
Tabletop to Spindle Center: 2.1" - 22.1"
Spindle Gauge Line to Table Center: 3.9" - 23.9"
Number of Pallets: 2
Number of Pallet Stations: 2
Seller Company: Chandler Industries - Montevideo Division
Seller Contact: Peter Lyngen Phone: (320) 269-8893
Item Location: Chandler Industries - Montevideo Division, 1654 North Ninth Street, Montevideo, MN 56265
Location Contact: Peter Lyngen Phone: (320) 269-8893
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Removal Dates and Times: This item must be removed between Tuesday, September 30, 2025 and Friday, October 10, 2025
