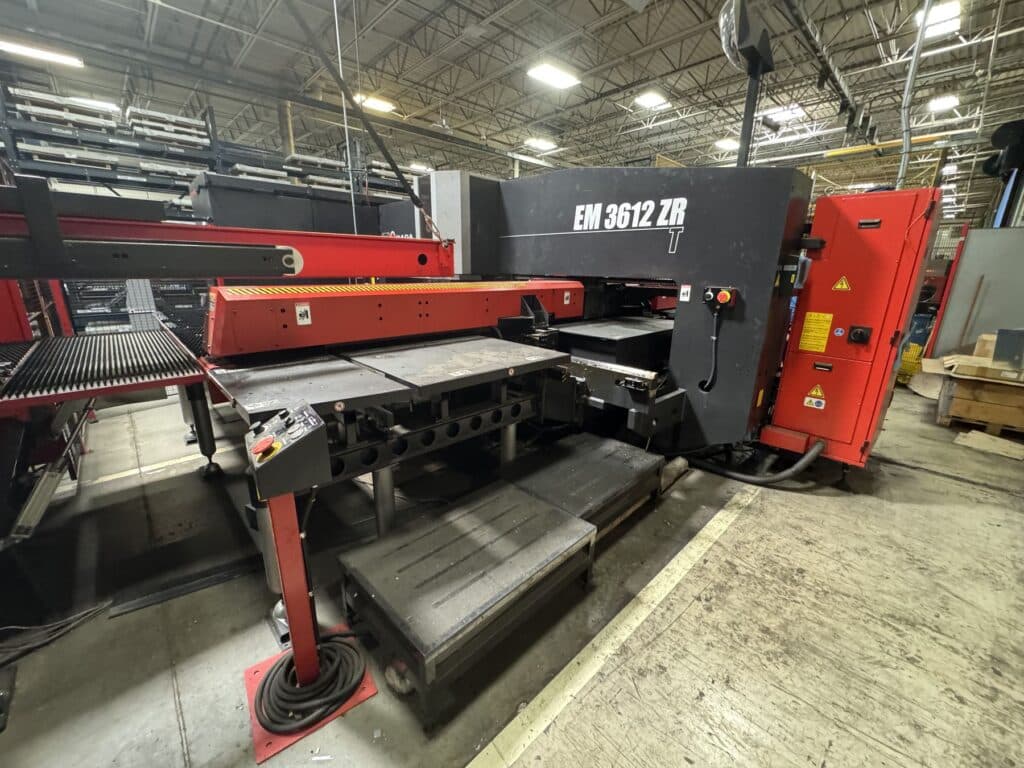

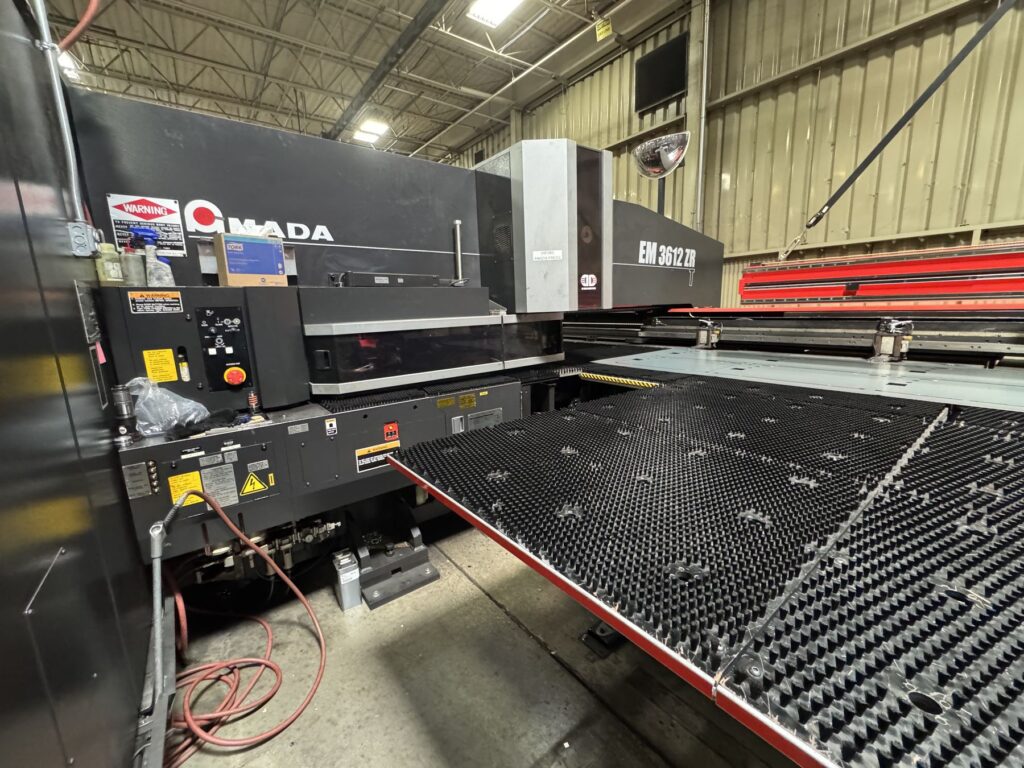

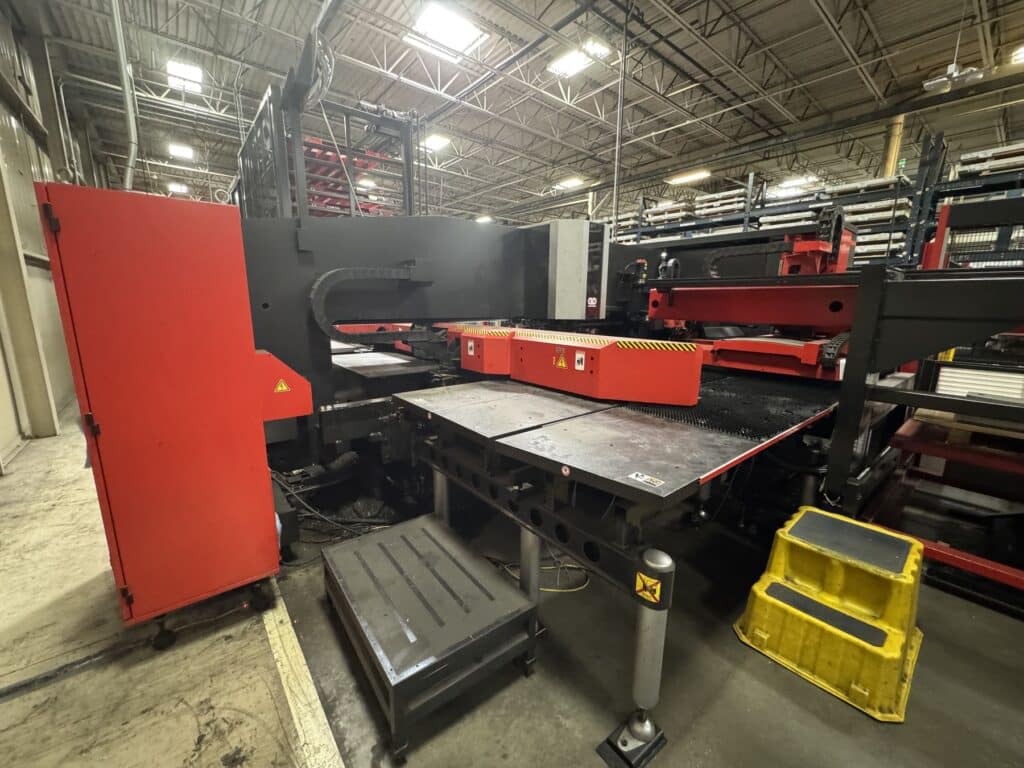

Amada EM-3612-ZRT CNC Turret Punch Press w/ 300 Tool Changer

Manufacturer

Amada

Category

Punches

Type

PUNCHES, FABRICATING, CNC

Stock

111250028

Model

EM-3612-ZRT

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 111250028
  • Location: GA
  • Brand: Amada
  • Model: EM-3612-ZRT
  • Year: 2014
  • Approx. Shipping Weight: 25,000 KG
  • Loading Fee: Rigging Required

Specifications

  • Tonnage: 33
  • Max Travel: 120″ x 60″
  • Max Sheet Size (with on reposition): 240″ x 60″
  • Throat Depth: 62.6″
  • Max Travel Y-Axis Center Track: 0.394″ to 60.4″
  • Max Sheet Thickness: .177″ Mild Steel
  • Max Material Weight: 110 lbs to 330 lbs (Depending on Table Speed & Acceleration)
  • Punching Accuracy: .004″
  • Turret Rotation Speed: 30 RPM
  • Turret Feed Clearance: .984″
  • Rotation Speed: 60 RPM
  • Max Hole Diameter: 4″
  • Number of Turret Stations: 32
  • Number of Tapping Stations: 4
  • Power Required: 34 kVA

Equipped With

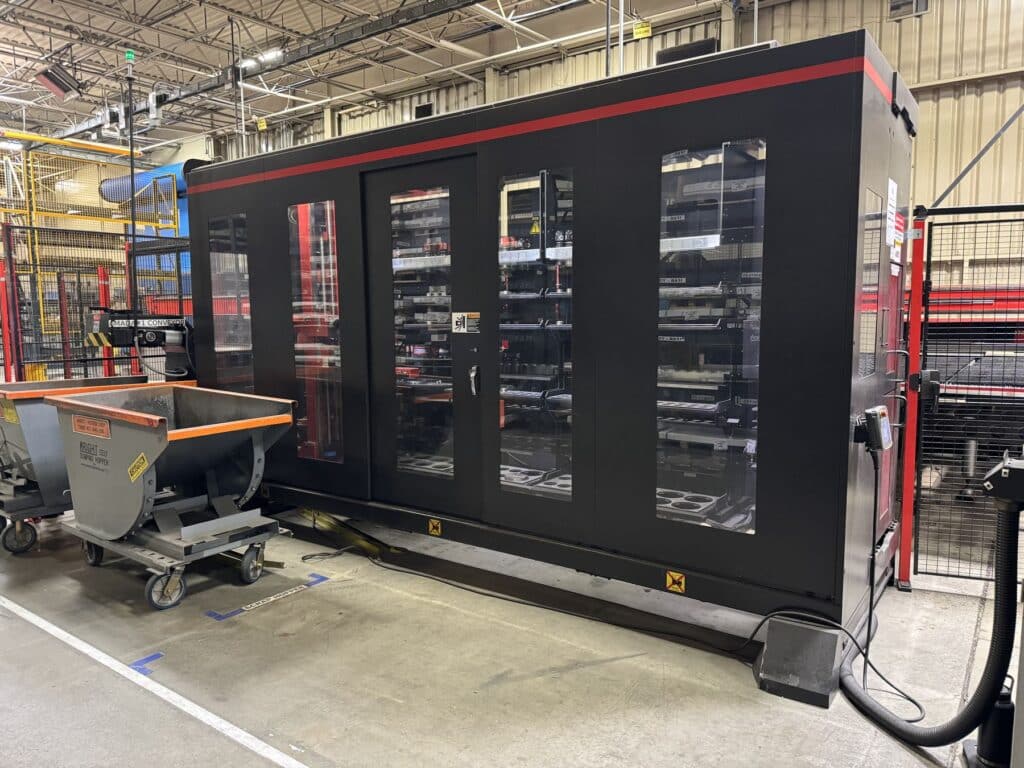

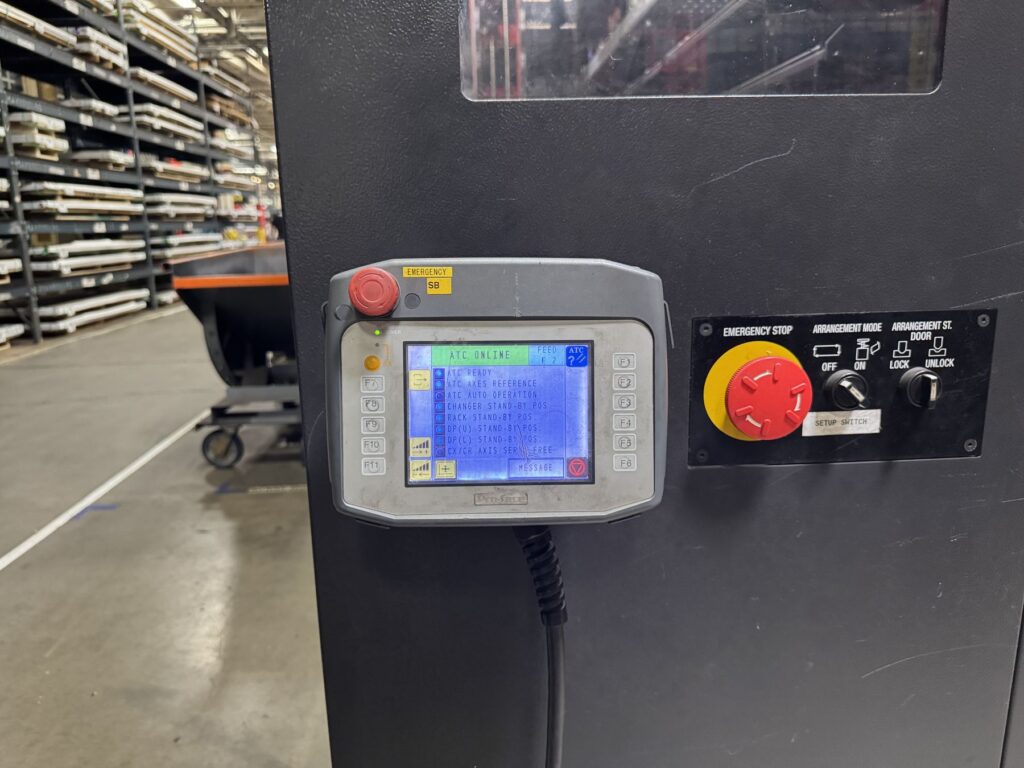

58 Station Turret, 4 Tapping Stations, 300 Tool Automatic Tool Changer, RS 232C Interface, Pneumatic X-Gauge Block, LAN Connection (TCP/IP), Line Spec. Interface, USB PortMP Interface, Sheet Pull Detection, Air Blow, (4) Pneumatic Clamps, Slug Suction System (All Stations), Auto Reposition System, Punch Assembly Jig, Sheet Jam Sensor, Station Alignment Tools (A,B, 1″ Auto-Index Stations only)

Additional Info

System does not include the sheet loading automation system which can be seen in some of the pictures
