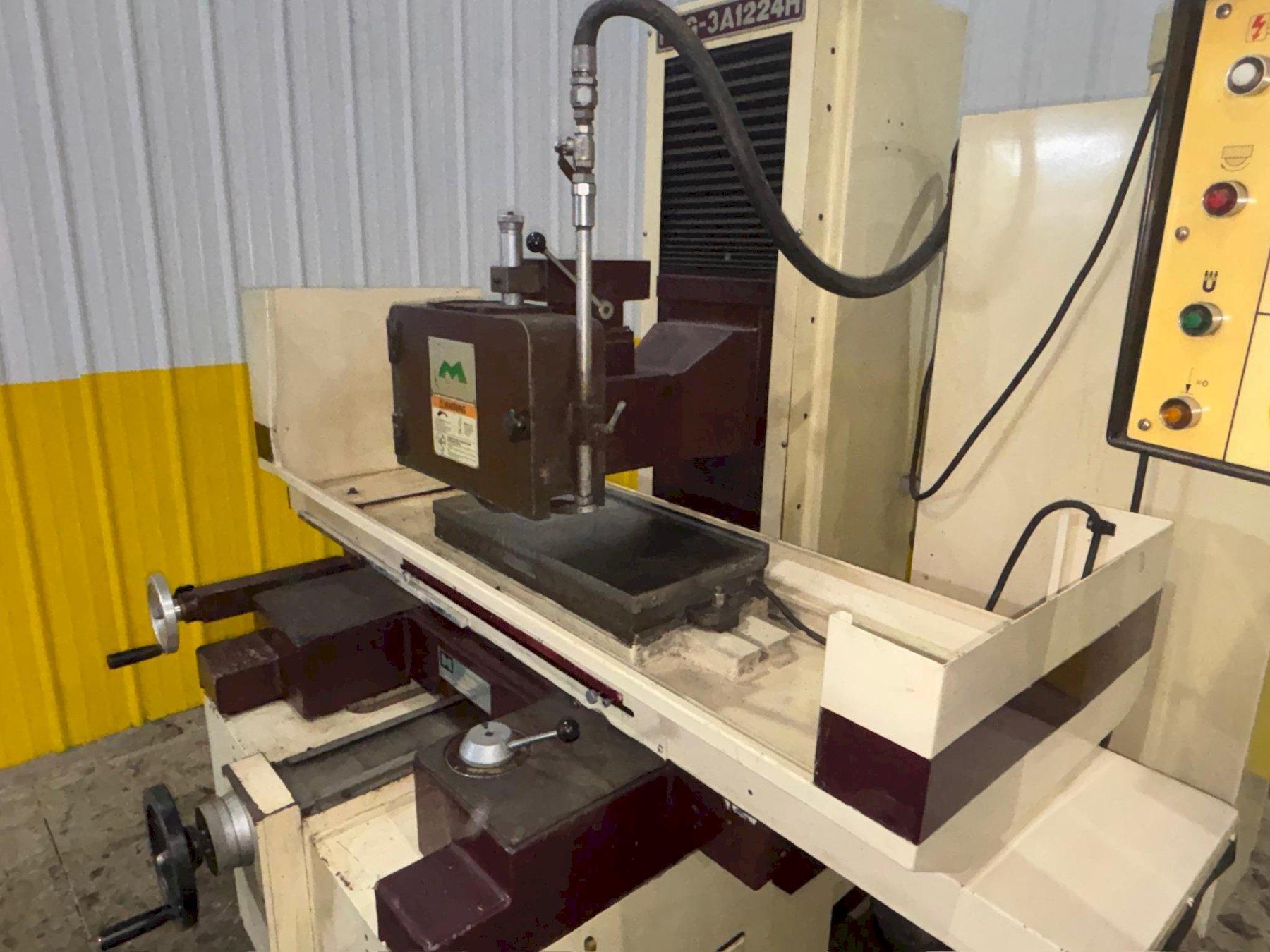

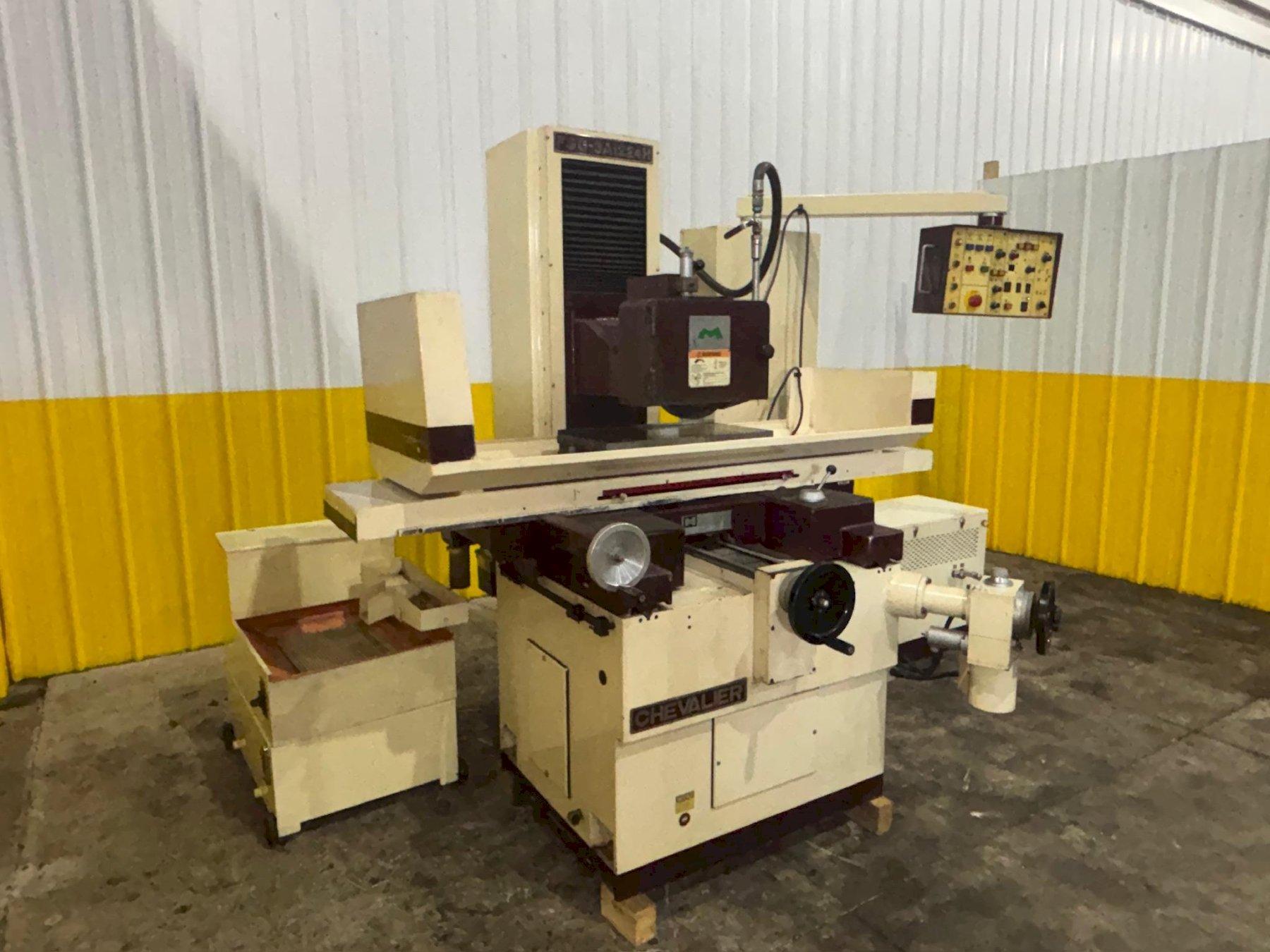

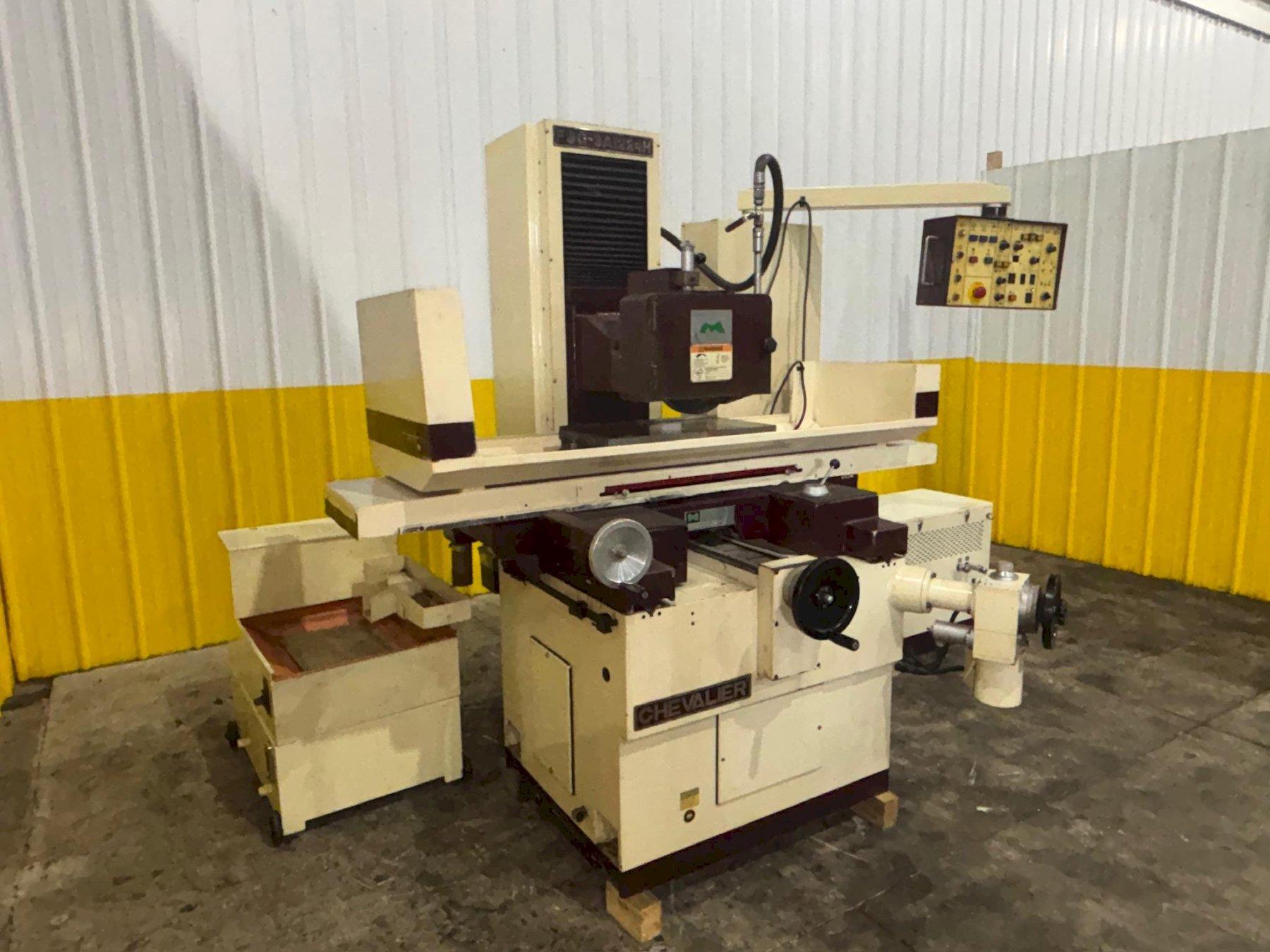

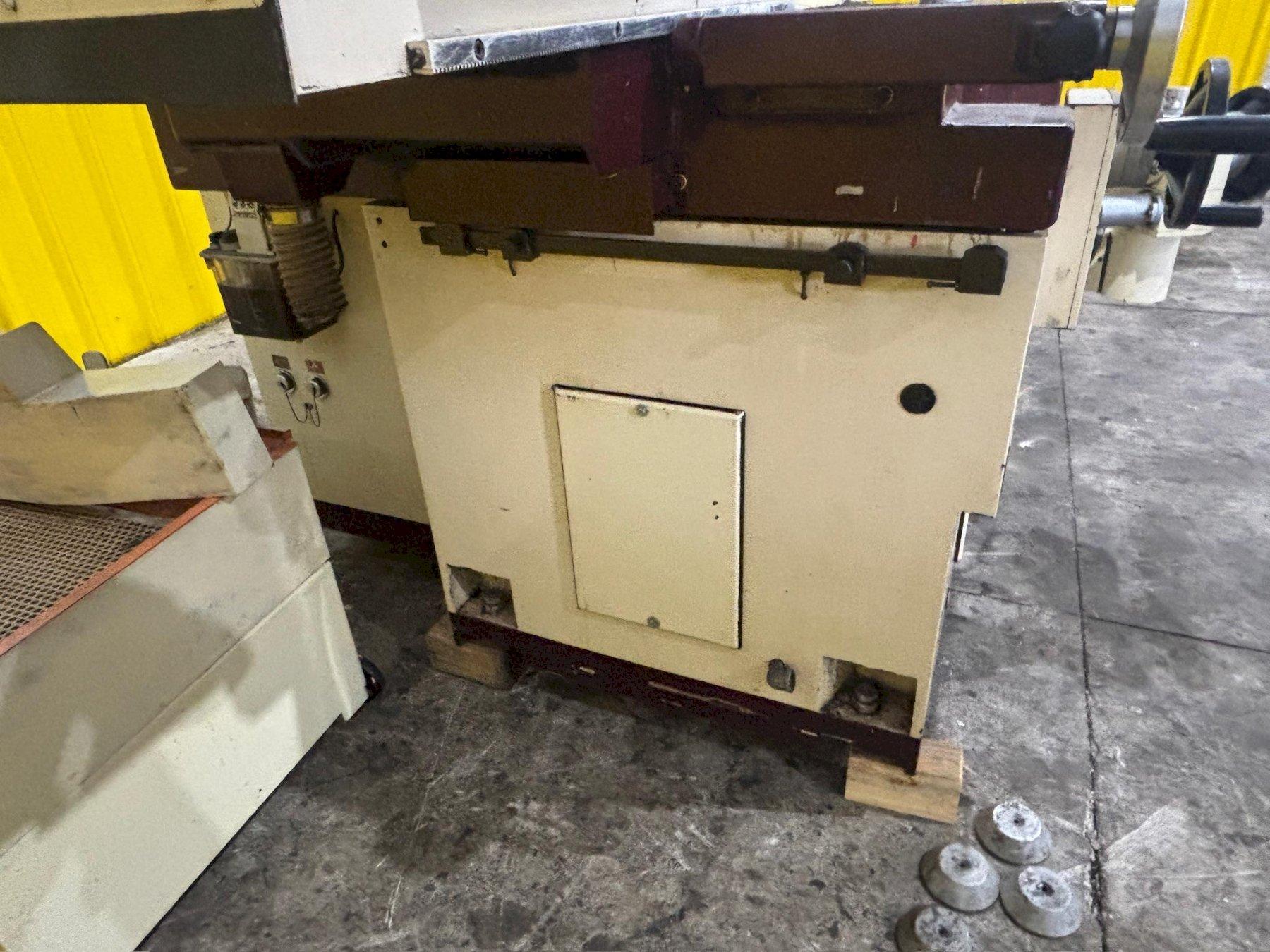

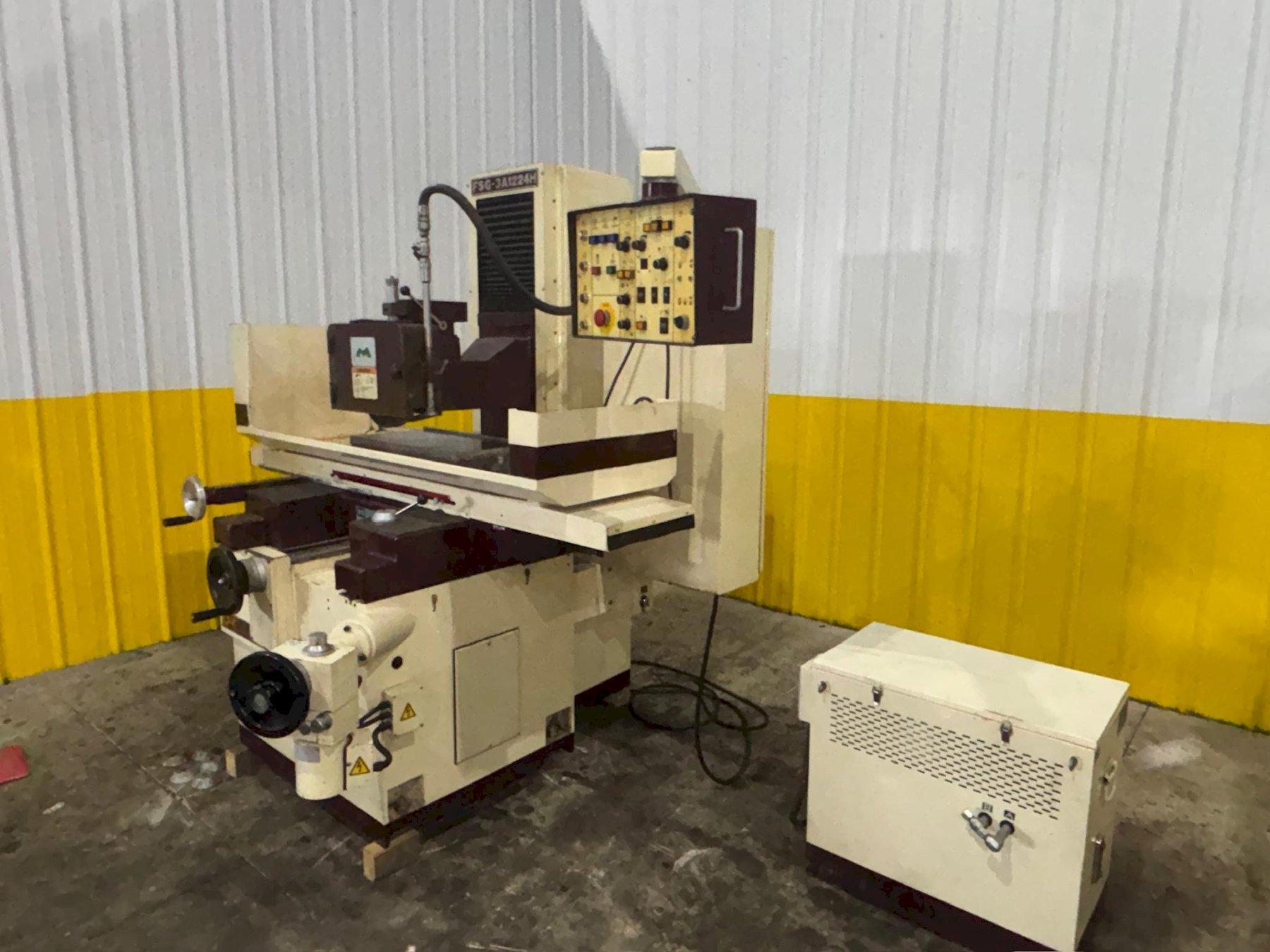

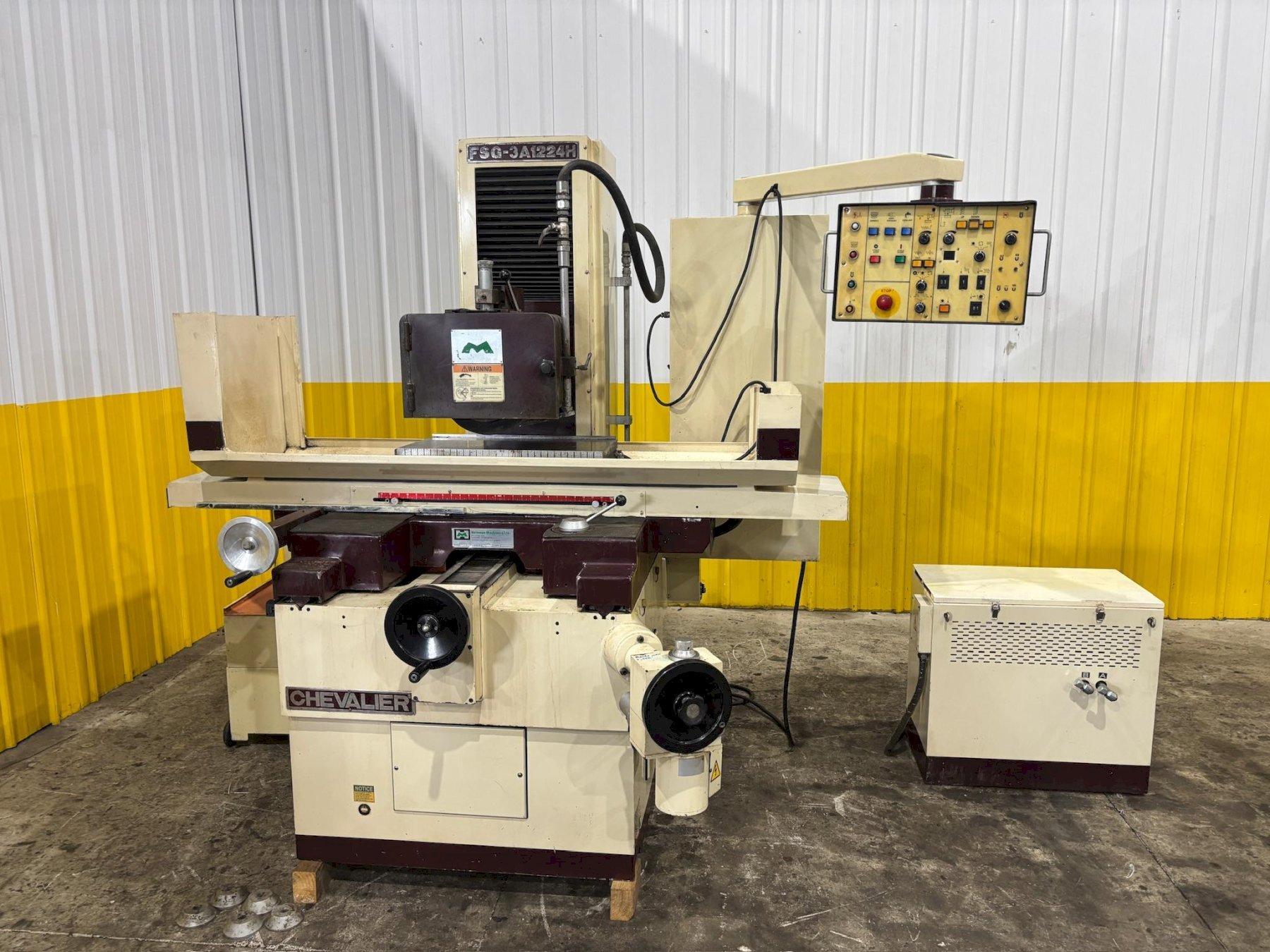

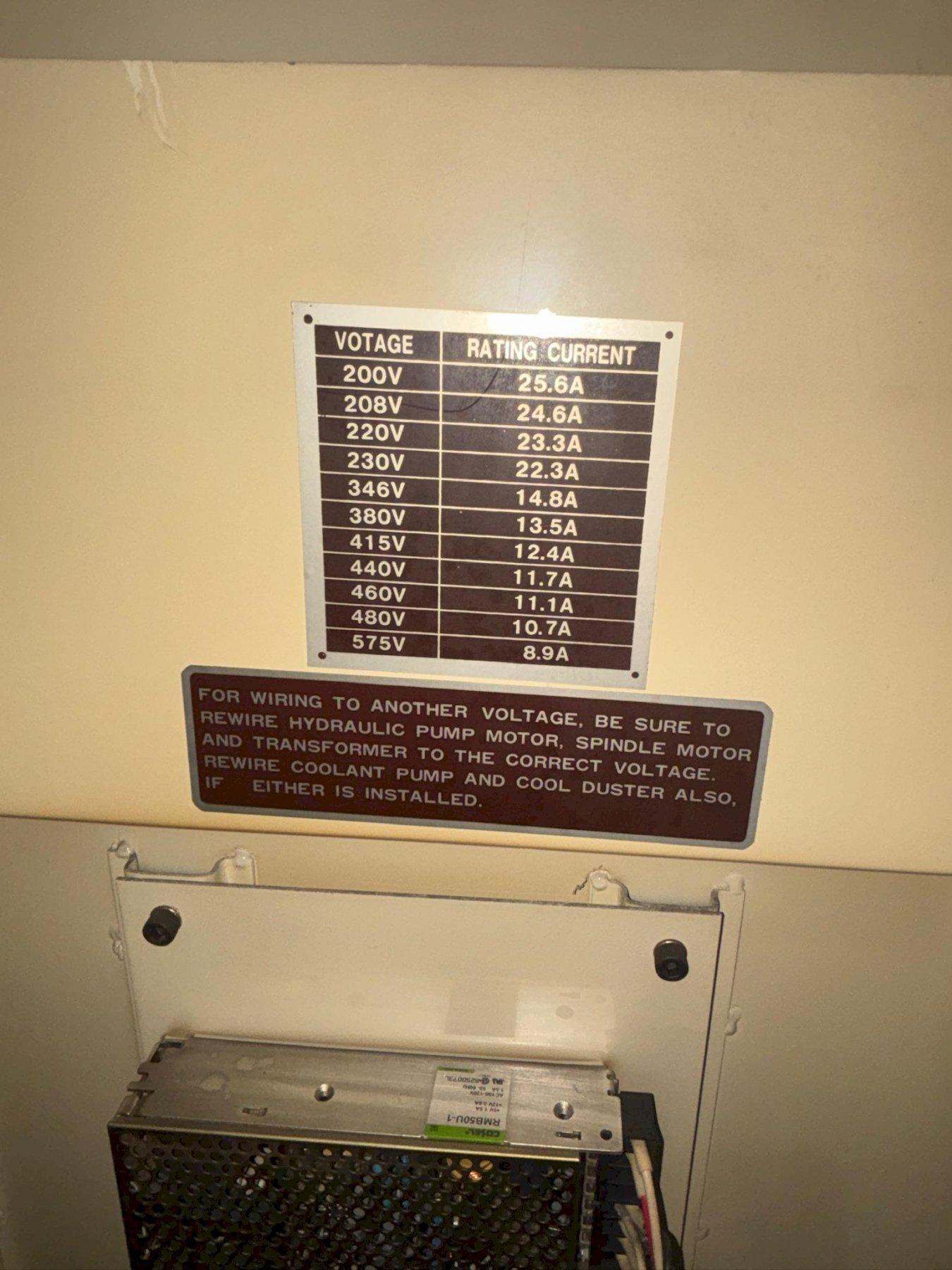

12" X 24" CHEVALIER MODEL #FSG-3A1224H 3 AXIS AUTOMATIC HORIZONTAL SURFACE GRINDER: YOBRO #24048

Manufacturer

CHEVALIER

Category

Grinding Machines

Type

GRINDERS, GENERAL

Stock

24048

Model

FSG-3A1224H

Dealer Location

Ohio

Request a Quote
View Contact Information

Spec Sheet



MODEL ................................... FSG-3A1224H

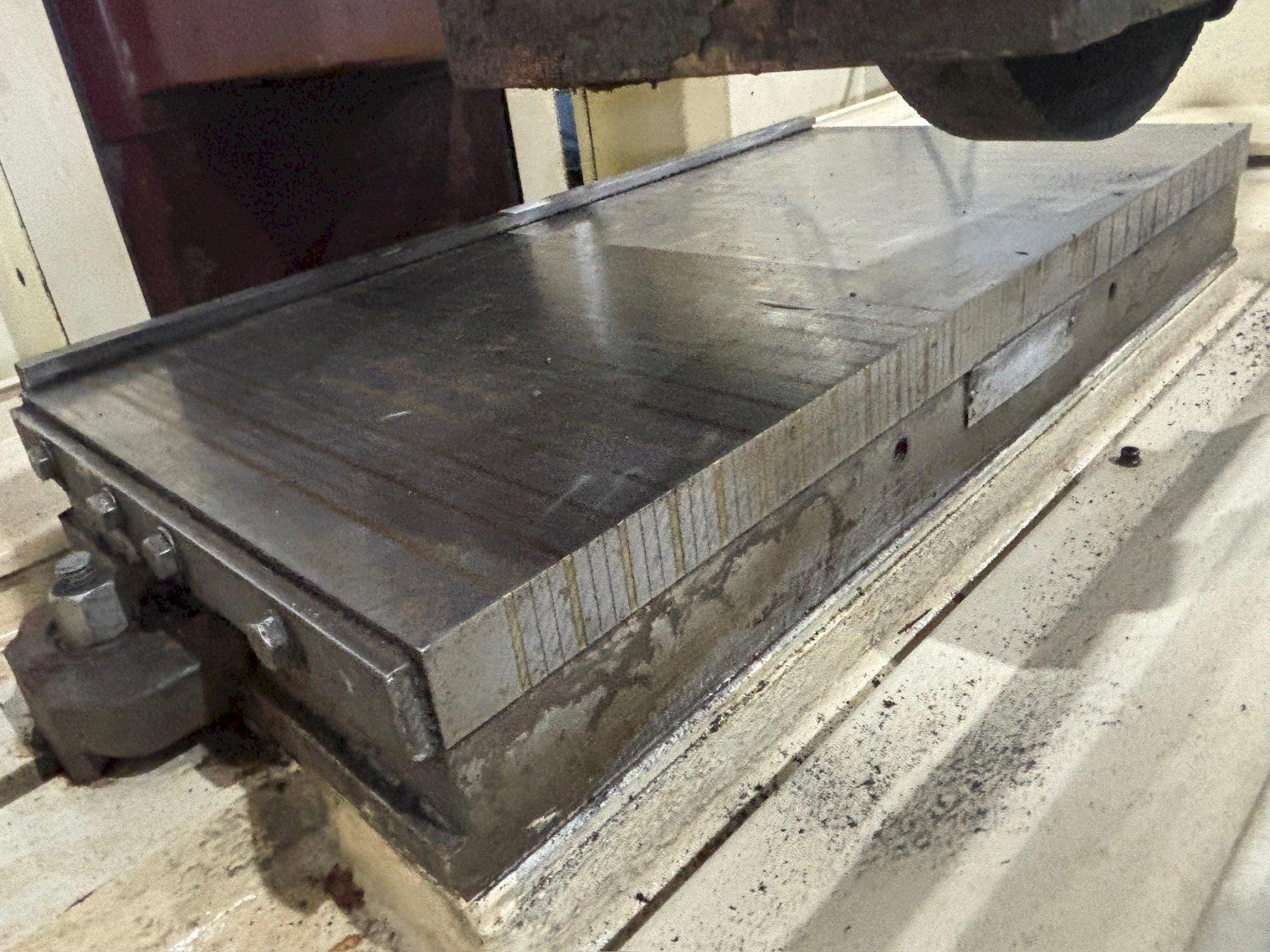

Table Size .............................. 12″ x 24″
Distance From Table To Spindle Center ... 24-3/4″
Longitudinal Movement ................... 25-5/8″ (Hydraulic)
Max. Travel ............................. 27-1/2″ (Manual)
Table Speed ............................. 16 TO 82 FPM (Variable)
Rapid Travel ............................ 56 IPM
Auto Transverse Increment ............... .04 TO .5″
Auto Transverse Travel .................. 14-1/8″
Manual Transverse Travel ................ 14-1/2″
Automatic Infeed ........................ 0.0001″ TO 0.0002″

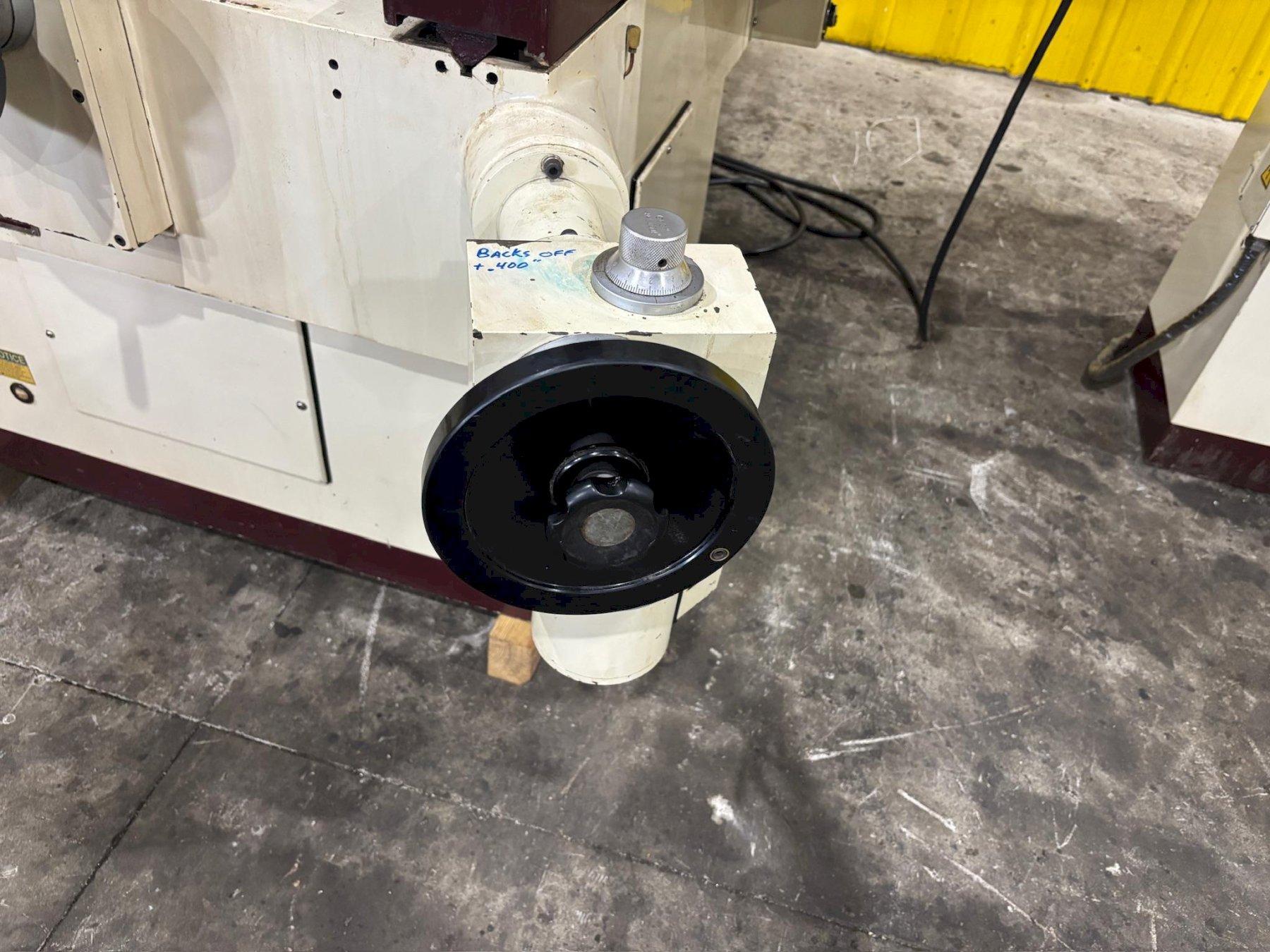

Hand Wheel / Revolution ................. 0.1″
Hand Wheel / Graduation ................. 0.0005″
Rapid Travel ............................ 13 IPM

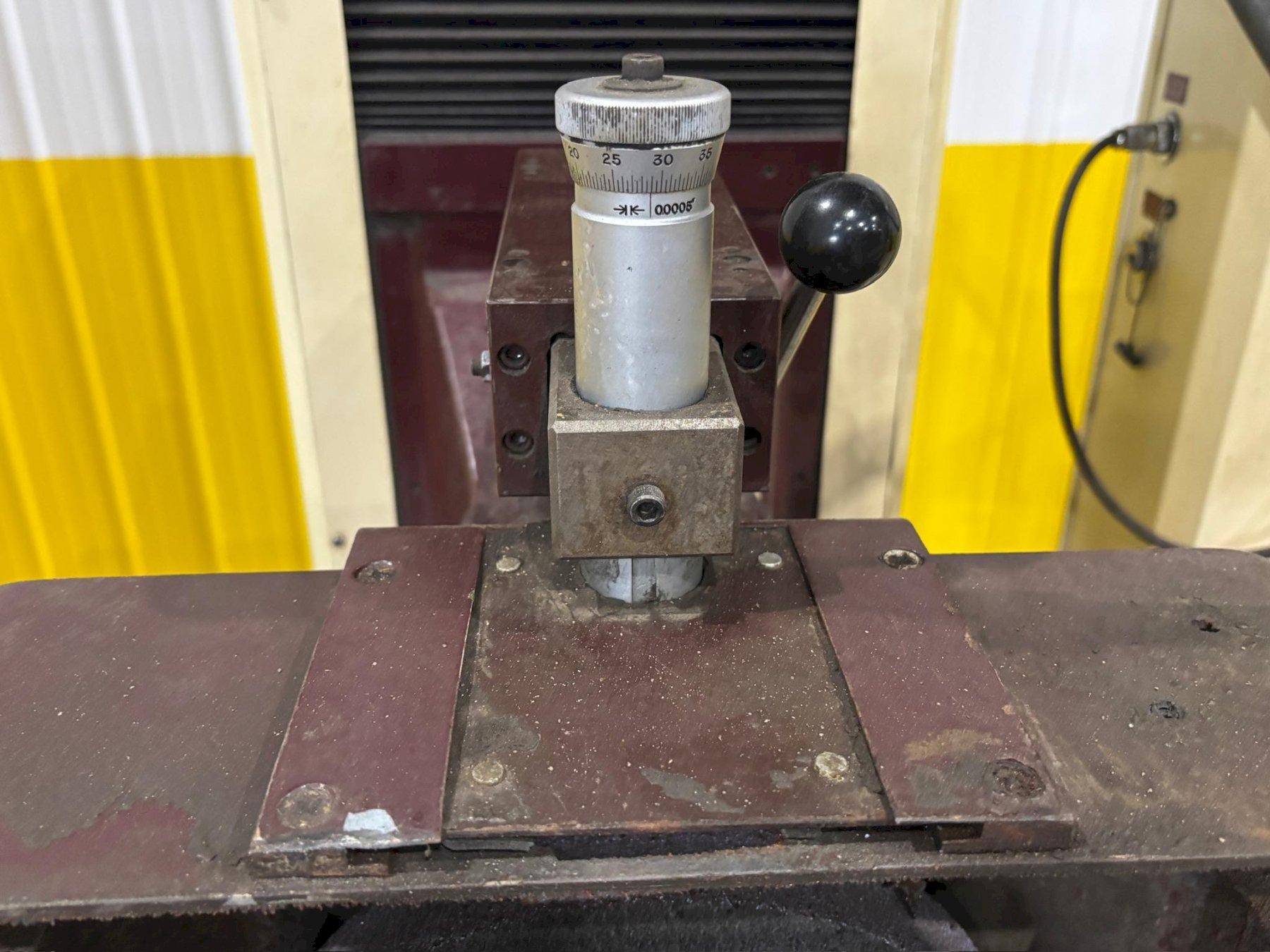

Micro Feed / Revolution ................. 0.01″
Micro Feed / Graduation ................. 0.0001″

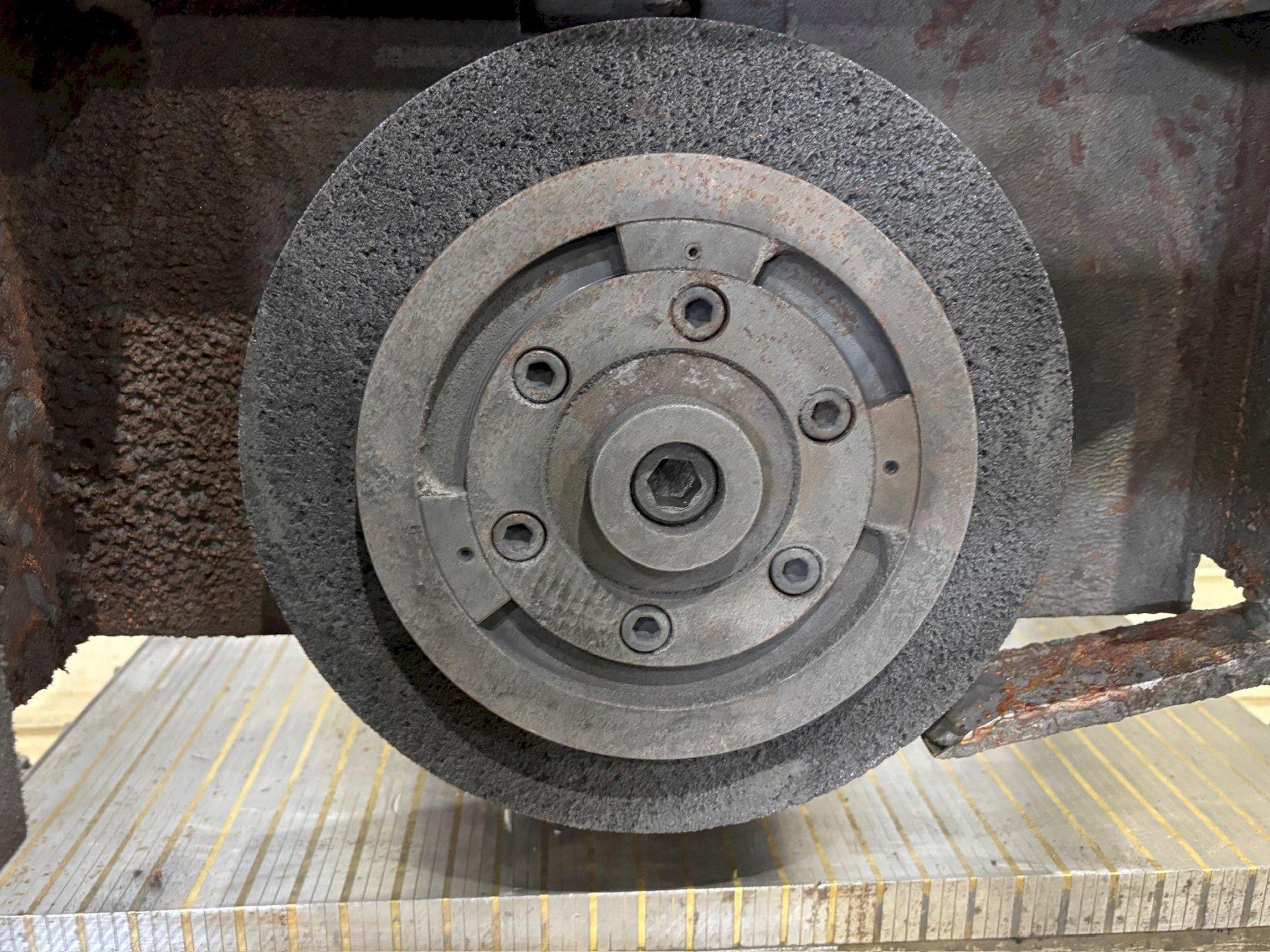

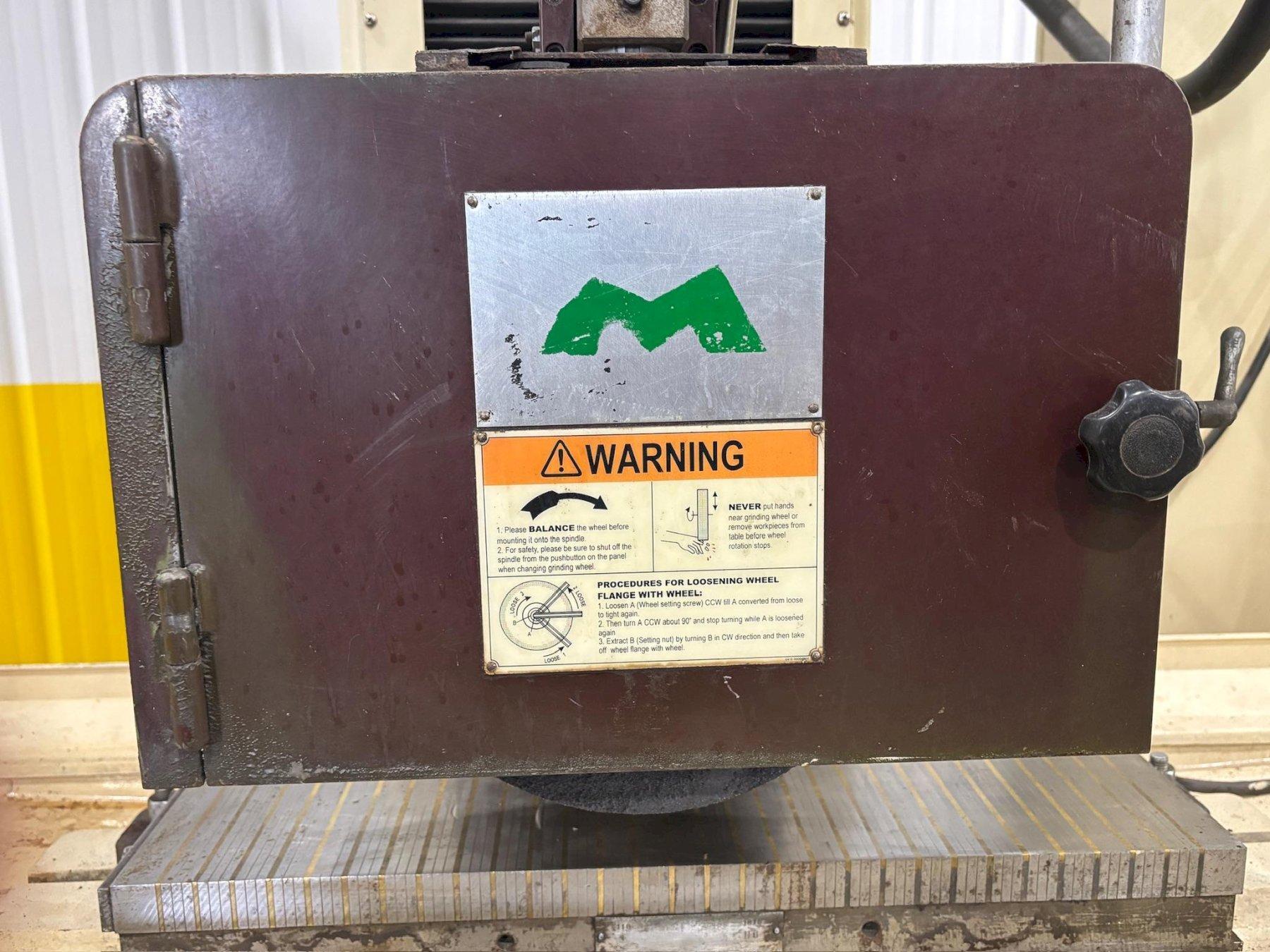

Standard Grinding Wheel ................. 2″ x 14″ x 5″

Standard Features:
- High precision cartridge type spindle equipped with 4 pieces of class 7 angular contact ball bearings, suitable for heavy duty grinding

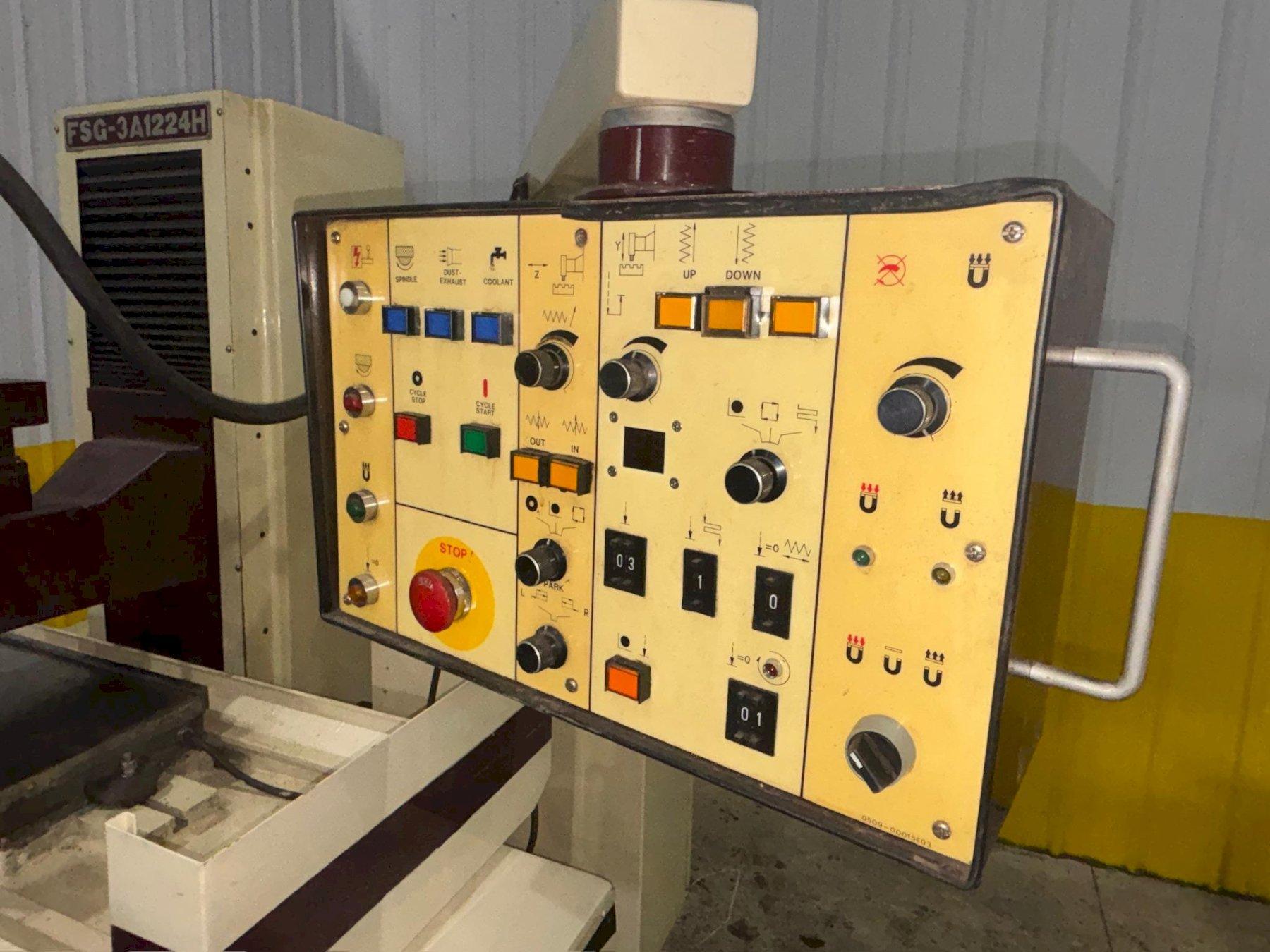

- 3-Axis fully automatic with surface and plunge grinding cycles

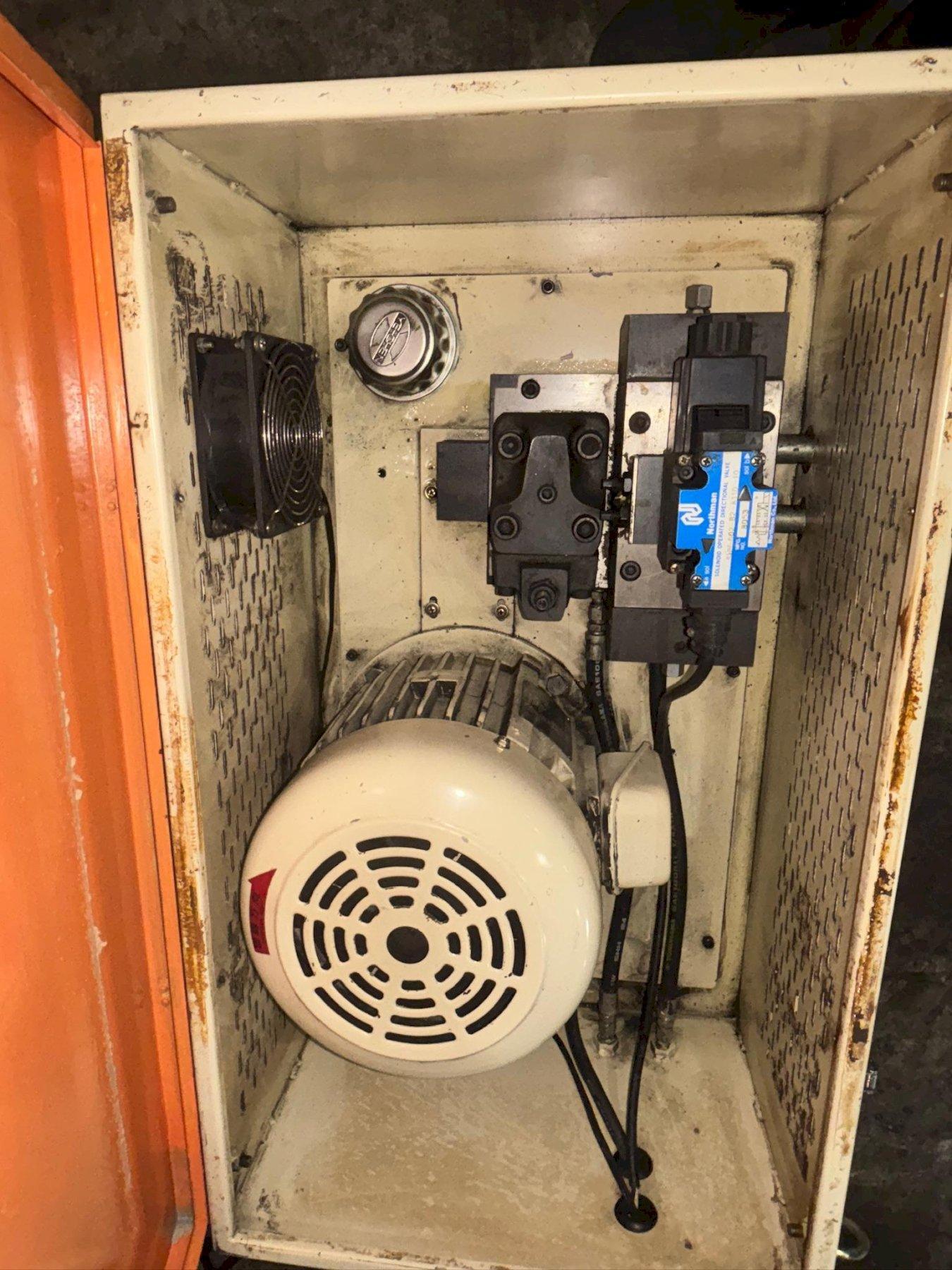

- Separate hydraulic system prevents vibration and reduces heat transference
- Saddle travels on Turcite-B coated and hand scraped double V guideways
- Meehanite cast iron
- Wheel head rises up automatically and table parks at left or right side after cycle is completed

Mechanical Specifications:
Dimensions ............................... 105″ x 72″ x 75″ H
Weight ................................... 4,630 lbs.
