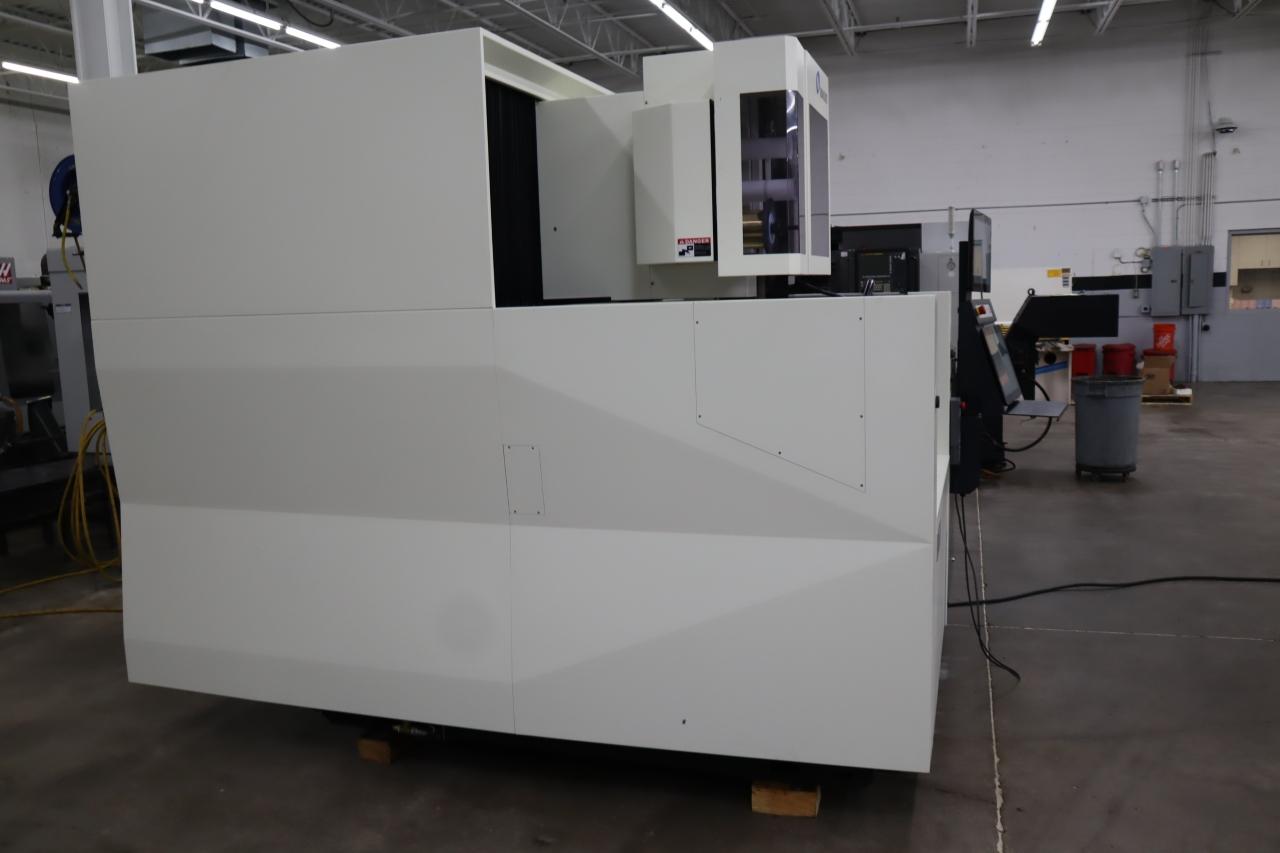

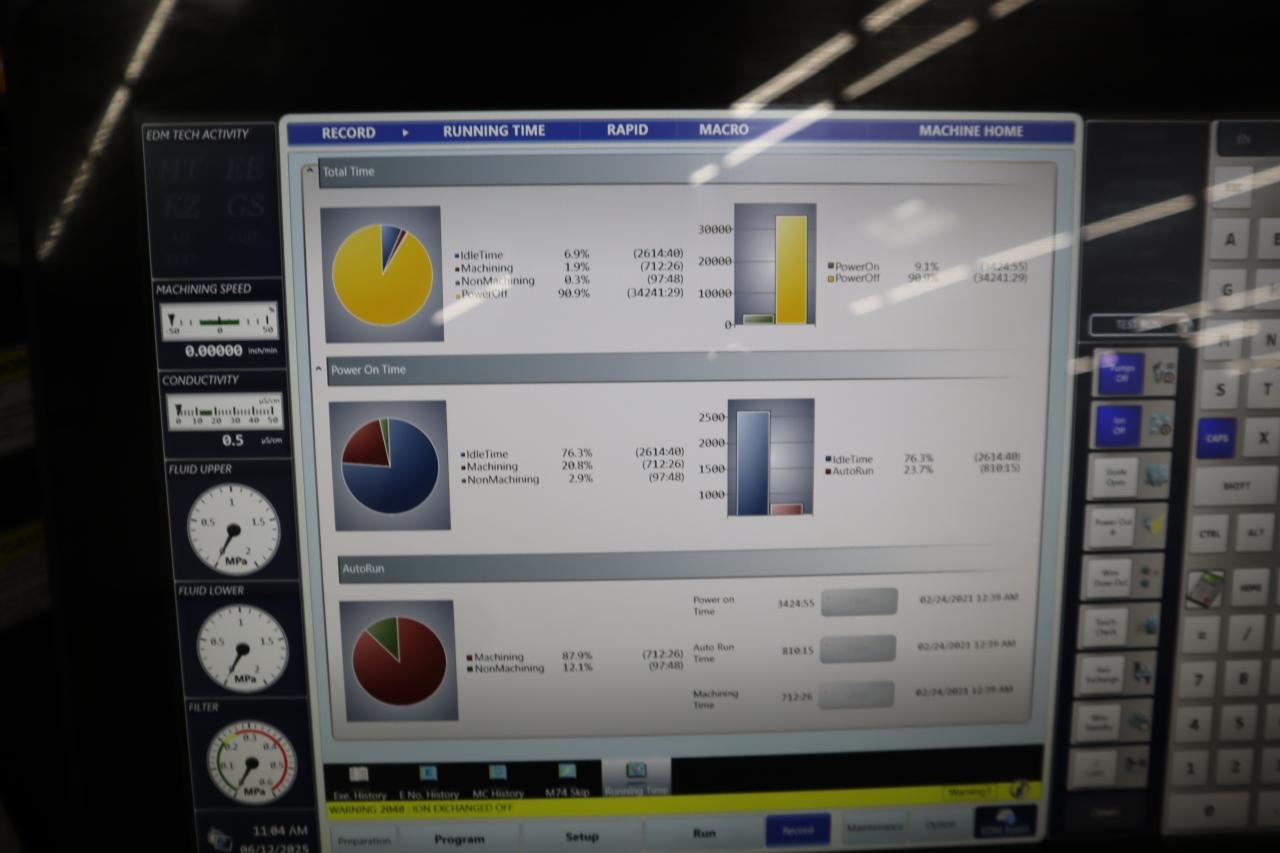

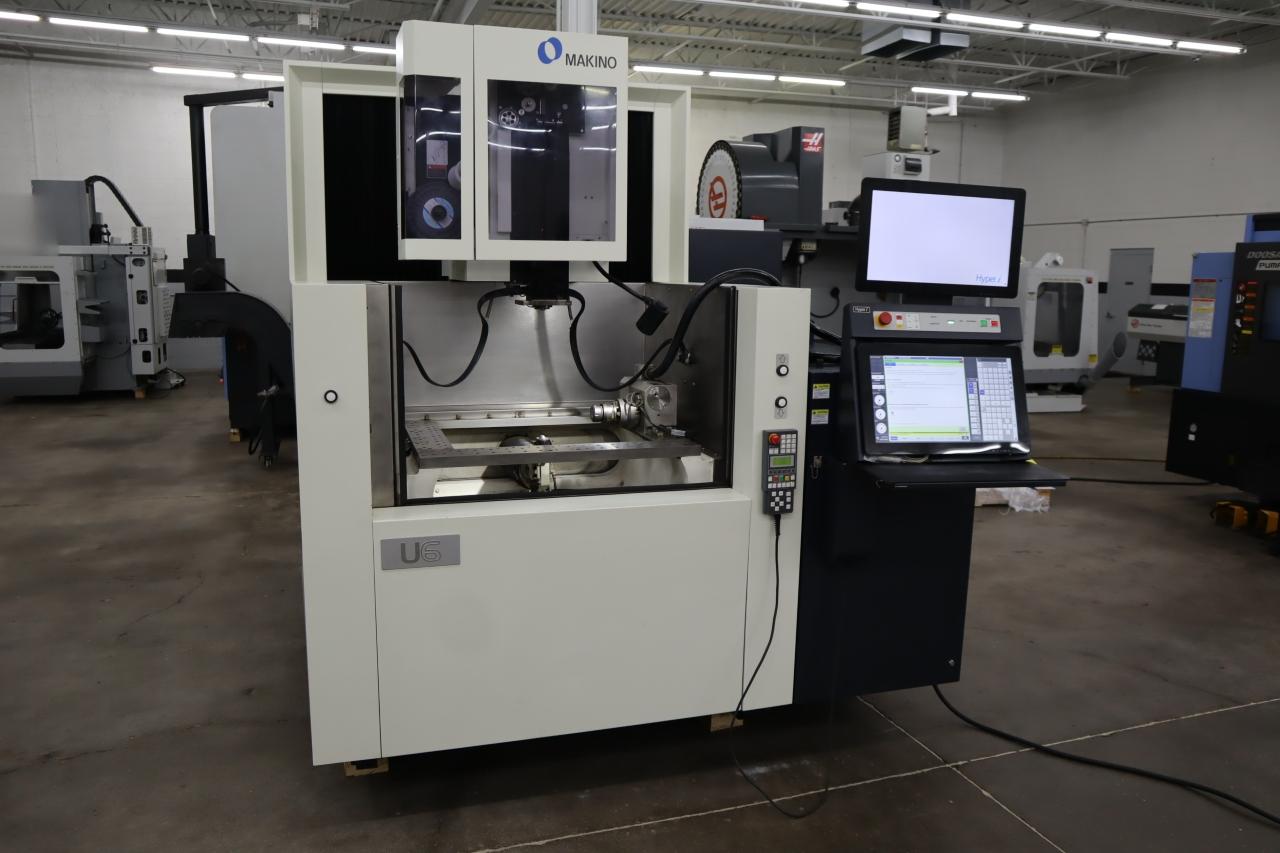

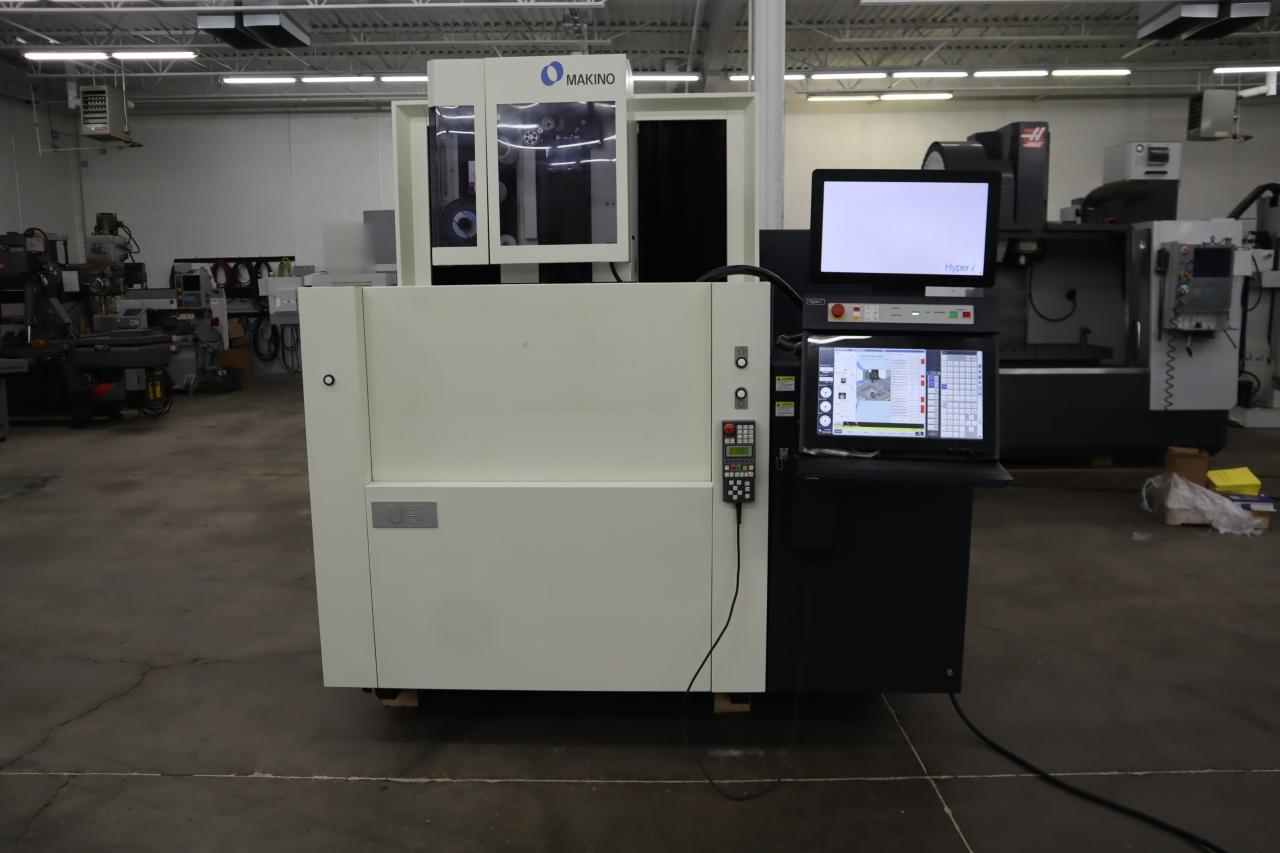

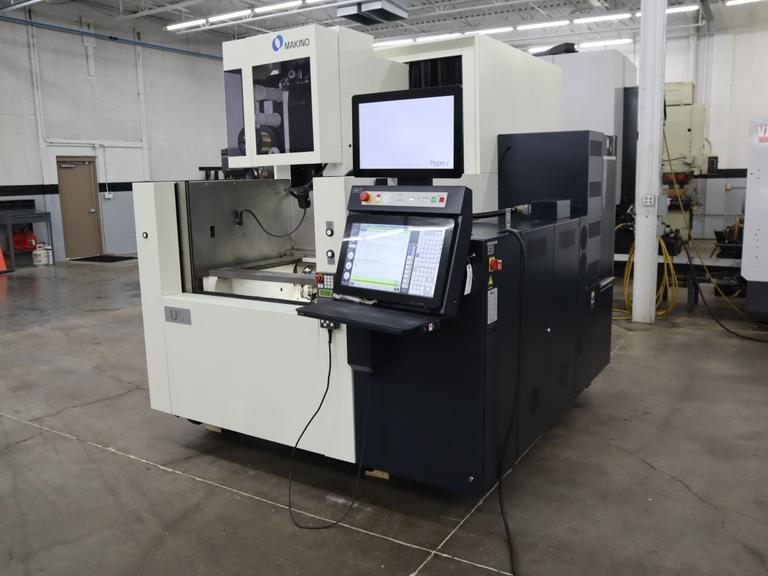

Makino U6 B CNC Wire EDM Electrical Discharge Machine, Hyper i Control, Programmable MMK Rotary Table, Auto Thread, Dielectric System - Only 712 Machining Hours!

Manufacturer

Makino

Category

EDM Machines

Type

ELECTRIC DISCHARGE MACHINES, WIRE, CNC

Stock

C1004

Model

U6

Dealer Location

Minnesota

Request a Quote
View Contact Information

Spec Sheet

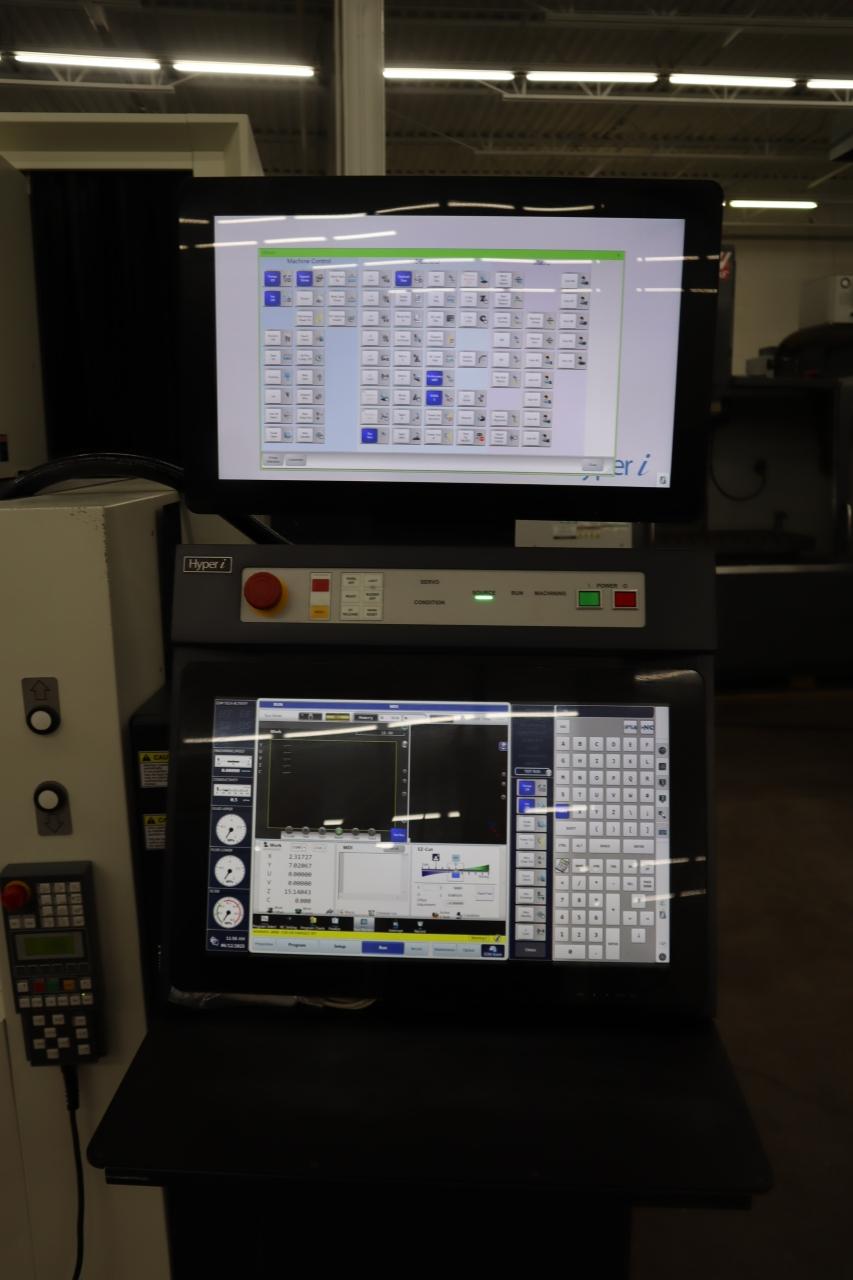

Control: Makino Hyper i CNC Control

Inside Tank Dimensions: 42.13" x 34.65" x 17.91"

Travels (X,Y,Z): 25.9" x 17.71" x 16.53"

UV Travels: +/- 2.95"

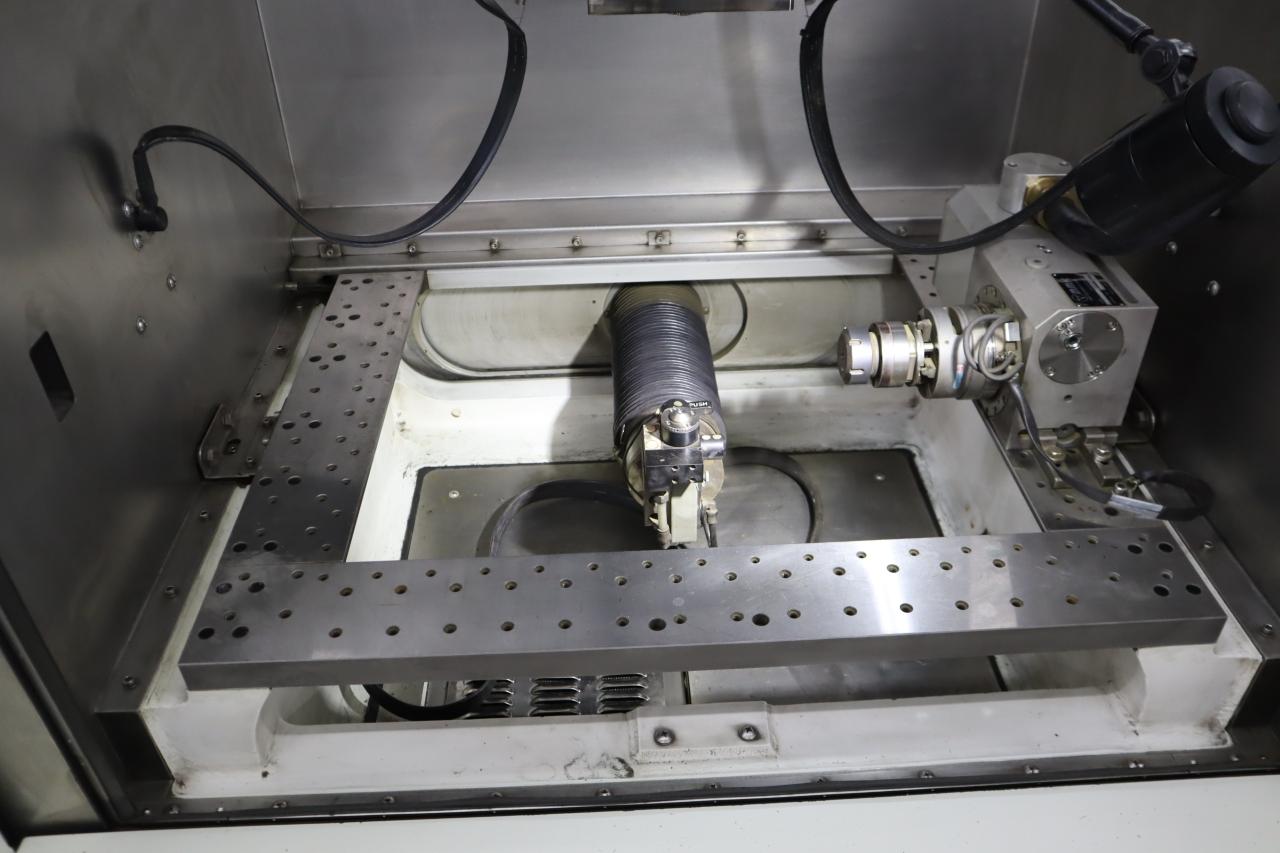

Work Table Size: U-Shaped 3-Sided: 35.8" x 28"

Taper Angle: +/- 15 Degrees / 3.94" Thickness

Max Workpiece Weight: 3,306 Lbs.

Wire Diameter: .004" - .012"

Rapid Traverse Rate: 78.74 IPM

Servo Feedrate: .00039 - 1.97 IPM

Wire Speed: .02 -14.17 In/Second Wire Feedrate

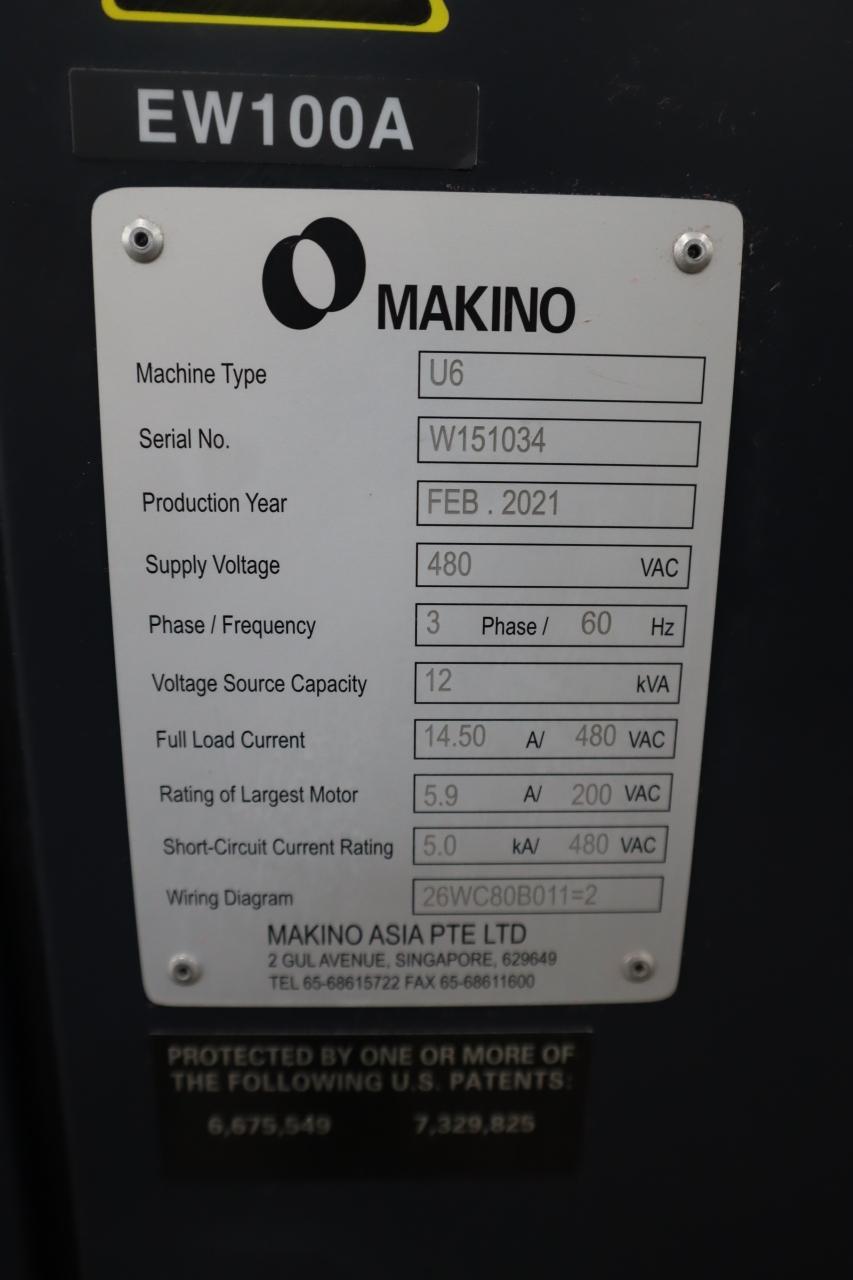

Power Supply Amps: Hyper i (EW100A) 30 Amp Power Supply

Dielectric Fluid Capacity: 243 Gallons

Description:

The Makino U6 Wire EDM delivers precision, efficiency, and advanced cutting technology for complex parts. Machinesused.com buys, sells, consigns, and auctions used Makino U6 EDM machines, providing reliable solutions for manufacturers seeking high-performance EDM equipment

Equipped With:

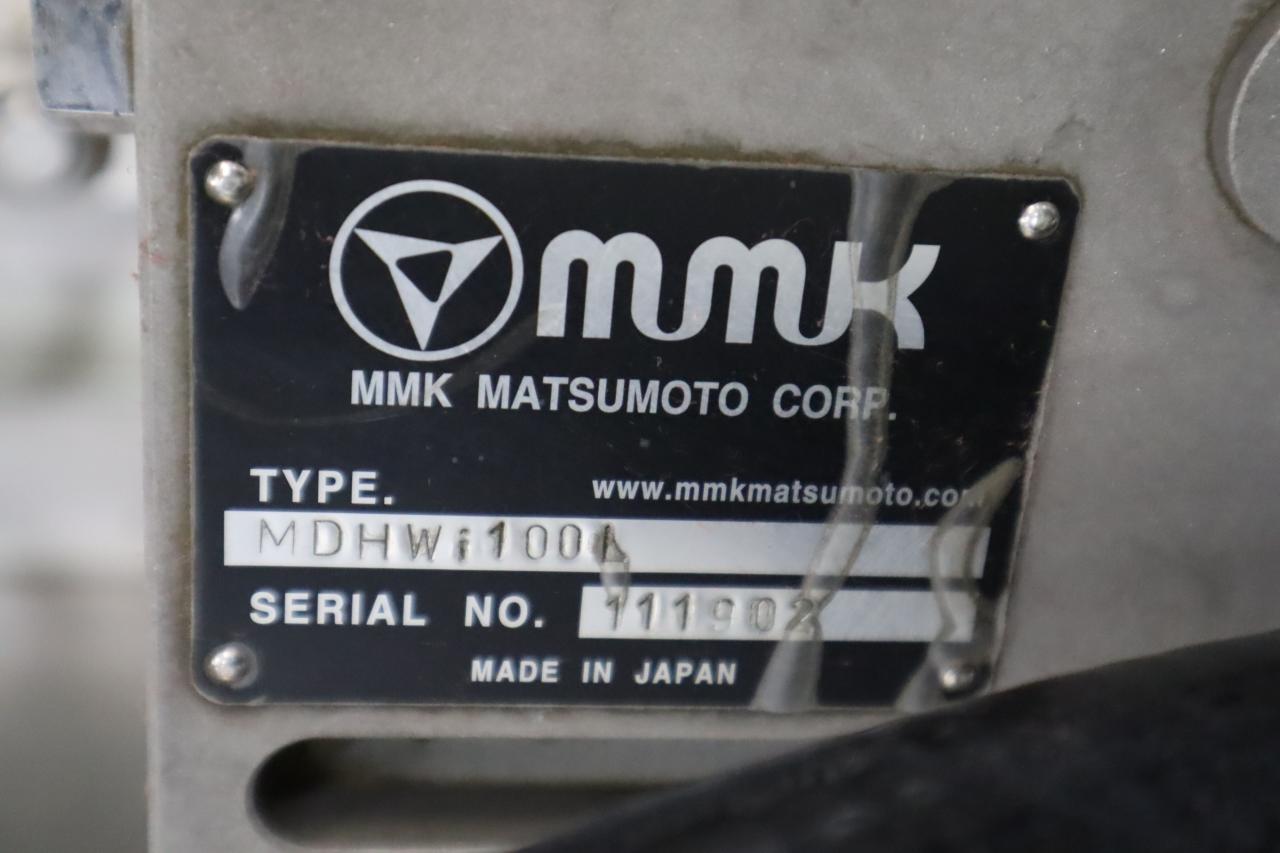

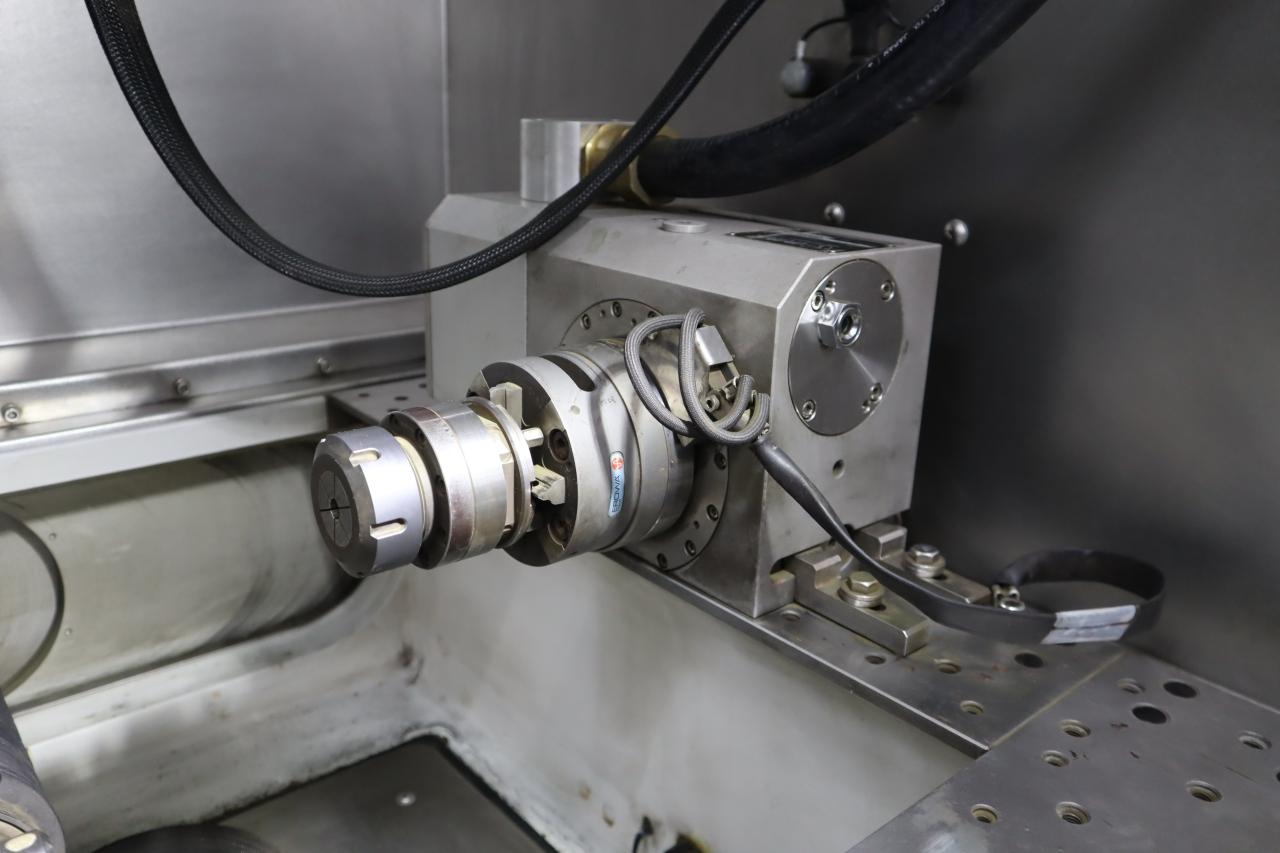

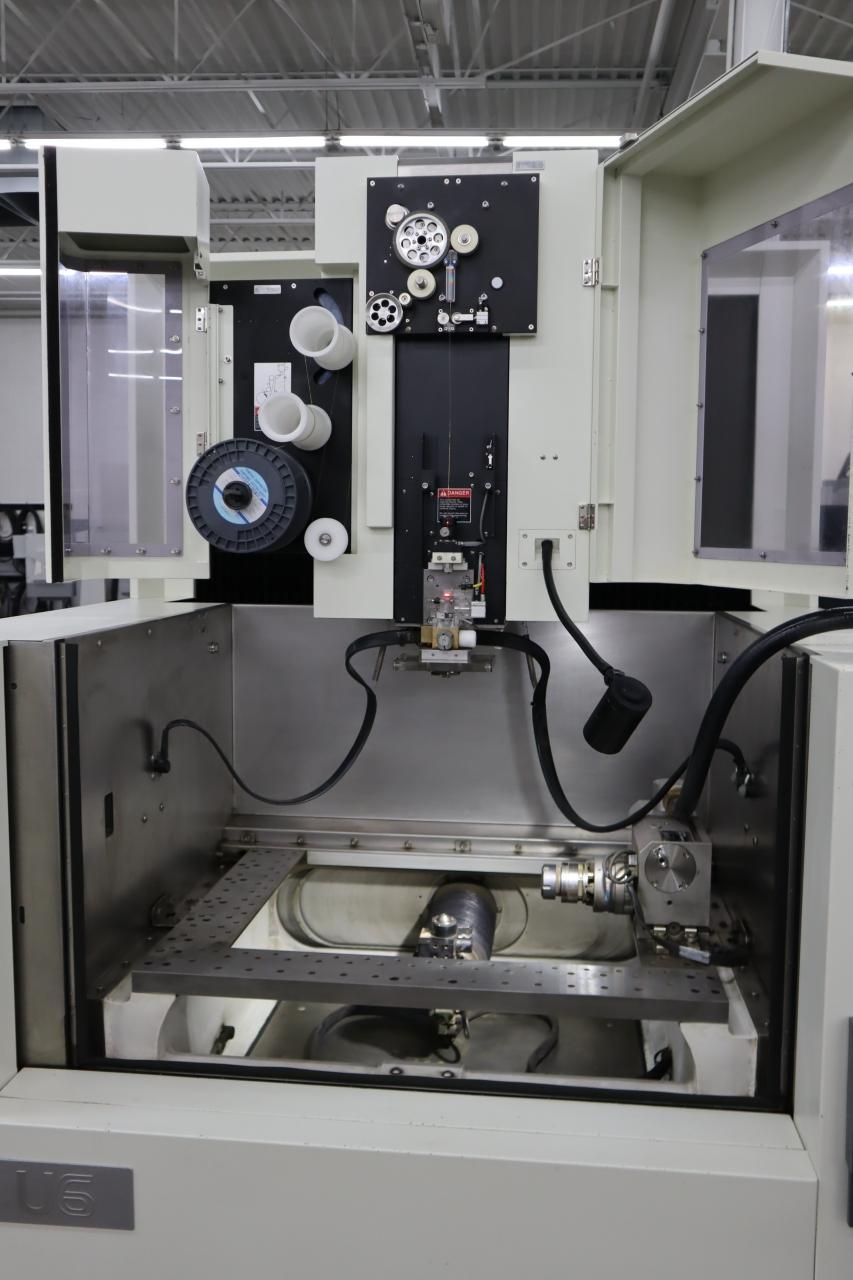

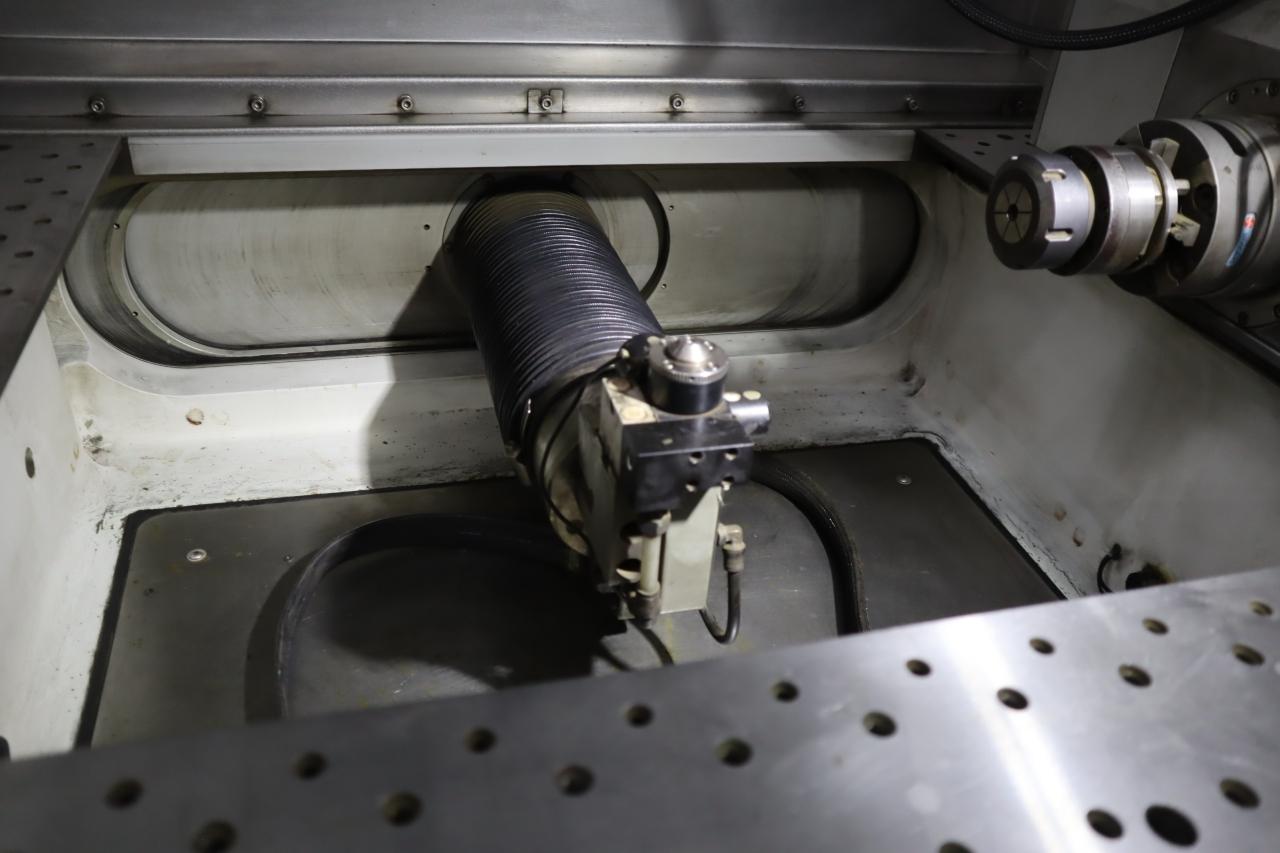

Hyper i CNC Control, C-Axis Programmable, X/Y Scale Feedback, Dual Monitors, PICO Round Wire Guide System, MMK MDHWi100L Programmable Rotary Table with Axis Drive and Interface, Erowa Collet Chuck with ER40 Flex Collet, Automatic Wire Threader, 35 Lb Wire Spool Capacity, Dielectric System, FIlters, Wire Bin, Chiller

Electrics:

200 Volt, 3 Phase
