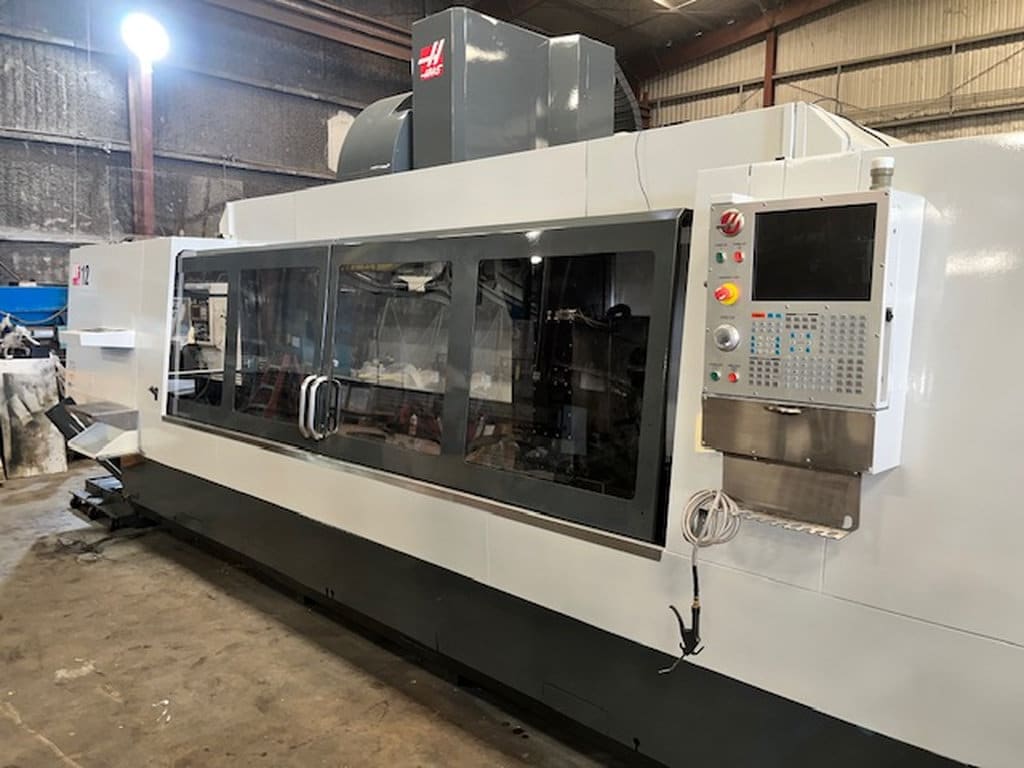

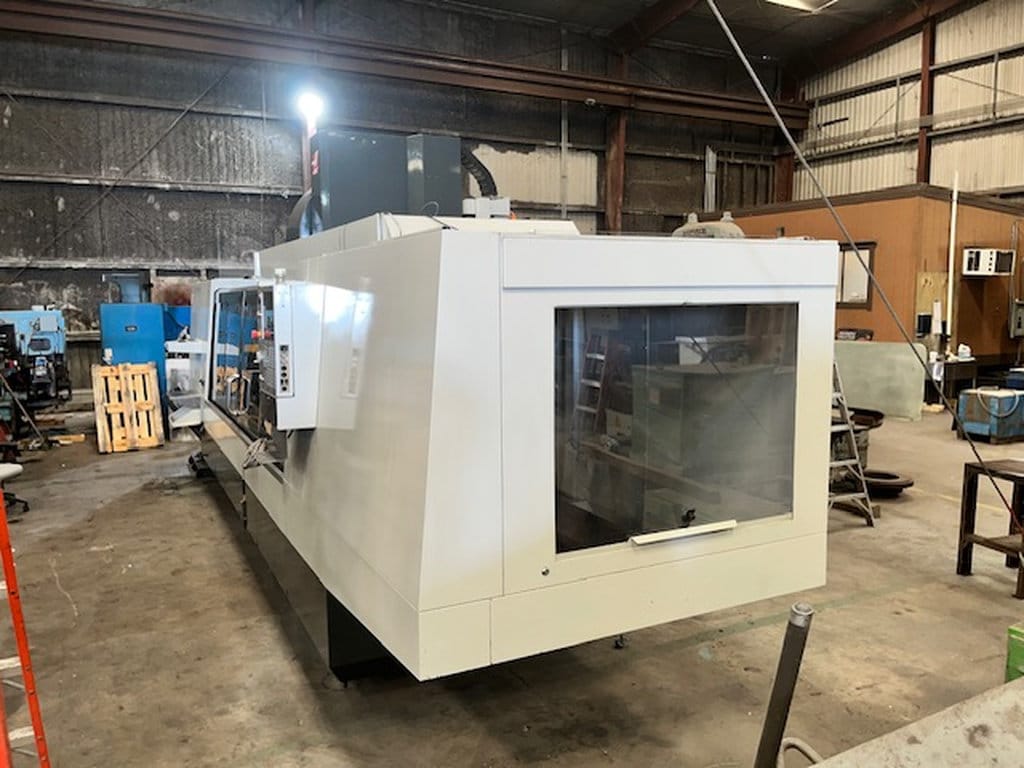

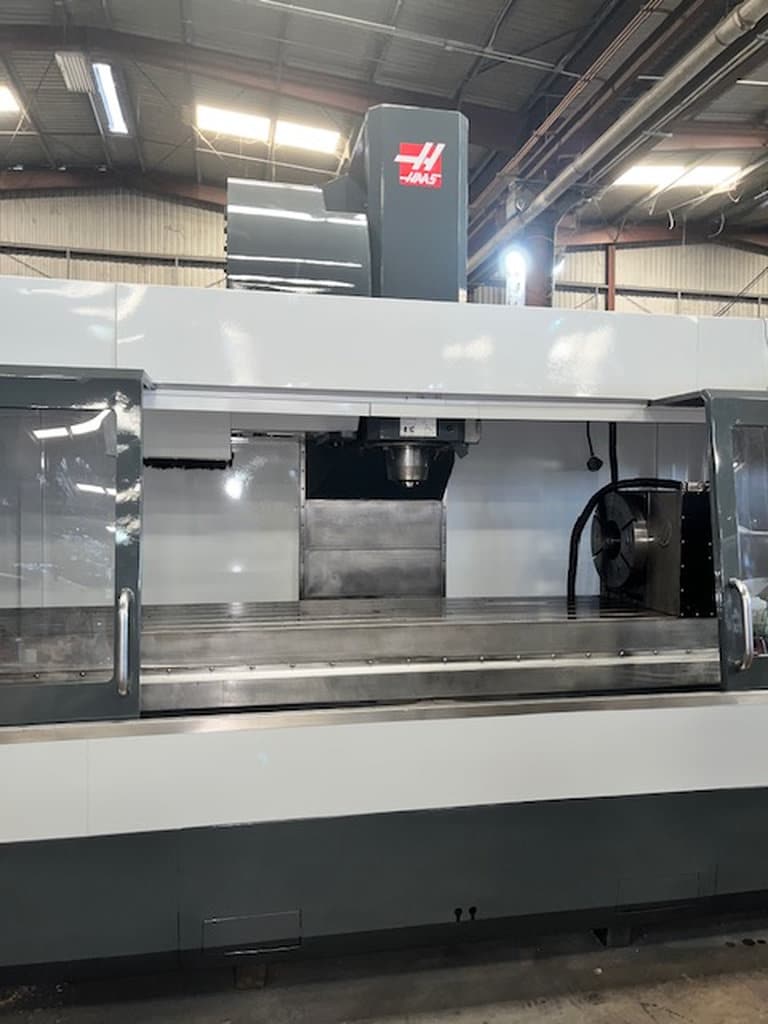

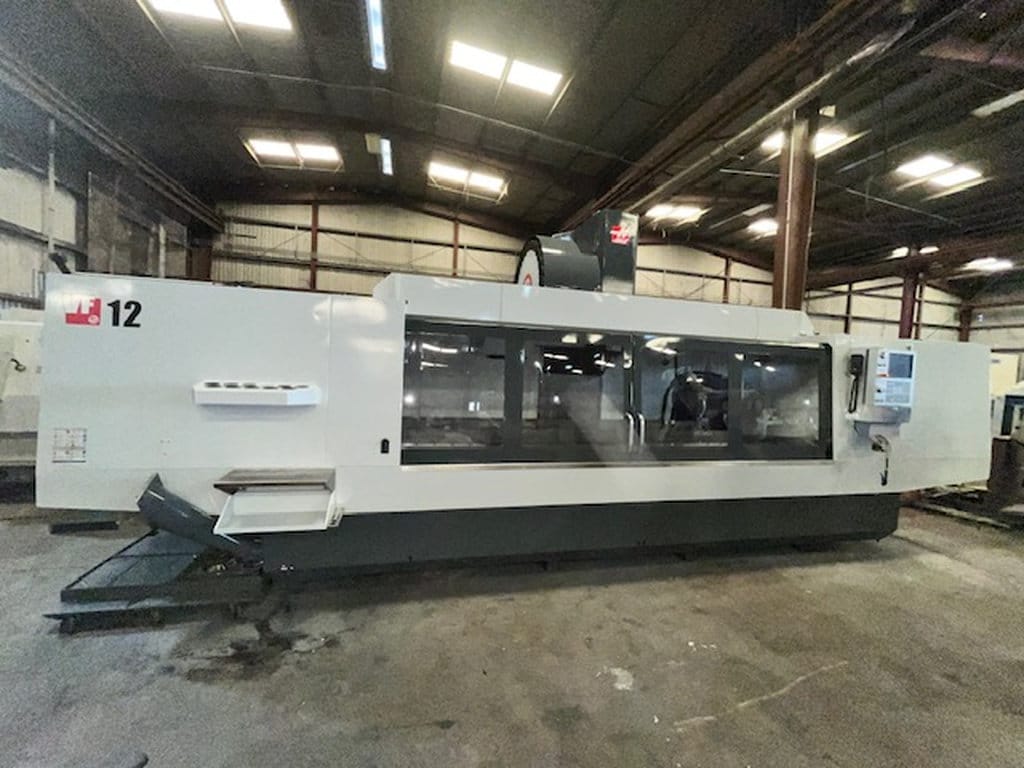

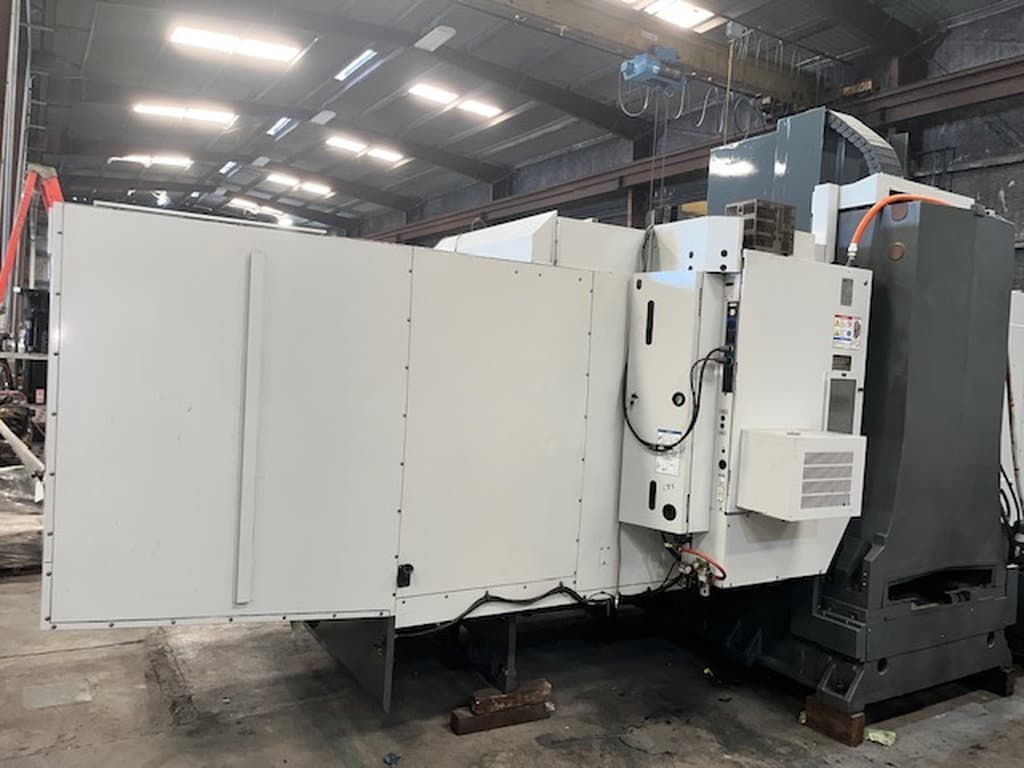

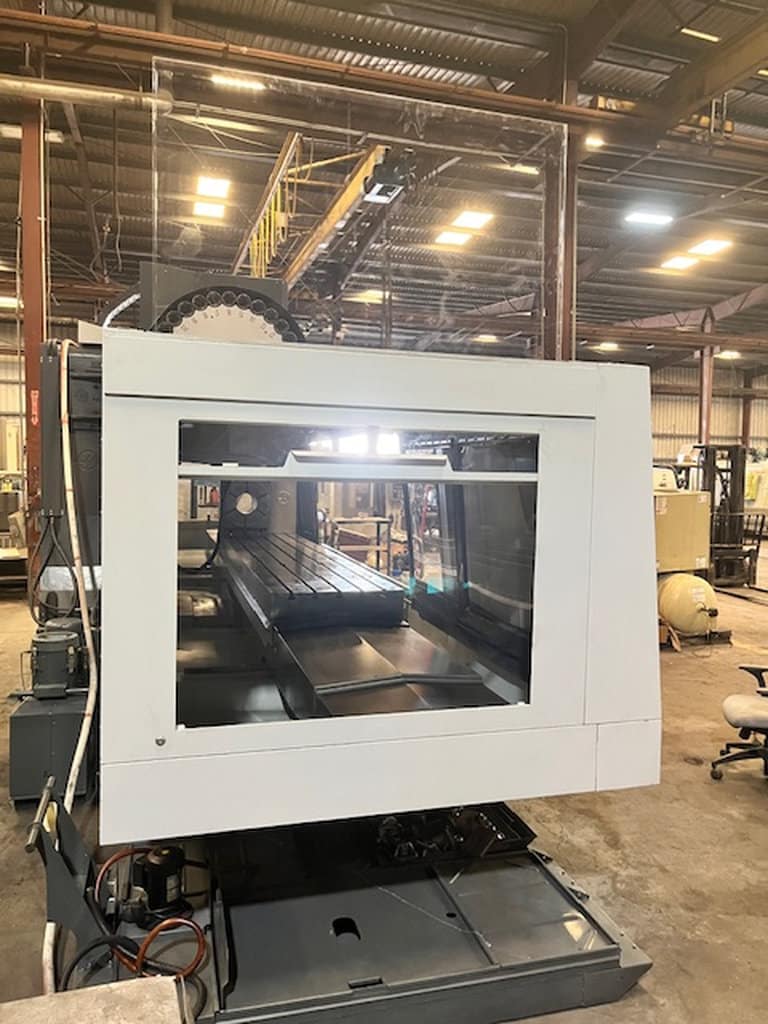

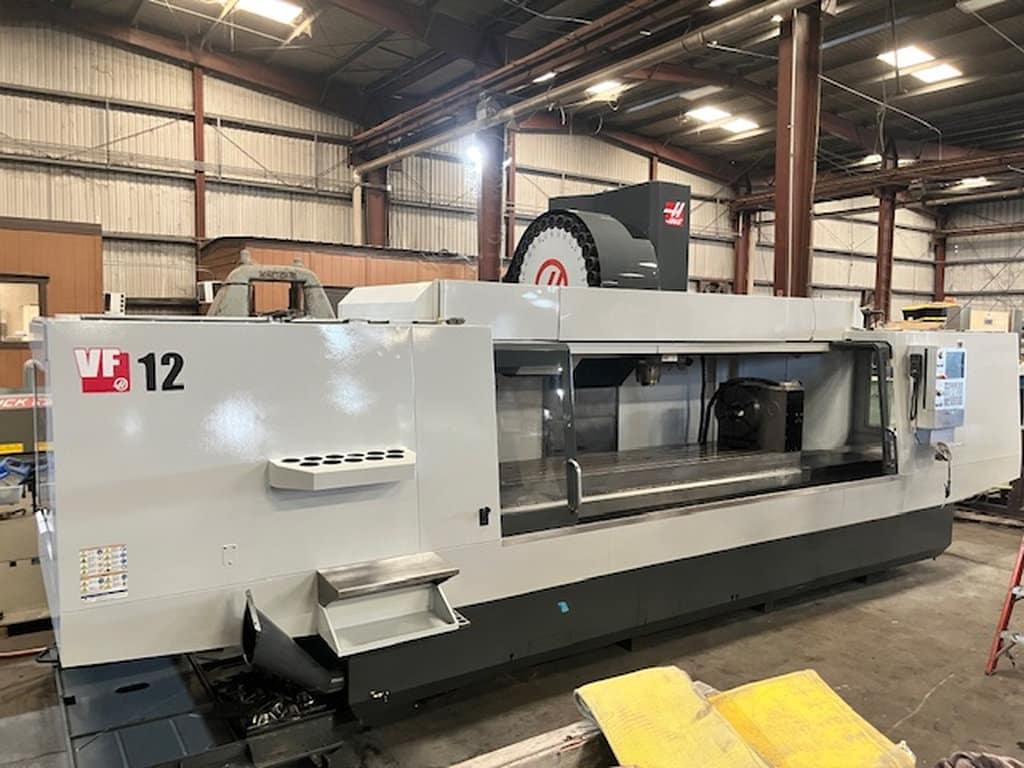

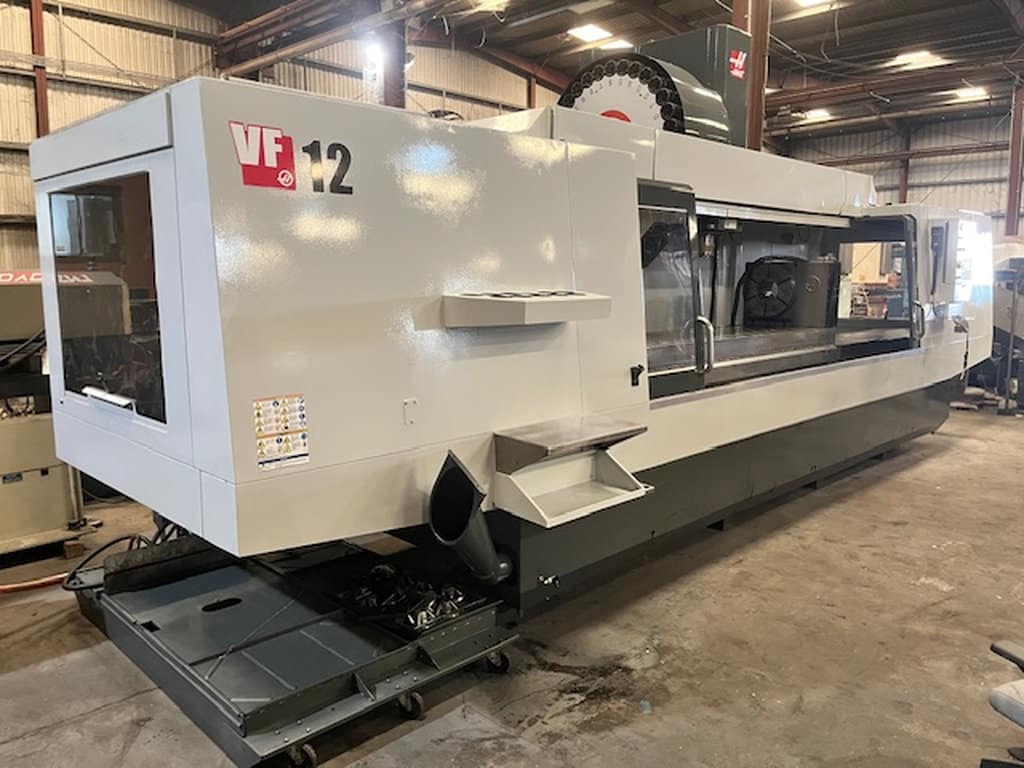

Haas VF-12/50 CNC Vertical Machining Center, VMC w/ HRT-450 4th-Axis Rotary Table (2014)

Manufacturer

Haas

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, (Multiple Spindle)

Stock

143250010

Model

VF-12/50

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 143250010
  • Location: Houston, TX
  • Brand: Haas
  • Model: VF-12/50
  • Year: 2014
  • Approx. Shipping Weight: 40,000 LBS.
  • Approx. Shipping Dimensions: Main Machine: 360″L x 110″W x 130″H Additional Components: 96″L x 96″W x 36″H
  • Skidding Fee: Skidding Unavailable
  • Loading Fee: Loading Included

Specifications

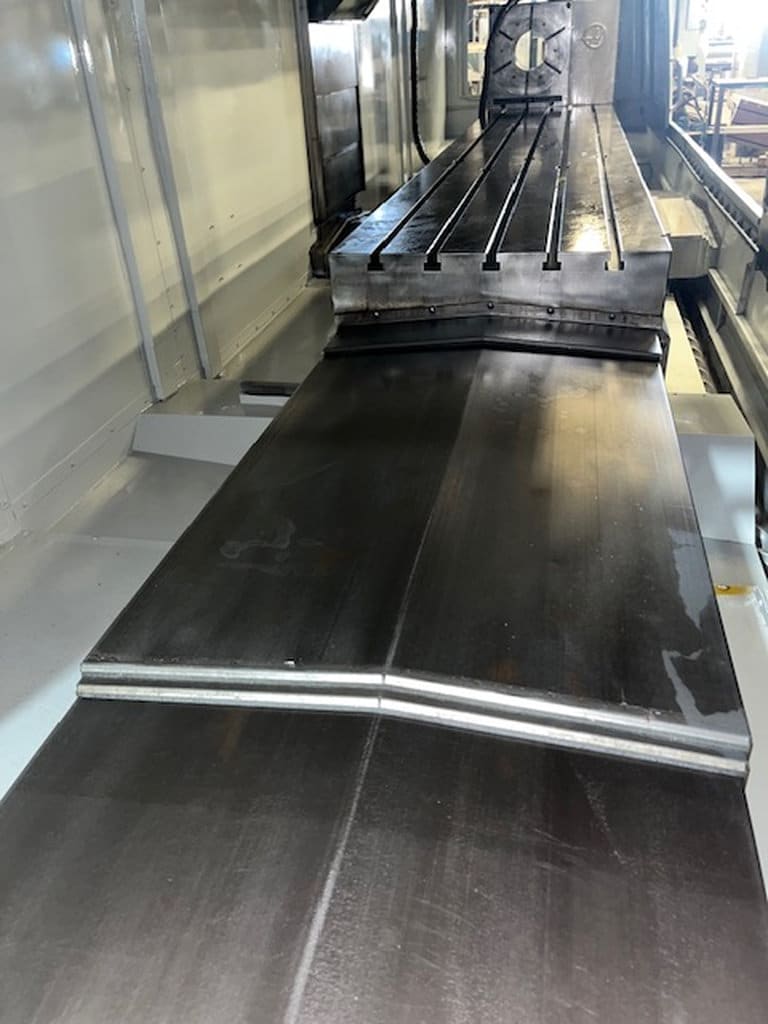

  • Table Dimensions: 150″L x 28″D
  • Maximum Table Load: 4,000 LBS
  • X-Axis Travel: 150″
  • Y-Axis Travel: 32″
  • Z-Axis Travel: 30″
  • Spindle Nose to Table Distance (Min-Max): 4″ – 34″
  • Maximum Spindle HP: 30 HP
  • Maximum Spindle Speed: 7,500 RPM (2-Speed Gearbox)

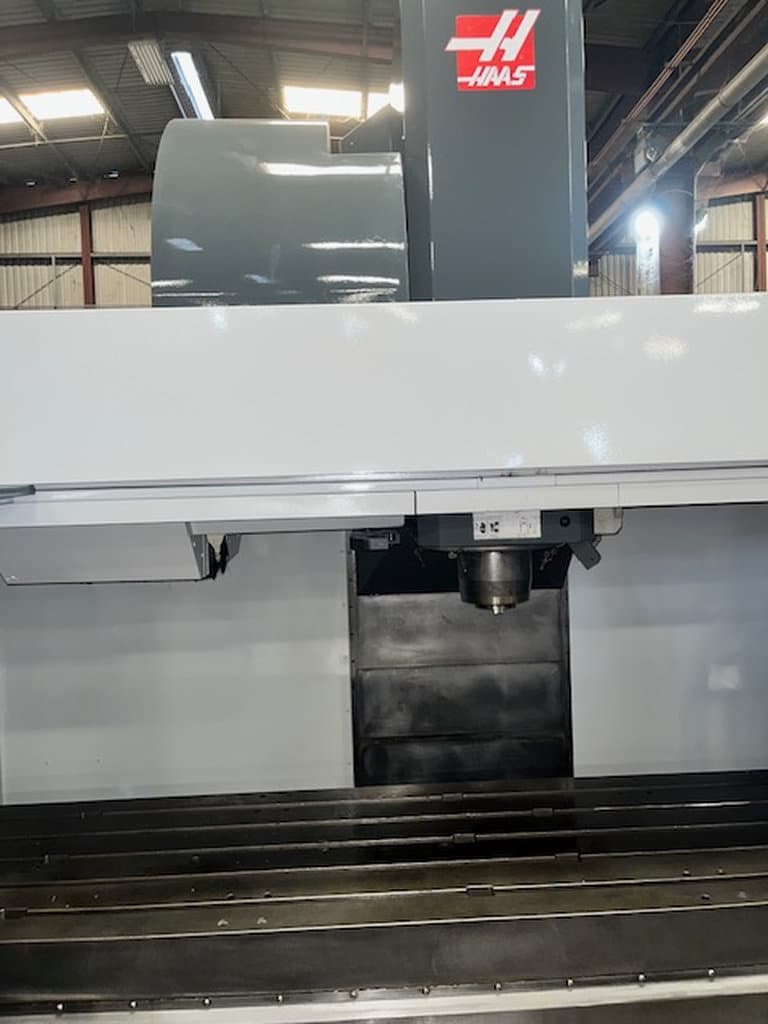

  • Spindle Taper: CT-50
  • Rapid Traverse Rates (X) / (Y,Z): 360 IPM / 600 IPM
  • Side Mount ATC Capacity: 30 + 1
  • Electrical: 230V / 3PH

Equipped With

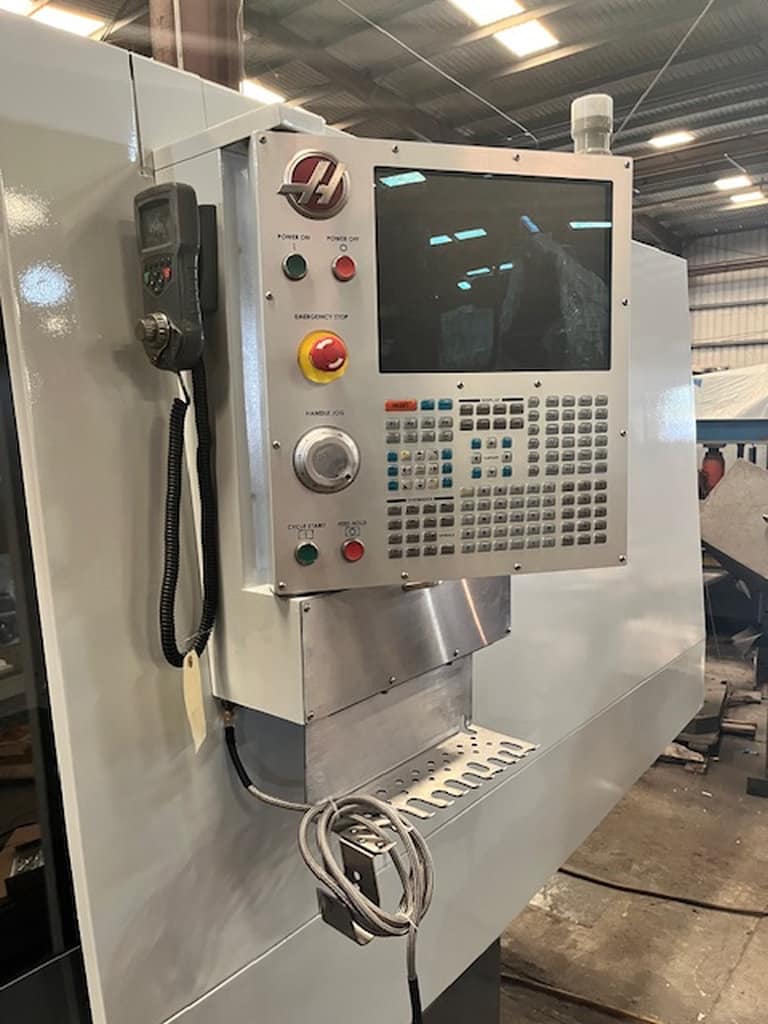

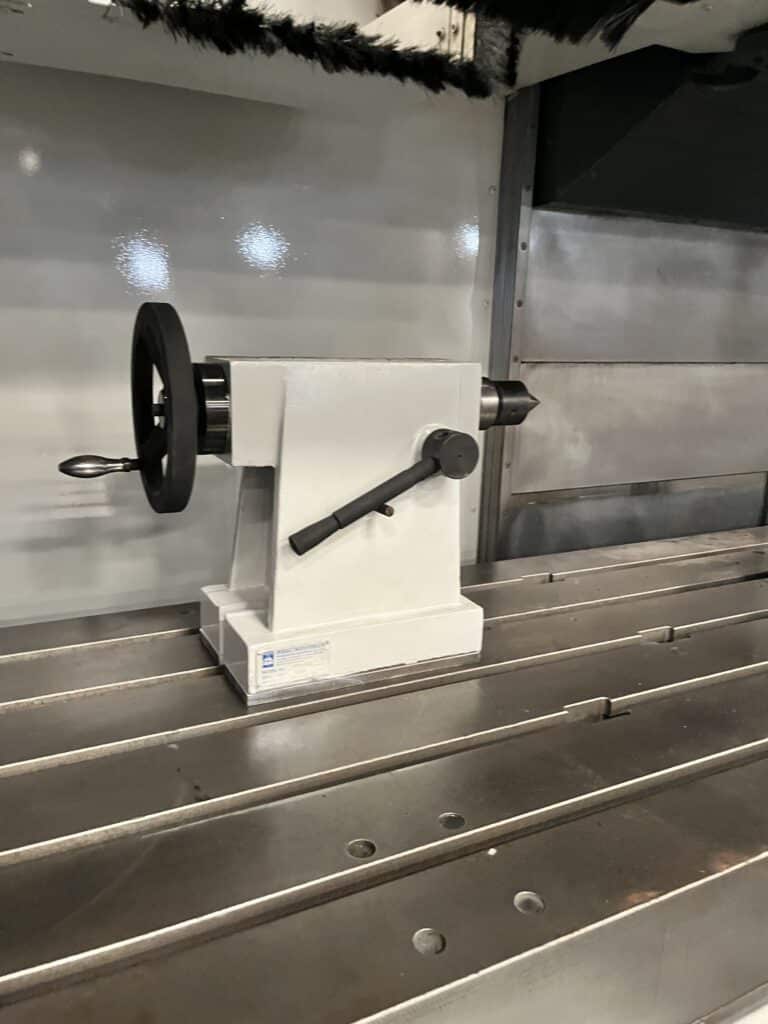

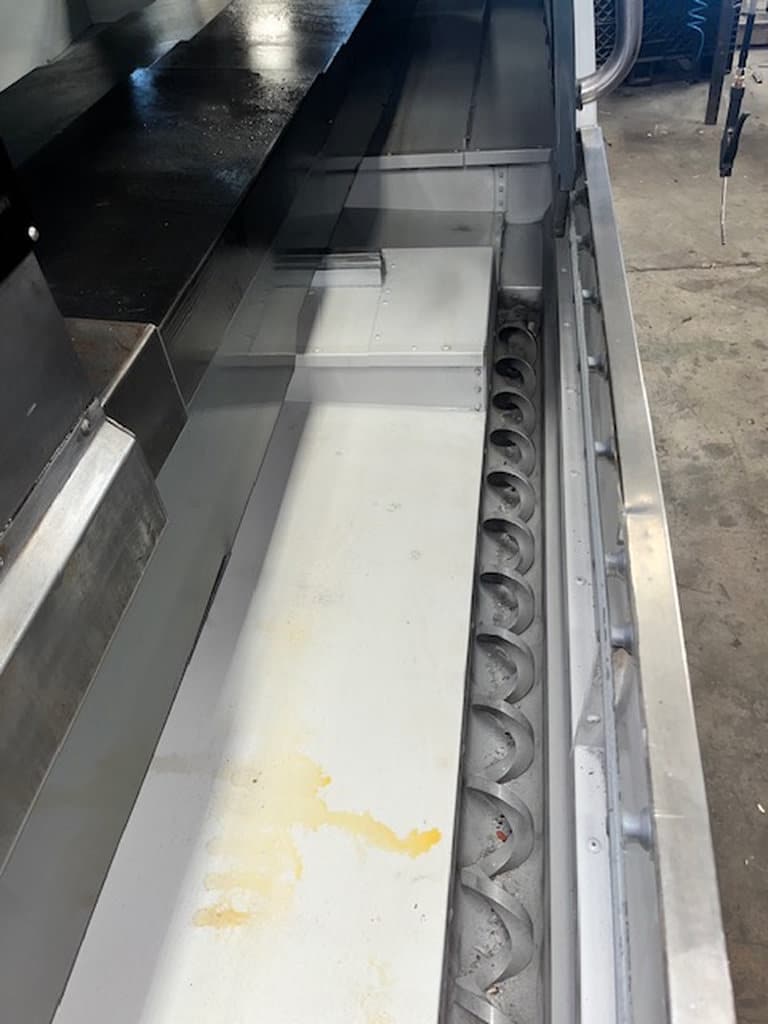

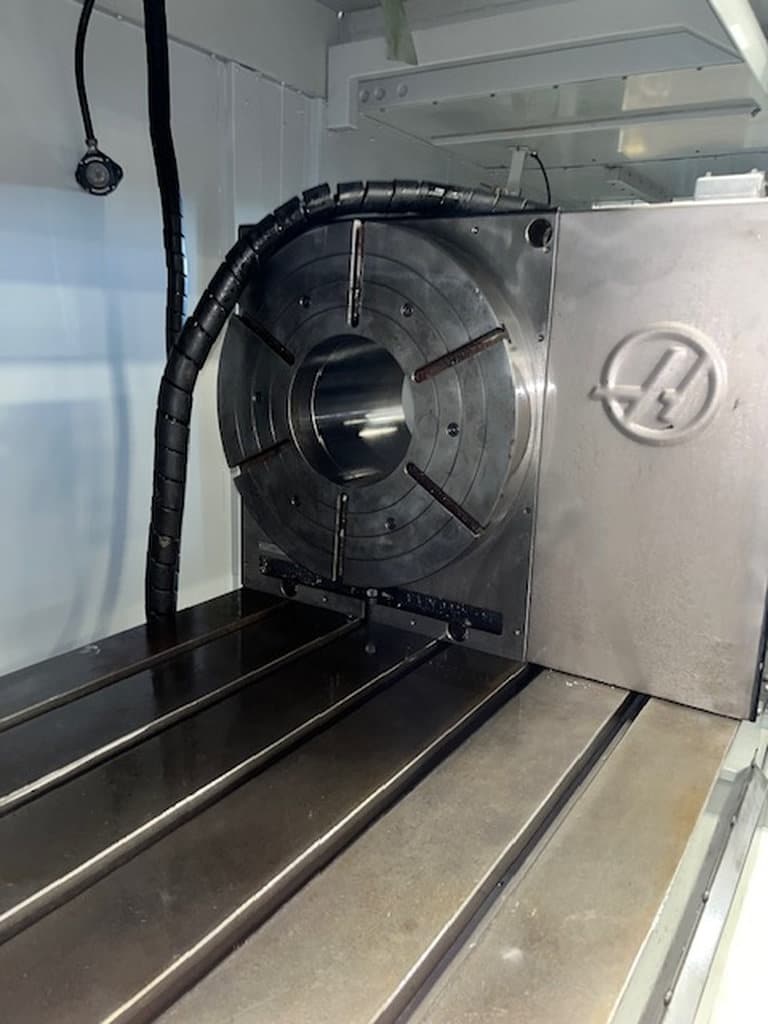

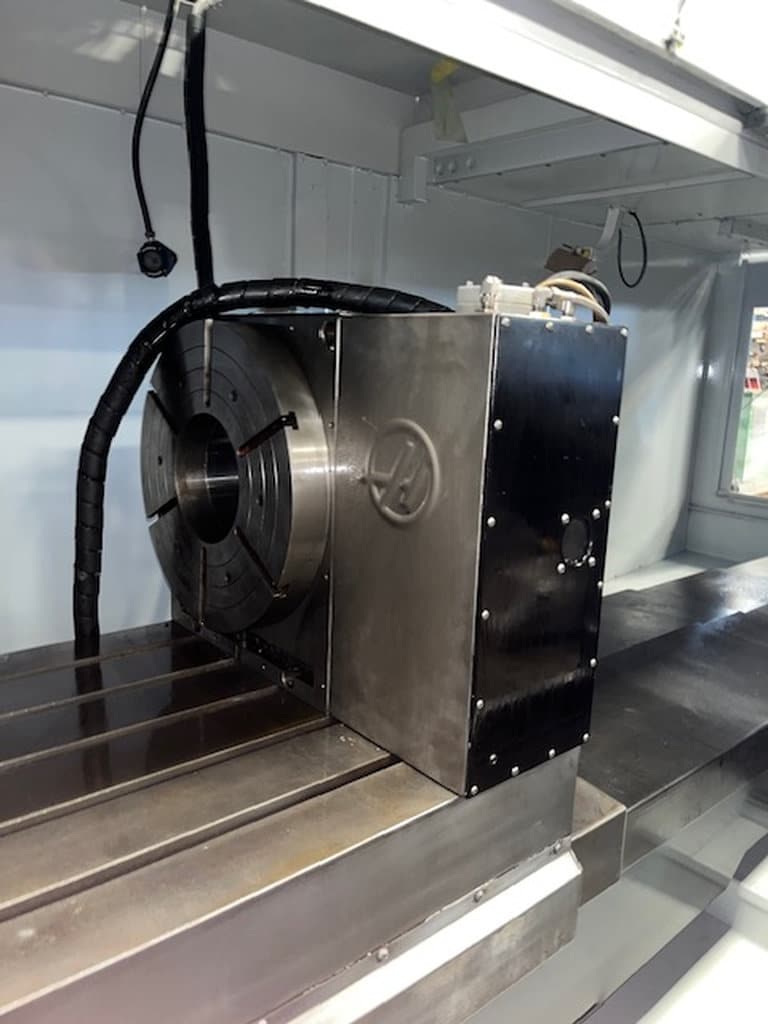

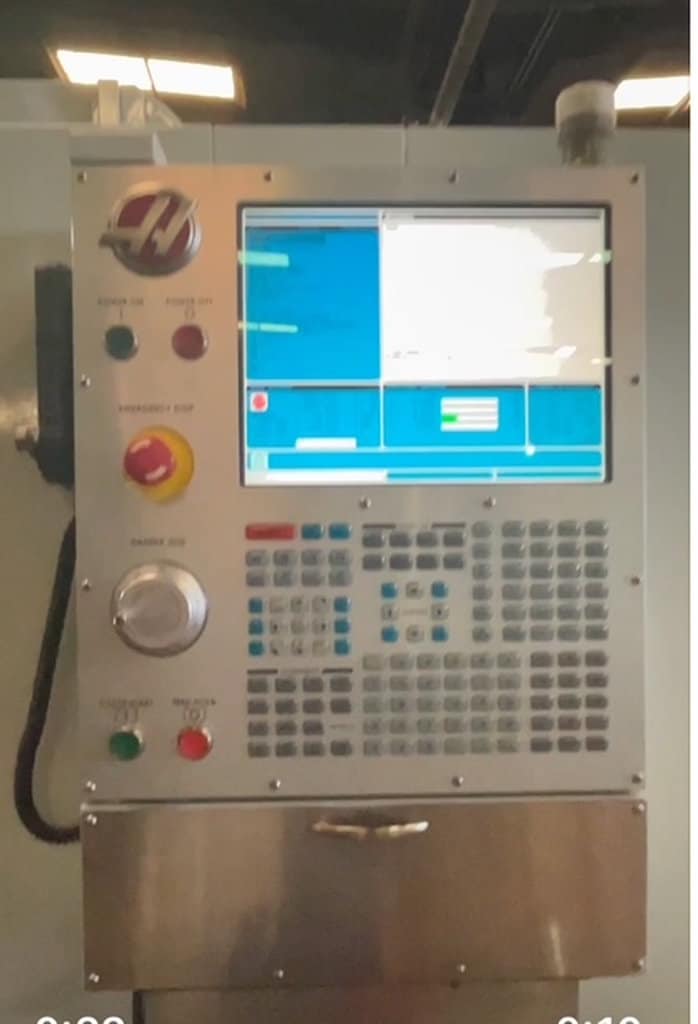

15″ Color LCD Haas Control, HRT-450 Rotary Table w/ Tailstock, CT-50 Spindle, X-Axis Scale Feedback, 1,000 PSI TSC (Through Spindle Coolant), 4th Axis Drive & Wiring, 2-Speed Gear Box, Programmable Coolant Nozzle, Haas WIPS Renishaw OMI (No Spindle Probe / Tool Pre-setter Included), Visual Quick Code Programming, User-Definable Macros, Spindle Orientation, Coordinate Rotation & Scaling, Rigid Tapping, 1GB Program Memory, USB Port, Auger Style Chip Removal System, CNC Control Cabinet Cooler, High Intensity Lighting, Remote Jog Handle, 95 Gallon Coolant Tank
