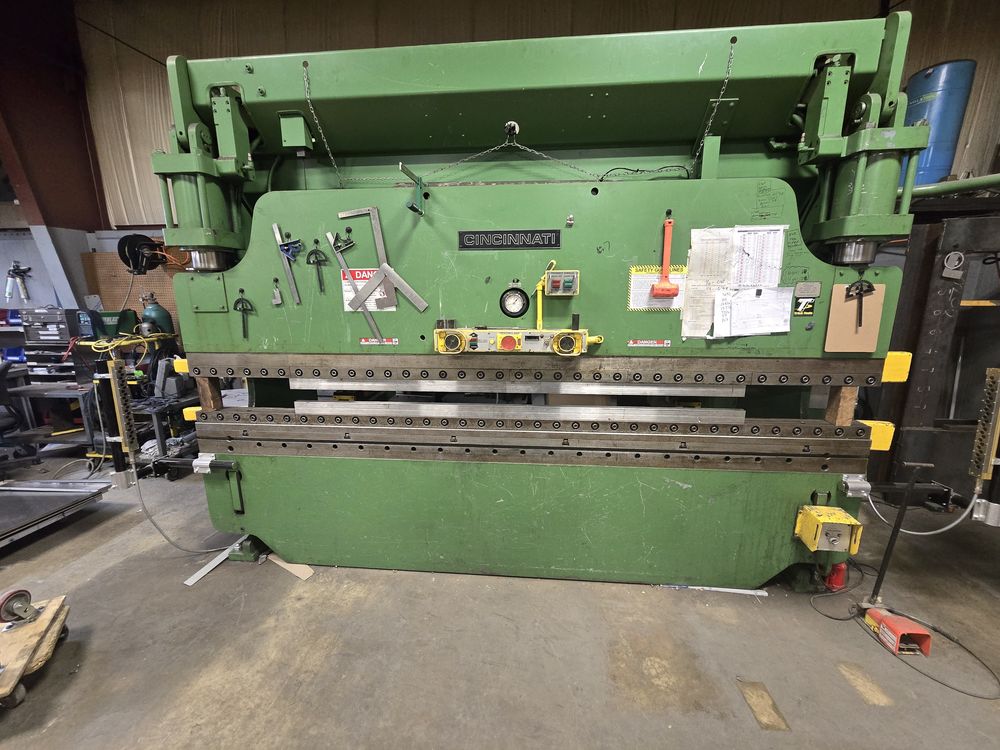

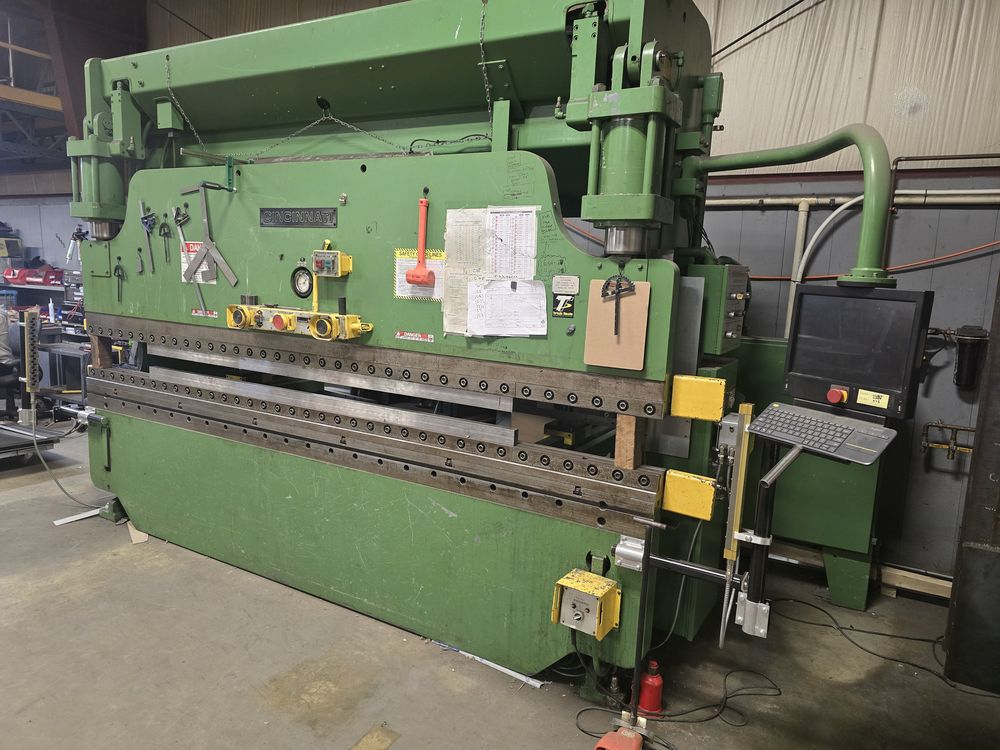

Cincinnati 90 AS X 10 Ft. 90 Ton x 10′ CNC Press Brake

Manufacturer

Cincinnati

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

181250022

Model

90 AS X 10 Ft.

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 181250022
  • Location: Etna, OH
  • Brand: Cincinnati
  • Model: 90 AS X 10 Ft.
  • Approx. Shipping Weight: 18,000 Lbs.
  • Approx. Shipping Dimensions: 11′ L x 6′ W x 9.1′ H
  • Loading Fee: Rigging Required

Specifications

  • Max Tonnage: 90 Tons
  • Overall Bed Length: 10′
  • Distance Between Housings: 8’6″
  • Stroke Length: 8″
  • Throat Depth: 7″
  • Open Height: 15″
  • Closed Height: 7″
  • Ram Speed – High Approach: 380 IPM
  • Ram Speed – Forming: 10-20-80 IPM
  • Ram Speed – Return: 294 IPM
  • Main Motor Horsepower: 25 HP
  • Electrical: 230V / 3-Phase
  • Full Load Amperage: Approximately 50.2

Equipped With

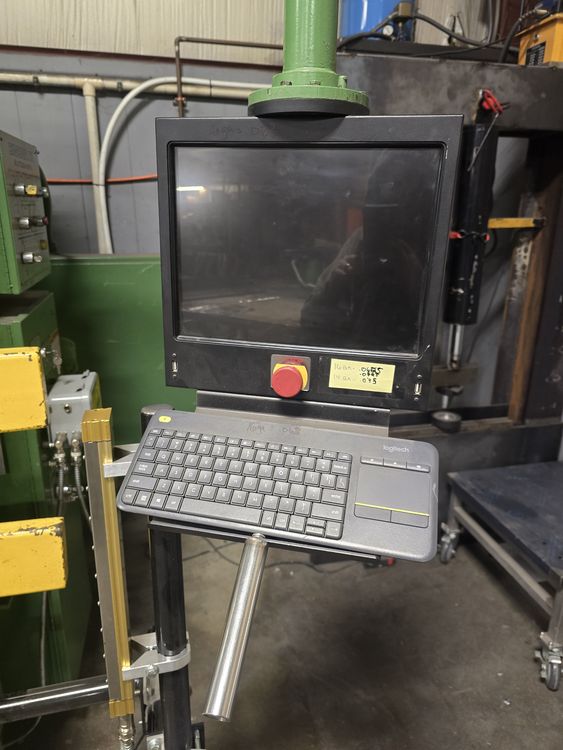

PC Controls (Model PC 800, new in 2023- remote support), linear scale encoder, Windows 10 OS, both cylinders rebuilt in 2024, new 4 way valve in 2024,

Additional Info

The Cincinnati Press Brake can be demoed upon request, check out the video on the listing to see it in operation.
