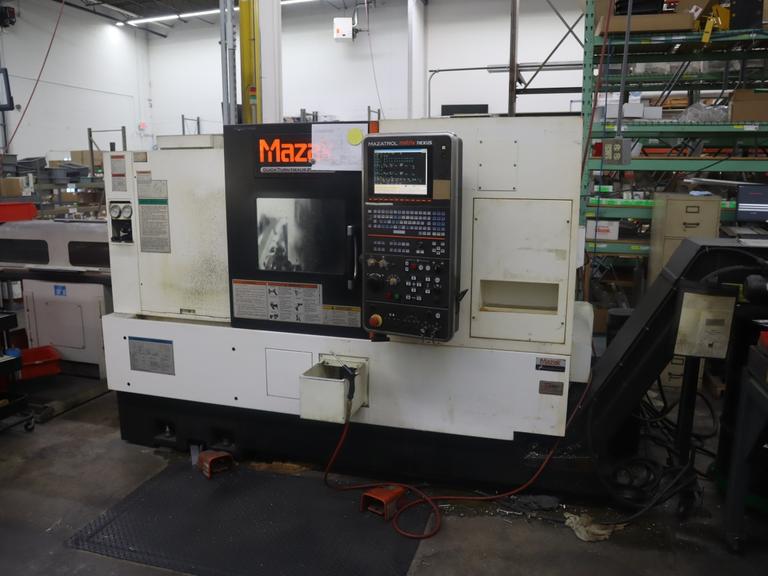

Mazak Quick Turn Nexus 200-II MSY CNC Turning Center, 12 Station Turret with Live Milling and Y-Axis, Sub-Spindle, Parts Catcher, Chip Conveyor- Auction Item

Manufacturer

Mazak

Category

Milling Machines

Type

MILLERS, VERTICAL/UNIVERSAL, CNC

Stock

Lot No.: 100

Model

Quick Turn Nexus 200-II MSY

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

View Auction Item:https://www.machinesused.com/lots/48006

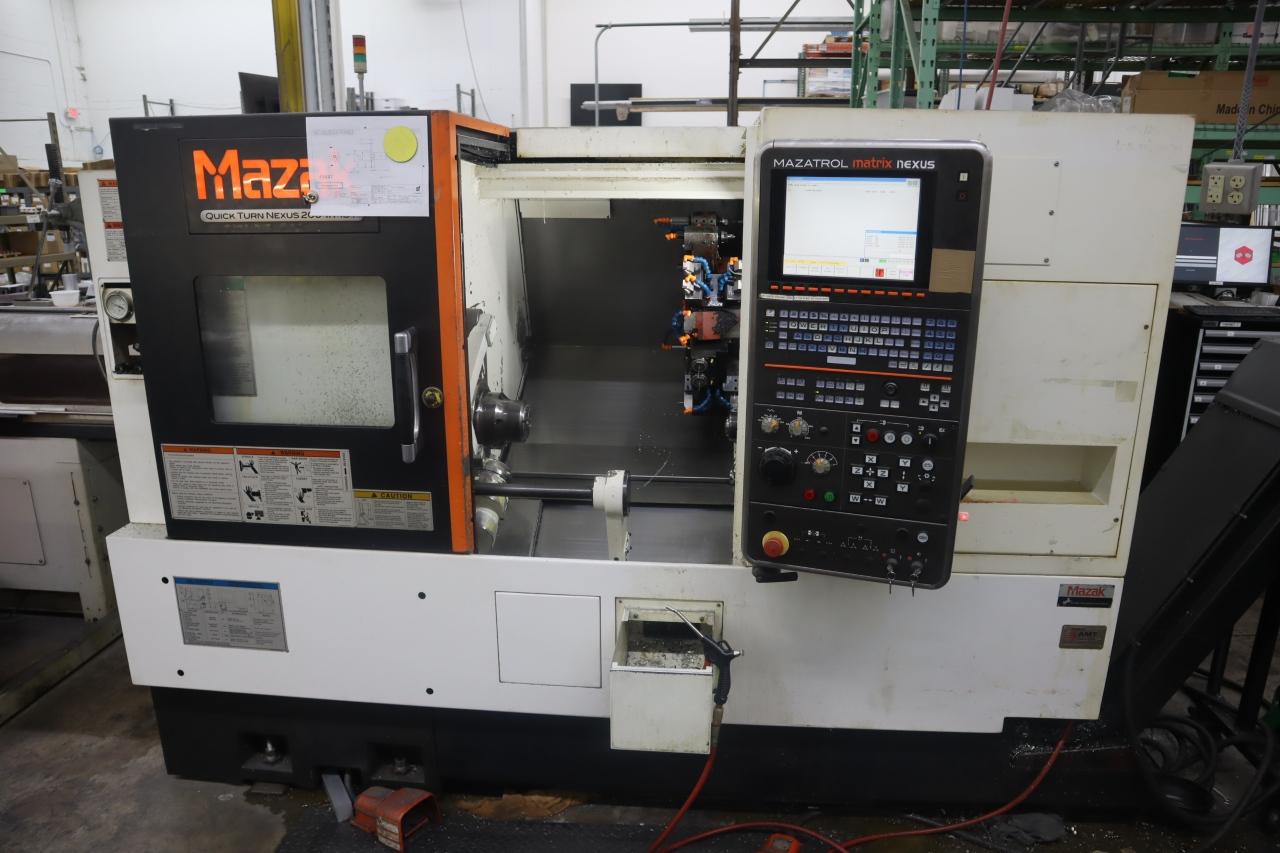

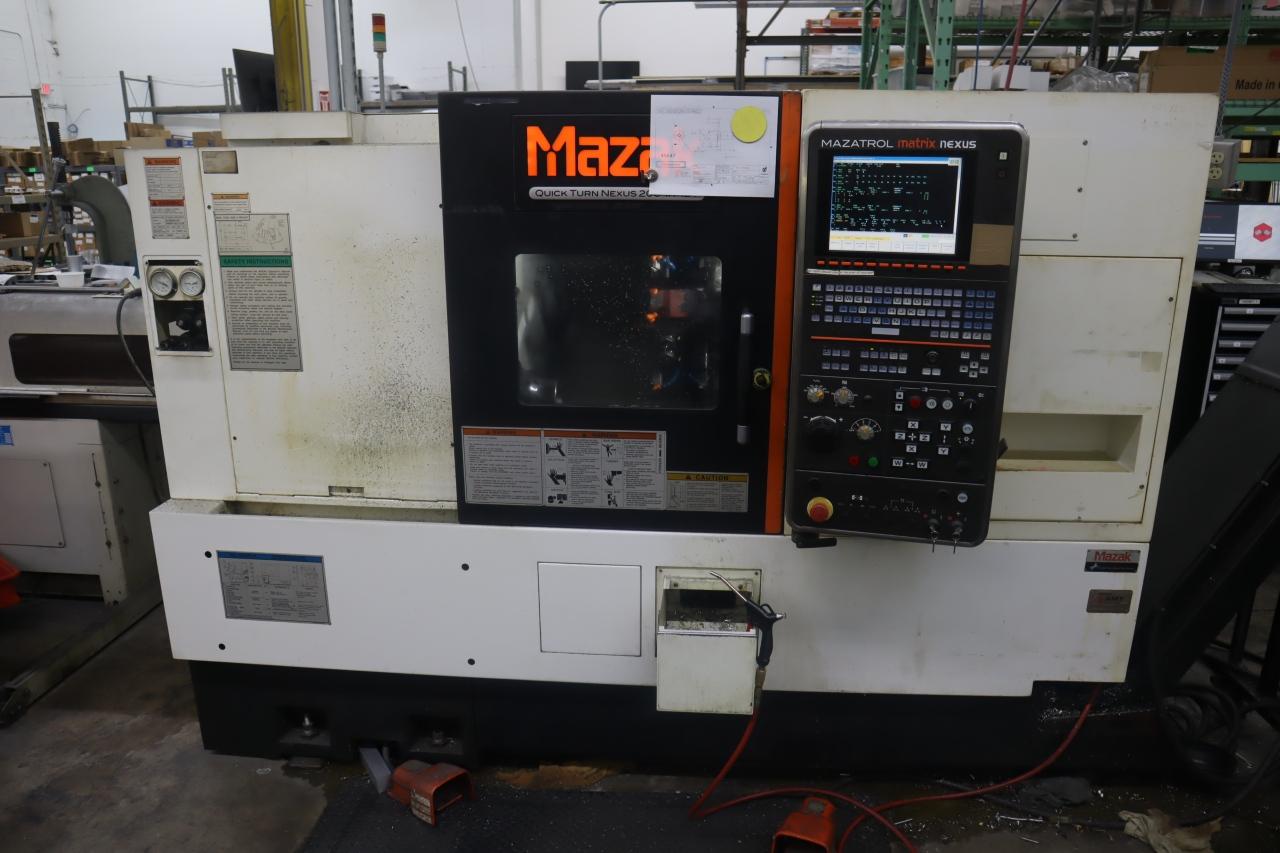

Lot 100: Mazak Quick Turn Nexus 200-II MSY CNC Turning Center, 12 Station Turret with Live Milling and Y-Axis, Sub-Spindle, Parts Catcher, Chip Conveyor
Equipped With:

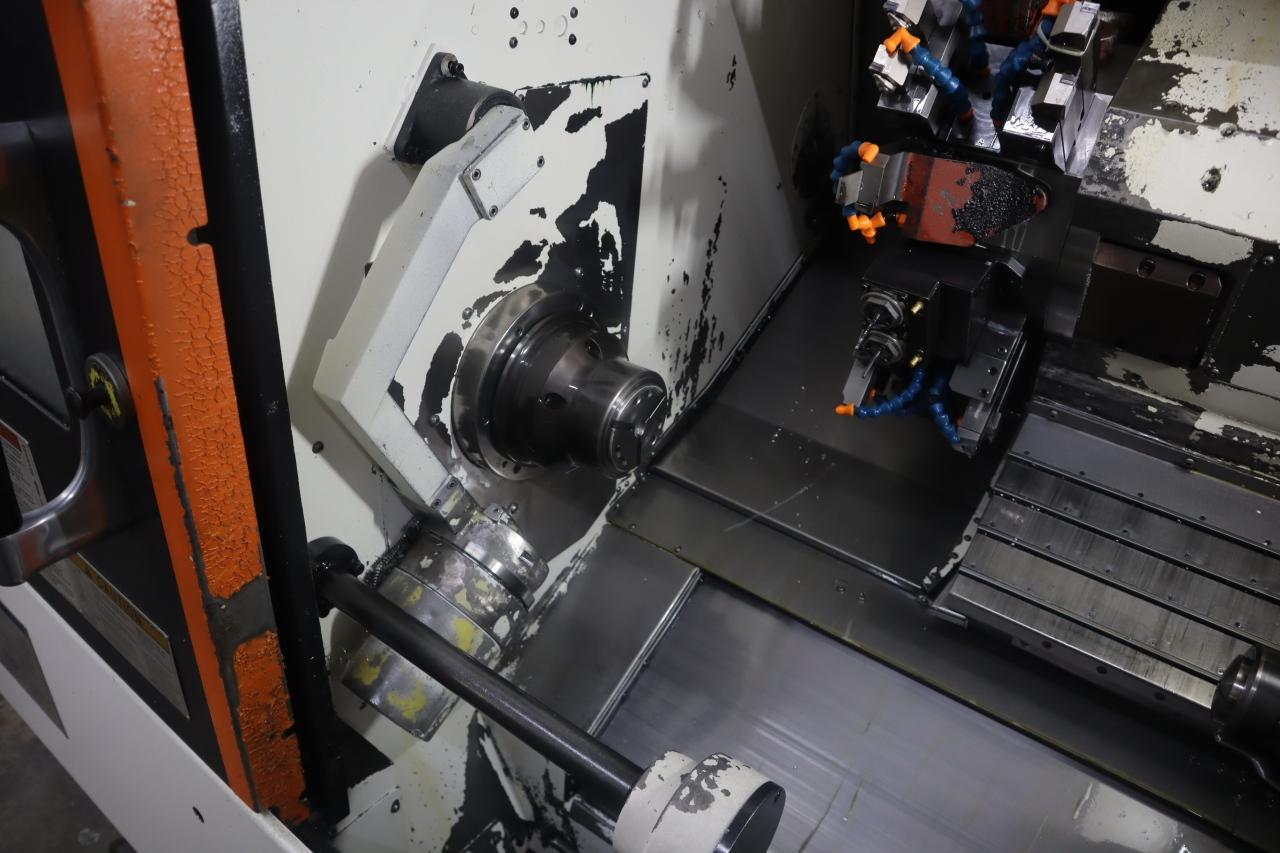

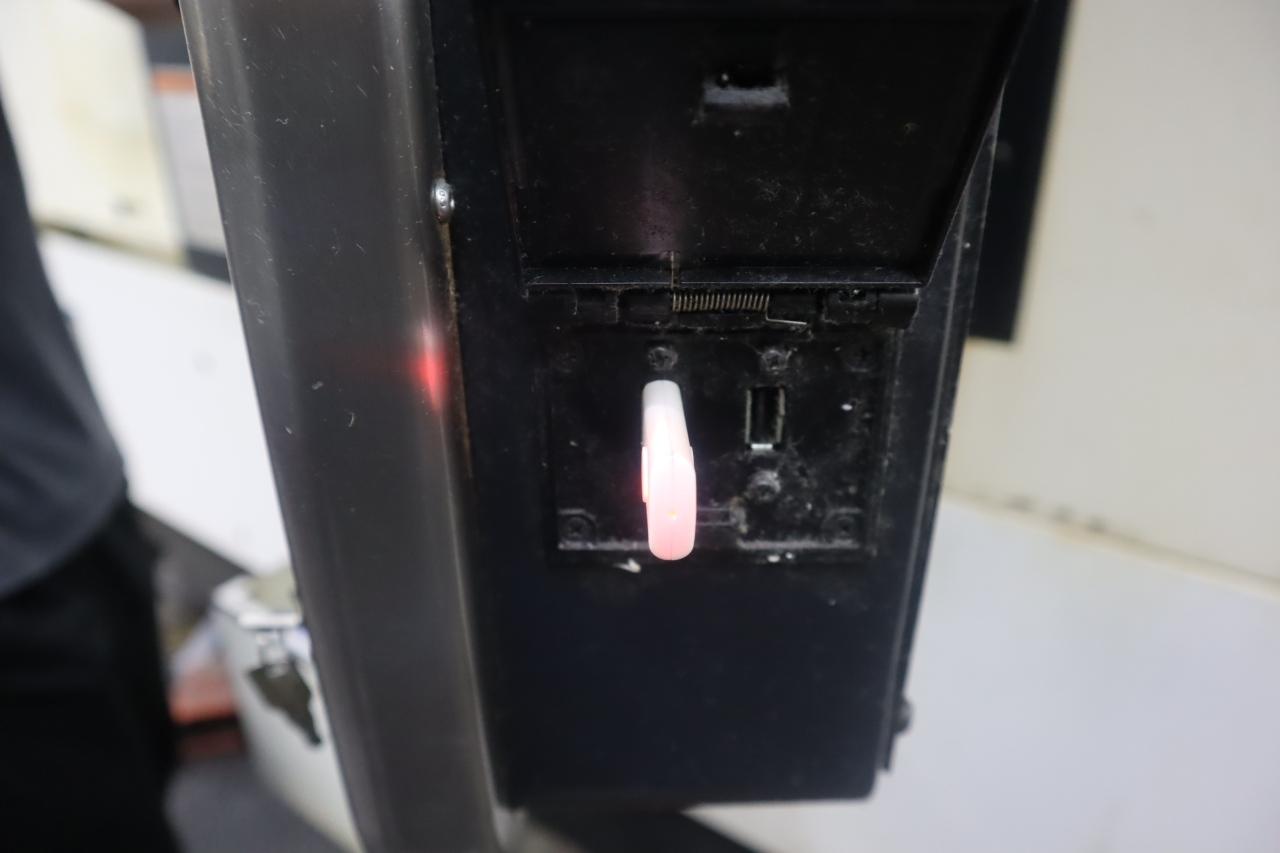

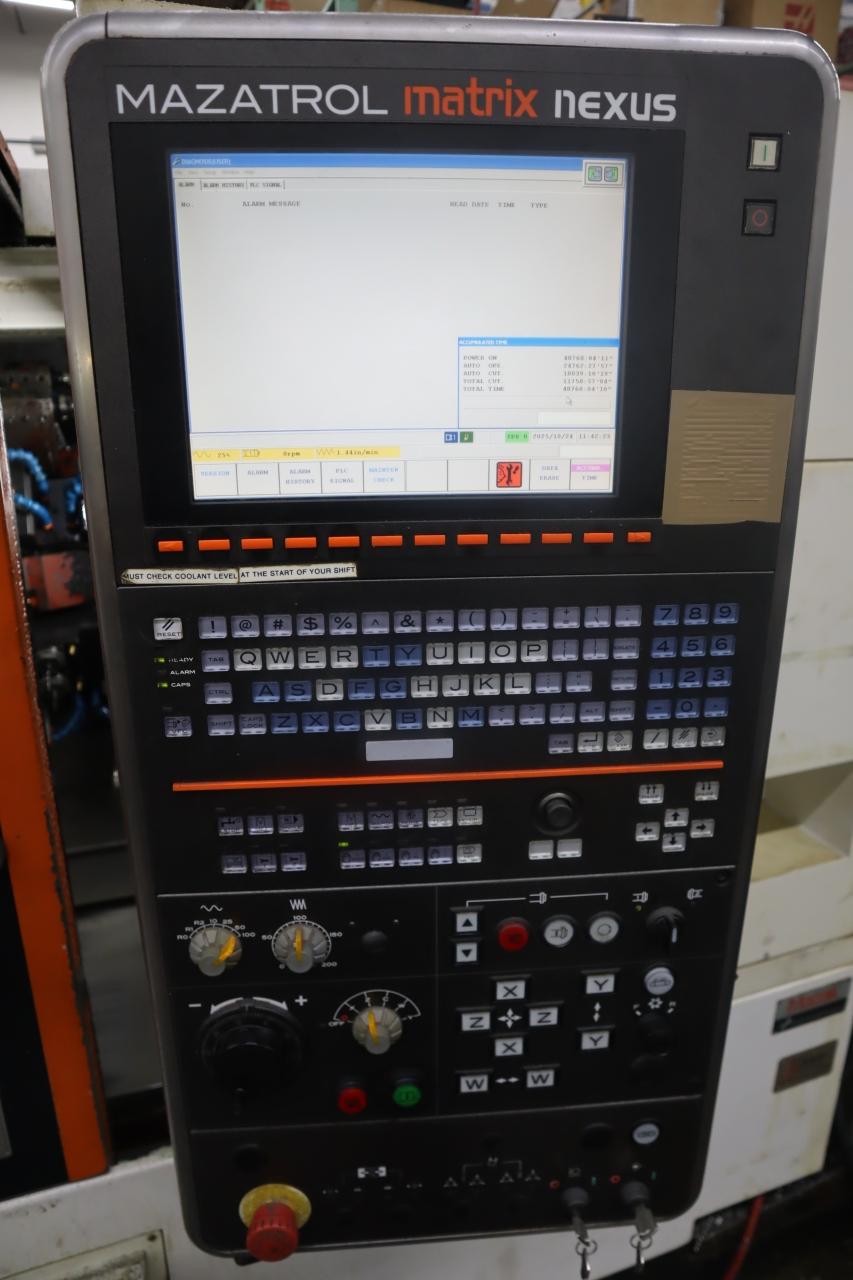

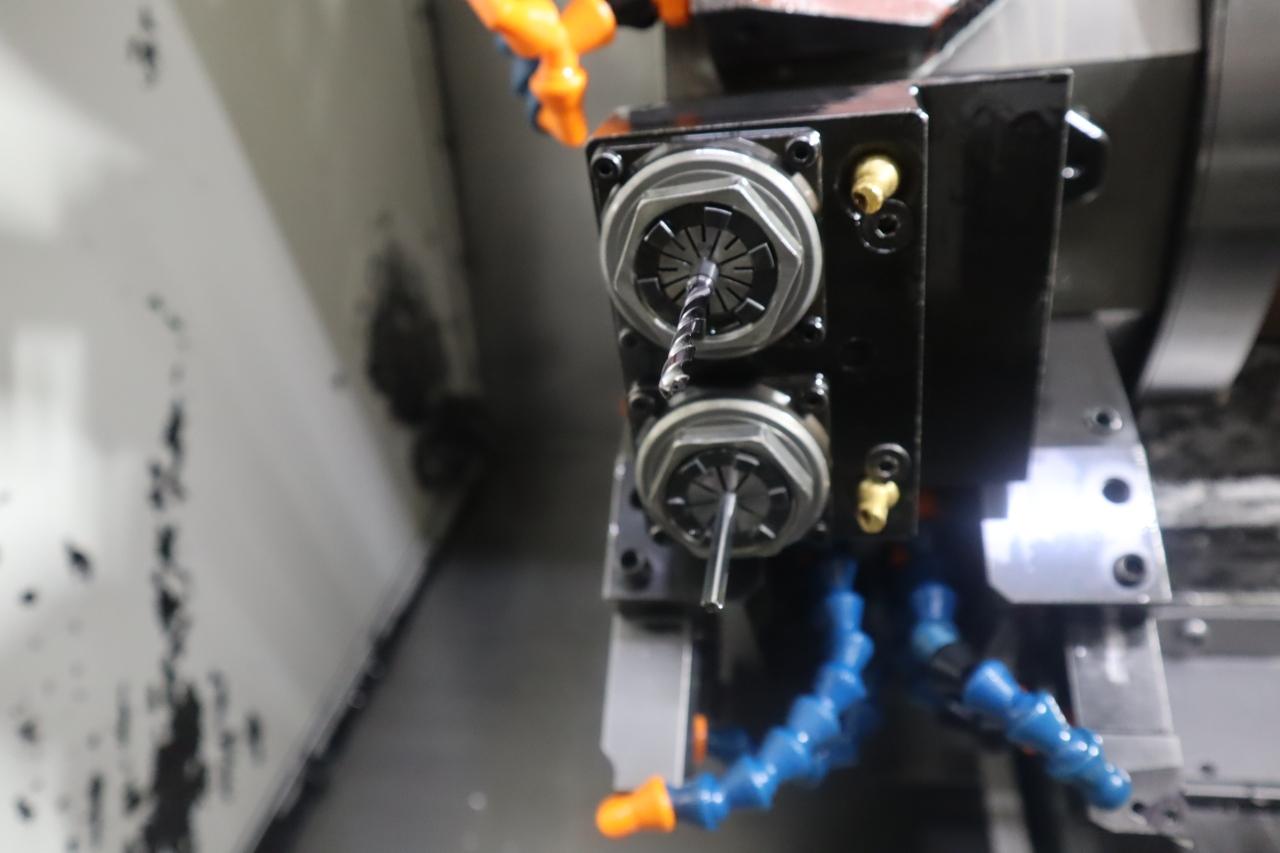

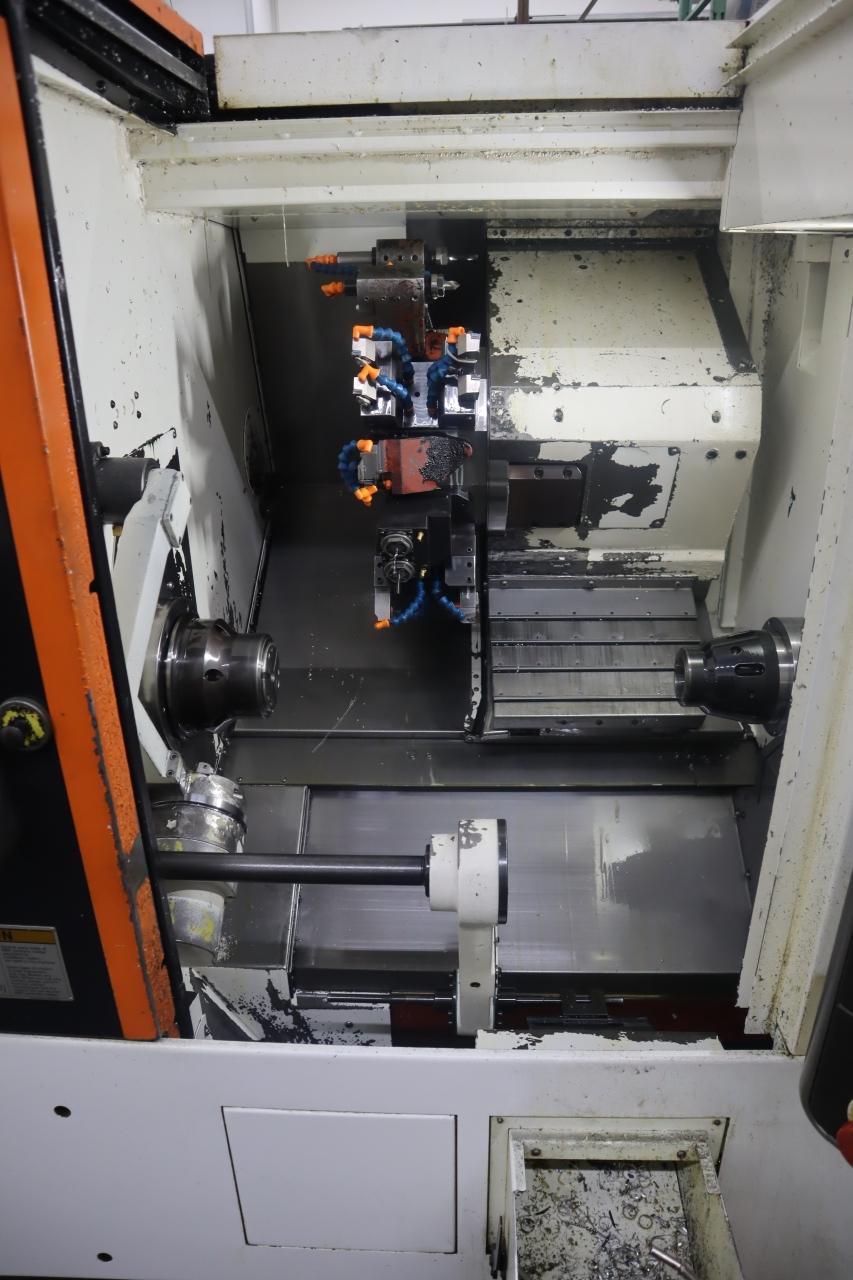

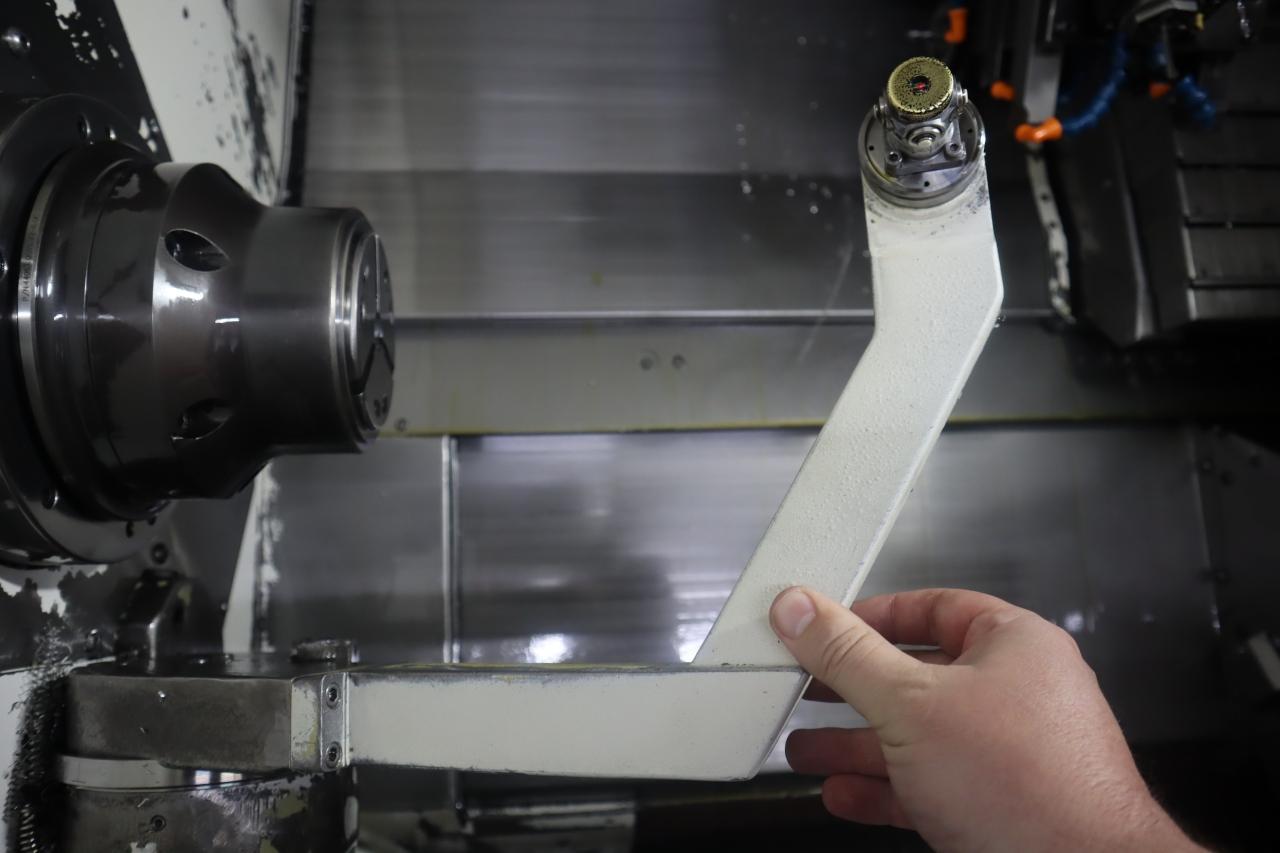

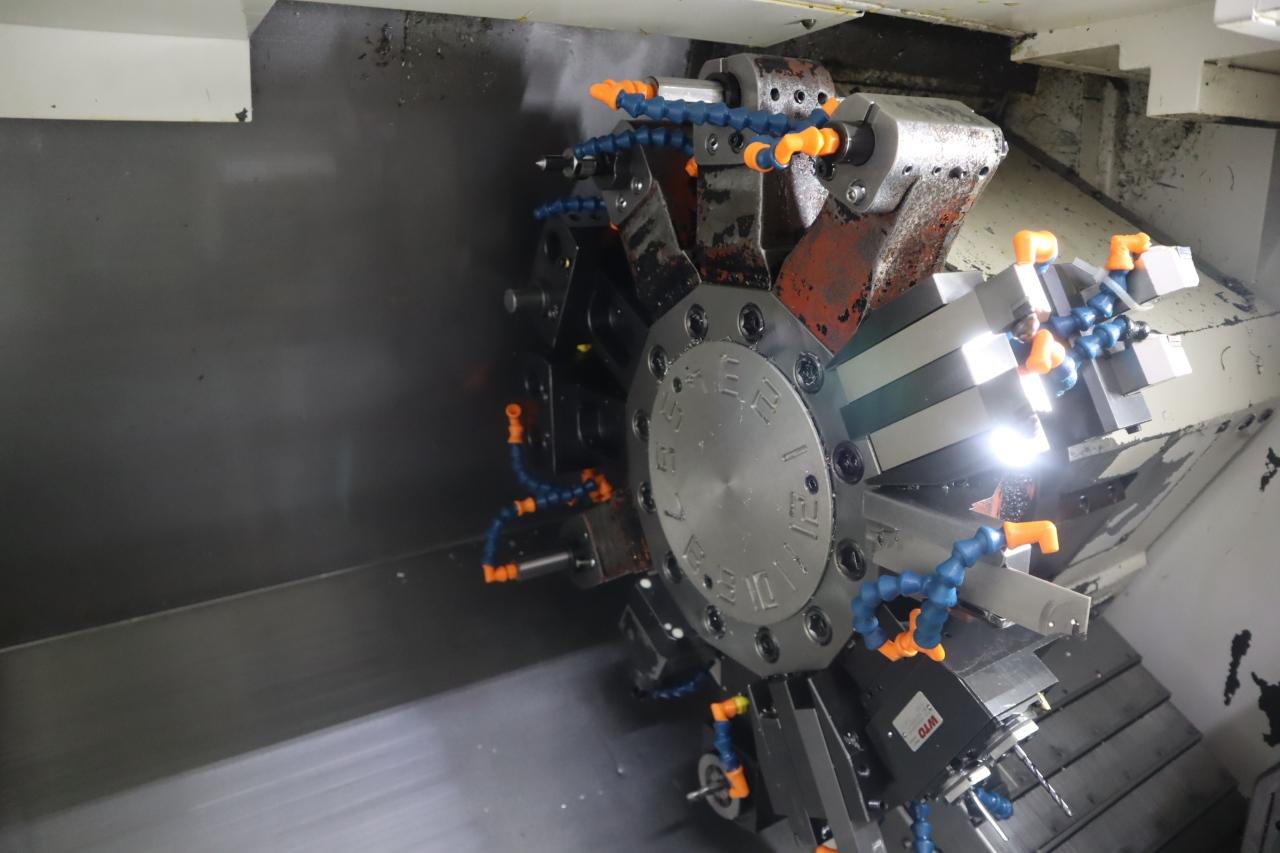

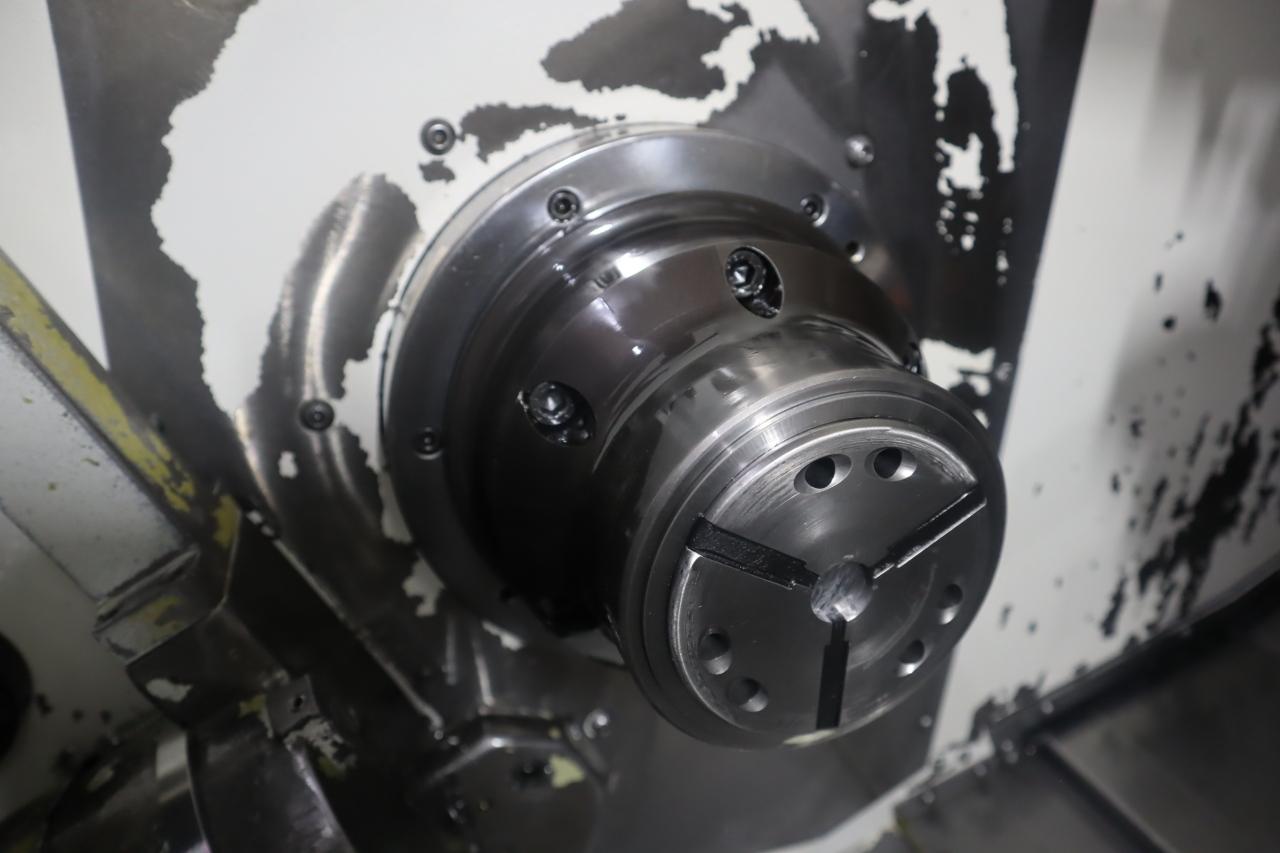

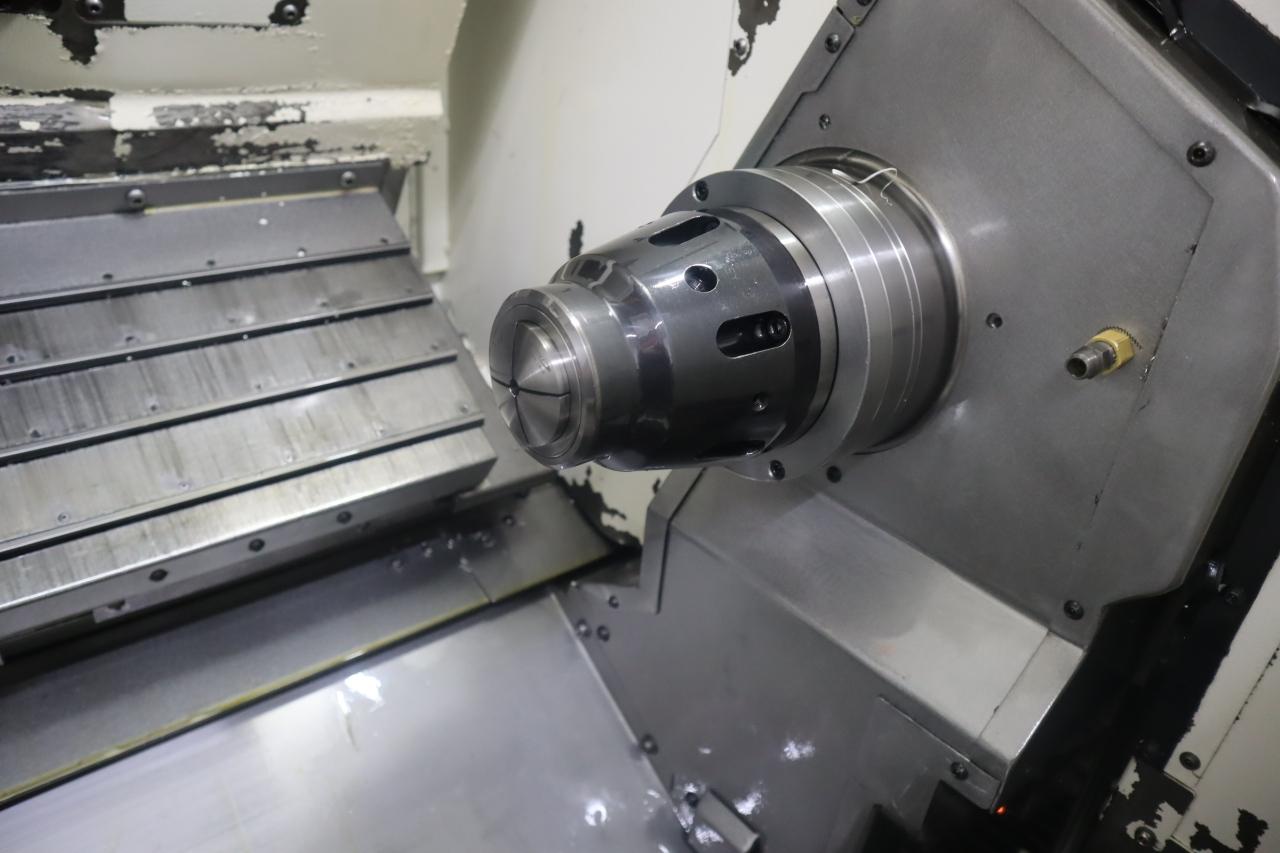

Mazak Mazatrol Matrix Nexus Plus CNC Control, 6,000 RPM Spindle on Main with Royal QC-65 Collet Chuck, Sub Spindle with Royal 3J Collet Chuck, 12 Station Turret with Live Milling and Y-Axis, C-Axis on Main and Sub-Spindle, USB Port, LNS Chip Conveyor, (1) Dual Axial Live Tool, (1) Dual Radial Live Tool, (1) Radial Live Tool, Assorted Static Boring and Turning Tool Holders, Parts Catcher, LNS Barfeed

Description:

The QUICK TURN NEXUS 200-II MSY CNC Turning Center with Multi-Tasking capability brings together advanced technology, productivity and value to deliver exceptional performance for shops large and small. As an (MSY) configuration, this machine offers the greatest versatility available in the QTN series. The machine features milling capability and Y-axis functionality as well as a second turning spindle to process parts in "Done-In-One" operations.

Electrics:

208 Volt, 3 Phase

Manufacturer: Mazak Model: Quick Turn Nexus 200-II MSY Year: 2012 Serial Number: 236759
Main Unit Approx Weight: 2400.00 lbs
Main Unit Dimensions (in inches): Length: 118.00"  Width: 87.00"  Height: 74.00"
Components:
Chip Conveyor/Coolant Tank: Length: 110.00"  Width: 46.00"  Height: 52.00"
LNS Barfeed: Length: 80.00"  Width: 40.00"  Height: 52.00"
Specs:
Max Cutting Diameter: 380 mm / 14.750"
Max Cutting Length: 575 mm / 22.701"
Standard Bar Capacity: 65 mm / 2.6"
Main Spindle Chuck Size: 8"
Main Spindle Speed: 6000 RPM
Main Spindle Nose: A2-6
Main Spindle Drive: 35 HP
Secondary Spindle Chuck Size: 6"
Secondary Spindle Speed: 6000 RPM
Secondary Spindle Drive: 10 HP
Max Swing Over Cross Slide: 675 mm / 26.50"
Turret Travels X / Z: X: (230 mm / 9") / Z: (575 mm / 22.63")
Turret Travel Y-Axis: 102 mm / 4"
Turret Capacity: 12 Station
Seller Company: Quali-Mac Precision Machining
Seller Contact: Machinesused.com Quali-Mac Phone: (763) 745-1166
Item Location: Quali-Mac Precision Machining, 9208 James Avenue South Suite #12, Bloomington, MN 55431
Location Contact: Machinesused.com Quali-Mac Phone: (763) 745-1166
Inspection Date & Time: By Appointment Normal Business Hours Monday-Friday
Dock Door: Ground: 144"W x 144"H | Dock: 132"W x 144"H (47" Dock Height)
Loading Dock: Ground and Truck Level Doors
Removal Dates and Times: This item must be removed between Tuesday, December 9, 2025 and Wednesday, December 10, 2025
