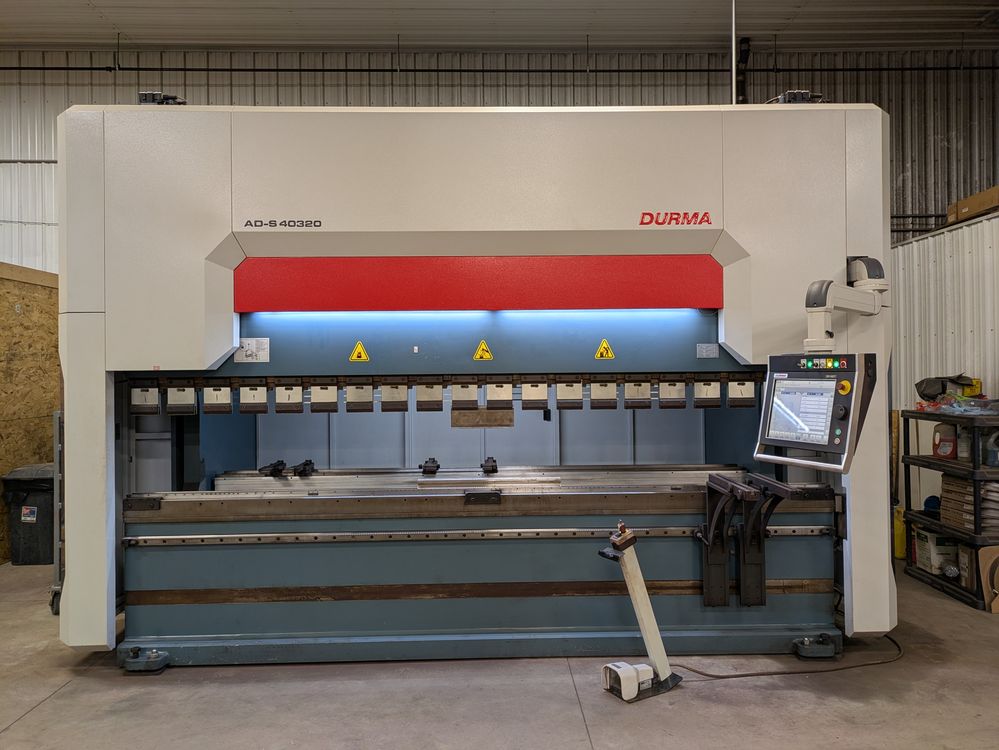

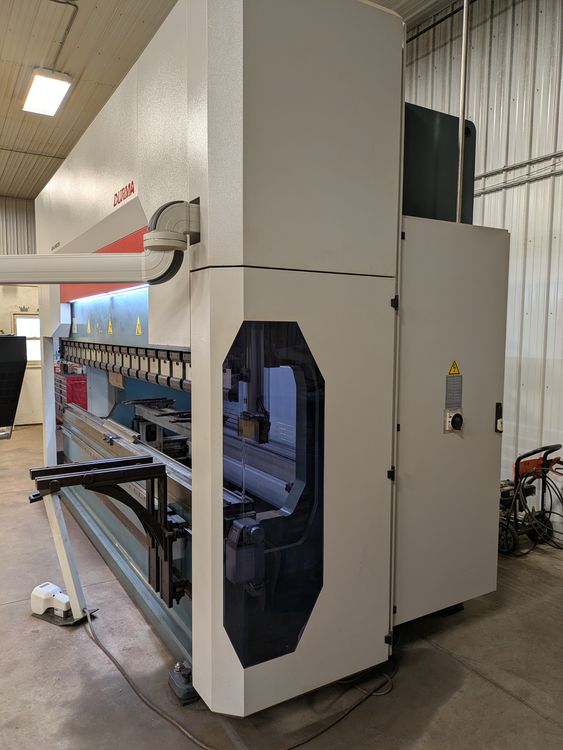

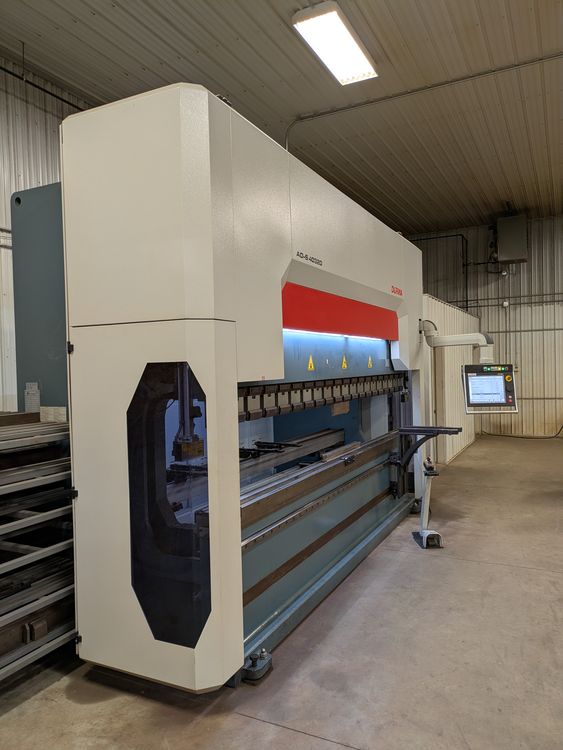

Durma ADS-40320 159″ – 320 Ton CNC Press Brake

Manufacturer

Durma

Category

Brakes (including Press Brakes)

Type

PRESS BRAKES

Stock

181250023

Model

ADS-40320- 320 Ton

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 181250023
  • Location: Grand Forks, ND
  • Brand: Durma
  • Model: ADS-40320- 320 Ton
  • Year: 2018
  • Approx. Shipping Weight: 50,000 lbs
  • Approx. Shipping Dimensions: 208″ L x 75″ W x 127″ H)
  • Loading Fee: Rigging Required

Specifications

  • Bending Force: 352 Tons
  • Maximum Bending Length: 159.4″
  • Distance Between Side Frames: 141.7″
  • Usable Bending Length: 159.4″
  • Distance Between Housings: 141.7″
  • Open Height: 24.8″
  • Ram Travel: 14.4″
  • Throat Depth: 16.1″
  • Approach Speed: 4.7 in./s
  • Bending Speed: 0.39 in./s
  • Return Speed: 4.7 in./s

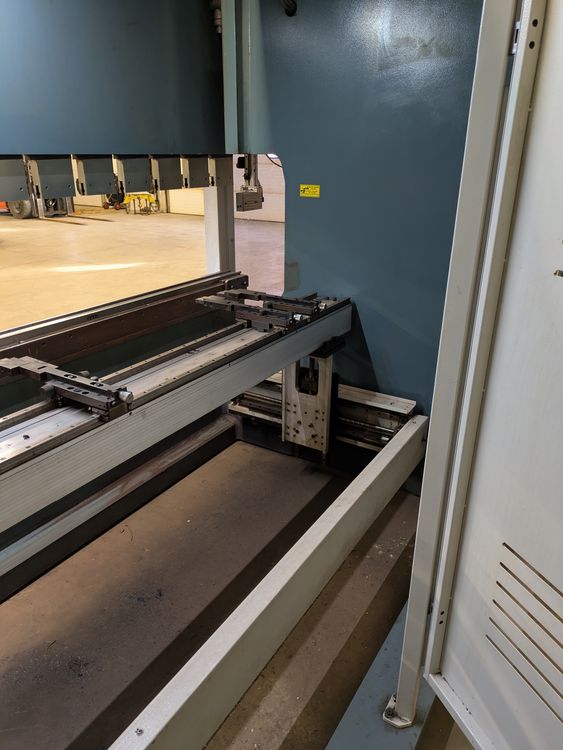

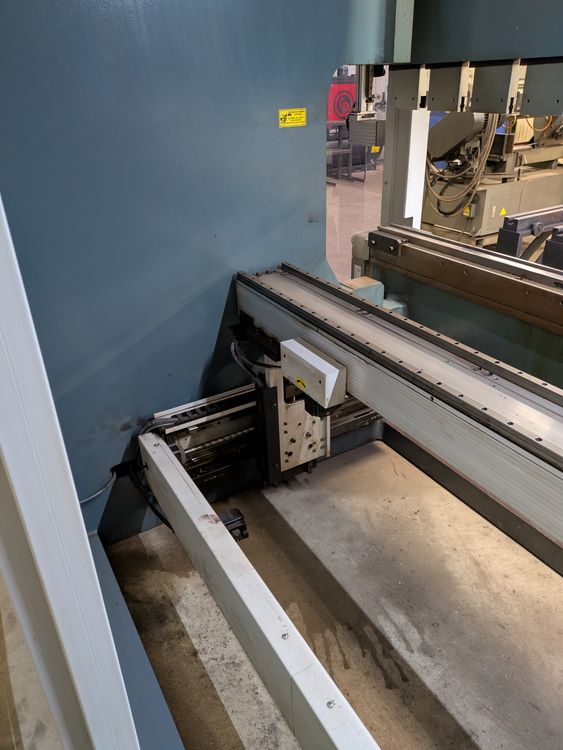

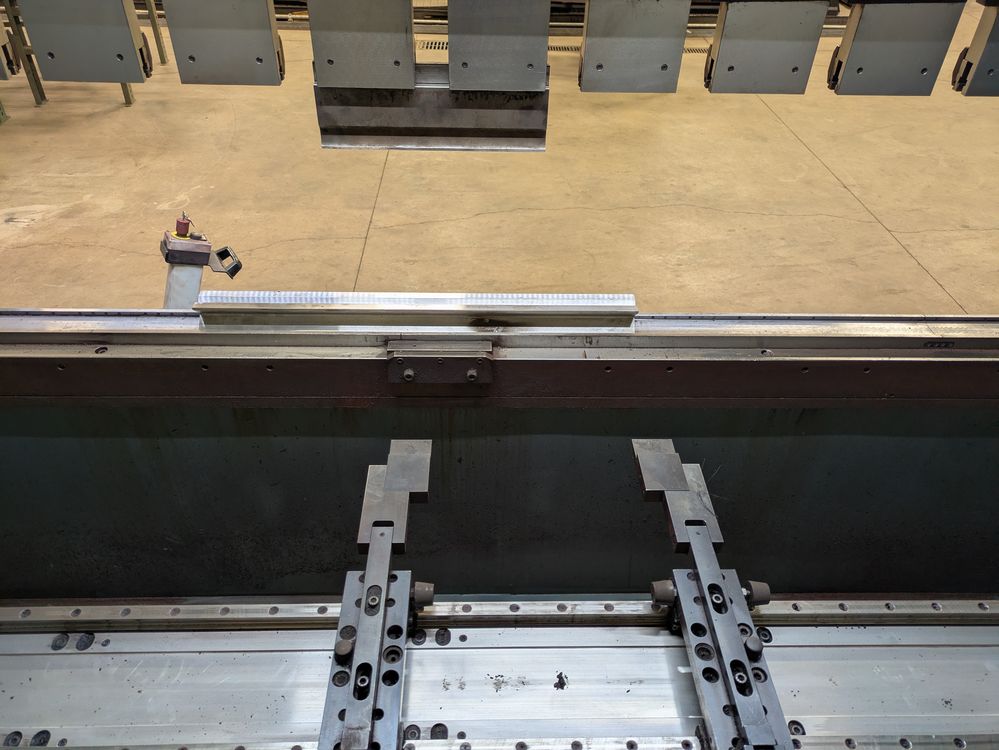

  • Backgauge: 6-Axis CNC (X1, X2, R1, R2, Z1, Z2)
  • Backgauge X-Axis Travel: 39.4″
  • Backgauge X-Axis Speed: 1,640 ft/min
  • Backgauge R-Axis Travel: 9.8″
  • Backgauge R-Axis Speed: 11.81 in./s
  • Backgauge Z1/Z2 Travel: 9.8″
  • Ram & Guidance Guidance System: ADS Deep Sliding (Dual Rails)
  • Ram & Guidance Y1/Y2 Accuracy: ±0.01 mm
  • Ram & Guidance Crowning: CNC Hydraulic (Automatic)
  • Hydraulics System: Bosch-Rexroth Closed-Loop
  • Hydraulics Max Pressure: 300 bar
  • Hydraulics Oil Capacity: 79.25 Gal.
  • Hydraulics Oil Type: ISO VG 46
  • Power & Drive Main Motor: 40 HP.
  • Power & Drive Voltage: 480V / 3-Phase / 60 Hz (configurable)
  • Power & Drive Full Load Amps (FLA): 63 A
  • Power & Drive Total Connected Load: 38 kVA

Equipped With

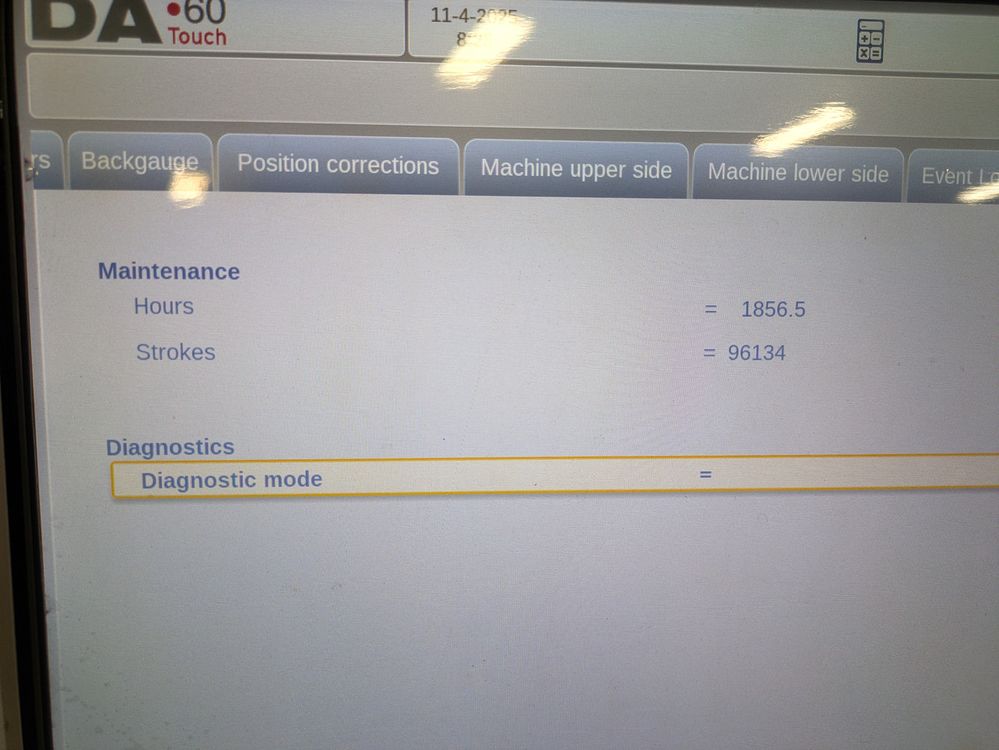

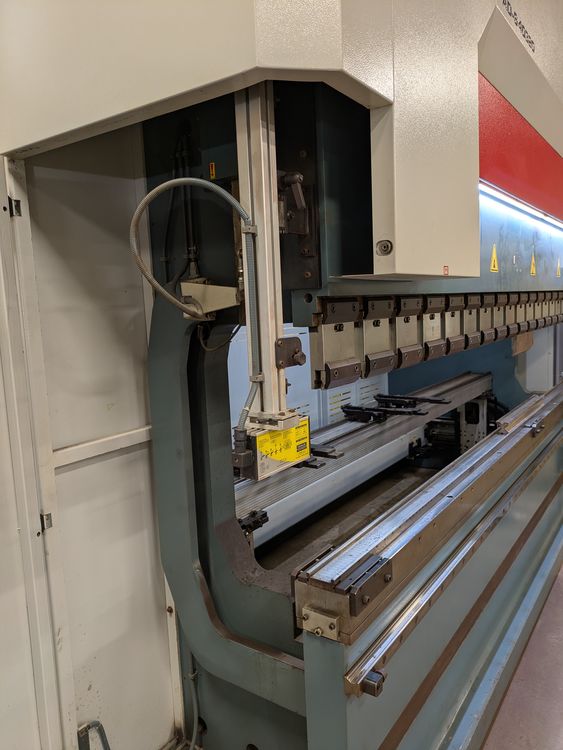

Control System featuring a CNC Controller with Delem DA-66T (17″ touchscreen) or Cybelec CybTouch 15 PS (15″ touchscreen), offering a 2D/3D graphical bending simulation interface, 16 GB SSD program storage (10,000+ programs), and control over Y1, Y2, X1, X2, R1, R2, Z1, Z2, and Crowning axes via Ethernet + USB connectivity; includes Delem Profile-T 3D Offline or Cybelec ModEva software. Tooling Interface includes hydraulic quick-change upper clamping (Wila-style) and lower clamping (T-slot table) with European (Promecam) standard tooling: segmented gooseneck punch (88°, 835 mm sections, 150 mm height) and 4-way V-die (16/22/35/50 mm openings, 835 mm sections, 100 mm height). Safety Systems feature SICK C4000 front light curtains (full width), AKAS III rear laser finger protection (Class 1), fixed mesh side/rear guards with interlock, dual palm buttons + foot pedal E-stop, and Pilz PNOZmulti safety PLC. Dimensions & Weight: 5,100 mm (200.8″) L × 2,350 mm (92.5″) W × 3,350 mm (131.9″) H, 950 mm (37.4″) bed height, and 23,500 kg (51,808 lbs). Standard Features include LED work area lighting (front + rear), dual foot pedal with safety relay, integrated tool storage cabinets, oil cooler (air/oil heat exchanger), and anti-vibration leveling pads + anchor bolts. Optional Features (common in 2018 models) include Wila hydraulic clamping, front sheet followers (2x pneumatic), Iris Delta X+ axis (±150 mm for tapered bends), barcode reader for job recall, and automatic central lubrication (Lincoln). Tooling available at additional cost.

Additional Info

Inspection Upon Request

No Video Available
