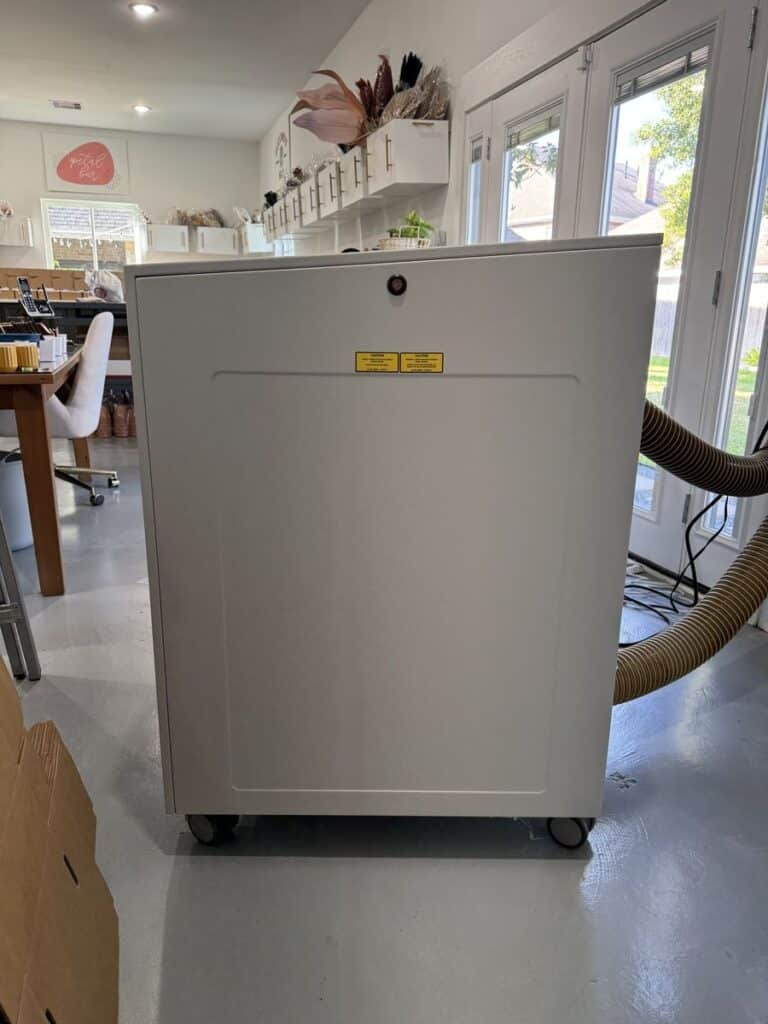

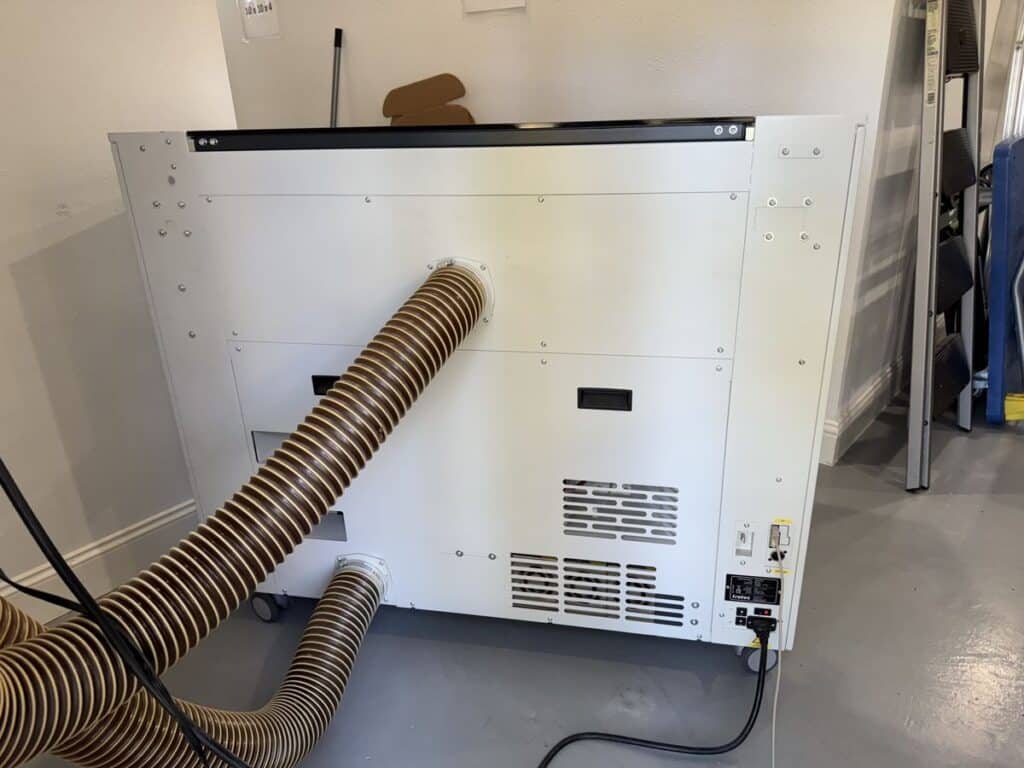

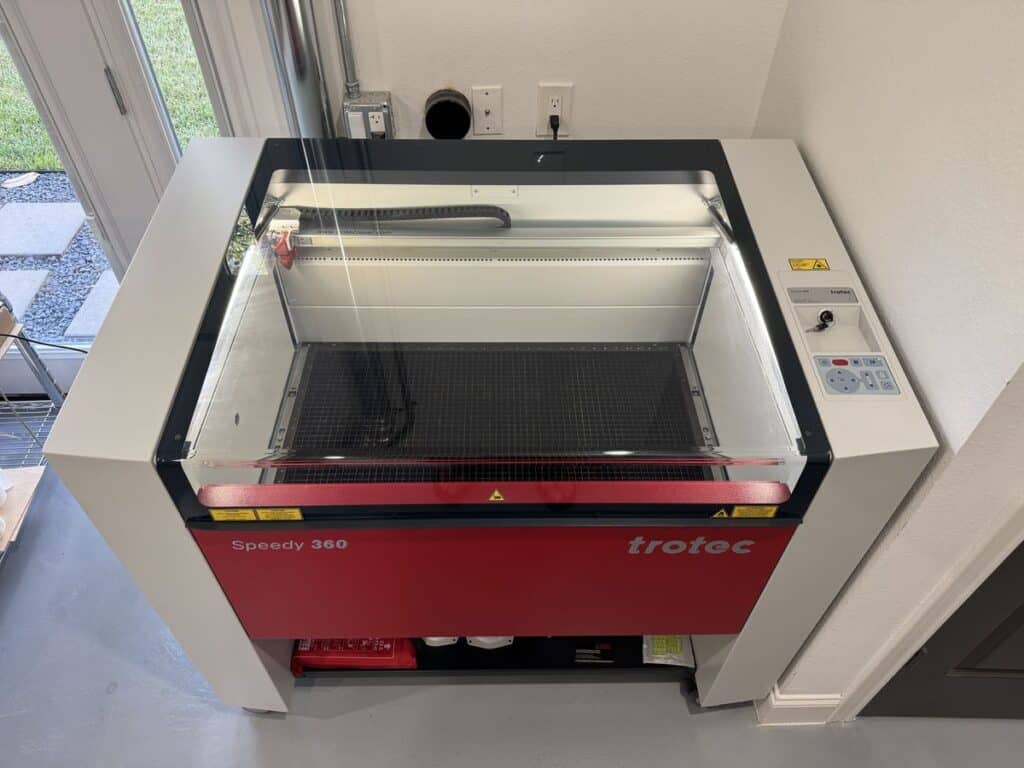

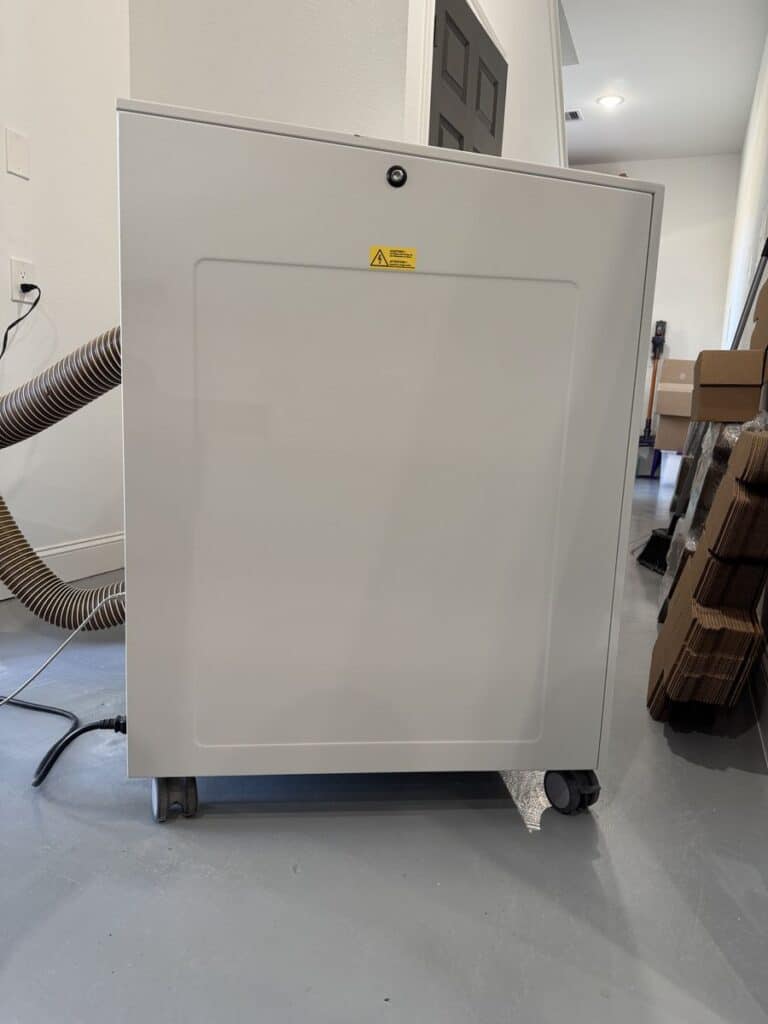

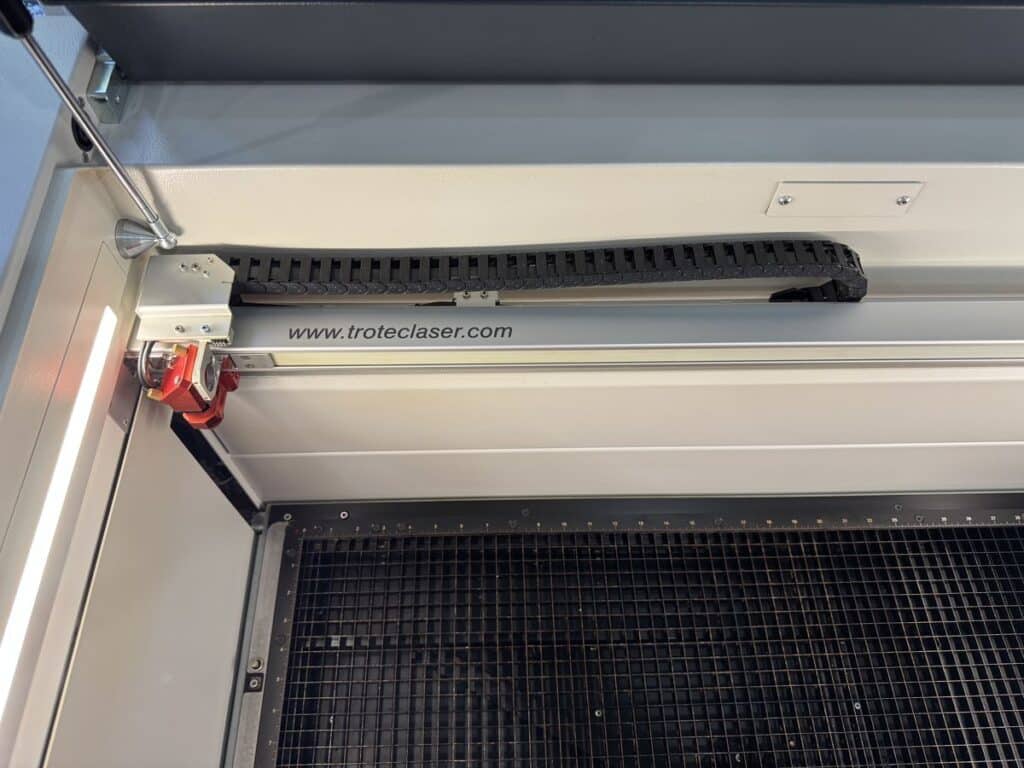

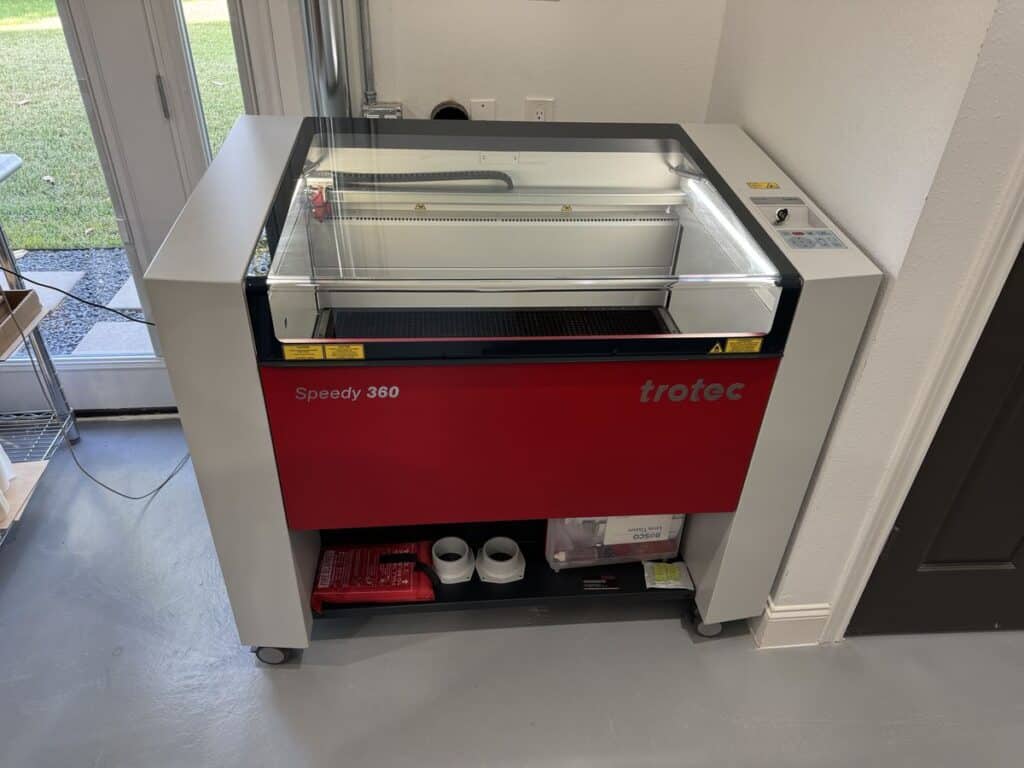

Trotec Speedy 360 80 Watt CO2 Laser Engraving Machine

Trotec Speedy 360 80 Watt CO2 Laser Engraving Machine

Manufacturer

Trotec

Spec Sheet

Stock #: 171250047
Location: TX
Brand: Trotec
Model: Speedy 360
Year: 2022
Approx. Shipping Weight: 650 LBS
Approx. Shipping Dimensions: 48″L x 33″W x 42″H
Loading Fee: Loading Required

Specifications

Working Area: 32″ x 20″
Loading Area Standard: 35″ x 23.6″
Max Heigh of Work Piece: 8.2″ (With 1.5″, 2″ Lens)
Max Processing Speed: 140 IPS
Acceleration: 1,969 IPS
Motors: Brushless DC Servo Motors
Optical Elements: Telescope, Mirrors, Lens
Accuracy: 0.0006″ (Over the Whole Work Area)
Laser Source: 80 Watts, CO2
Electrical Requirements: 115V / 20A / Single Phase (NEMA 5-20P Plug Type)

Equipped With

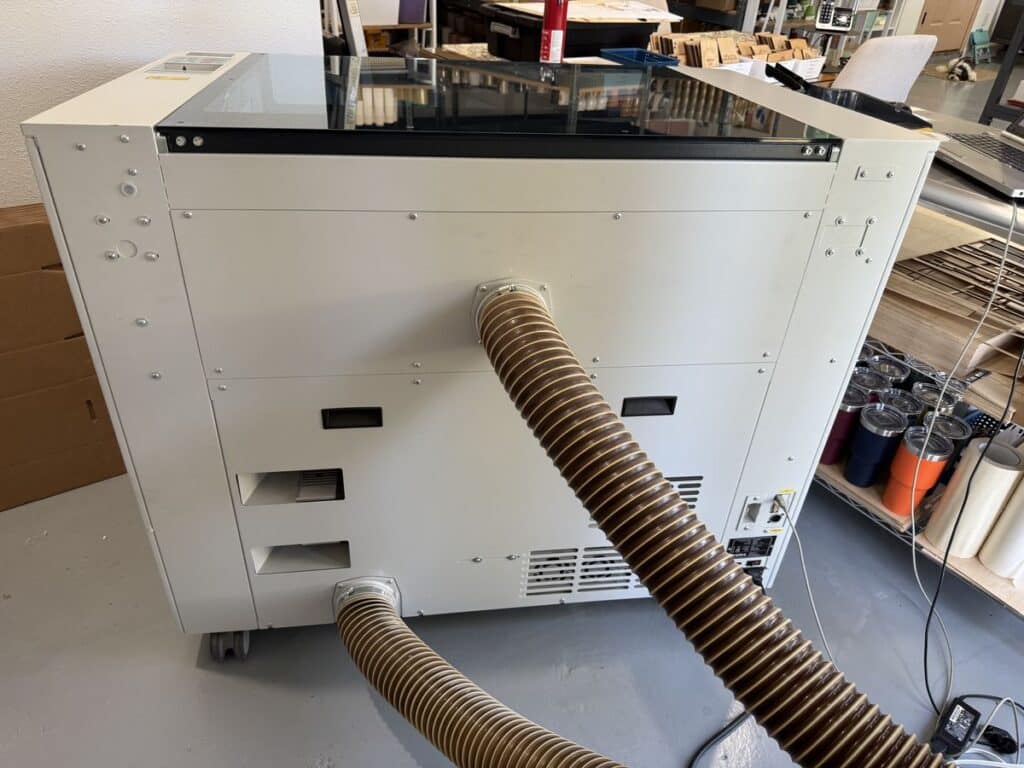

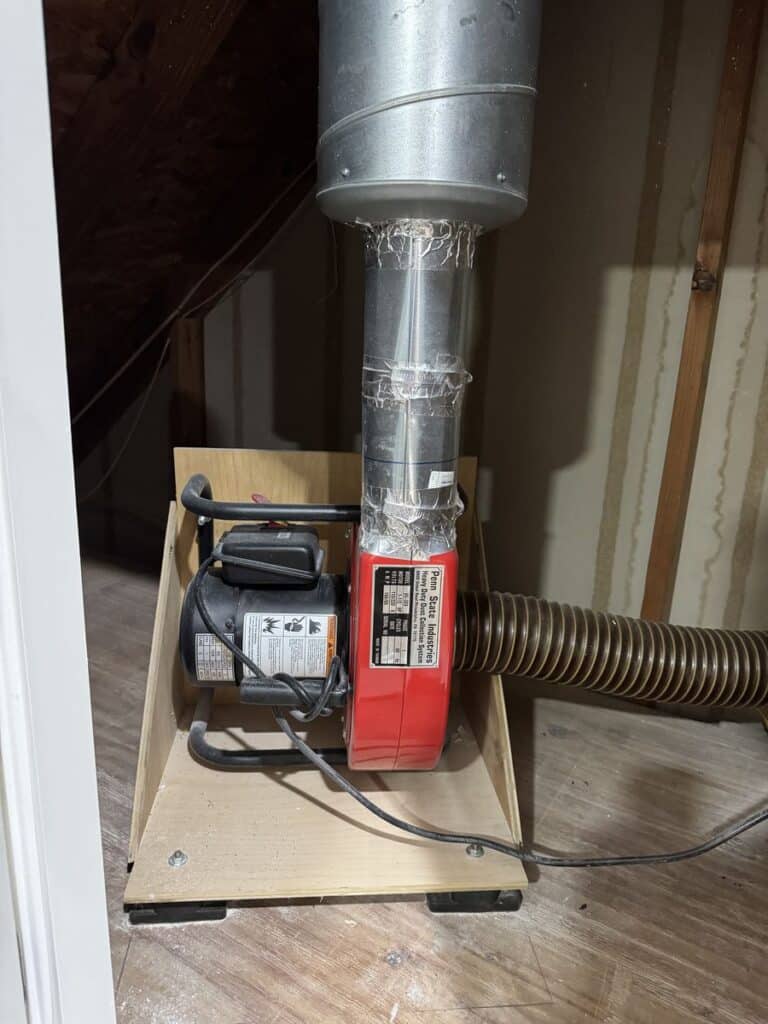

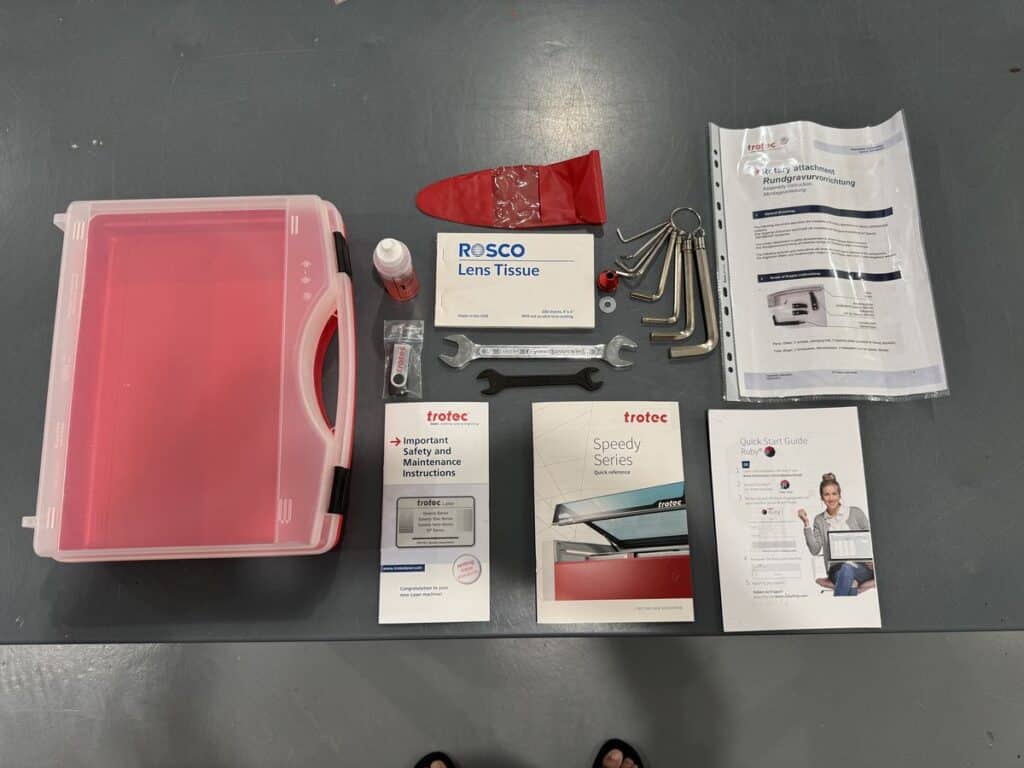

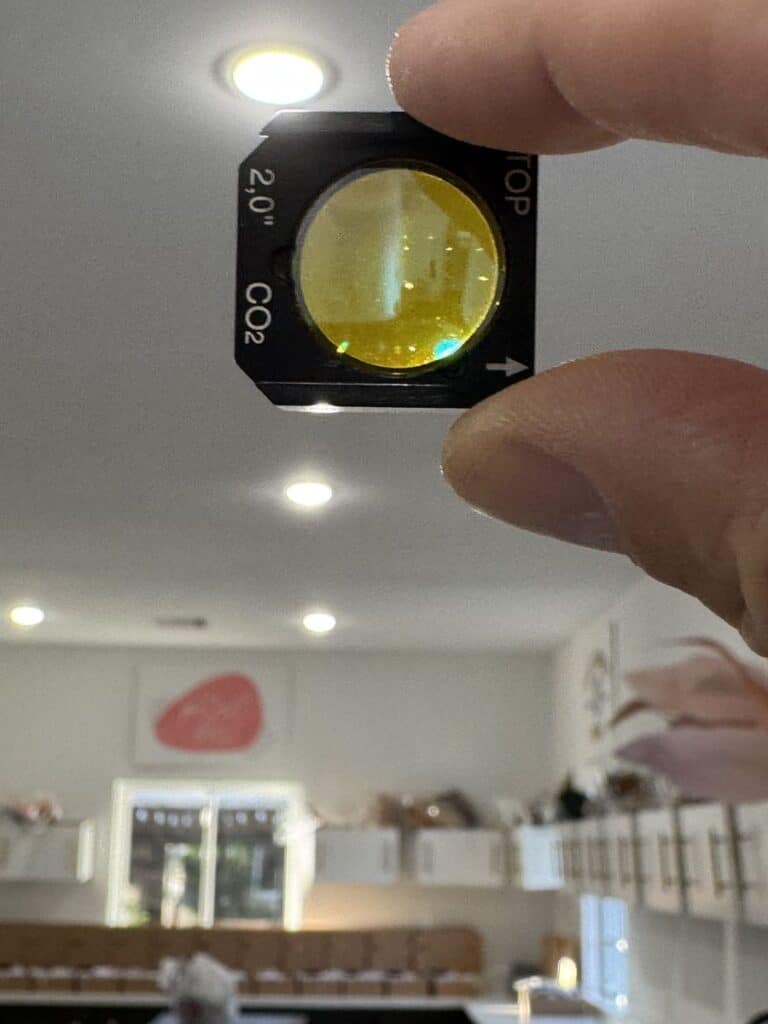

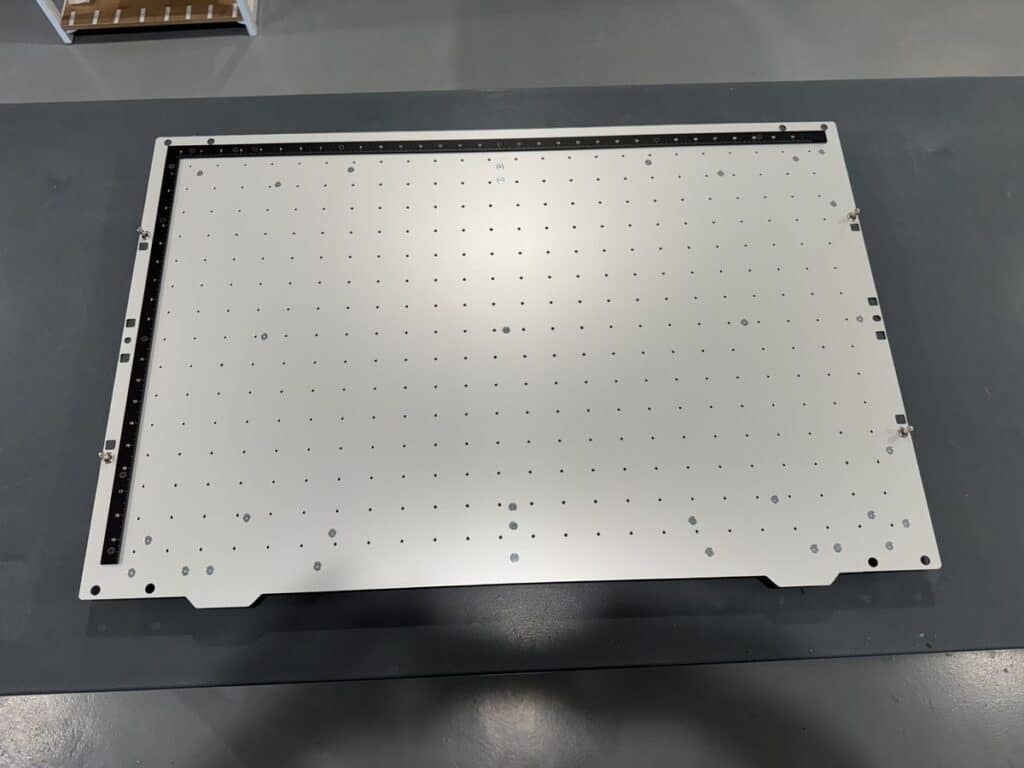

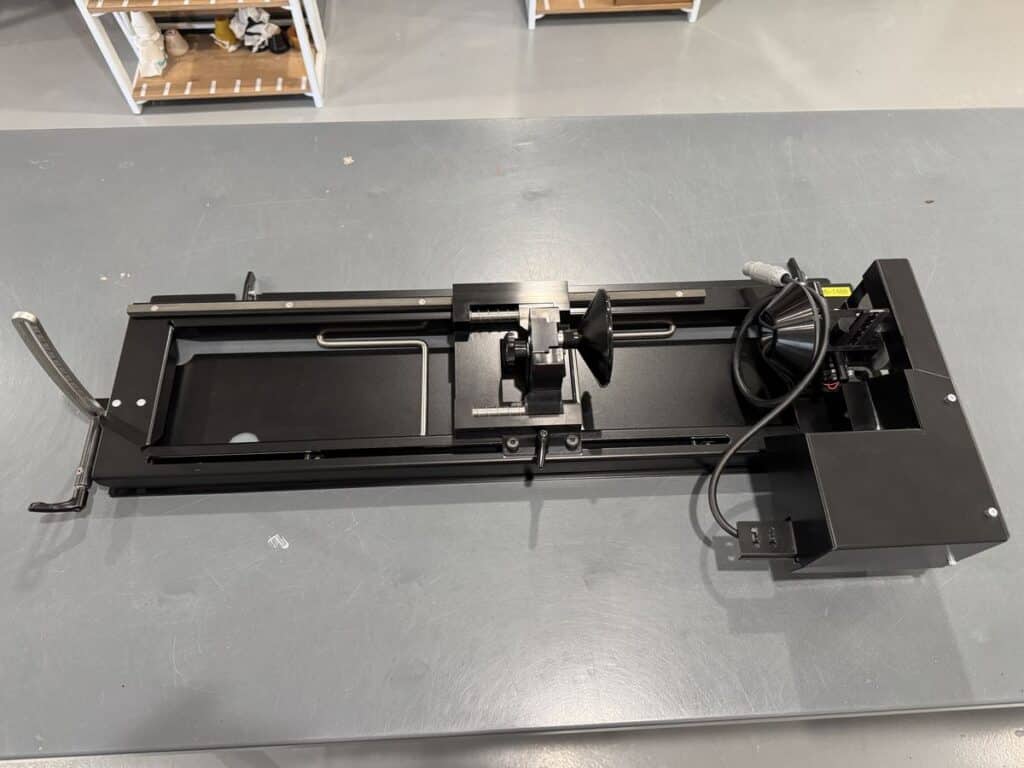

Vacuum Table 360, Rotary Attachment with conus (ruler in cm), Exhaust Socket for Speedy (100mm), 1.5HP DC3 Portable Dust Collector Motor Blower (no bag or hose), Sonar AutoFocus, Laser Pointer, Air Assist Pump, 2″ Precision Lens, Black Aluminum Grid Table, Trotec Tools, Ruby Software Package, HP EliteBook 8570p Laptop

Additional Info

Machine is under power and available to demo.
