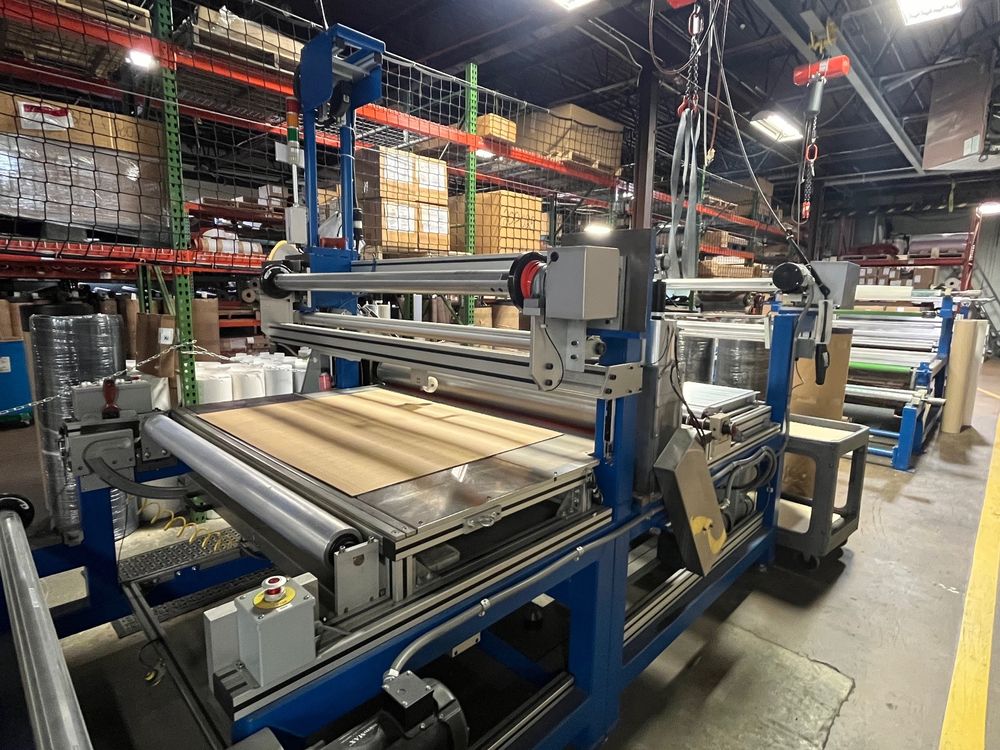

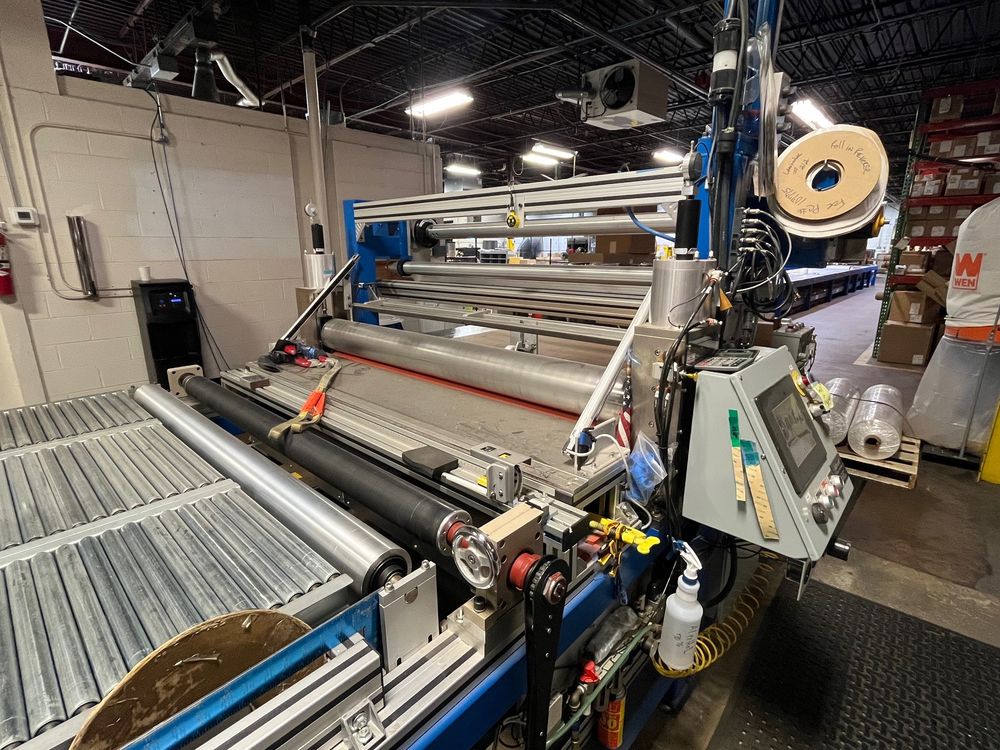

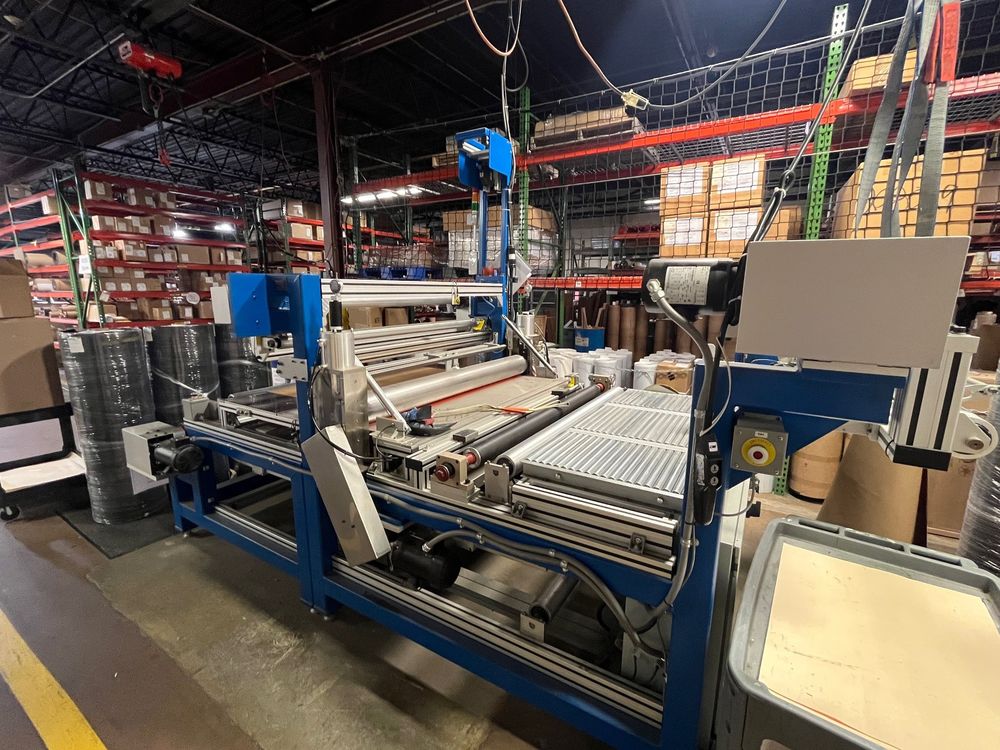

Advent Design Corporation 6294-1 Laminator 60″ Wide

Manufacturer

Advent Design Corporation

Category

Fabricating Machines

Type

SHEET METAL MACHINERY

Stock

181250025

Model

6294-1

Dealer Location

Georgia

Request a Quote
View Contact Information

Spec Sheet

  • Stock #: 181250025
  • Location: Philadelphia, PA
  • Brand: Advent Design Corporation
  • Model: 6294-1
  • Year: 2013
  • Approx. Shipping Dimensions: 11′ L x 7′ W x 9′ H
  • Loading Fee: Rigging Required

Specifications

  • Key Features: Dual unwinds with Adhesive & Substrate Air Shafts
  • Key Features: Edge Guide Sensors for both adhesive and substrate for precise alignment
  • Key Features: Integrated HMI & Gage Display for real-time process monitoring
  • Key Features: Cut guides for both adhesive and substrate
  • Specifications:: Can laminate material up to 60″ wide
  • Specifications:: Overall dimensions are 11′ L x 7′ W x 9′ H
  • Electrical Volts:: 208/120
  • Phase:: 3
  • Amps:: 30
  • Hertz:: 60
  • Applications:: Multi-layer lamination of elastomers, foams, and films, PSA application with accurate edge alignment

Equipped With

Raw material and finished product work pieces: Substrates are supplied in rolls wound on 3-inch ID cardboard cores. Rolls are from 24 inches to 54 inches wide with up to 22-inch maximum OD. Thickness ranges from 0.005-inch film up to 0.50-inch foam, and the maximum roll weight is 200 pounds. Adhesive is supplied in rolls wound on 3-inch ID cardboard cores. Rolls are from 24 inches to 54 inches wide with up to 14-inch maximum OD. Thickness is 0.005 inch to 0.020 inch, and the maximum roll weight is 300 pounds.

Additional Info

Inspection Upon Request
