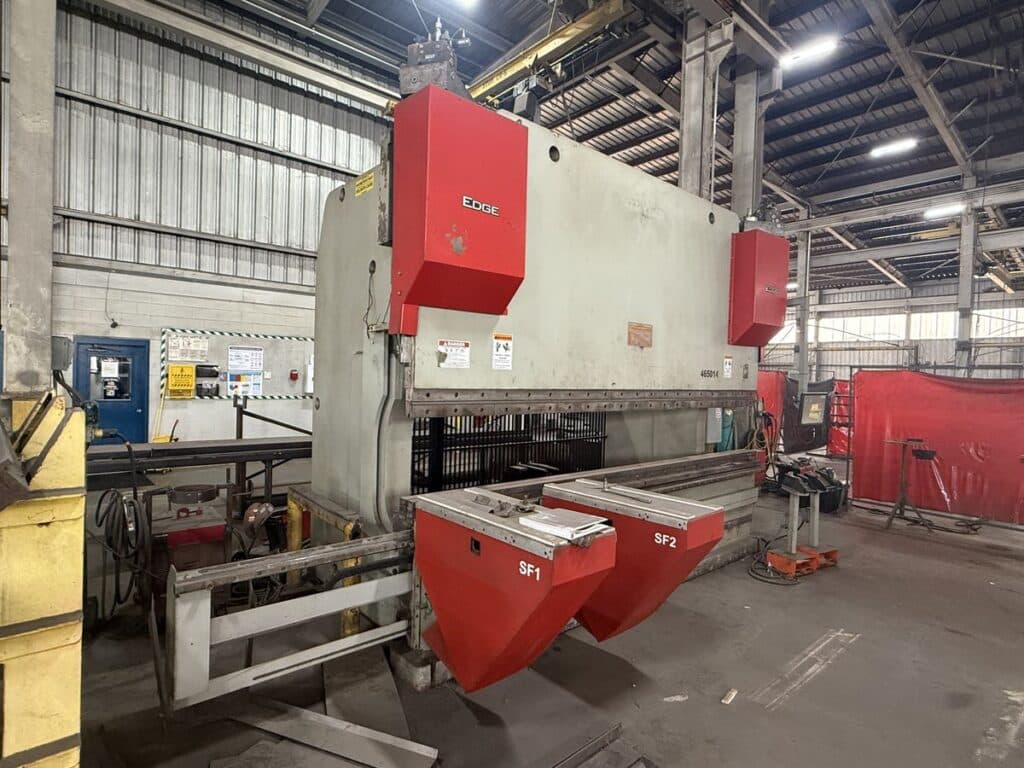

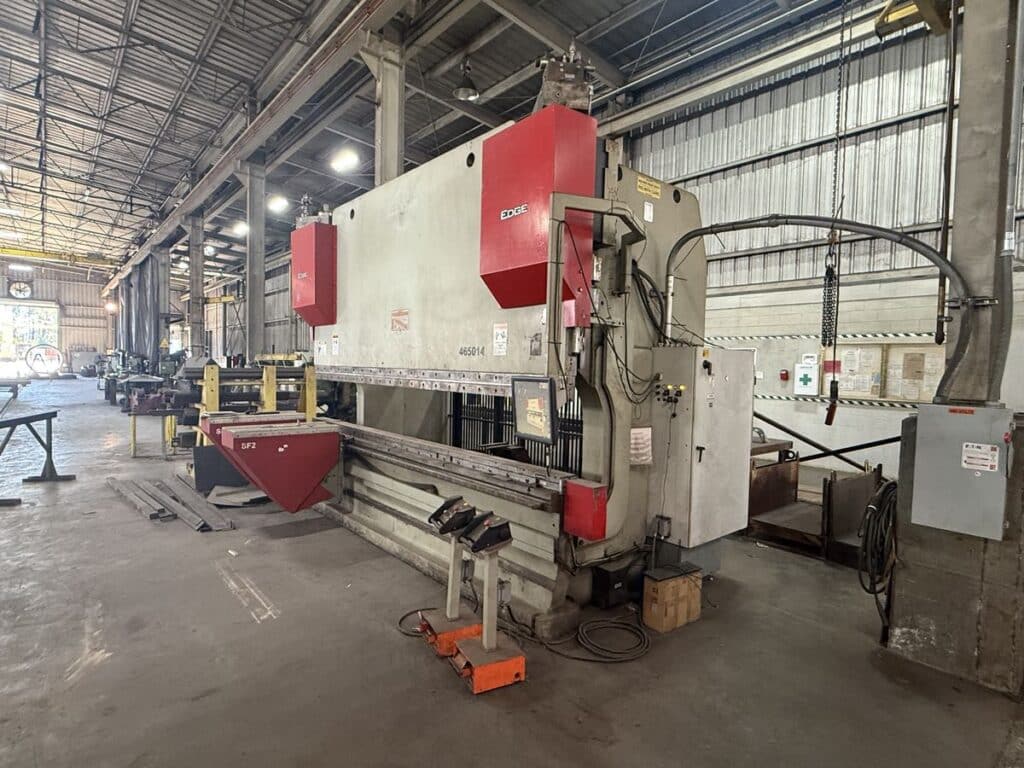

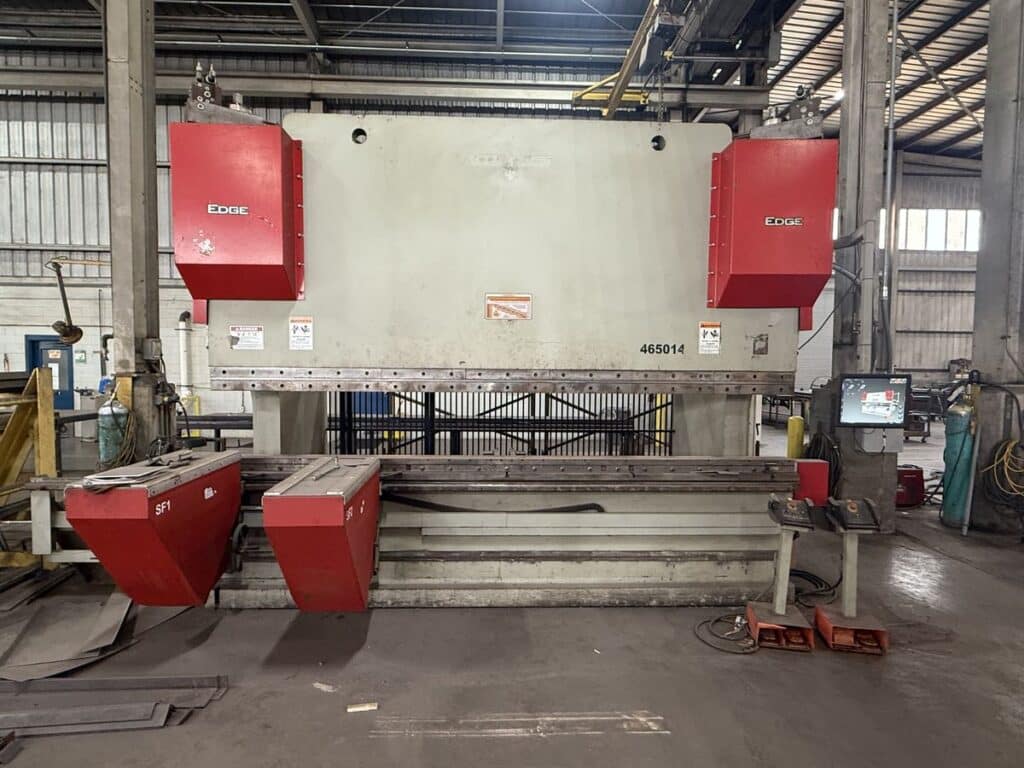

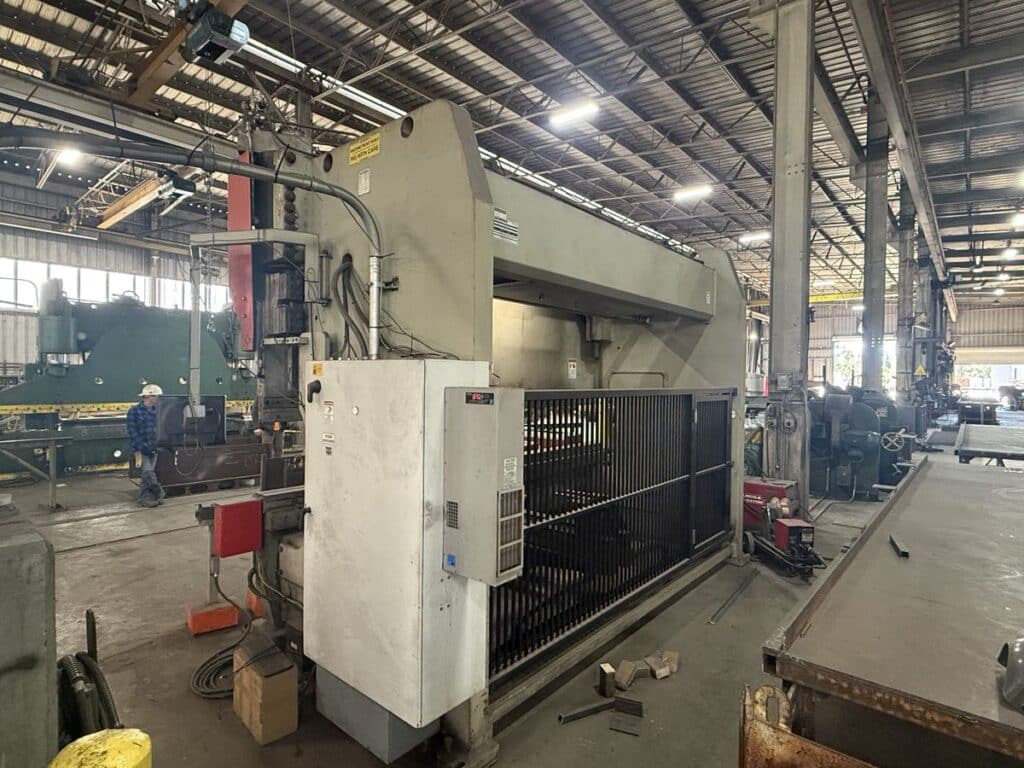

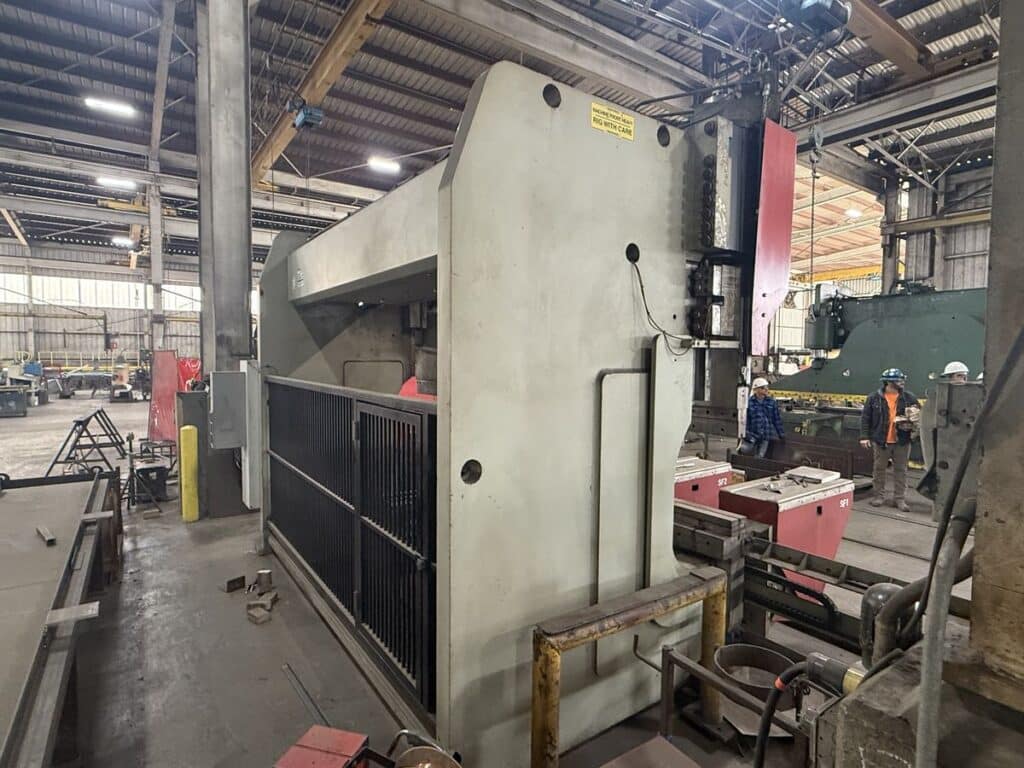

Accurpress Edge 465014 650 Ton x 14′, 11-Axis CNC Press Brake (2013)

Stock

172250001

Model

Edge 465014

Dealer Location

Georgia

Spec Sheet

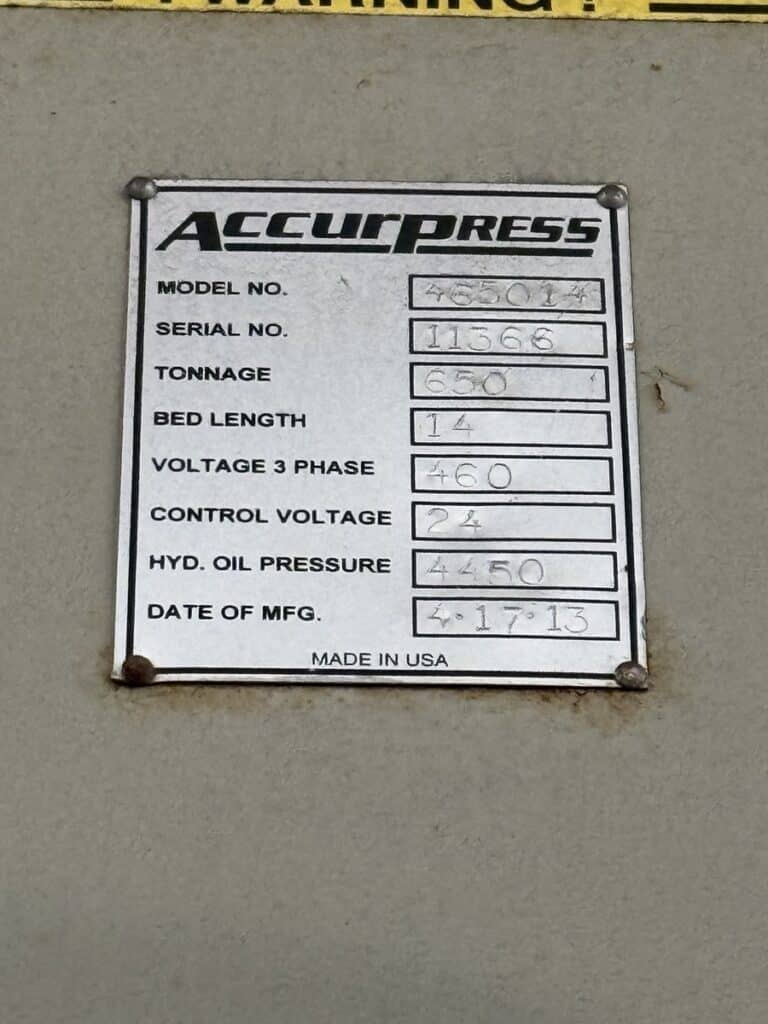

  • Stock #: 172250001
  • Location: GA
  • Brand: Accurpress
  • Model: Edge 465014
  • Serial #: 11366
  • Year: 2013
  • Approx. Shipping Weight: 57,000 LBS
  • Approx. Shipping Dimensions: 19′ L x 9.3′ W x 11.5′ H
  • Loading Fee: Rigging Required

Specifications

  • Max Tonnage: 650 Tons
  • Length of Bed: 168″
  • Distance Between Frames: 148″
  • Length of Ram Stroke: 14″
  • Ram Open Height: 26″
  • Ram Closed Height: 12″
  • Bend Speed: 24″/Min
  • Return Speed: 260″/Min

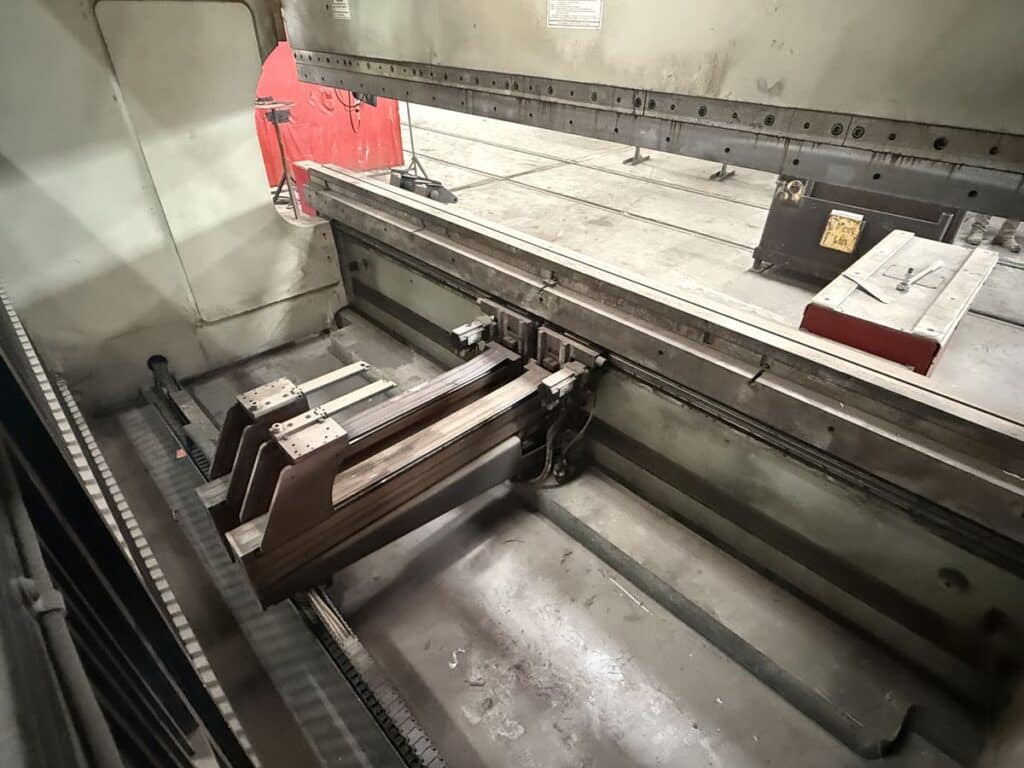

  • Backgauge Axis (6-Axis): Power X1/X2, Power R1/R2, Power Z1/Z2
  • Backgauge Type: Elite

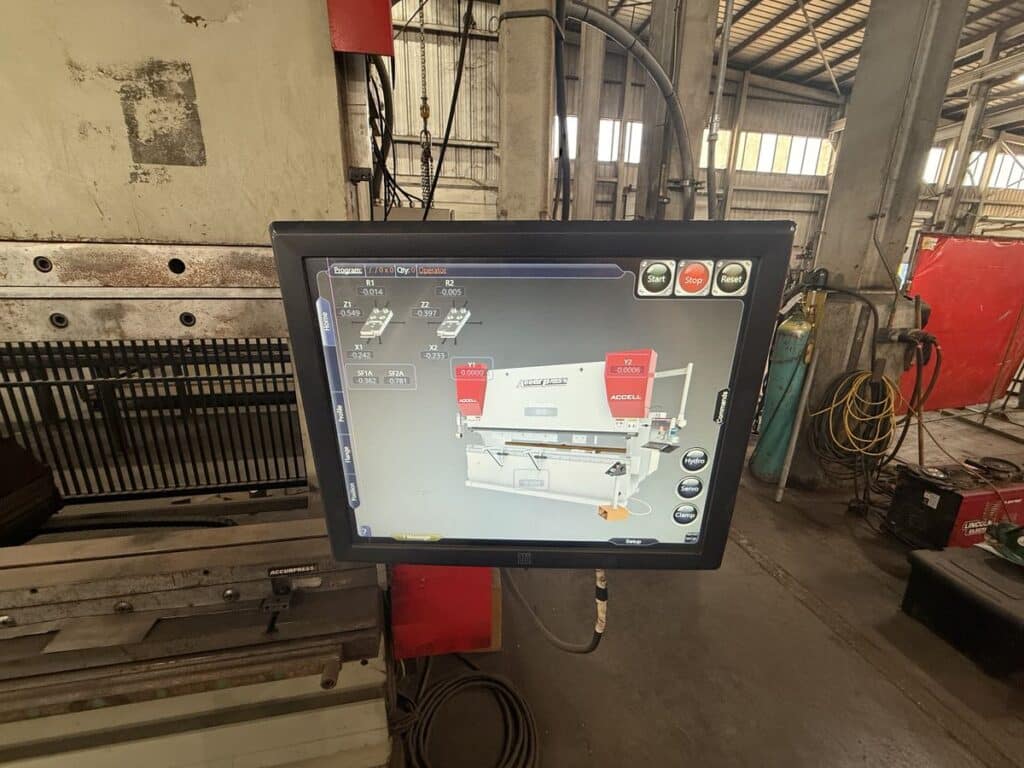

  • Machine Control: Vision Control
  • Tool Crowning: Accurcrown- CNC Crowning
  • Main Motor: 40 HP
  • Power Required: 460V / 3 Phase

Equipped With

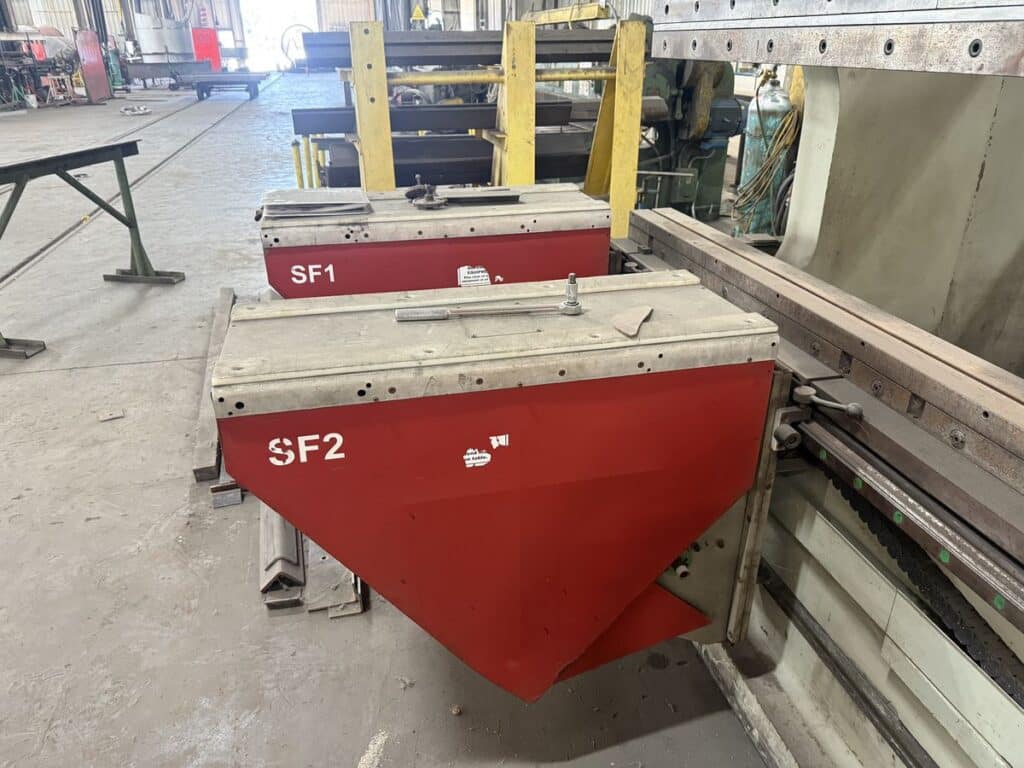

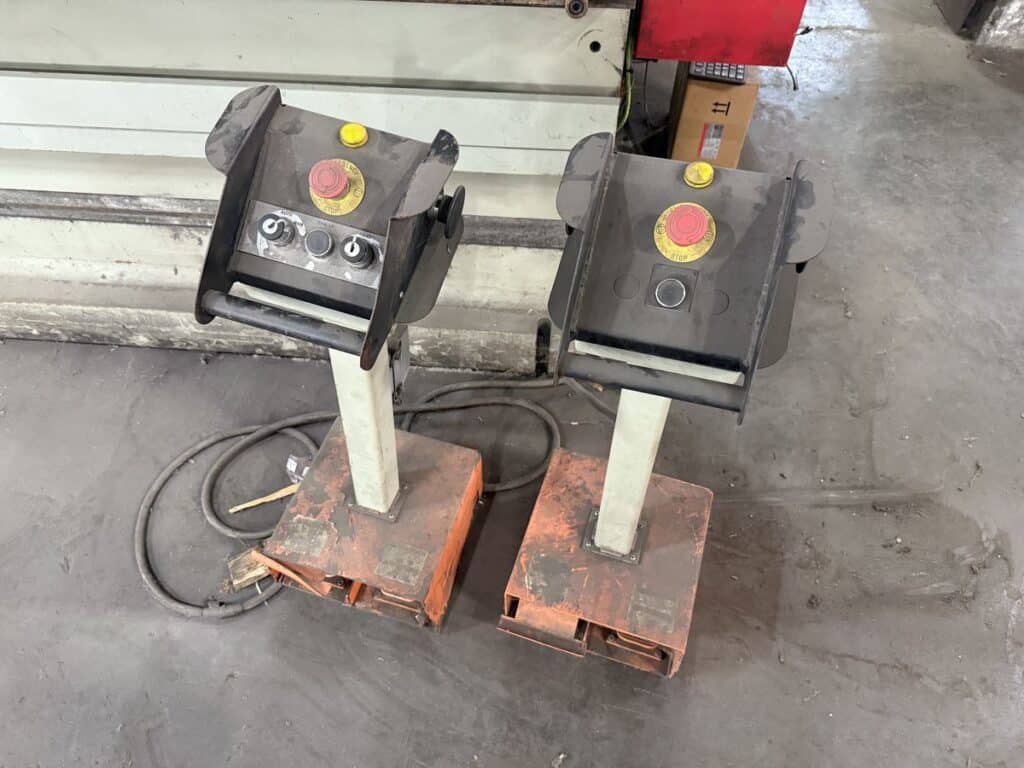

Vision Control, Accurcrown- CNC Crowning, 6-Axis Backgauge, Sheet Following System (2 Stations), Primary & Secondary Footswitches, 4″ Additional Ram Open Height, Robotic Systems Interface, Electrical Cabinet Cooler

Additional Info

Machine is available to demo.
