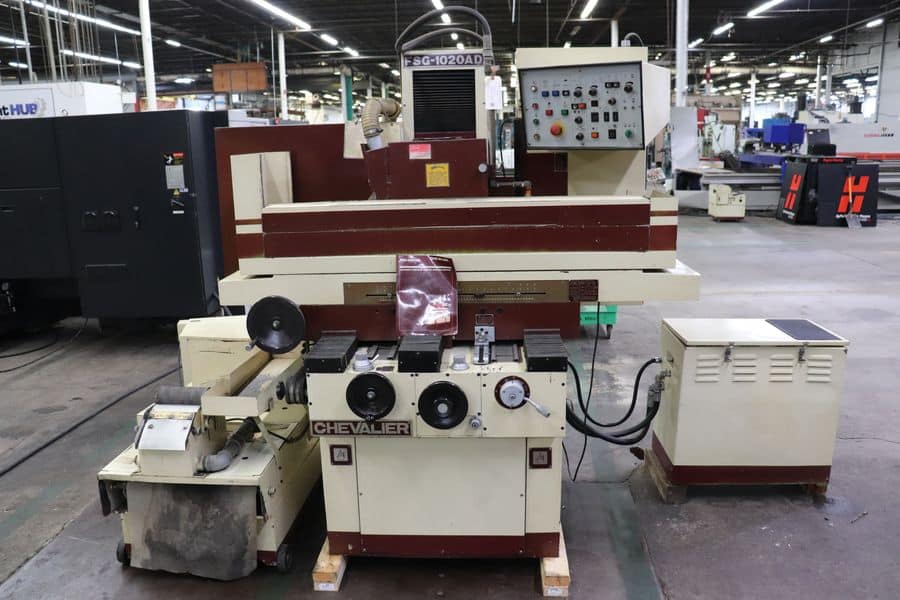

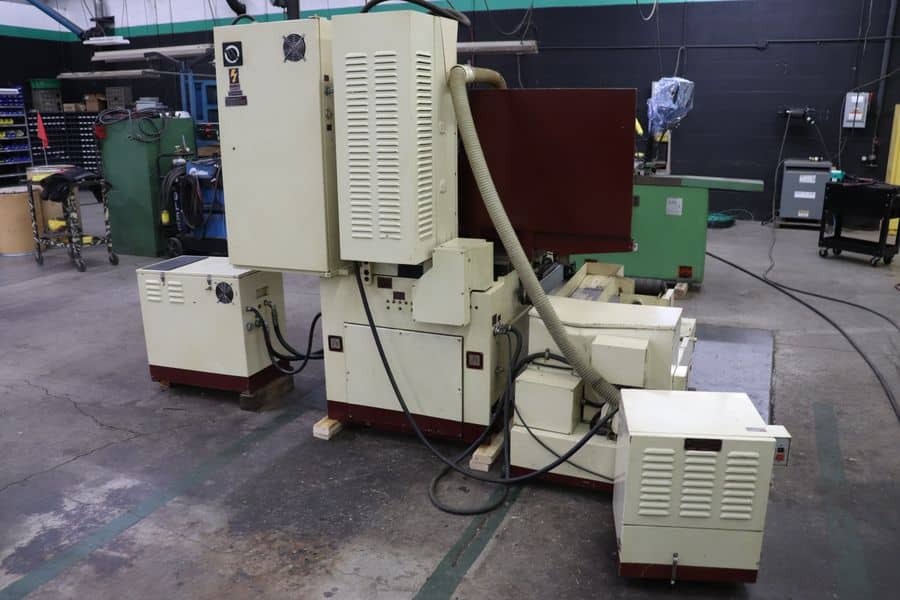

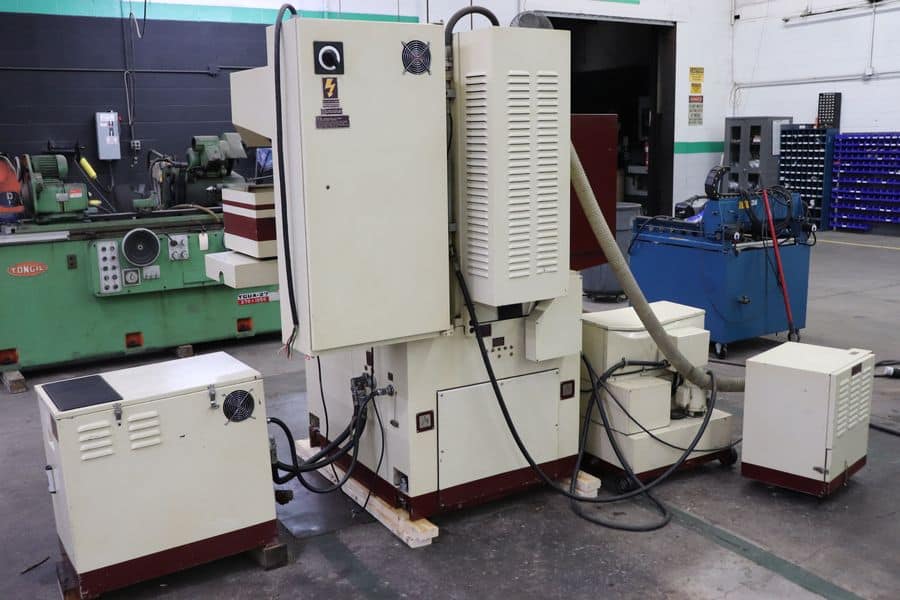

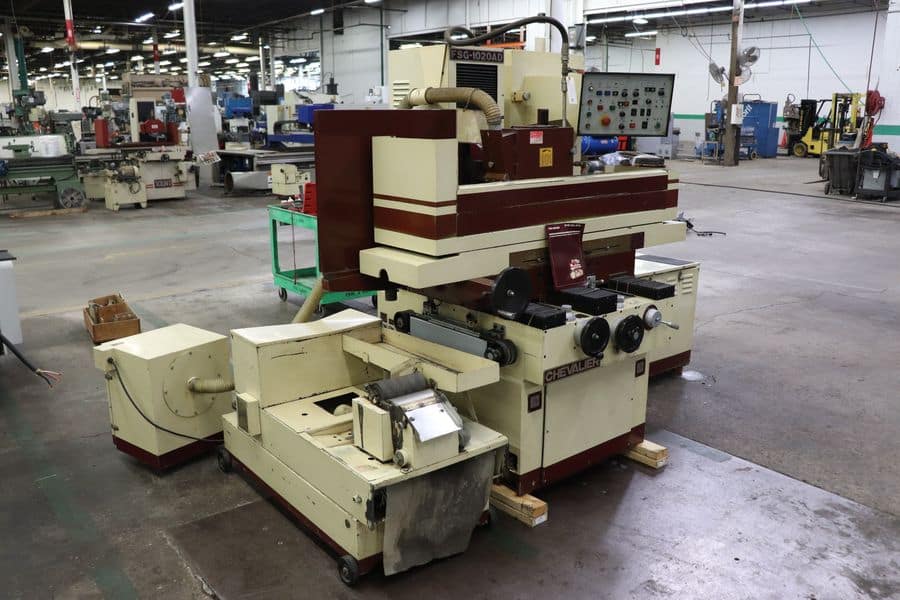

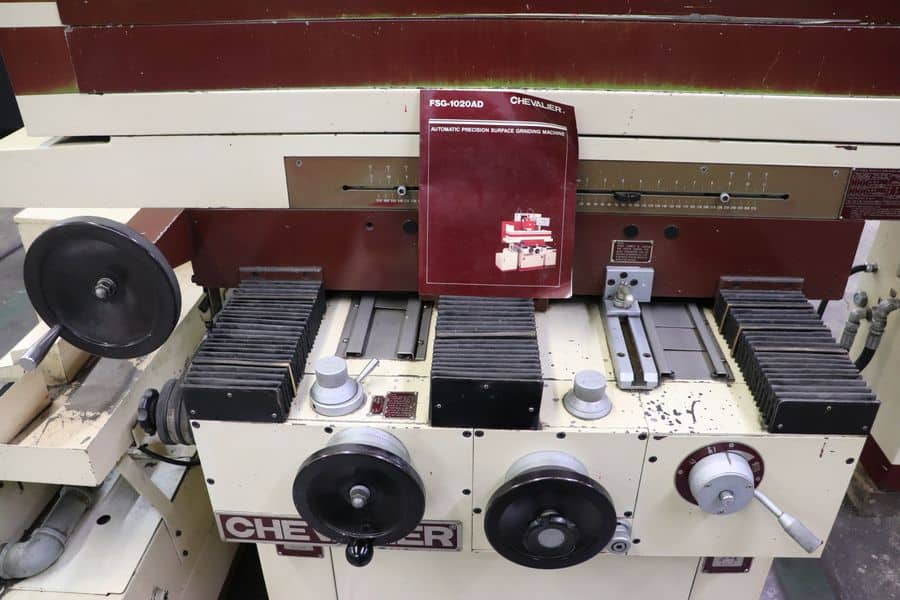

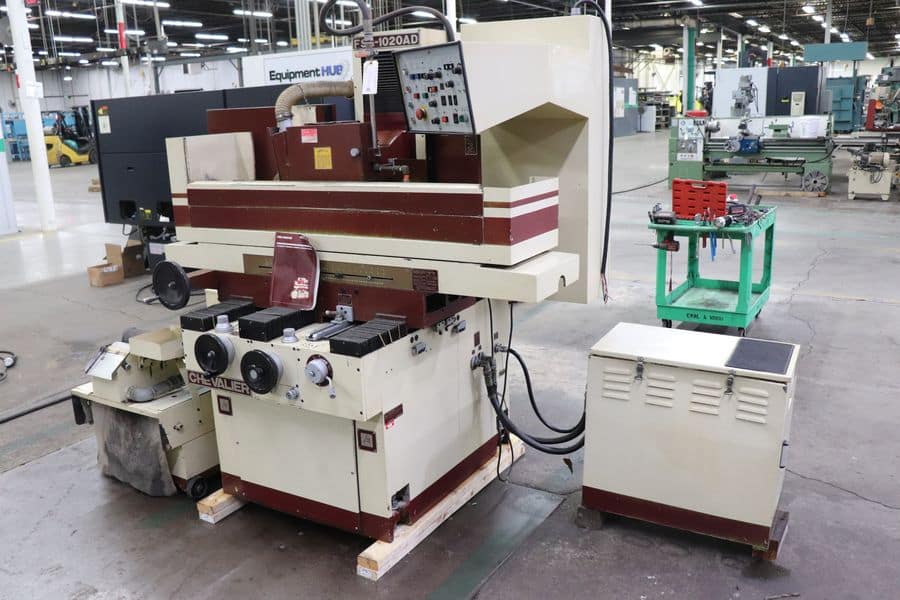

Chevalier FSG-1020AD 3-Axis Automatic 10″ x 20″ Hydraulic Surface Grinder

Manufacturer

Chevalier

Category

Grinding Machines

Type

GRINDERS, DISC, VERTICAL (Single End)

Stock

210250076

Model

FSG-1020AD

Dealer Location

Georgia

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

  • Stock #: 210250076
  • Location: Decatur, Ga
  • Brand: Chevalier
  • Model: FSG-1020AD

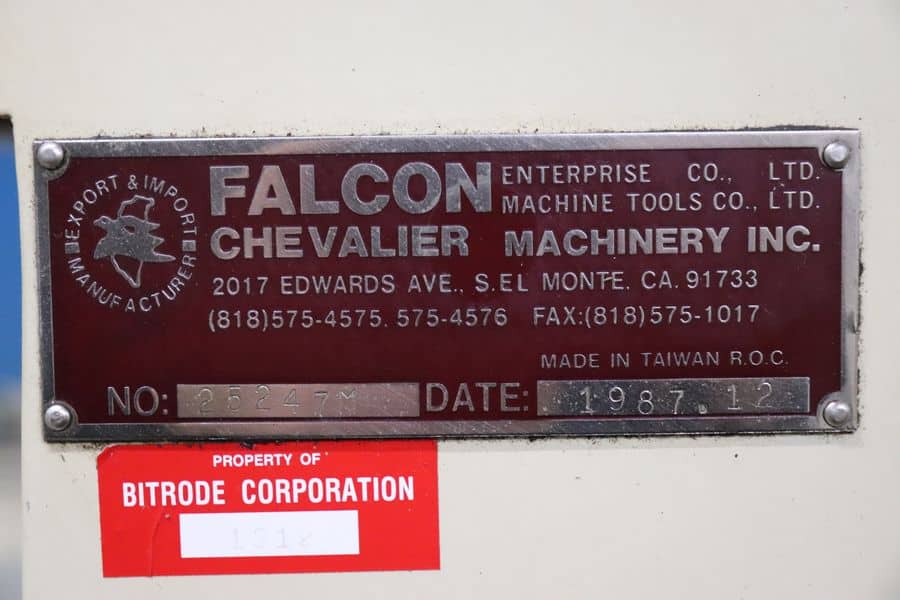

  • Serial #: 25247M
  • Year: 1987
  • Approx. Shipping Weight: 5,000 Lbs.
  • Approx. Shipping Dimensions: 11′ L x 5′ W x 7′ H
  • Skidding Fee: Skidding Unavailable

Specifications

  • Maximum Grinding Length: 20″
  • Maximum Grinding Width: 10″
  • Maximum Distance Between Spindle Center to Table Surface: 21″
  • Longitudinal Travel, Manual: 24-3/8″
  • Longitudinal Travel, Hydraulic: 22-7/8″
  • Longitudinal Table Speed (Infinitely Variable): 16 to 82 FPM
  • Crossfeed Travel, Manual: 11-3/4″
  • Crossfeed Rapid Travel Speed: 12.5 FPM
  • Crossfeed Micro Feed (per graduation): 0.00005″
  • Crossfeed Micro Feed (per revolution): 0.005″
  • Wheelhead Infeed Auto. Infeed: 0.000050″ to 0.002″
  • Wheelhead Infeed Rapid Travel: 8 IPM
  • Wheelhead Micro Feed: 0.000050″ / 0.0001″
  • Wheelhead Infeed (per graduation): 0.0005″
  • Wheelhead Infeed (per revolution): 0.05″
  • Spindle Motor: 3HP
  • Electrical: 480V 3PH

Equipped With

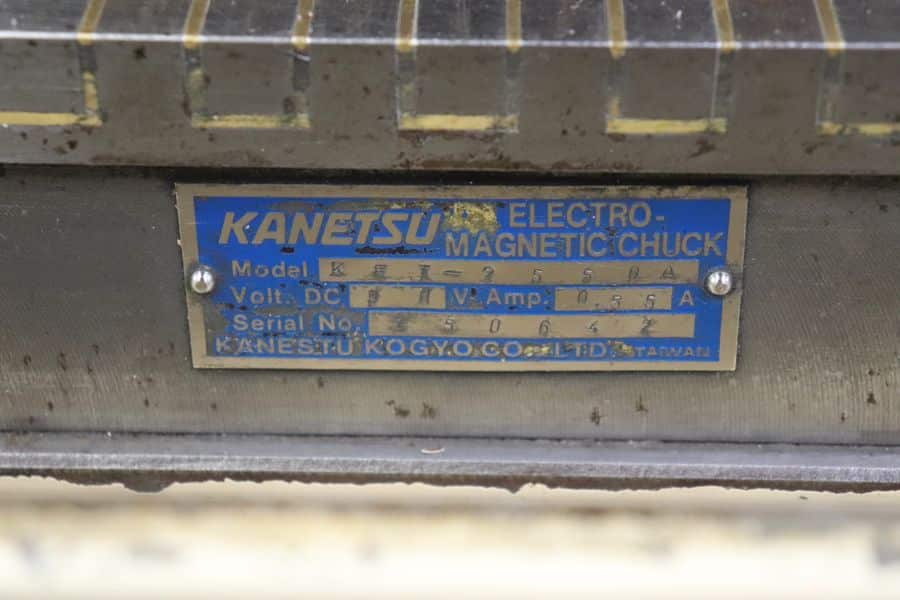

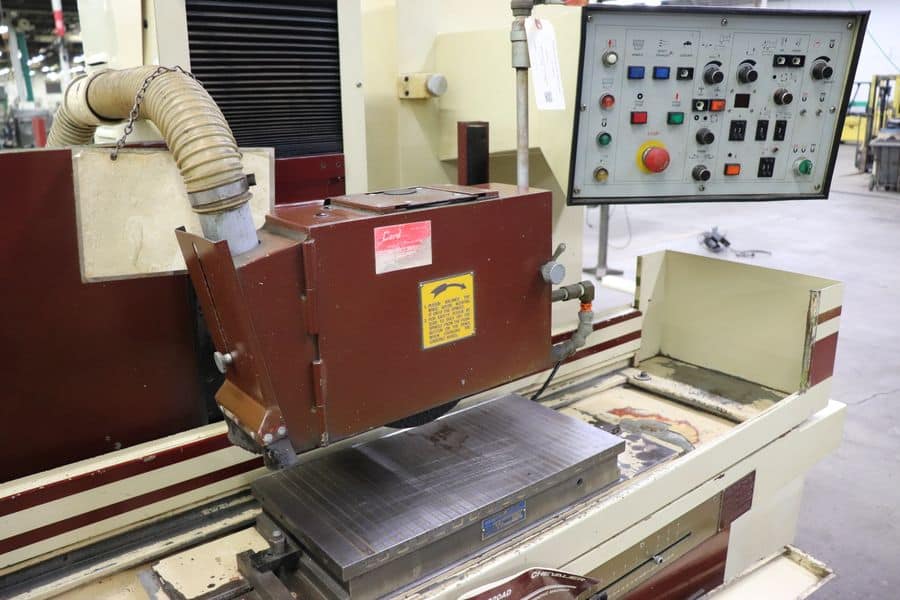

Kanetsu Electro Magnetic Chuck, Dust Collection System, Coolant System

Additional Info

The Chevalier Surface Grinder can be demoed upon request. Check out the video on the listing to see it in operation.
