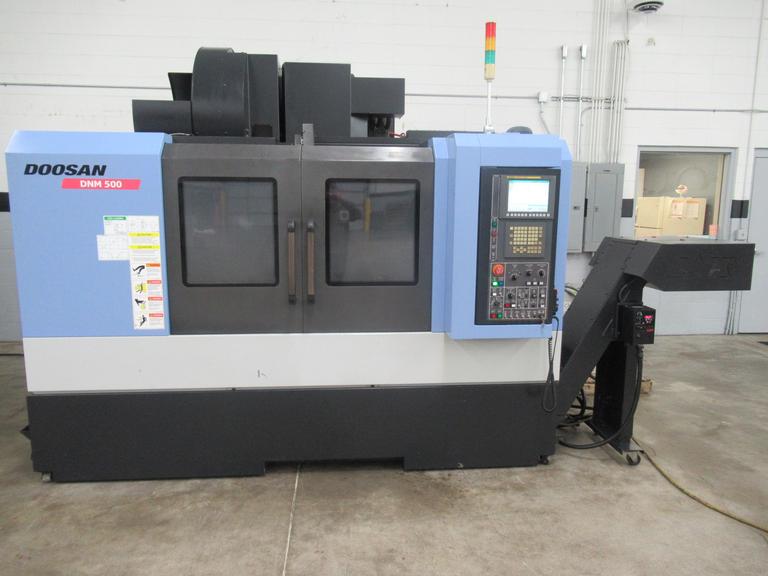

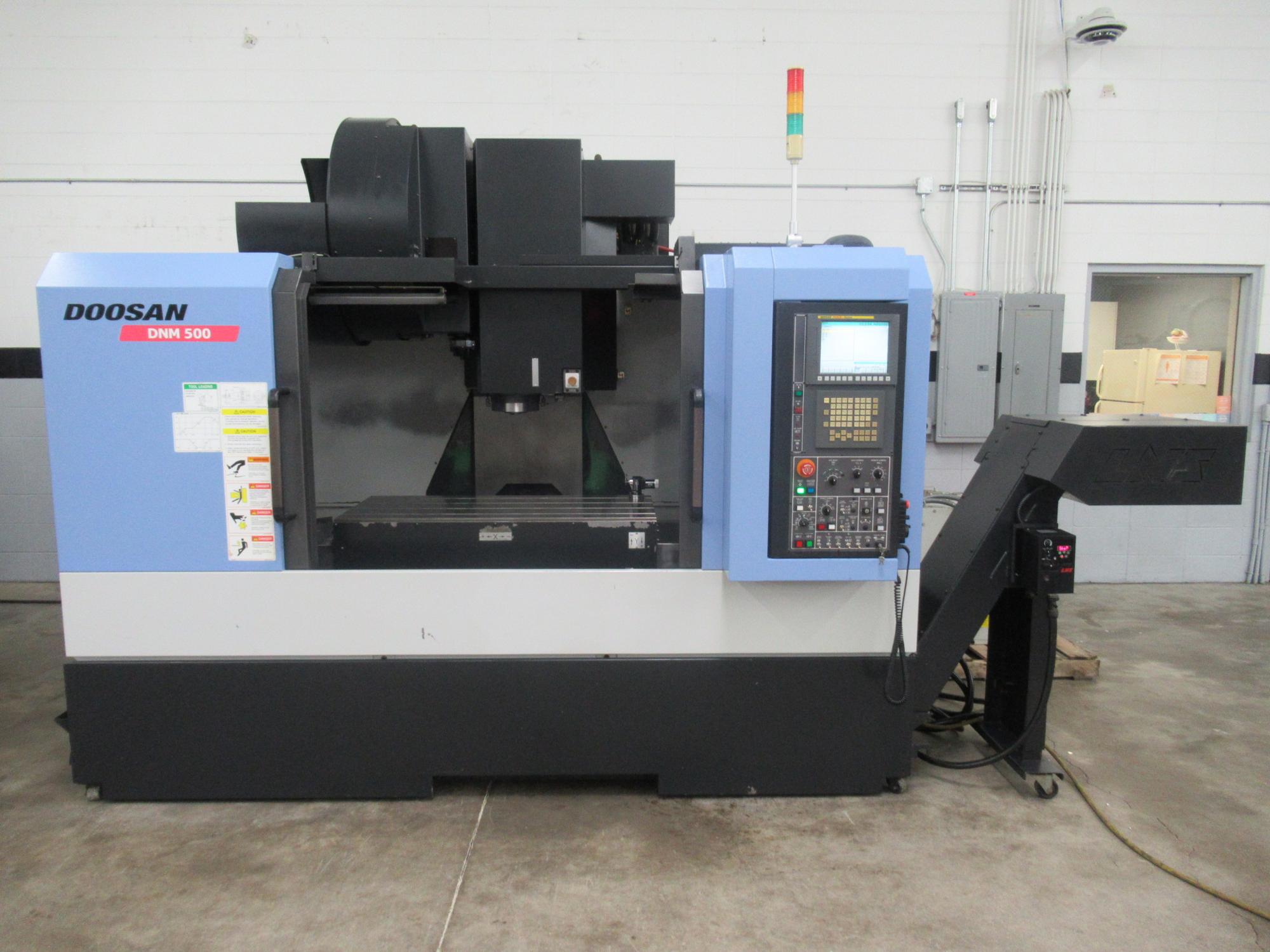

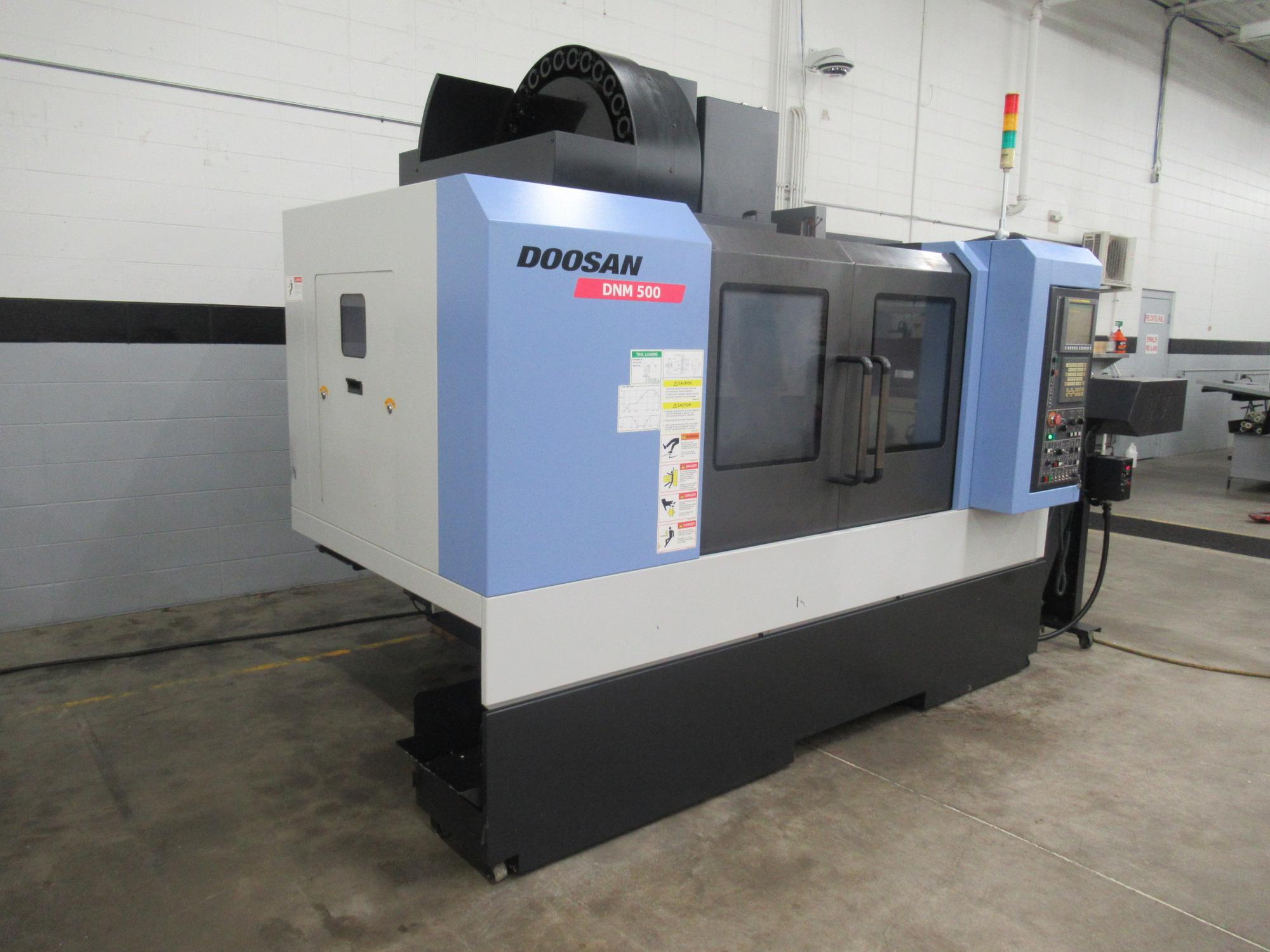

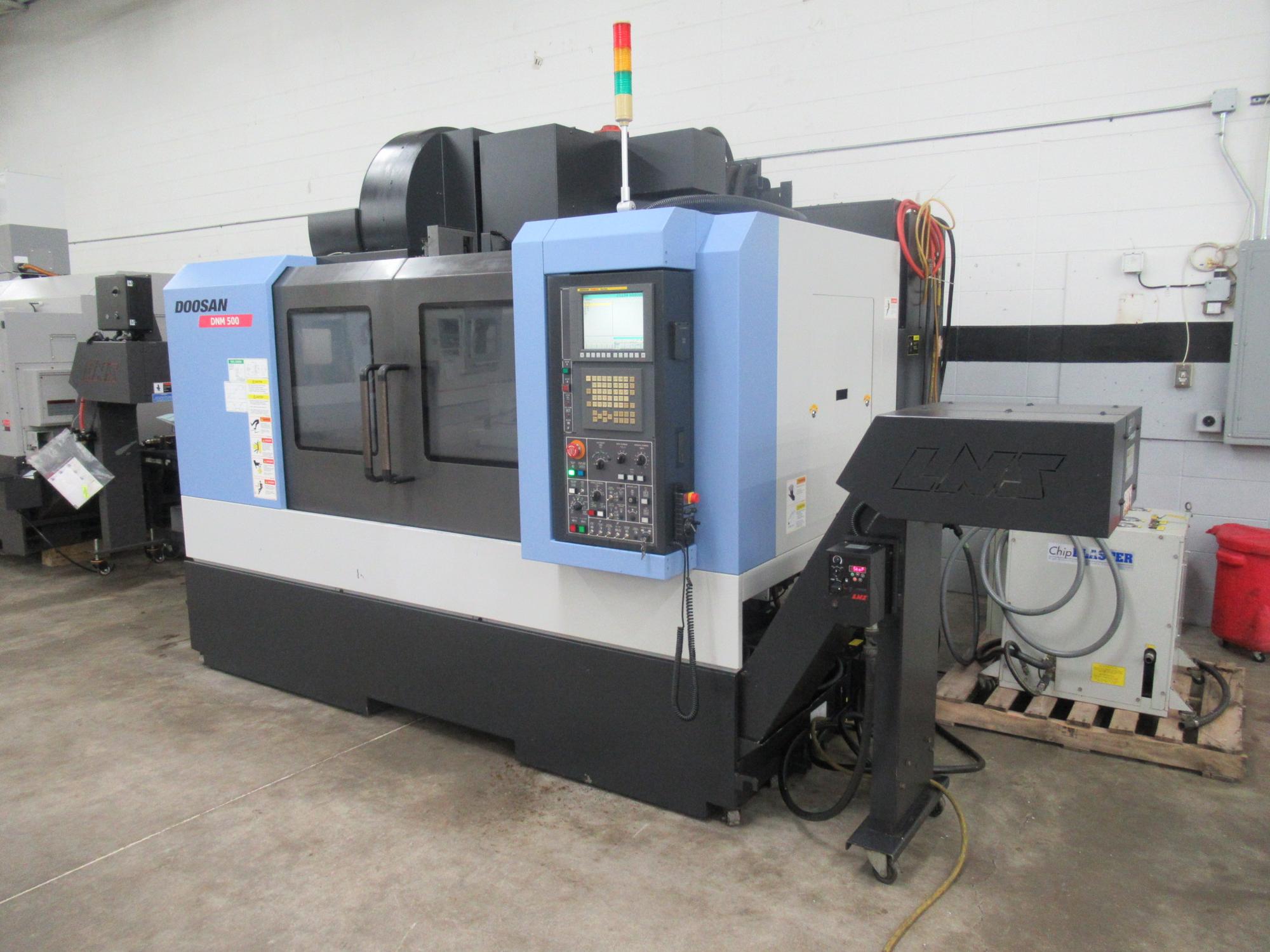

Doosan DNM 500 CNC Vertical Machining Center, 12K RPM Spindle, High Pressure Coolant, Renishaw Probing, Full 4th Axis, Chip Conveyor

Manufacturer

Doosan

Category

Machining Centers

Type

MACHINING CENTERS, VERTICAL, CNC, BRIDGE TYPE

Stock

7298

Model

DNM 500

Dealer Location

Minnesota

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

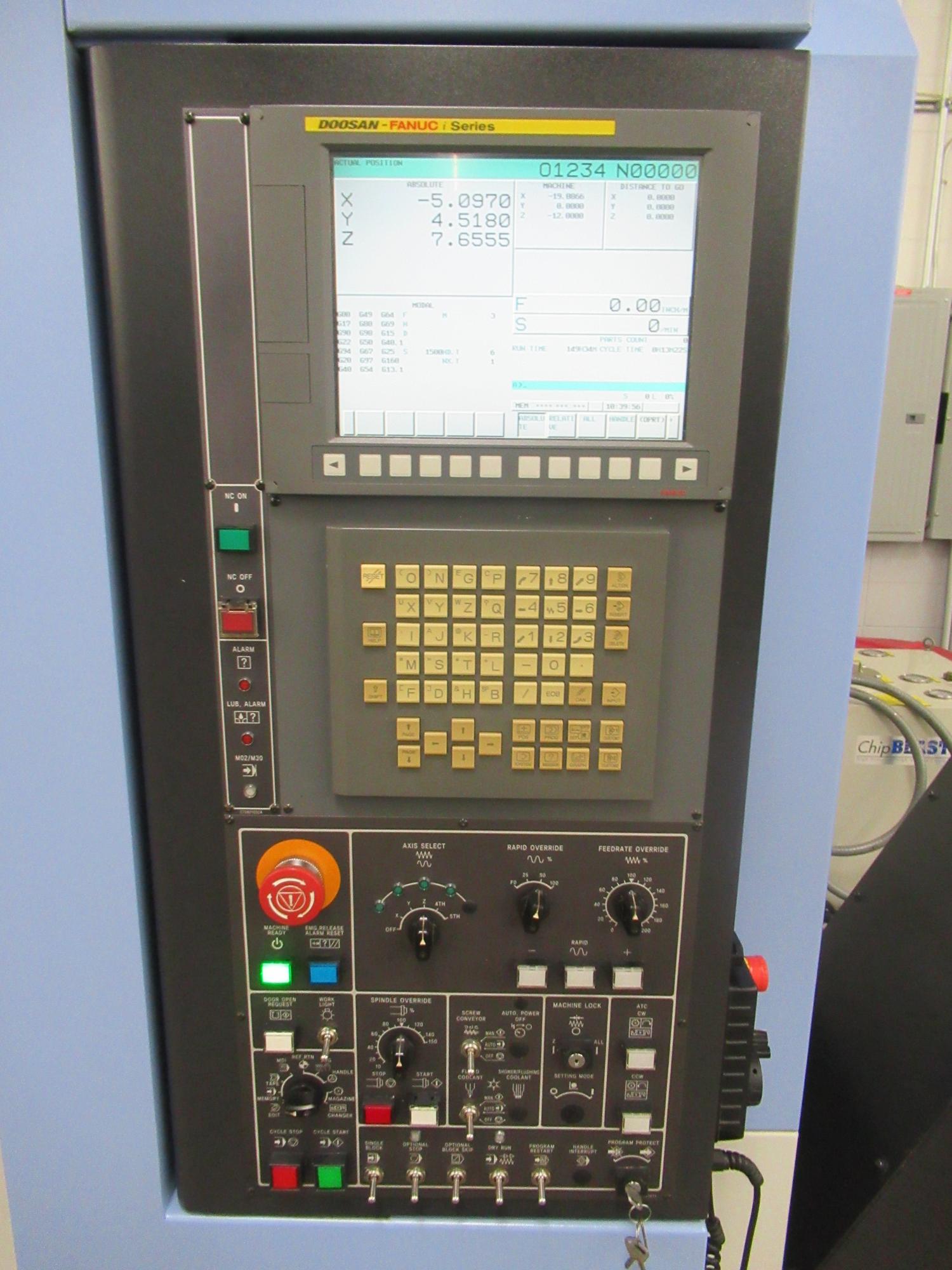

Machine Control: Fanuc 0i-MD CNC Control

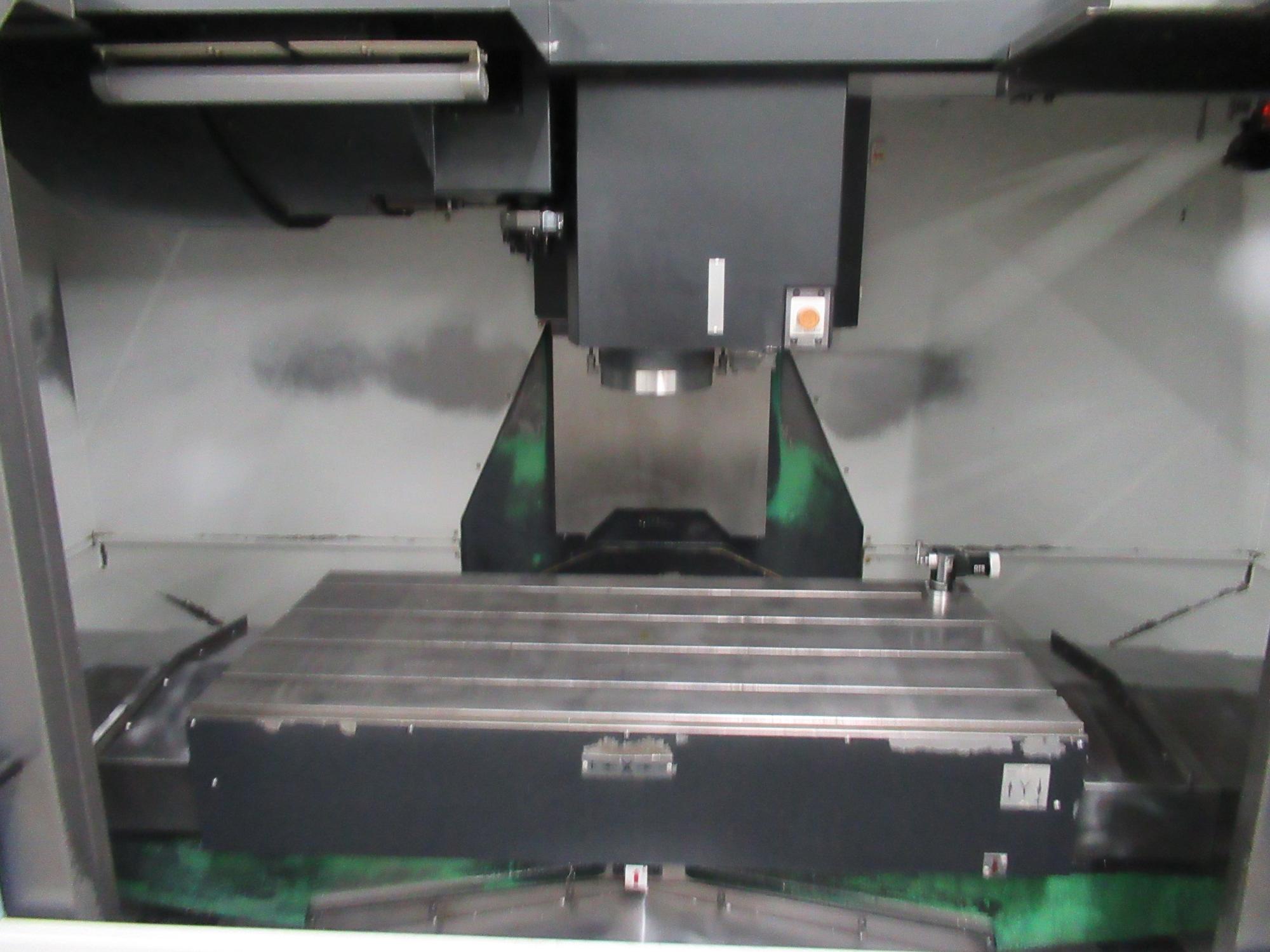

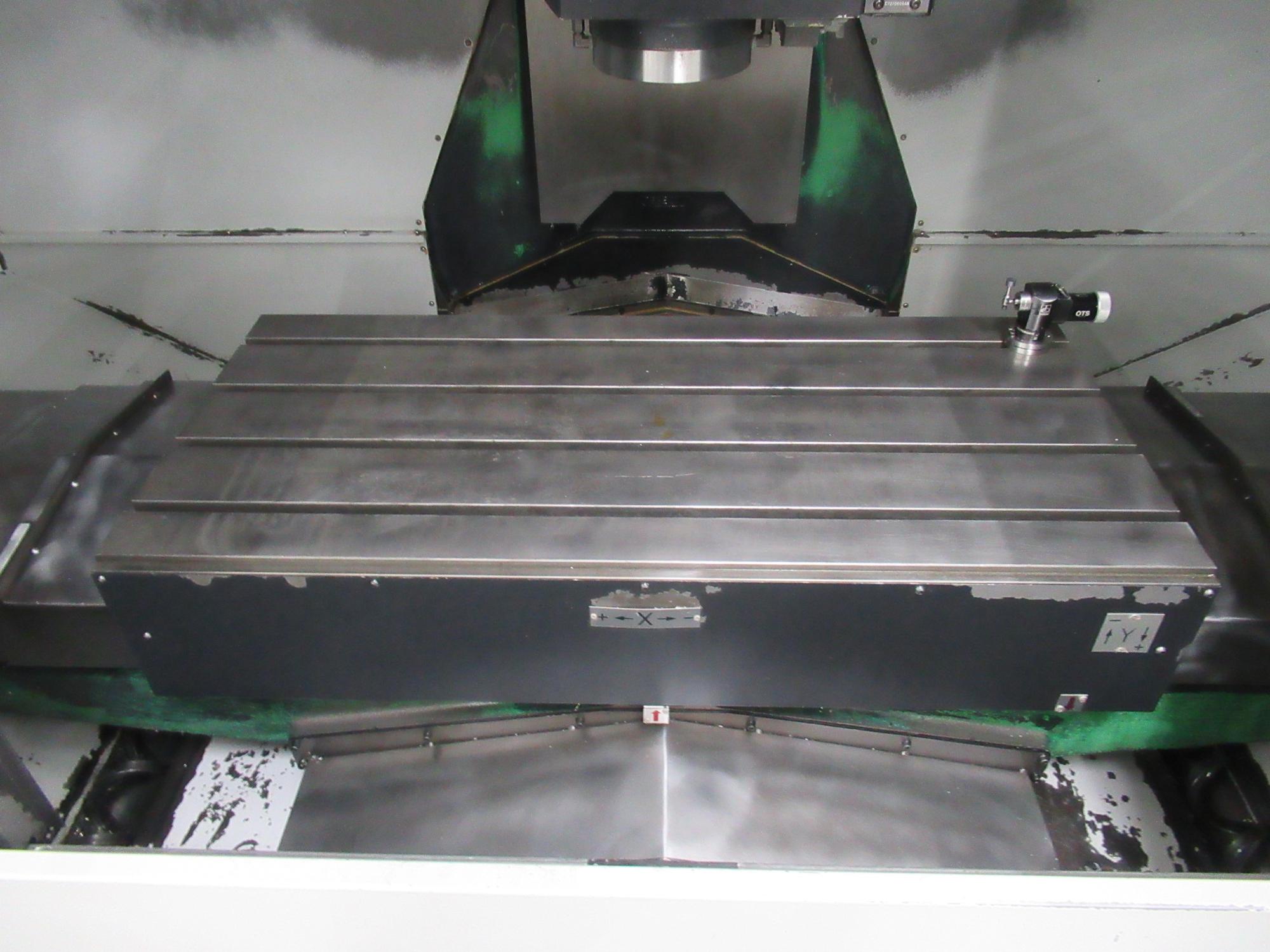

Table Size: 47.24" x 21.25"

Machine Travels (X/Y/Z): 40.15" x 21.25" x 20.07"

Table Capacity: 1,760 Lbs.

Spindle Taper: Cat 40

Spindle Speeds: 12000 Max RPM

Rapid Traverse Rate (X/Y/Z): 1417 / 1417 / 1181 IPM

Maximum Cutting Feed Rate: Max 590 IPM

Tool Changer Style: Side-Mount, Twin Arm

Tool Changer Capacity: 30 Stations

Max Tool Length: 11.81"

Max Tool weight: 17.6 Lbs.

Spindle Drive: 25 HP

Equipped With:

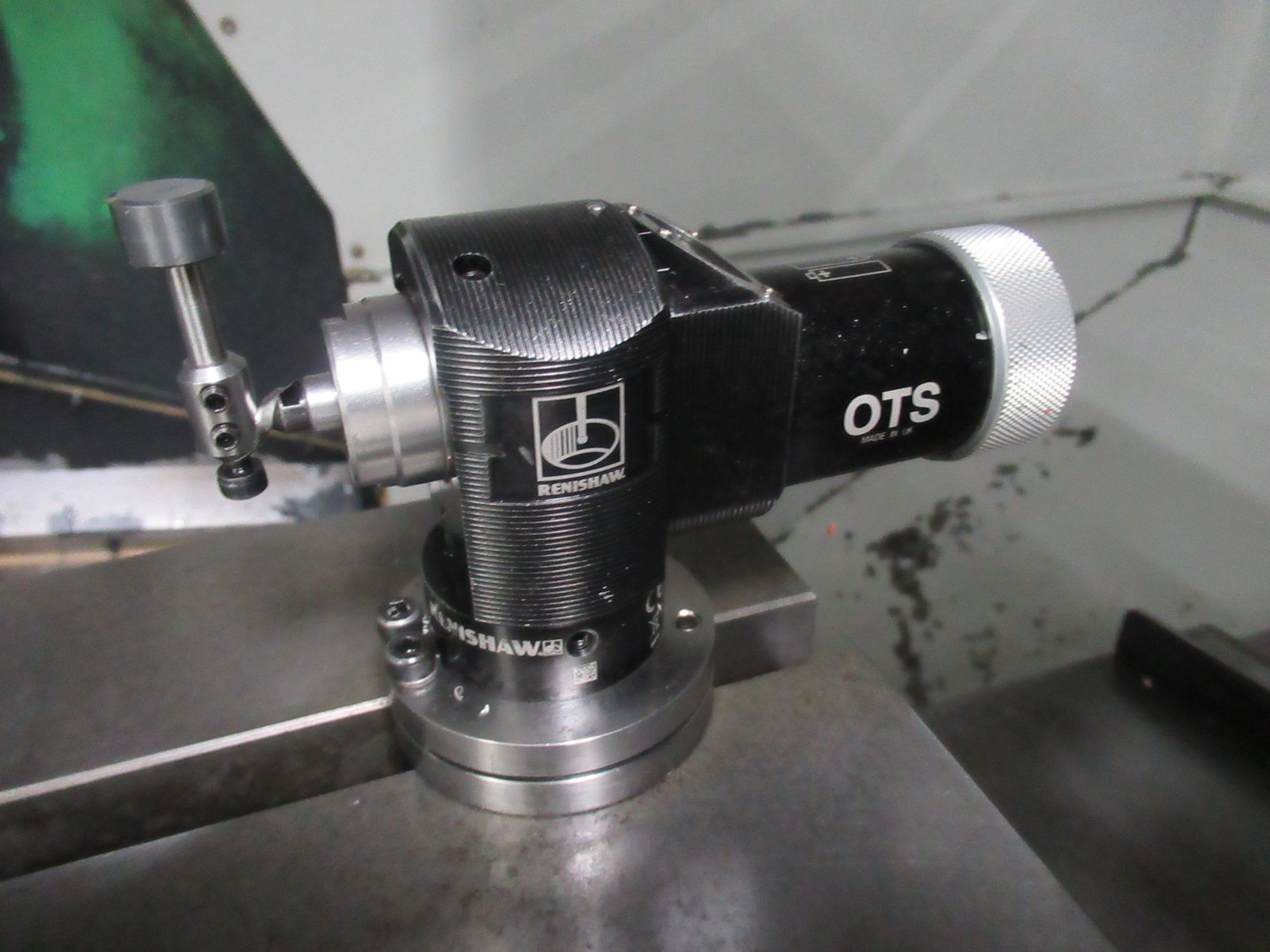

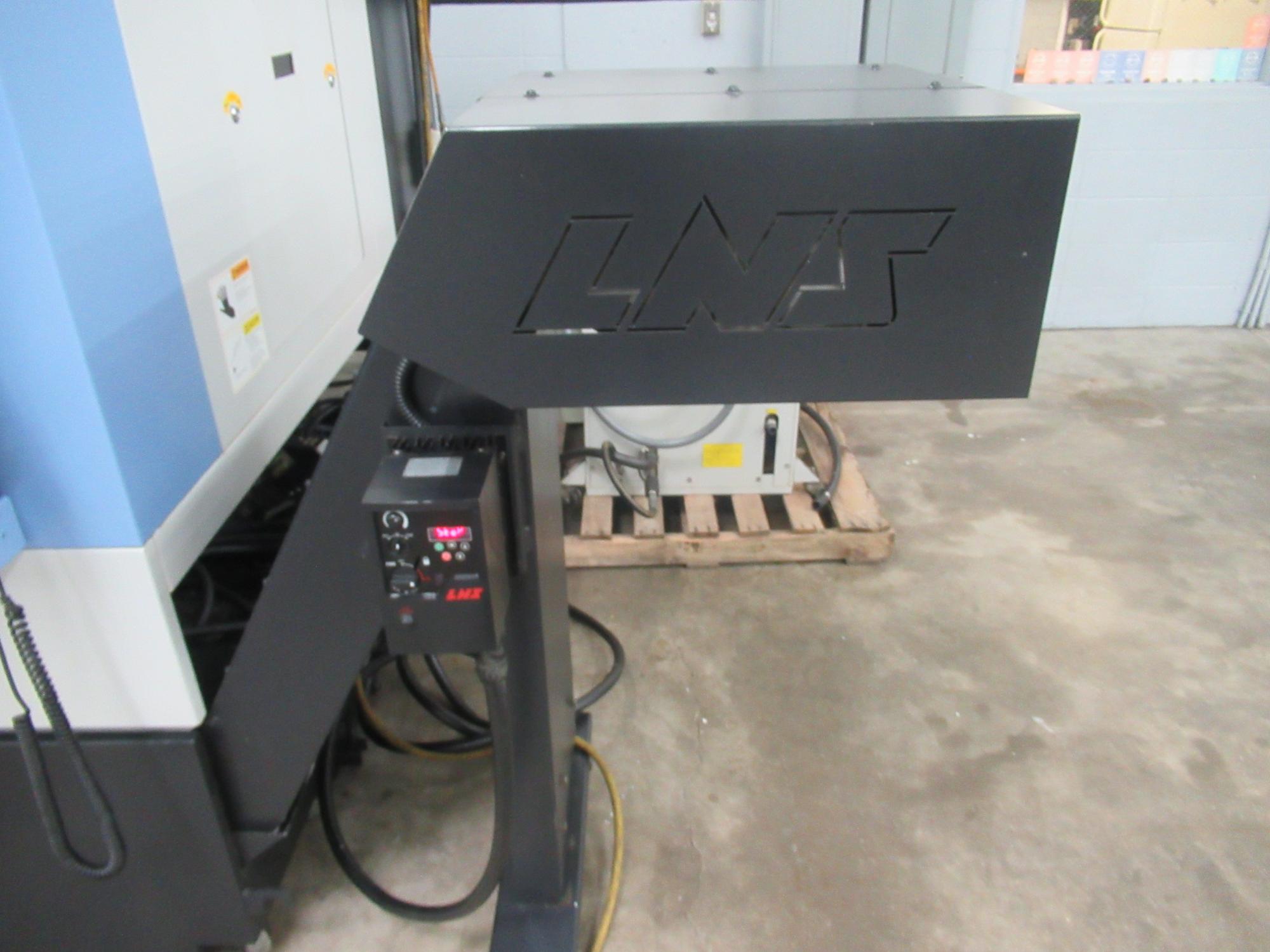

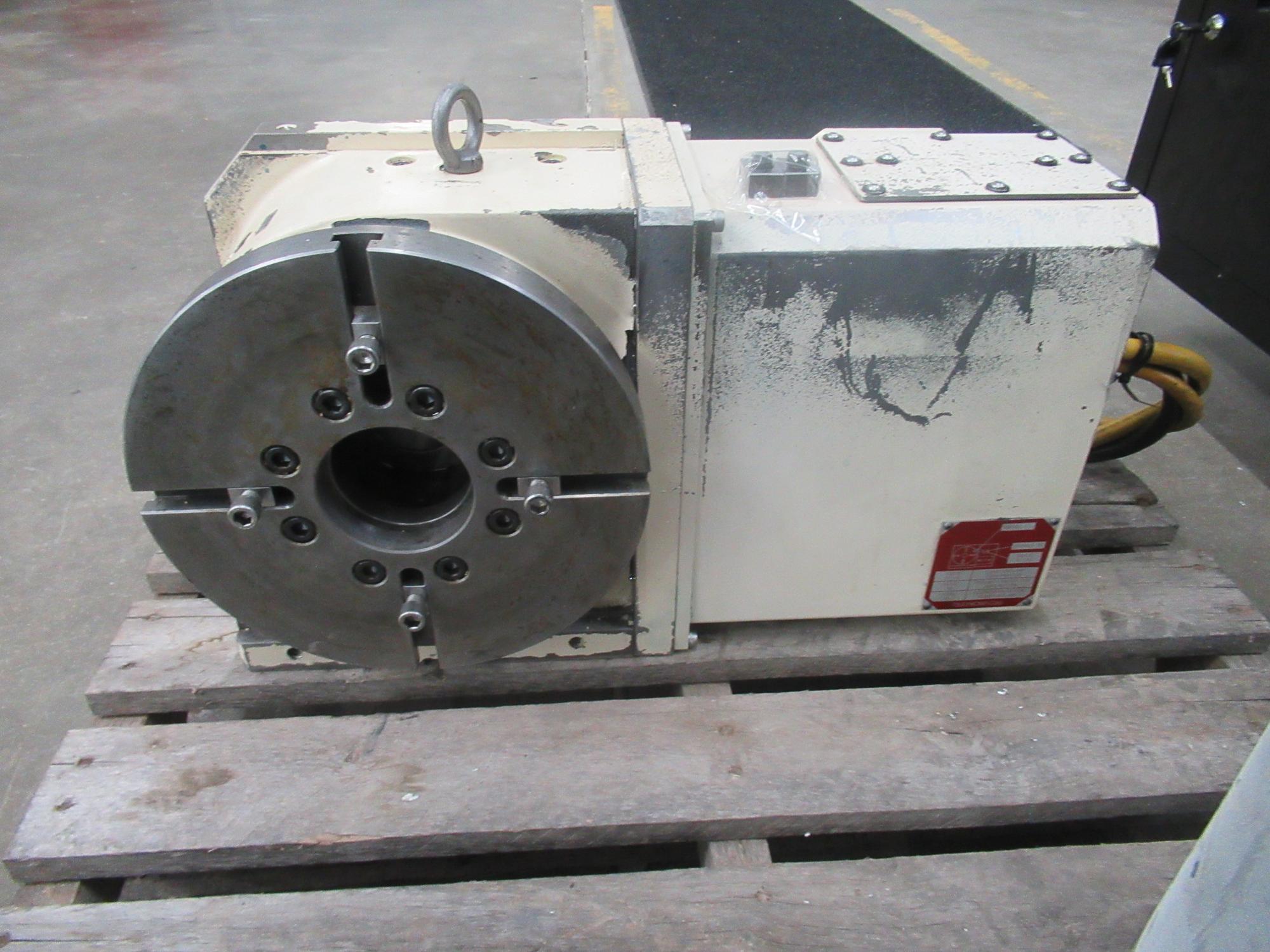

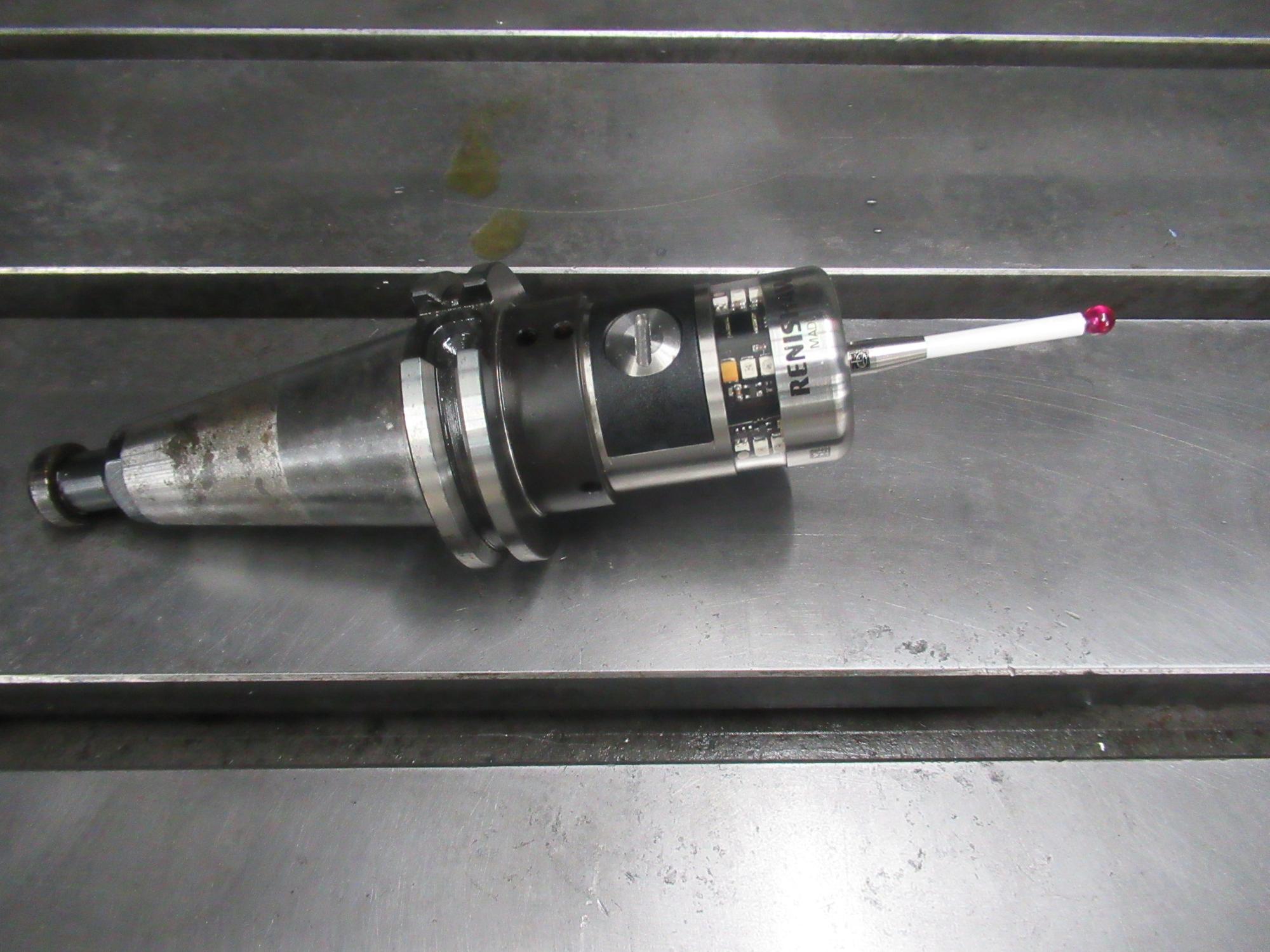

Fanuc 0i-MD CNC Control, 12000 RPM Spindle, CAT 40 Spindle Taper, Renishaw Tool and Parts Probing System, Full 4th Axis with Tsudakoma Corp Model RNA-251 Rotary Table, High Pressure Coolant System, LNS ChipBlaster, Chip Conveyor, Manuals, Keys, Parameters



Electrics:

220V, 3 Phase.
