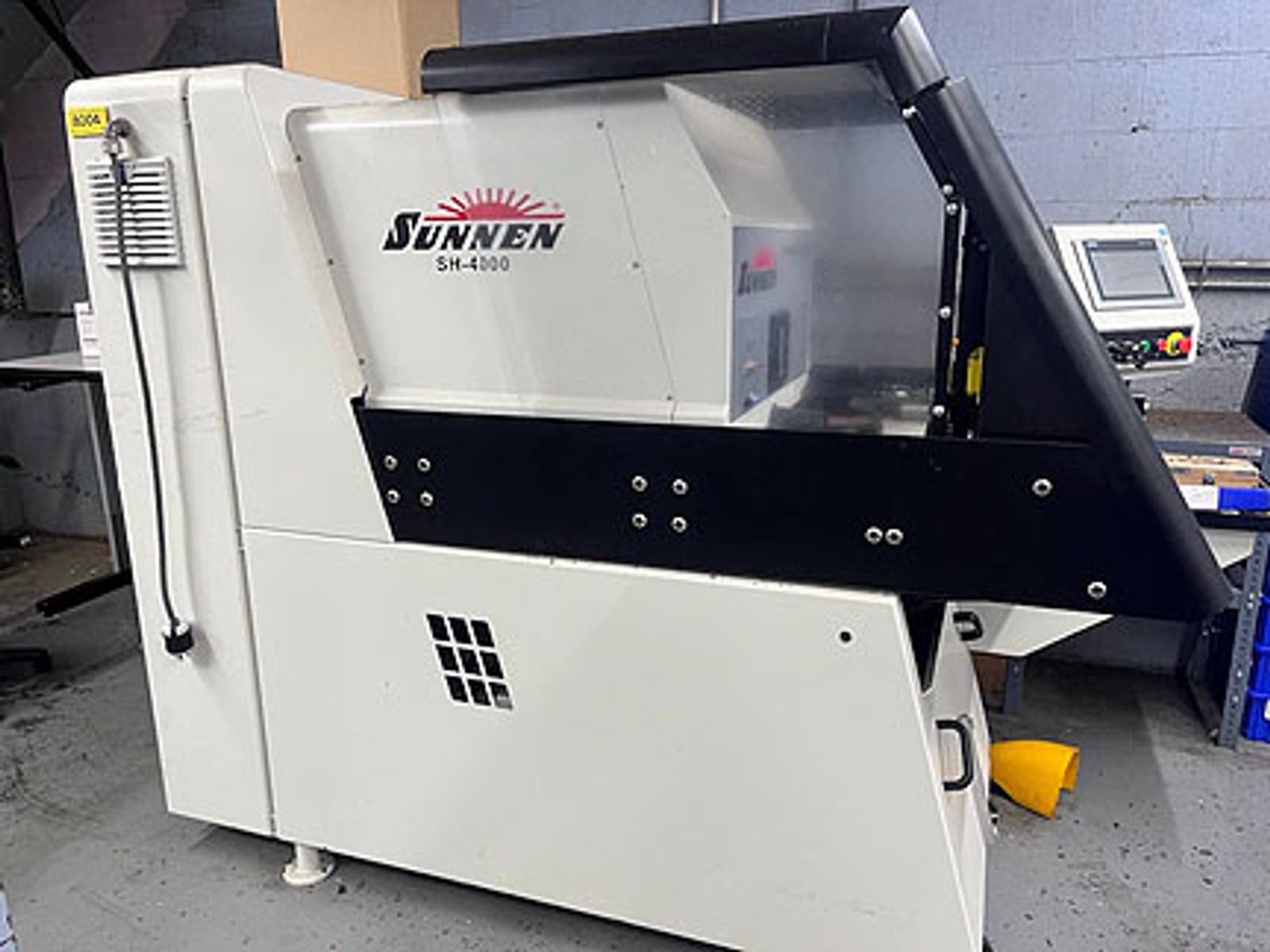

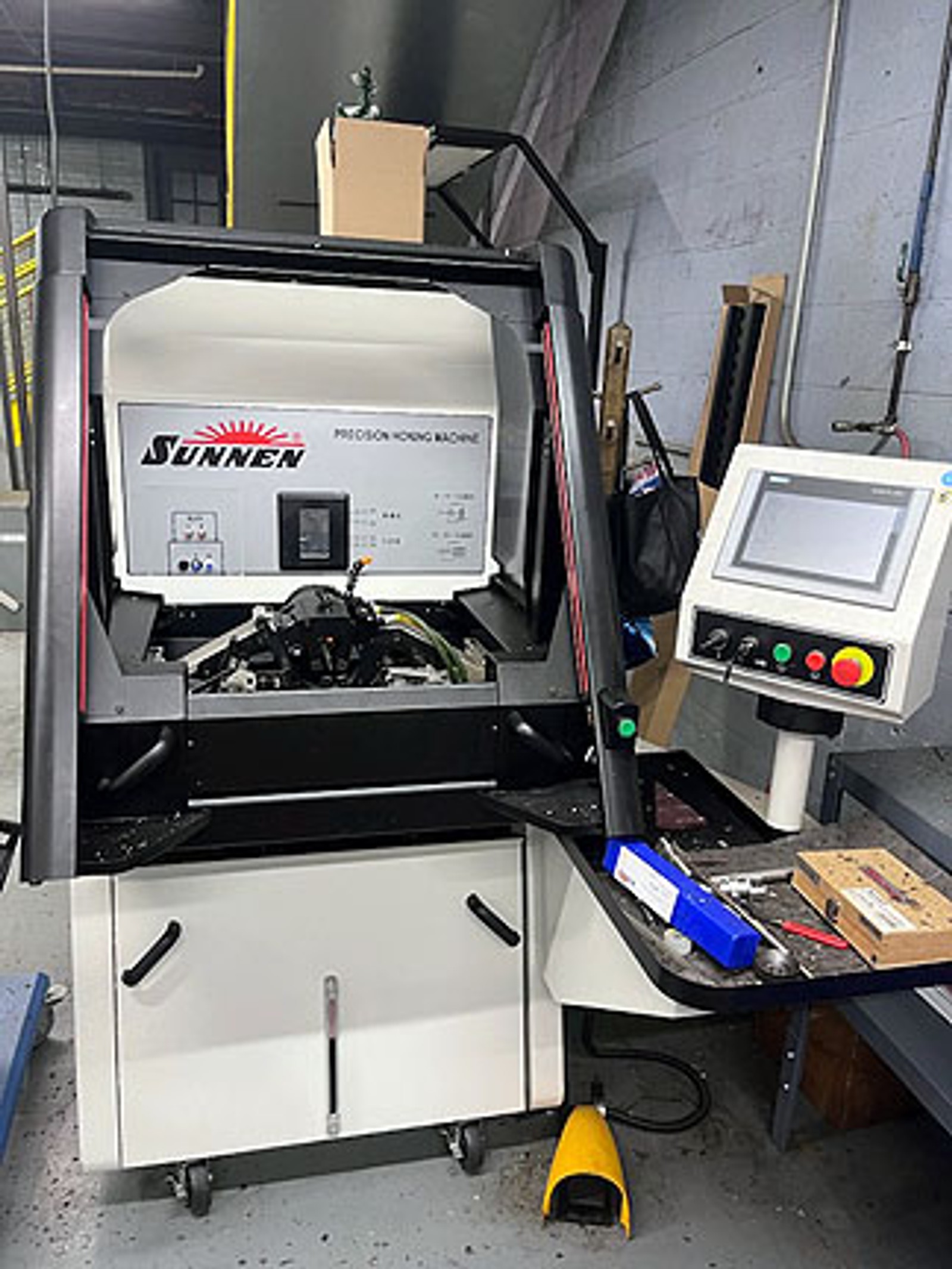

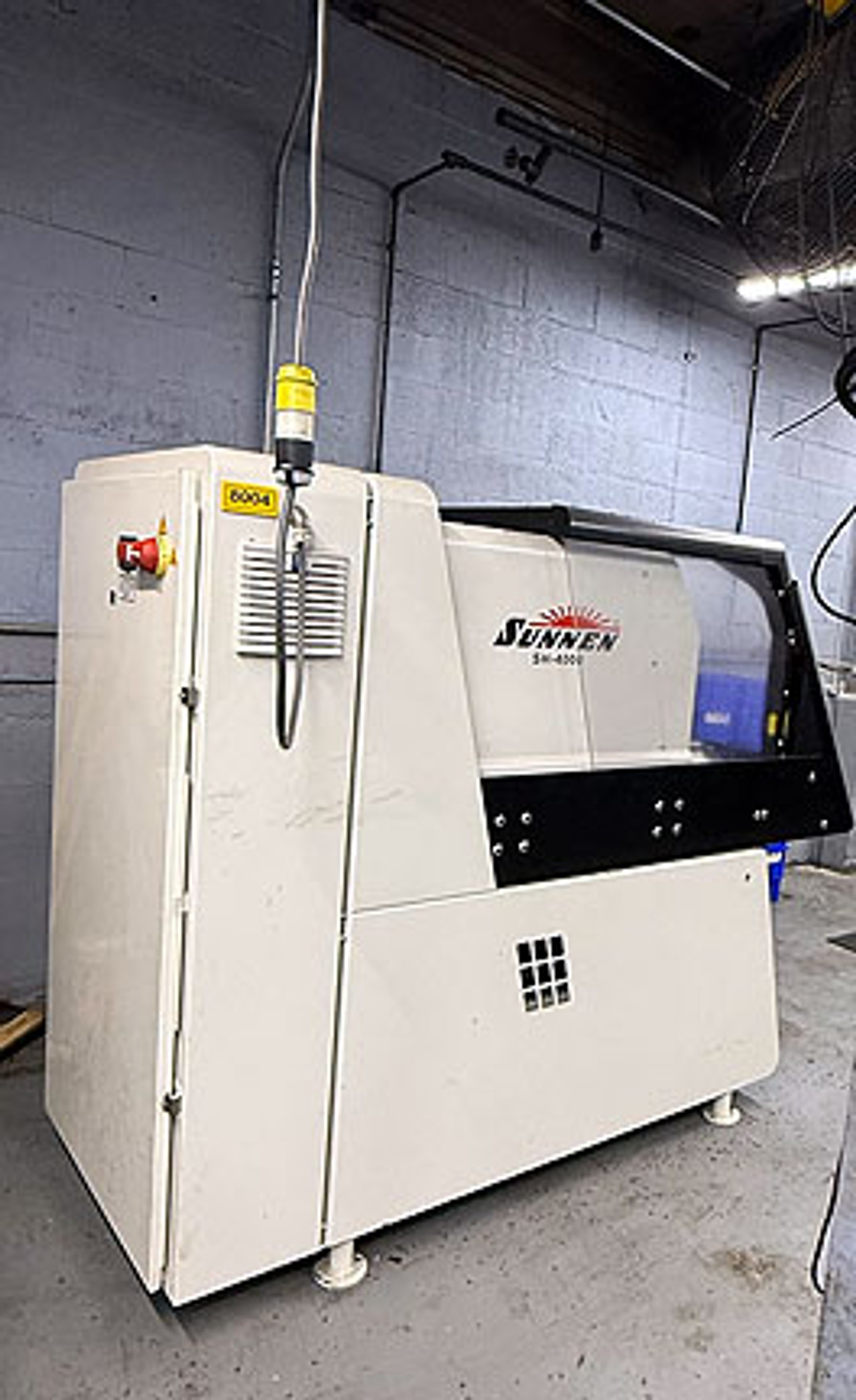

Sunnen Model SH-4000 Honing Machine Hardly Used 2021 - 3221

Manufacturer

Sunnen

Category

Honing Machines

Type

HONES, HORIZONTAL

Stock

3221

Model

SH-4000

Dealer Location

Connecticut

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

SPECIFICATIONS
Diameter Range (ID) 0.060″ – 6.5″
Stroker Carriage Travel 0.24″ – 15.43″
Spindle:
Speed200 – 3,000 RPM
Power 4.1 kW (5.5 hp)
Stroker:
Rate – Length Dependant 10 – 550 SPM
Power – Maximum 2.5 kW servo (3.4 hp)

Voltages…………460 VAC/60 Hz/3 Phase: FLA 18.2
Machine Dimensions – Catalog 129.6″ (L) x 82.4″ (W)
Machine Weight (Including Coolant Cart) – Catalog 2,500 Lbs.

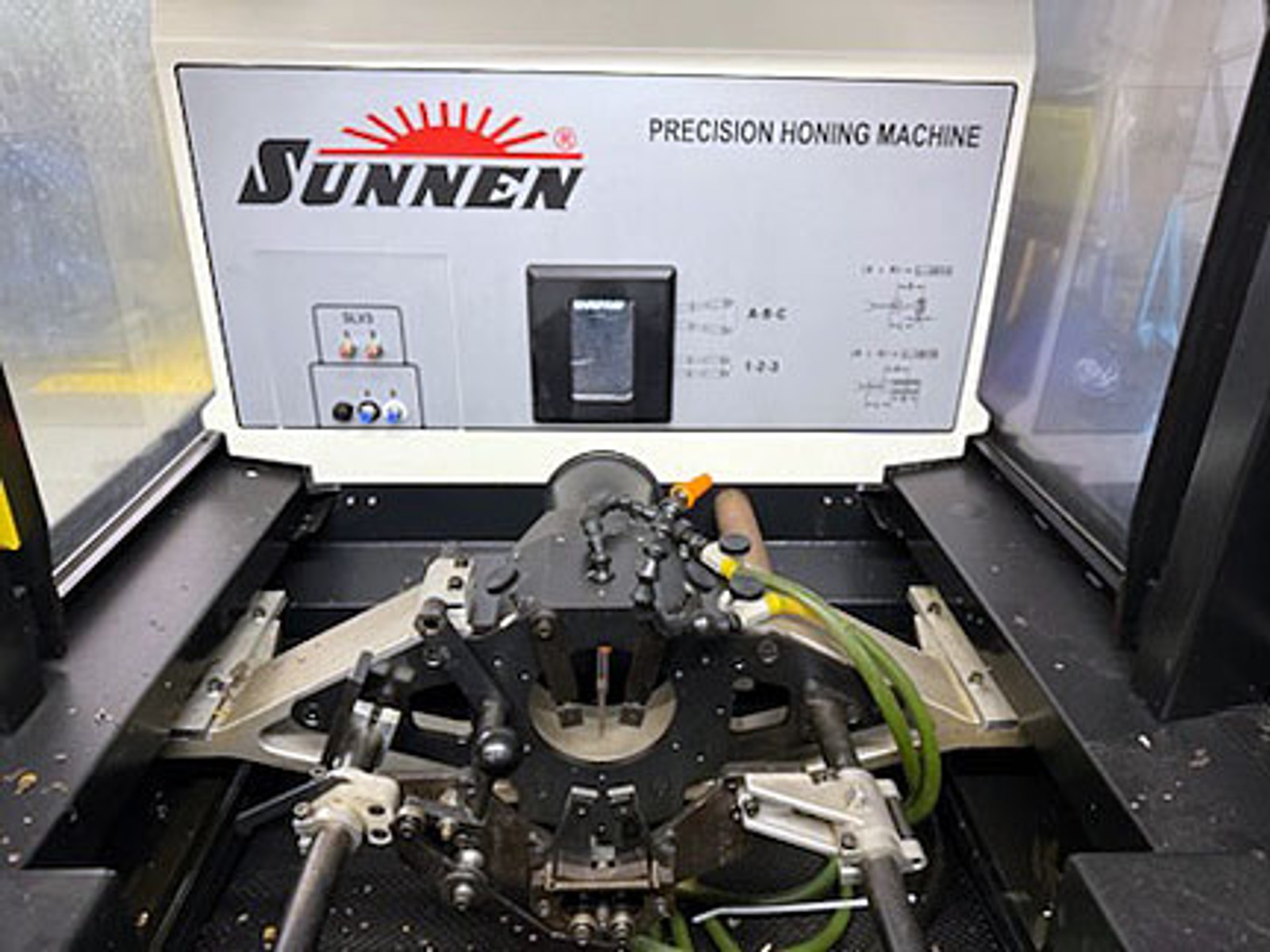

The metal honing process begins with securing the workpiece, which can be a variety of metal components such as cylinders, bores, gears, or tubes. The honing tool, mounted on a spindle, is then passed back and forth along the surface of the workpiece while rotating or reciprocating. The abrasive stones or diamond tools mounted on the honing tool on a Sunnen SH 4000 remove material through a combination of cutting and grinding action.
The honing process on a Sunnen SH 4000 allows for fine control over the amount of material removed, ensuring that the final dimensions of the part meet the desired specifications. This is particularly important for parts that require a high level of accuracy, such as engine cylinders, gun parts, or hydraulic components.
