60" x 0.135" x 40,000# Paxson Cut To Length Line

Manufacturer

PAXSON

Category

Fabricating Machines

Type

CUT-TO-LENGTH LINES

Stock

11949

Model

None listed

Dealer Location

Ohio

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

YEAR: 1976

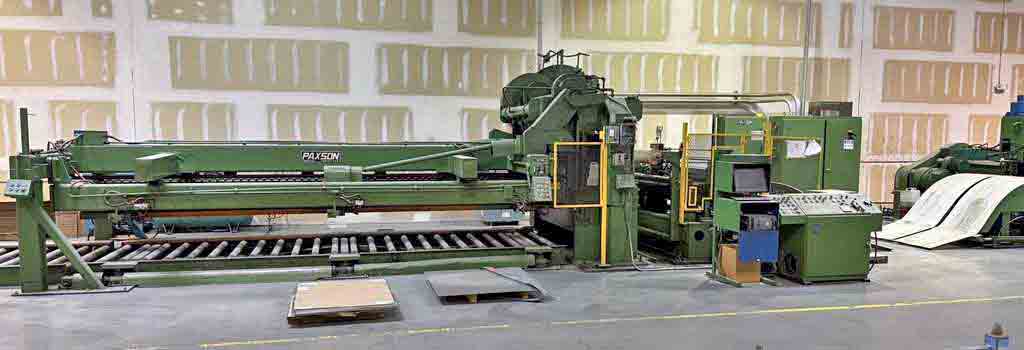

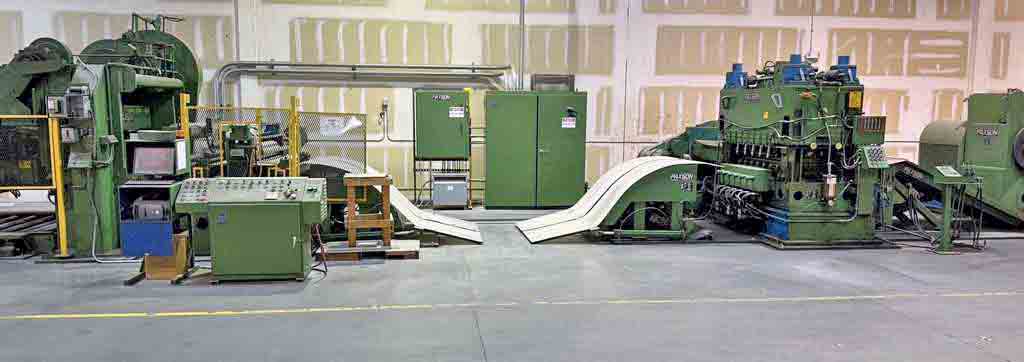

Paxson Cut to Length Line

-Width: 60"
-Thickness: 0.020" - 0.135"
-Coil I.D.: 20" - 24"
-Coil Weight: 40,000 lbs.
-Line Direction: Right to Left

Consisting of the following:

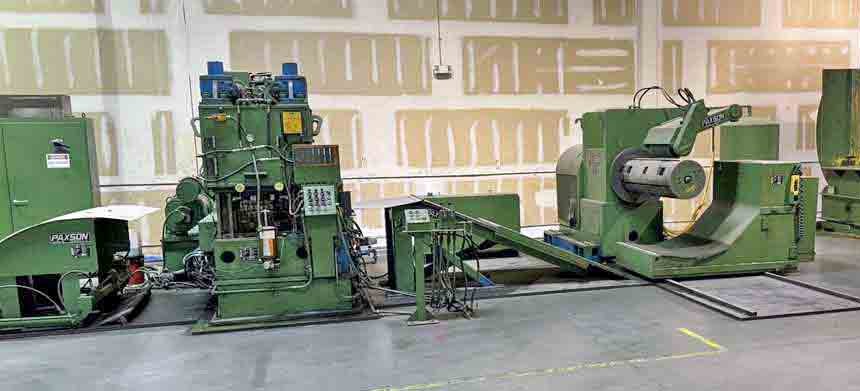

-Entry Coil Car:
Above Floor Type
Hand Pendant Control
Self-Contained Hydraulic Power Unit

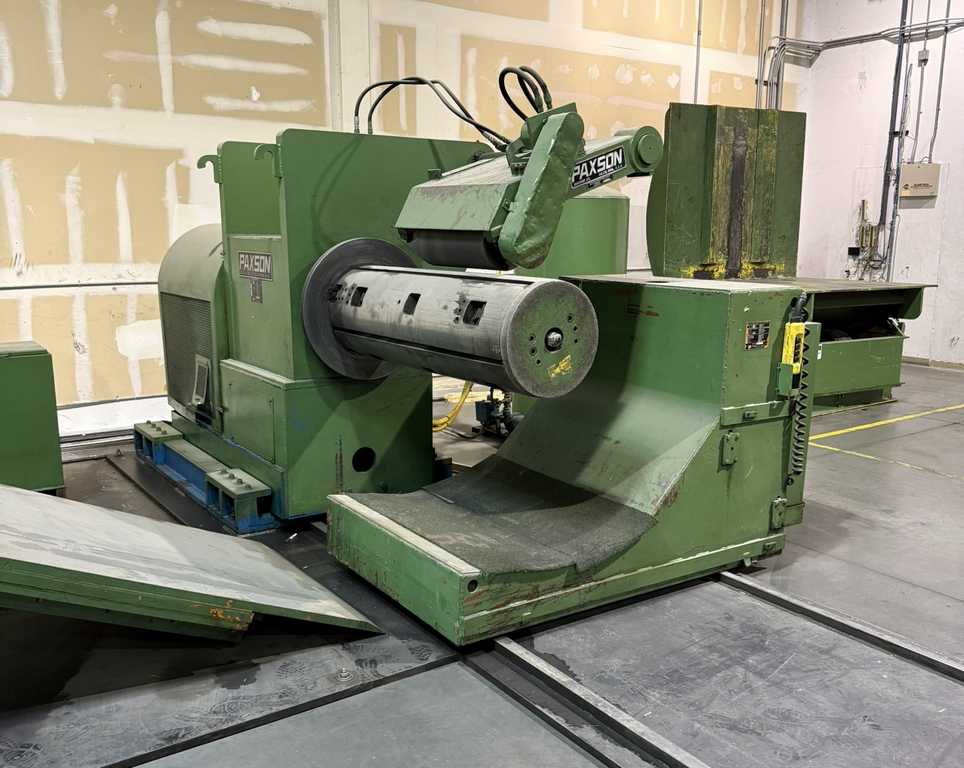

-Uncoiler:
Mandrel Type
Overarm Holddown
Slide Base
Water Cooled Brake
Hydraulic Motor Feedup

-Peeler Table:
Hydraulic Lift & Extend

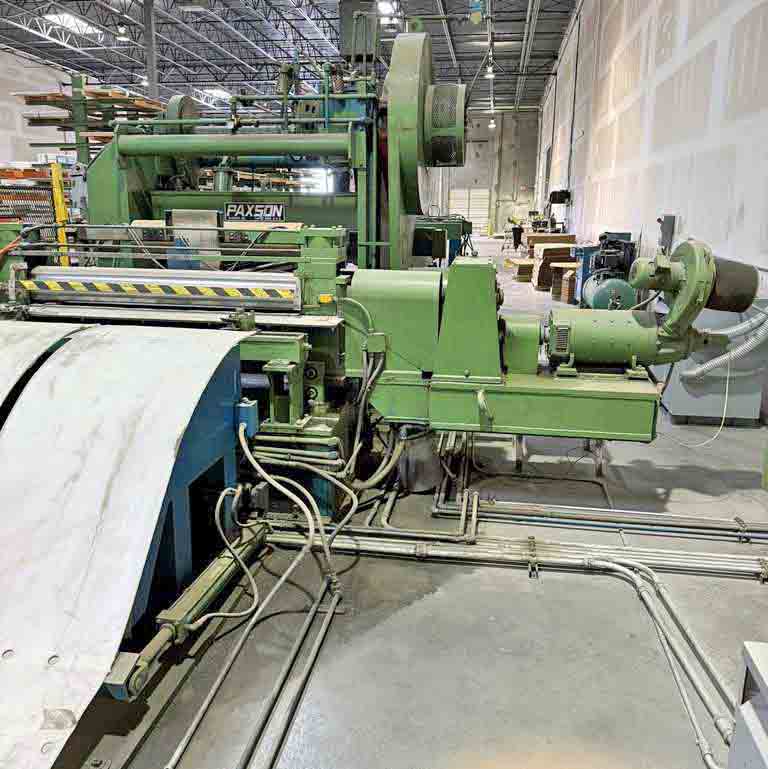

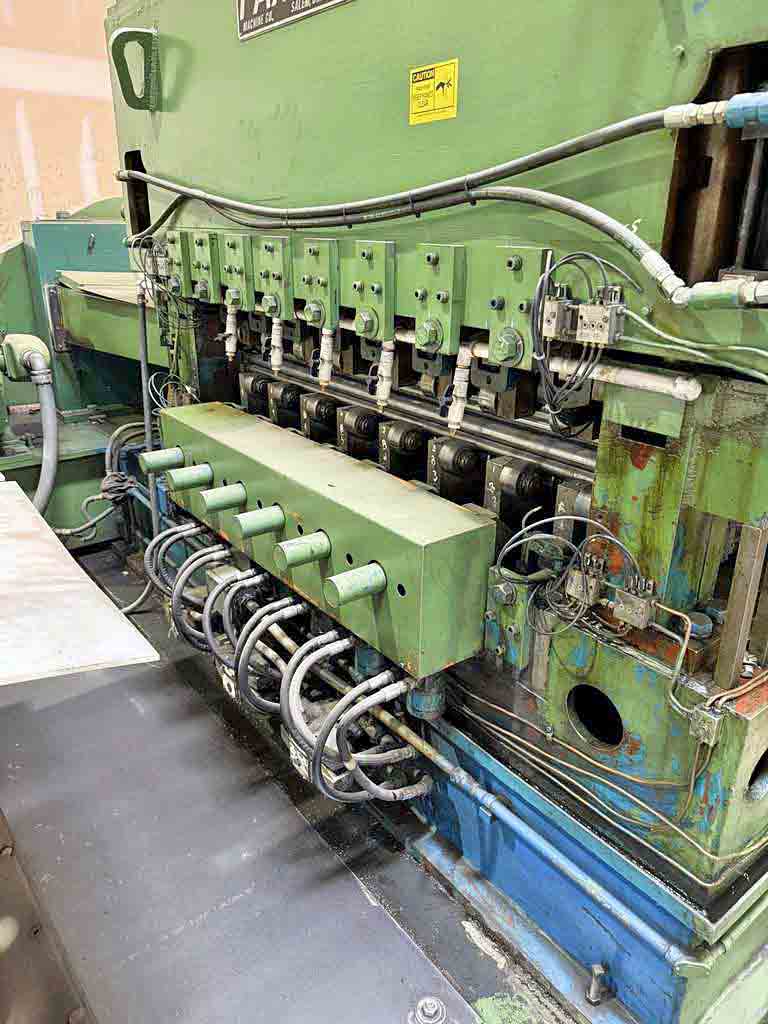

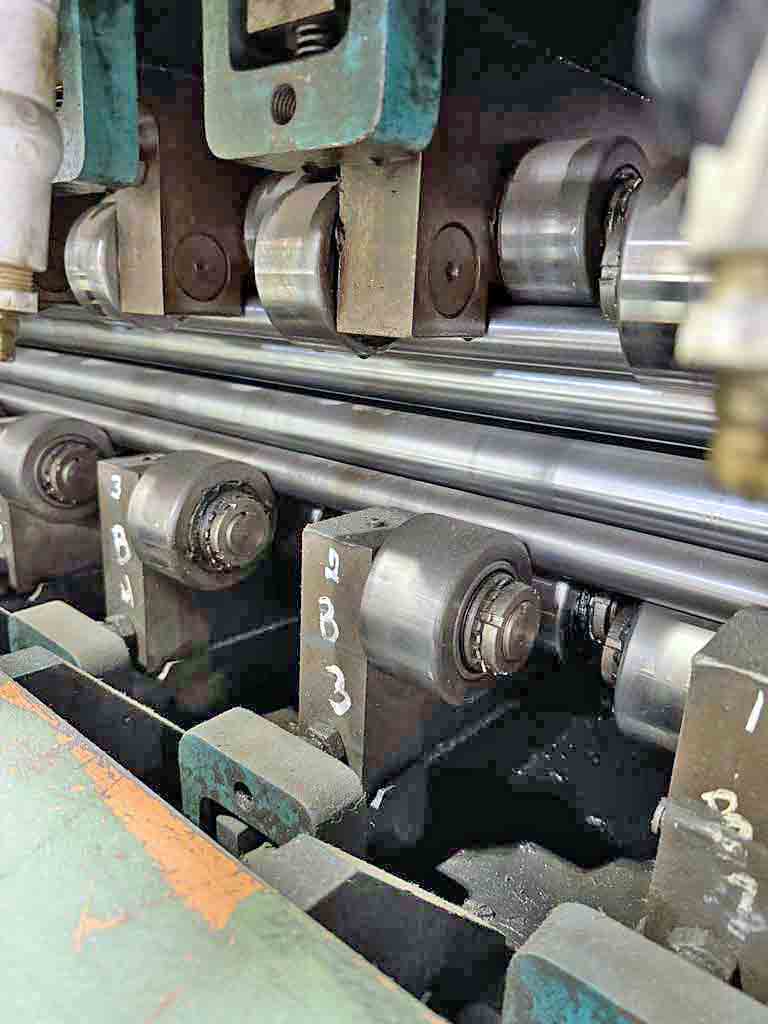

-Paxson Precision Leveler: 6 HI
1.750" Roll Diameter x 74" Roll Face
Entry Pinch Rolls, Powered
8 Flights of Backups, (6 Flights Motorized)
125 HP WER DC Motor, 1750/2000 RPM, 500 V

-Cascade - Loop Table:

-Roll Feed:
Entry Side Guides
Full Width Rolls
Exit Paper Applicator
30 HP Emerson DC Motor

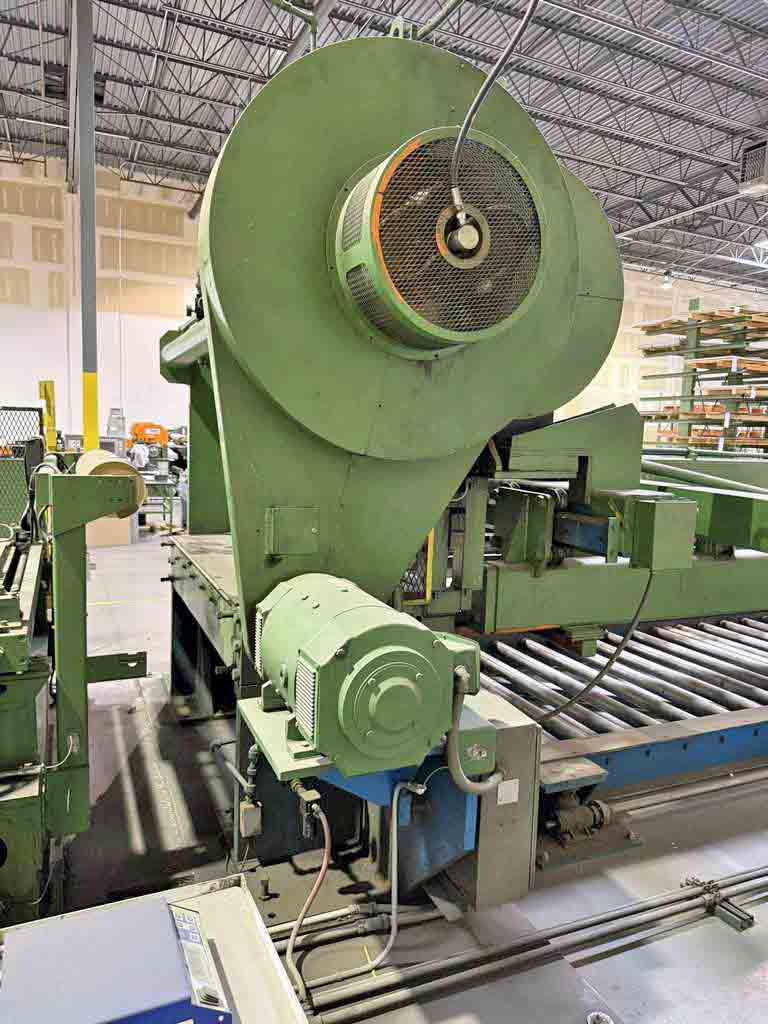

-High Speed Shear:
Over Driven, Mechanical
Manual Blade Gap Adjust
30 HP WER DC Drive Motor, 1750 RPM, 500 V
Air Clutch/Brake

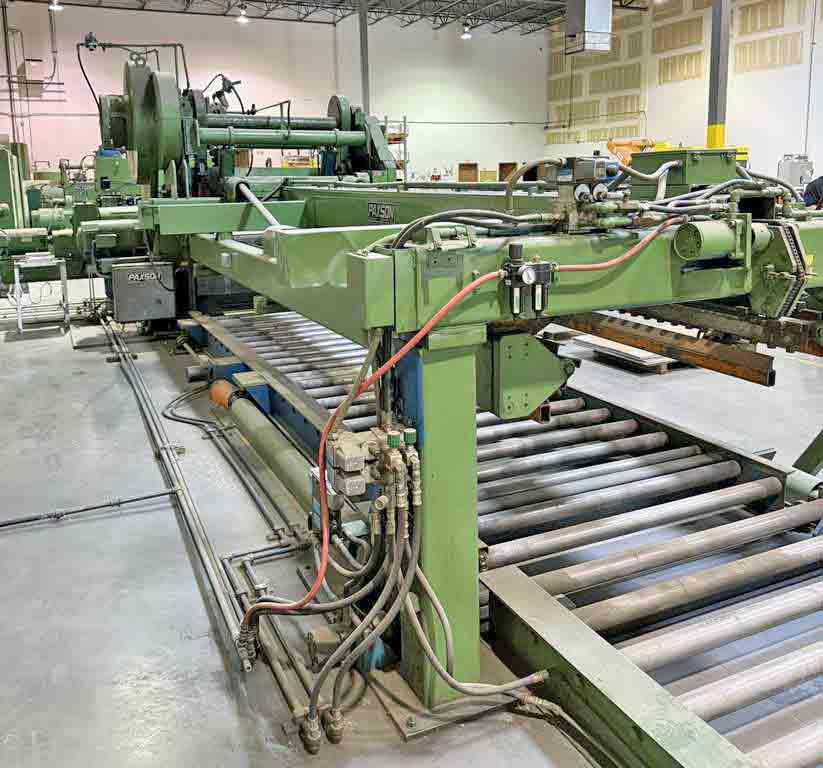

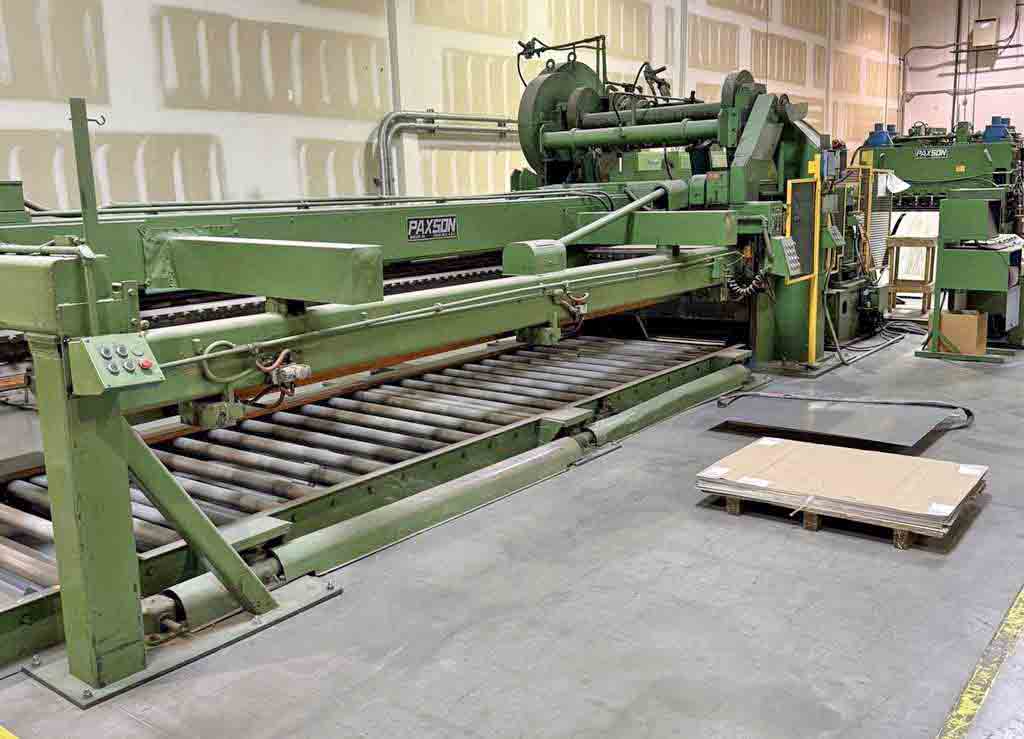

-Automatic Stacker:
Flipper Arm Type
Powered Width Adjustment
Powered Length Adjustment
Non Scratching Roller Supports
20' Maximum Length
Mechanical Screw Jack Lift Table
Powered In-Line Eject Conveyor

-Exit Runout Conveyor:
Powered Rolls

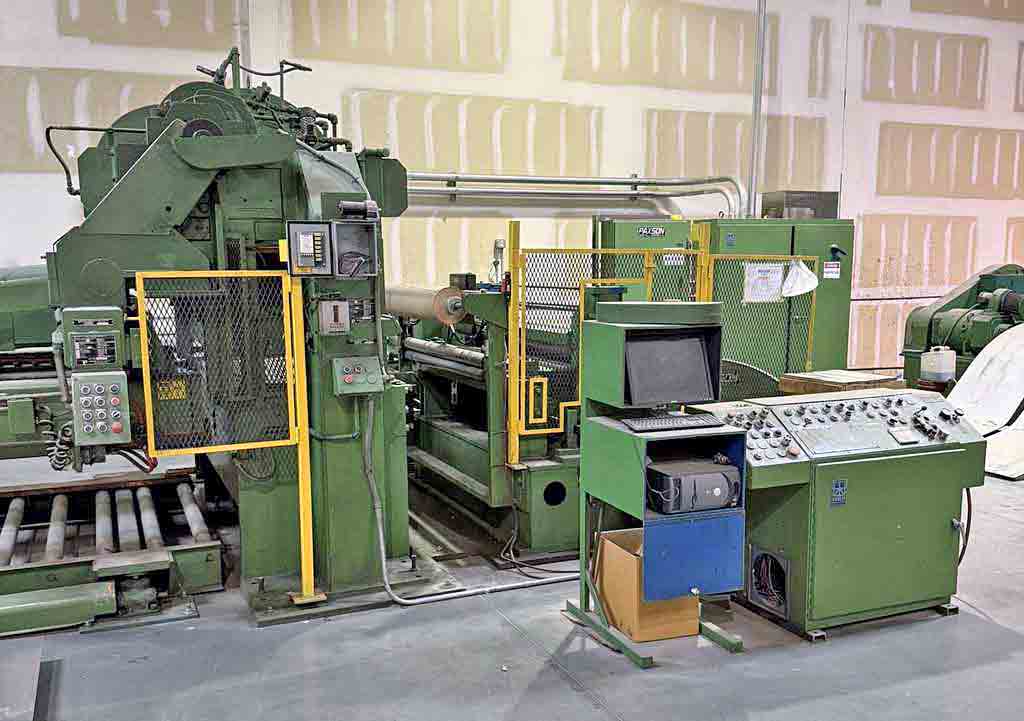

-Main Operators Control Panel:

-Water Cooler:

-Hydraulic Power Unit:

-Electrical Controls and Drives:

-Air Compressor:
220 KVA, 480 V

-Line is Installed
