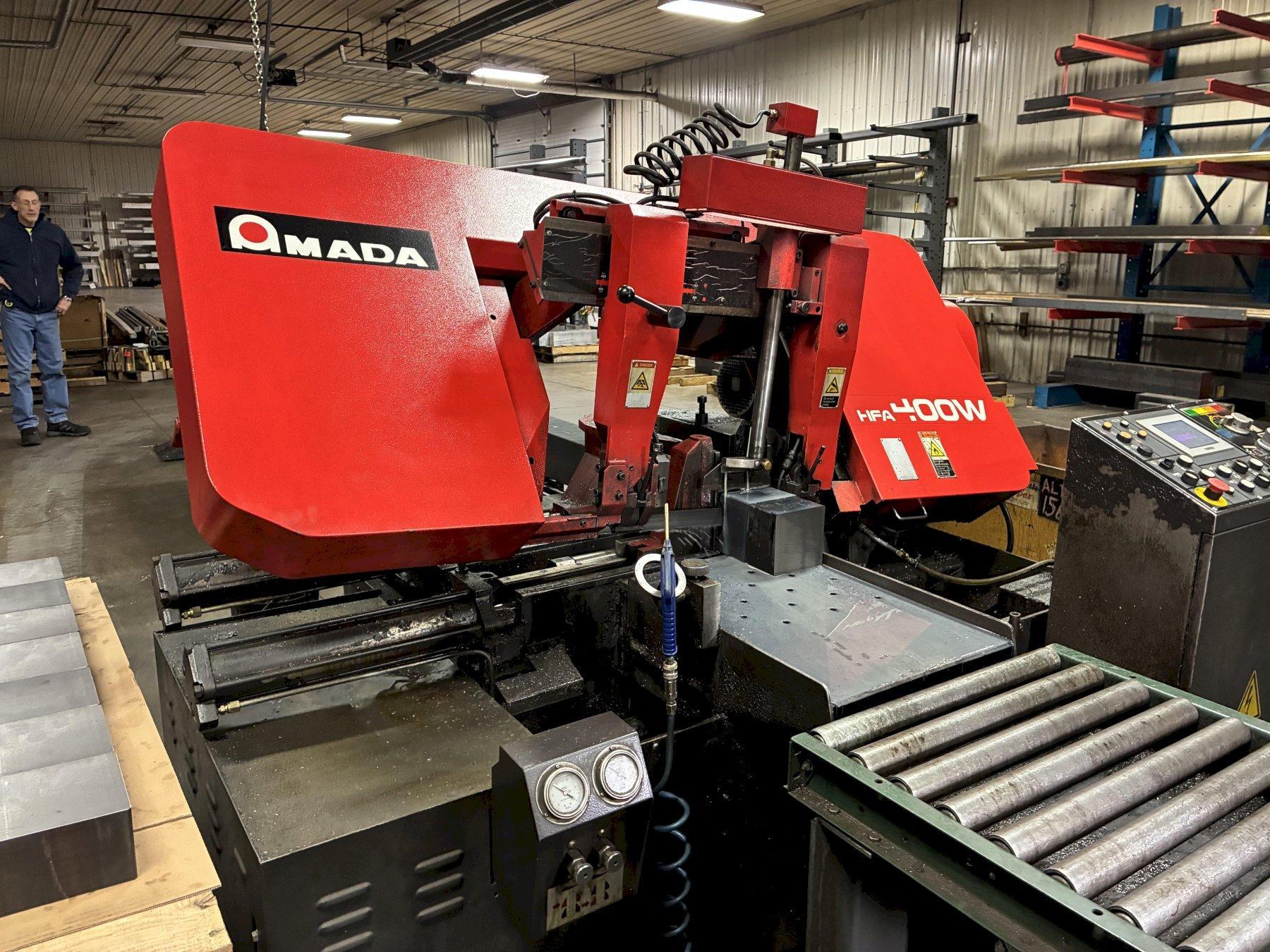

16” x 16” Amada Model HFA400W Programmable Automatic Band Saw

Manufacturer

AMADA

Category

Saws

Type

SAWS, BAND, HORIZONTAL

Stock

MF4C

Model

HFA400W

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Cutting Capacity - .
• Round - 16 inches
• Square - 16" x 16"
Max Index Stroke - 19.6 inches
Main Motor - 7.5 HP
Hydraulic Motor - 2 HP
Blade Size - 180” x 0.05” x 1 ½”
Blade Speed Range (Variable) - 50 – 295 FPM
Automatic Programmable Feed Length - 0.395” – 999.99”
Maximum Load Capacity - 5511 pounds
Voltage - 220/3/60
Approximate Dimensions - 96" x 106" x 95.5"H
Approximate Weight - 4851 pounds


Variable Vise Pressure. PLC Programmable NC Shuttle Vise. Kerf Compensation. Vise Pressure Control. Motion Detection (Blade Stall & Blade Break). Blade Run Out Monitoring. Coolant. Powered Blade Brush. Lift-Up Chip Auger. Vertical Nesting Vise.

The Saw appears to be in very good condition and can be inspected under power.
