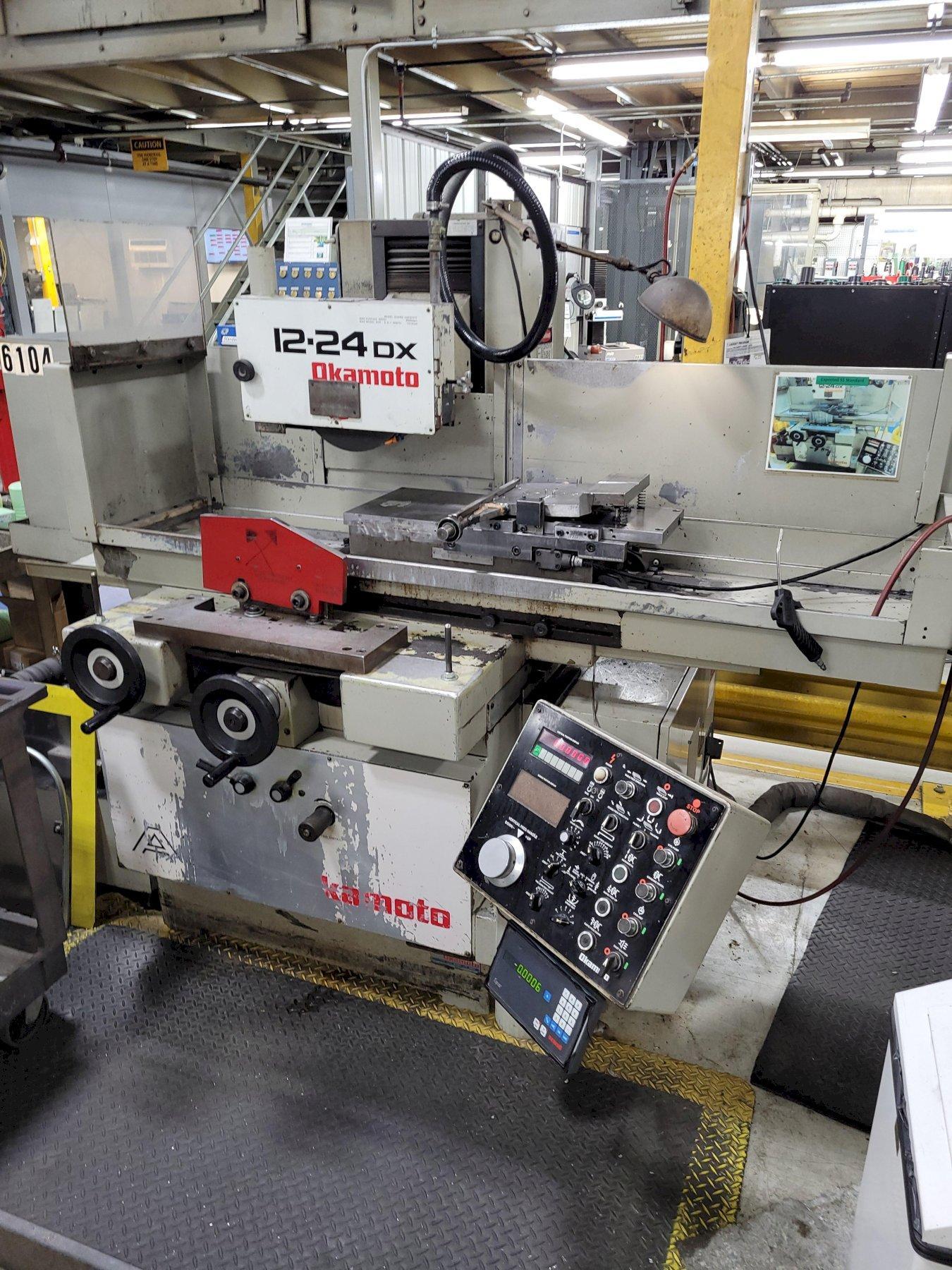

12" X 24" Okamoto Model ACC-124DXII Programmable High-Precision Surface Grinder

Manufacturer

OKAMOTO

Category

Grinding Machines

Type

GRINDERS, SURFACE, RECIPROCATING TABLE, (Horizontal Spindle)

Stock

TMVG124

Model

ACC-1224DX

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

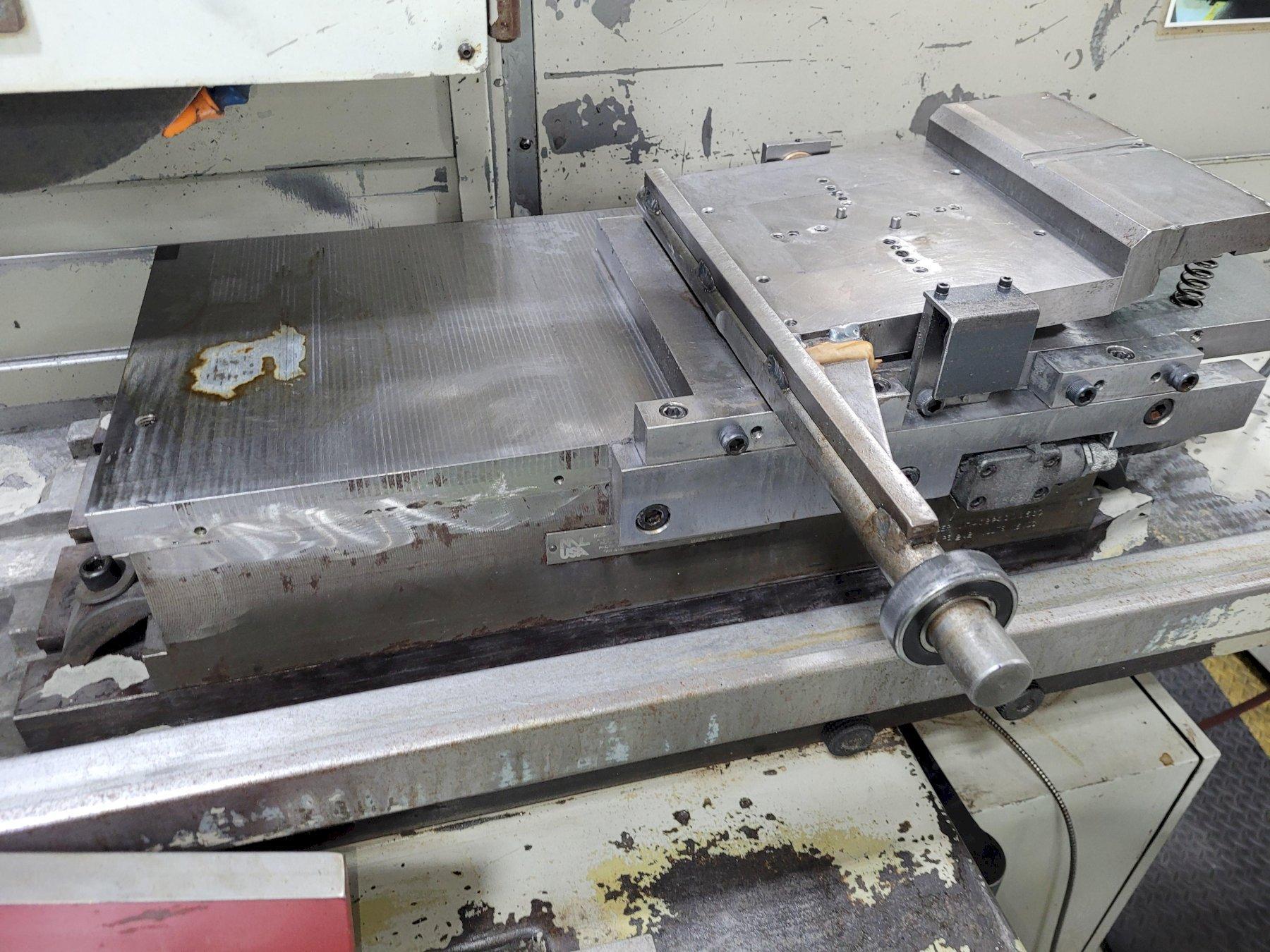

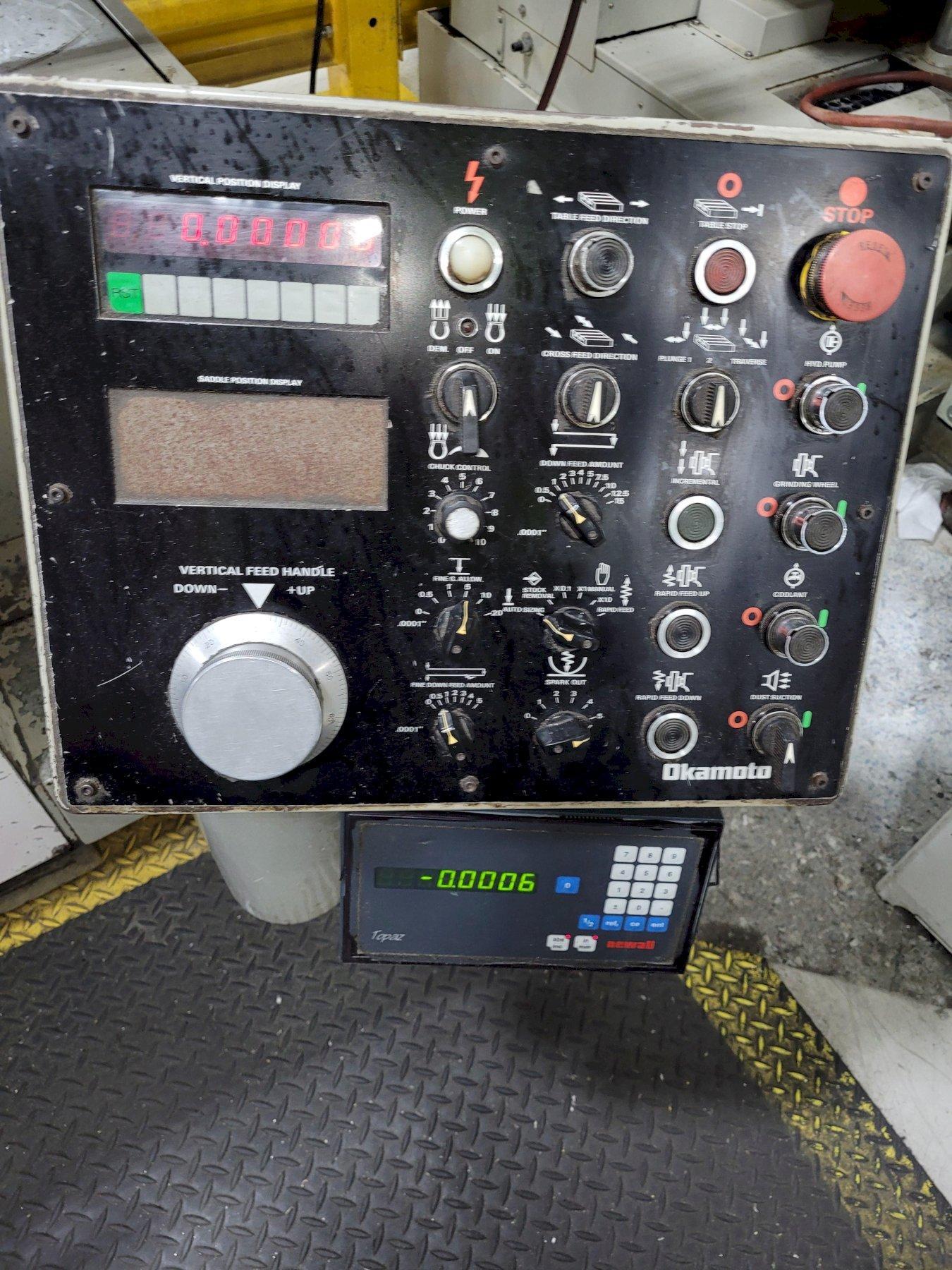

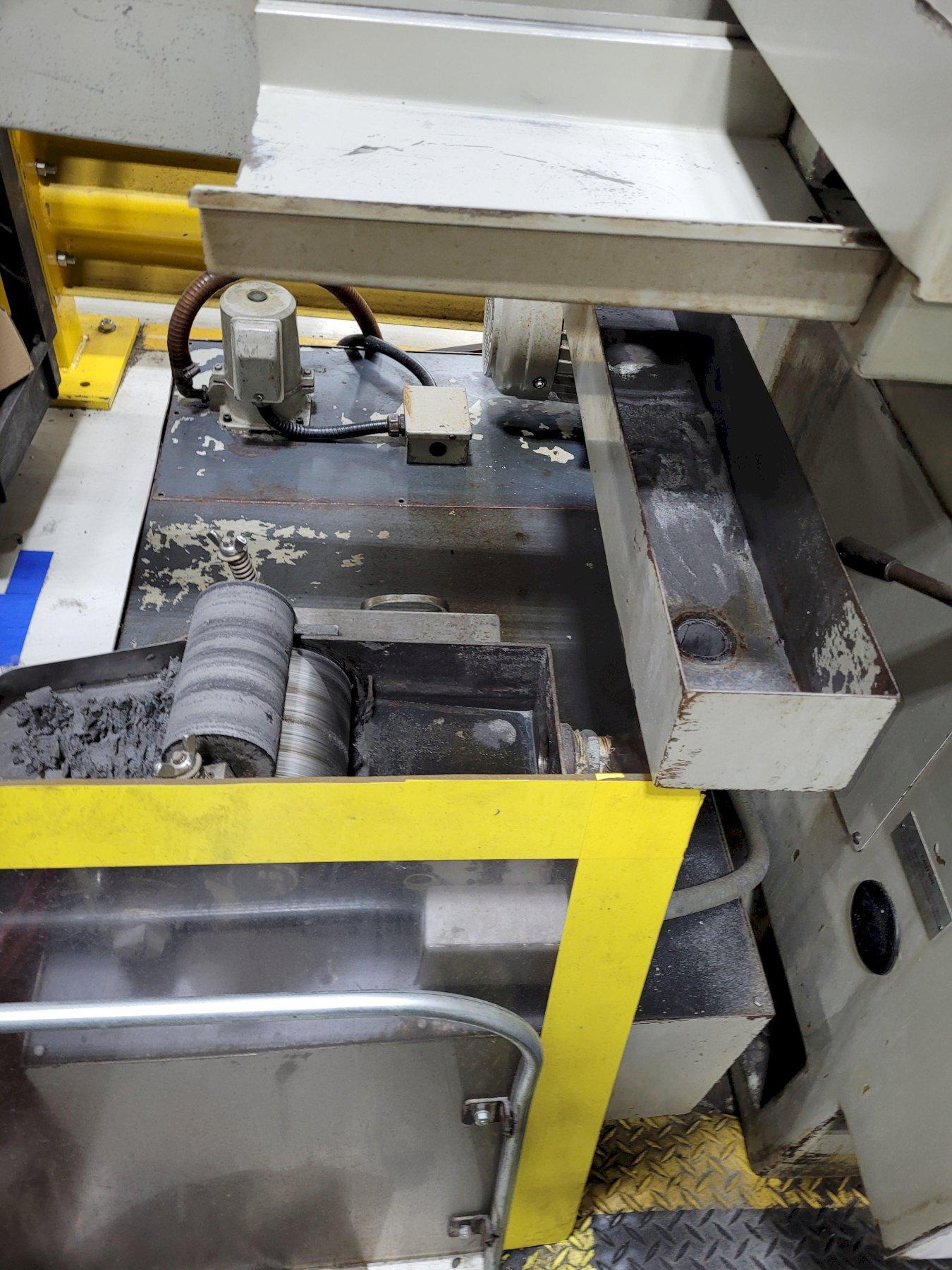

Equipped With 12" x 24" Fine Line Electro-Magnetic Chuck with Controls.   DX Pre Select Feeds.  Cylce Selector. MPG Wheel Head Positioning.  Over the Wheel Dresser.  Coolant System with Magnetic Drum Filtration.

Nominal Grinding Capacity 12" x 24"
Maximum Height Under 12" Wheel 13.7"
Table Speed, Infinitely Variable up to 82 FPM
Max. Longitudinal Table Movement, Manual 30"
Auto Cross Feed Increment 0.002" To .80"
Auto Continuous Crossfeed 4 - 40 FPM
Crossfeed, Manual, Hand Feed Per Rev 0.25"
Grad. Of Handwheel 0.001"
Max. Crossfeed, Manual 14"
Auto Incremental Downfeed Increments 0.00005" To .0015"
Power Rapid Wheel Positioning Rate 16 IPM
Spindle Motor 5 HP
Wheel Size 12" X 1.5" X 5"
Approx. Dims. For Operation 108" X 76"D X 70"H
Approx. Machine Weight 5,280 lbs
