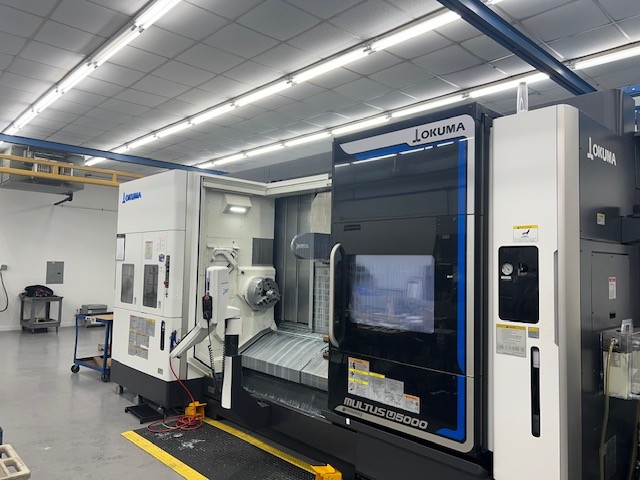

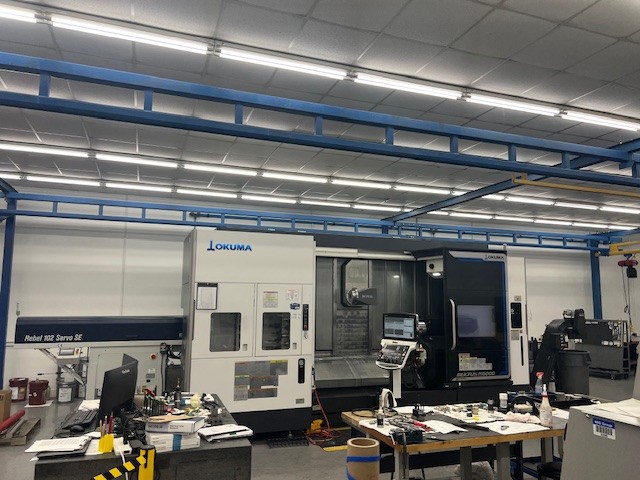

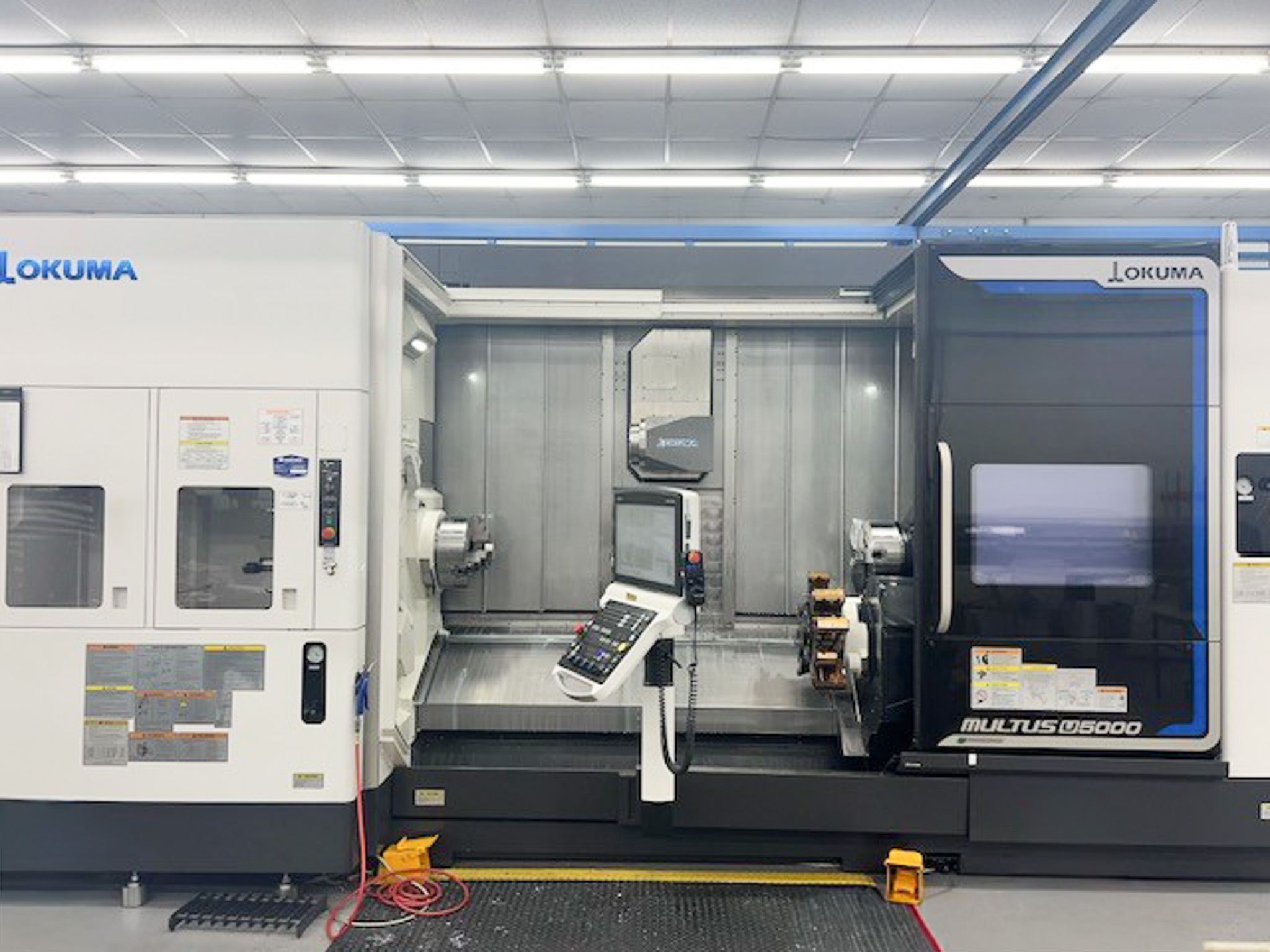

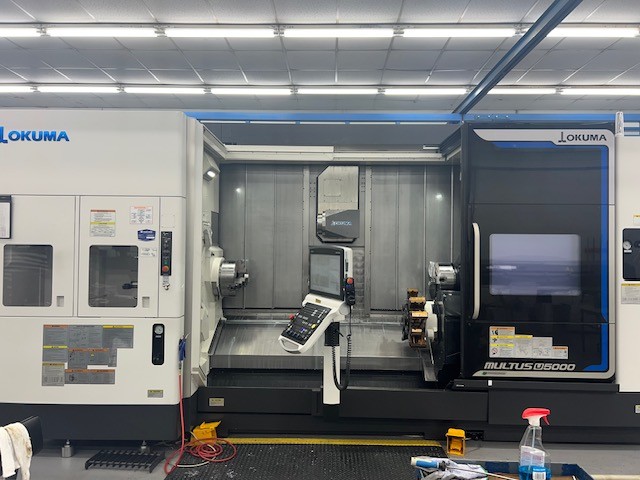

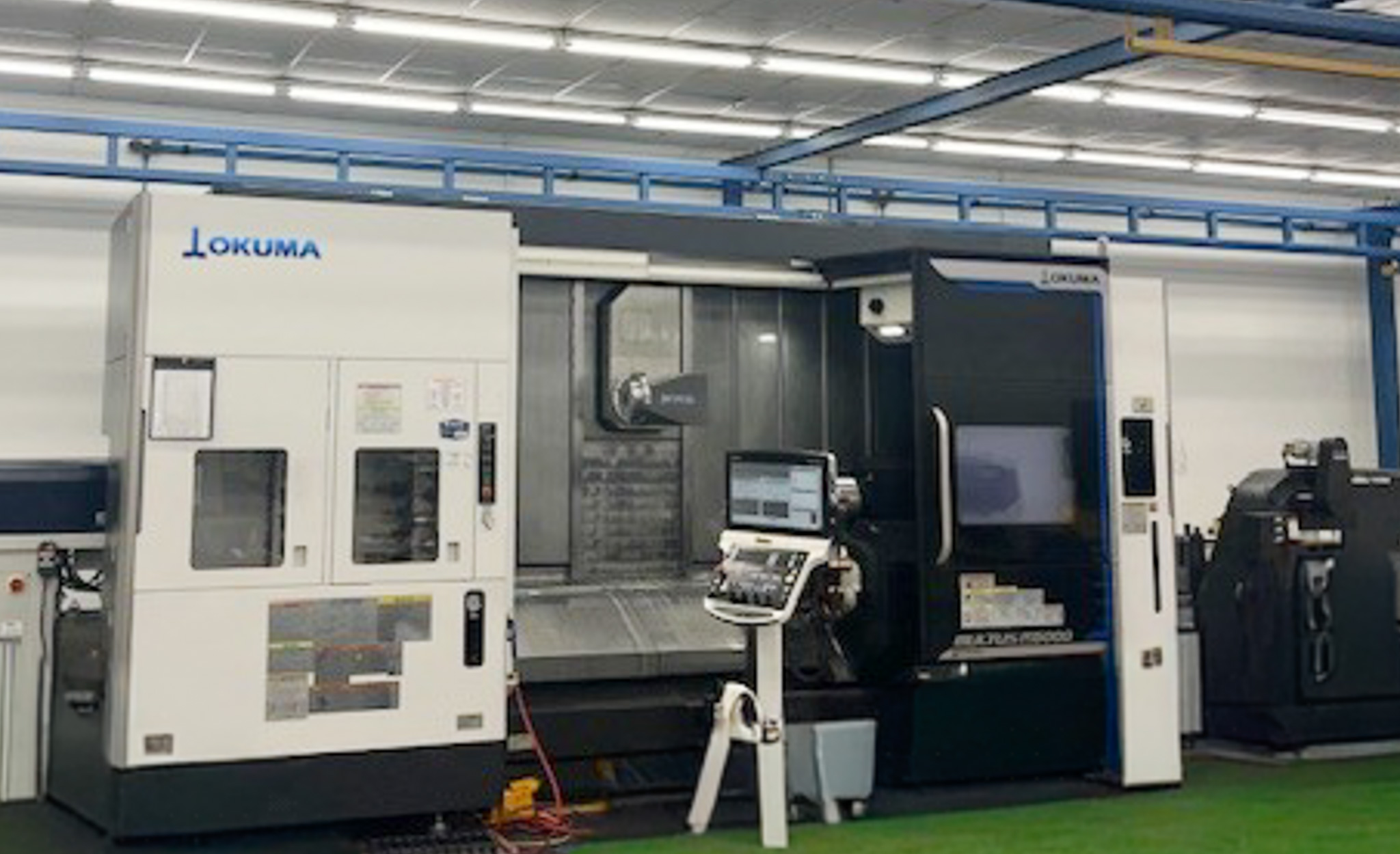

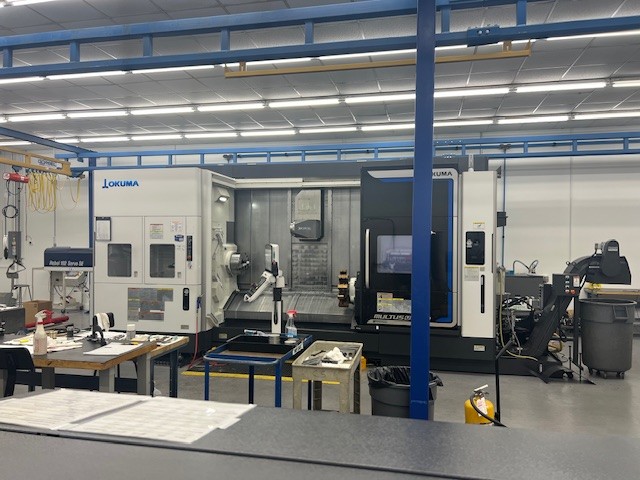

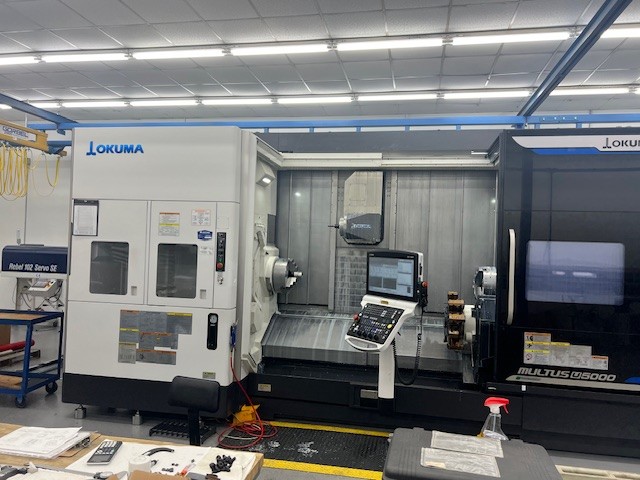

2023 Okuma Multus U5000 -2SW X 2000 Millturn CNC Multi-Tasking Machine 5-Axis 99 Operational Hours

Manufacturer

OKUMA

Category

Machining Centers

Type

MACHINING CENTERS, CNC, 5-AXIS or MORE

Stock

8233

Model

Multus U5000 -2SW X 2000

Dealer Location

New York

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

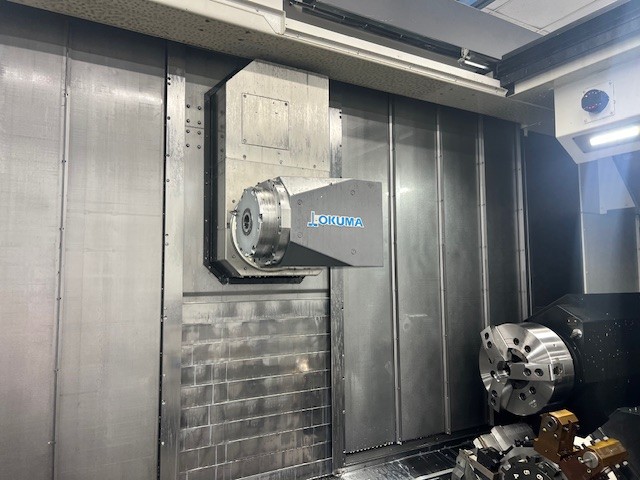

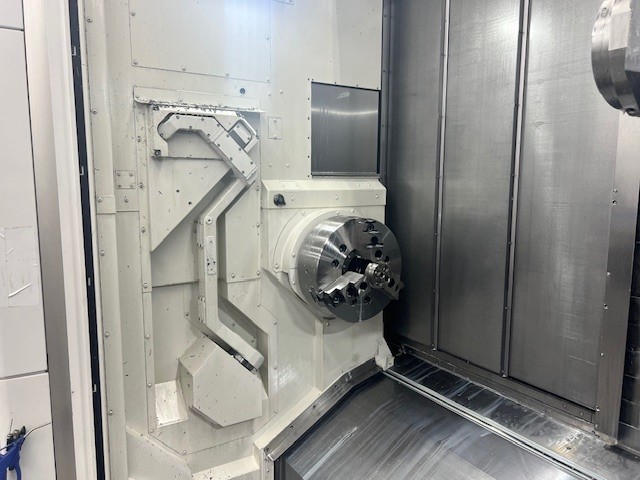

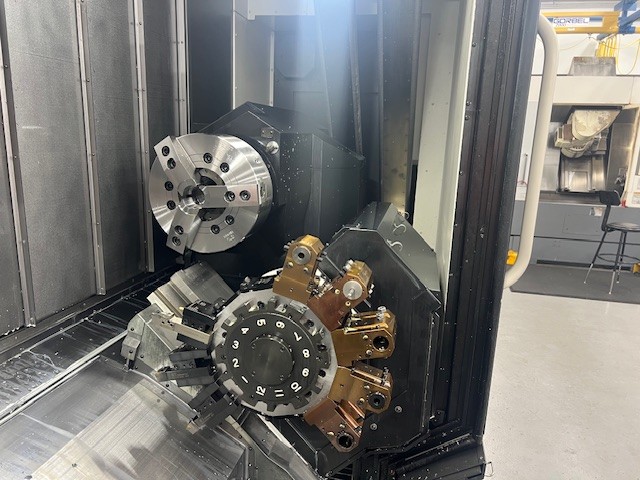

2023 Okuma Multus U5000 -2SW X 2000 Millturn CNC Multi-Tasking Machine 5-Axis 99 Operational Hours, Okuma OSP-P300SA CNC Control, Travels: X - Upper 27.36", Lower: 9.25", Z - Upper 82.68", Lower 79.69", Y - 11.81", W - 78.74", B - (Indexing Angle 360 min controlled angle 0.0001), C - (Indexing Angle 360 (min controlled angle 0.0001), Swing Over Saddle: Upper: 25.59", Lower: 12.60", Distance between nose and center (between noses): 93.11", Maximum Machining Diameter: Upper 25.59", Lower 12.60", Spindle Bore: (Main Spindle) 4.01" (Sub-Spindle) 3.189", 50-HP, 3,000 RPM, 1413N-M Torque Main Spindle, 30-HP 3,800 RPM Sub Spindle, Complete with H1 Spindle, NC B-Axis Continuous 12,000 RPM, 33-HP 240° Deg. Capto C-6,A2-8 Spindle Nose, Lower L Turret with Milling (Bolt-On), 80 Position Tool ATC, 12-Station Lower Turret, Static Tool Holder Kit, 5-Axis Machining Kit, Multi-Edge Lathe Tool Index Function, B-Axis Turning Function, High-Spec. 5-Axis Auto Tunning System, Renishaw RMP60-RMI-Q Probe, Y-Axis Gauging with Slope Gaging, C-Axis Auto Zero Offset (Both Spindles), Z-Axis Auto Zero Offset (Both Spindles), Auto Touchsetter for 2 Saddle, Thermal Active Stabilizers, Collision Avoidance System, AOT / IGF Conversational Programming, Negative Tool Radius Compensation, Cutting Step Feed Function, C-Axis Synchronize Function (Both Spindles), Vari-Spindle Speed Threading (Both Spindles), Thread Phase Matching, Gear Machining Function, High Pressure Coolant, Type B Shower Coolant, Kitagawa 15" 3-Jaw Hydraulic Chucks (Both Spindles), Elevated Chop Conveyor, Edge Technologies Rebel 102 Servo Feed Short Loader 0.315"-4.015"
