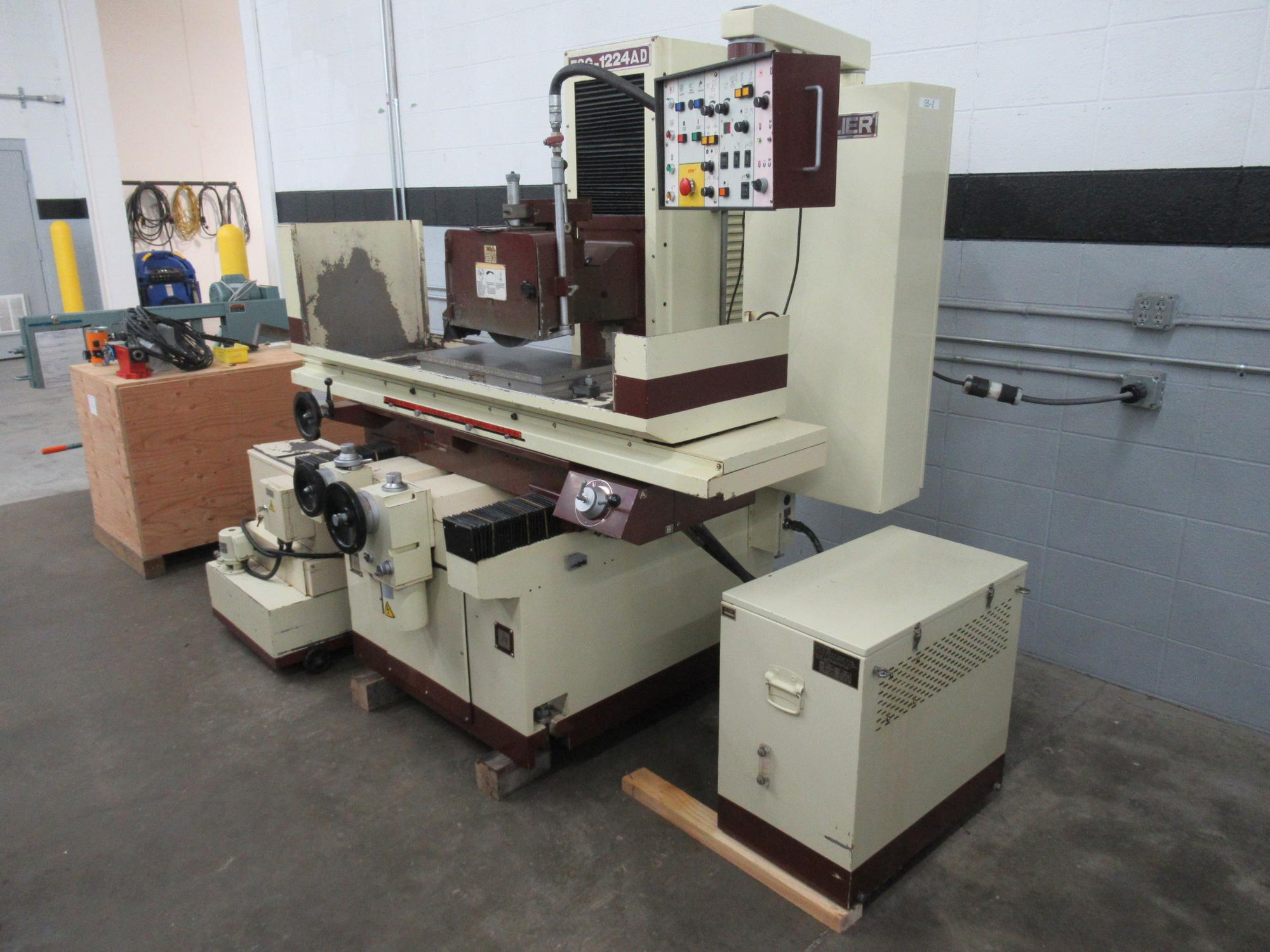

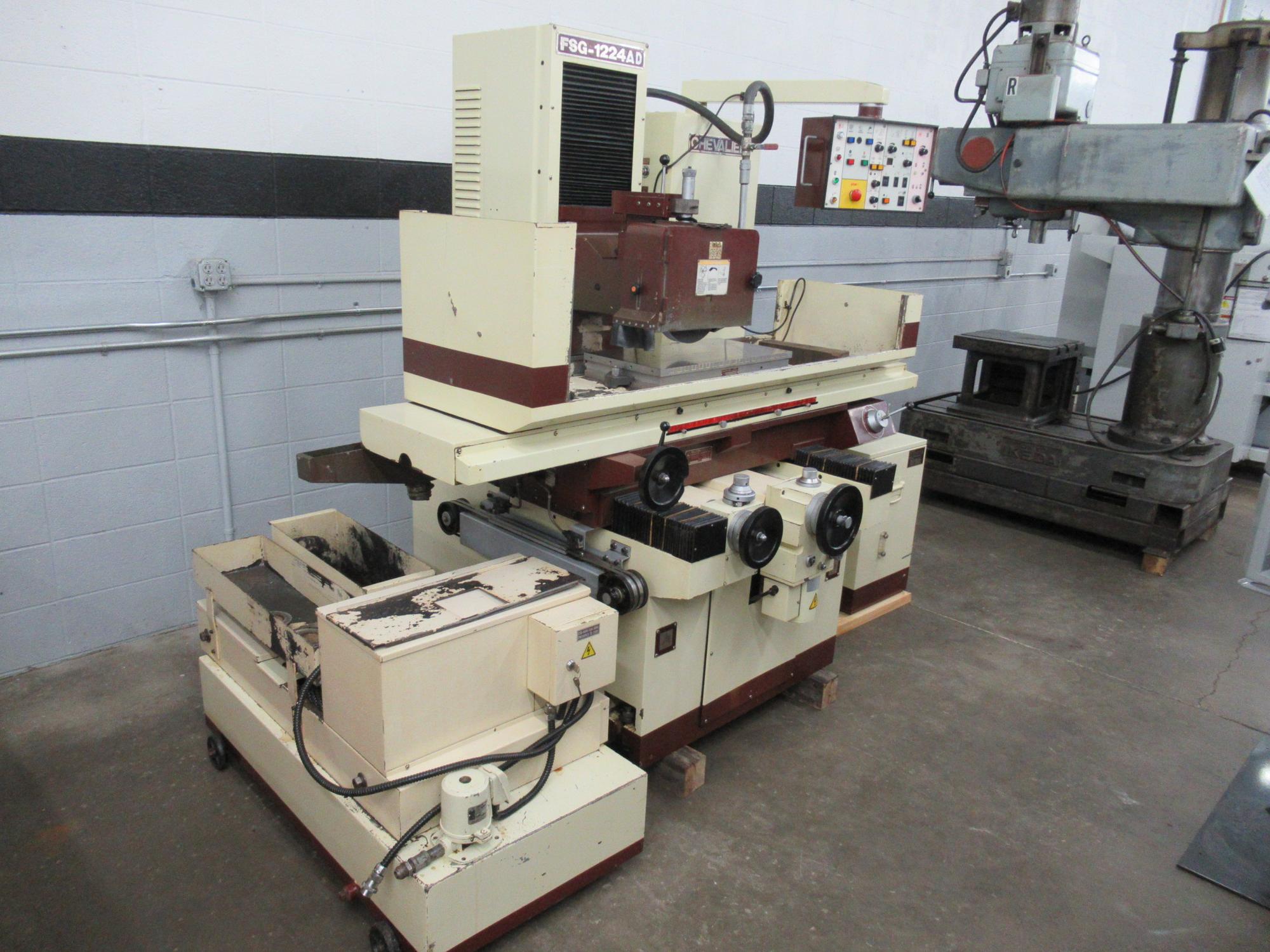

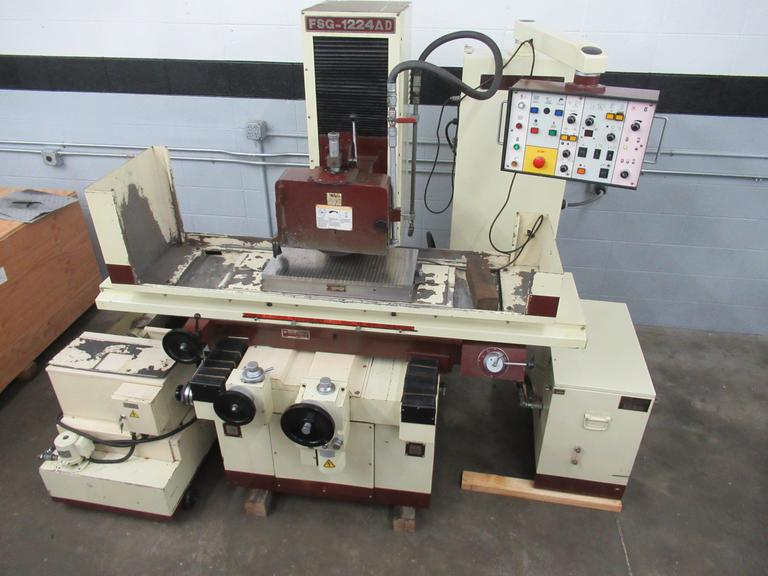

Chevalier Model FSG-1224AD Automatic Surface Grinder, 3-Axis, Incremental Downfeed, Dresser

Stock

7317

Model

FSG-1224AD

Dealer Location

Minnesota

Spec Sheet

Table Working Surface: 11-3/4" x 25-3/8"

Max Chuck Size: 12" x 24"

Max Table Movement (Manual): 27.5" / 25-5/8" Automatic

Max Distance Spindle / Wheel to Table: 19-3/4" Max Spindle Center to Table

Wheel Speed: 1750 RPM

Max Wheel Size : 14" x 2" x 5" Bore

Auto Longitudinal Feed Rate: 16 - 82 FPM Variable

Rapid Wheelhead Feed Rate: 8 IPM

Auto Wheelhead Downfeed Increments: .0005" - .002"

Spindle Drive: 5 HP

Max Table Travel Powered: 25-5/8"

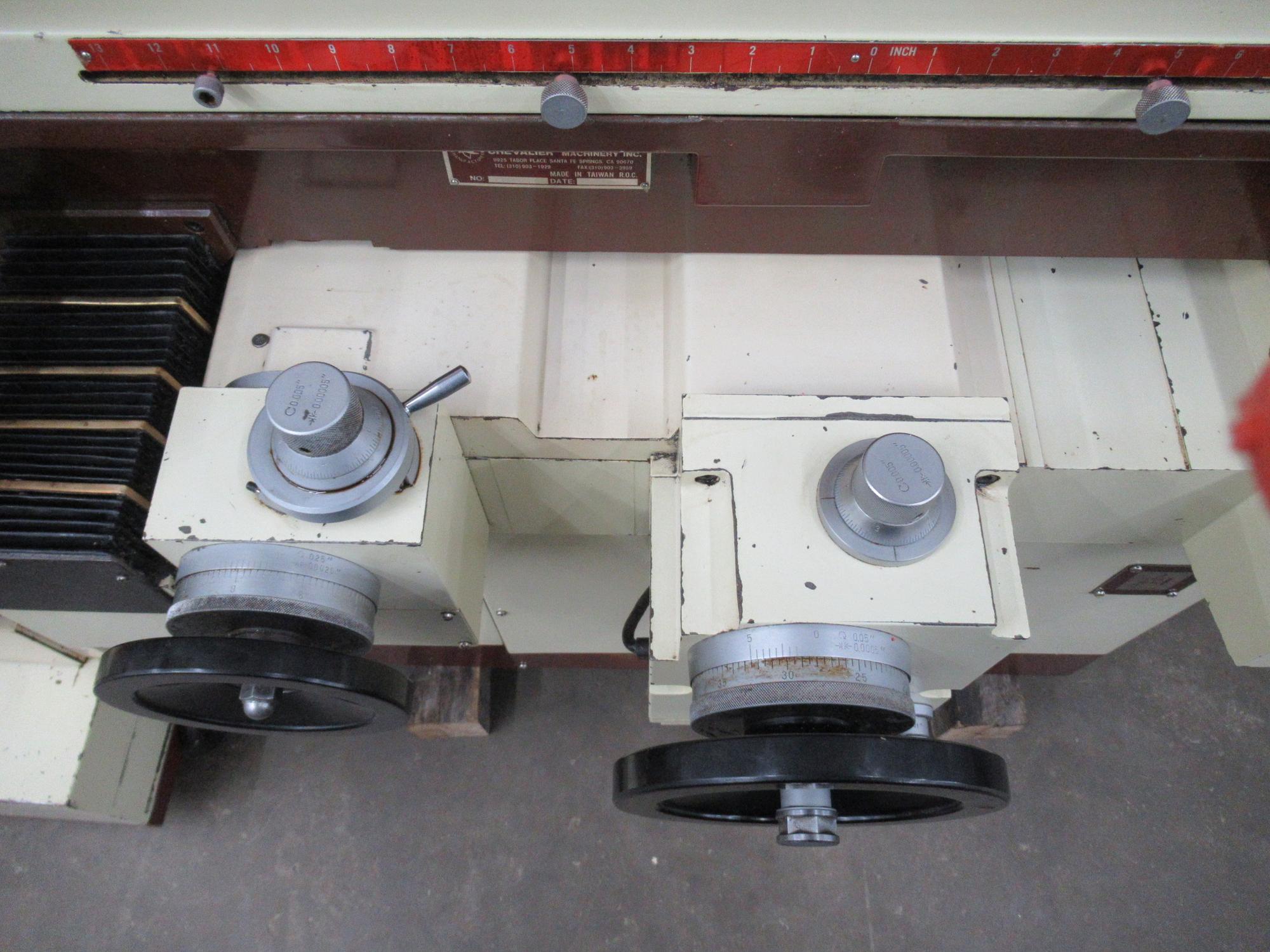

Hand Wheelhead Downfeed Increments: .005" Per Revolution / .0005" Graduations

Cross Feed Rapid Traverse Rate: 12.5 FPM

Crossfeed Travel Auto / Manual: 13-3/4" / 14-1/8" (Manual)

Cross Feed Automatic Increments: 1/8" to 2"

Description:

The Chevalier FSG-1224AD Automatic Surface Grinder is a precision grinding solution designed for toolrooms, job shops, and production environments requiring consistent accuracy and surface finish. This used Chevalier surface grinder features a 12" x 24" magnetic chuck, automatic long and cross feed and incremental downfeed, and a rigid cast iron construction for excellent vibration dampening and long-term reliability.
Known for high-quality Taiwanese manufacturing, the FSG-1224AD delivers smooth table movement, precise spindle performance, and dependable automation for flat surface grinding applications. It is ideal for grinding hardened steels, tool steel, and precision components with tight tolerances.
This Chevalier FSG-1224AD surface grinder is available used and offered by Machinesused.com, a trusted source for buying and selling quality used CNC machines and industrial equipment.

Equipped With:

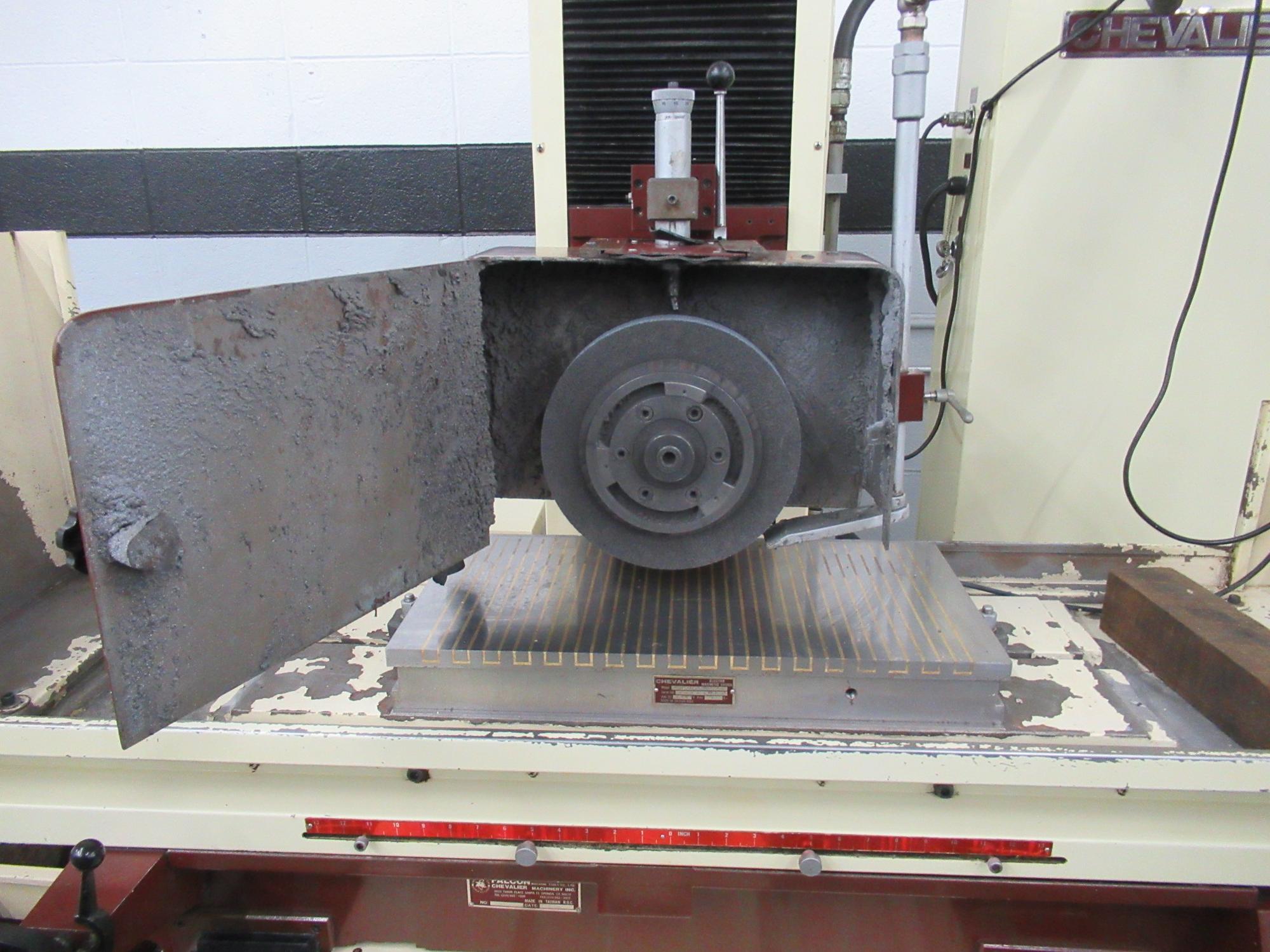

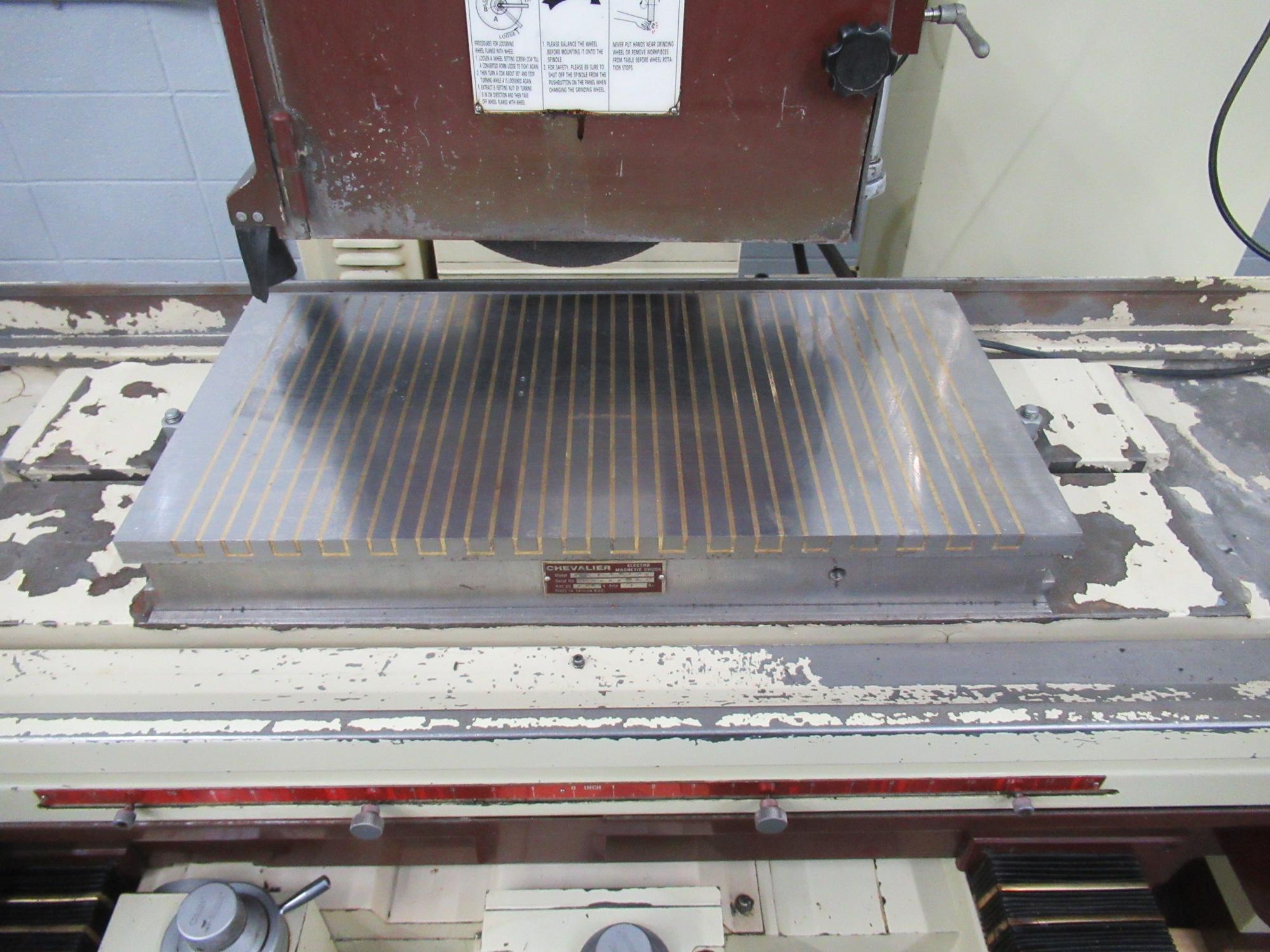

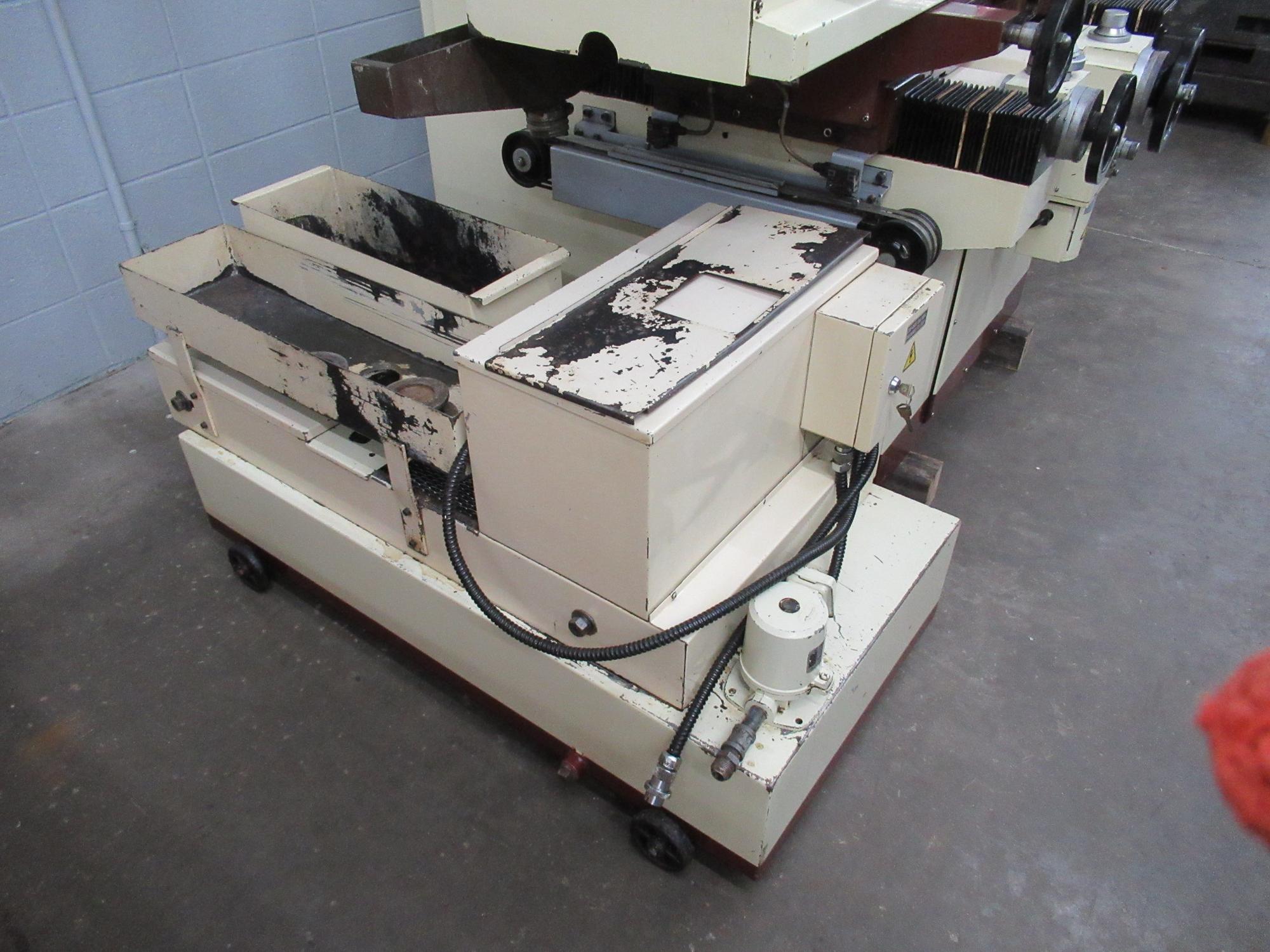

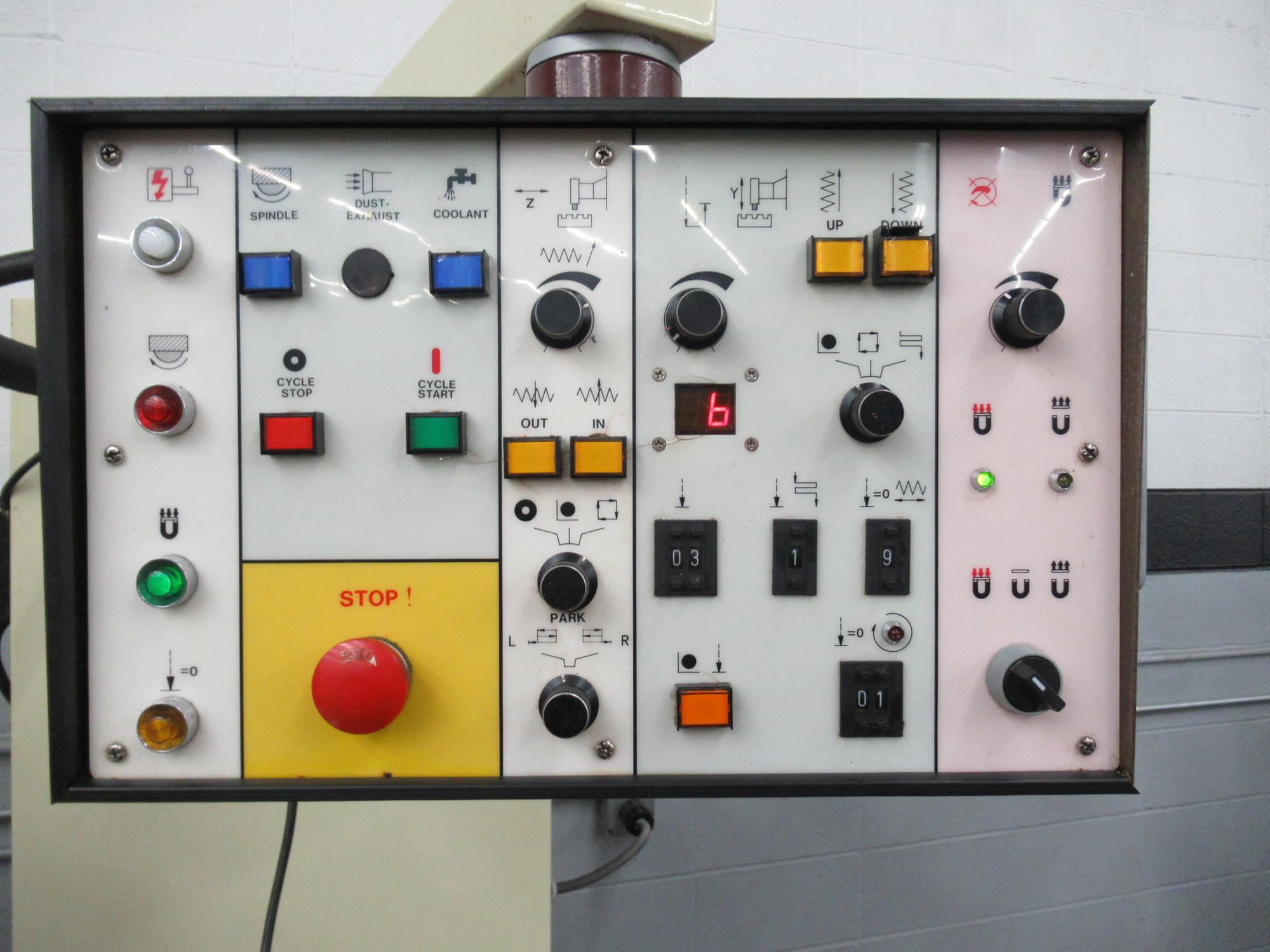

3-Axis Automatic Feeds with Incremental Downfeed, Rapid Vertical Wheelhead Feed, Wheel Hub, 12" x 24" Electromagnetic Chuck and Controls, Coolant System with Paper Filtration, Hydraulic System, Operating Manuals, Over the Head Wheel Dresser

Electrics:

220 Volt, 3 Phase
