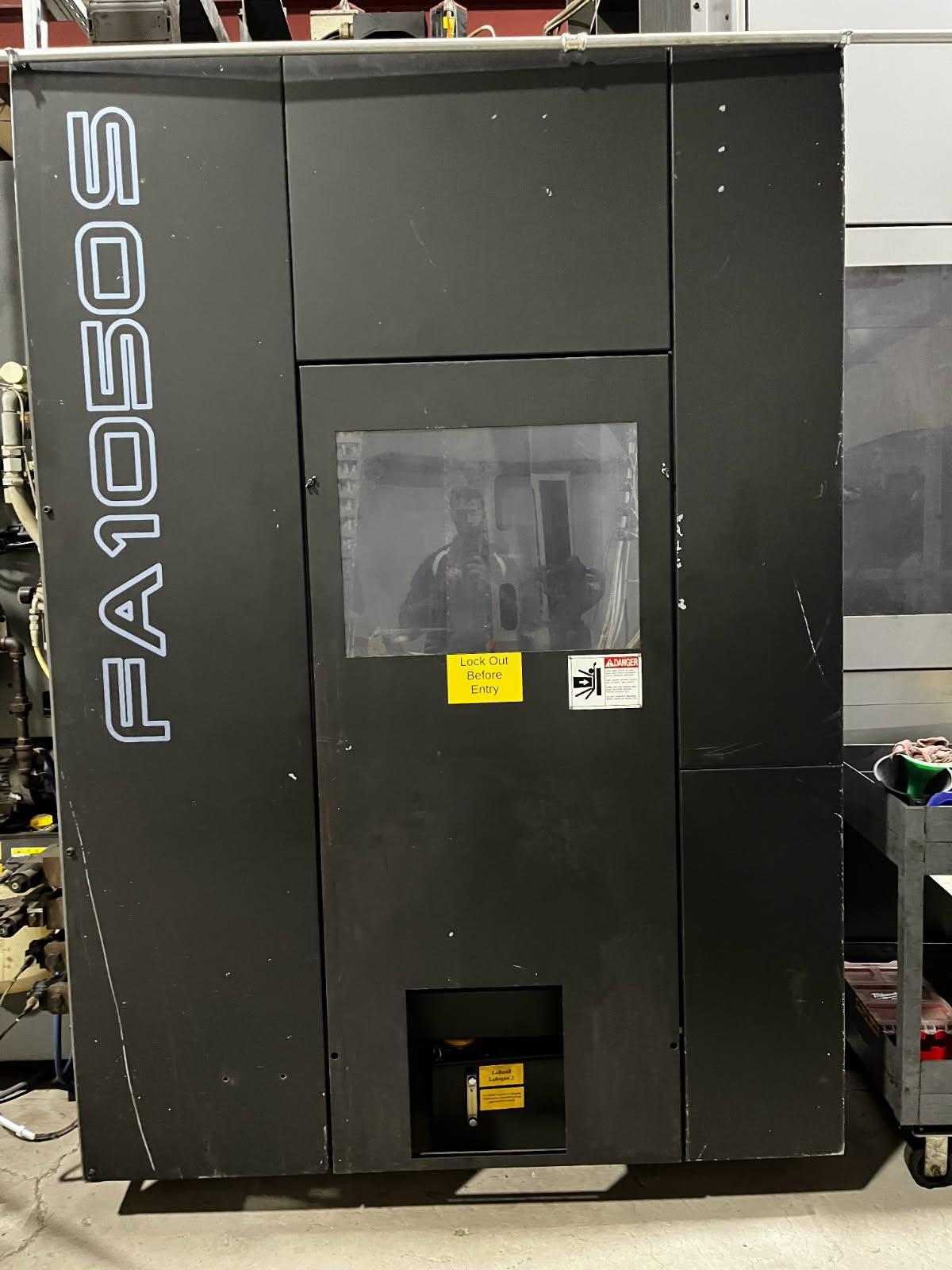

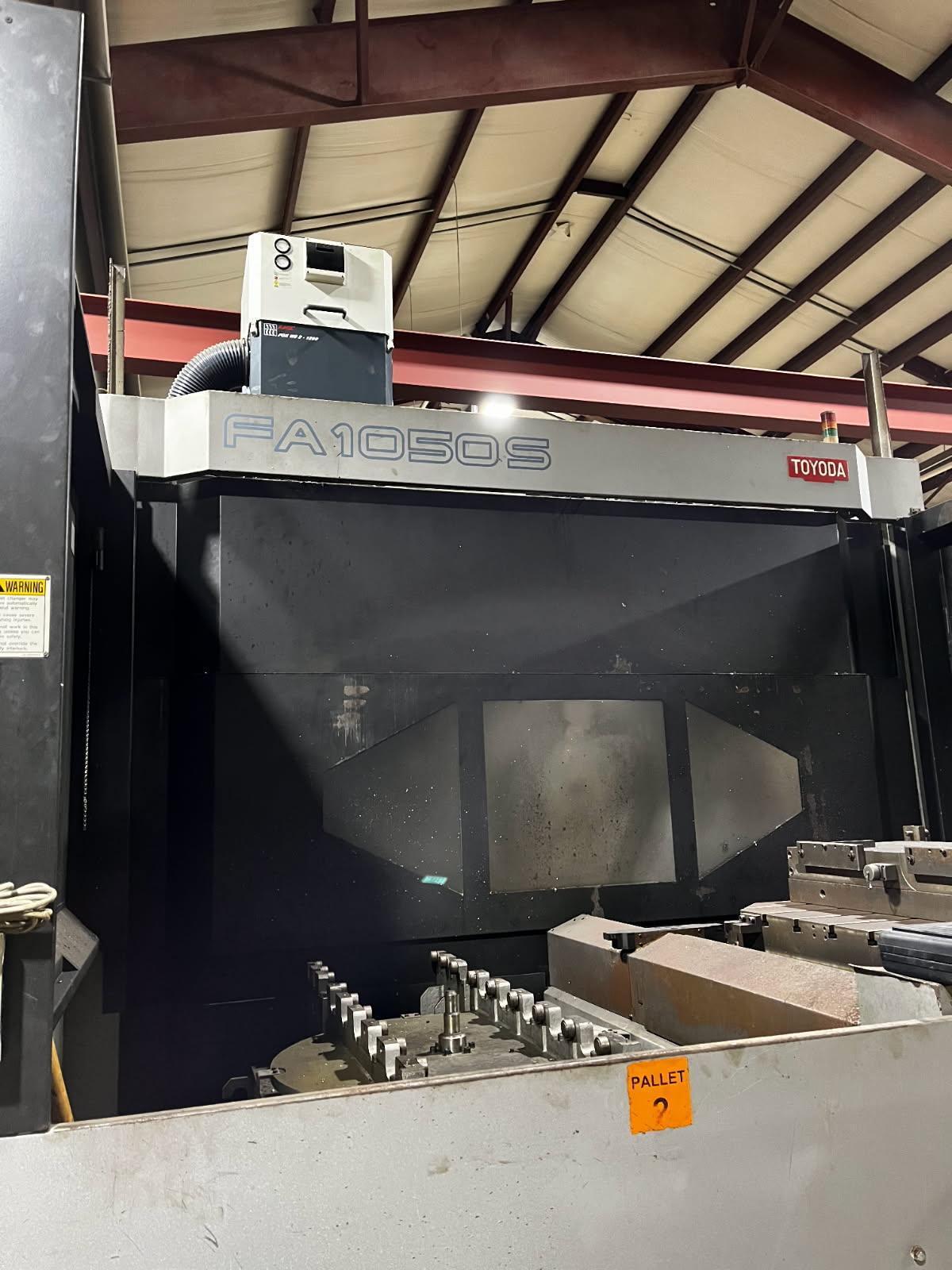

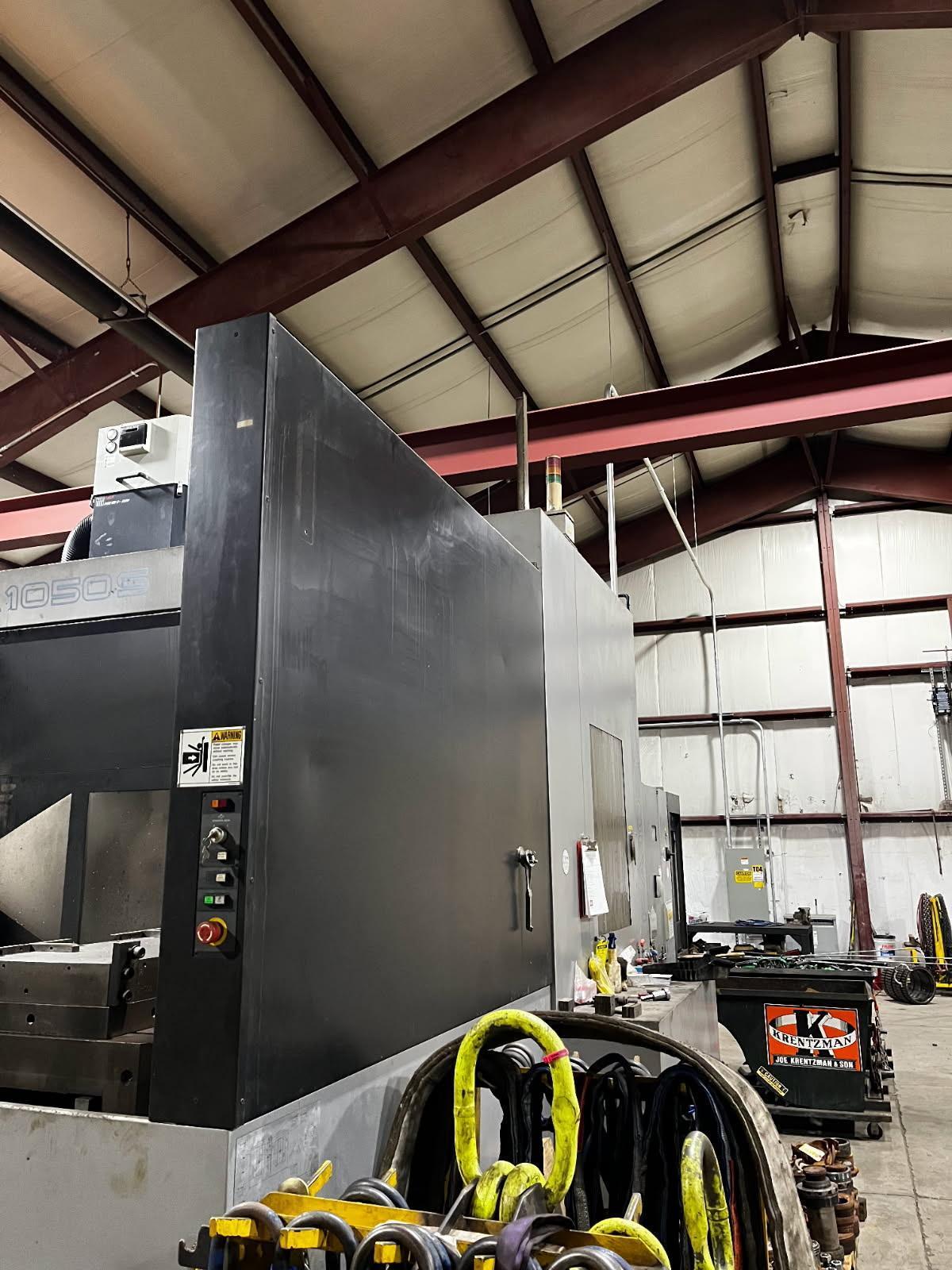

Toyoda FA1050 Horizontal Machining Center

Manufacturer

TOYODA

Category

Machining Centers

Type

MACHINING CENTERS, HORIZONTAL, PORTABLE

Stock

M1050

Model

FA1050S

Dealer Location

Illinois

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Pallet Size - 41" x 41"
Pallet Weight Limit - 6,600 Lbs.
Travels XYZ - 63” X 55”X 45”
Rapid Feedrate (XYZ) - 1181 I.P.M.
Pallet Rotation Increment - 1°
Max Workpiece Swing - 72.83"
Spindle Motor H.P. - 40 H.P.
Spindle RPM - 6000
Spindle Taper - Cat 50
Number of Tools in ATC - 120
Coolant Thru Spindle Pressure - 1500 psi
Max Part Size Swing Diameter - 72.83”
Approximate Machine Weight - 66,139 Lbs.


EQUIPPED WITH:

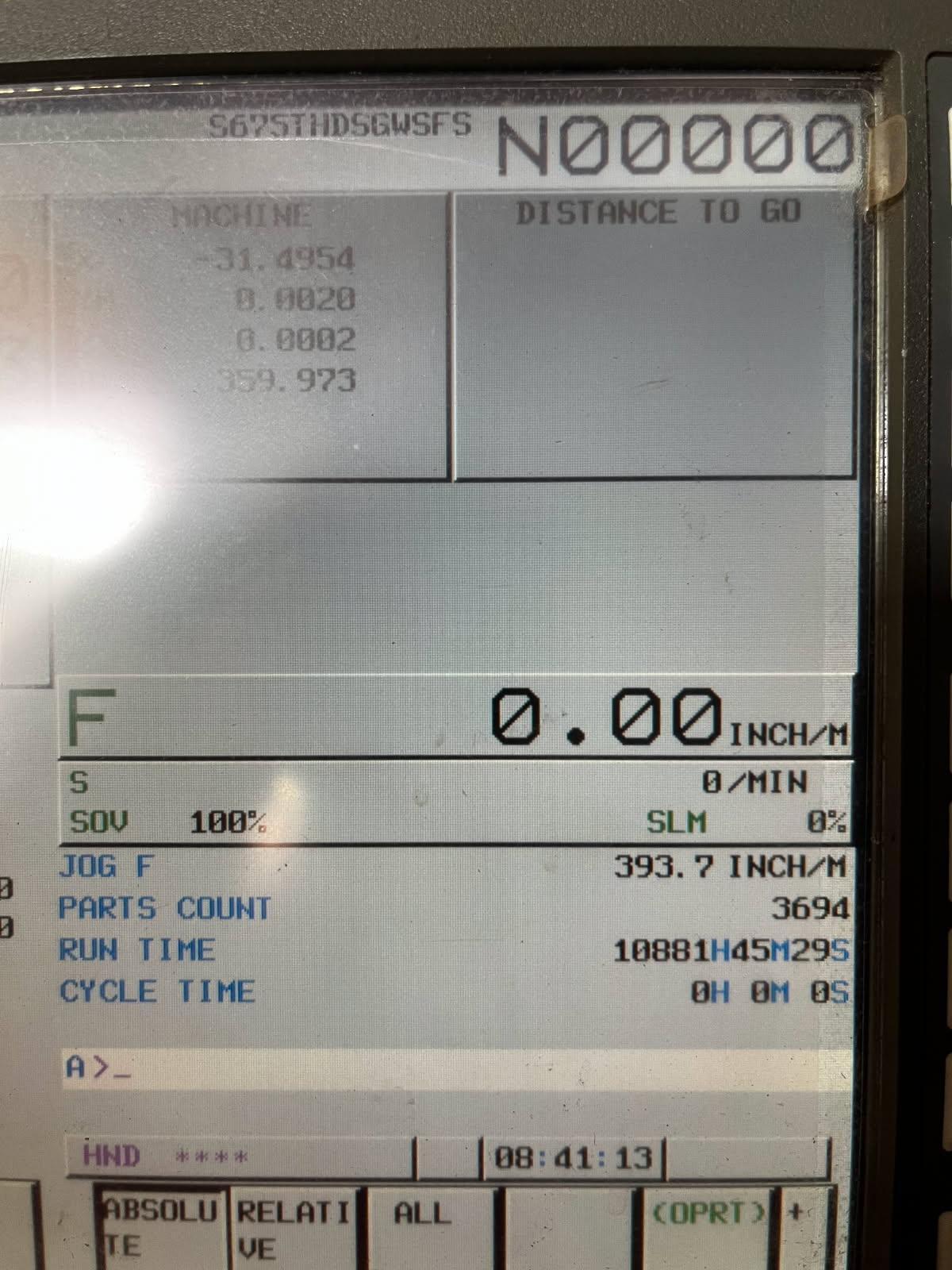

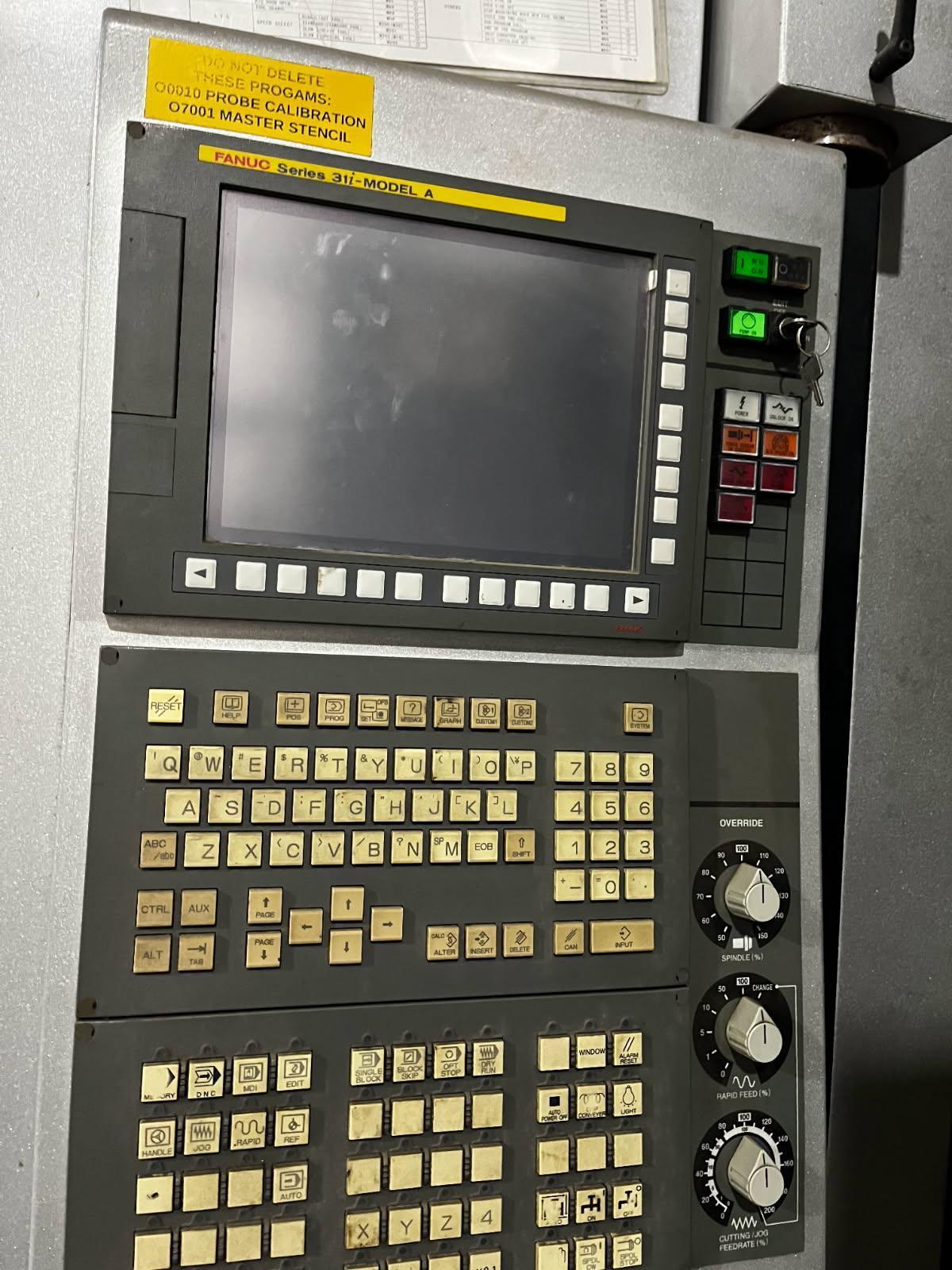

Fanuc 31iA CNC Control.
High Pressure Programable Coolant through the spindle.

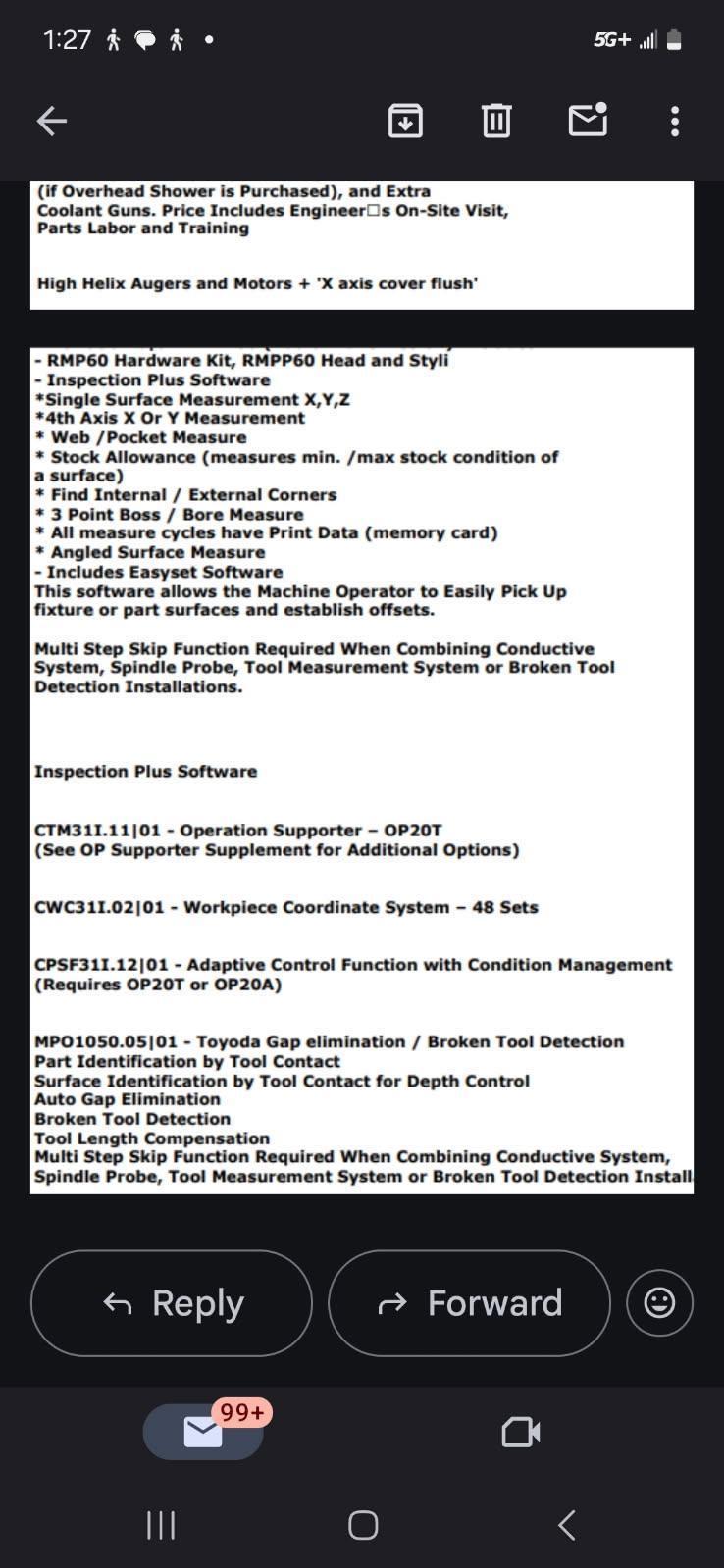

Big Plus Package. Inspection Plus Package

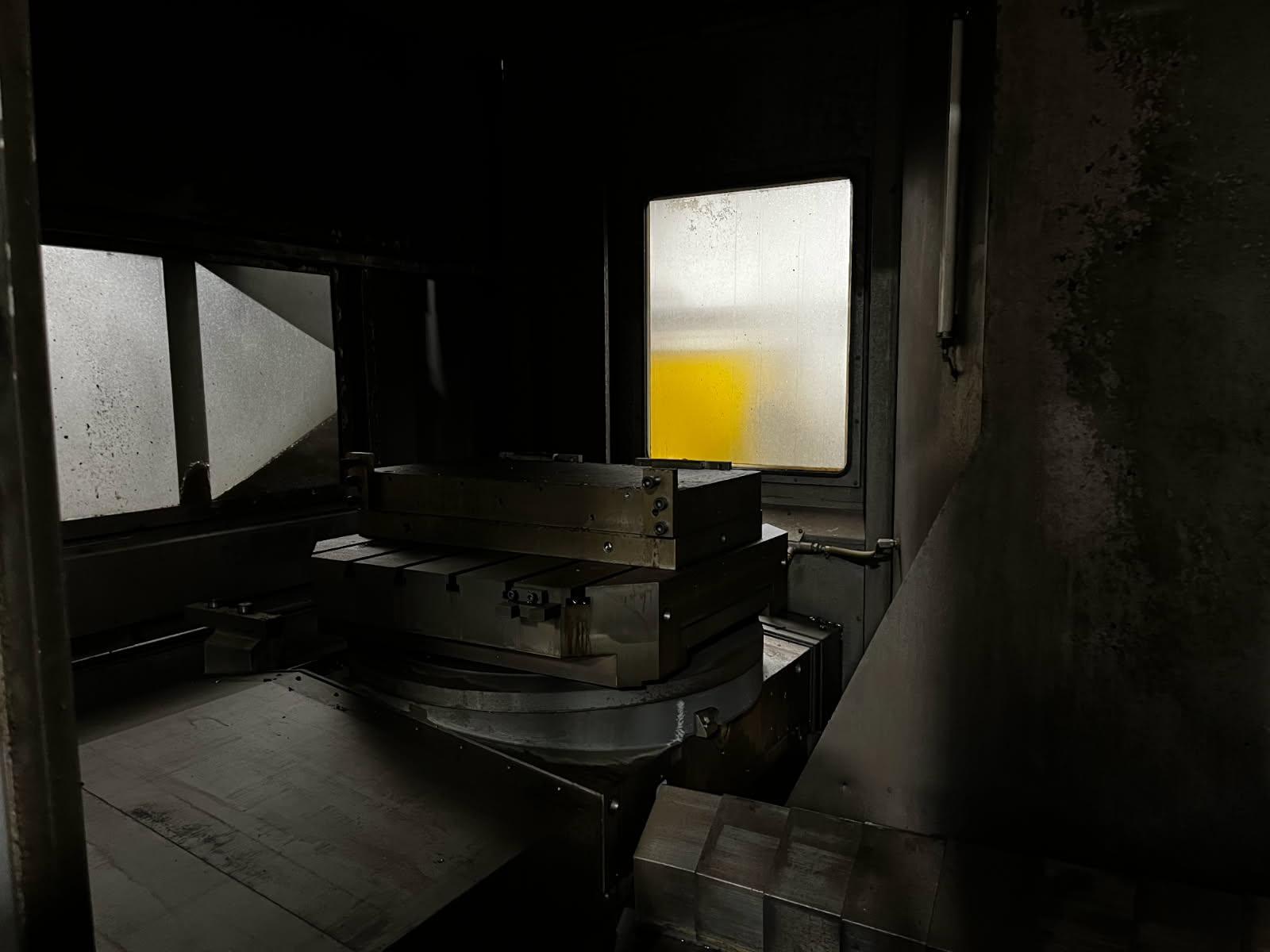

(2) 1050mm T-Slotted Pallets.
Renishaw Probing
120 Position Automatic Tool Changer.

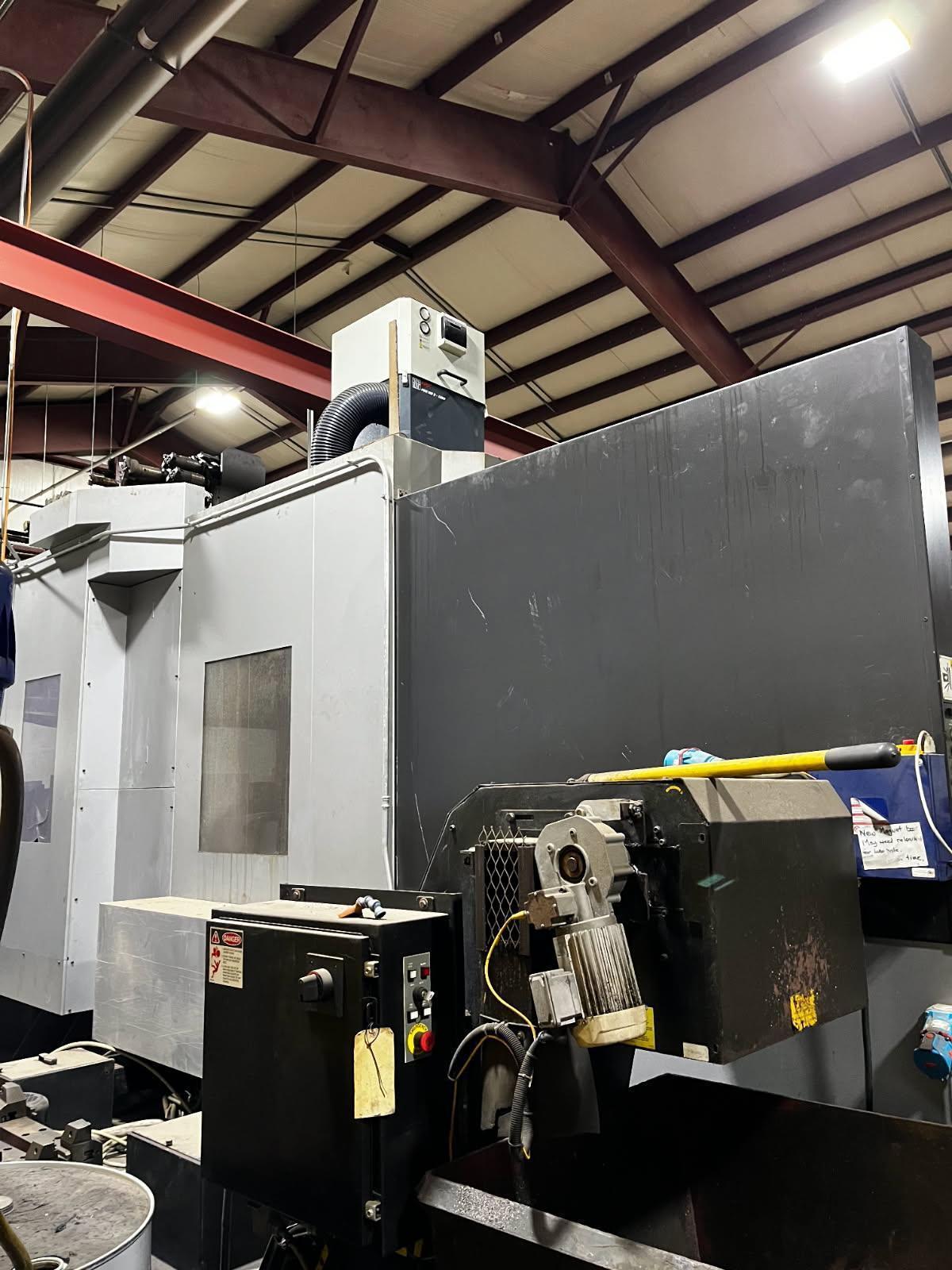

Coolant system with chip conveyor.
Chip Blaster

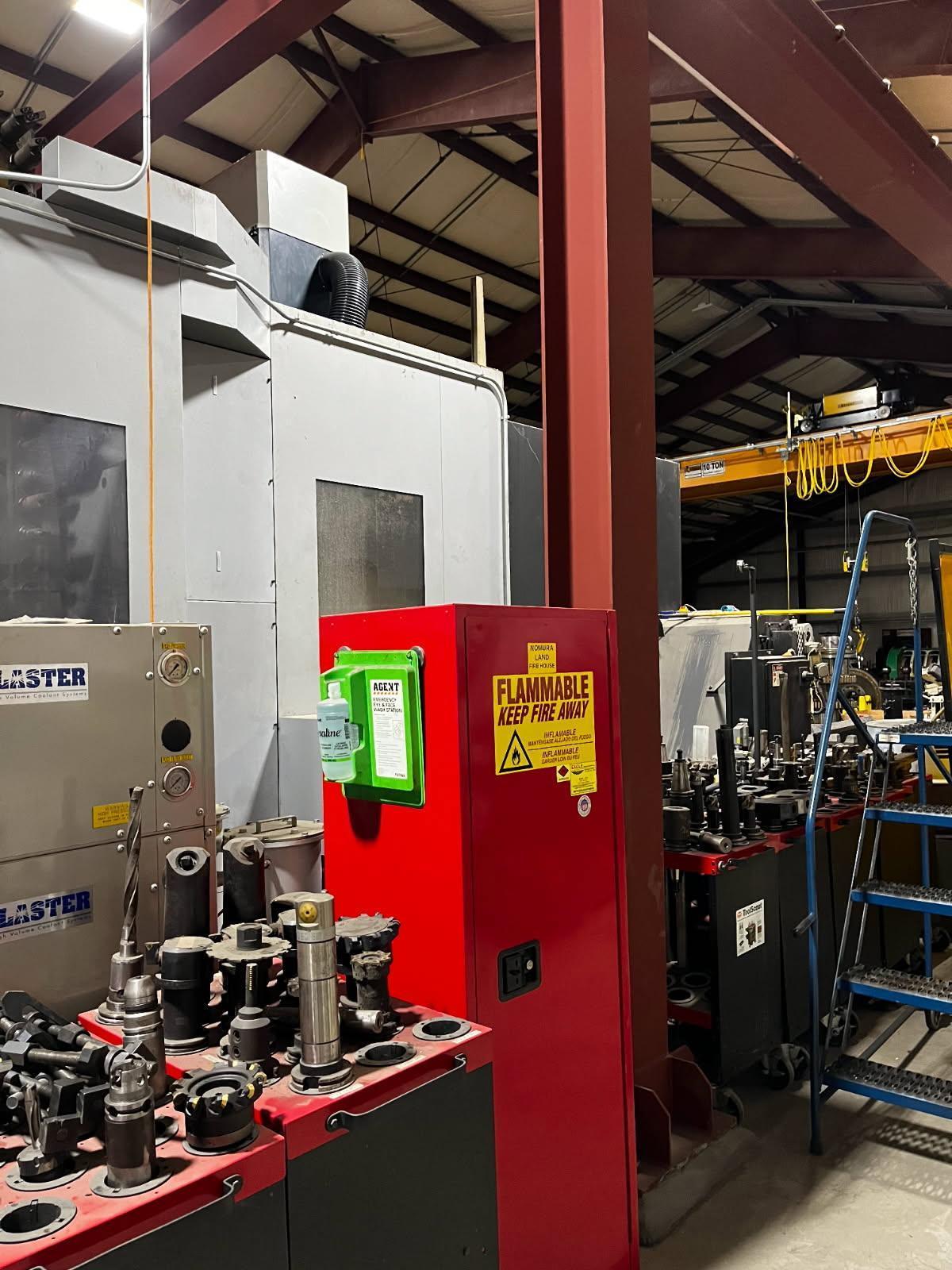

Tooling
Stairs/Platforms for loading and machining area access.
