Clausing Atlas 5HP CNC Vertical Mill 3 Axis 4BVSCNC40

Manufacturer

CLAUSING ATLAS

Category

Boring Mills

Type

BORING MILLS, VERTICAL, (Single Spindle), CNC

Stock

None

Model

4BVSCNC40

Dealer Location

Kentucky

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
Vertical Mills
Manufacturer:
CLAUSING ATLAS
Model:
4BVSCNC40
Year:
2003
Status:
For Sale
Country:
United States

Description

54" x 10" Table

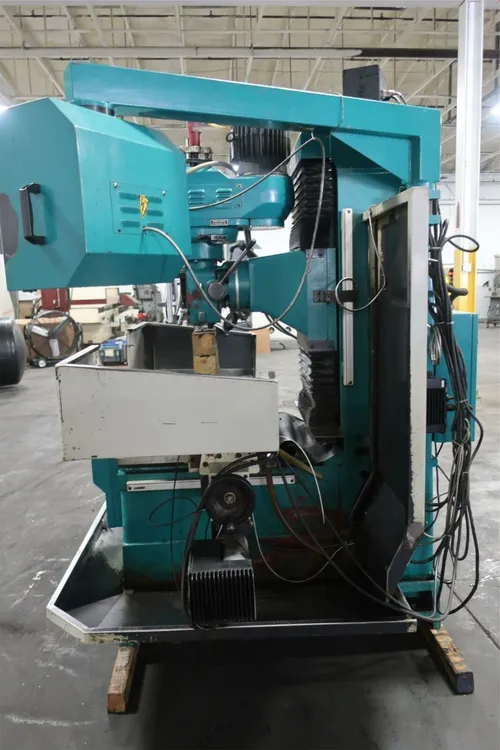

Machine Style
CNC Bed Mill

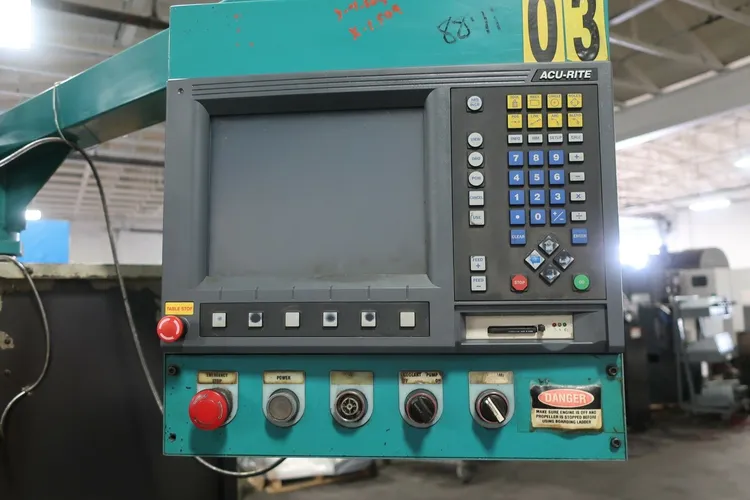

Number of Control Axes
3 (X, Y, Z-Column)

Manual Quill Scale W-Axis
Yes (synchronized)

Spindle Speed Control
Manual Variable Speed

Spindle Motor Horsepower
5

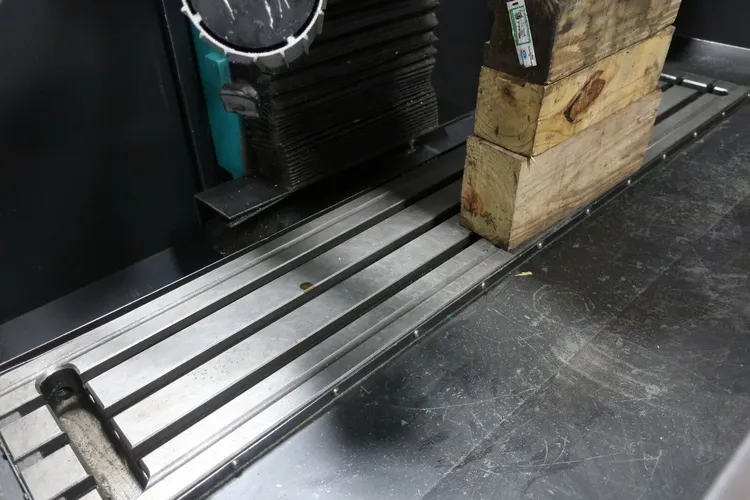

Table Size (inch)
10 x 54

Table Load Capacity (lbs.)
1,500

T-Slot Width (in)
.63

T-Slot Center Distance (inch)
2.48

Number T-Slots
3

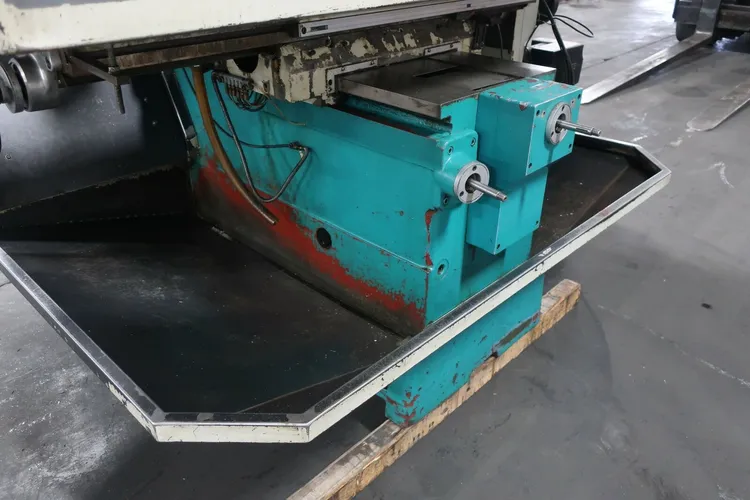

Table Way Design
Dovetail

Cross Feed Way Design
Square

Column Way Design
Square

X - Longitudinal Travel Auto (inch)
30.51

Y - Cross Travel Auto (inch)
17.52

Z - Column Travel Auto (inch)
19.69

W - Quill Travel (inch)
5

Programmed Feed Rate X,Y,Z (in/min)
0-100

Rapid Feed X,Y,Z (in/min)
100

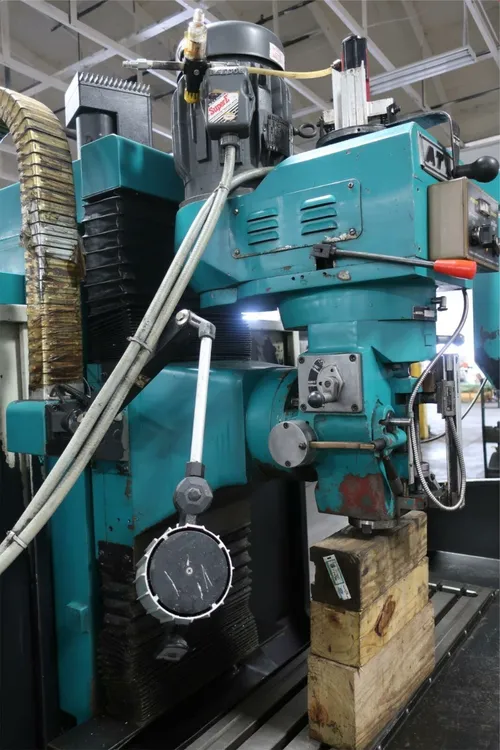

Head Tilt Left or Right
90°

Variable Spindle Speed (rpm)
70 – 4300

Variable Spindle Speed Low Range (rpm)
70 – 500

Variable Spindle Speed High Range (rpm)
570 – 4300

Spindle Taper
NMTB 40

Quill Feed (in/rev)
.0016/.003/.006

Quill Diameter (inch)
4.13

Length of Saddle on Bed (inch)
25.98

Width Across Bed Ways (inch)
16.53

Spindle Nose to Table (inch)
3.15 – 22.83

Center of Spindle to Column Ways (inch)
17.32

Floor to Table Surface (inch)
36.2

Table to Column Ways (inch)
3.15 – 20.87

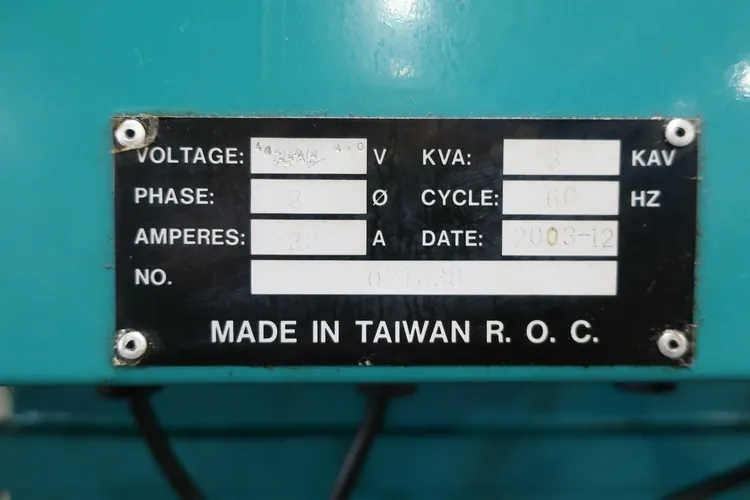

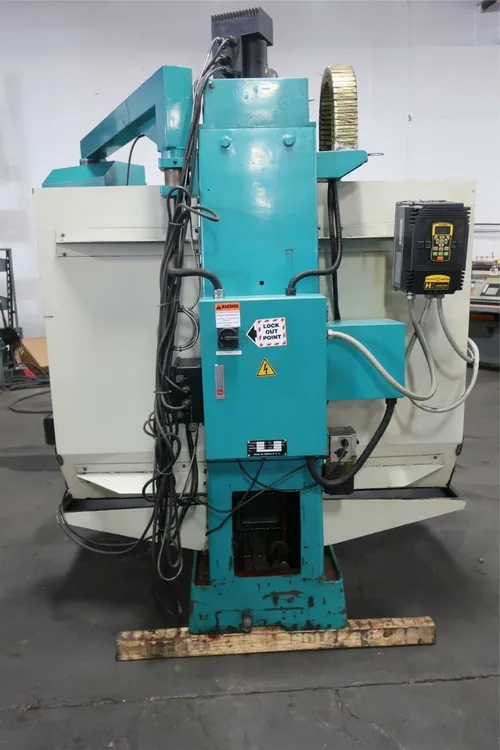

Voltage Required
280/230/460

Phase
3

Control Voltage (pre-wired)
115

Phase
1

Machine Weight (lbs.)
4,400

Machine Foot Print (WxDxH) (inch)
71.46 x 66.14 x 78.74

Shipping Weight (lbs.)
5,200
