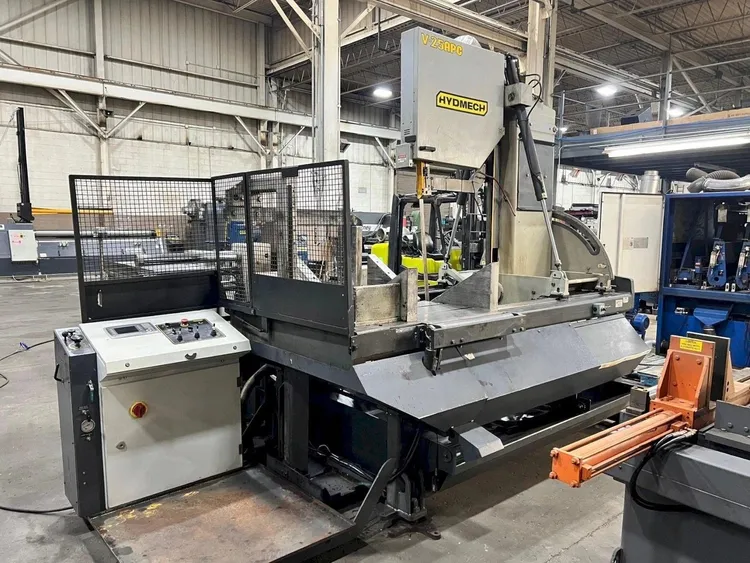

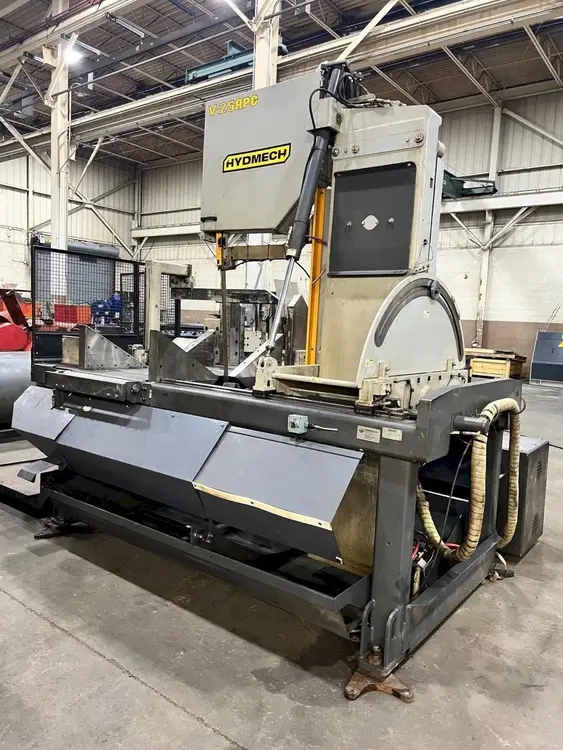

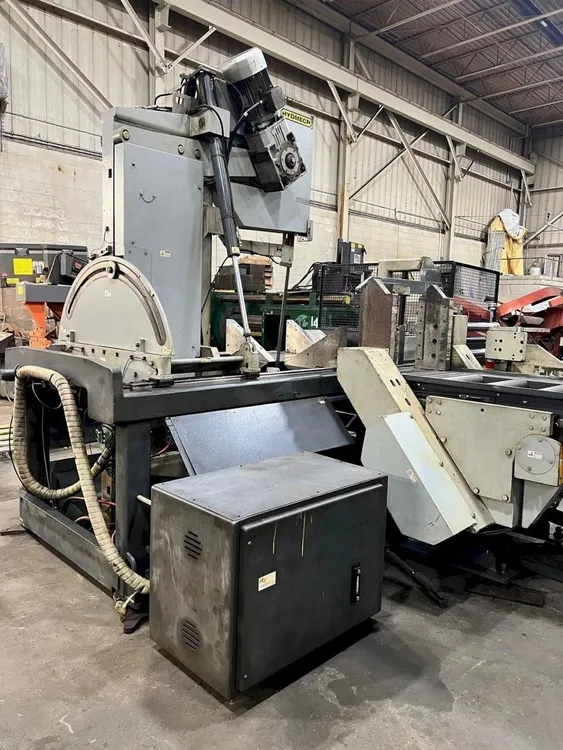

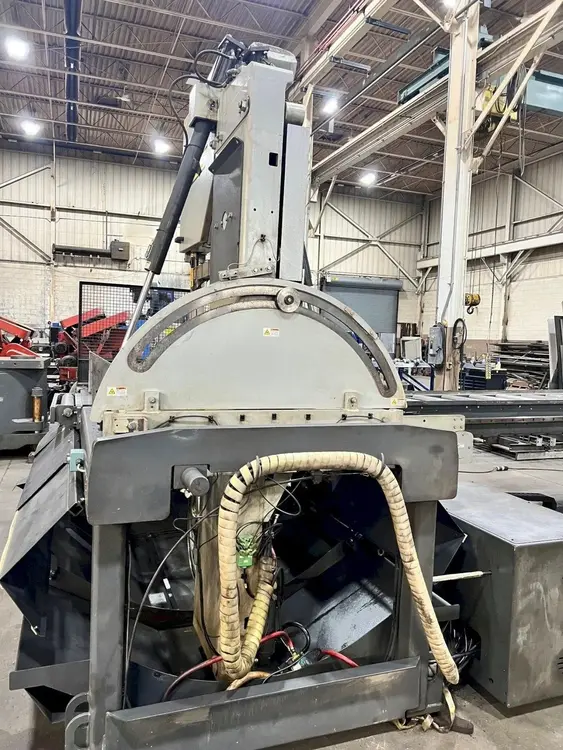

Hyd-Mech V25 APC Vertical Automatic Bandsaw

Manufacturer

HYD-MECH

Category

Saws

Type

SAWS, BAND, VERTICAL

Stock

None

Model

V-25APC

Dealer Location

Kentucky

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
Vertical Band Saws
Manufacturer:
HYD-MECH
Model:
V-25APC
Status:
For Sale
Country:
United States

Description

Good running machine, can be inspected under power.

Throat25"635 mm
Work Height44"1,117.6 mm
Power10 hp7.5 kW
Blade Width1.5"38.1 mm
FPM75-35075-350

Specifications:
Capacity @ 90 degrees: 30" x 25" (20" x 25" with bundling clamps)
Capacity @ 45 degrees: 21" x 25" (18.5" x 25" with bundling clamps)
Capacity @ 60 degrees right: 14.5" x 25" (8.5" x 25" with bundling clamps)
Capacity @ 60 degrees left: 13" x 25" (8.5" x 25" with bundling clamps)
Blade size: 1-1/2" x 21' x .050"
Blade motor: 10 H.P.
Blade speed: 75 - 350 FPM (infinitely variable)
Blade guides: Carbide
Coolant type: Flood
Coolant tank capacity: 38 gallons
Hydraulic tank capacity: 7 gallons
Table height: 44"
Voltage: 480 volt 3 phase
Machine weight: 15,000 Lbs.
Shuttle weight: 6,500 Lbs.

Equipped with:

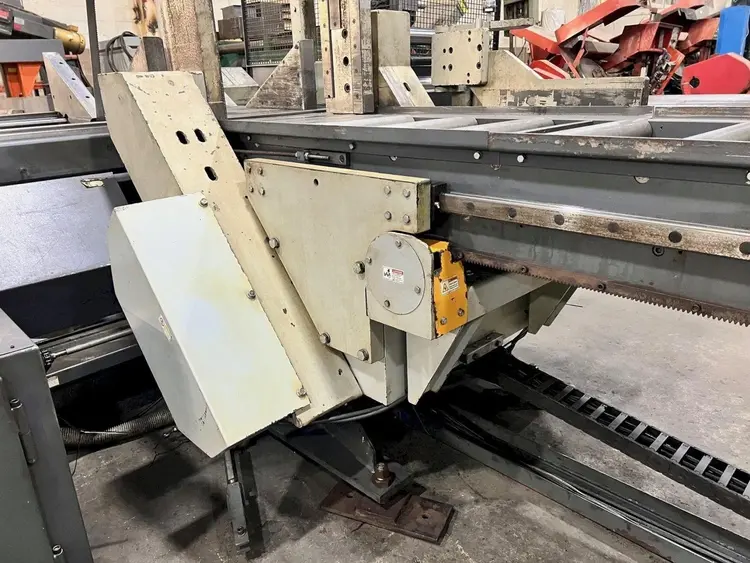

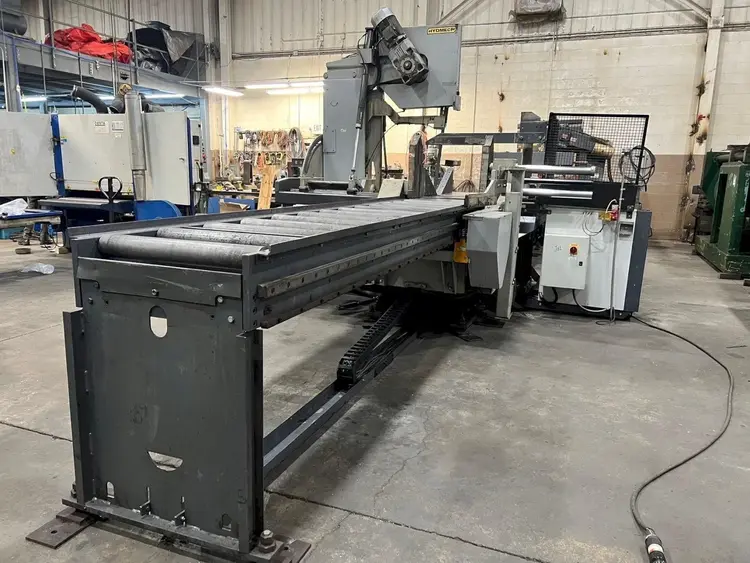

Optional 120" automatic shuttle feed with automatic kerf compensation, rack and pinion servo drive

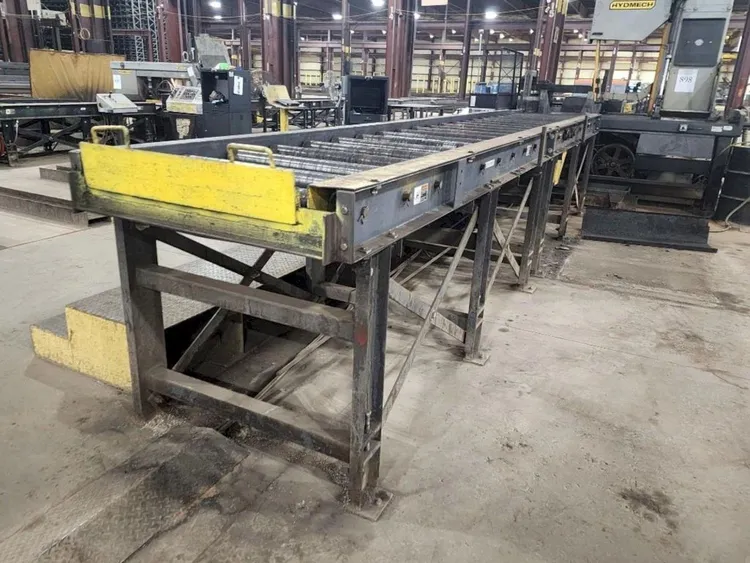

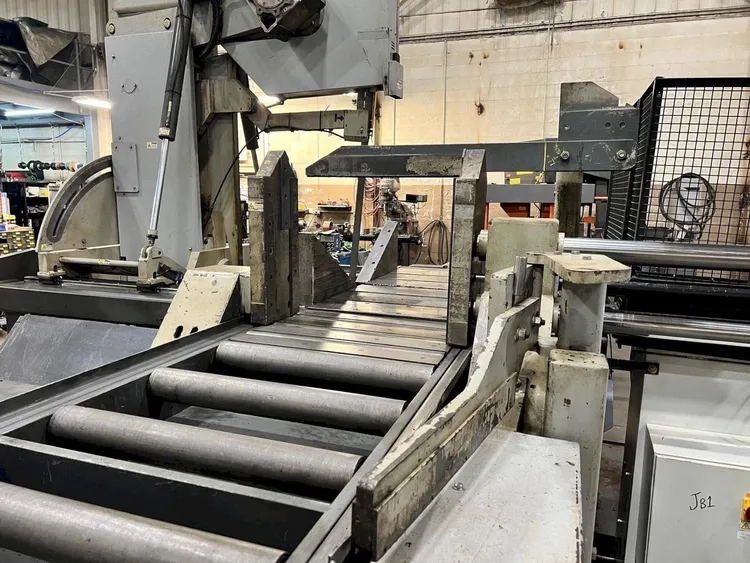

30" wide x 62' of powered heavy duty roller conveyor
Optional hydraulic overhead bundling clamps
Automatic programmable go-to angle from 60 degrees left and right
6 degree canted head
Hydraulic guide arm
Hydraulic head tilt

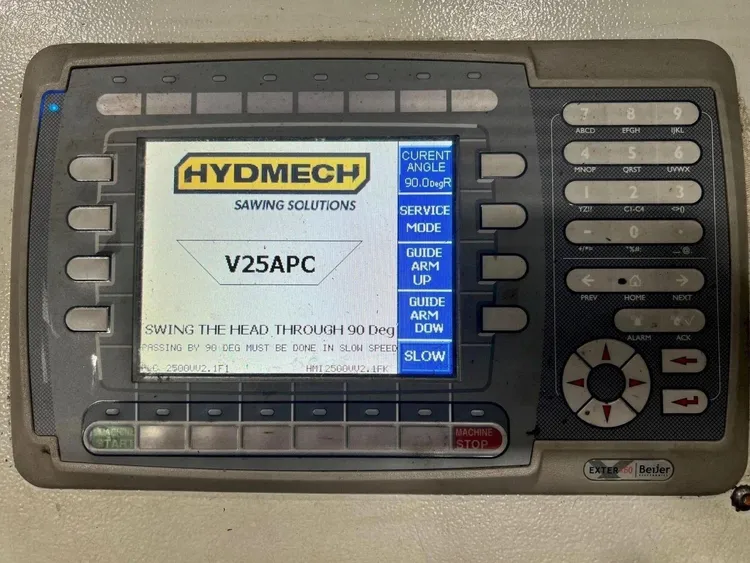

Mitsubishi PLC control

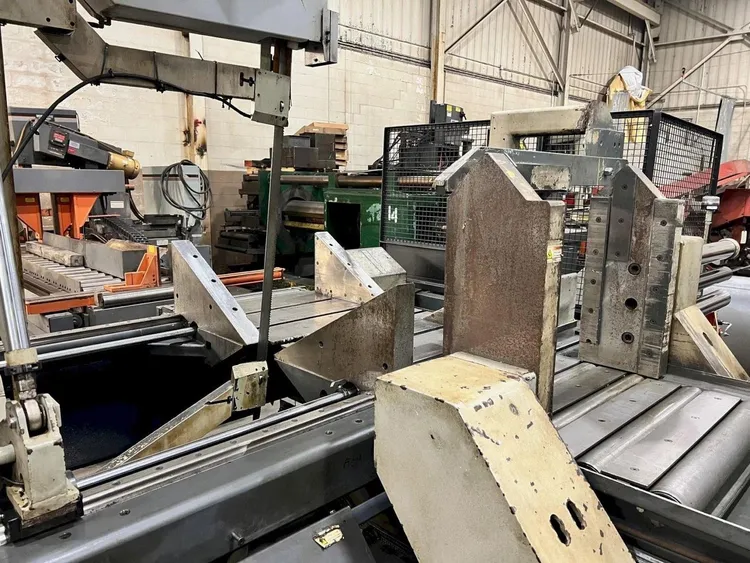

Two full stroking hydraulic vises
True direct blade drive with variable frequency drive
Blade chamber separates material from cut part
Hydraulic chip conveyor
Powered blade chip brush
Out of stock switch
Blade break switch
Pop-up feed roller
Hydraulic blade tension
Laser light
Variable vise pressure
Chip buckets

Machine can be purchased without 62' of powered roller conveyor for discounted price
