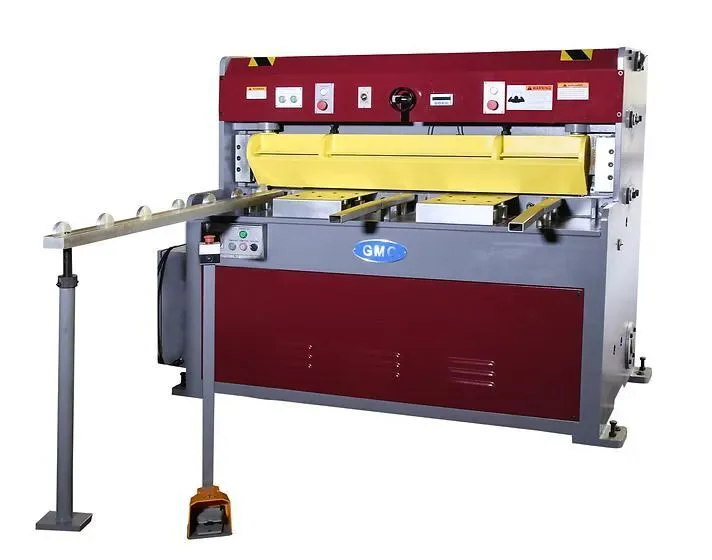

New GMC HS-0425E 4' x 1/4" Hydraulic Metal Shear Electric Backgauge

Manufacturer

GMC

Category

Shears

Type

SHEARS, POWER SQUARING (Inches)

Stock

7991

Model

HS-0425E

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
SHEARS
Manufacturer:
GMC
Model:
HS-0425E
Condition:
New - In-Stock
Stock #:
7991
Status:
For Sale
Country:
United States

Description

Experience precision cutting with the new GMC HS-0425E Metal Shear. This hydraulic powerhouse handles mild steel, stainless steel, and soft aluminum with ease. Features include a 24" SIKO powered backgauge, fast 12-20 SPM, and a 7.5 HP main motor.

Cutting capacity:
Mild Steel: 4' x 1/4”
Stainless Steel: 4' x 10 Ga.
soft aluminum: 4' x 3/8"
min. thickness: 20Ga
Blade Length: 4'4"
Strokes Per Minute: 12-20
Worktable Height: 34 1/2"
Front Support Arm: 24"
Backgauge: 24" SIKO Powered Backgauge
Blade Rake Angle: 2 degree
Oil Tank Capacity: 17 Gallons
Main Motor: 7.5 HP (3 Ph.) 220V/30A 440V/15A (optional)
Backgauge Motor: 1 HP 220V/440V (3 Ph.)
Machine Weight: 5,350 LBS
Machine Dimensions: 74" x 86" x 63"

24” German SIKO Front Operated Power Back Gauge
with micro adjustment , accuracy 0.004” inch/metric digital display

1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA) with gap dial
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
2 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box
