New GMC HS-1010M-10' x 10 Ga. Hydraulic Metal Shear - Shearing Machines

Manufacturer

GMC

Category

Shears

Stock

7987

Model

HS-1010M

Dealer Location

California

Spec Sheet

Overview

Type:
SHEARS, POWER SQUARING (Gauges)
Manufacturer:
GMC
Model:
HS-1010M
Condition:
New - In-Stock
Stock #:
7987
Status:
For Sale
Country:
United States

Description

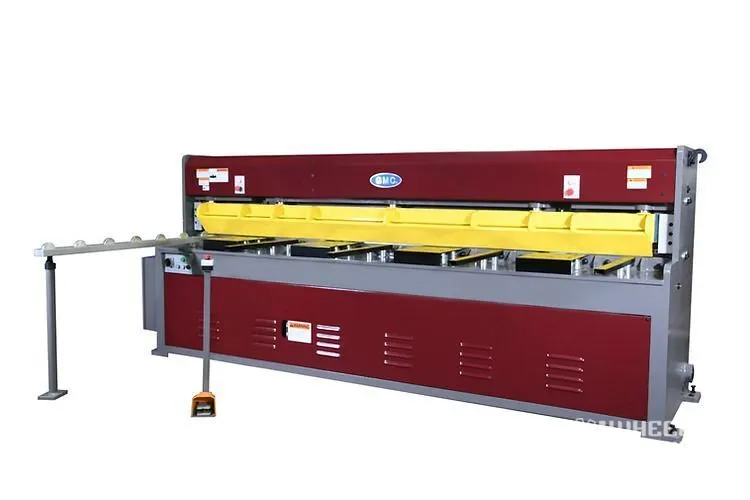

GMC HS-1010M Hydraulic Metal Shear for sale. Suitable for cutting mild and stainless steel, max blade length 10', 10 Ga. capacity. Features include manual back gauge, quick blade gap adjustment, hydraulic hold-downs, and shadow line cutting. Used condition.

Max Gauge10 gauge10 gauge
Length of Blade10'3,048 mm
Back Gauge24"609.6 mm
Power1 hp0.7 kW
SPM15 strokes/min.15 strokes/min.

Cutting capacity:
Mild steel 10’ x 10 Ga.
Stainless steel 10’ x 14 Ga.
soft alumnium 10'x 1/4"
min. thickness 24 Ga
Blade length 10' 1" = 121"
Strokes per minute 10-15
Worktable height 34 1/2"
Front support arm 24"
Back gauge 24" Manual B.G.
Blade rake angle 2 degree
Oil tank cap. 26 Gal
Main Motor 7 1/2 HP 3 Phase Prewired: 220V/35A Optional: 440V/20A
Machine weight 8,850 LBS
Machine dimensions 178" x 67" x 65"

HS-1010M comes with 24” manual back gauge, one side handwheel operate )
adjustment 0.004” , inch/mm digital display
1 each 60” squaring arm with inlaid inch/metric dual scale
Quick change blade gap adjustment (BGA)
Shadow line for accurate straight cutting
Material support and drop back chuter
Upper and bottom blade set with 2-edge on bottom & 2-edge on upper
2 each 24” front support arms
Hydraulic hold-downs with anti-mar neoprene
Full length viewable finger guard
Removable safety foot pedal
Tool box
