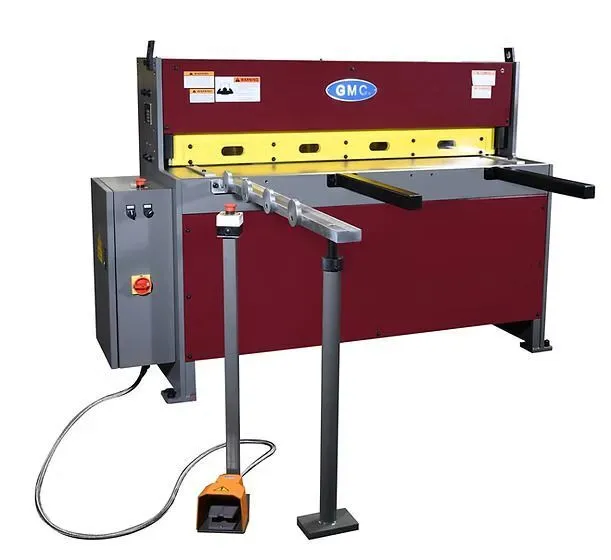

New GMC 4-Foot Mechanical Shear EPS-0412- 12Ga. Shearing Machine - Single Phase

Manufacturer

GMC

Category

Shears

Type

SHEARS, POWER SQUARING (Gauges)

Stock

7983

Model

EPS-0412M-1PH

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
SHEARS, POWER SQUARING (Gauges)
Manufacturer:
GMC
Model:
EPS-0412M-1PH
Condition:
New - In-Stock
Stock #:
7983
Status:
For Sale
Country:
United States

Description

New GMC 4-Foot Mechanical Shear EPS-0412M-1PH, ideal for precision cutting. Handles 12 Ga. mild steel, 16 Ga. stainless, and 8 Ga. aluminum. Features include a 52" blade, 35 strokes/min, and a sturdy ISO 9001 design. Perfect for efficient shearing tasks. Single phase.

Cutting Capacity
Mild Steel - HRS (tensile 60,000 PSI) 4' x 12 Ga.
Stainless Steel (tensile 85,000 PSI) 4' x 16 Ga.
Soft Aluminum (tensile 28,000 PSI) 4' x 8 Ga.
Min thickness 26 Ga.
Blade Length 52"
Strokes per minute 35
Worktable height 32"
Front support arm 36"
Go-to Back gauge 26" manual back gauge
Blade Rake Angle 2 Degree
Main Motor 4HP, Single Phase 15 AMP
Prewired: 220VAC
Machine weight 2,120 LBS
Shipping weight 2,133 LBS
Machine dimensions 72" x 42" x 67"
Shipping dimensions 80" x 35" x 61"
ISO 9001 certified
American design and Taiwan quality machine
HD all steel construction for maximum rigidity
Precision driven gearbox
Full length 30 strokes per minute
60” long squaring arm with inch / mm scale
spring hold-downs
high grade carbon/chrome alloy steel blades and hardened to 62 hrc,
2-edge indexable upper blade and 4-edge indexable bottom blade

Full length with full view finger guard
Front supports and (2) side gauges
Safety type foot pedal control
Jog, single continuous auto operation modes
One year warranty for parts
