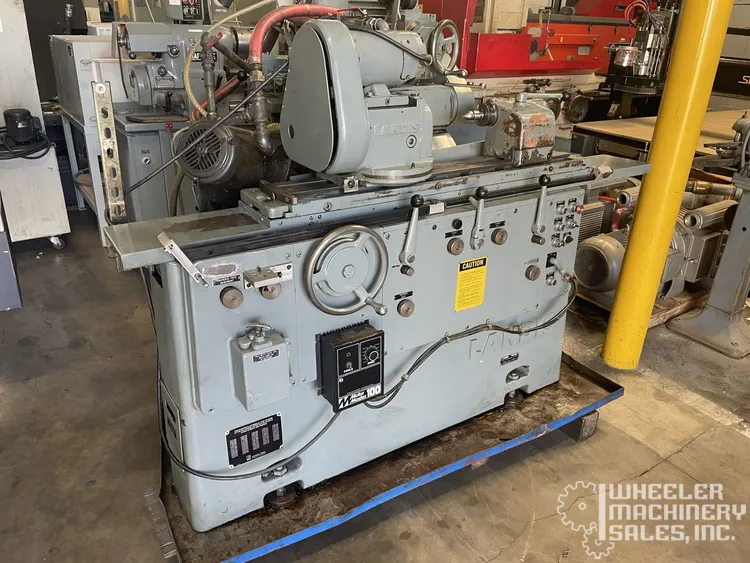

LANDIS 10X20 1R OD Cylindrical Grinder #7886 #2

Manufacturer

LANDIS

Category

Grinding Machines

Type

GRINDERS, CYLINDRICAL, PLAIN

Stock

7886

Model

10X20 1R

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
GRINDERS, CYLINDRICAL- PLAIN
Manufacturer:
LANDIS
Model:
10X20 1R
Stock #:
7886
Status:
For Sale

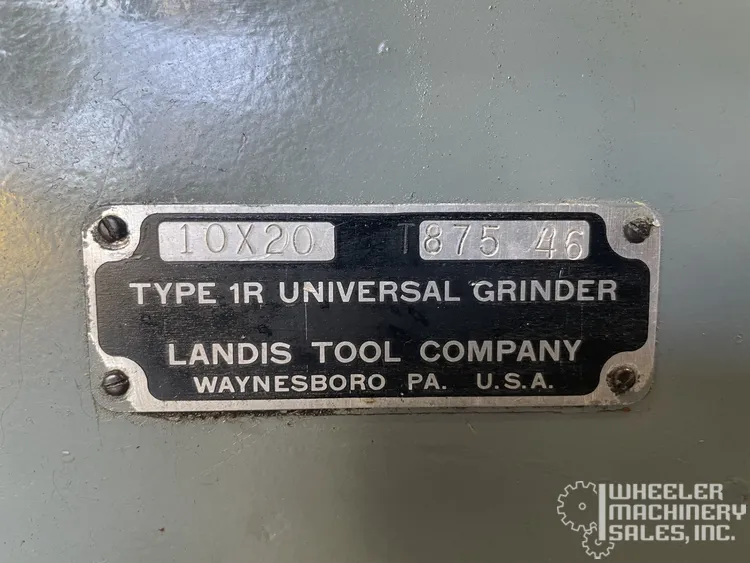

Serial #:
T875 46
Country:
United States

Description

LANDIS 10X20 1R cylindrical grinder available now. This used piece offers reliable performance for precise operations. Ideal for those seeking quality equipment for grinding tasks.

LANDIS 10X20 1R OD Cylindrical Grinder #7886 #2

SPECIFICATIONS:
Swing Over Table, Maximum: 10.875"
Grinding Diameter, Maximum: 10"
Distance Between Centers, Nominal: 20"
Grinding Wheel Diameter, Minimum: 7.5"
Grinding Wheel Diameter, Standard: 12"
Grinding Wheel Width, Maximum: 1.5"
Grinding Wheel Width, Standard: 1"
Grinding Wheel Hole Diameter: 5"
Table Swivel Taper: 4 IPF
Table Swivel Angle: 20-DEGREES
Headstock Swivel Range: 120-DEGREES
Grinding Wheelhead Swivel Range: 90-DEGREES
Workhead Center Taper: #10 JARNO
Tailstock Center Taper: #6 JARNO
(2) Spindle Speeds, Range: 2000 & 2530 RPM
Workhead Spindle Speeds, Range: 60 to 600 RPM
Table Longitudinal Feeds, Infinit:e 2 to 240 IPM

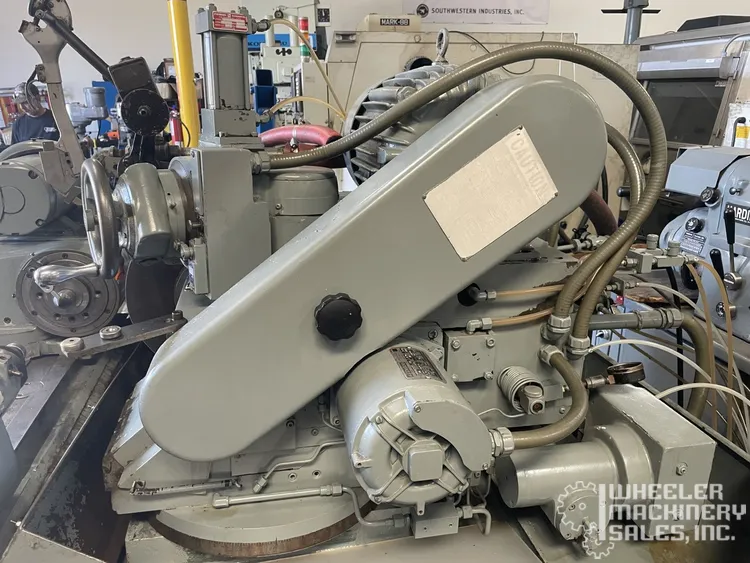

Grinding Wheelhead Spindle Motor: 5 HP/1775 RPM

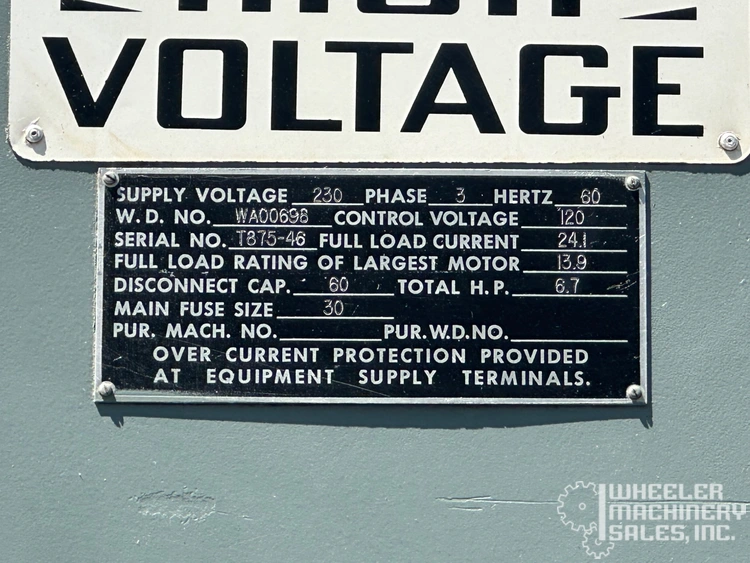

Electrical System: 220-440/3/60
Floor Space Required, L x D: 8'10" x 4'2"
Weight, Approximately: 4100 LBS
