Tree 2UVRC Vertical Mill 10 1/2" x 48" #7580 #1

Manufacturer

TREE

Category

Milling Machines

Type

MILLERS, VERTICAL/UNIVERSAL, CNC

Stock

7580

Model

2UVRC

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
MILLING MACHINES, VERTICAL
Manufacturer:
TREE
Model:
2UVRC
Stock #:
7580
Status:
For Sale

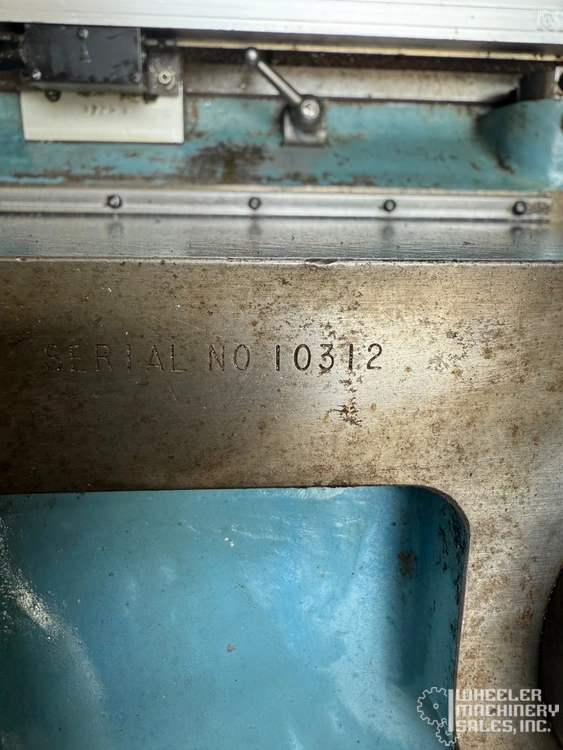

Serial #:
10312
Country:
United States

Description

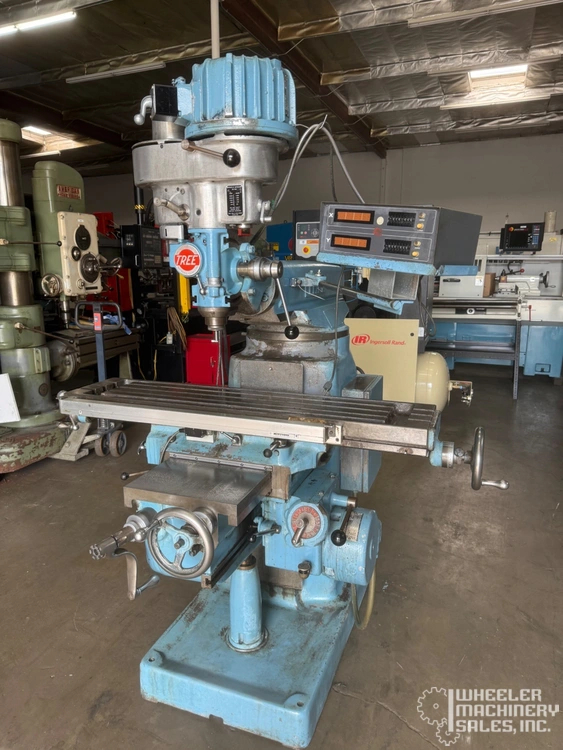

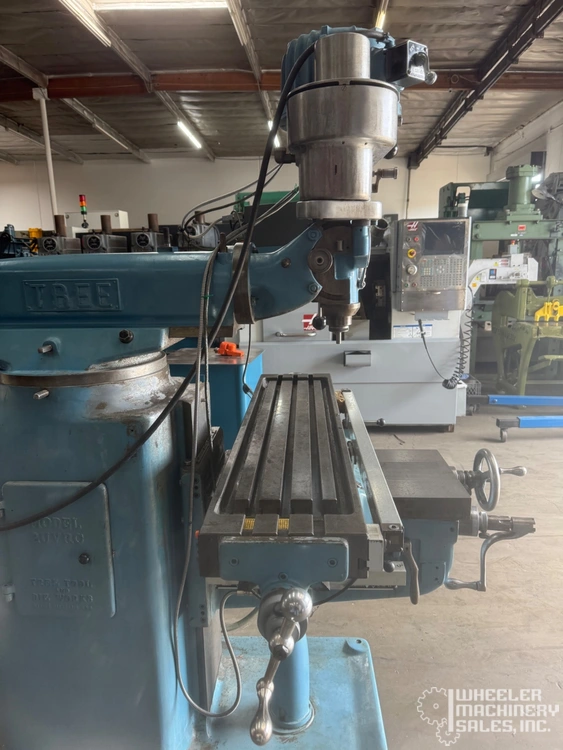

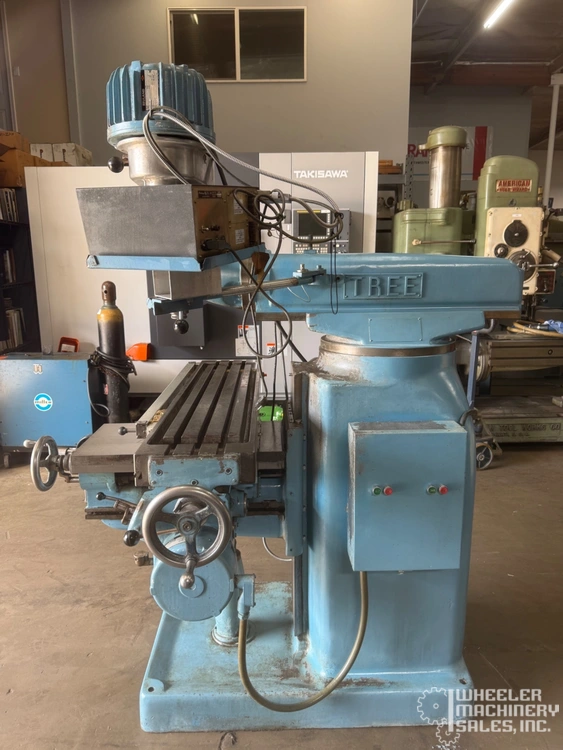

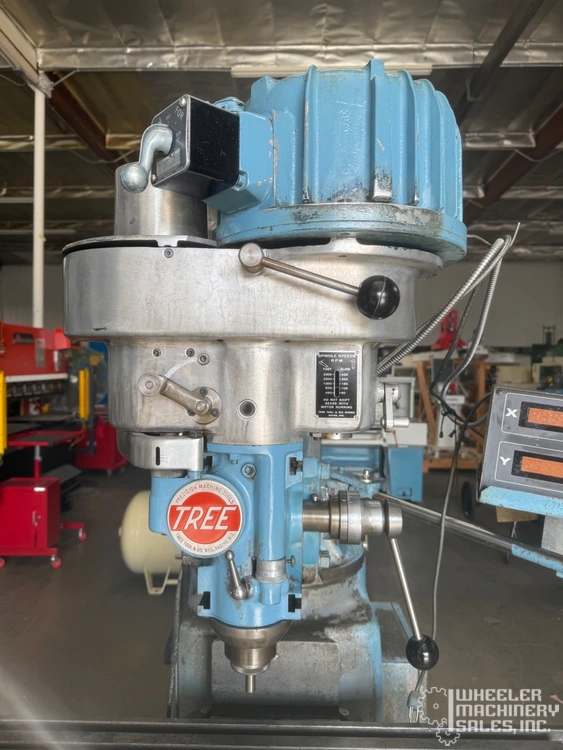

Used TREE 2UVRC Vertical Mill equipped with Mitutoyo Digital Readout, power feeds, and one-shot lube system. Features 10.5" x 48" table, 30" longitudinal travel, and variable spindle speeds up to 3,300 RPM. Compact and efficient for various tasks.

Table-W10"254 mm
Table-L42"1,066.8 mm
Travel-Long25"635 mm
Travel-Cross11"279.4 mm
Power1 hp0.7 kW
RPM3,300 RPM3,300 RPM

Tree 2UVRC Vertical Mill 10 1/2" x 48" #7580 #1

SPECIFICATIONS:
Table Size: 10 1/2" x 48"
Table Longitudinal Travel: 30"
Saddle Cross Travel: 11"
Vertical Knee Travel: 17.5"
Spindle Speeds (Variable): 60- 3,300 RPM
Spindle Nose: Tree Collet
Spindle Quill Travel: 4"
Spindle Quill Feeds (Variable): 0.0015″ to 0.008″
Table Feeds (5): 3/4- 1 3/8- 2 3/8- 4- 7 IPM
Motor: 1 1/2 HP
Dimensions (L x W x H): 60″ x 64″ x 78″
Weight: 2,200 Lbs.

EQUIPPED WITH:

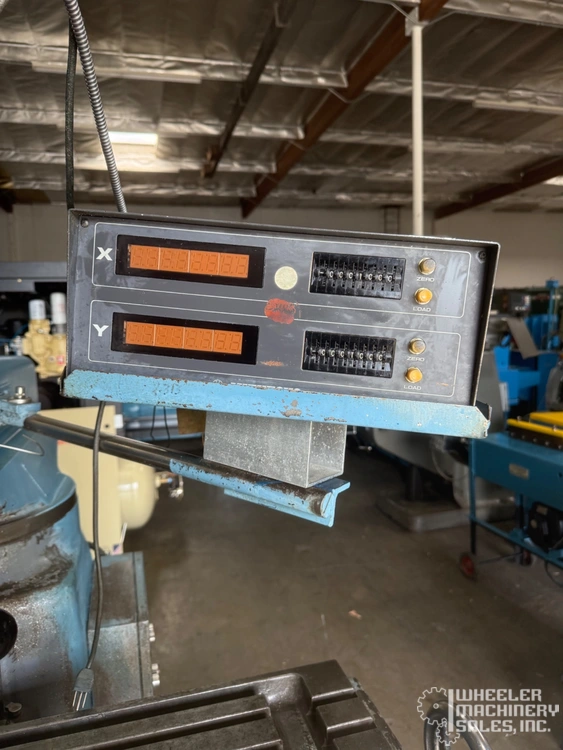

Mitutoyo Digital Readout System
Table Power Feed (Geared)
Cross Saddle Power Feed (Geared)
Knee Power Feed
Box Ways
One Shot Lube System
Work Lamp
