7632
W-9-1
California

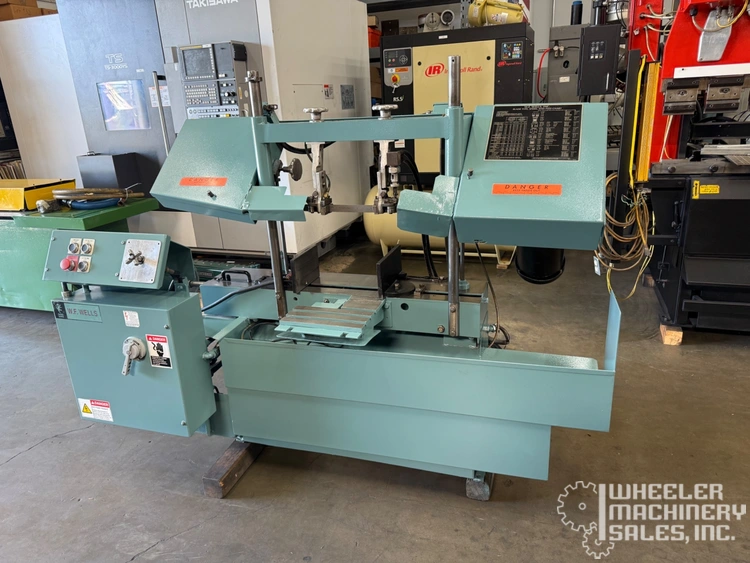

W.F. Wells W-9-1, a used horizontal band saw. Known for precision and durability, this model is ideal for various cutting applications. Perfect opportunity for those seeking reliable performance from a trusted manufacturer.
| Rect-Cap (H) | 9" | 228.6 mm |
| Rect-Cap (W) | 17" | 431.8 mm |
| Rounds-Cap | 9" | 228.6 mm |
| Power | 3 hp | 2.2 kW |
| Type (Auto, Manual, Semi) | Semi-Automatic | Semi-Automatic |
| Blade Width | 1" | 25.4 mm |
| Blade Thickness | 0.035" | 0.889 mm |
| Blade Length | 138" | 3,505.2 mm |
| Dimensions | 81 x 43 x 63 | 81 x 43 x 63 |
| Weight | 990 lbs. | 990 lbs. |
W.F. Wells W-9-1 Horizontal Band Saw #7632 #1
SPECIFICATIONS:
Capacity:
Round:
@ 90°: 9″
@ 45°: 8″
Rectangular:
@ 90°: 9″ x 17″
@ 45°: 9″ x 8″
Weight Capacity: 2,000 lbs.
Blade Speed: 70 – 380 FPM
Blade Size: 138″ x 1″ x .035″
Bandwheel Size: 14 1/2″
Sawing Force: 30 – 120 lbs.
Work Height: 26″
Motor: 3 HP / 208v, 230v, 460v / 3ph OR 1.5 HP / 230v / 1ph
Standard Features:
1″ Bi-Metal, High Production Blade
Manually Controlled Blade Tension
45° Swiveling Vise
Semi-Automatic Operation
Built-In Coolant System
Console Controlled Blade Speed
Blade Powered Cleaning Brush
All Safety Guards
Mechanical Specifications:
Dimensions: 81″ x 43″ x 63″ H
Shipping Weight: approx. 990 lbs.
