7536
W-20
California
WELLSAW W-20 vertical band saw available. Manufactured by WELLSAW, this used model is designed for precision cutting needs. Ideal for workshops seeking reliable and efficient equipment. Contact for more information.
| Throat | 20" | 508 mm |
| Work Height | 24" | 609.6 mm |
| Power | 3 hp | 2.2 kW |
| Blade Width | 0.75" | 19.05 mm |
| Blade Length | 193" | 4,902.2 mm |
| FPM | 3000 | 3000 |
| Dimensions | 32" Wide x 48" Deep x 91.5" High | 32" Wide x 48" Deep x 91.5" High |
| Weight | 1050 Lbs. | 1050 Lbs. |

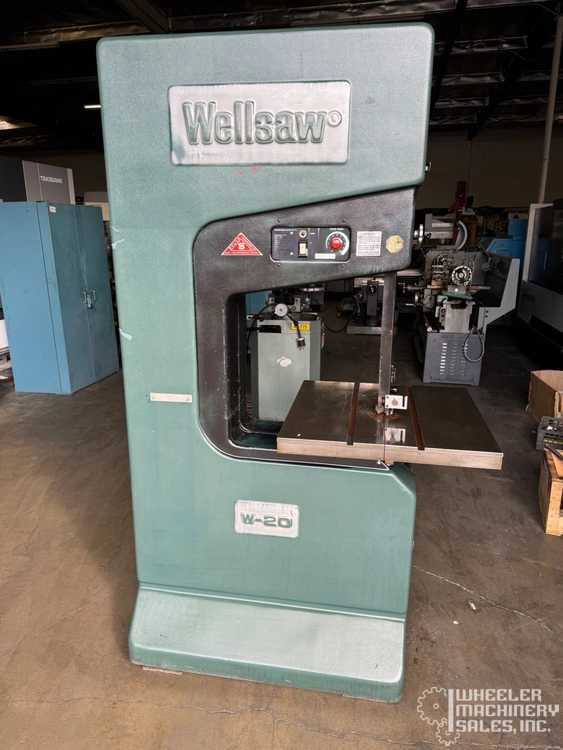

Wellsaw W-20 Vertical Band Saw #7536 #1
SPECIFICATIONS:
Throat: 20″ Deep
Table to Guide: 24″ High
Blade Size: Standard 3/16″ through 3/4″
Blade Length: 16’1″ (193″)

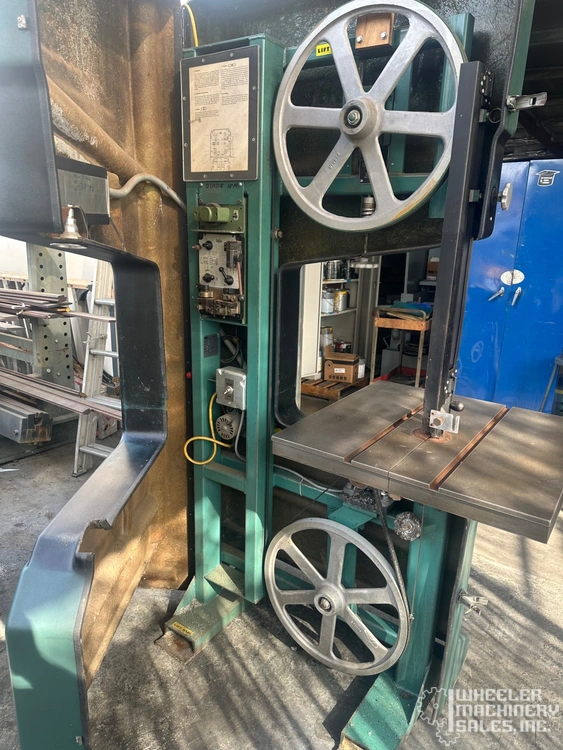

Band Wheels: 21″ Cast Aluminum with Replaceable Rubber Tires

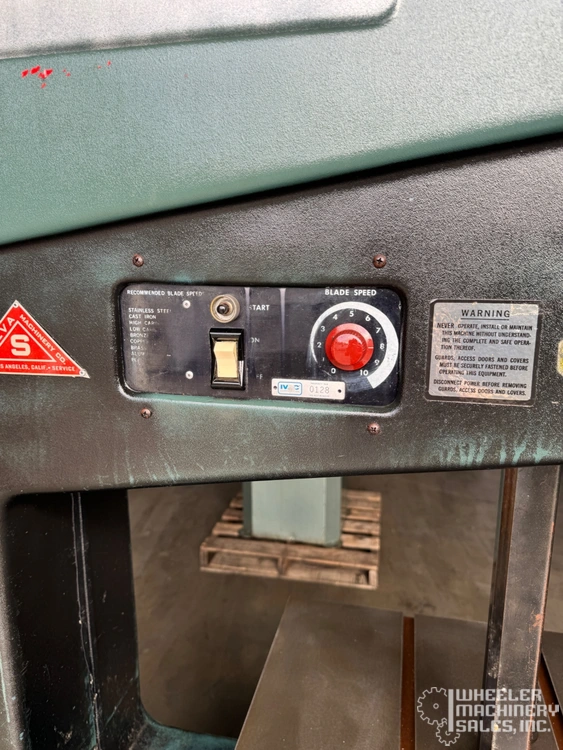

Blade Speeds:
Low Range 45-400 SFPM
High Range 325-3000 SFPM
Blade Guides Sealed Ball Bearings with 90°
Rotation Feature

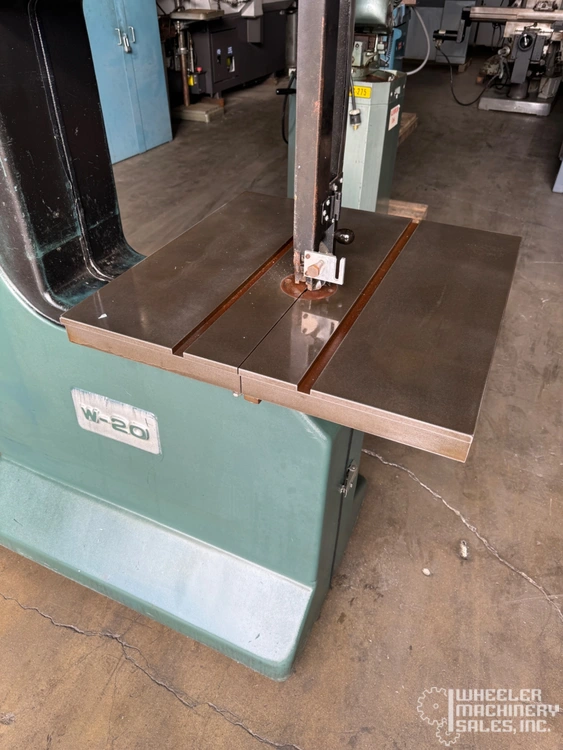

Table Size 26″ x 26″ Cast Iron
Tilt 5° Inside and 45° Outside
Height 37-1/2″

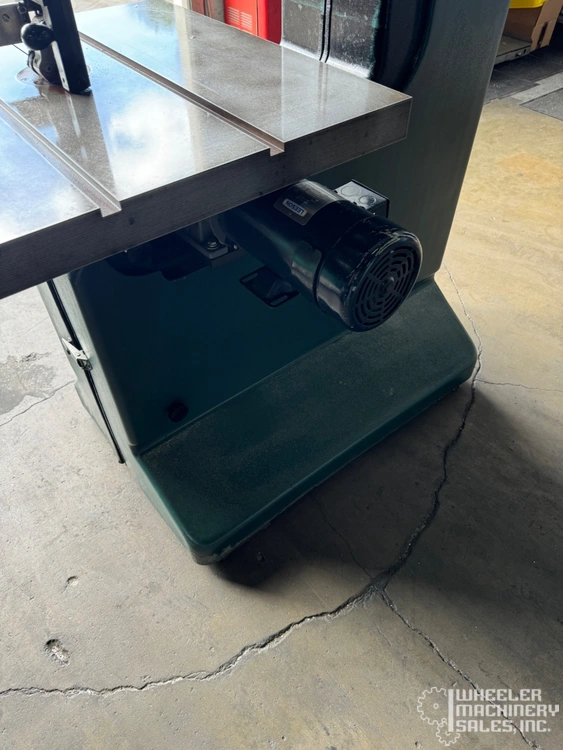

Drive Motor
Three Phase 3hp 208/230/460 Volt
Single Phase 2hp 115/208/230 Volt
Floor Area 32″ Wide x 48″ Deep
Height Standard 91-1/2″
Shipping Weight
Standard 1050 Lbs.
