Acra 2S Vertical Mill 9" x 42" Table #7529 #1

Stock

7529

Model

2S

Dealer Location

California

Spec Sheet

Overview

Type:
MILLING MACHINES, VERTICAL
Manufacturer:
ACRA
Model:
2S
Year:
1986
Stock #:
7529
Status:
For Sale
Serial #:
502029
Country:
United States

Description

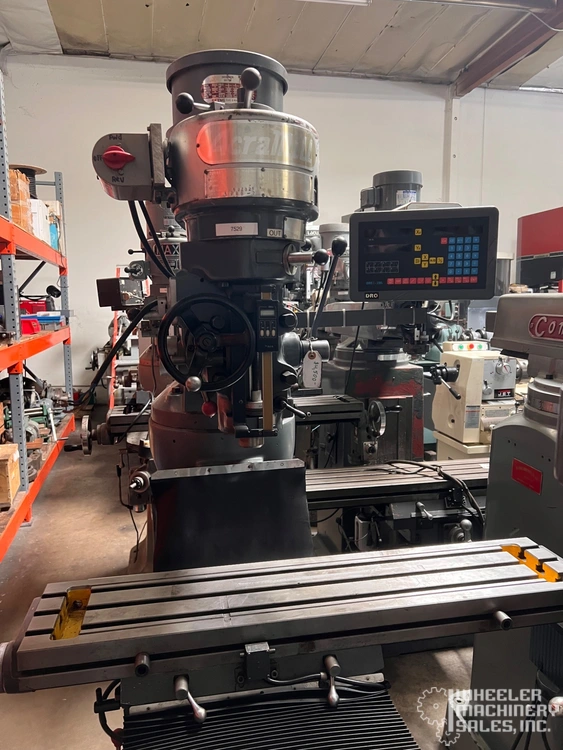

Acra 2S Vertical Mill 9" x 42" by ACRA. Features: 30" longitudinal travel, 12" cross travel, 16" knee travel, 80-2720 RPM spindle speeds, R-8 spindle nose, Mitutoyo digital readout system, servo power feed, chrome ways, and one-shot lube system. Used condition.

Table-W9"228.6 mm
Table-L42"1,066.8 mm
Travel-Long30"762 mm
Travel-Cross12"304.8 mm
Power2 hp1.5 kW
RPM2,720 RPM2,720 RPM
TaperR-8R-8
Dimensions7' x 10'7' x 10'
Weight2000 Lbs2000 Lbs

Acra 2S Vertical Mill 9" x 42" Table #6441 #1

SPECIFICATIONS:
Table Size: 9" x 42"
Table Longitudinal Travel: 30"
Saddle Cross Travel: 12"
Vertical Knee Travel: 16"
Spindle Speeds (8): 80- 2,720 RPM
Spindle Nose: R- 8
Spindle Quill Travel: 5"
Spindle Quill Feeds (3): 0.0015"- 0.003"- 0.006"
Ram Travel: 12"
Motor: 2 HP
Floor Space: 7' x 10'
Weight: 2,000 Lbs.

EQUIPPED WITH:
2-Axis Digital Readout System
Servo Table Power Feed
Way Covers
One Shot Lube System
