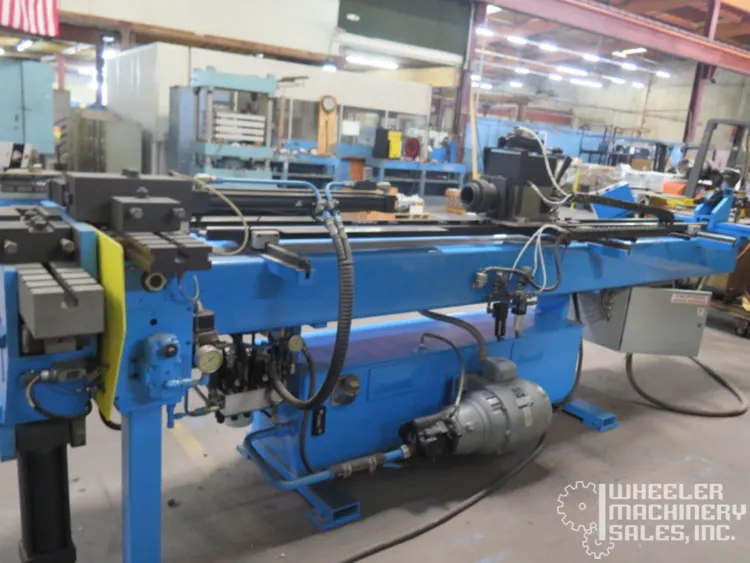

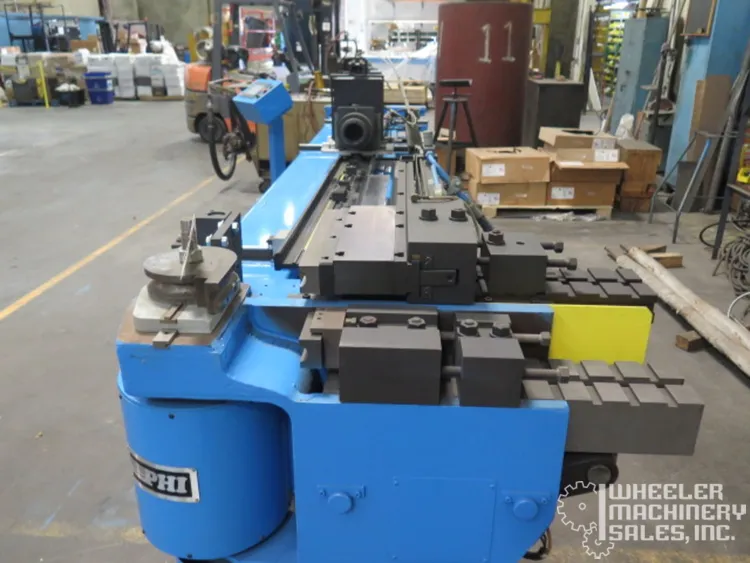

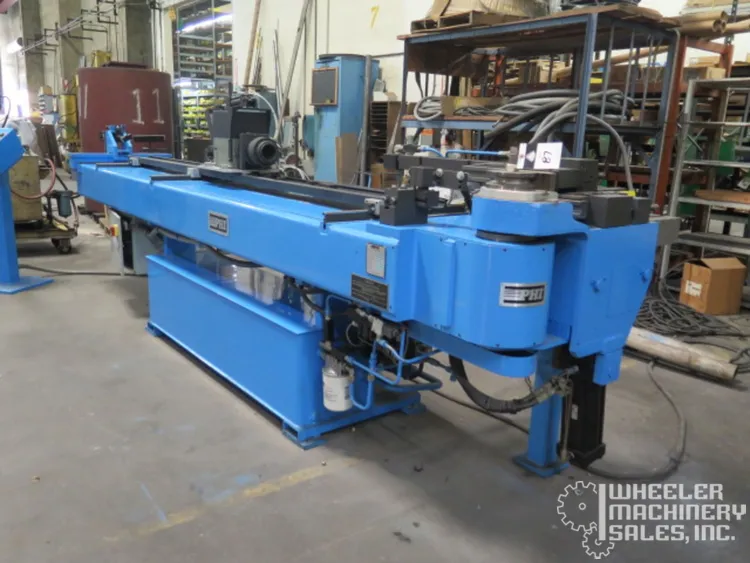

2007 PHI 233R1ABCDE-256 CNC Tube Bender #7462 #1

Stock

7462

Model

233R1ABCDE-256

Dealer Location

California

Spec Sheet

Overview

Type:
BENDERS, PIPE, TUBE & BAR, N/C & CNC
Manufacturer:
PHI HYDRAULICS
Model:
233R1ABCDE-256
Year:
2007
Stock #:
7462
Status:
For Sale

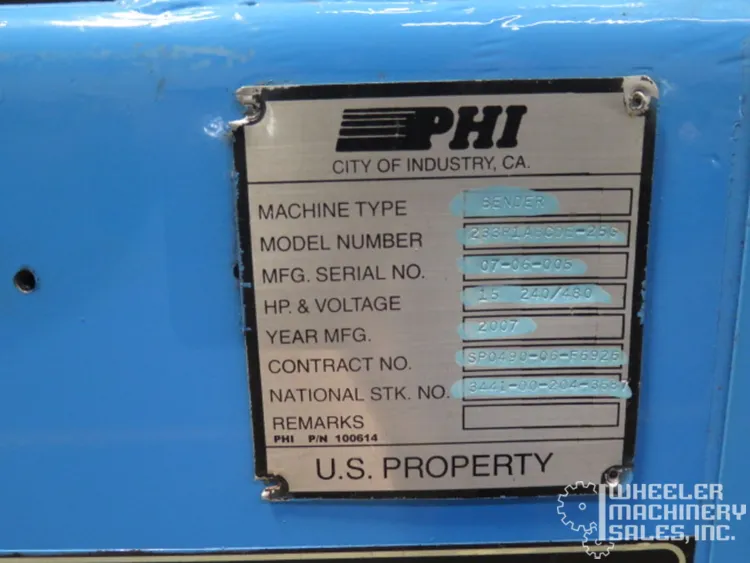

Serial #:
07-06-005
Country:
United States

Description

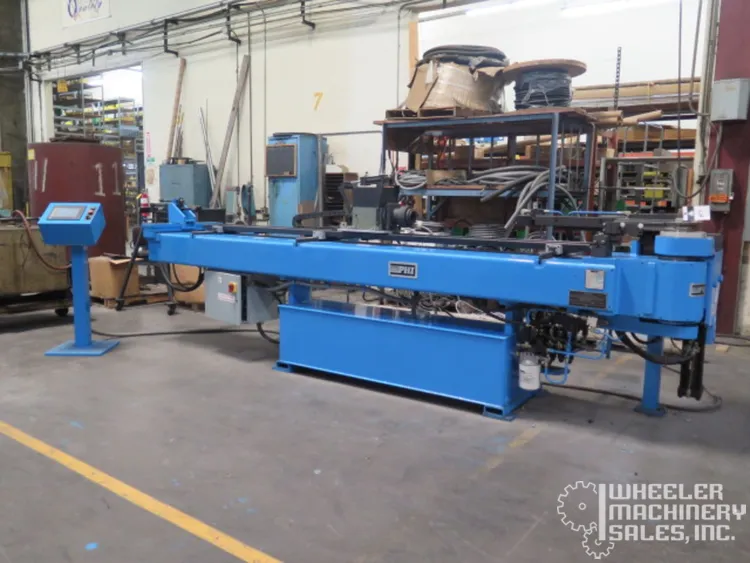

2007 PHI 233R1ABCDE-256 CNC Tube Bender, used, with a 3" tube and 2" pipe capacity. Features touch screen 233 CNC control and clockwise bend. Compact design at 18' long, 73" wide. Perfect for precise bending needs.

2007 PHI 233R1ABCDE-256 CNC Tube Bender #7462 #1
(Remanufactured by PHI in 2024)

SPECIFICATIONS:
Capacity - Tube 3" (75mm) OD X .188 (4.7mm) wall thickness X 2D minimum CLR
- Pipe 2" JPS (60mm) OD X schedule 80 X 3D minimum CLR
Material - Tube 35,000 (930 MPa) psi yield, 35% elongation
- Pipe ASTM A-587 or equivalent
Direction of Bend: Clockwise (counter-clockwise rotation is available on special order)
Center Line Radius (CLR): 15" (38 I mm) standard
Maximum Bend Arm Movement: 195°
Maximum Over-Mandrel Tube Length: 10 feet (3.03m) standard, longer lengths optional
Machine Floor Space: 18' (5.5m) long X 73" ( I 83cm) wide X 52" ( 130cm) high
Shipping Weight: 6,600 lbs. (3000 kg) approximately

EQUIPPED WITH:

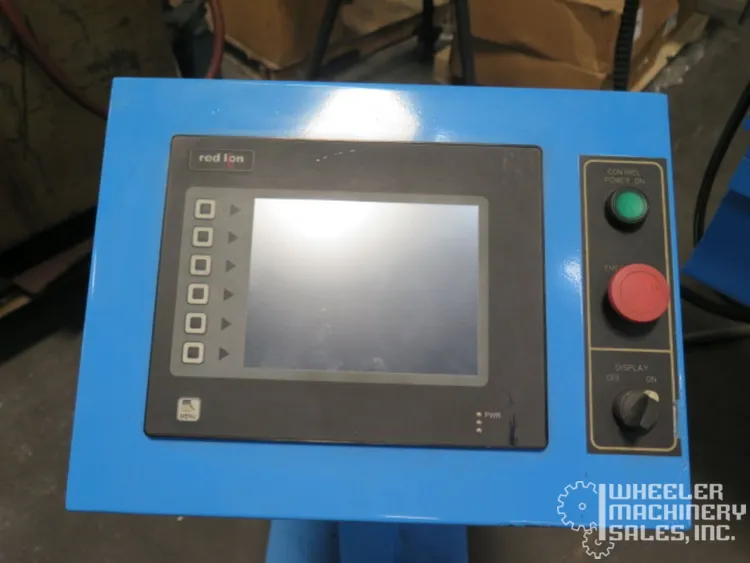

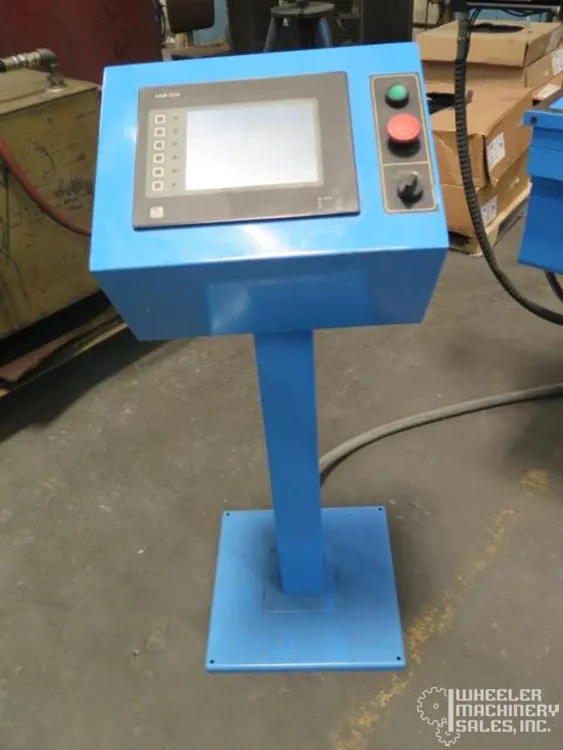

Touch Screen 233 CNC Control
