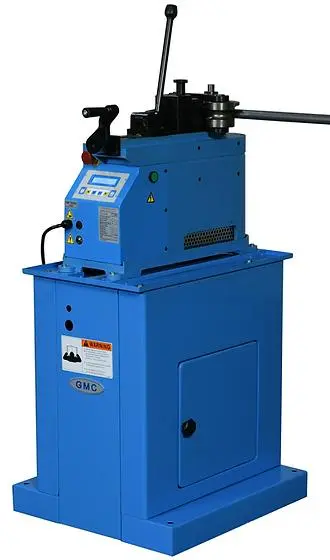

New GMC Hydraulic Rotary Draw Bender DB-60A

Manufacturer

GMC

Category

Benders

Type

BENDERS, PIPE, TUBE & BAR

Stock

7285

Model

DB-60A

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
BENDERS, PIPE, TUBE & BAR
Manufacturer:
GMC
Model:
DB-60A
Stock #:
7285
Status:
For Sale

New GMC Hydraulic Rotary Draw Bender DB-60A

Taiwan Machine

ISO 9001 certified

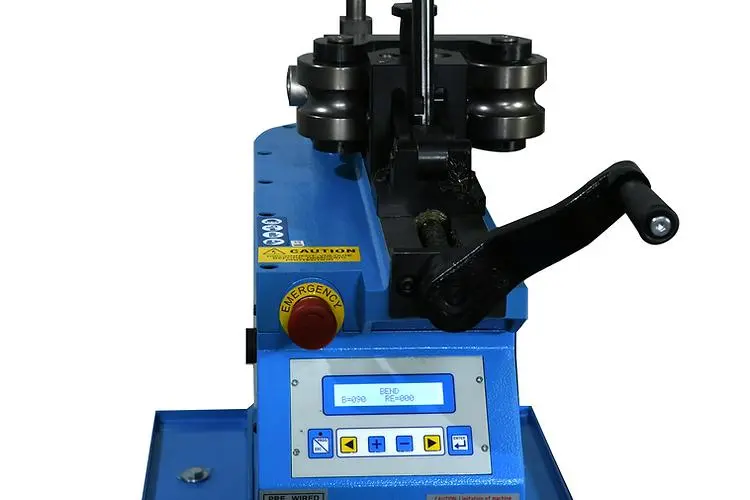

NC-control for bending angle adjustment

LED degree indicator with automatic stop programming, to get as true reading of bending degree.

Up to 50 jobs memory; each job program contains 9 steps

Counter roller holder comes standard with quick adjustment

This easy to use hydraulic tube draw bender has an incredible capacity of 2” tube with .12” wall thickness and 1-1/2” schedule# 40 pipe

1-1/2 HP motor, 220VAC, Single Phase

Quick tooling changes

With deluxe stand

One year warranty for parts

Specifications

GMC DB-60A

Capacity:

Minimum CLR

Minimum OD

Solid Rod, mild steel

Round Tube, mild steel (wall thickness)

Round Pipe, mild steel, schedule 40

Round Tube, SS steel (wall thickness)

Round Pipe, SS steel, schedule 40

Aluminum round Tube (wall thickness)

½”

¼”

1”

2” (.125”)

1-1/2”

1-1/2”(.125”)

1-1/4”

2” (3/16”)

Maximum centerline Radius

6-1/2” CRL

LED programming

50 job memory

Main motor

1.5HP, 220V,1phase

Weight

327 LBS

Machine dimensions, LxWxH

27” x 9” x 51”
