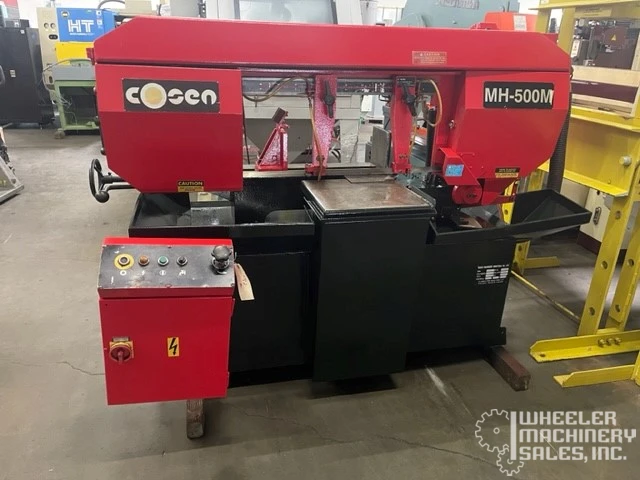

Cosen MH-500M Semi-Automatic Mitering Horizontal Band Saw 13" x 20" #6980 #1

Manufacturer

COSEN

Category

Saws

Type

SAWS, BAND, HORIZONTAL

Stock

6980

Model

MH-500M

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
SAWS, BAND, HORIZONTAL
Manufacturer:
COSEN
Model:
MH-500M
Stock #:
6980
Status:
For Sale

Description

Cosen MH-500M 13"x20" used horizontal band saw offers mitering from 0° to 60°, blade speeds up to 246 FPM, and features a hydraulic vise and adjustable coolant system. Ideal for precision cutting needs. Specs: Motor 3 HP, weight 1,980 lbs.

Cosen MH-500M Semi-Automatic Mitering Horizontal Band Saw 13" x 20" #6980 #1

SPECIFICATIONS:

Capacity:
0°:
Round: 13″
Rectangular: 11″ x 19.7″
+45°:
Round: 11.8″
Rectangular: 11″ x 9.4″
+60°:
Round: 8.6″
Rectangular: 11″ x 8.6″
Blade Speed: 60Hz – 75, 114, 164, 246 FPM
Blade Size: 13′ 7″ x 1″ x .035″
Work Bed Height: 32.6″
Coolant Tank Capacity: 7.9 Gallons
Hydraulic Tank Capacity: 2.08 Gallons
Motor: 3 HP
Floorspace: 80 1/2″ x 41.6″ x 57.8″ H
Weight: approx. 1,980 lbs.

STANDARD FEATURES:
Swivel saw head allows miter cutting from 0° to 60°
Hydraulic cylinder plus precision ground hinge support
Hardened worm gear for durability
Hard stops at 0°, 45°, and 60° for quick angle set-up
Blade drive equipped with variable pulley system
Adjustable flood coolant system
Motor-driven, synchronized wire blade brush
Carbide blade guides and bearing provides additional blade support
Rigid cast-iron guide arms
Cast-iron hydraulic vise
Adjustable down feed control
Adjustable material stop
Saw head automatically raises after each cut
