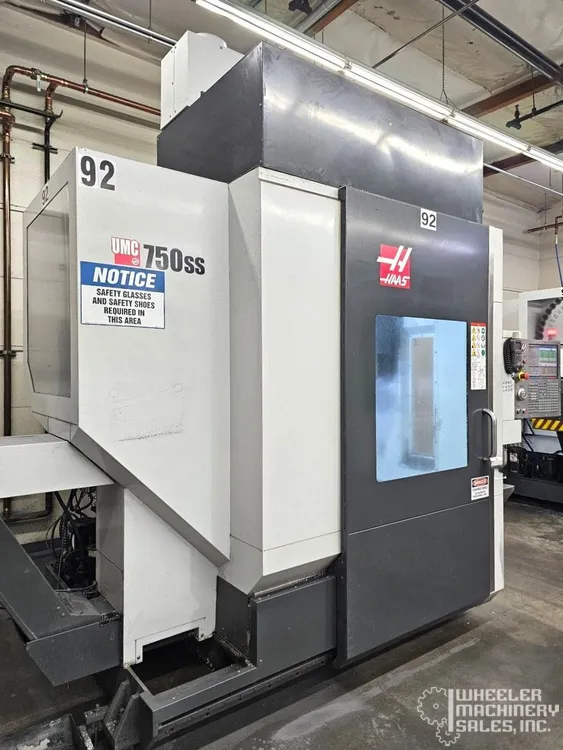

2017 HAAS UMC-750SS 5-Axis Vertical Machining Center #8097

Manufacturer

HAAS

Category

Machining Centers

Type

MACHINING CENTERS, CNC, 5-AXIS or MORE

Stock

8097

Model

UMC-750SS

Dealer Location

California

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Overview

Type:
MACHINING CENTERS, VERT., N/C & CNC, 5-AXIS
Manufacturer:
HAAS
Model:
UMC-750SS
Year:
2017
Stock #:
8097
Status:
For Sale

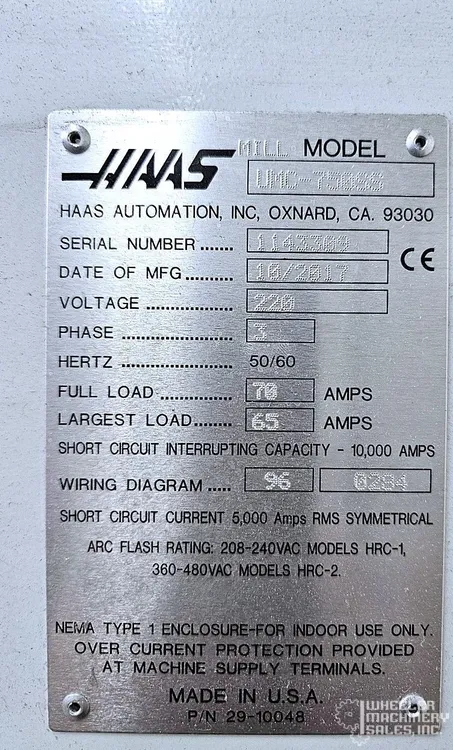

Serial #:
1143309
Country:
United States

Description

2017 HAAS UMC-750SS 5-Axis Machining Center: Experience high-speed machining with a 15,000 RPM spindle, 40-position ATC, 2-axis trunnion table, and advanced HAAS CNC control. Features Renishaw wireless system and dynamic work offsets. Great for precise projects.

2017 HAAS UMC-750SS 5-Axis Vertical Machining Center #8097

FEATURES:

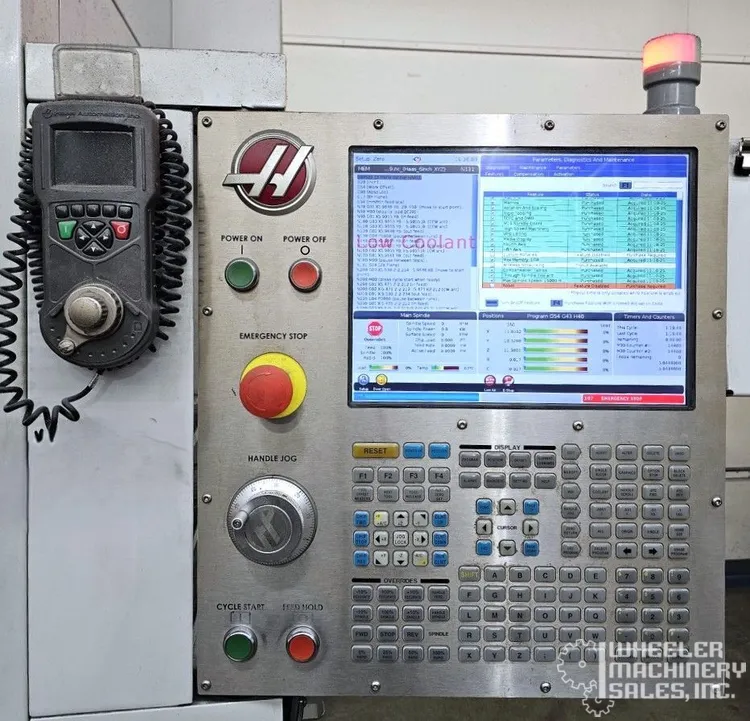

HAAS CNC CONTROL WITH DIGITAL HAND WHEEL

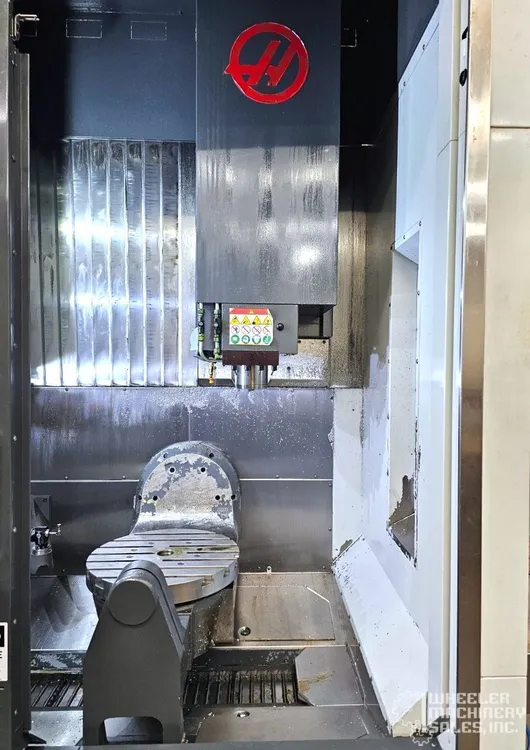

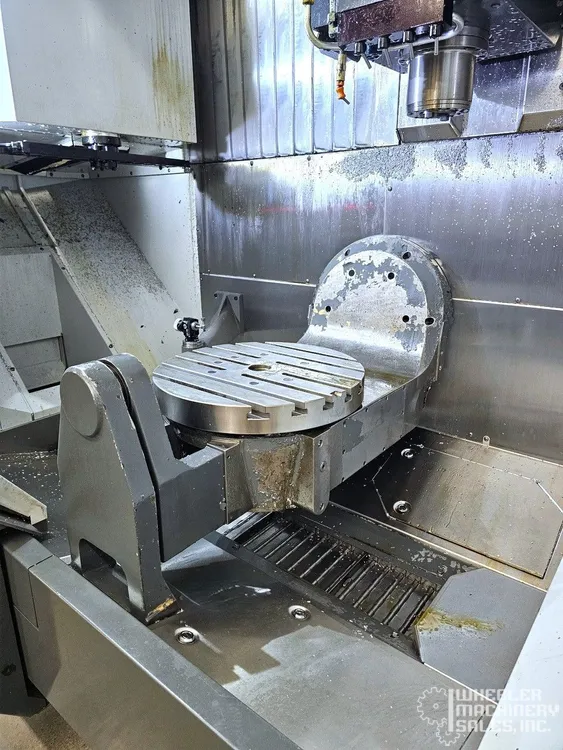

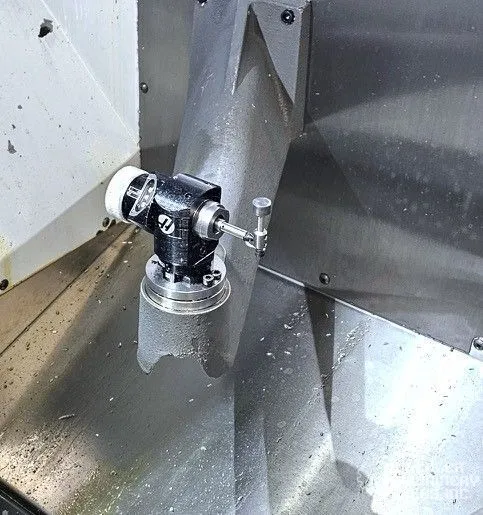

2-AXIS TRUNNION TABLE

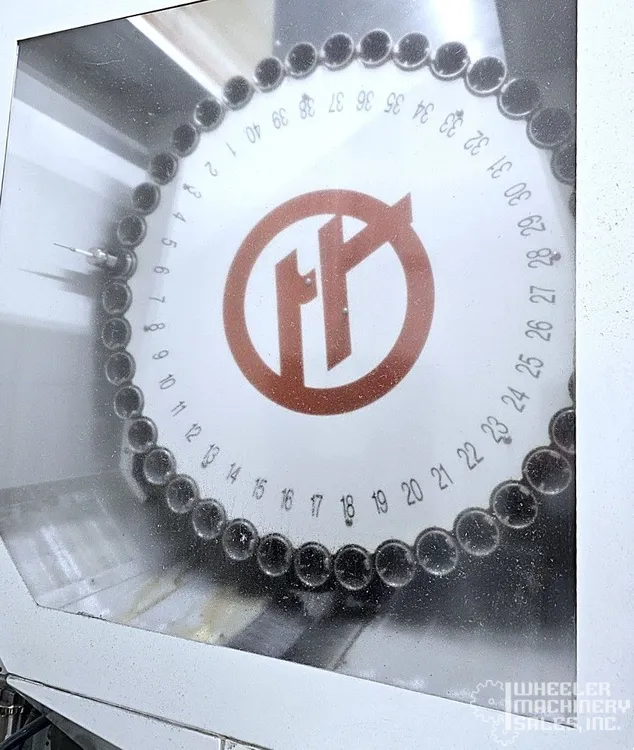

40-POSITION ATC

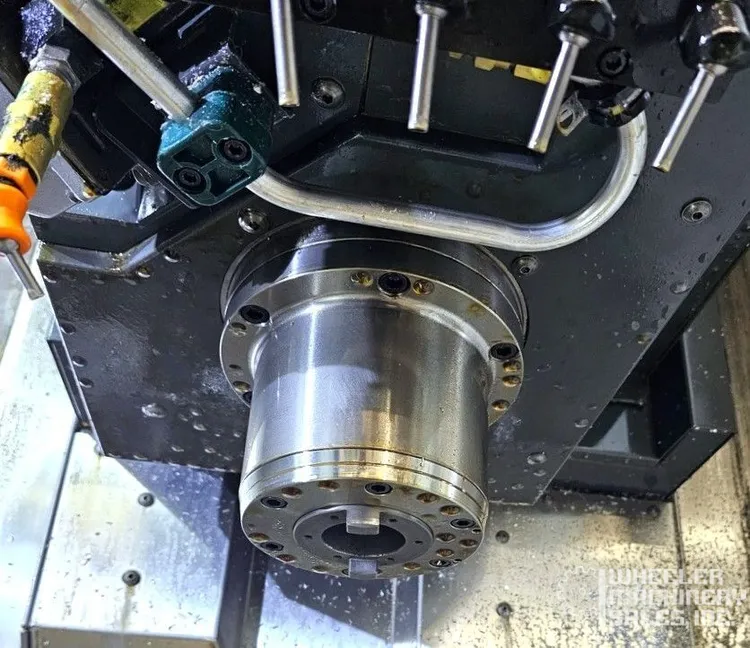

15,000 RPM SPINDLE HIGH SPEED MACHINING
THRU SPINDLE COOLANT RIGID TAPPING
RENISHAW WIRELESS SYSTEM
RENISHAW OTS TOUCH-OFF PROBE MACROS
ROTATION AND SCALING
RIGID TAPPING
DWO -DYNAMIC WORK OFFSETS
TCPC - TOOL CENTER POINT CONTROL
M19 SPINDLE ORIENTATION
HIGH SPEED MACHINING, VPS EDITING
COMPENSATION TABLES

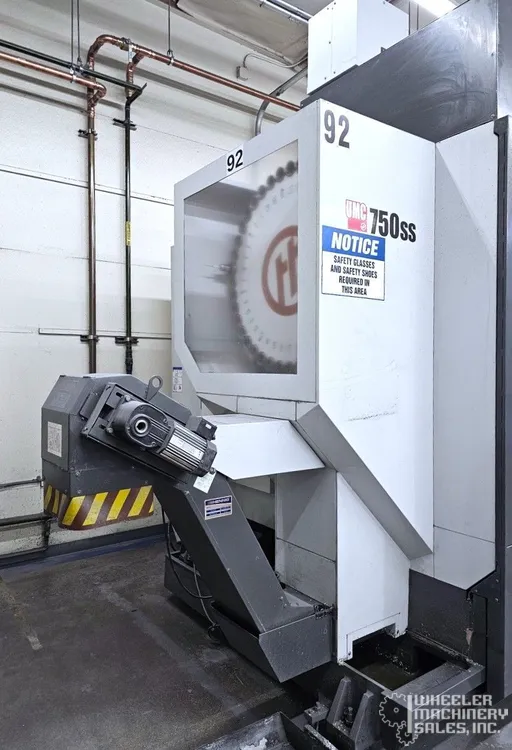

CHIP CONVEYOR
COOLANT

SPECIFICATIONS:
X-AXIS TRAVEL: 30"
Y-AXIS TRAVEL: 20"
Z-AXIS TRAVEL: 20"
MAX. PART SWING: 27"
SPINDLE TAPER: CT 40
SPINDLE NOSE TO TABLE: 4"-24"
SPINDLE MOTOR: 30 HP
SPINDLE SPEEDS: TO 15,000 RPM

TABLE:
B-AXIS TILT/TRAVEL: +120/-35 DEGREES
C-AXIS ROTATION: 360 DEGREES
TABLE DIAMETER: 19.7"
TABLE WORK WEIGHT CAPACITY: 660 LBS.

EQUIPPED WITH:
HAAS CNC CONTROL WITH 1 GB MEMORY EXPANSION
RJH-C - REMOTE JOG HANDLE WITH COLOR LCD
ETHERNET INTERFACE
HAAS CONNECT OPTION
2-AXIS PROGRAMMABLE TRUNNION TABLE
40-POSITION AUTOMATIC TOOL CHANGER
15,000 RPM SPINDLE
HIGH SPEED MACHINING VPS EDITING
HOME - SECOND HOME POSITION
MEDIA DISPLAY - MEDIA DISPLAY M-CODE
WIPS-R-EC RENISHAW INTUITIVE PROBING
RENISHAW OTS TOUCH-OFF PROBE
MACROS
UMC-750SS - VMC UMC MEDIUM
ROTATION AND SCALING
RTAP-3 RIGID TAPPING
DWO-DYNAMIC WORK OFFSETS & TCPC-TOOL CENTER POINT CONTROL
M19 SPINDLE ORIENTATION
COMPENSATION TABLES
PROGRAMMABLE COOLANT NOZZLE

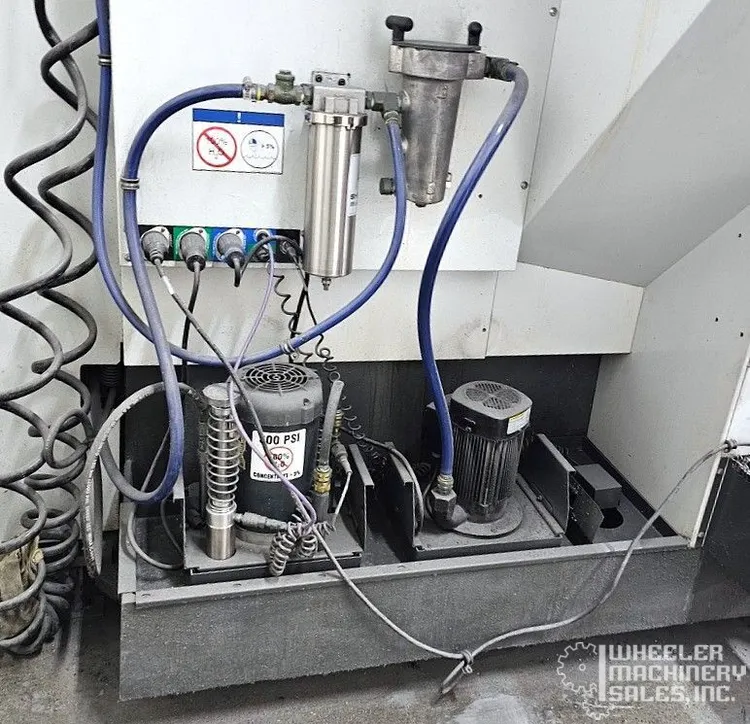

300 PSI THRU SPINDLE COOLANT
EC-E4 BELT-TYPE CHIP CONVEYOR

LOCATION: Under Power in Northern California Semiconductor Plant
