1/4" x 12', TRU-FAB (WYSONG), No. S-1225, hyd., 36" PFOBG, 10 HP, 1995 Our stock number: 7203

Manufacturer

Category

Shears

Type

SHEARS, POWER SQUARING (Inches)

Stock

7203

Model

None listed

Dealer Location

Florida

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

Model number S-1225

SPECIFICATIONS:
Maximum cutting length 144"
Maximum shearing capacity--mild steel 1/4"
--stainless 5/32"
Rake angle of upper blade 5/16 ipf
Number of strokes per minute 11
Number of holddowns solid cushion
Backguage length 36"
Main motor power 10 HP
Dimensions (L x W x H) 161" x 63" x 72"
Net weight, approx. 11,500 lbs

STANDARD FEATURES & ACCESSORIES:

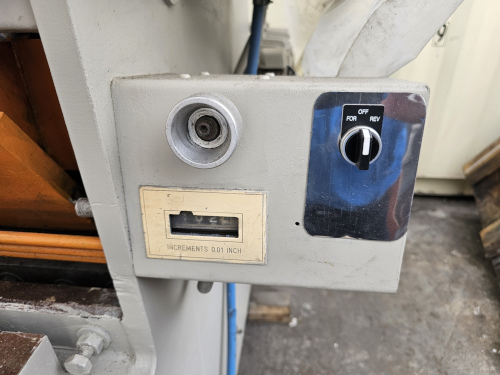

36" power front-operated back gauge with mechanical readout counter
and push button controls and handwheel for fine adjustment (0.01")
10' right-hand squaring arms with scale
Electronic foot switch on a trailing lead
Can by run in single, continuous or inch mode
