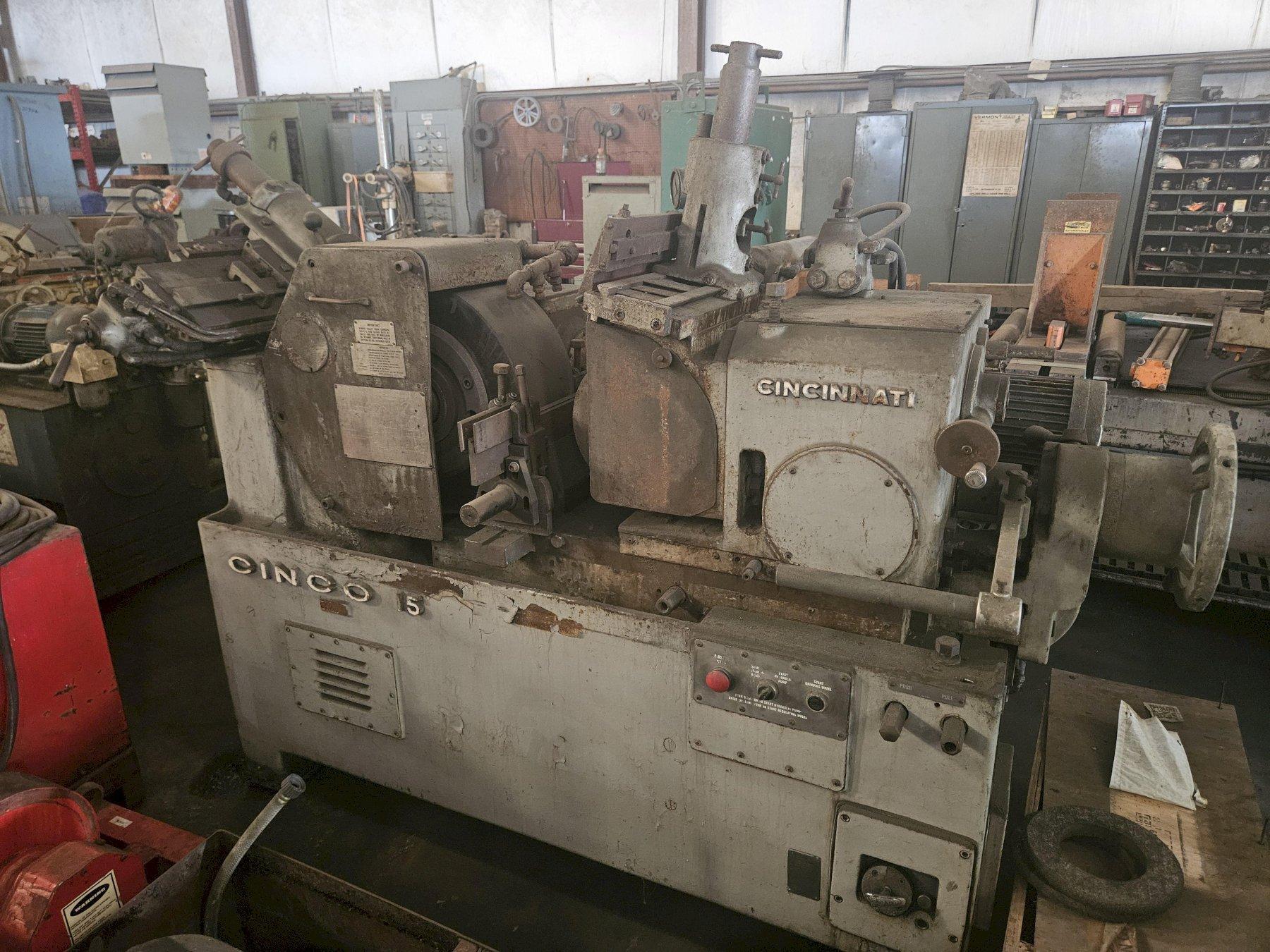

Cincinnati Model CINCO 15 Centerless Grinder

Manufacturer

CINCINNATI

Category

Grinding Machines

Type

GRINDERS, BELT, CENTERLESS

Stock

0110576

Model

CINCO 15

Dealer Location

Texas

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



Cincinnati Model CINCO 15 Centerless Grinder
S/N: 9M8H5S-85          Year: 1966

Specification:

Capacity, Diameter: 0 to 3" (Standard); 4" (Max)
Grinding Wheel Width:  8"
Grinding Wheel Diameter: 17" to 24"
Regulating Wheel Width:  8"
Regulating Wheel Diameter: 12"
Regulating Wheel Speeds (INF.) 10 to 300 RPM
Grinding Wheel Motor: 15 HP
Regulating Wheel Motor: 1.5 HP
Infeed Adjustment:  0.001"
Electrical Requirements: 220V/ 3PH/ 60Hz

Equipped With:

Updated Electrics 230V/ 3PH/ 60Hz
Filmatic Bearings
Electro-Hydraulic Infeed
Hydraulic Grinding and Regulating Wheel Dressers
Coolant Tank and Pump
Bar Feed
Approx. Floor Space:  90" x 50"
Approx. Weight: 8500 lbs
