1/2" x 12' Webb Initial Pinch Power Roll

Manufacturer

WEBB

Category

Fabricating Machines

Type

BENDING ROLLS

Stock

0110506

Model

9L-1312 L.H.

Dealer Location

Texas

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet

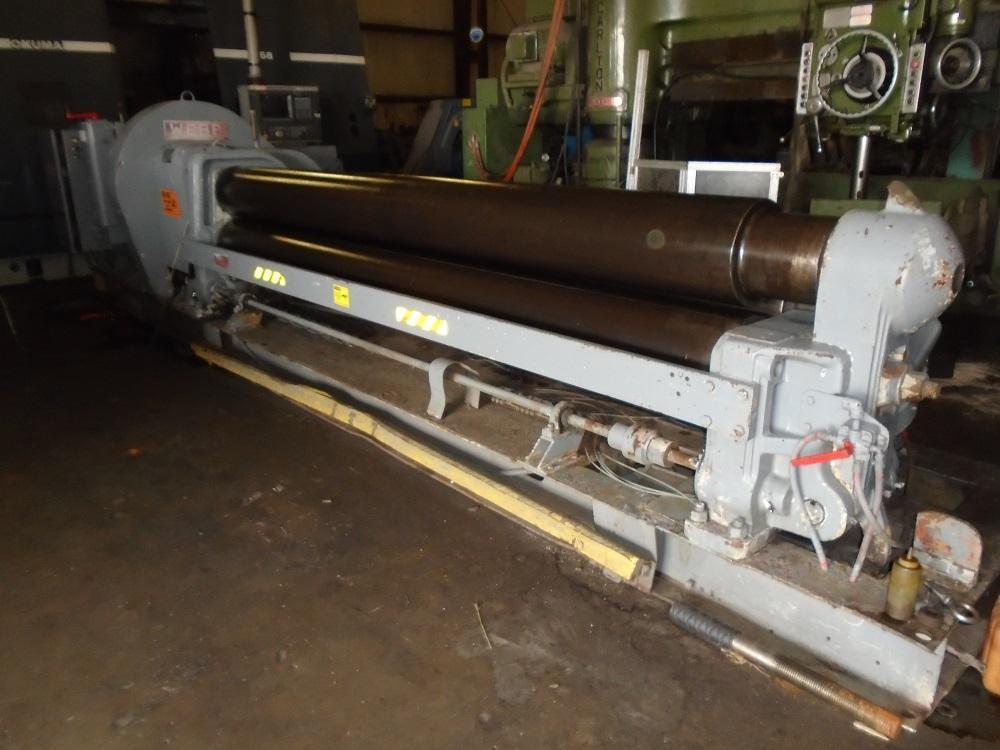

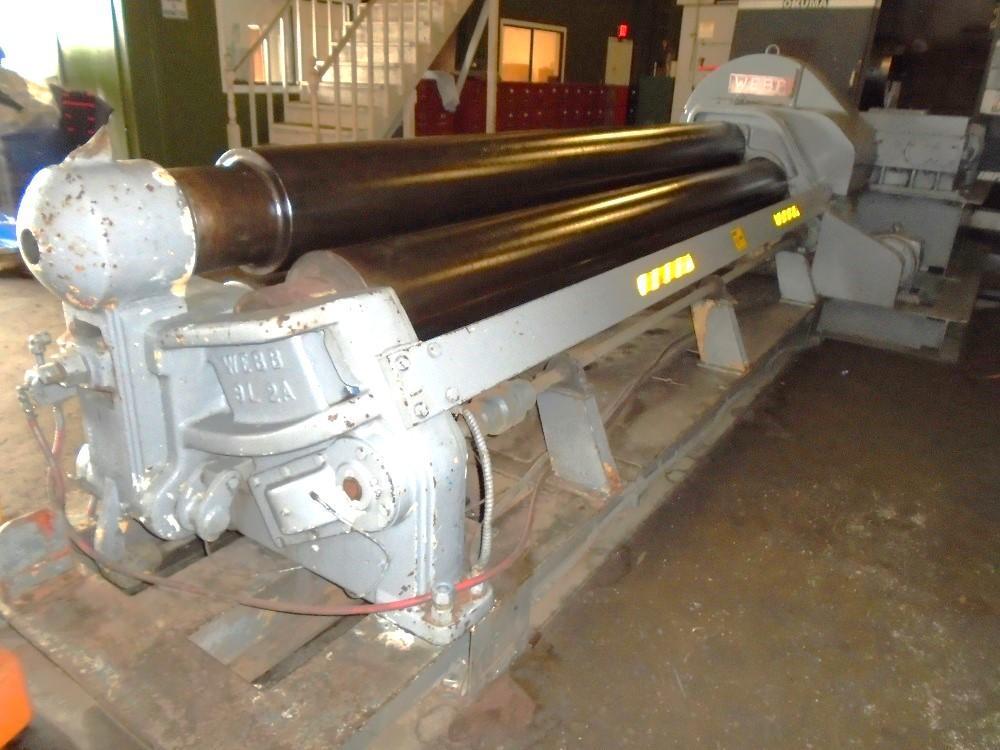

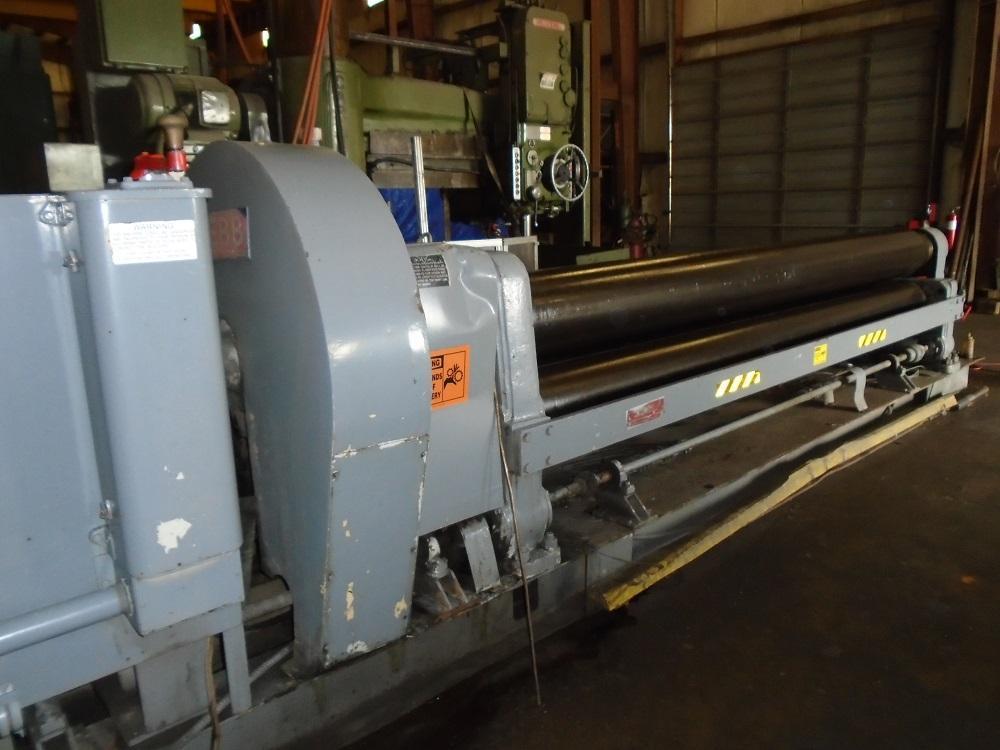

1/2" x 12' Webb Initial Pinch Power Roll
Model: 9L-1312 L.H.      Year 1975
S/N: 74142

Specifications:

Capacity: 1/2" (Mild Steel)
Max Forming Length:  12'
Roll Diameter:  13"
Rolling Speed: 6 to 12 FPM (vari)
Horsepower:  20

Equipped With:

Air Drop End
Power Front Pinch Roll Adjustment
Power Rear Roll Adjustment
Cone Rolling Attachment
Mechanical Indicator
Emergency Cable Stop

Dimensions:  267" x 78" x 68"
Weight:  29,500 lbs.
