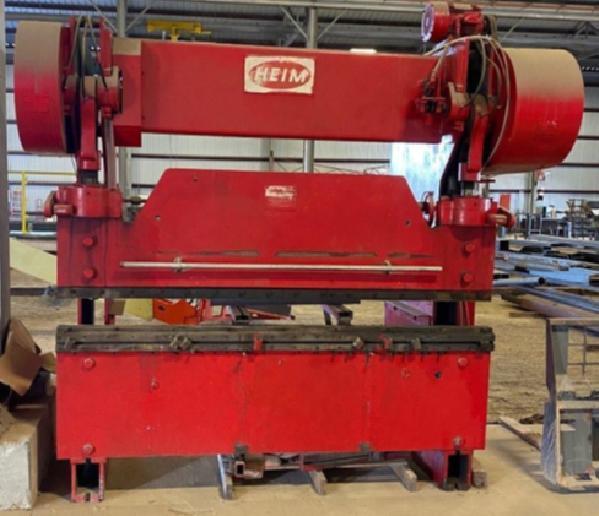

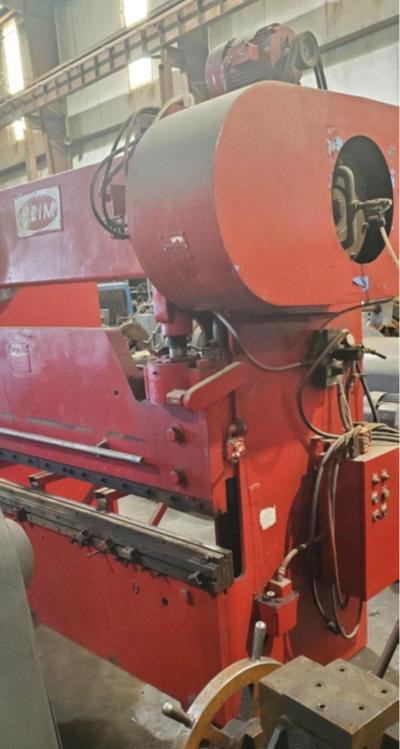

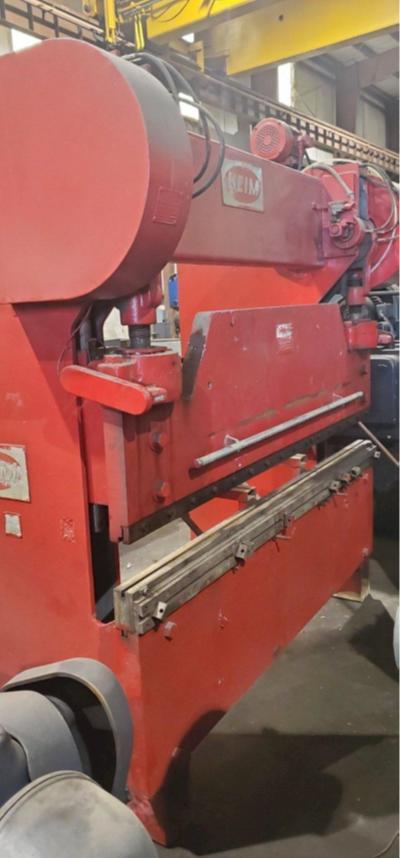

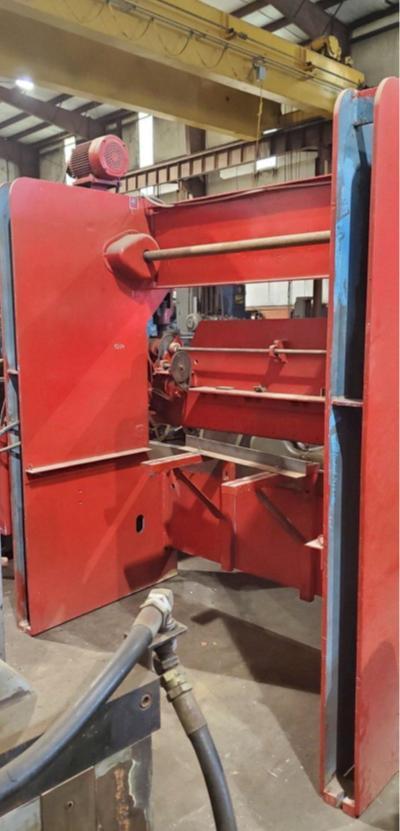

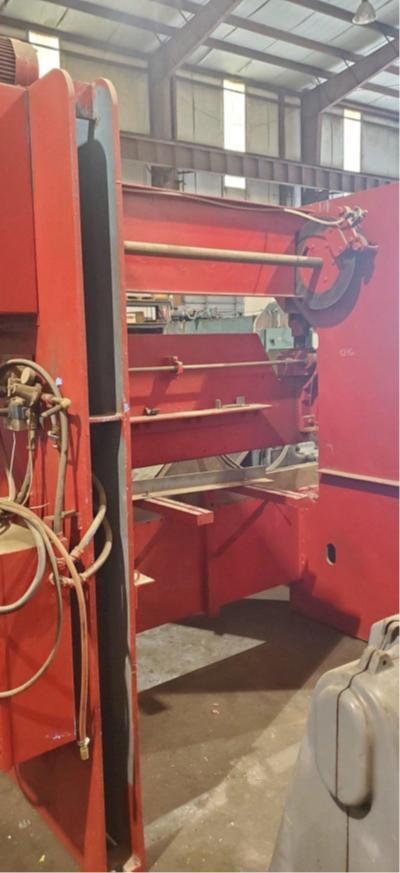

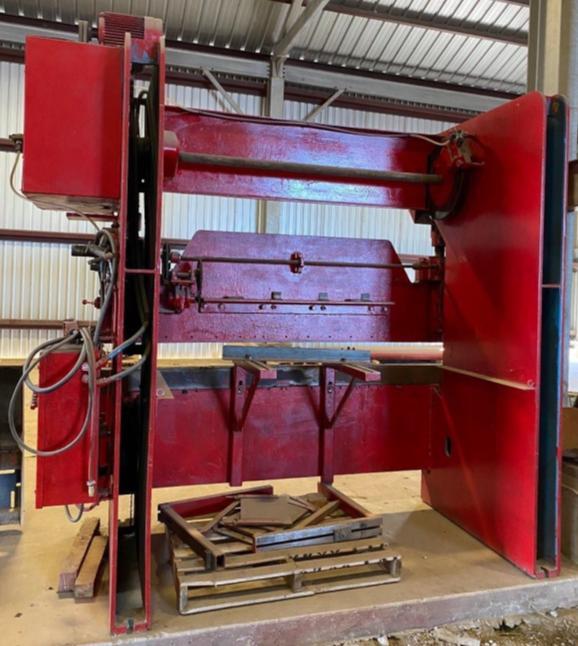

75 Ton x 8' Heim Mechanical Air Clutch Press Brake

Manufacturer

HEIM

Category

Brakes (including Press Brakes)

Type

BRAKES, PRESS, PNEUMATIC

Stock

0110399

Model

75-8

Dealer Location

Texas

Request a Quote
Login to Access Additional Features
View Contact Information

Spec Sheet



75 Ton x 8'Heim Mechanical Air Clutch Press Brake
Model 75-8

Specifications:

Capacity:  75 Tom
Overall Length:  8'
Between Housing Length:  6' 4"
Throat Depth: 8"
Stroke:  3"
Power Ram Adjustment:  3-1/2"
Die Space SDAU:  12"

Approx. Weight:  9,700 lbs.

Equipped With:

8' Lower Die Holder
Front and Rear Support Branches
Power Ram Adjustment
Electric Foot Switch

Lubrication Pump
