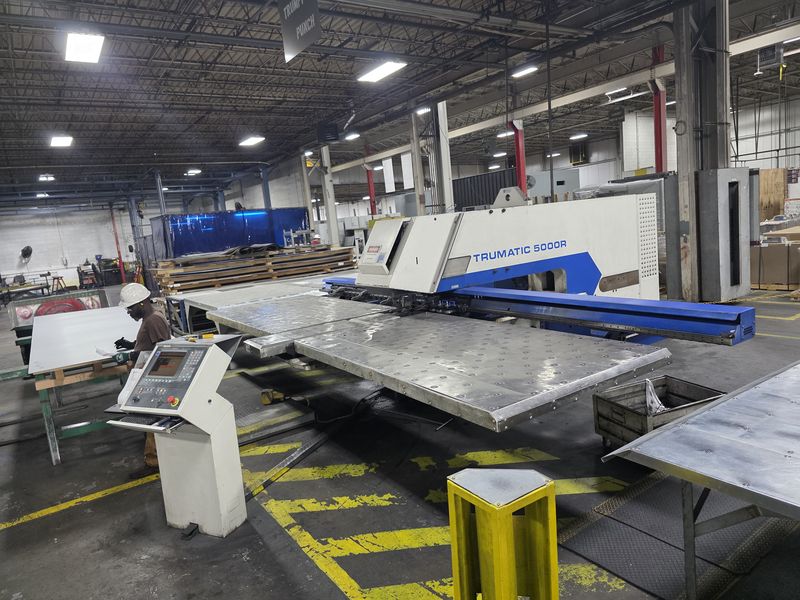

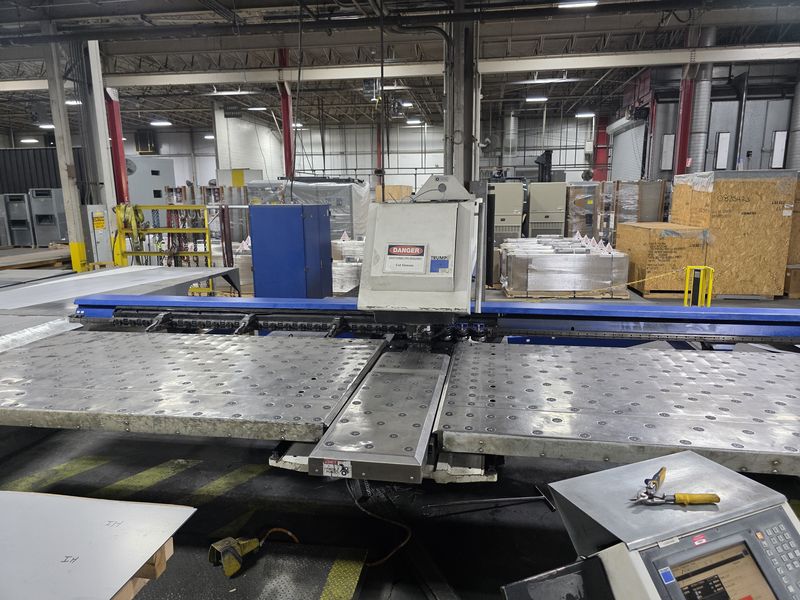

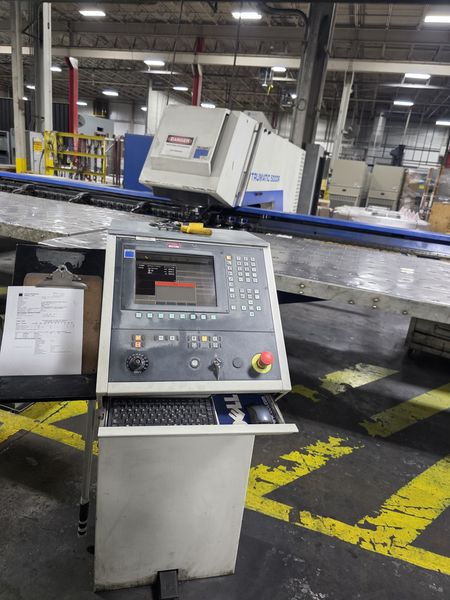

Trumpf Trumatic 5000 R CNC Punch Press

Manufacturer

Trumpf

Stock

131260001

Model

Trumatic 5000 R

Dealer Location

Georgia

Spec Sheet

  • Stock #: 131260001
  • Brand: Trumpf
  • Model: Trumatic 5000 R
  • Year: 2005
  • Loading Fee: Decommissioning and Rigging Required

Specifications

  • Press Capacity: 25 Tons
  • Type of Punching Force: Hydraulic
  • X-Axis Travel: 120″
  • Y-Axis Travel: 60″
  • Throat Depth: 60″
  • Maximum Material Thickness: 0.31″
  • Table Axis Feed Rate: 4,600 IPM
  • Maximum Stroke Length – Punching: 1200 HPM
  • Maximum Stroke Rate – Marking: 2800 HPM
  • Number of Tool Stations: 18 Rail Mounted

Additional Info

Machine can be demonstrated upon request.
